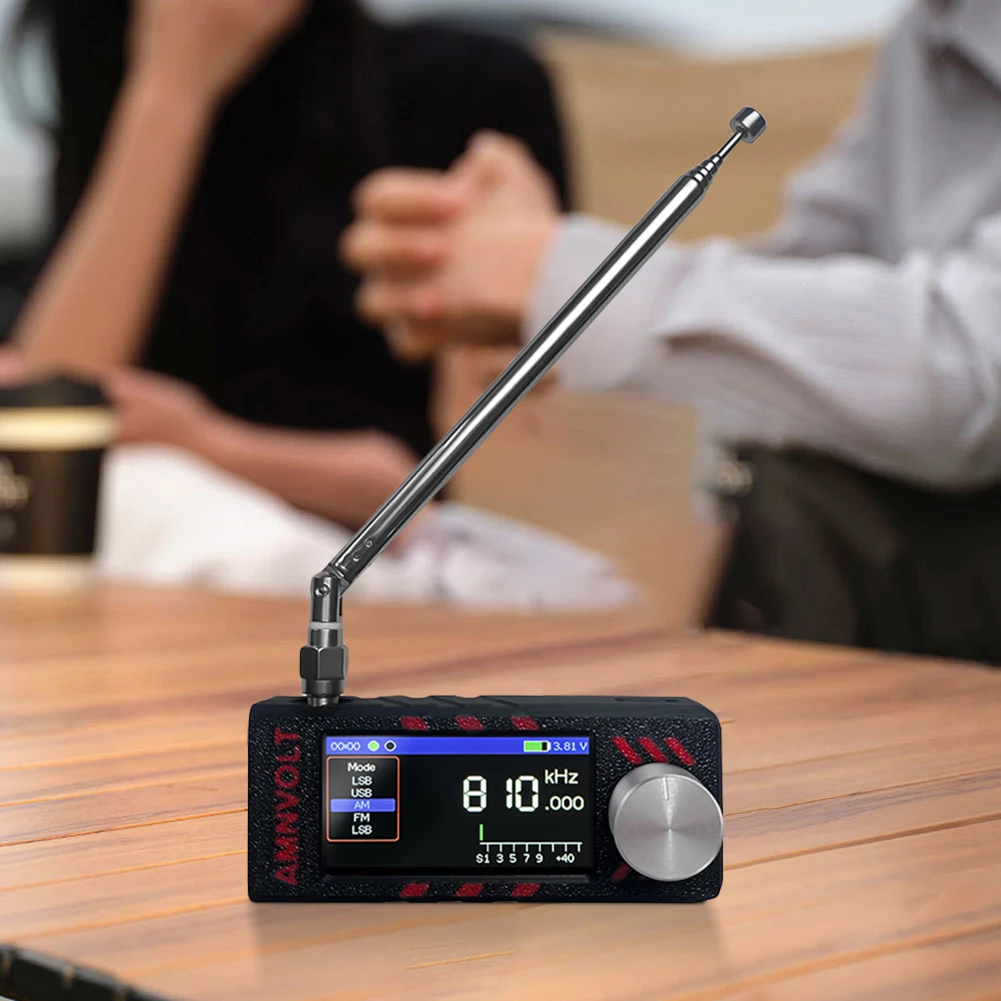

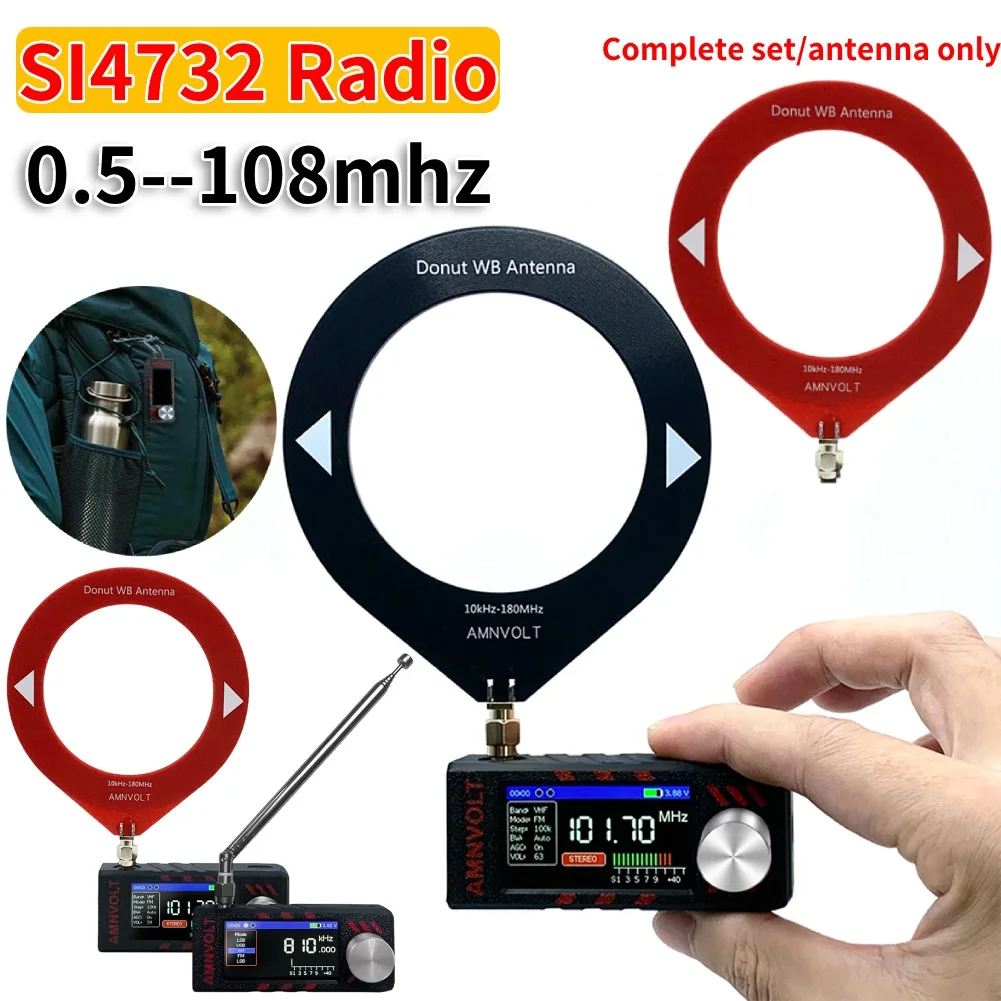

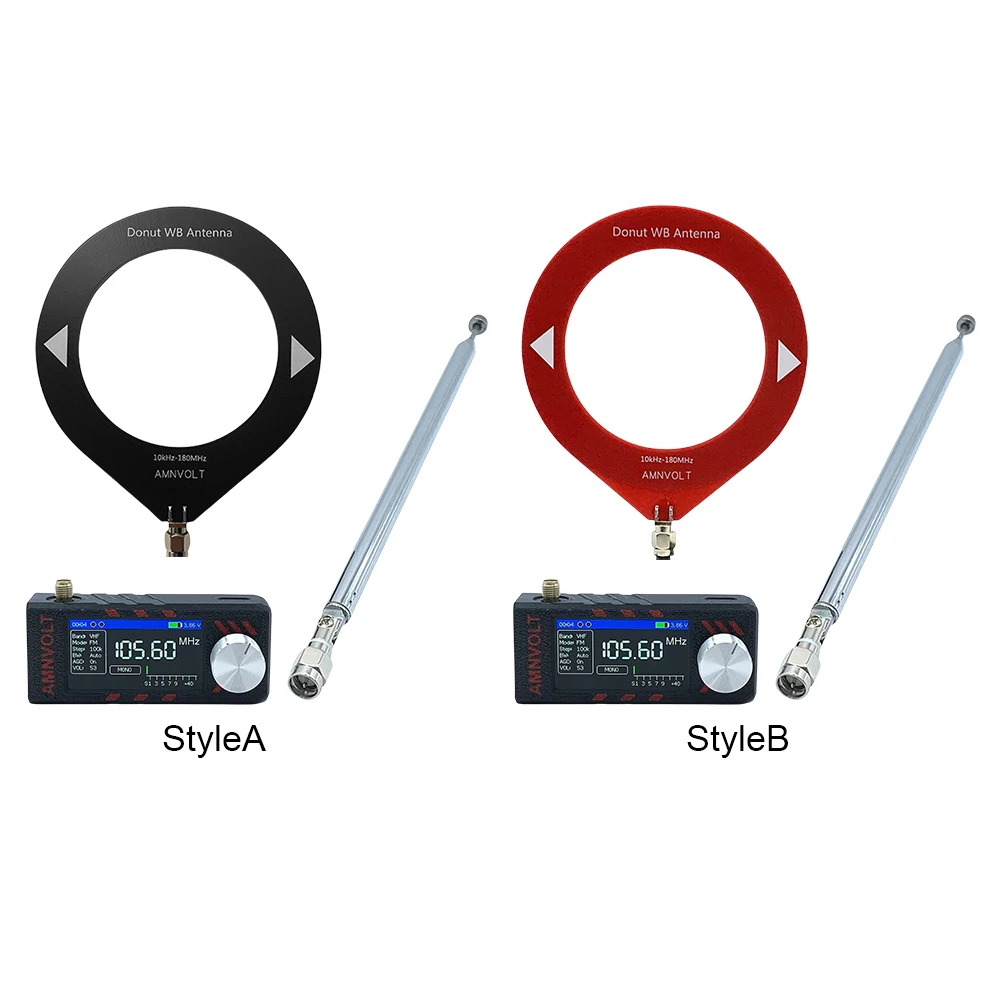

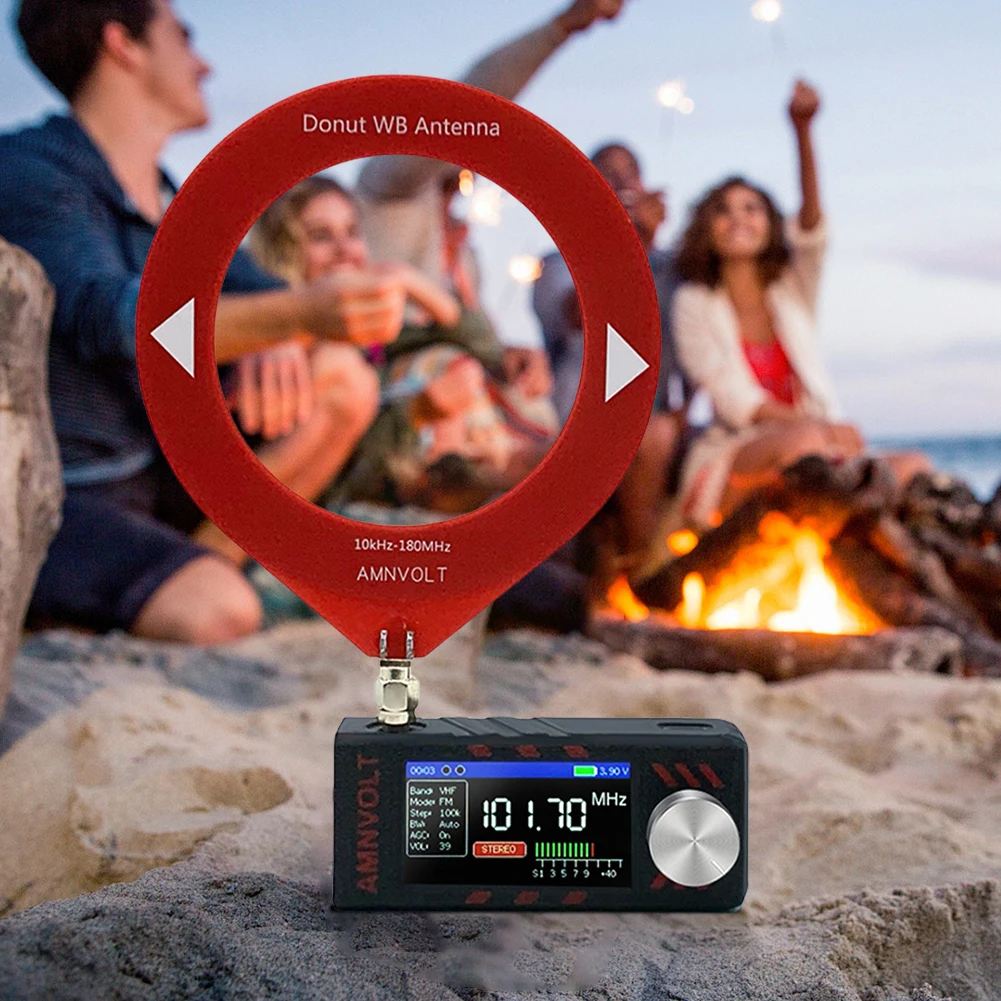

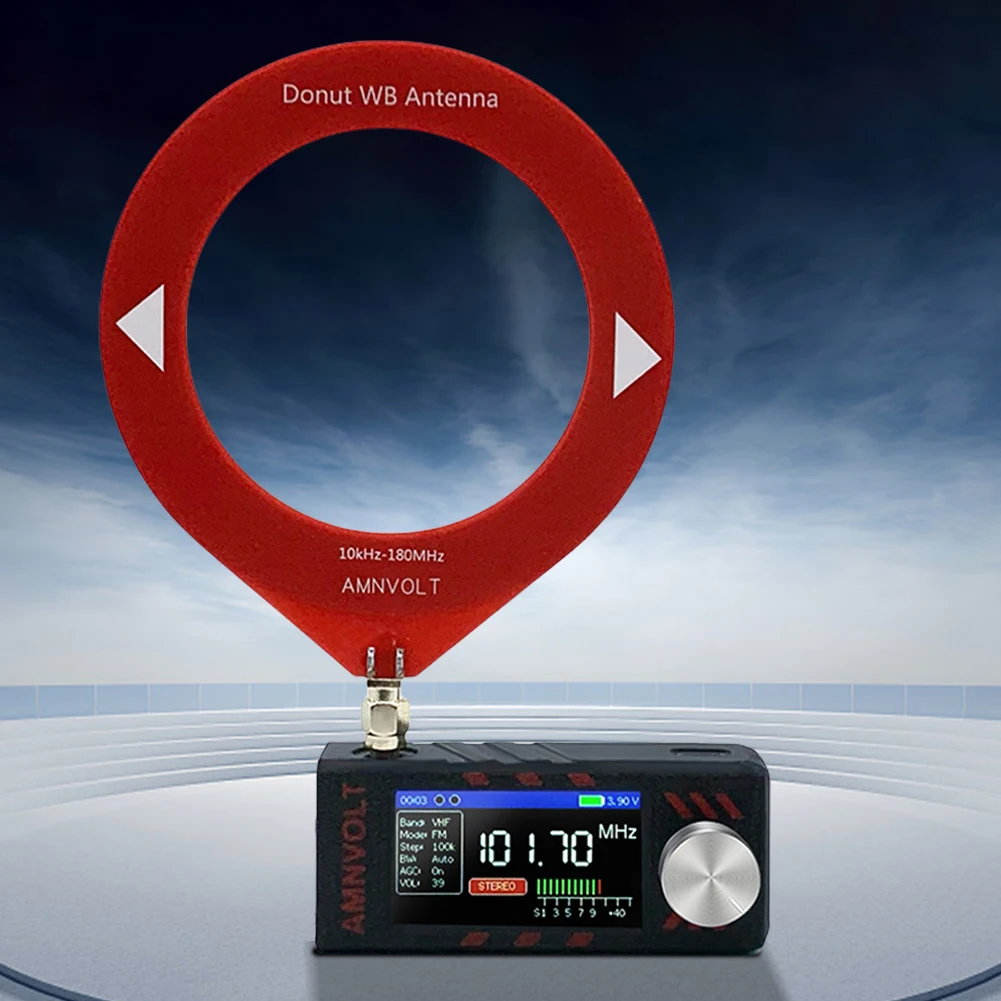

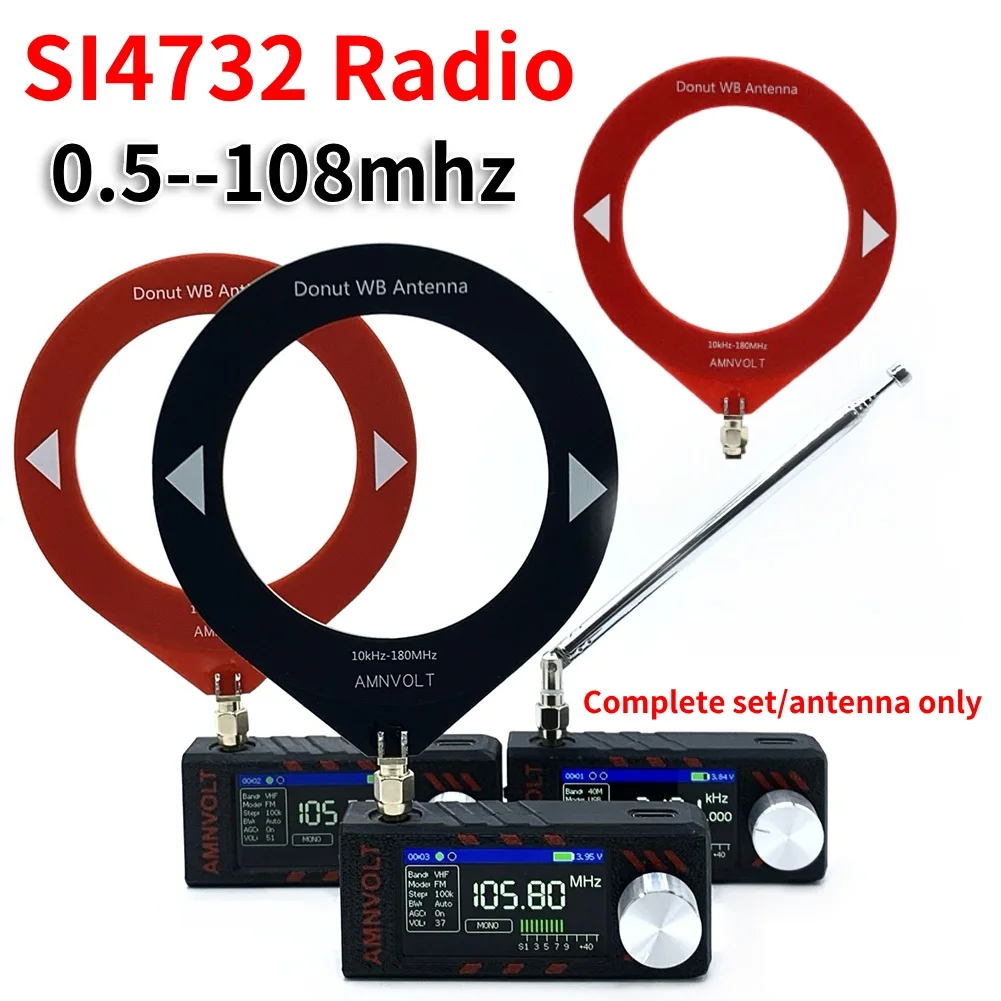

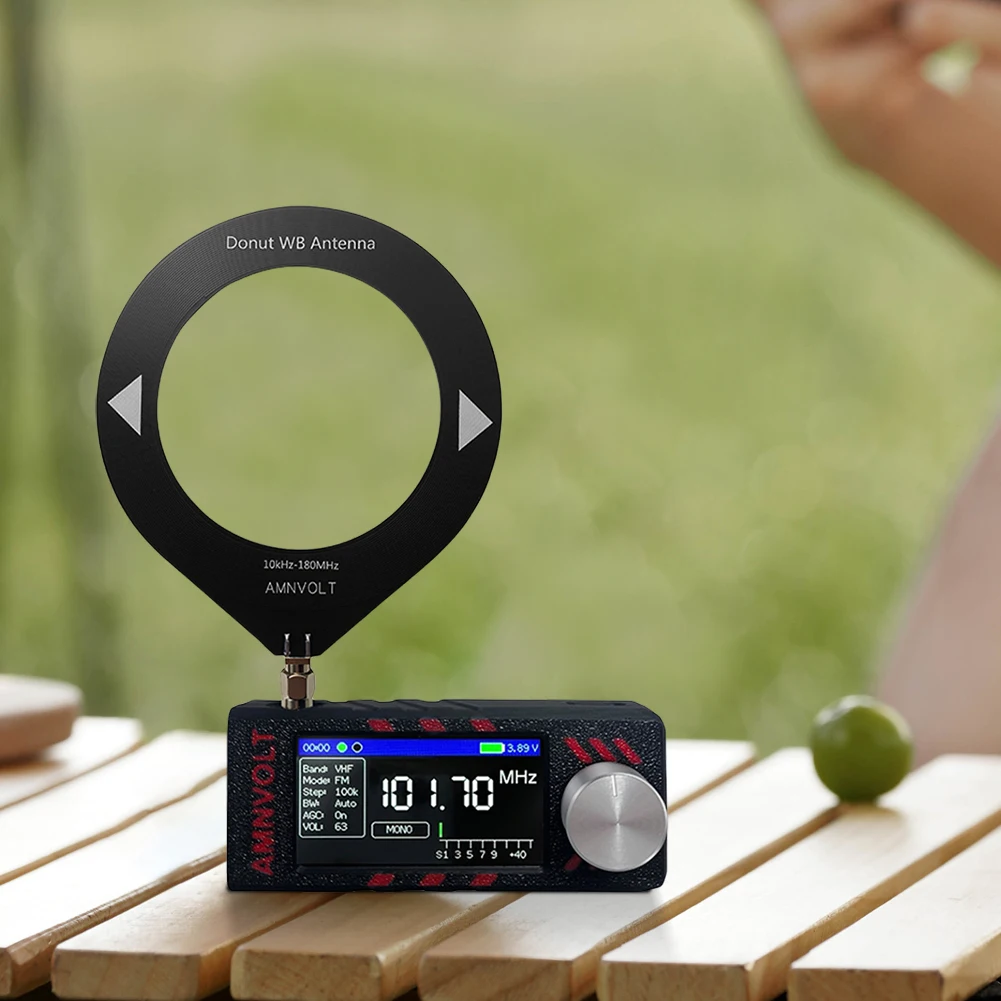

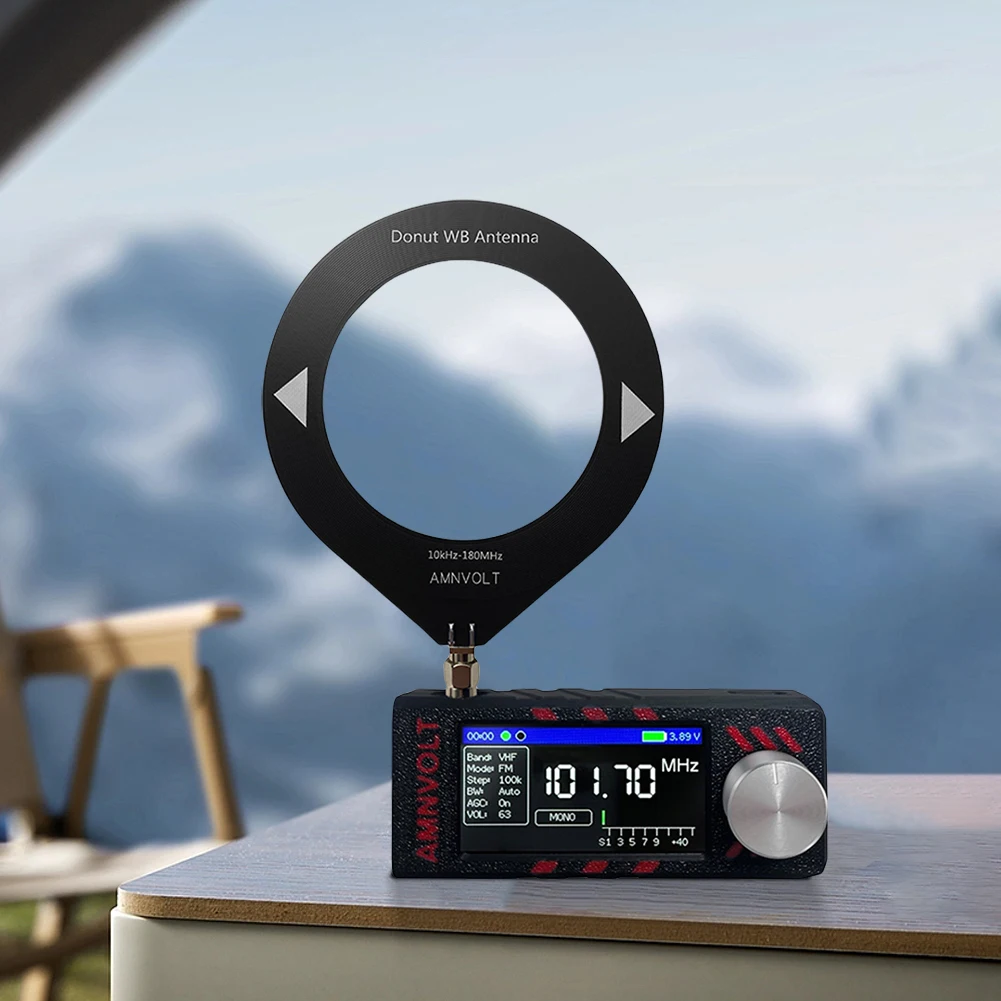

0.5-108Mhz SI4732 All Band Radio Receiver LSB USB AM FM Radio 1.9Inch IPS Screen

SI4732 LSB USB AM FM FM/AM Radio 1.9inch IPS Screen Mini Pocket Radio with Antenna HF SW MW VHF Radio Portable Radio
1. Versatile Listening Experience: Enjoy a wide range of frequencies with our LSB USB AM FM FM/AM radio, featuring support for all band modes, ensuring you never miss your favorite stations or broadcasts.
2. Compact Design: This mini pocket radio is perfect for on-the-go listening, combining portability with high-quality sound, making it an essential companion for travel, outdoor activities, or daily commutes.
3. Advanced Technology: Equipped with the SI4732 DSP chip, our HF SW MW VHF radio delivers exceptional reception across all bands, providing clear audio quality for an immersive listening experience.
4. Long-lasting Battery Life: With an 800mAh built-in battery, this portable radio offers over 10 hours of continuous playback, ensuring you can enjoy your favorite programs without interruptions.
5. User-Friendly Features: The all band radio receiver includes adjustable backlight brightness, battery level display, and a powerful 1W speaker, plus firmware upgrade capabilities for enhanced functionality and customization.



Specification:
Origin: Mainland China
Advantages after upgrading:
1. Brand-new system: supports brightness adjustment (for outdoor use), bandwidth adjustment and other functions,
2. Brand-new hardware: supports independent headphone amplifier circuit, and the headphone listening volume is higher
3. High-quality production process: some manufacturers mixed inferior accessories in the old version, and we use all new parts for production
Parameters:
Model: ATS MINI PRO
Master control: ESP-32-S3
Working mode: FM/AM/LSB/USB (note, does not support aviation band)
Receiving band: HF/SW/MW/VHF
Frequency range: LW, MW, SW (150kHz - 30MHz), VHF (64-108Mhz)
Screen: 1.9inch, 170*320 resolution
Charging port: TYPE-C (cannot use fast charging)
Audio interface: 3.5mm three-band stereo
Antenna interface: SMA-KE (inner hole)
Battery capacity: 800ma
Casing material: ABS
Product size: about 73.00x32.00x12.00mm
Product size: 2.87x1.26x0.47inch

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

1 X Mini Pocket Radio
1 X Telescopic Antenna
1 X Loop Antenna
1 X Instruction Manual
1 X USB Cable
