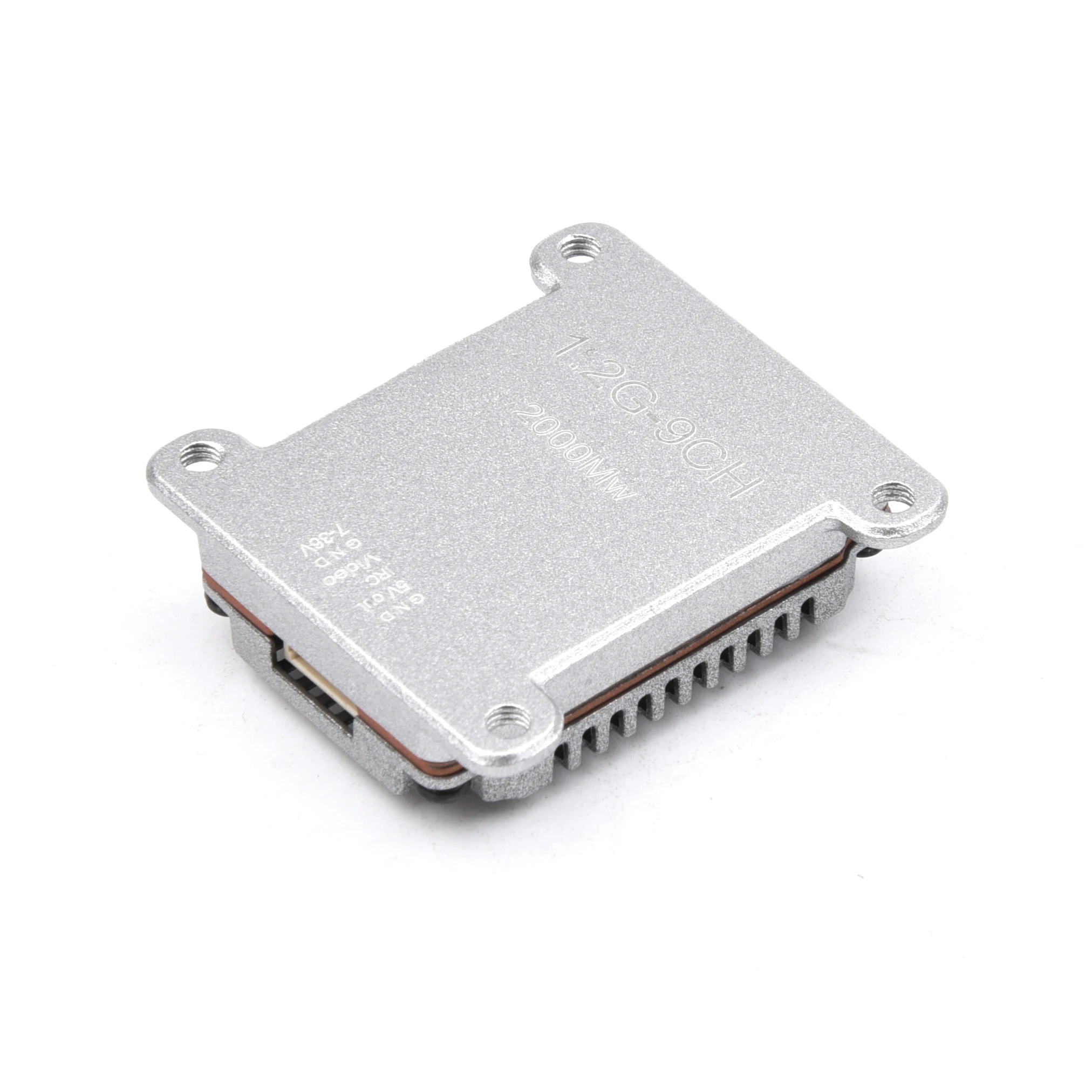

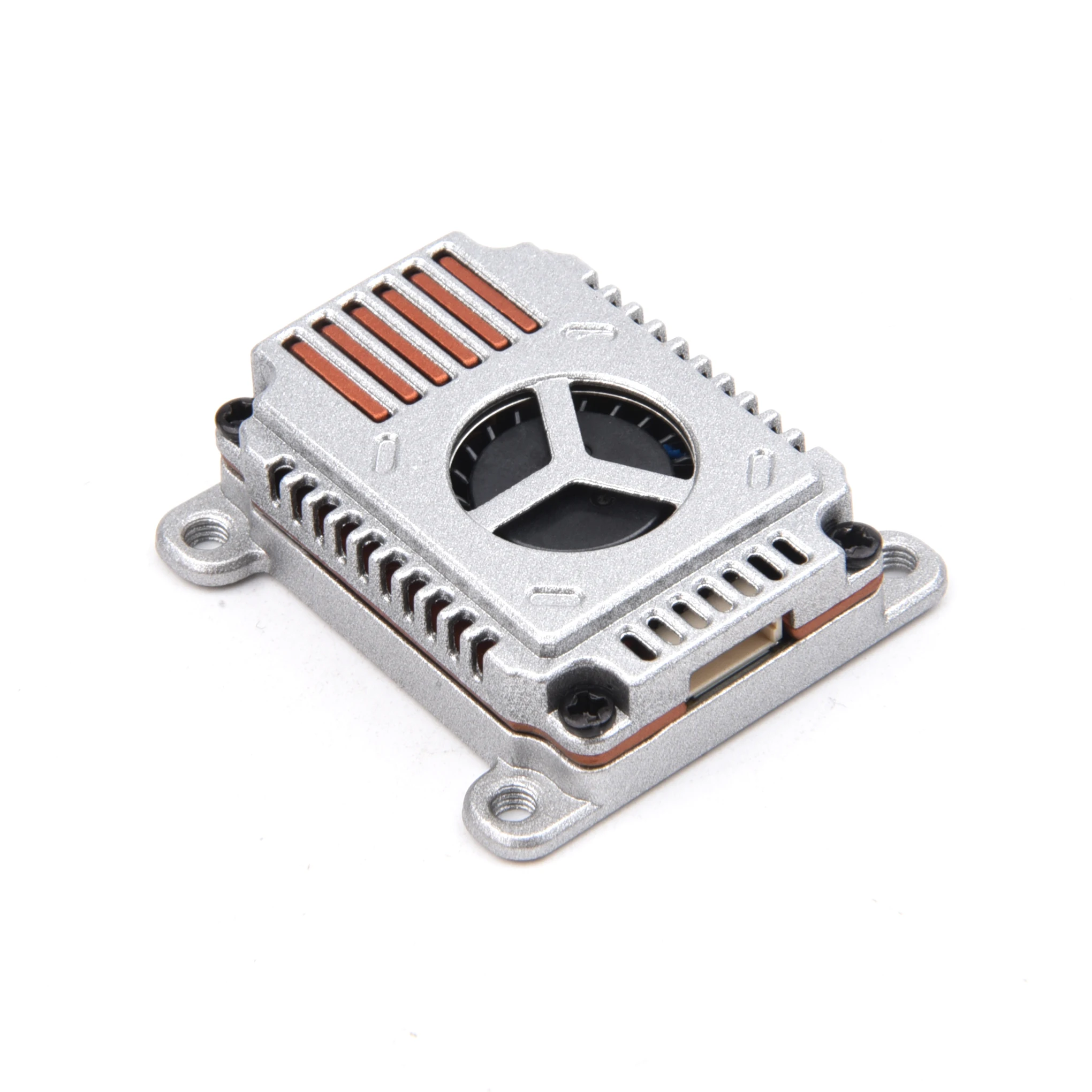

    1.2G 1.2Ghz 2W 25Mw/2000Mw VTX Switchable Video Transmitter Transmitting Module

    1.2G 1.2Ghz 2W 25Mw/2000Mw VTX Switchable Video Transmitter Transmitting Module

    £52.99 GBP
    £52.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.

    I. Performance and parameters:

    1. 1.2G 9 frequency points: (1060MHz-1380MHz);

    2. Maximum power: 2W (25mW/2000mW, two gears adjustable);

    3. Input voltage: DC 7V-36V, supporting 2-8S battery input

    4. Antenna interface: MMCX

    5. Communication protocol: IRC Tramp

    6. Heat-dissipating method: aluminum alloy heat sink+fan

    7. Mounting hole location: 30.5mm*30.5mm /3.15mm

    8. Product dimension: 37.7mm*36.1mm*11mm

    9. Product weight: 16g

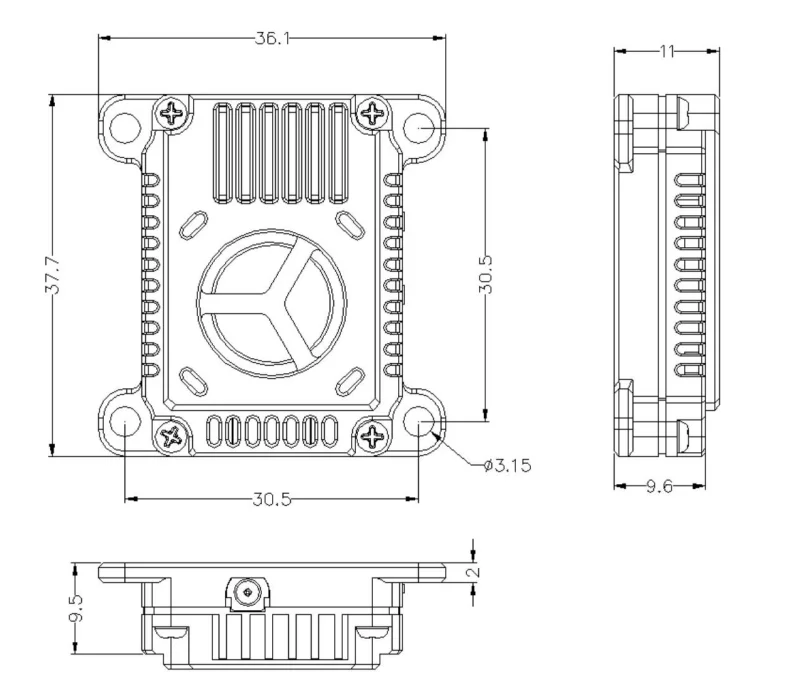

    II. Product Size:

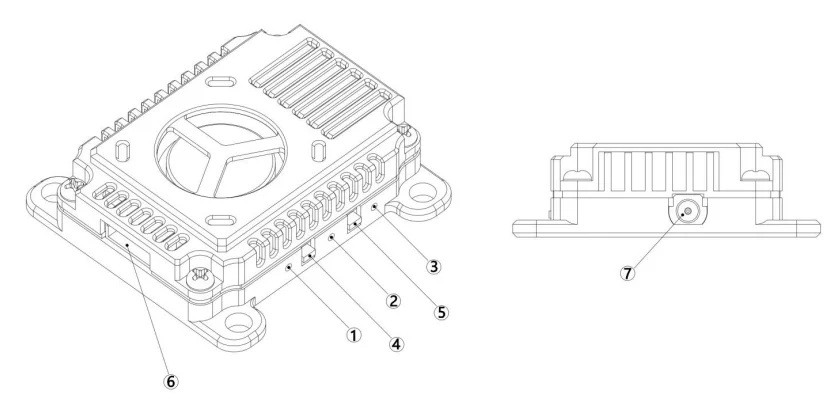

    III. Interface and key indicator layout:


    1. Frequency point indicator light: red LED (1 frequency point-9 frequency points)

    2. Power indicator light: blue LED (25mW)

    3. Power indicator light: green LED (2000mW/Pit mode)

    4. Frequency point adjustment key

    5. Power adjustment key

    6. 1.0 6P wiring socket

    7. MMCX antenna pedestal


    IV. Key control mode and LED indicator definition:

    1. Key is the frequency point switch key; every time when key is pressed for a short time to switch to the next frequency point, the corresponding red LED will flash, 1.2.3.4.5.6.7.8.9 in turn. The operation can be cyclic; see the following diagram for details!

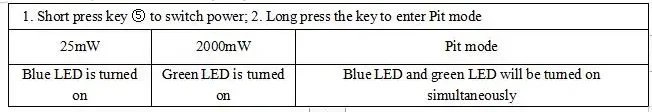

    2. Key is power adjustment key and and the power will be switched to the next one every time when the key is short pressed once, cyclic between 25mW and 2000mW. The current power is 25mW when the blue LED is turned on; the current power is 2000mW when the green LED is turned on; The key is pressed and held for 3 seconds to enter pit mode and the blue LED and green LED will be turned on simultaneously. See the following diagram for details!

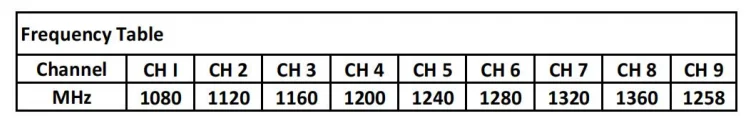

    Frequency Table:

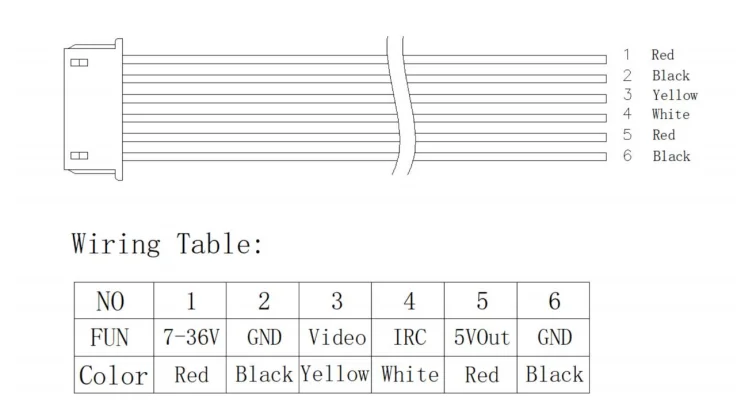

    6P 1.0 cable interface definition:


    Precautions for use:

    1. the map transmission installation must leave space to ensure that the module around the air convection, to ensure that the module heat; otherwise the module overheating protection start, reduce the power to launch, or even shut down the power to launch.

    2. it is recommended that before turning on the power, to ensure the correct voltage range, positive and negative poles correct, so as not to burn components.

    3. it is recommended that before turning on the power, make sure that the RF RF output has been installed antenna, which can prolong the life of the module.

    4. Please read the manual before use, so that you can correctly wired to extend the life of the module.

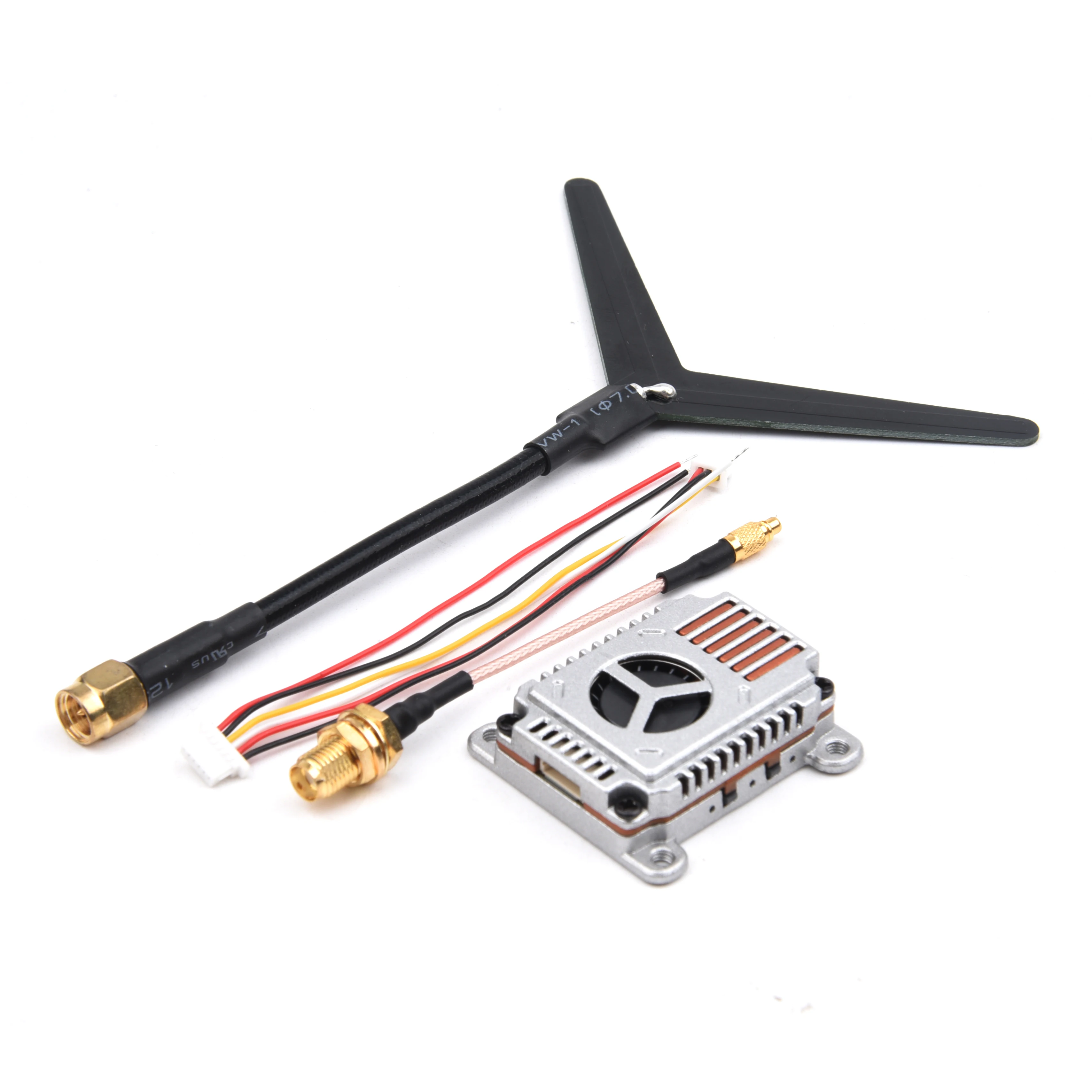

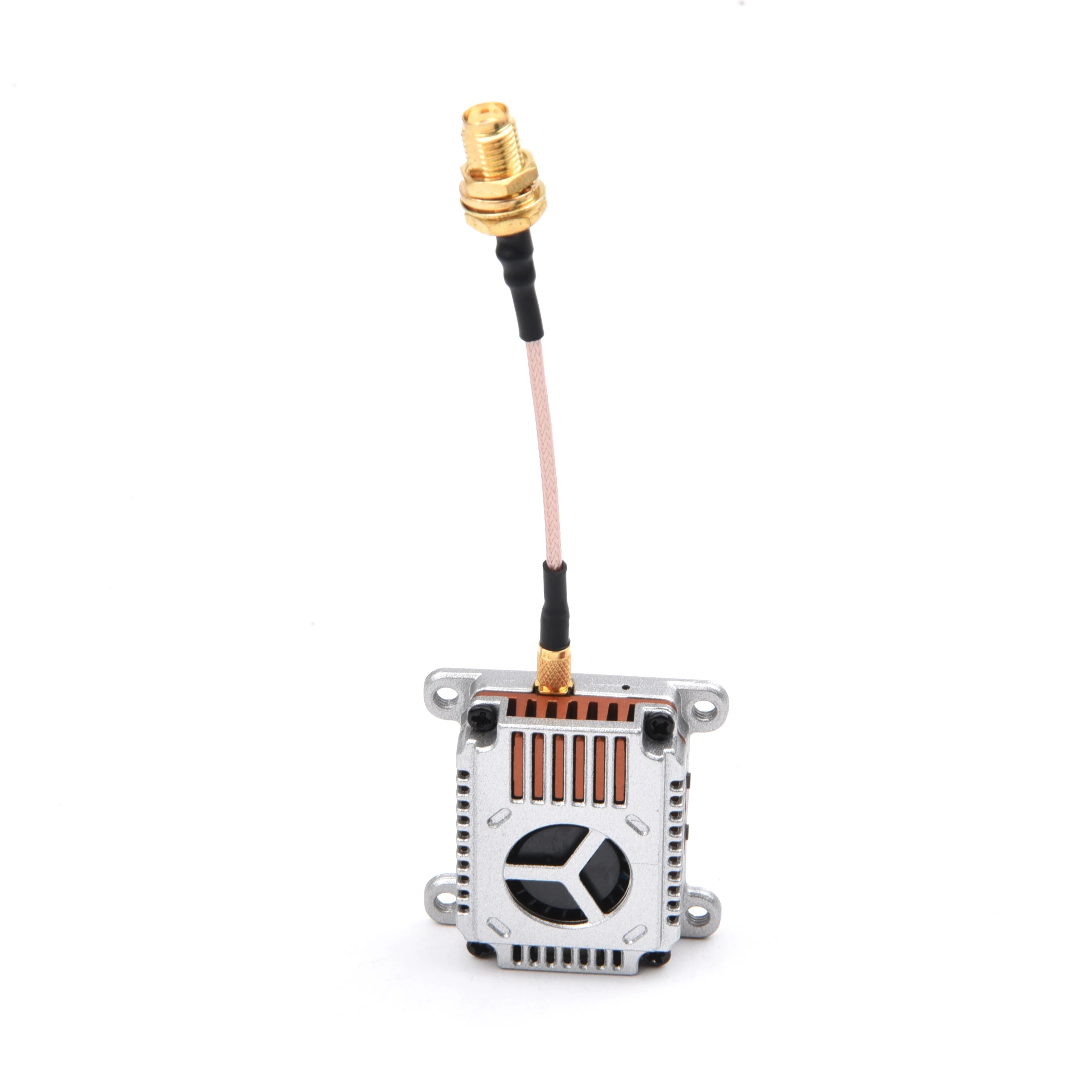

    Package including :



    1 x 1.2G 2W Transmitter Module

    1 x MMCX antenna converter line (cable length send at random)

    1 x 6P 1.0 wiring

    1x 1.2G Y-Type special antenna
