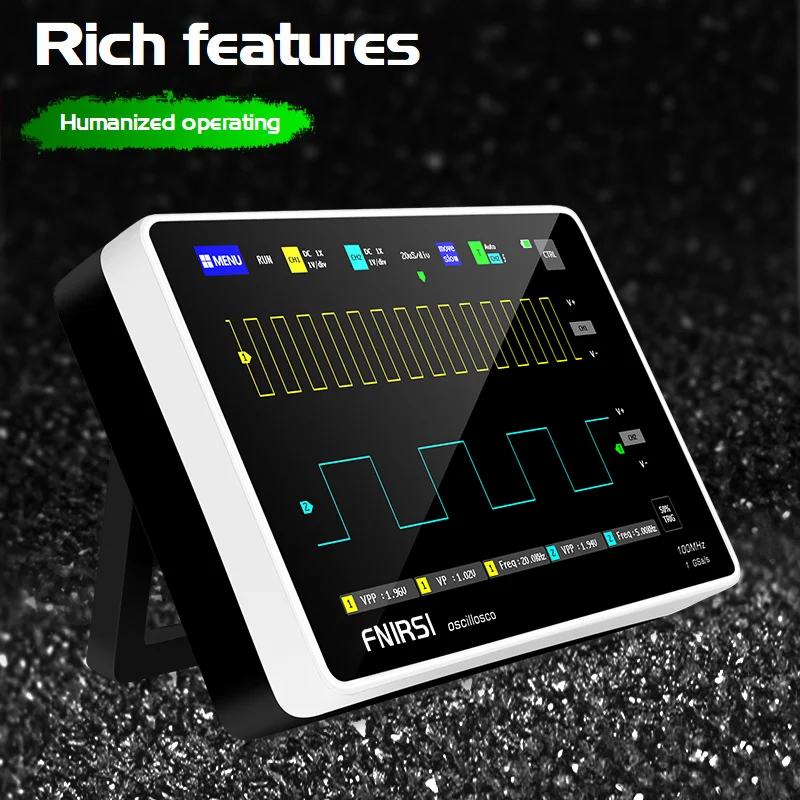

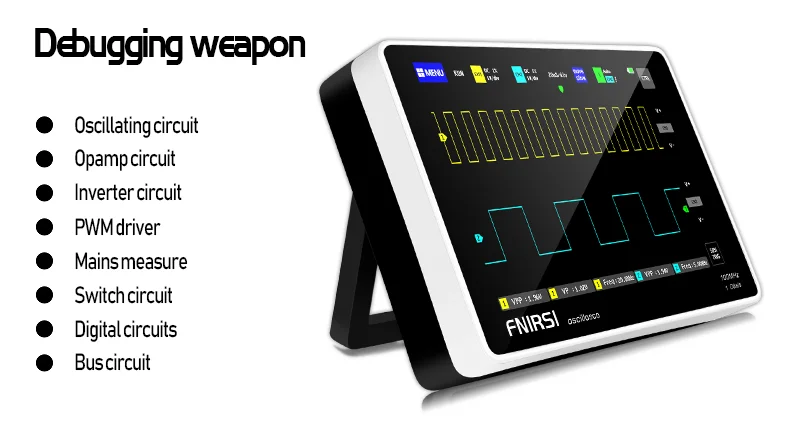

-1013D Digital Oscilloscope Dual Channel Flat Panel Oscilloscope 7-Inch TFT LCD

Features:

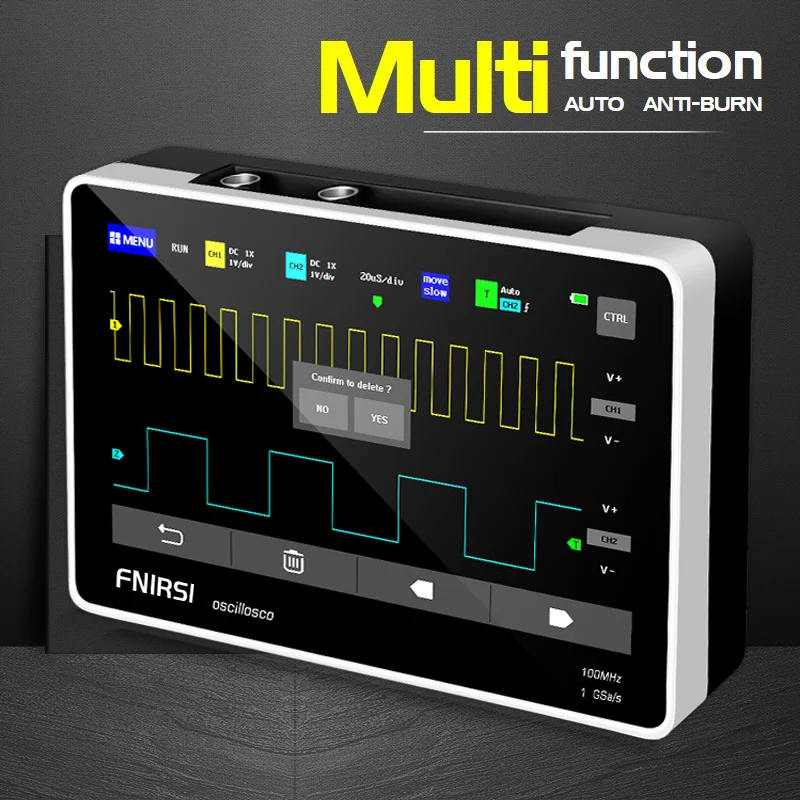

Intelligent anti-burn-in, 1X can withstand up to 400V withstand voltage.
100MHz analog bandwidth @ 1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz).

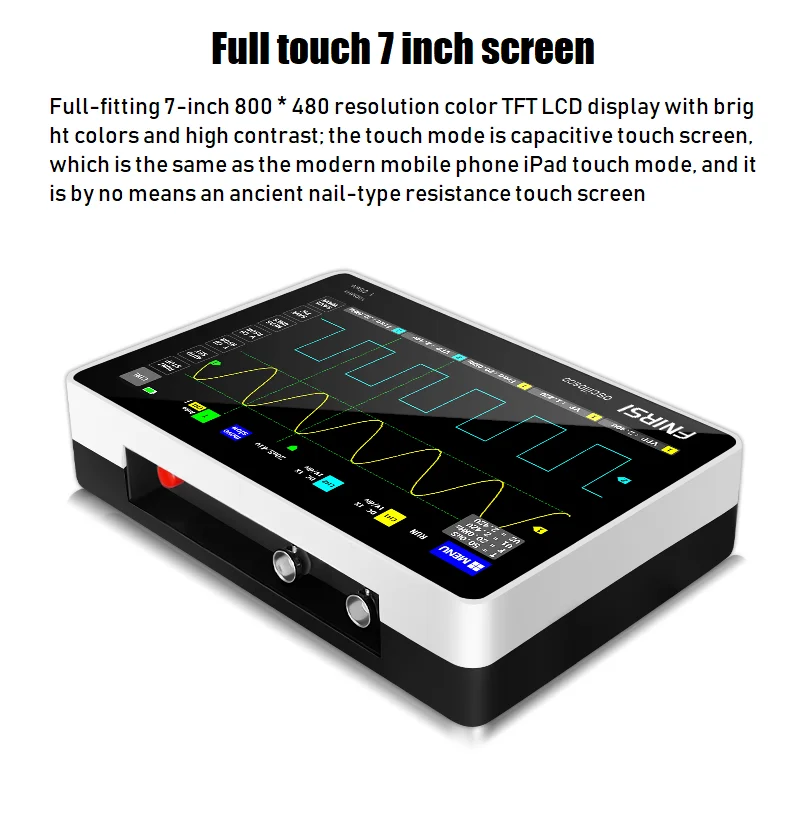

Fully suitable for 7-inch 800 * 480 resolution color TFT LCD with vivid colors and high contrast.
Capacitive touch screen, same touch method as modern mobile tablets, not resistive touch screen with ancient pinning operation.
High measuring voltage range, 1X can measure 0~40V, 10X can measure 0~400V, 100X can measure 0~4000V.
Up to 12 parameters to measure: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Work+, Work, Time+, Time, Cycle.

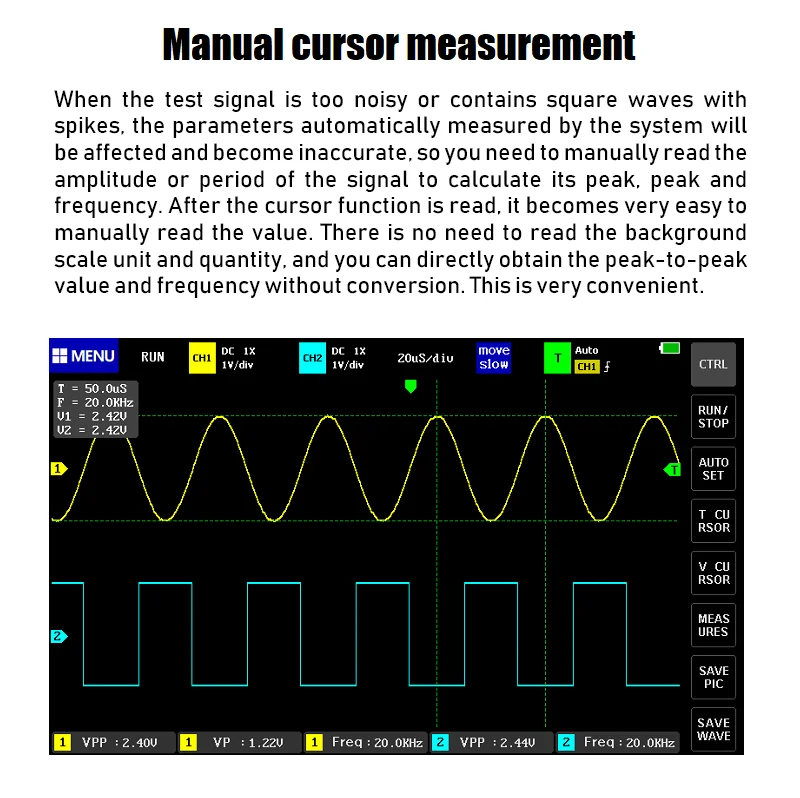

Cursor measurement function facilitates manual measurement of period, frequency and voltage.

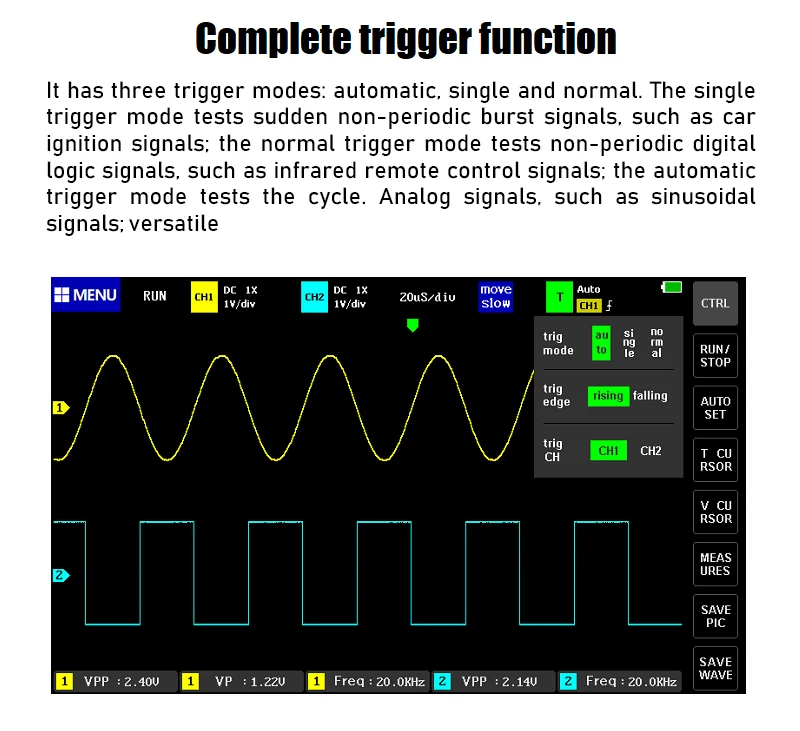

Complete trigger function (single, normal, auto).
Waveform display (pause function) is frozen at any time.
Equipped with efficient one-touch auto.
One-touch waveform storage and screen capture.
Built-in 1GB storage space for up to 1000 screenshots + 1000 sets of waveform data.
Powerful waveform picture manager supports thumbnail browsing, viewing, detailed viewing, page flipping, deleting, and waveform zooming in, zooming out, and moving.
It is equipped with a USB interface, which can be connected to a computer to share its screenshots with the computer for secondary analysis.
LISA Ru graphic display function can determine the amplitude, frequency and phase difference of two sets of signals.
The FFT display function can analyze the spectral characteristics of the signal.
Built-in 6000mAh rechargeable lithium battery, fully charged can be used continuously for 4 hours under the highest screen brightness.
Memory compression technology, waveform refresh screen without flickering.
Screen brightness adjustment.
Background grid brightness adjustment.
Ultra-thin, easy to carry.

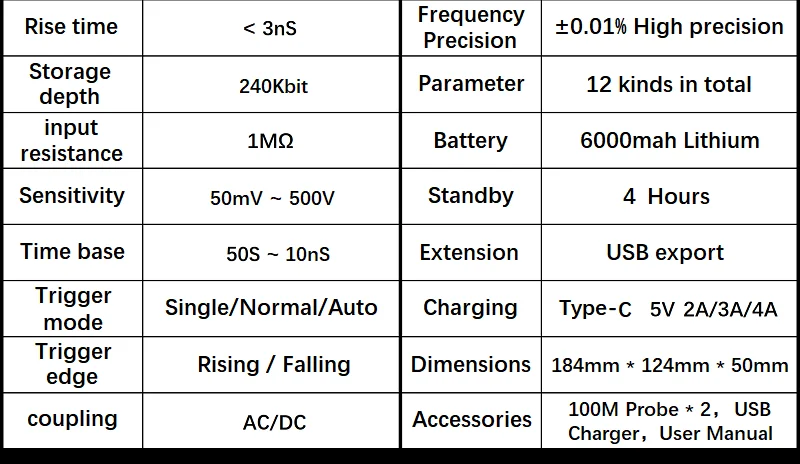

Specification:

Material: ABS

Color: black + white

Analog bandwidth: 100MHz*2

Number of channels: 2 channels

Maximum real-time sampling rate: 1GSa/s

Vertical sensitivity: 50mV/gram~500V/gram

Horizontal time base range: 50S/gram~10nS/gram

Maximum test voltage: 40V (1X probe), 400V (10X probe)

Memory depth: 240Kbit

Input resistance: 1M

Analog-to-digital converter precision: 8 bits

Coupling mode: AC/DC

Trigger mode: single trigger, normal trigger, automatic

Trigger edge: Rising edge / falling edge

External trigger voltage: 0~40V

Display: 7 inches - 800*480

Operation: Capacitive touch screen + gesture

Expansion Port: USB Picture Export

Power supply: 1 * Li-ion battery, 6000mAh (included)

Item size: 184 * 124 * 50mm / 7.2 * 4.9 * 2.0 inches

Package Size: 200 * 134 * 60mm / 7.9 * 5.3 * 2.4in

Package weight: 986g / 2.2lbs

Packing list:

1 * FNIRSI 1013D Oscilloscope Mainframe

2 * Matched 100MHz probes (1X and 10X)

1 * USB cable

1 * Charging Adapter
