12 Lines Laser Level 3D Cross Line Self-Leveling Laser Level with Horizontal and
12 Lines Laser Level 3D Cross Line Self-Leveling Laser Level with Horizontal and
Couldn't load pickup availability
Model: |
Decteam M03CG 3D 12 Lines Laser Level |
||
Laser Class: |
Class 2 (IEC/EN60825-1/2014), |
Laser Light 12 Lines: |
3x 360 (4/8/12/lines are adjustable) |
Laser Wavelength: |
510-525nm |
Laser Beam Color: |
Green beam |
Horizontal / Vertical Accuracy: |
1/9 inch at 33Ft (3mm/10m) |
Reference Operating Time: |
About 5.5 hours with all laser beams on |
Leveling Time: |
3s |
Charging Time: |
About 5 hours |
Compensation Range: |
3.0+1 |
Mount Size: |
1/4"-20 & 5/8"-11 |
Working Distance: |
25m, 40m-80m with laser detector |
Applicable Scenarios: |
Indoor & outdoor |
Power Source: |
7.4V / 2600mAh Li-ion Battery |
Storage temperature: |
Between -40and +80 |
Charging Port: |
Type-C |
Operating Temperature: |
Between -20and +50 |
IP Rating: |
IP54, waterproof, dustproof and shockproof, reliability and robustness |
Warning:
Avoid direct exposure of the laser beam to the eyes.
The laser would be affected by strong sun light when work outside.
 |
Package contents - Basic Set: 1x Soft bag |
 |
Package contents - Main Photo: 1x Decteam M03CG Laser Level 1x Soft bag 1x Laser Receiver DLR-8RG (or Huepar LR-8RG / LR-5RG) 1x Tripod DT14A (or Huepar TPD14A) 1x PV11+D (or Huepar PV11+) |
|
|
|
|
|
With DLR-8RG Laser Receiver |
With DT14A Tripod |
With Receiver + Tripod |
With Bracket PV11+D |
|

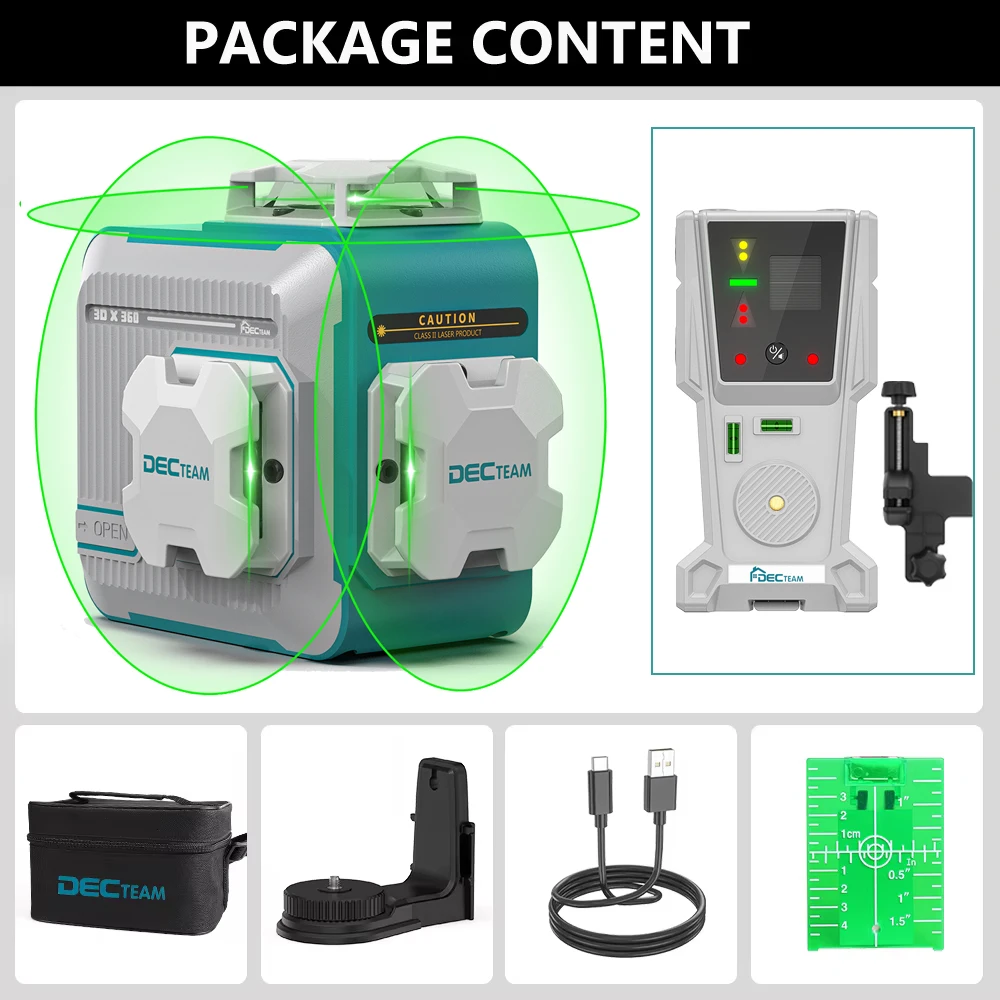

1x Decteam M03CG Laser Level 1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Laser Receiver |

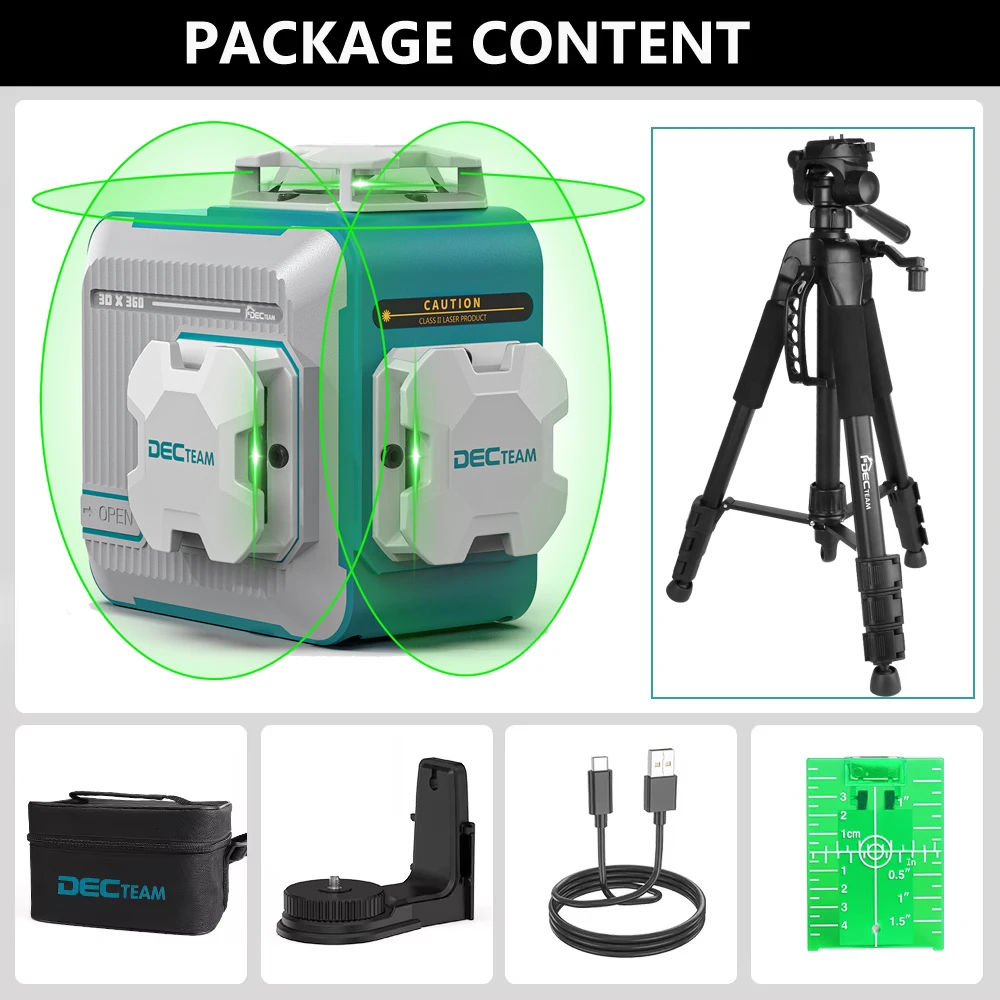

1x Decteam M03CG Laser Level 1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Tripod DT14A |

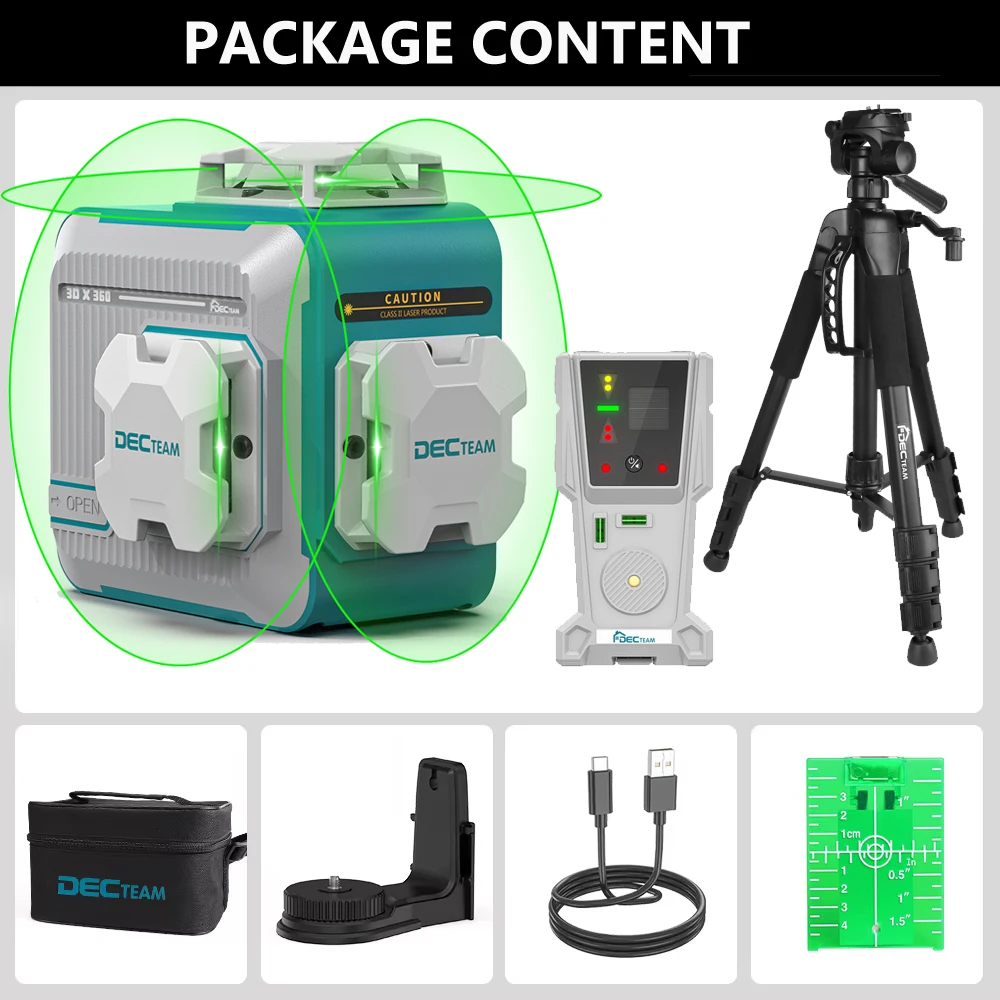

1x Decteam M03CG Laser Level 1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Laser Receiver 1x Decteam Tripod DT14A |

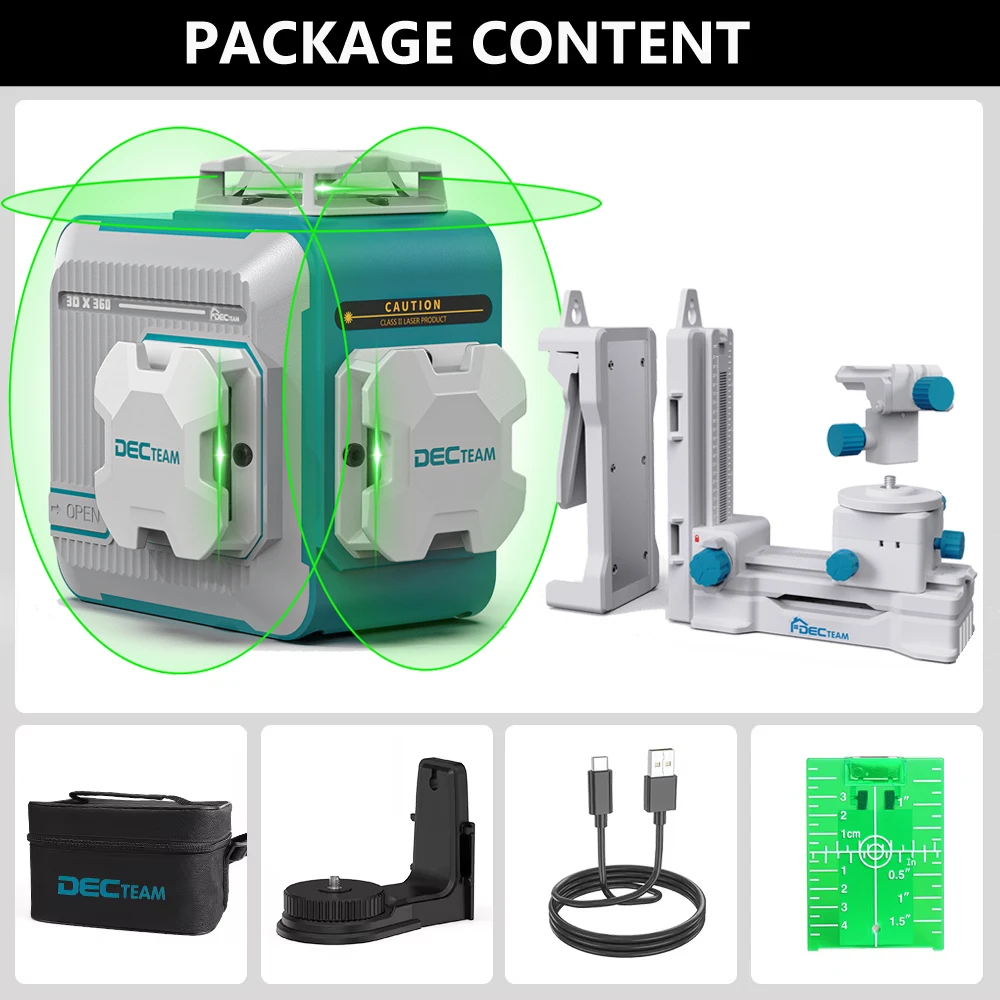

1x Decteam M03CG Laser Level 1x Lithium Battery 2600mAh 1x Magnetic L-Shape Bracket 1x Type-C Cable 1x Green Target Plate 1x Multi-Languages User Manual 1x Soft bag 1x Decteam Bracket PV11+D |
The Questions You May Have
Q: Which set is included the laser level and receiver together?
A: Choose SET-1, this is for laser level and laser receiver together. And to use with the laser receiver, please make sure that you have opened the pulse mode.
Q: How many lines for this laser level?
A: This laser level is 3D 12 lines cross line laser level.
Q: What is the laser diode for this laser level?
A: It is Japan Sharp Diode, which is with brightly green beam and top quality.
Q: How far is the laser line projected?
A: Working Distance( Normal Mode): 25m, 40-80m with detector.
Q. Do the laser level have a warranty?
A: Yes, It has one year warranty.
Swithing Line Mode
The Laser line can be selected independently by pressing the "H" or "V" button.
Self-leveling Mode & Manual Mode
When the tools is beyond the self-leveling range at 3.01, it will sound an alarm, and the laser beam will flash.
In manual mode, you can lock the laser at any angle for better use.
Pulse Mode
Extend the laser range up to 40m or 80m with Decteam laser detector in bright light or outdoor conditions.
Two Power Method Supplying
High-capacity lithium battery provided by Decteam M04CG laser level provides a high-capacity lithium battery which can be worked for 5.5 hours with all beams on with a single charge. It is also with a type-C charging port, it can be charged seperately in any condition.
The device can be used directly by plugging the type-C charging cable without the battery.
Wide Application & Easy to Install
The M03CG laser level comes with a 1/4"-20 & 5/8"-11 threaded port for easy mounting to a tripod or other mounting poles.
It also equippes with a strong magnetic pivoting base, which allows for easy adsorption onto metal surfaces, ensures that you can achieve the required angle for any task effortlessly.
With Green Target Plate
The green target plate could enhance the visibility for precise targeting with the laser level.
IP54 Waterrpoof Dustproof
IP54, waterproof, dustproof and shockproof, reliability and robustness.
