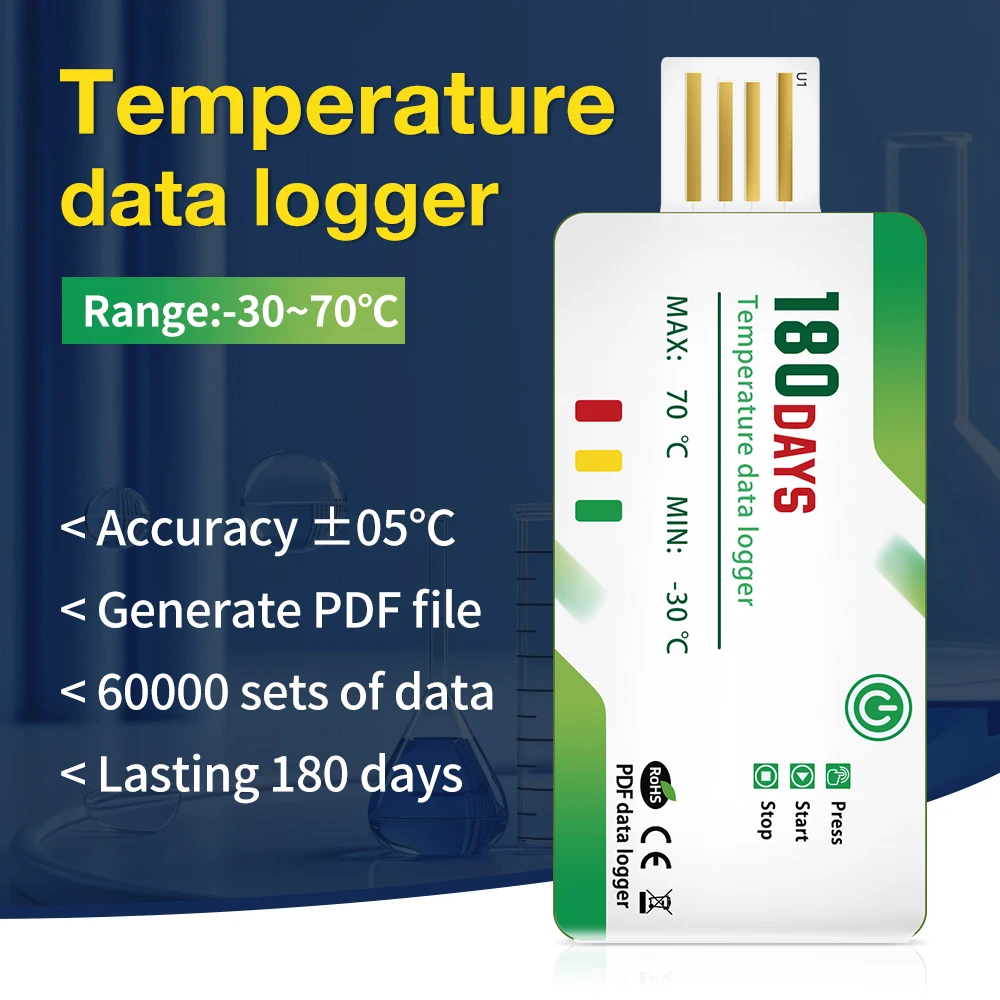

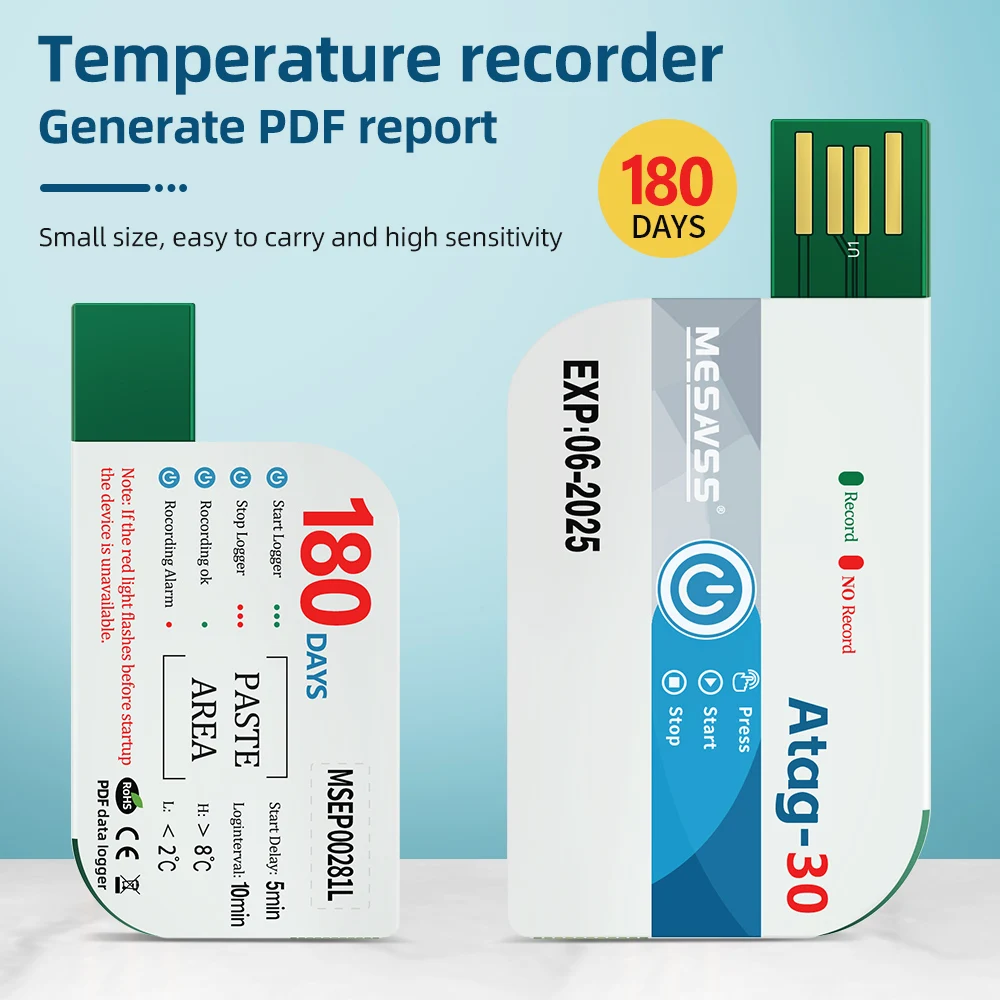

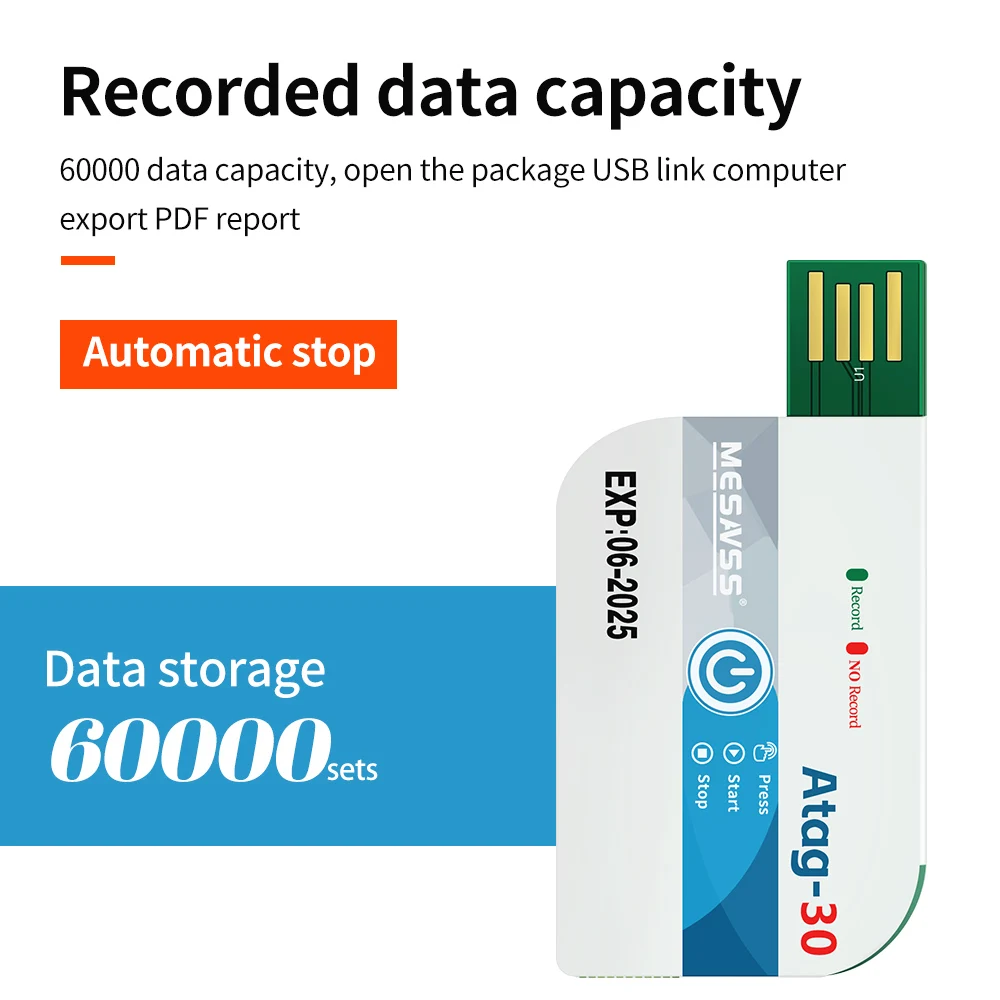

180 Days Temperature Recorder USB Temperature Data Logger with 60000 Points with

180 Days Temperature Recorder USB Temperature Data Logger with 60000 Points With App Warning Disposable For Cold Chain Transport

PLS Note: The chip capabilities of the two products are different, Temp016 has better chip capabilities and stability!!!

Features:

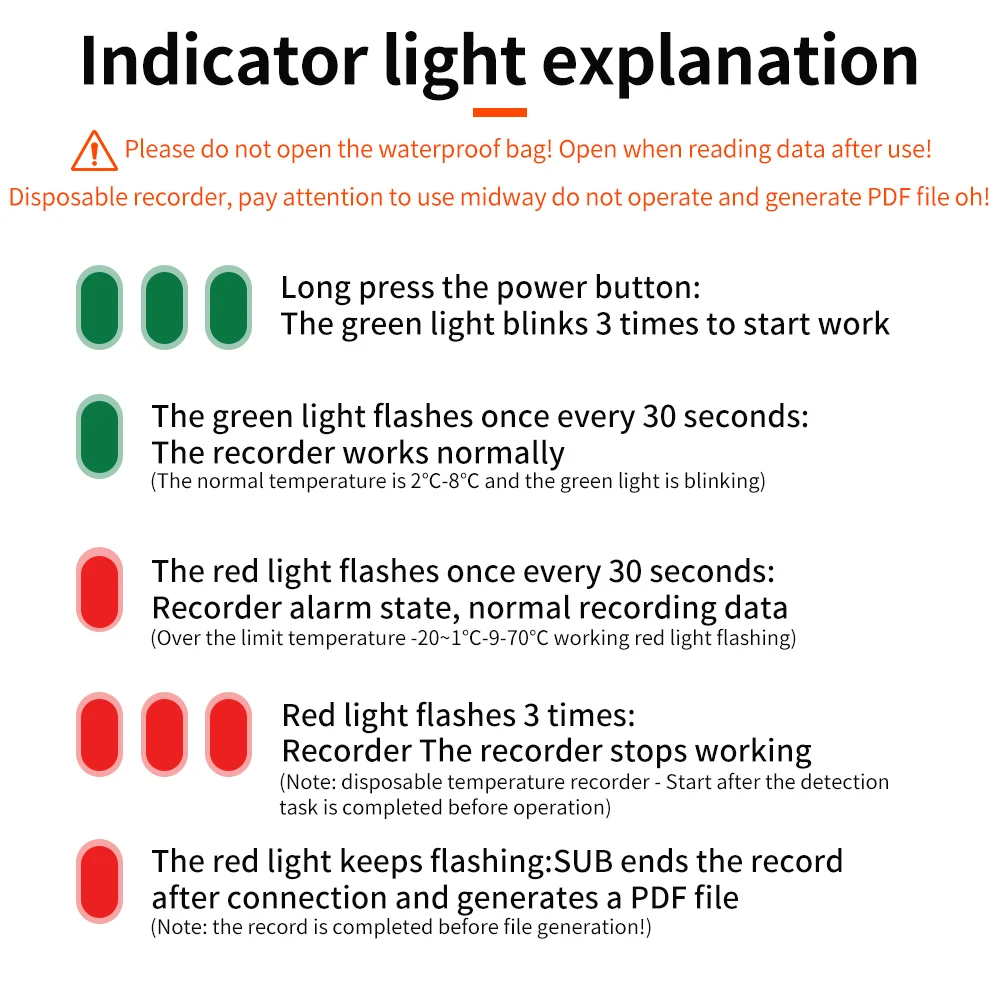

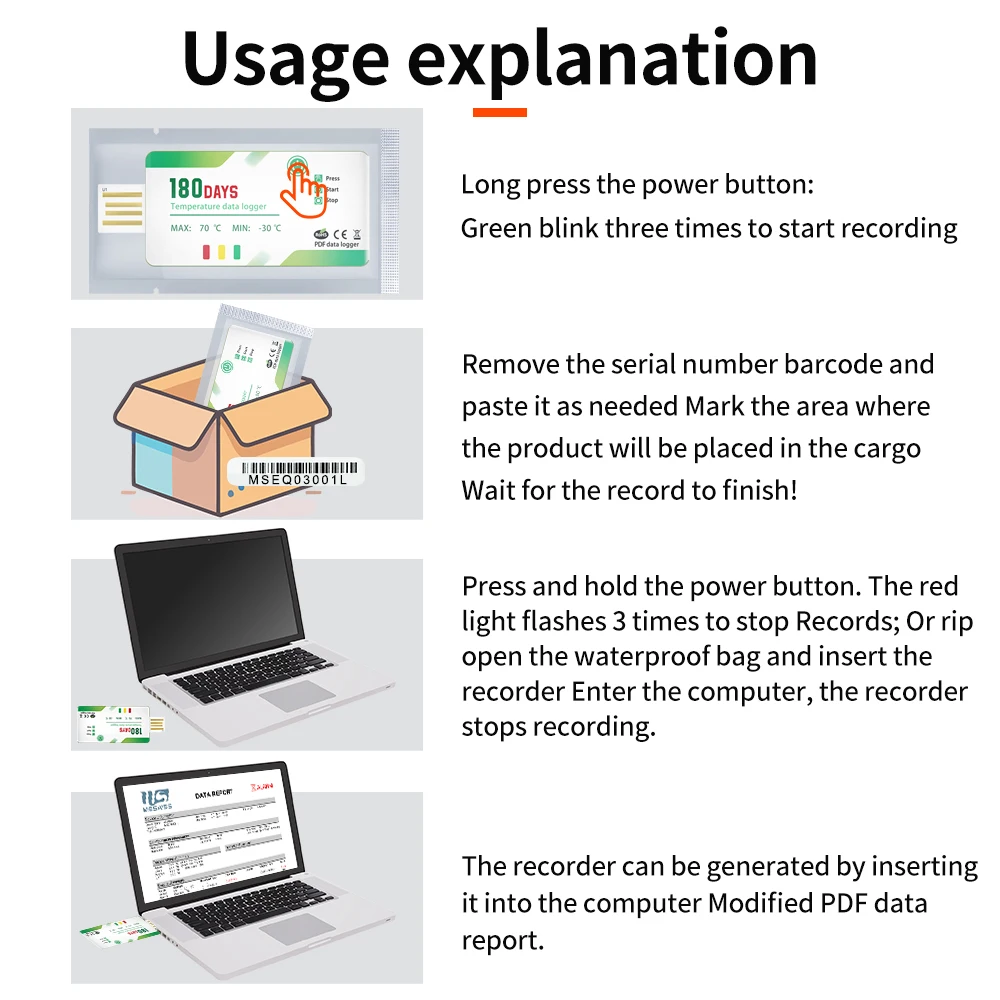

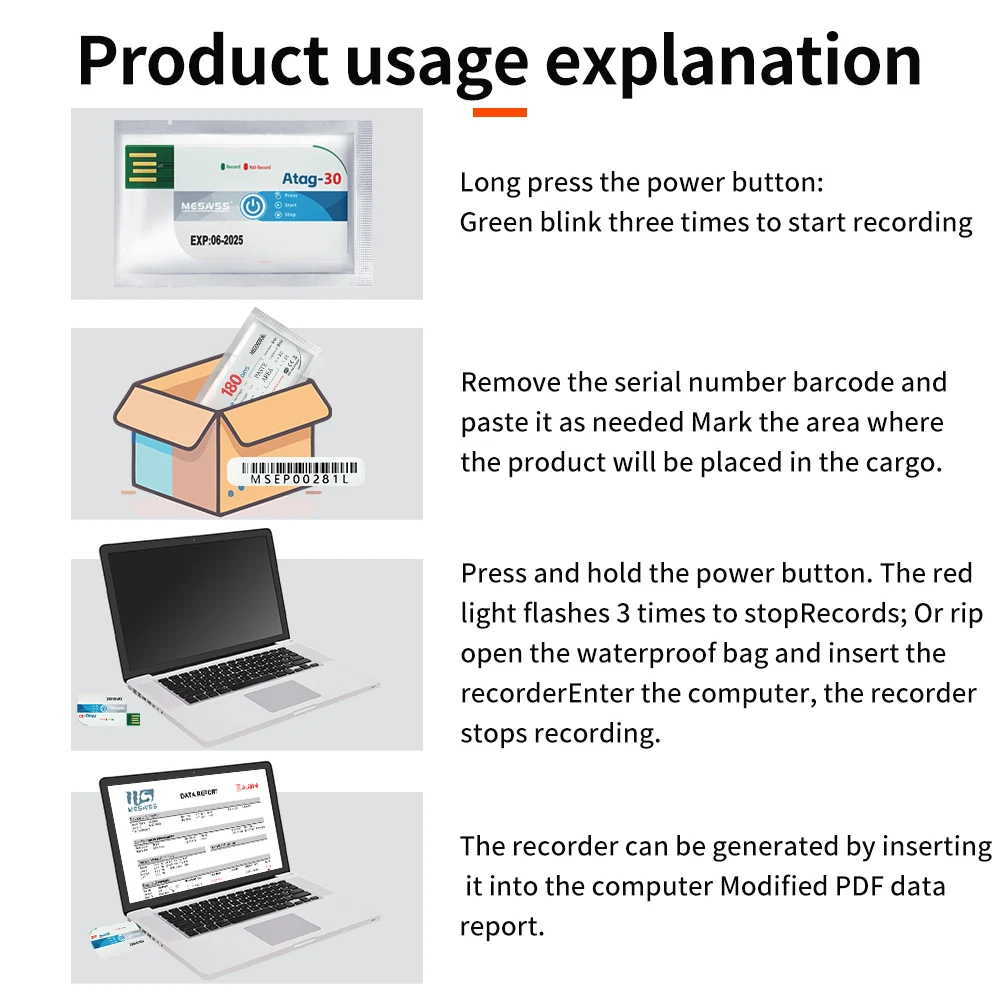

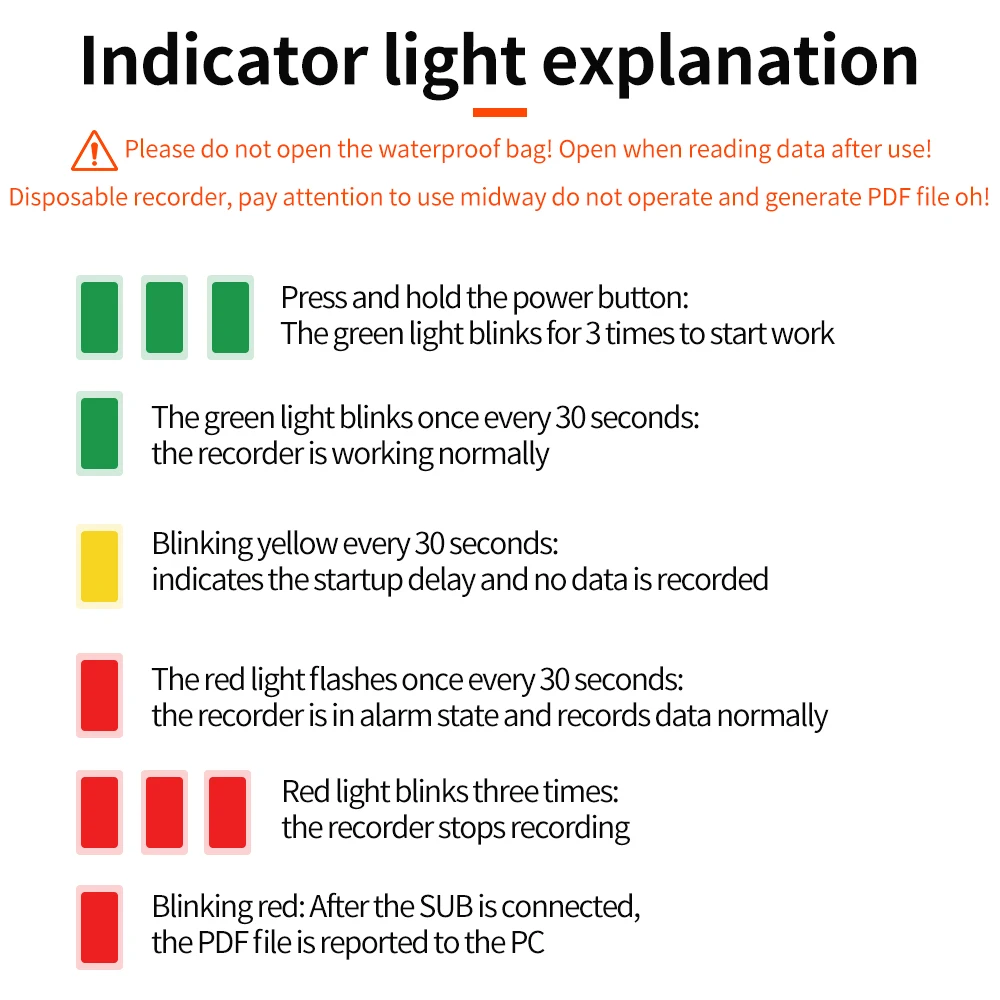

1.Power on: Before powering on, pressing the button has no response. Upon inserting the USB, the LED alternates between red and green flashing.

2.Normal startup: Pressing and holding the button for 3 seconds results in the green LED flashing three times, indicating normal startup. If there's a startup delay, the device flashes red and green alternately every 30 seconds or when the button is pressed.

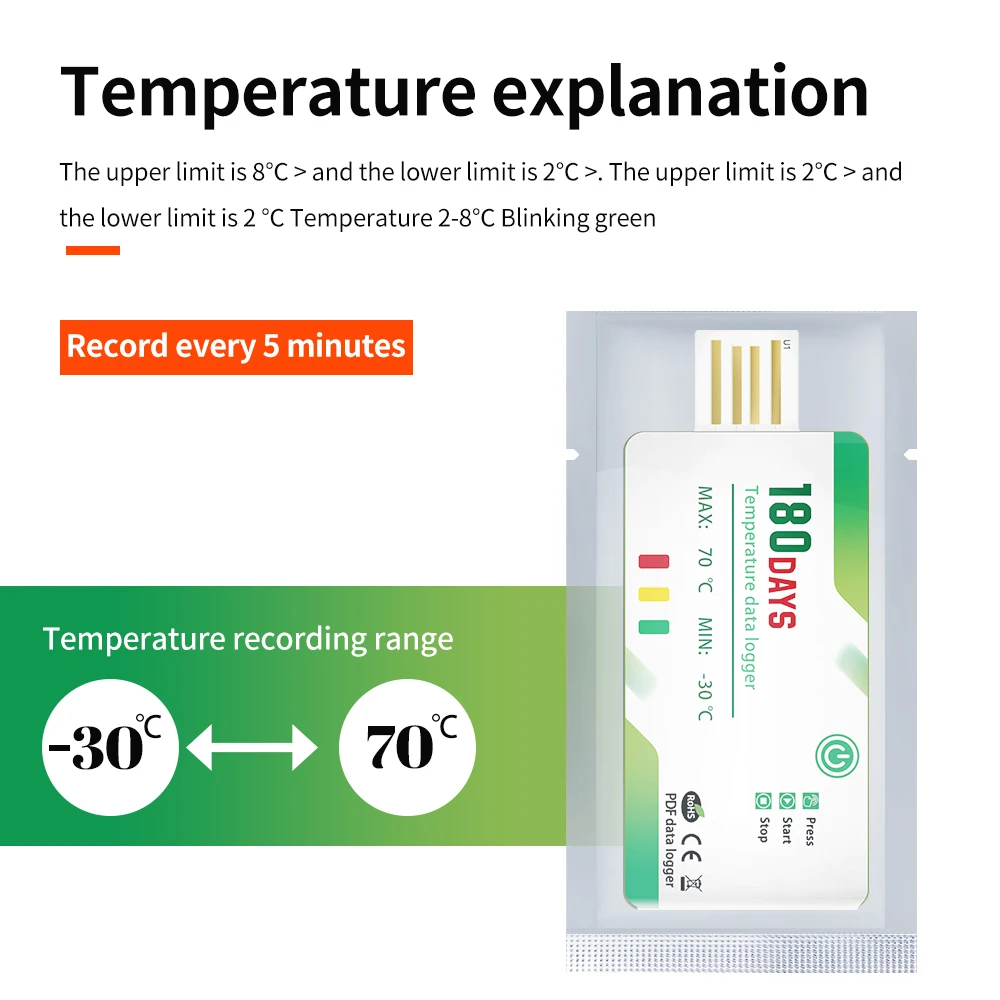

3.Temperature monitoring: During monitoring, if the temperature exceeds the alarm threshold, the red LED flashes once every 30 seconds or when the button is pressed. If the temperature is normal, the green LED flashes once every 30 seconds or when the button is pressed.

4.Data recording: Recording stops only when there are two or more data entries.

5.Stopping recording: Press and hold the button for 3 seconds, the red LED flashes three times, indicating the device has stopped recording. Alternatively, the device can be plugged directly into a computer's USB port to stop recording.

6.Shutdown without report reading: If the device is shut down using the button without reading the report, pressing the button lightly causes the red and green LEDs to flash once.

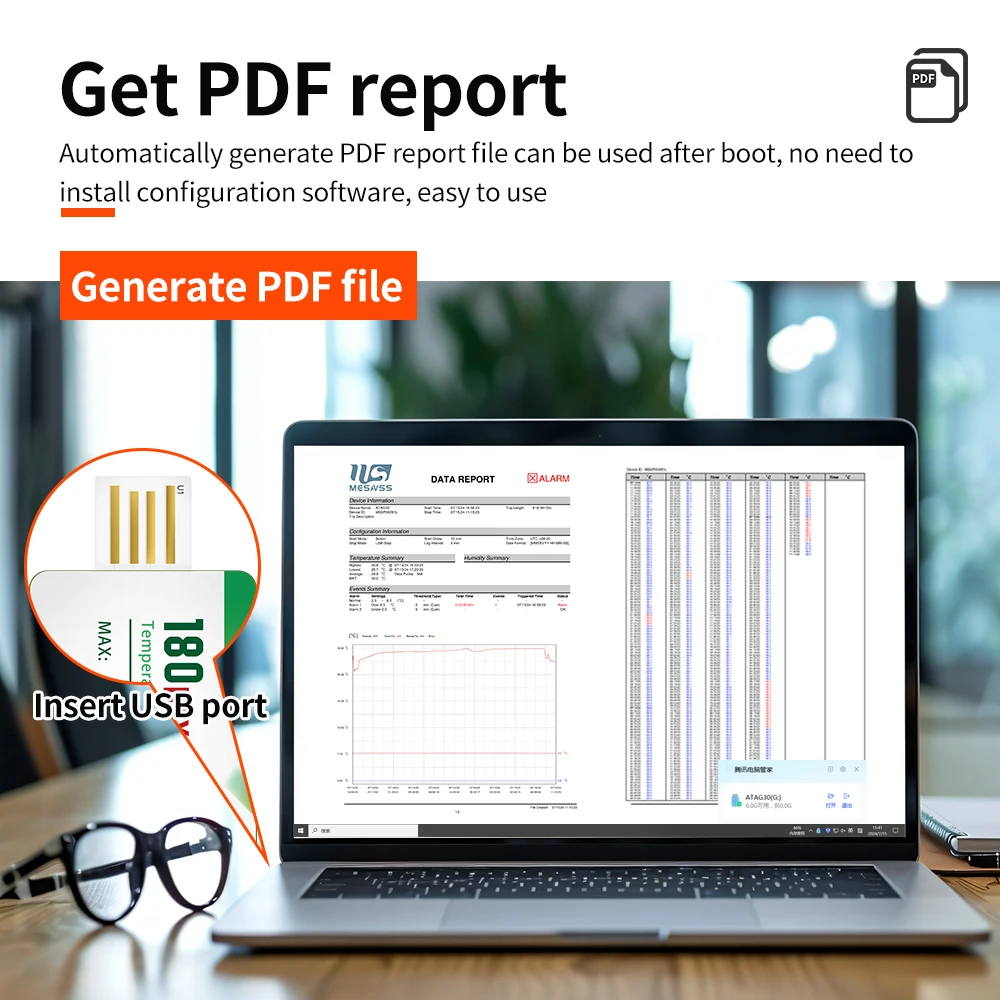

7.Initial connection to computer: When first connected to a computer, the green LED remains on until the report generation is completed, after which it turns off, and the red LED starts flashing. At this point, the computer will detect a USB drive containing reports in PDF/CSV format.

8.Report reading: After reading the report, pressing the button lightly causes the red and green LEDs to flash twice.

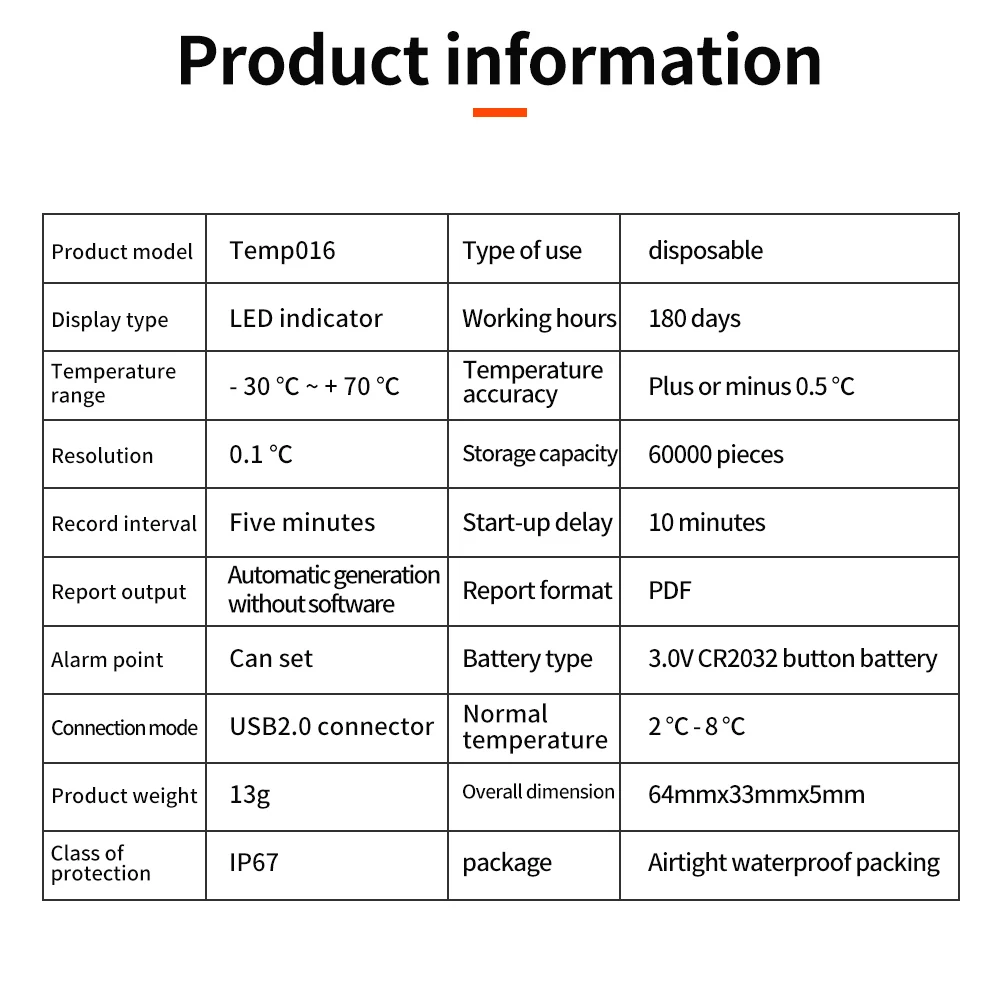

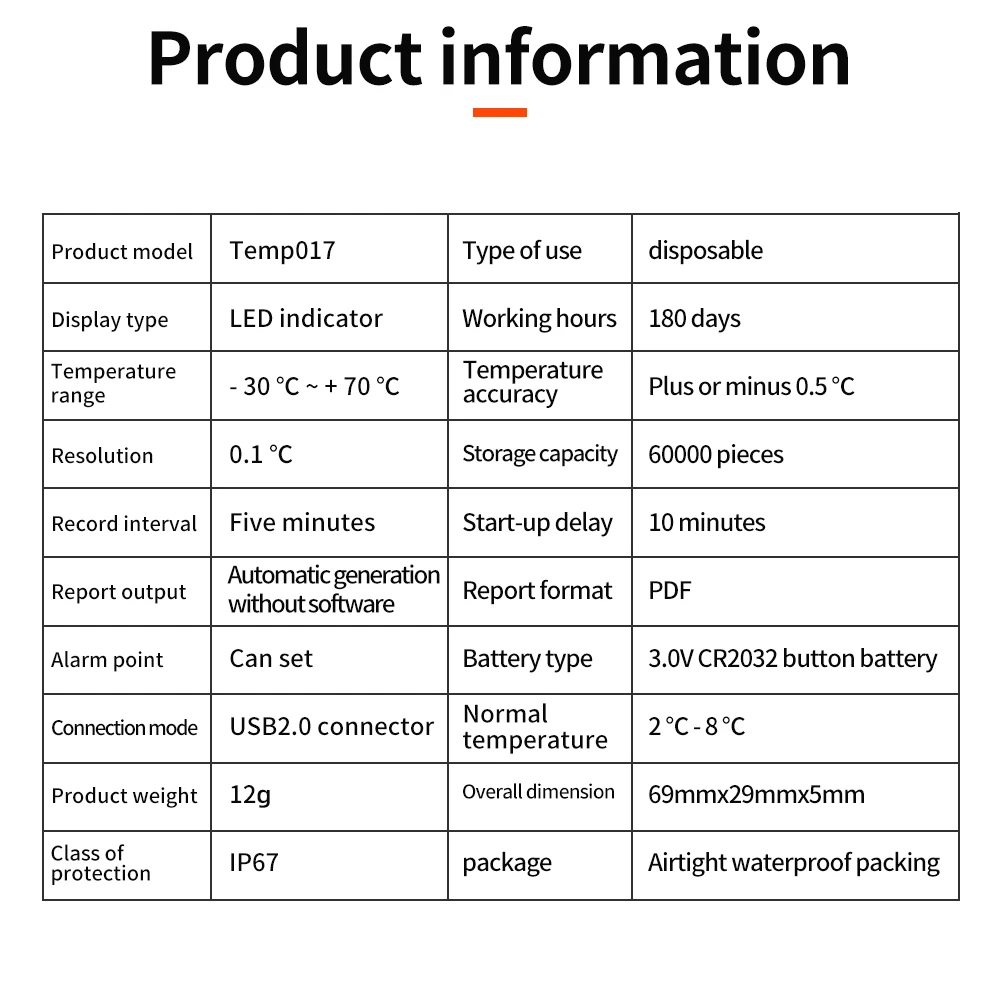

Specifications:

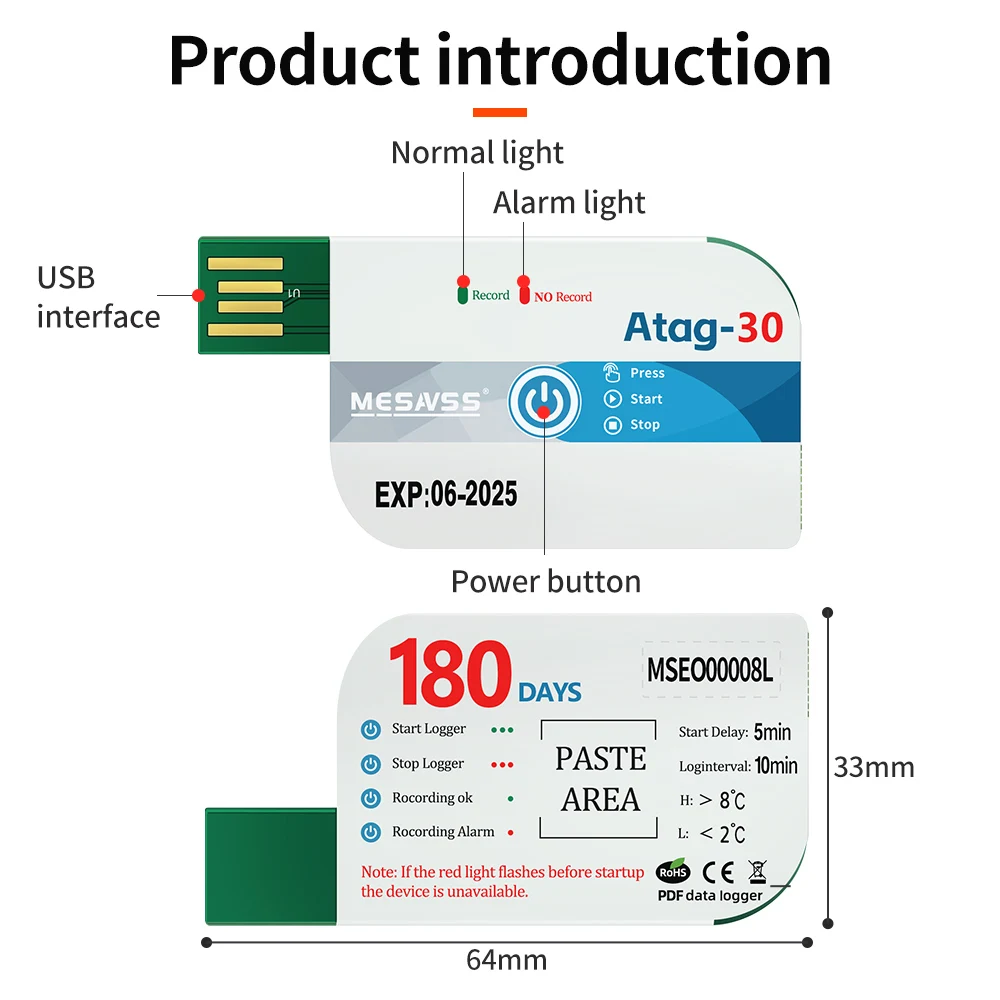

1.Type:Temp017/Temp016(Optional)

The chip capabilities of the two products are different, Temp016 has better chip capabilities and stability!!!

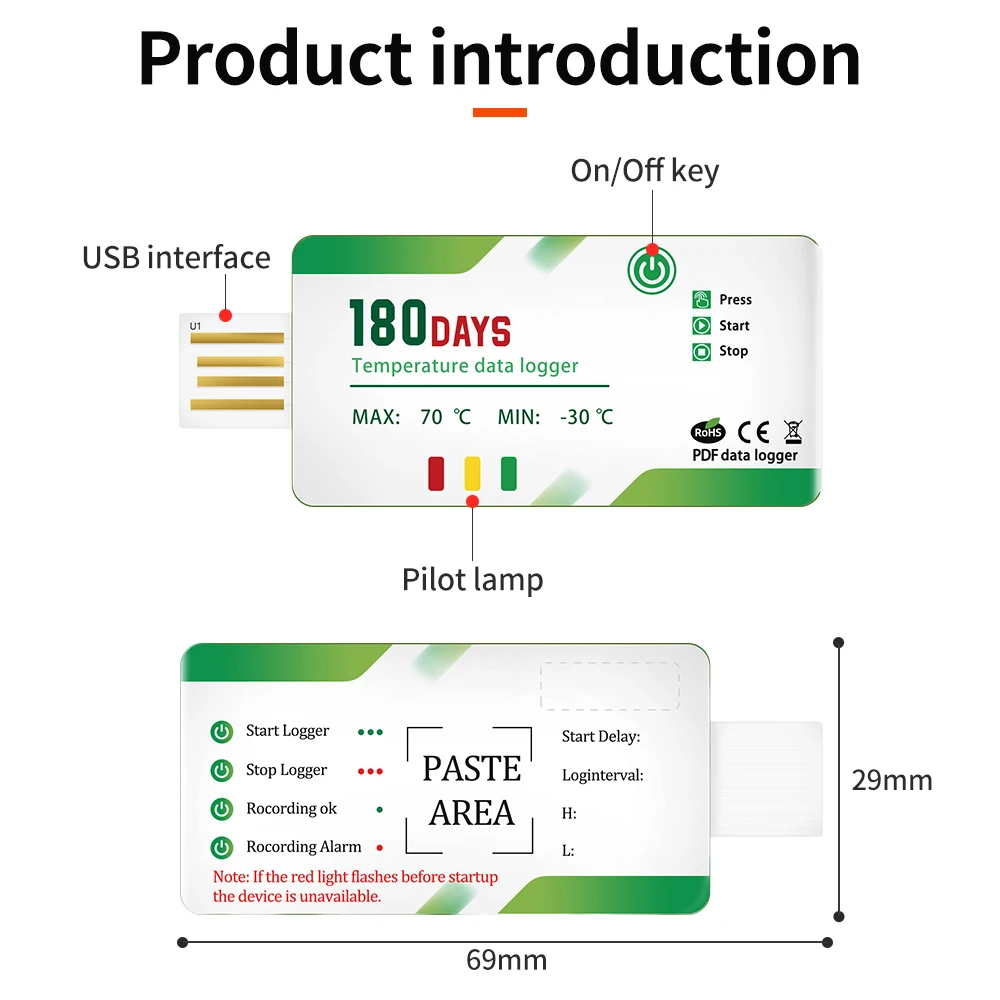

2.LED indicators: Red, Green

3.Button: Power on/off, control

4.Data storage: Requires a minimum of two data entries to stop recording

5.Connectivity: USB interface for power and data transfer

6.Report formats: PDF, CSV

Warnings:

7.Ensure proper temperature monitoring to prevent damage.

8.Do not force the button or USB insertion.

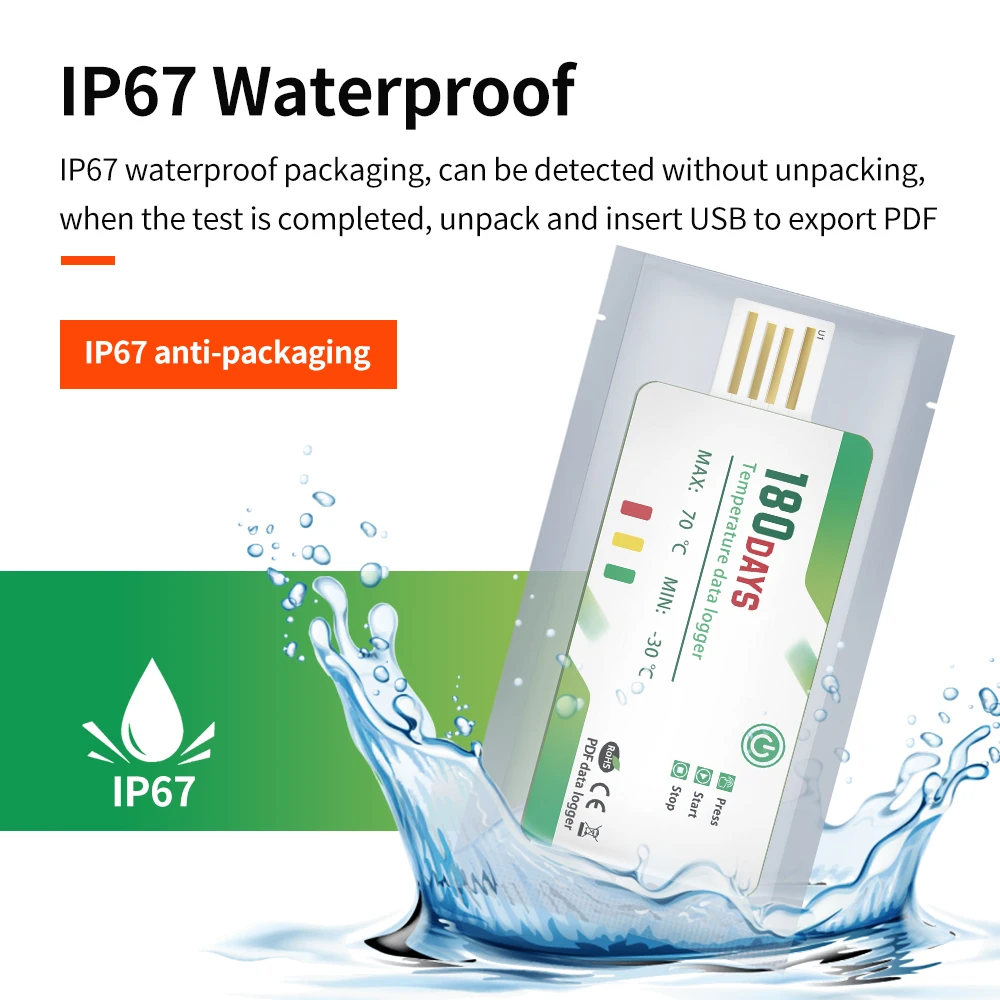

9.Keep the device away from water and excessive heat sources.

10.Do not attempt to disassemble or repair the device yourself.

Note: For detailed instructions on usage, troubleshooting, and maintenance, please refer to the comprehensive user manual included with the device.
