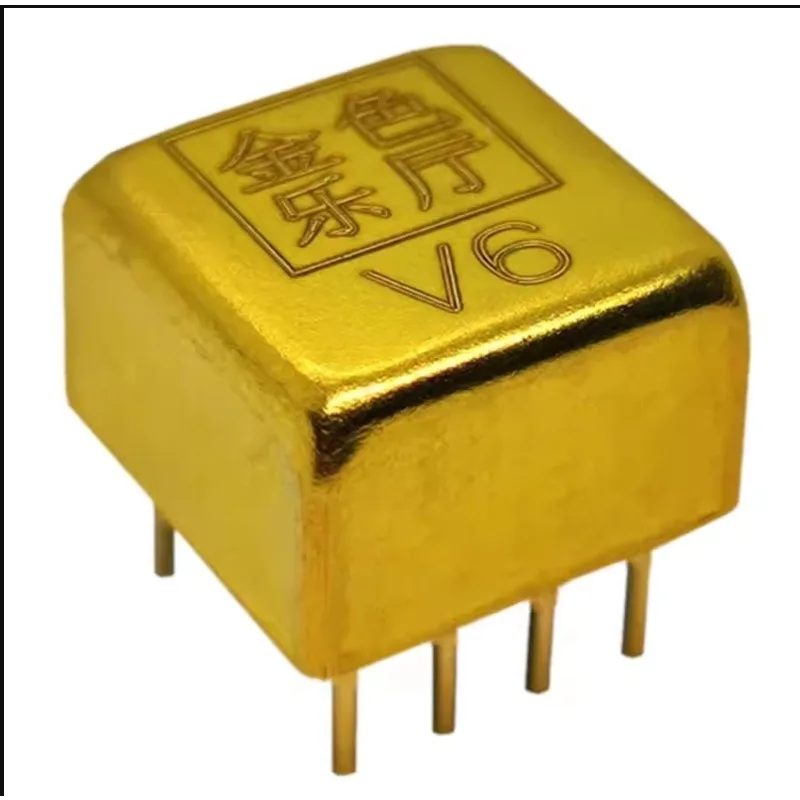

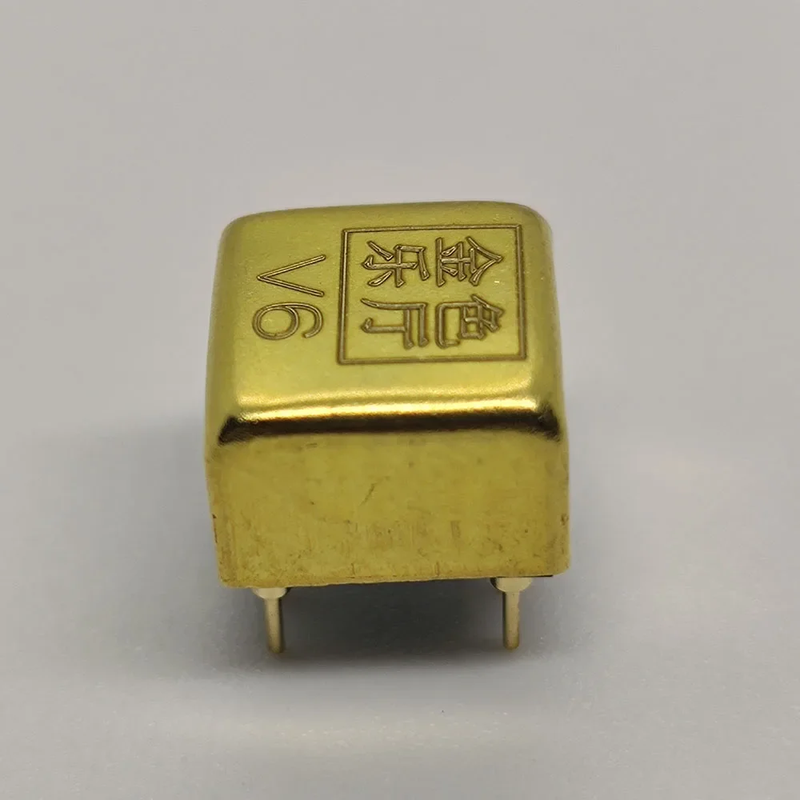

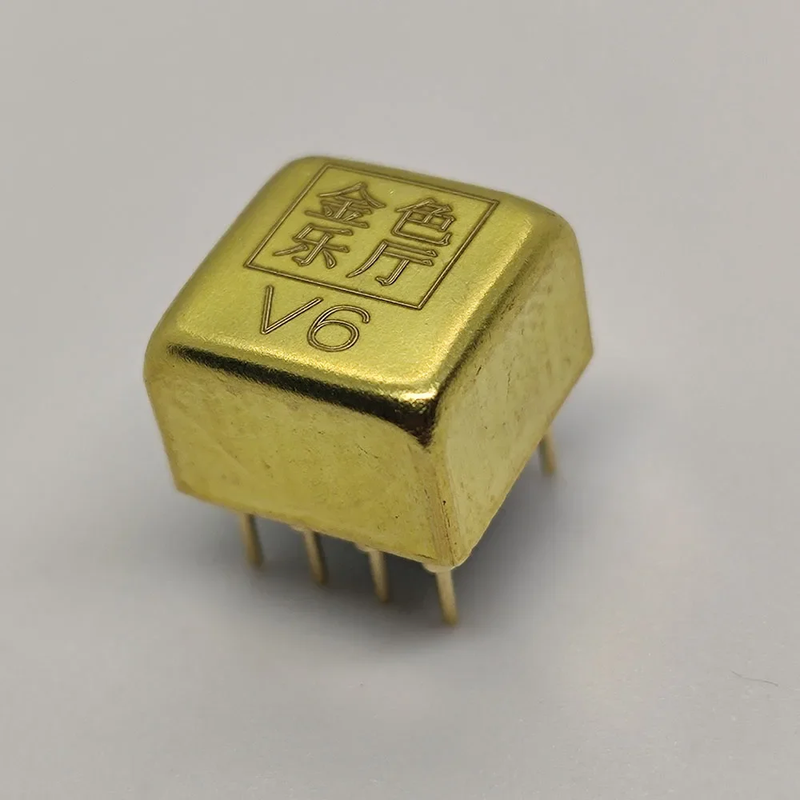

1PCS V6 Dual OP AMP Upgrade Gold Seal SS3602 MUSES02 OPA627BP for DAC Headphone

Description

The V6 dual op amp is a member of a dedicated op amp and is a state-of-the-art flagship dual op amp. Suitable for hifi fans to improve sound quality in one step, upgradeable to replace v5, V4, AMP9922AT, AMP9920AT, MUSES02, MUSES01, AD827, SS3602, OPA2604, NE5532, LME49720, etc. The v6 sound is warm and hydrated, and the tri-band is smooth and compliant. The background sounds very quiet and ear, the sound quality Q is very high and emotional, its details Dynamics can also be accurately expressed, the air is excellent, the sound is very clean, transparent and sweet.

Indicator characteristics

Amplifier type: audio dedicated
Amplifier channel number: Dual op amp
Conversion rate: 9V/s
Bandwidth: 18MHz
Low noise: 2.5nV/HZ at 1KHZ
Low distortion: 0.00003% at 1KHZ
Current-Input Bias: 450nA
Voltage-Input Offset: 290V
Rated voltage: 3-- 16V
Working temperature: -40 C - 85C
Installation type: inline
Package: Dual in-line module (for replaceable standard inline DIP8 package)

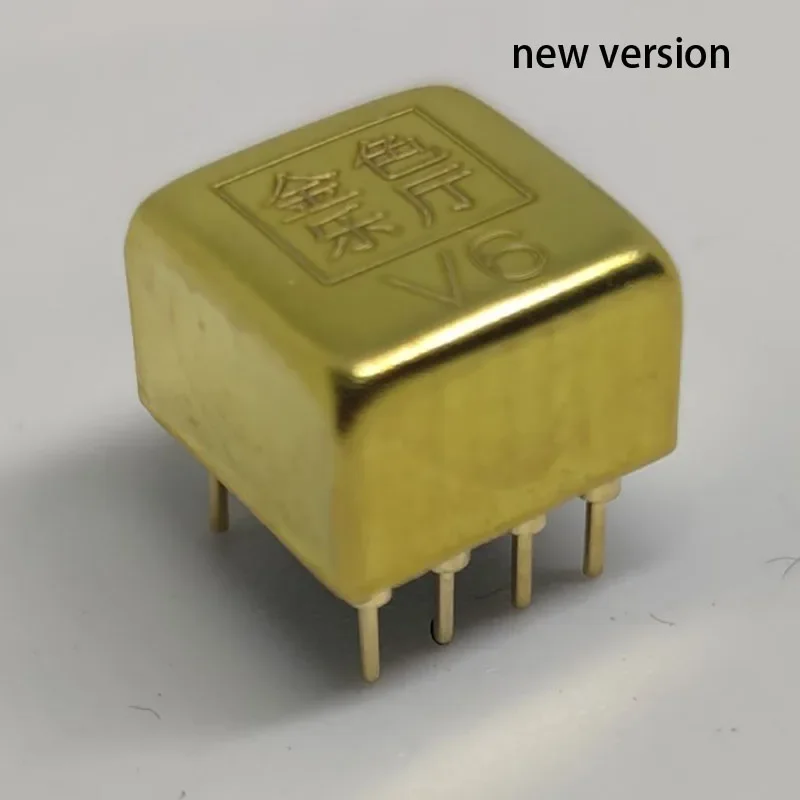

This is a new version, and the original kind of only the shape has changed, the same universal, the effect is the same
