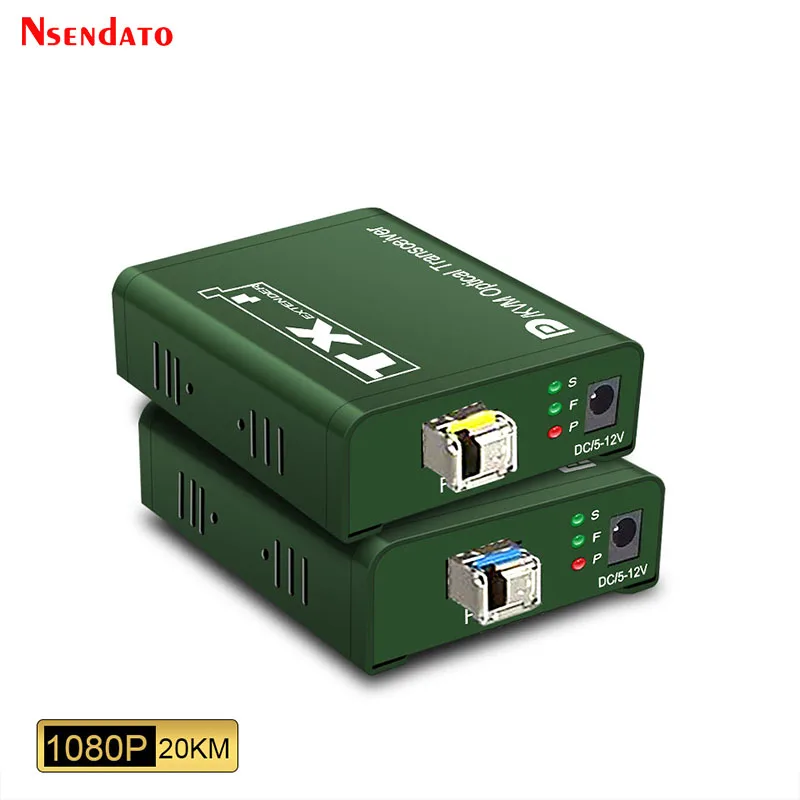

20Km DP Fiber KVM Extender Transceiver over LC Fiber Optical Cable 1080P USB KVM

20km DP Fiber KVM Extender Transceiver Over LC Fiber Optical Cable 1080P USB KVM DP Video Transmitter And Receiver Extender Kit

Introduction

The Nsendato of DP extender provides extension of DP signals long distances over a single Fiber.It supports KVM,to operate remote devices using keyboard and mouse,embedded audio input and output.The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

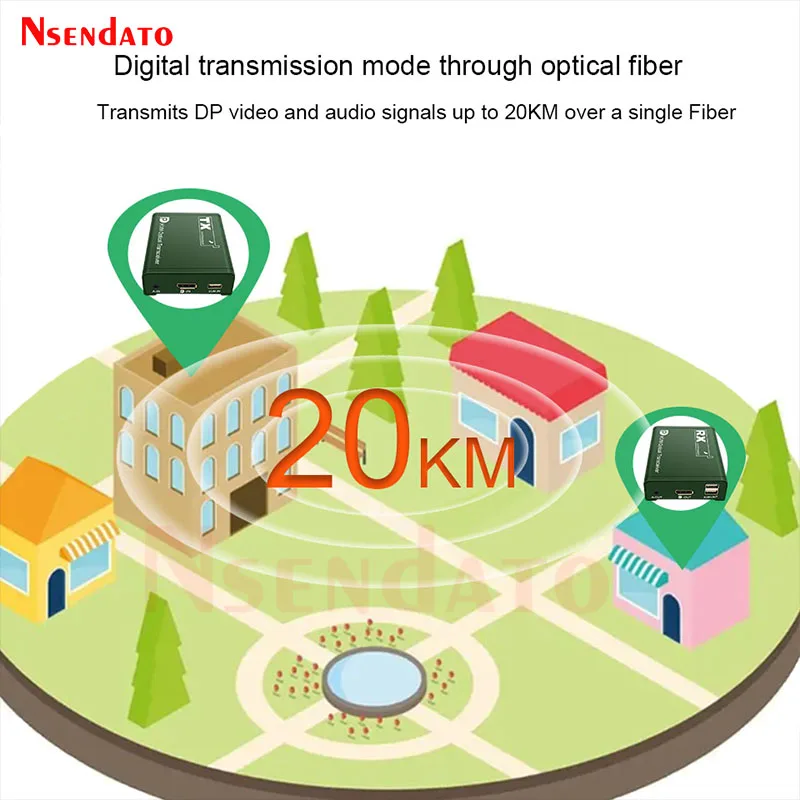

Transmits DP video and audio signals up to 20KM over a single Fiber

Support video resolution up to 19201080P@60Hz, 16001200@60Hz

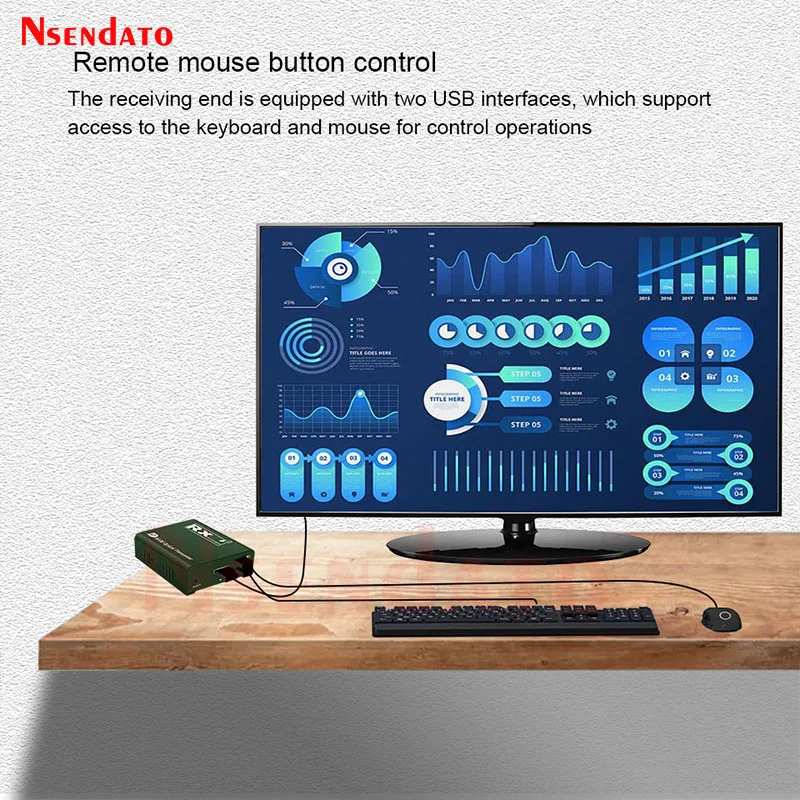

Support KVM, to operate remote devices using keyboard and mouse

Support embedded audio input and output

Compliant with DP V1.3a standard,Compliance with HDCP1.2 standard-High bandwidth digital protection technology

High compatibility,can auto-match source and display device

Built-in automatic adjustment system,make the image smooth,clear and stable

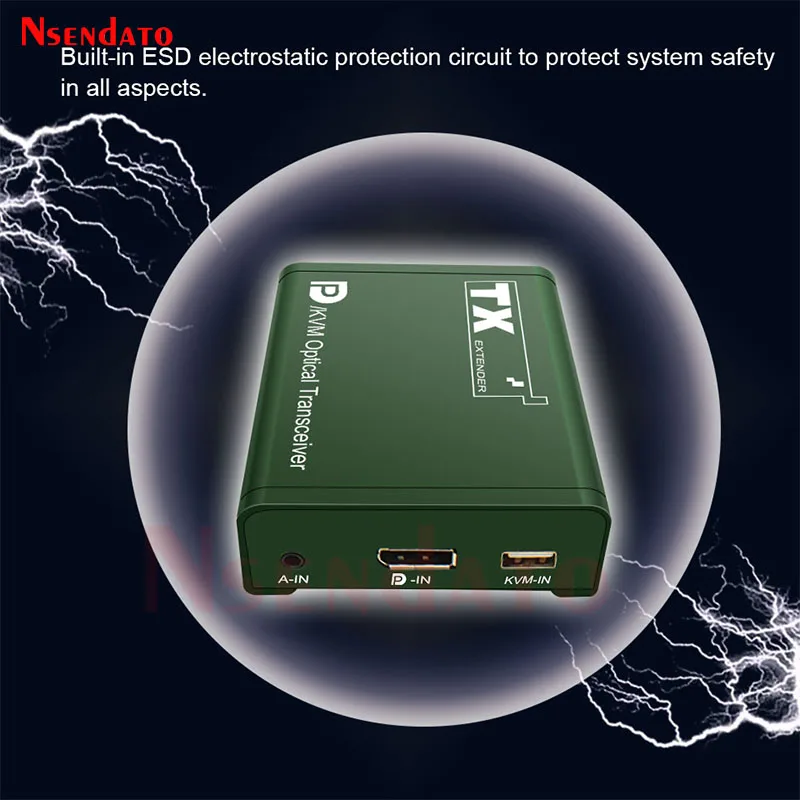

Built-in ESD protection system

Simple to install, plug and play

Specification:

Video Standards:DP V1.3a;Compatible-HDCP 1.2

Maximum pixel clock:165MHz

Maximum data rate:6.75Gbps

Resolution:640480@60Hz;800600@60Hz;1024768@60Hz;1280720@50Hz;1280720@60Hz;1280768@60Hz; 1280800@60Hz;1280960@60Hz;12801024@60Hz;1360768@60Hz;1400x1050@60Hz;1440900@60Hz;16001200@60Hz; 16801050@60Hz;19201200@60Hz;19201080i@60Hz;19201080@50Hz;19201080@60Hz

Connector:DP

Impedance:100

Suggest using less than 5 meters DP cables to connect

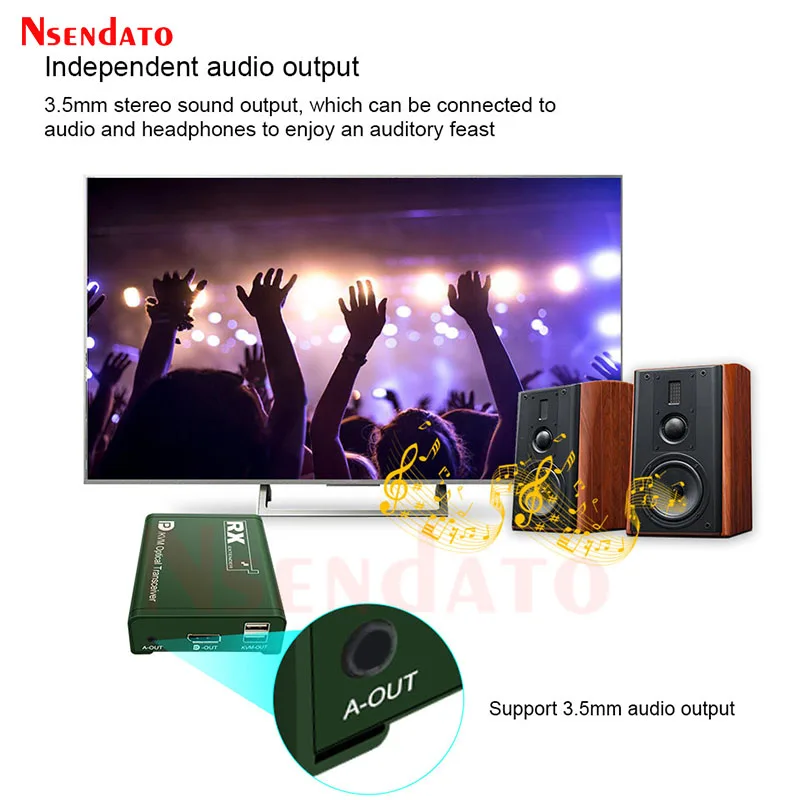

Audio Interface:3.5mm

Signal type:Embedded unidirectional stereo audio

USB IN:USB-A Input

USB OUT:USB-A Output

Fiber Interface:LC Port

Fiber Model:Single mode

wavelength:Single moe 1310nm1550nm

Transmission distance:MAX up to 20KM

Power adapter:DC 5~12V/1A

Package

DP transmitter

DP receiver

USB cable

Power adapter

User manual
