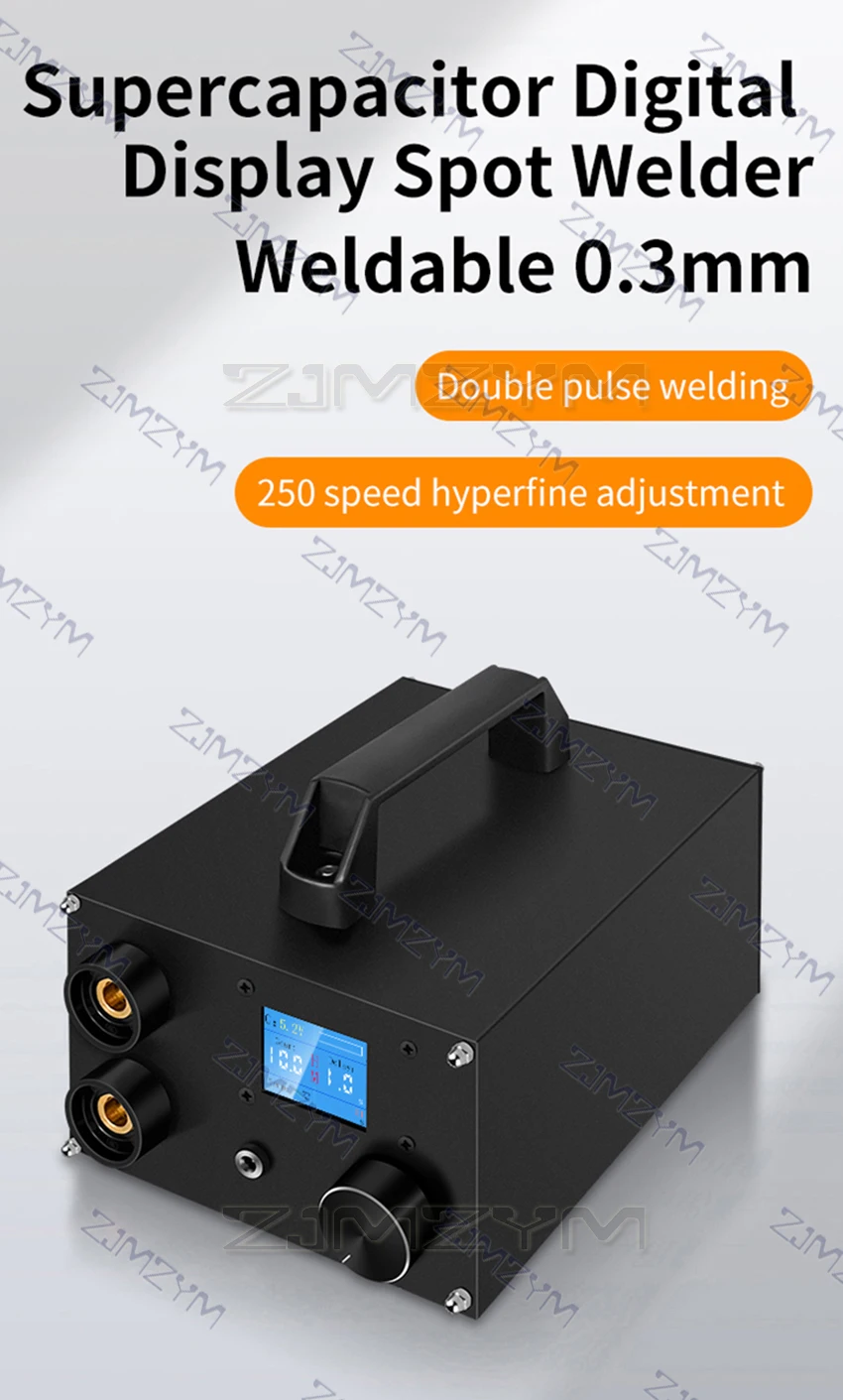

250 Gears Spots Welding Machine Double Capacitors Energy Storage Dual-Pulse Weld

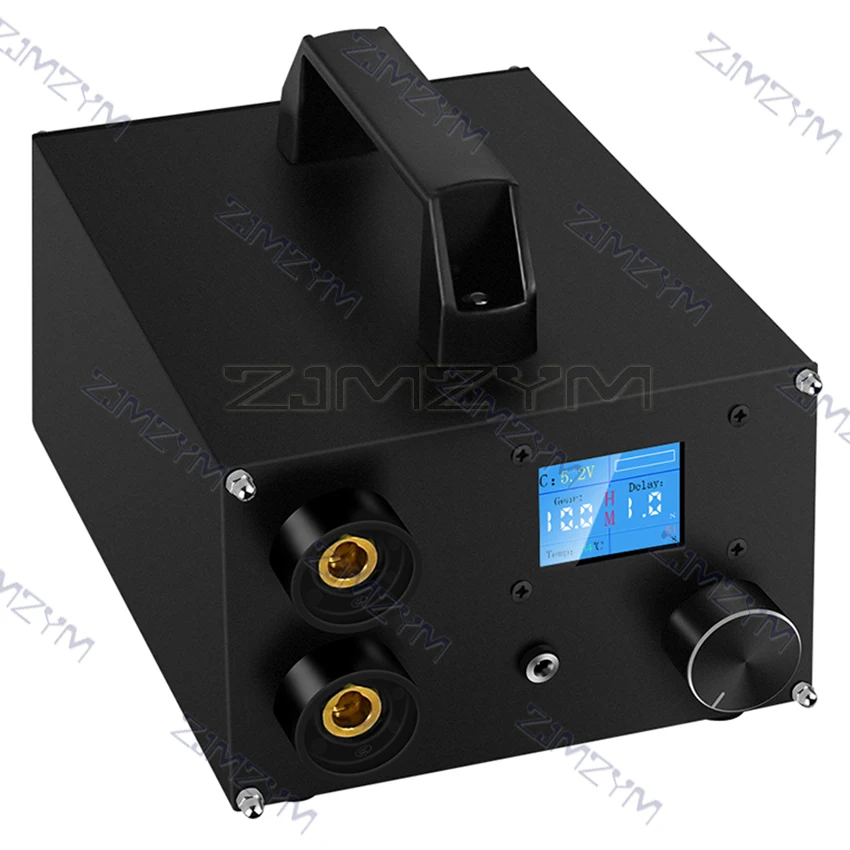

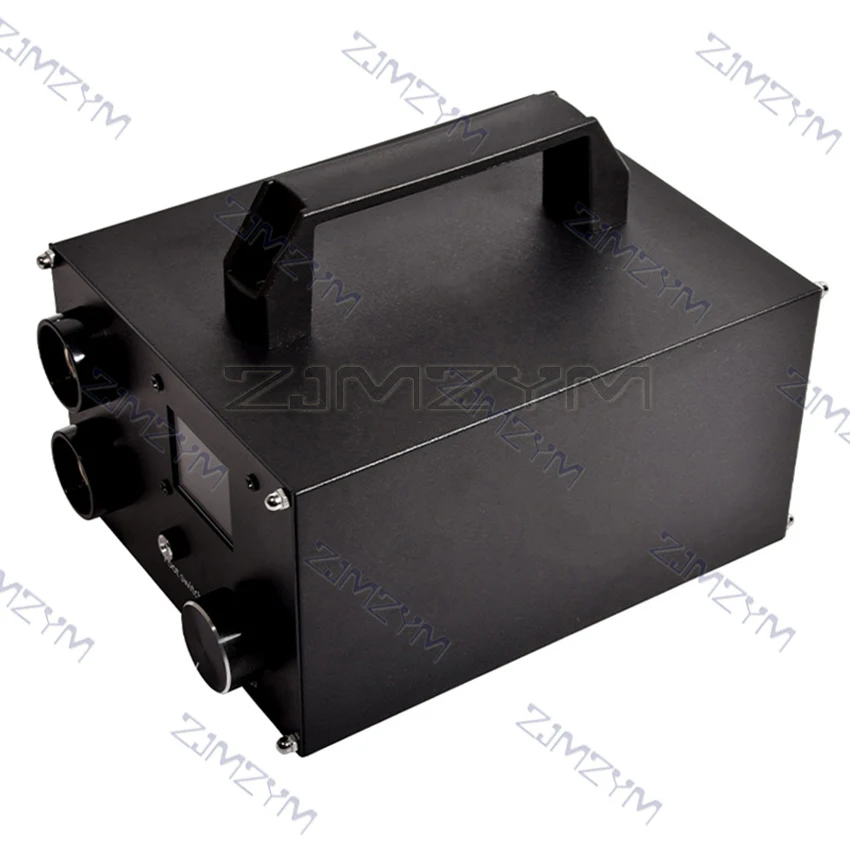

Name: 250-Gear Spot Welding Machine

Voltage: 110V-240V (universal)

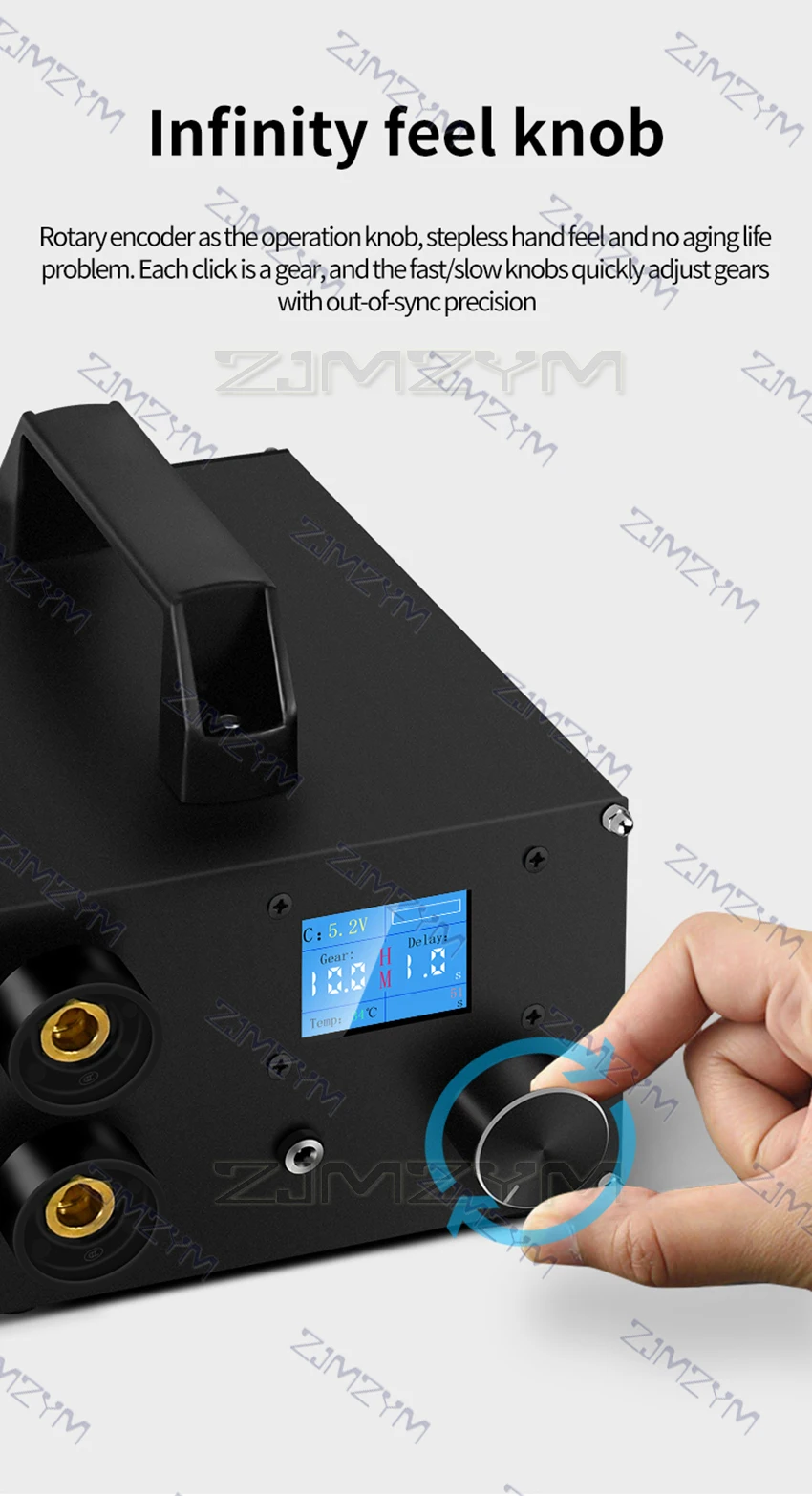

Power adjustment: 250 Gears

Current: 5V; 2100A

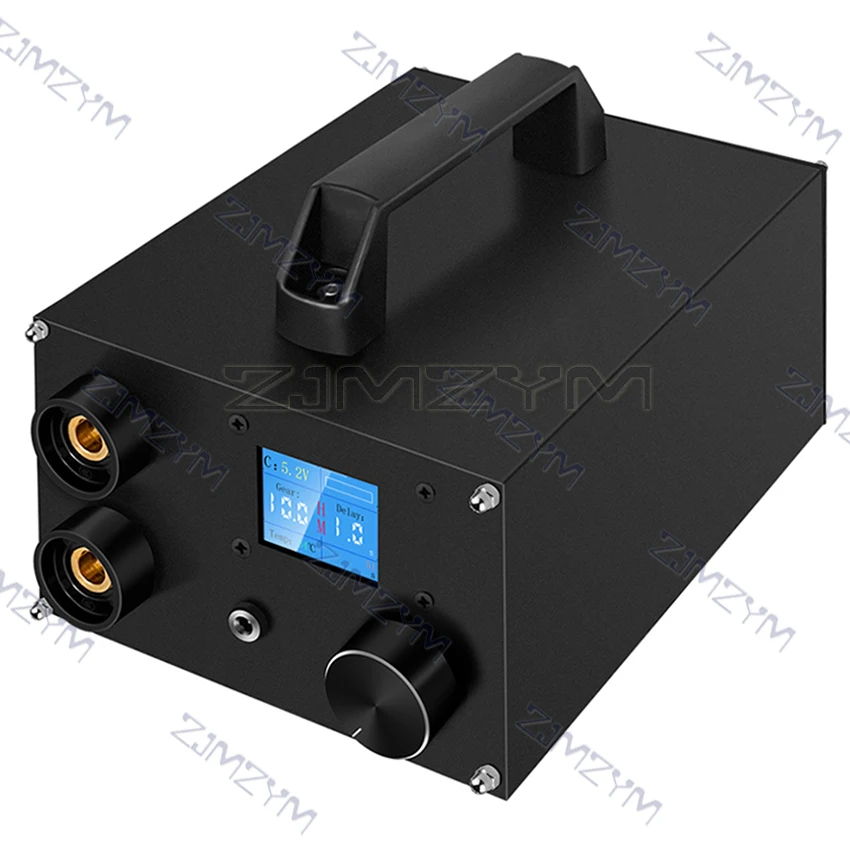

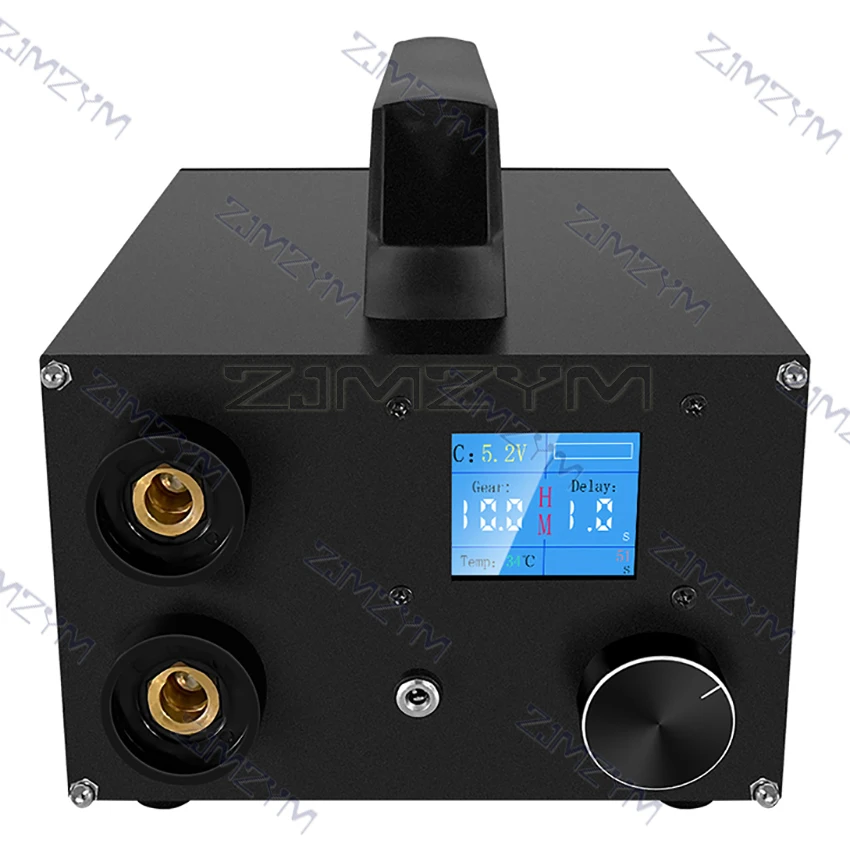

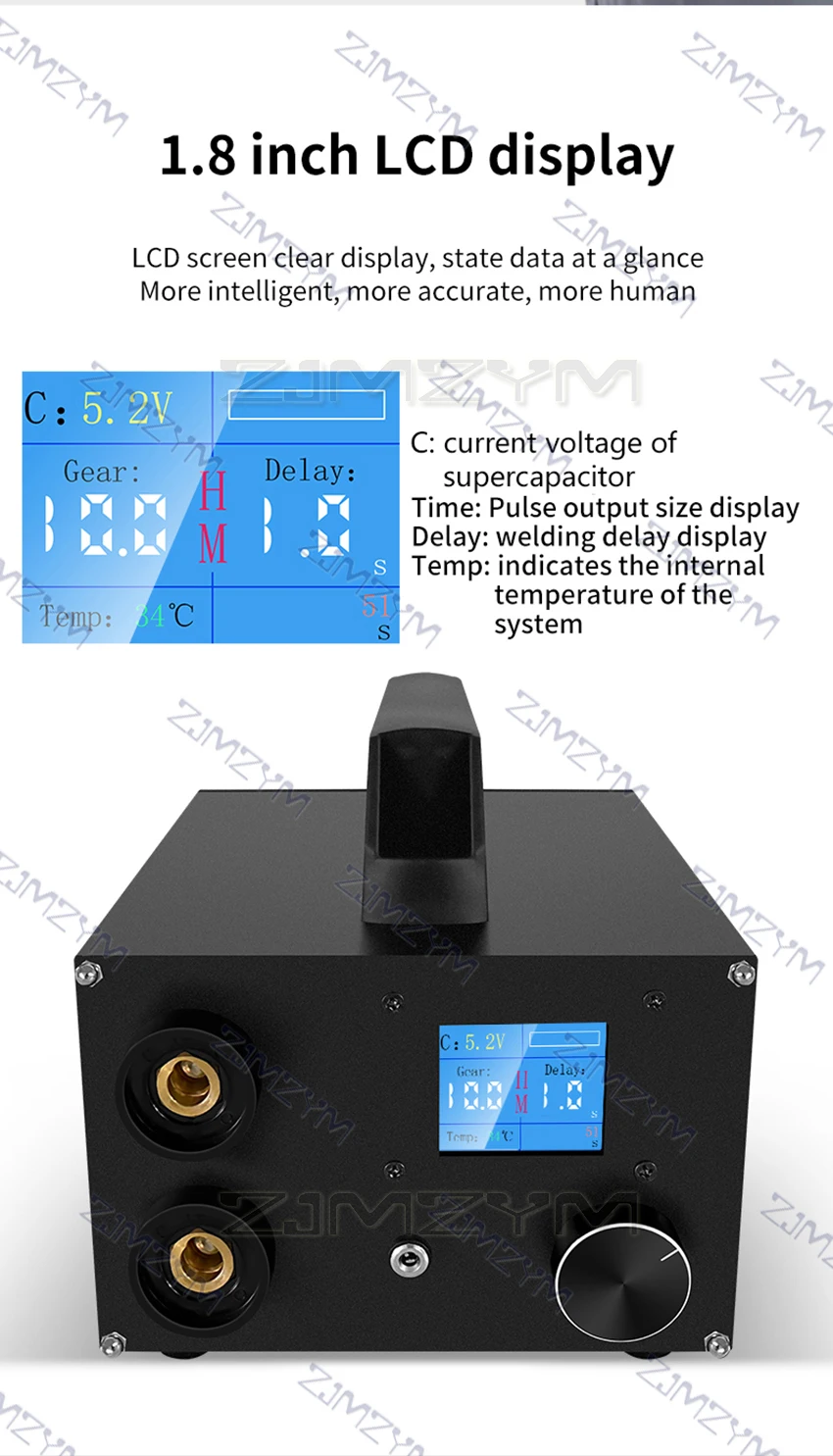

Screen display: 1.8 inch LCD screen

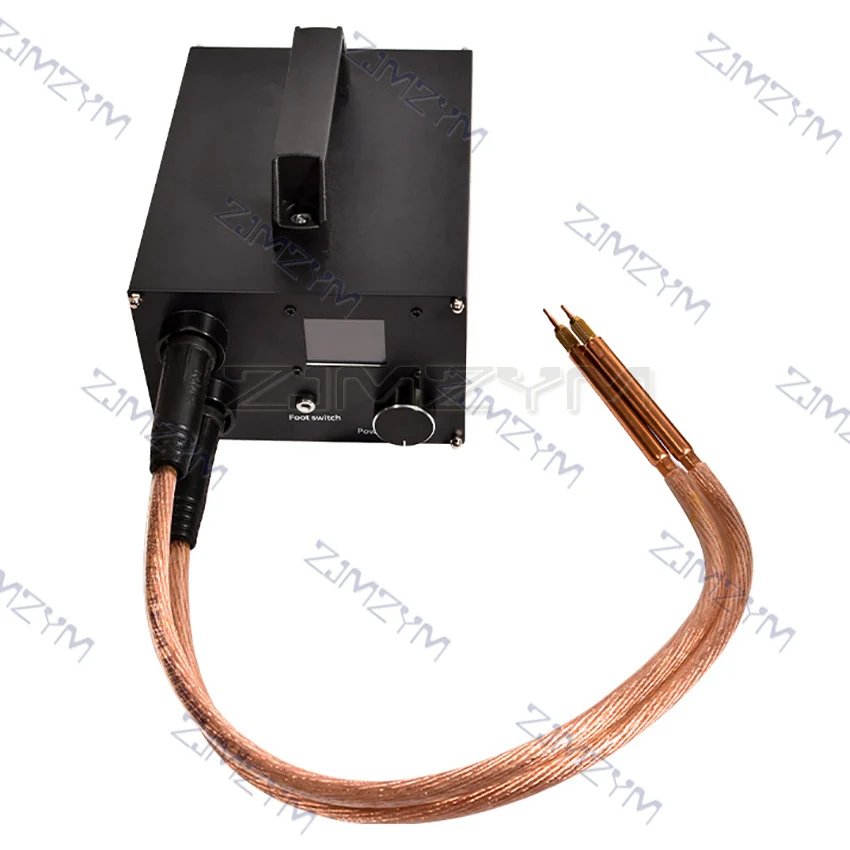

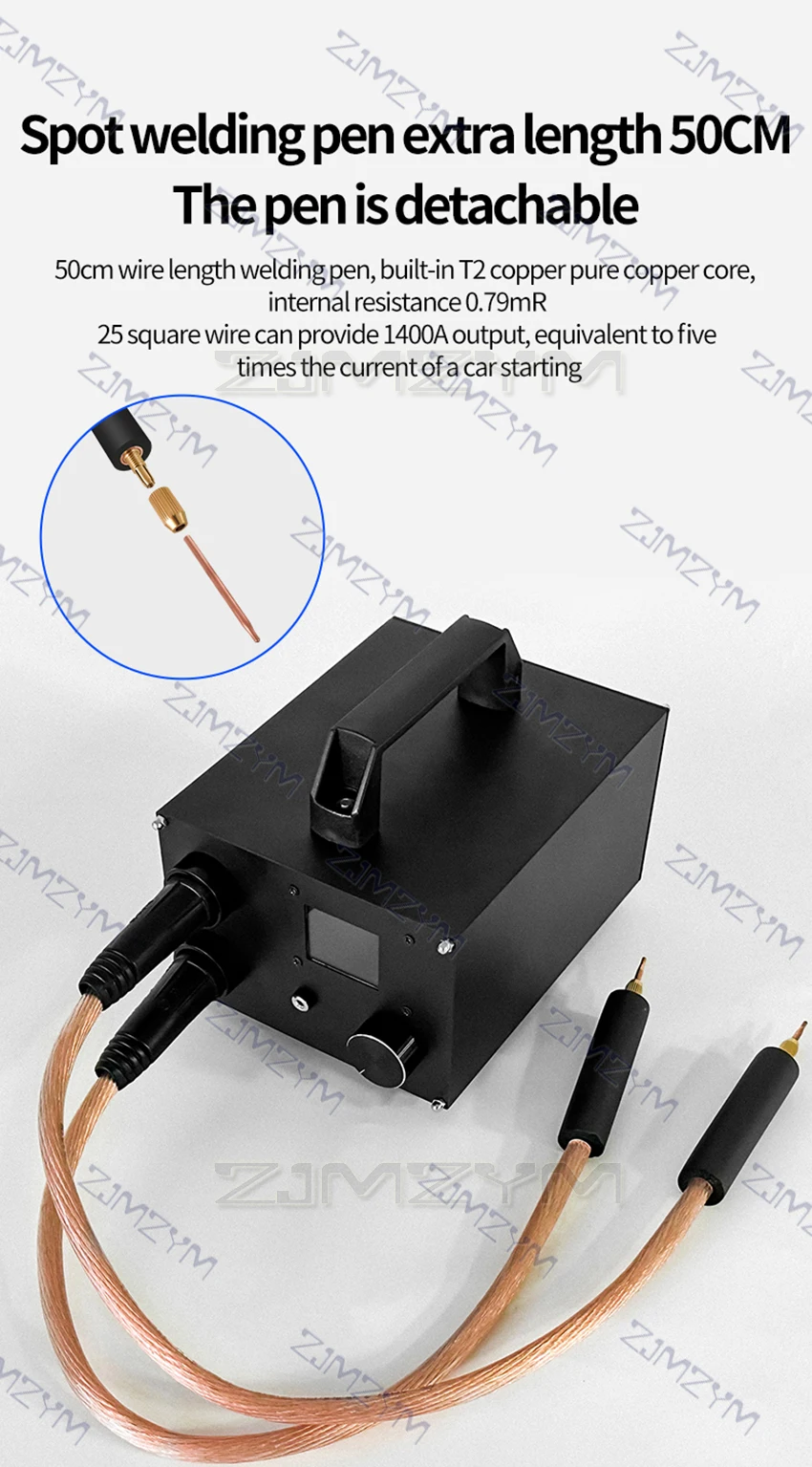

Spot welding pen wire length: 50cm

Peak output: 1400A (can be welded firmly 0.3mm nickel tape)

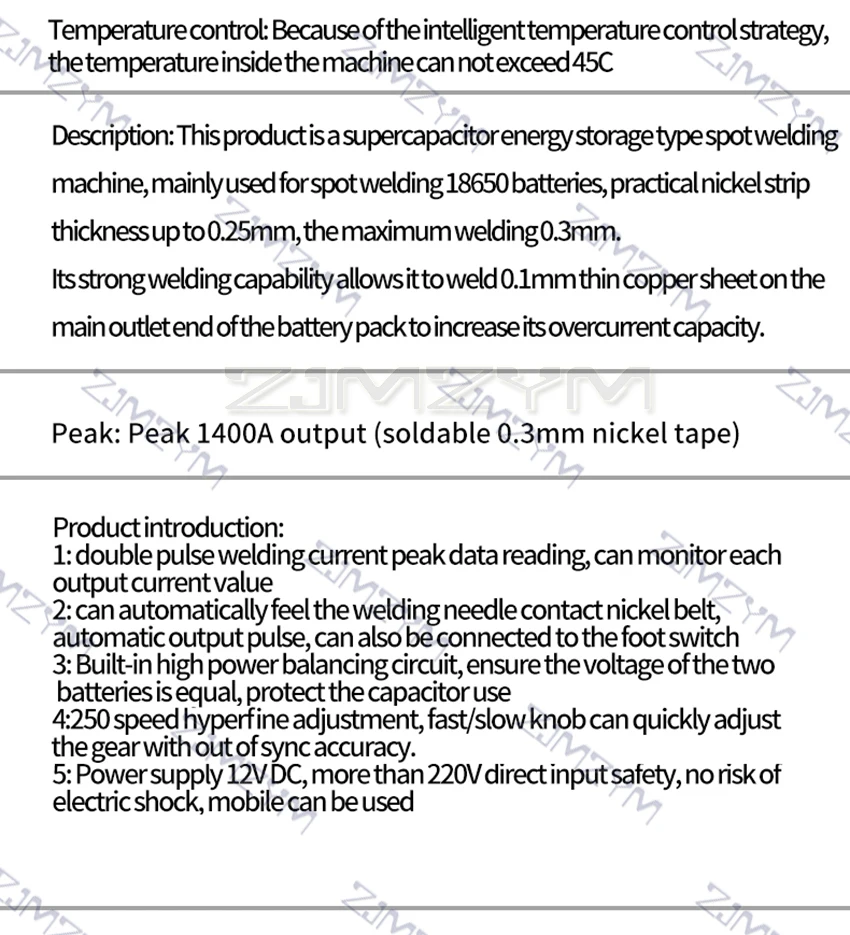

Temperature control: intelligent temperature control,

can make the temperature inside the machine does not exceed 45

Material: Aviation aluminum alloy

Net weight: 2.1kg

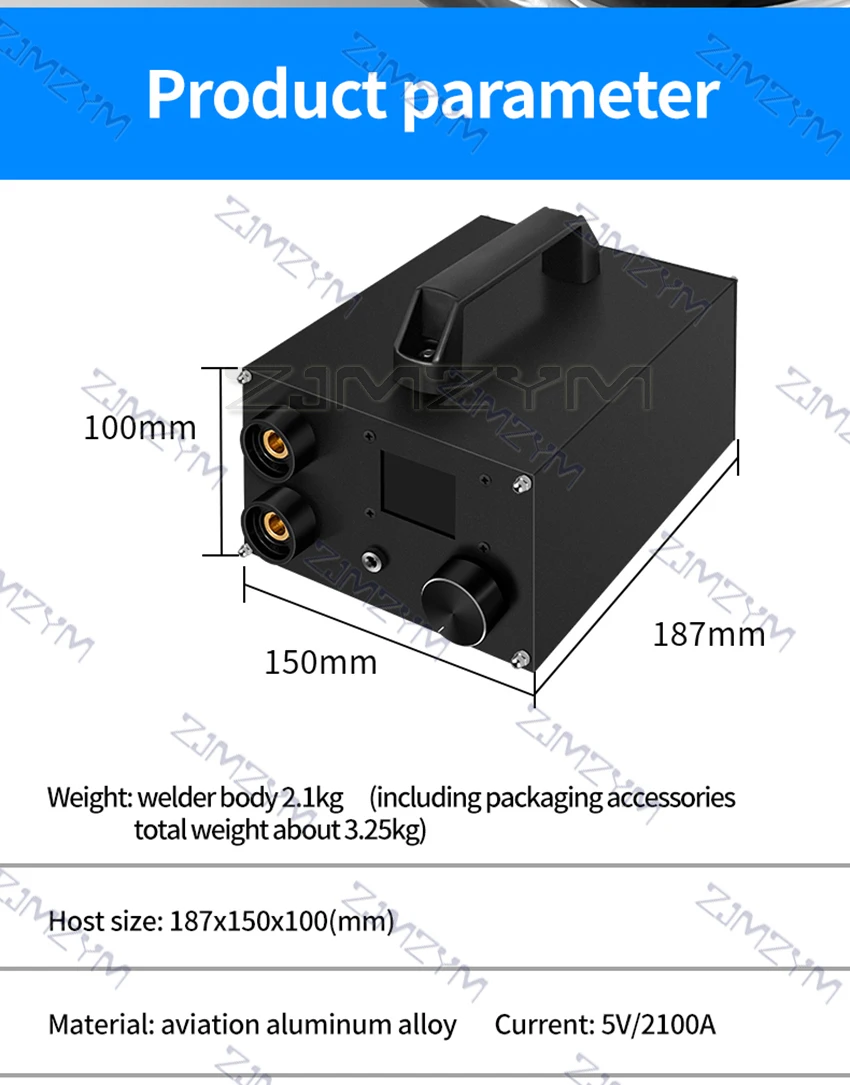

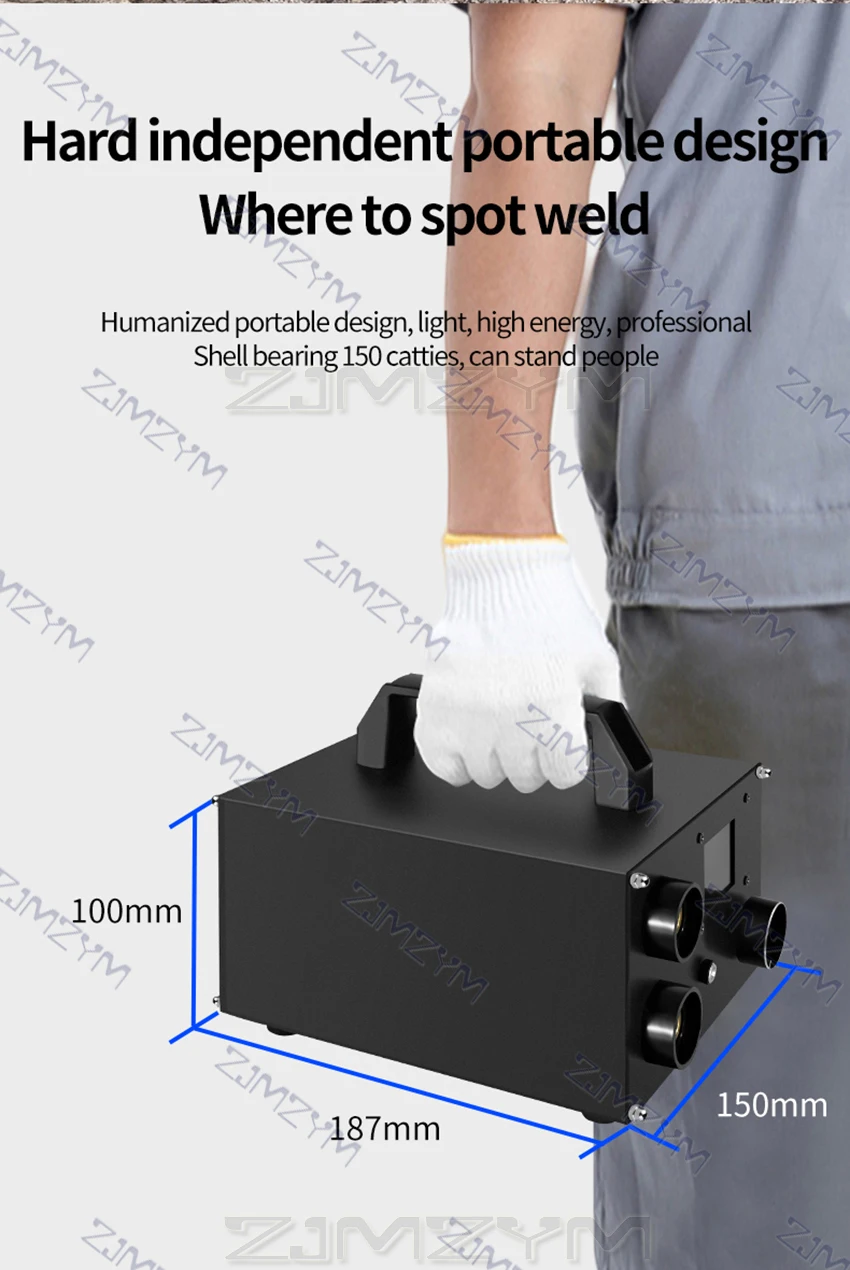

Machine size: 150*187*100mm (L*W*H)

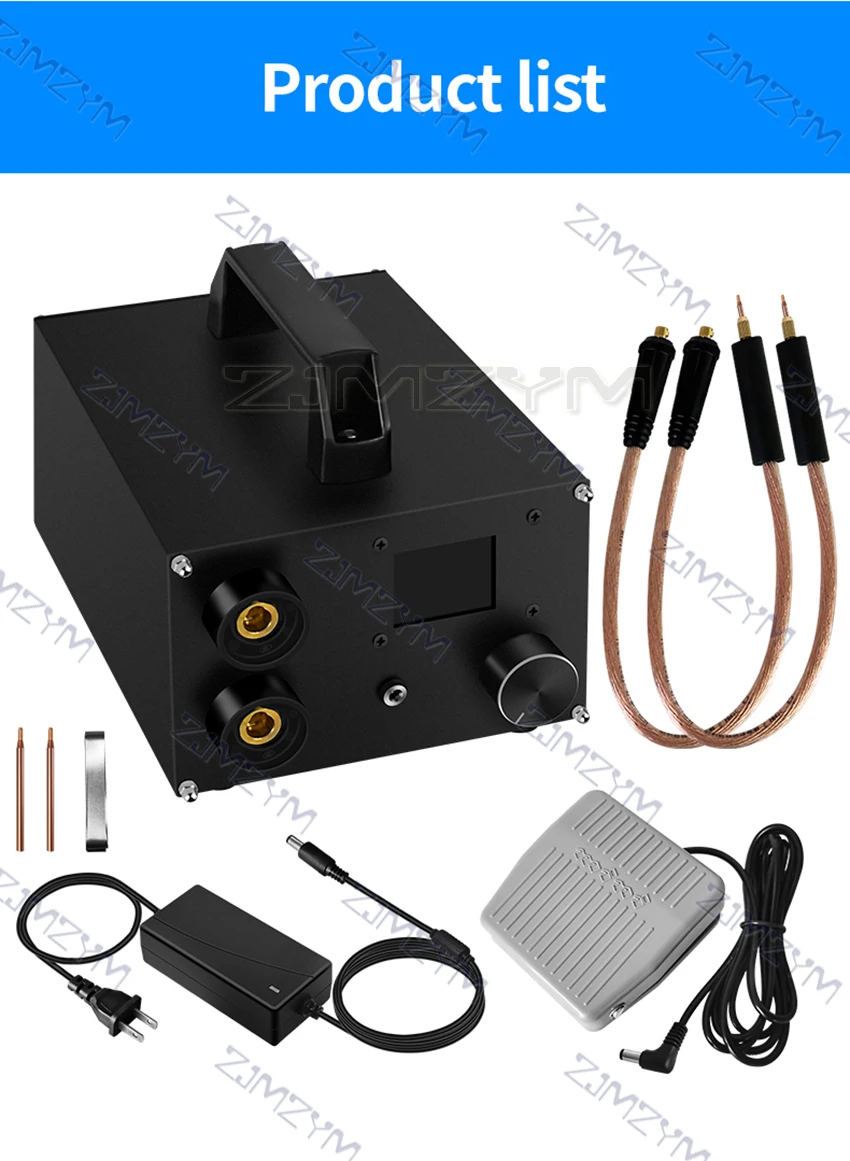

Package Included:

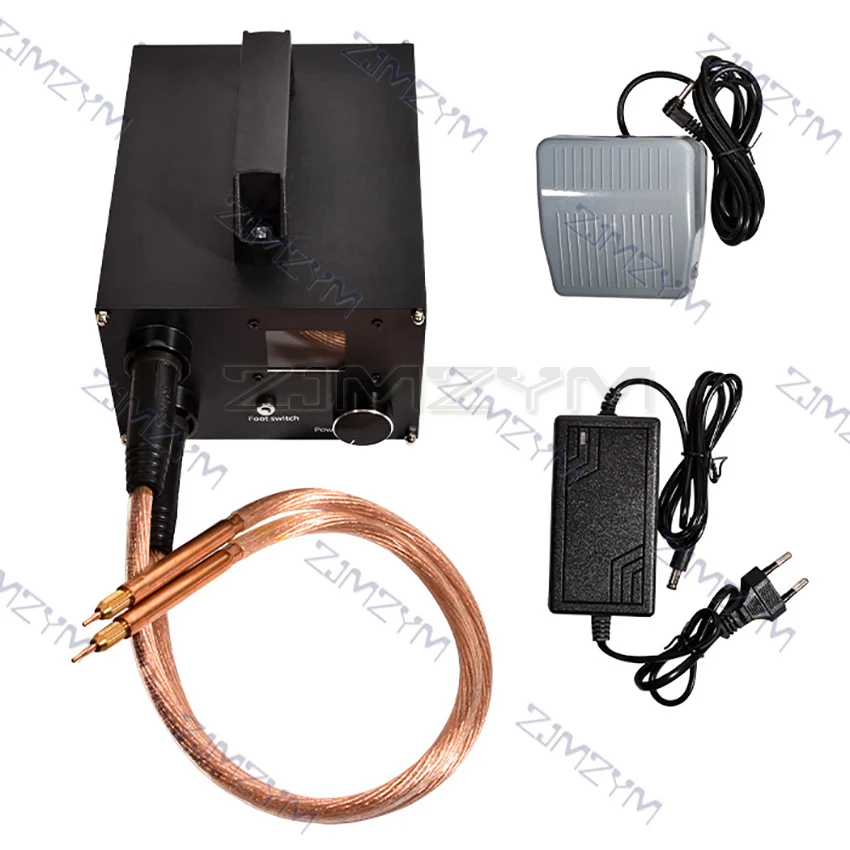

1 Spot Welding Machine Kit

Instructions:

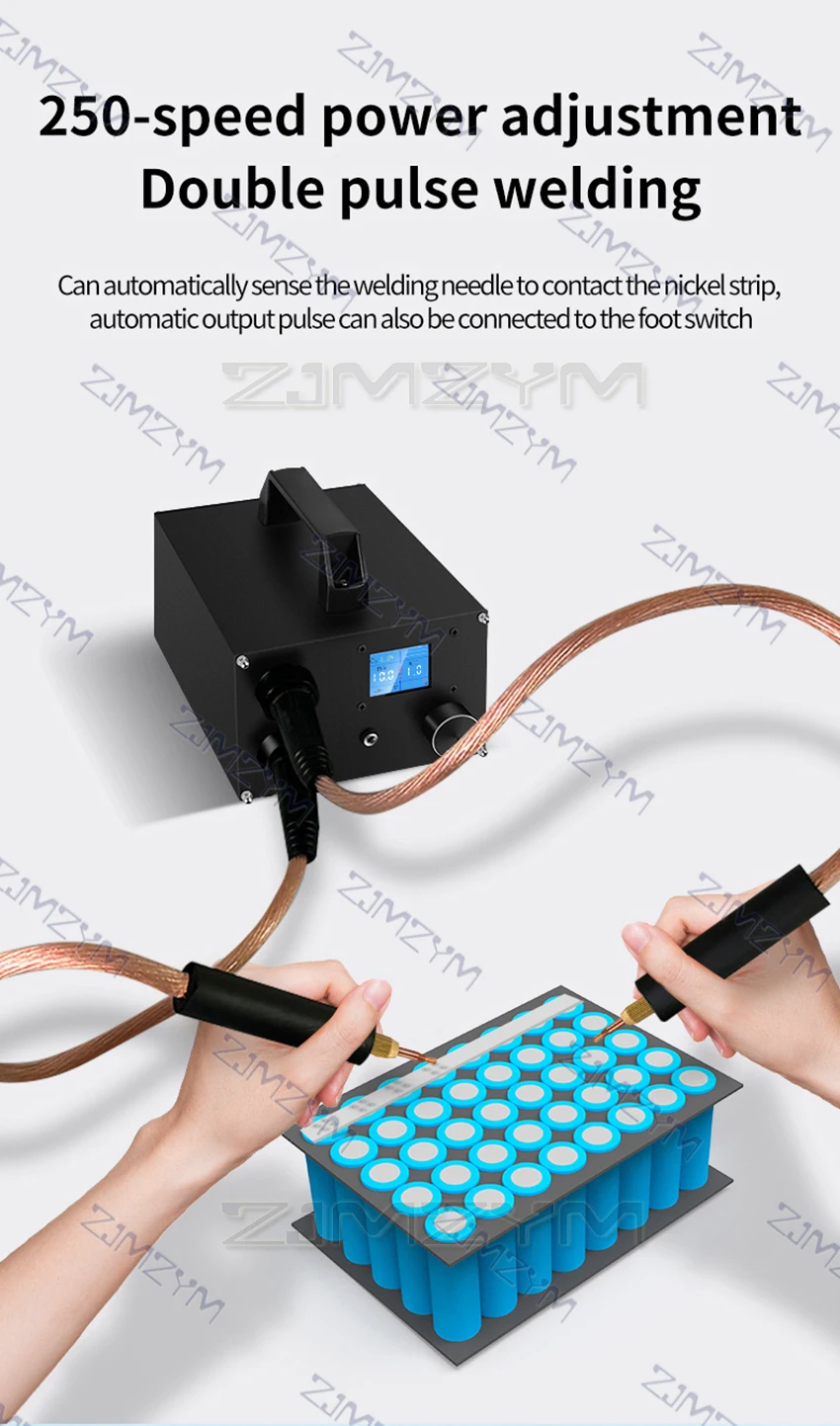

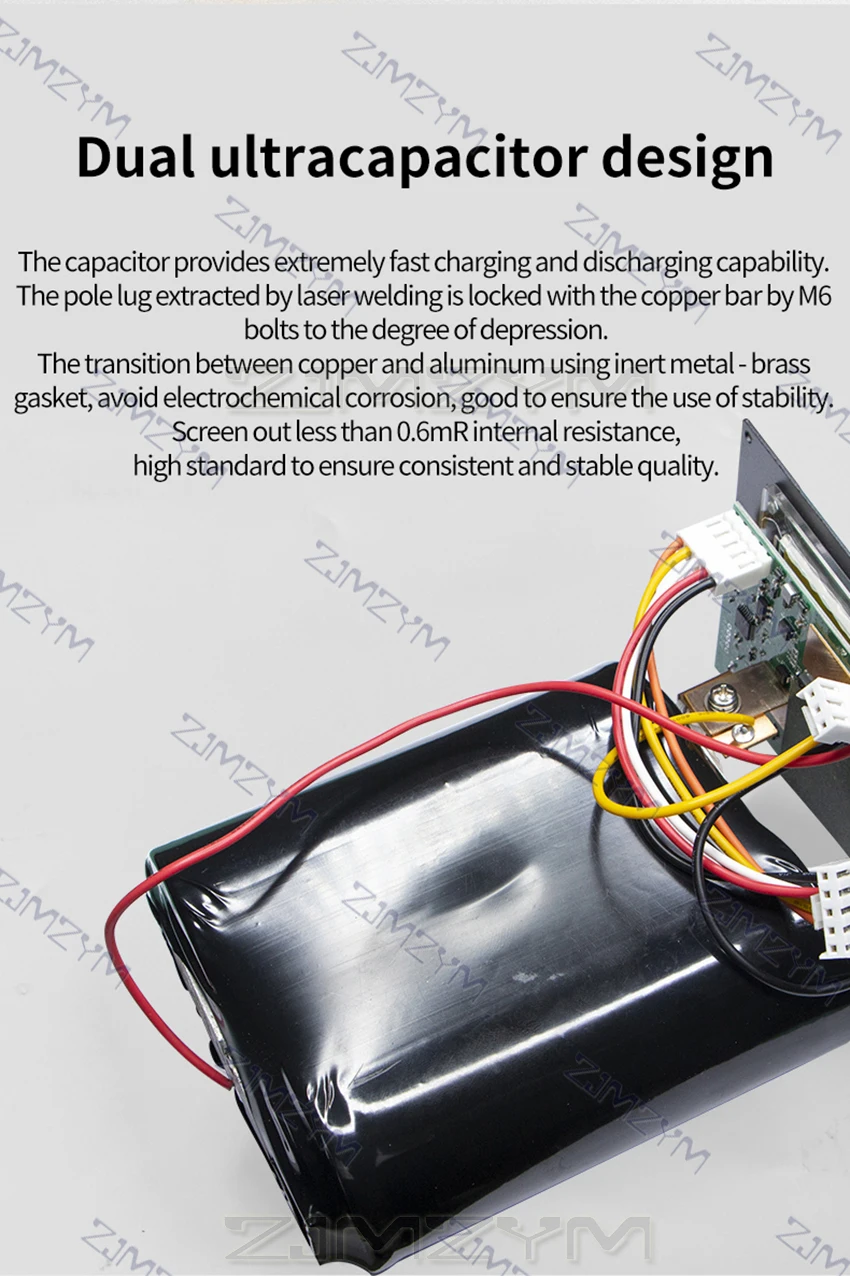

1. This product is a super capacitor storage type spot welding machine,

mainly used for spot welding 18650 and other batteries,

The thickness of practical nickel strip can be up to 0.25mm, maximum welding 0.3mm,

Its strong welding ability allows it to weld 0.1mm thin copper sheet in the battery pack

at the total outlet end to increase its overcurrent capacity

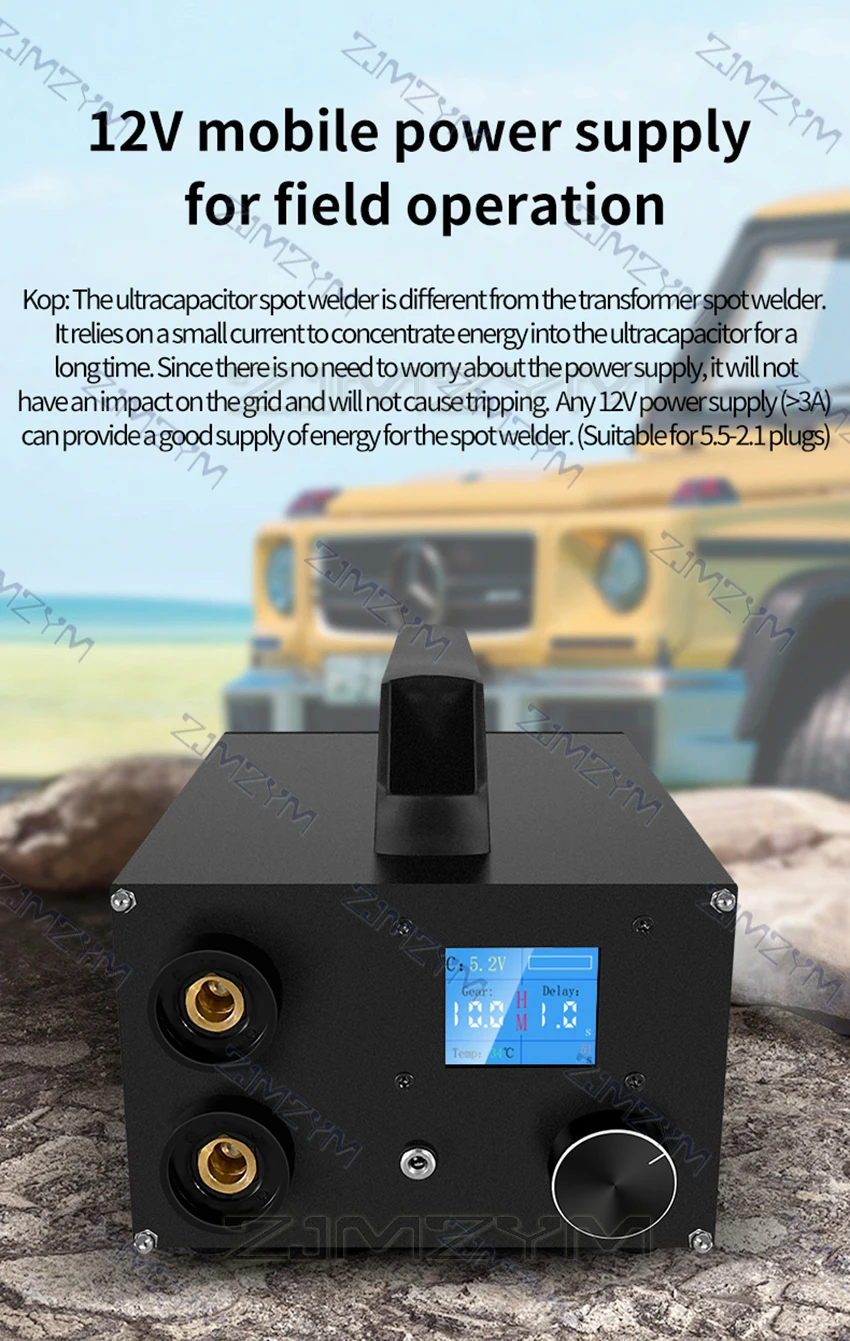

2. It can support 12V mobile power supply for field work:

Super capacitor spot welder is different from transformer spot welder,

it relies on small current to concentrate energy into super capacitor for a long time,

Because there is no need to worry about the power supply problem,

so there will be no impact on the power grid, will not cause tripping,

Any 12V power supply (>3A) can provide abundant energy supply

for the spot welder (suitable for 5.5-2.1 plug)
