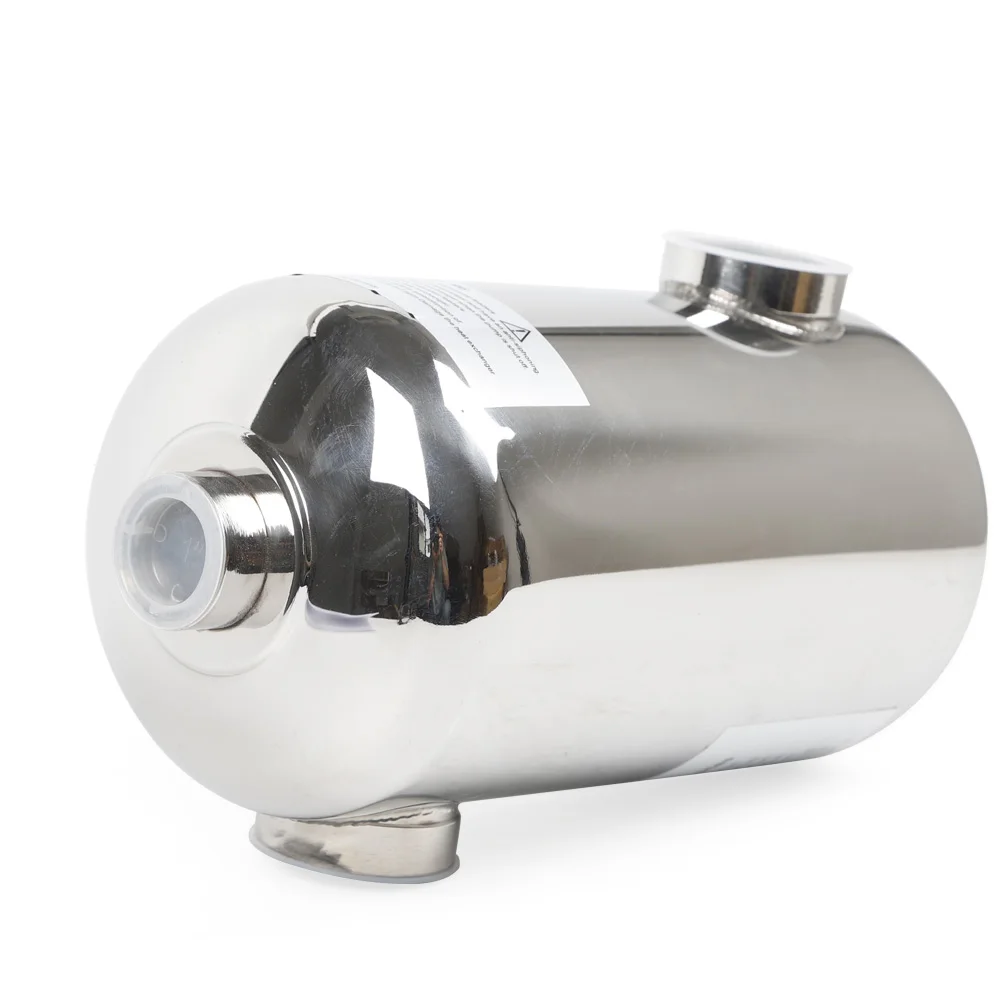

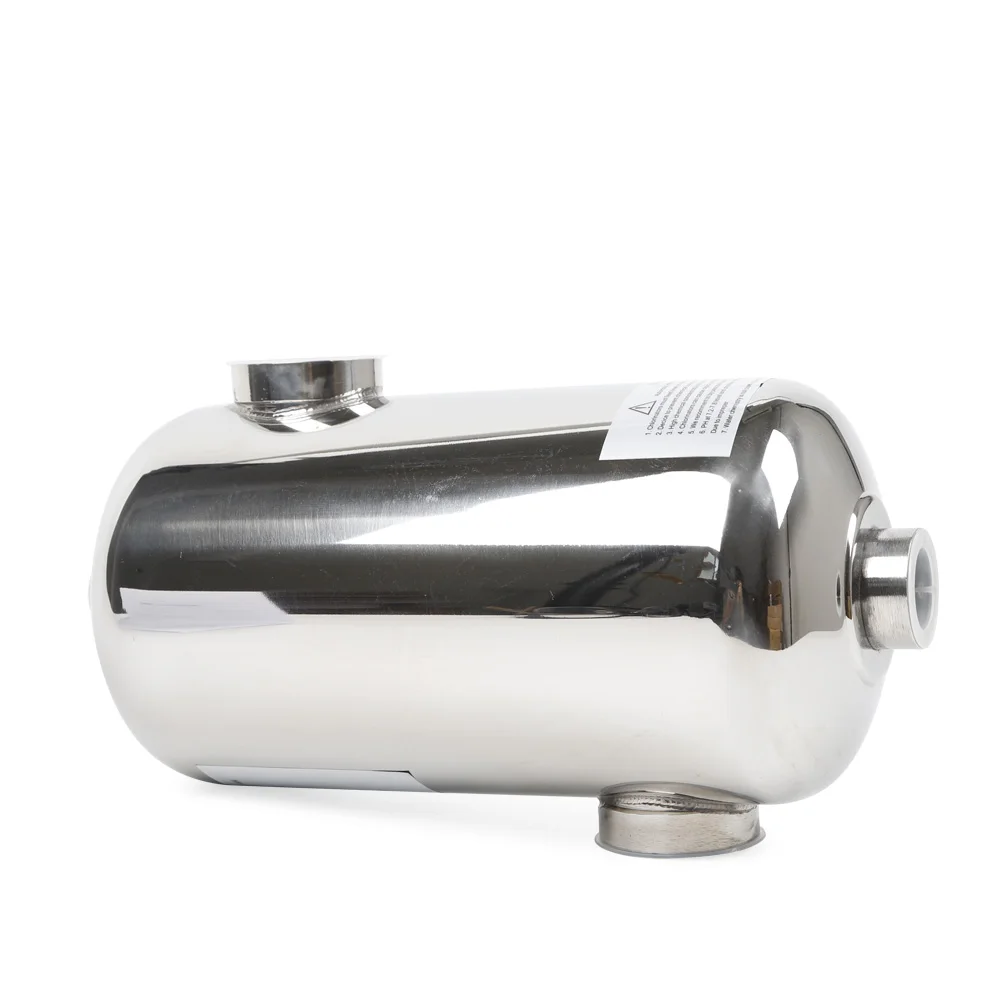

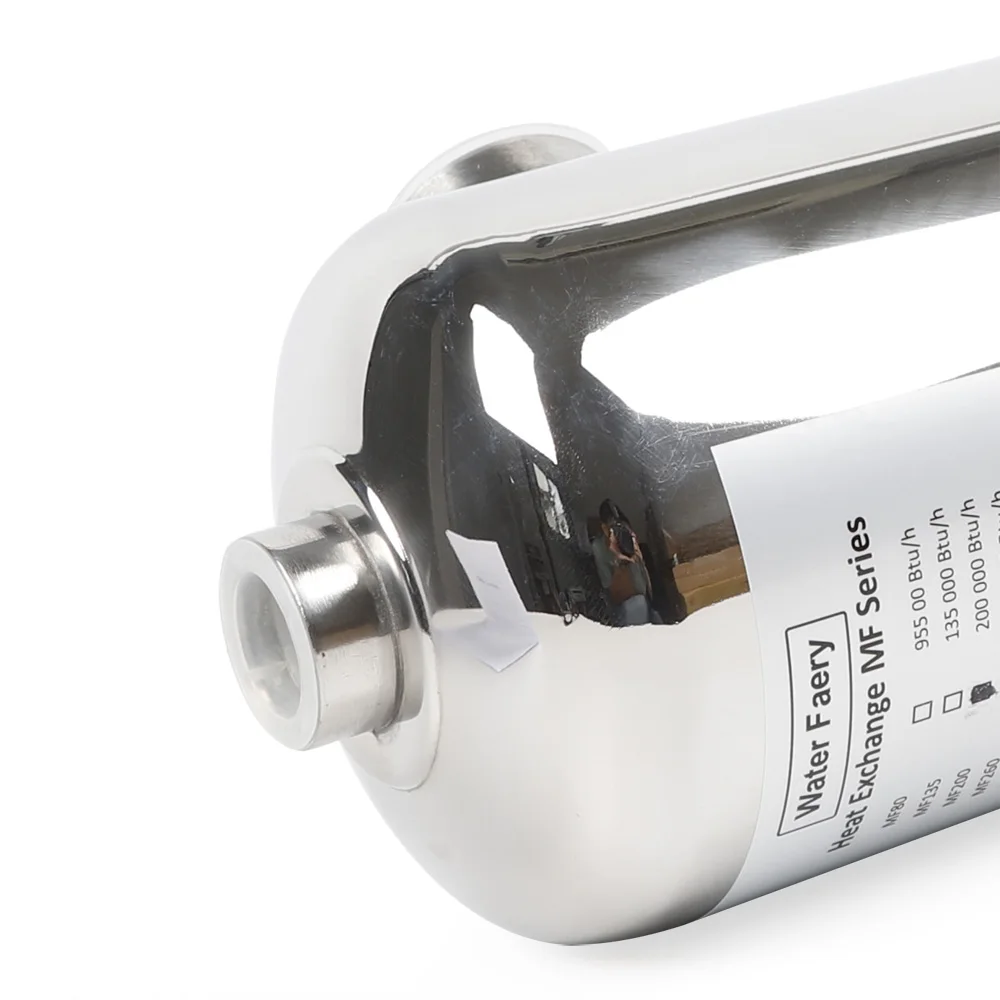

28/60KW Swimming Pool Heat Exchanger Heater Stainless Steel Bath Tub Pool 292X13

Product description:

The heat exchanger is made of high quality stainless steel, which is corrosion resistant and very durable. It is constructed with a bellows for optimum efficiency.

This heat exchanger is used to keep the pool and boiler water separated, and is an effective way of transferring heat between the two systems.

Smooth tube and shell construction allows water to flow through the heat exchanger at high speeds to maximize heat transfer.

This heat exchanger is uniquely designed to complement your pool system or sauna.

We offer 2 different types of heat exchangers, which are suitable for swimming pools, saunas, etc.

Product specifications:

Material: SS304 stainless steel

Power: 28 kW / 60 kW

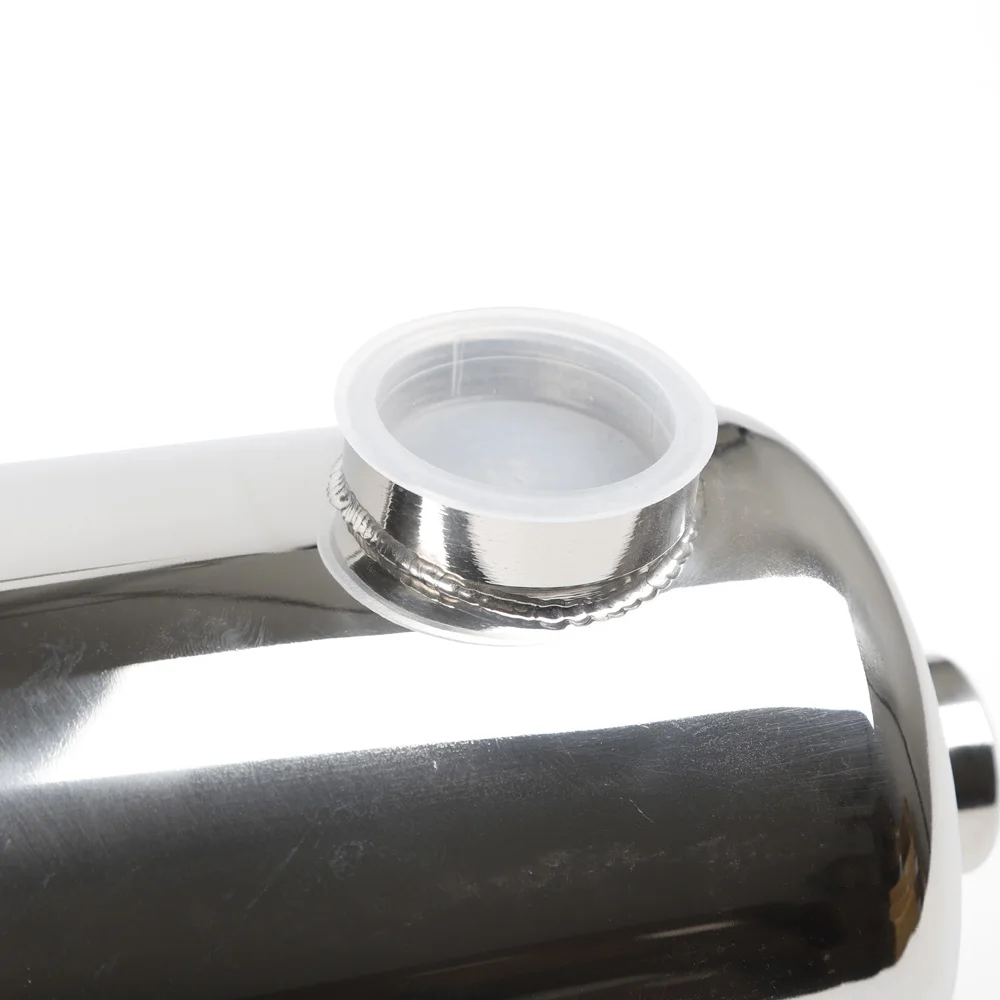

Pool connection diameter: G1 1/2''

Heater connection diameter: G1''

Number of tubes: 25

Pressure test: pool water circuit 10bar

Hot water circuit 5bar

Pool water flow (L/Min): (28kw) 150

(60kw) 250

Hot water flow (L/Min): (28kw) 18

(60kw) 30

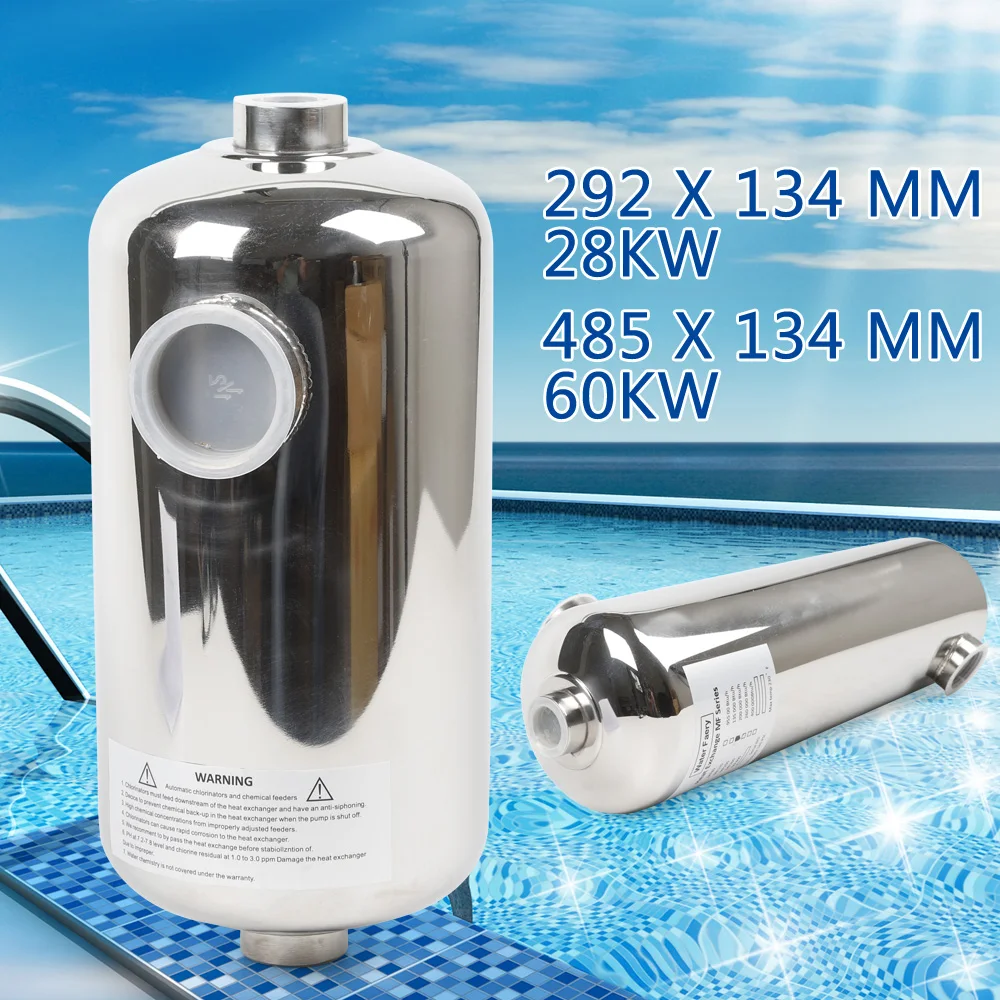

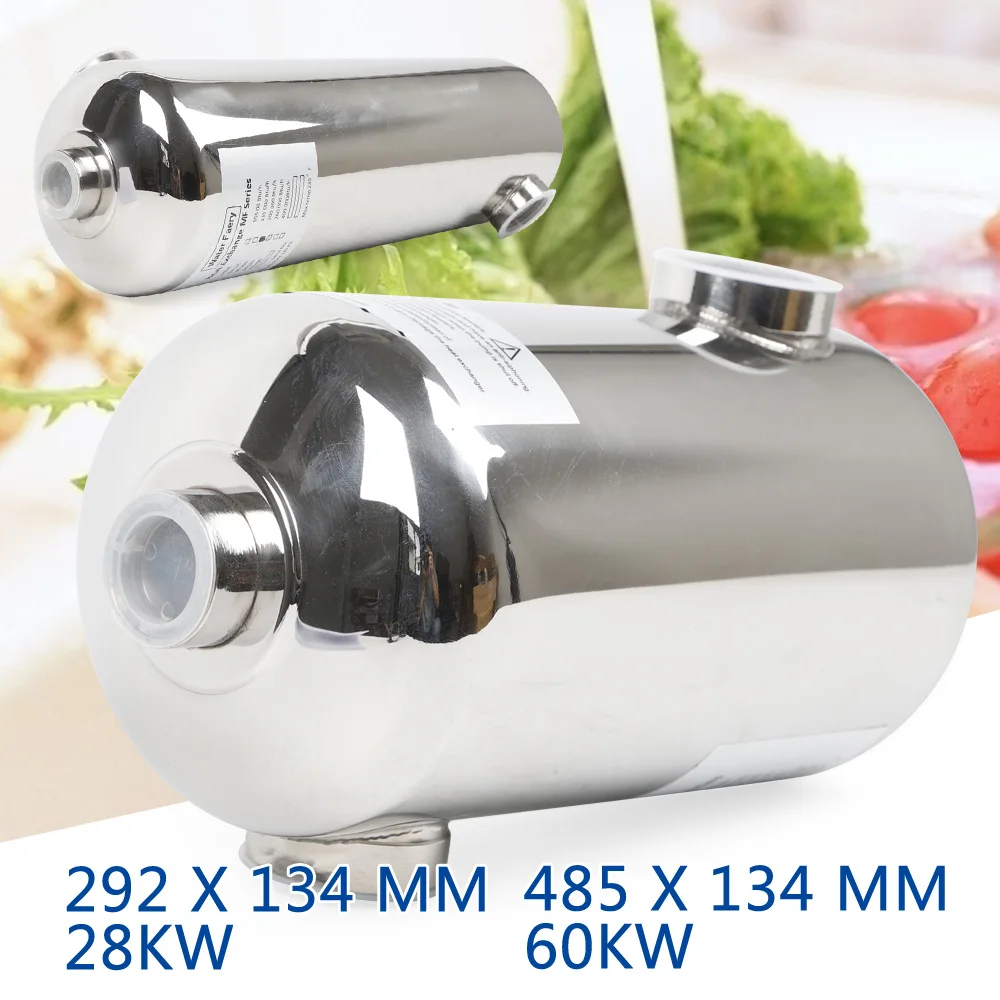

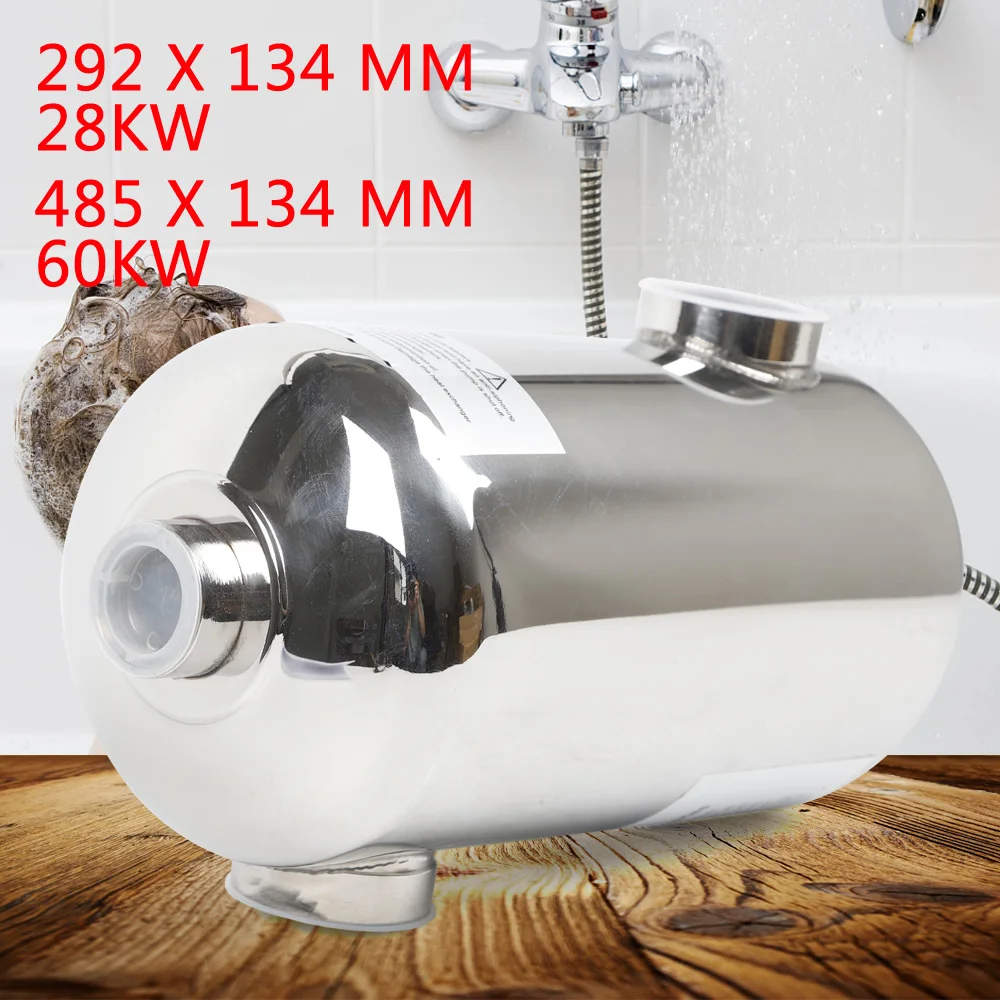

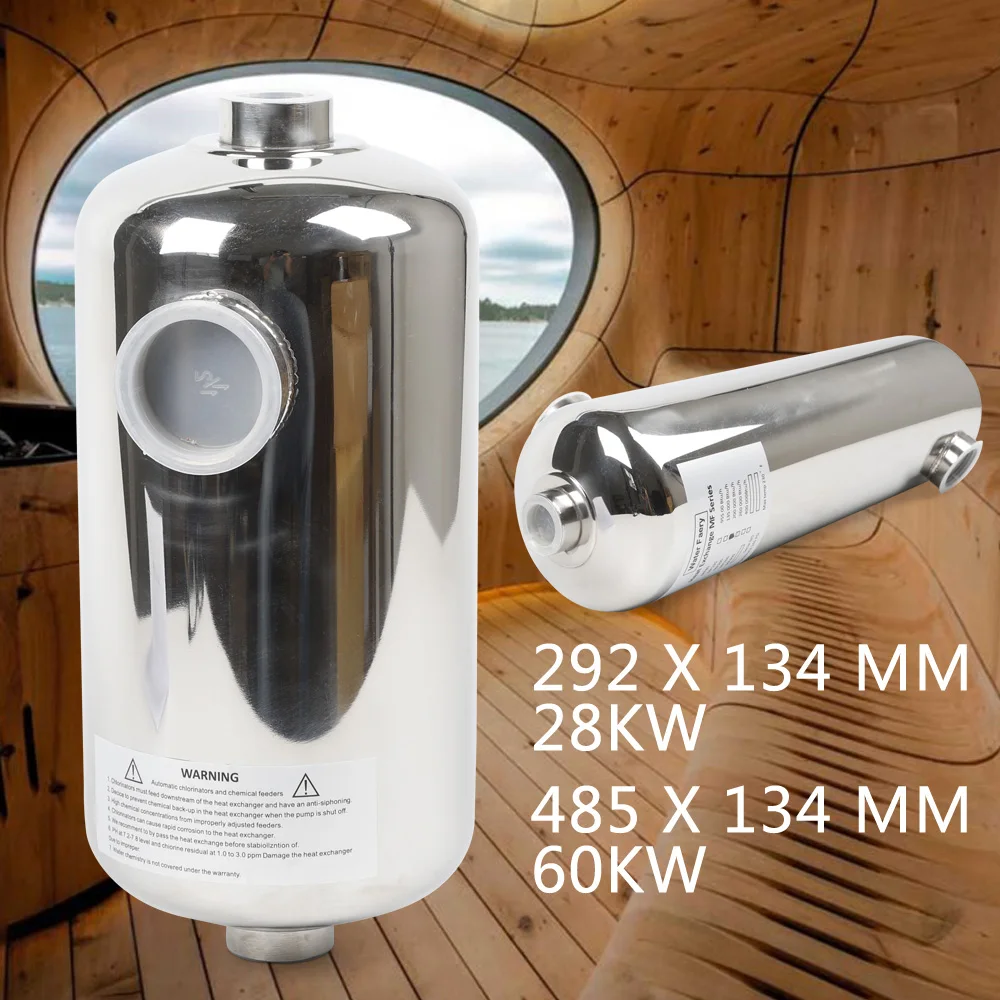

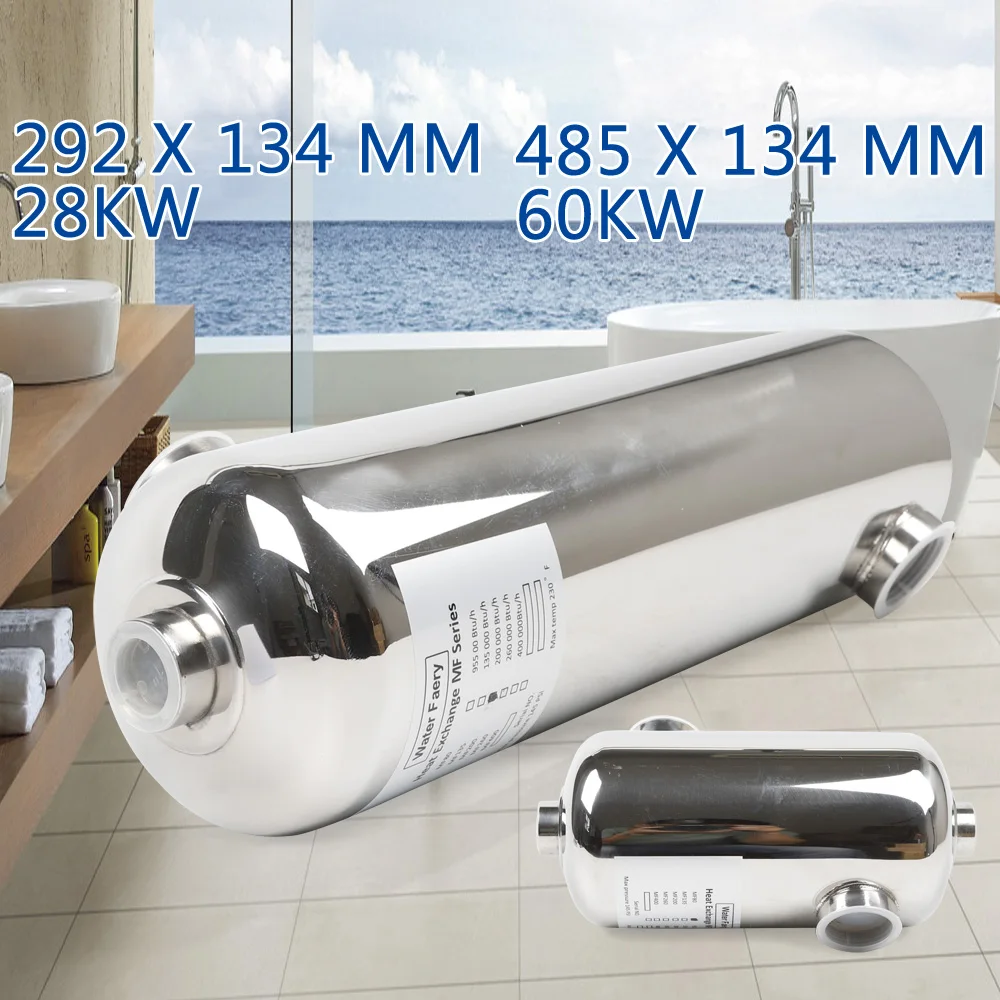

Dimensions (length x width): (28kw) 29.2 x 13.4 cm

(60kw) 48.5 x 13.4cm

Packing size: (28kw) 35*19*19cm/3.5kg

(60kw) 54*19*19cm/5.2kg

Weight: (28kw) 3.5kg

(60kw) 5.2kg

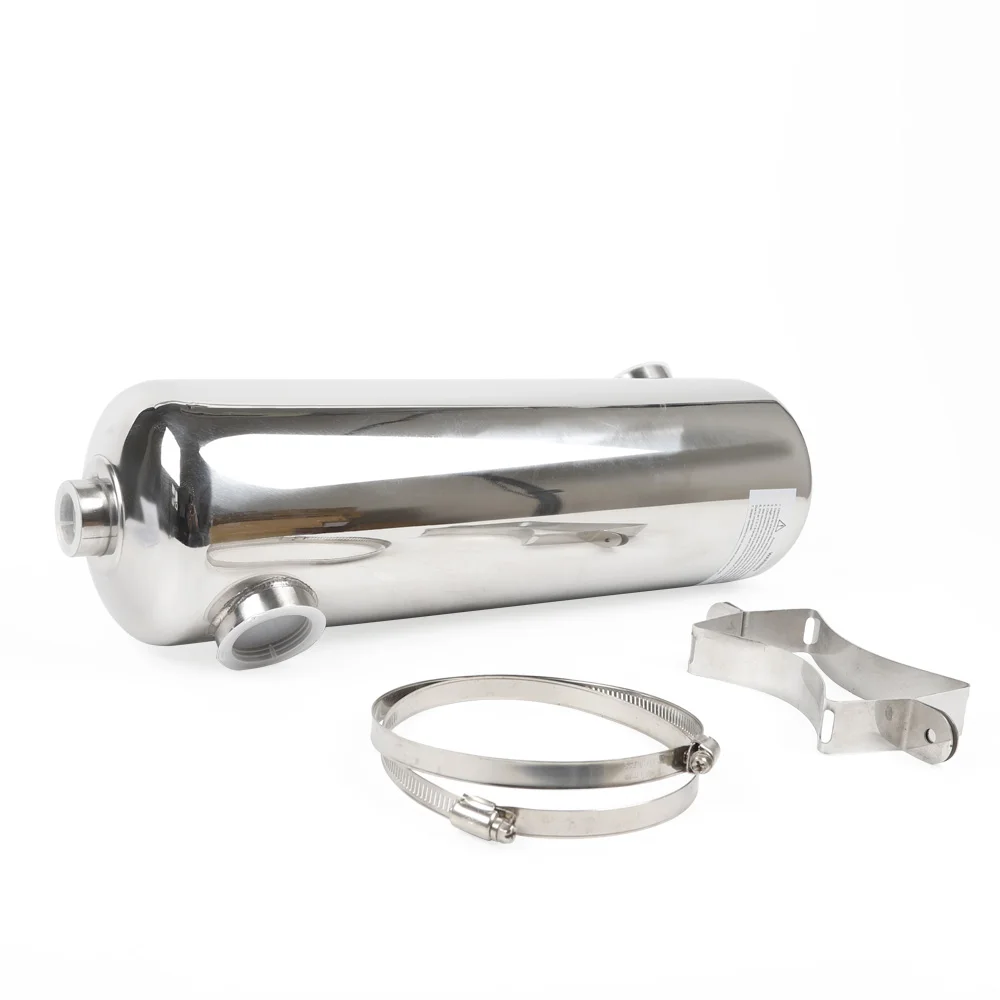

The package includes:

1X heat exchanger
