3.2Inch Digital Oscilloscope Multimeter Circuit Repair Tools 9999 Counts Multifu

3.2inch Digital Portable Oscilloscope Multimeter Automatic Oscilloscope 10Mhz 50MSa/s Circuit Repair Tools 9999 Counts Handheld Oscilloscope 2500mAh Battery Electrician Tools
Feature:
1.Powerful Oscilloscope: With a 10MHz bandwidth and 50Msps sampling rate, this handheld oscilloscope supports various waveform measurements to meet different testing needs. Ideal for professionals seeking precision in circuit repair tools.

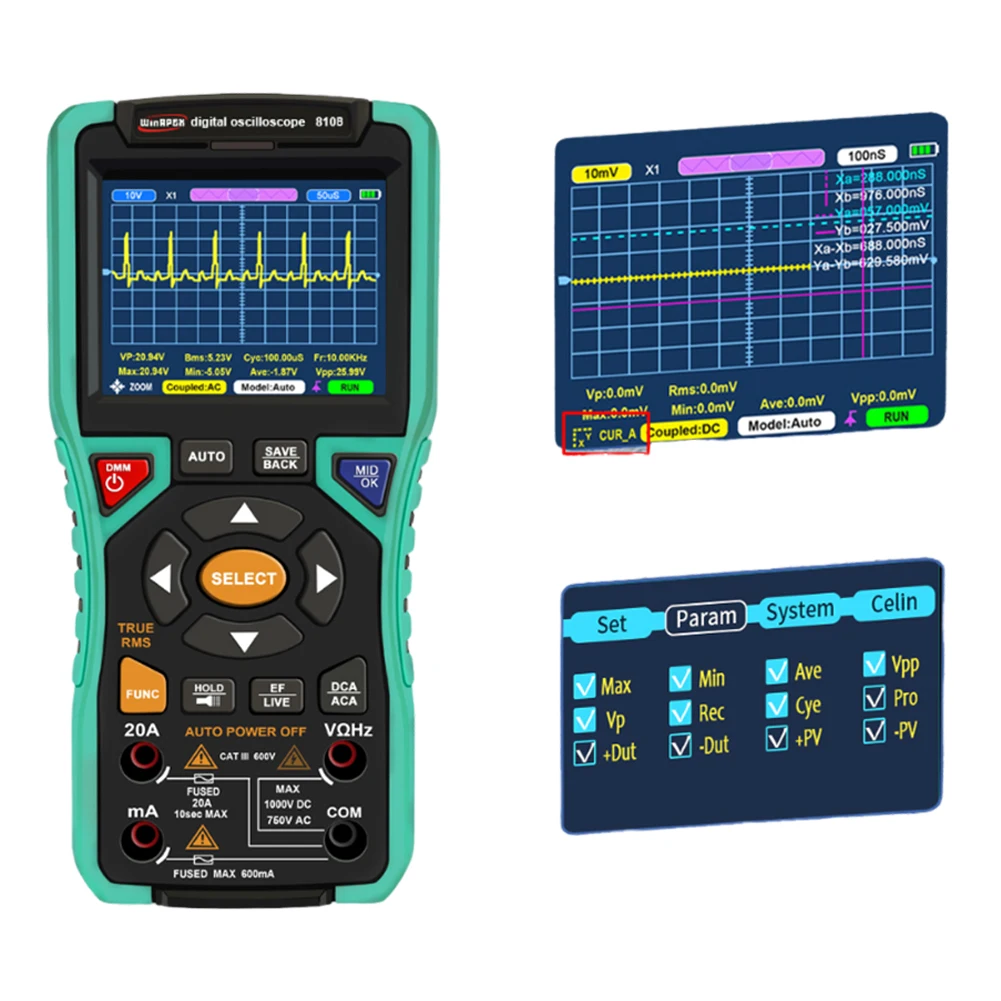

2.Multi-Parameter Measurement: Measure 12 parameters including Vpp, Max, Min, and Average with features like scaling, multiple triggers, and cursor measurements for increased accuracy. Perfect for a multifunction tester experience.

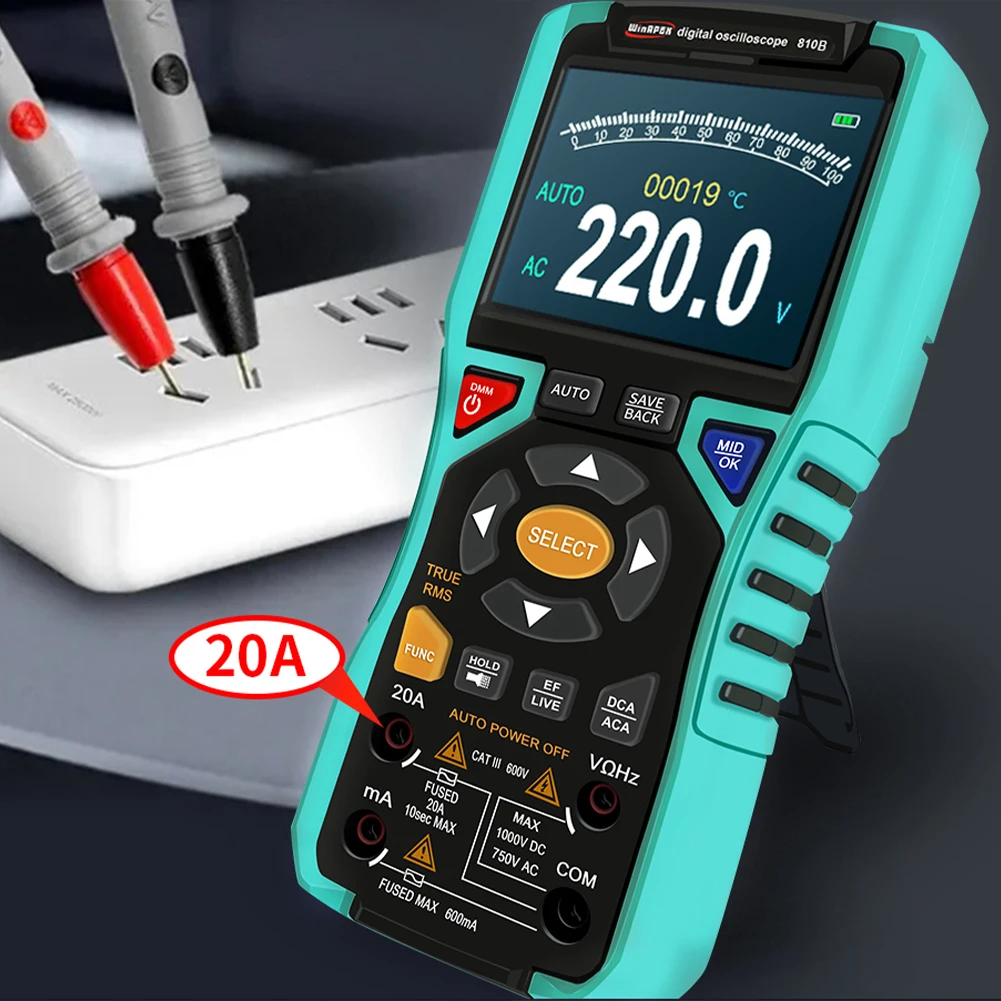

3.True RMS Multimeter: Supports up to 20A large current input and 9999 counts, ensuring high precision with analog bar display. Designed to excel in various electrical diagnosis tasks.

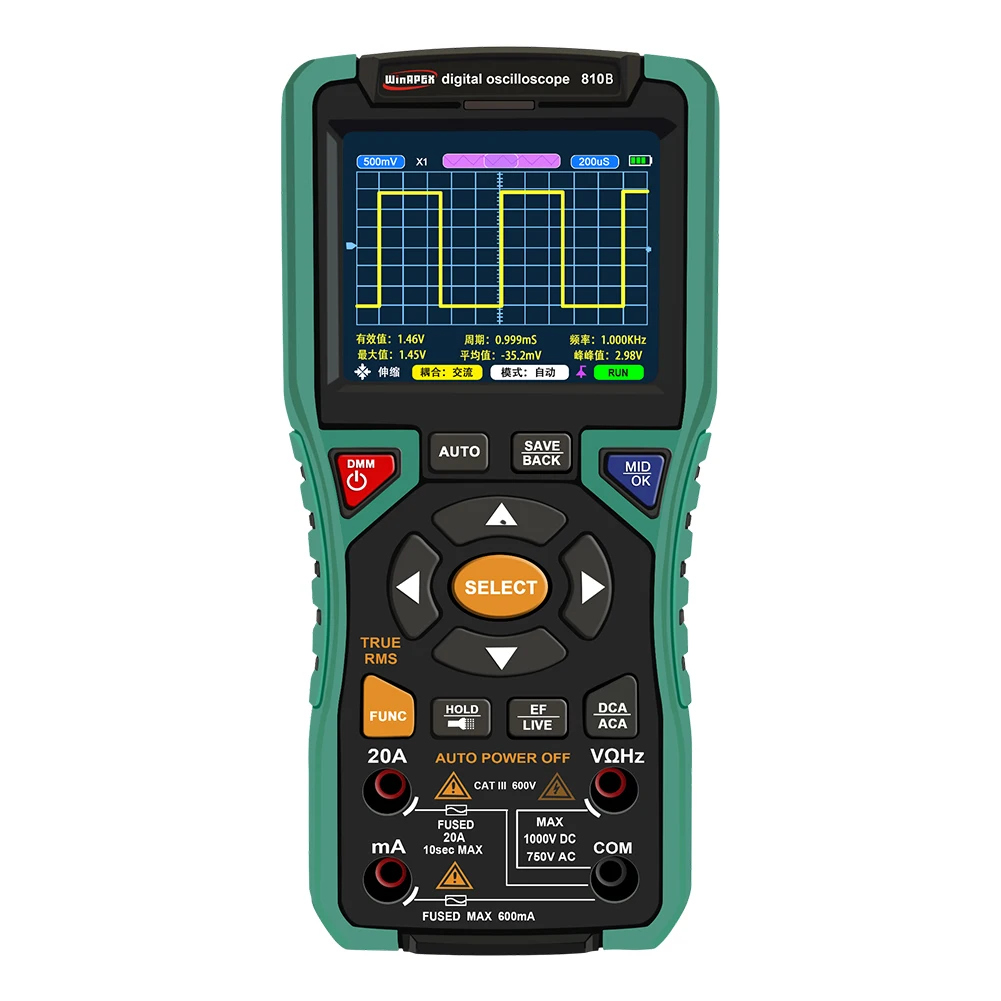

4.Large Display Screen: A 3.2-inch clear screen with 320*240 resolution provides clear measurement results, making it a reliable choice for detailed analysis in automatic oscilloscopes.
5.Design: Features dual injection molded housing that is drop-proof and wear-resistant. Includes a clip for convenient probe fixation, suitable for various work environments.


Specification:
Display Type: Digital display
Origin: Mainland China
DIY Supplies: ELECTRICAL
Oscilloscope parameters
Bandwidth: 10MHz
Sampling mode: real-time sampling
Sampling rate: 50MSa/s
Number of channels: 1
Coupling mode: AC or CD
Input impedance: 1M
Probe attenuation: X1/X10
Measurement voltage: X1/40V, X10/400V
Sampling rate range: 1.5Sa/s~50MSa/s
Waveform interpolation: (sinx)/x
Scan speed range: 50ns/div~10s/div
Time base accuracy: 20ppm
Recording time: up to 20Kbyte
Sensitivity: 10mV/div~10V/div
Displacement range: 1 grid ()
Analog bandwidth: 10MHZ
Low frequency response: greater than 1 0Hz
Rise time: less than 10ns
DC gain accuracy: 3%
Automatic measurement: period, frequency, peak-to-peak value, maximum value, minimum value, effective value, average value, peak value, duty cycle, pulse width
Trigger mode: automatic, normal, single
Trigger edge: rising edge, falling edge
Multimeter parameters
Multimeter maximum display: 9999
DC voltage: 9.999V/99.99V/999.9V, (0.5% + 3)
AC voltage: 9.999V/99.99V/750.0V, (1.0% + 3)
DC current: 99.99mA/600.0mA/6.000A/20.00A, (1.0% + 3)
AC current: 99.99mA/600.0mA/6.000A/20.00A, (1.2% + 3)
Resistance: 999.9/9.99K/99.99K/999.9K, (0.5% + 3), 9.999M (1.5% + 3), 99.99M (3.0% + 5)
Capacitance: 9.999nF (5.0% + 20), 99.99nF/999.9nF/9.999uF/99.99uF/999.9uF, (2.0% + 5), 9.999mF/99.99mF, (5.0%+5)
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999KHz/99.99KHz/999.9KHz/9.999MHz(0.1%+2)
Diode: Support
Buzzer: Support
Non-contact measurement NCV/live measurement LIVE: Support
Other parameters
Display: 3.2-inch LCD, resolution 320*240
Charging voltage: DC 5V/charging current maximum 1A
Working environment: (0-40), relative humidity <75%;
Storage environment: -20~60, relative humidity <80%;
Power supply: lithium battery 3.7V/2500mAh
Case material: ABS
Product size: 190.00x90.00x50.00mm
Product size: 7.48x3.54x1.97inch

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

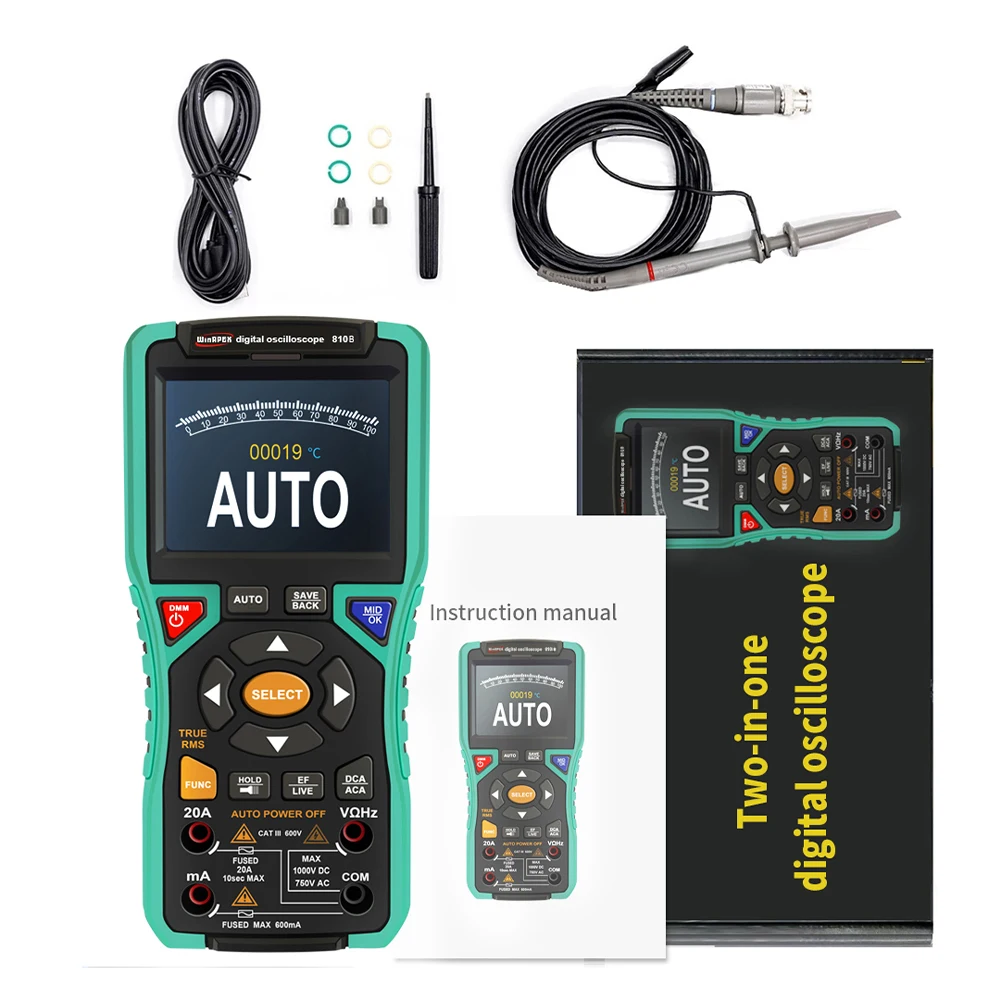

1 x Oscilloscope Multimeter
1 x Probe
1 x Multimeter Test Lead
1 x English User Manual
1 x USB Charging Cable
1 x Storage Bag
