3 Axis Digital Readout SDS3MS Dro Set Kit and 3PCS Linear Glass Scales Encoder 5

SINO 3 Axis Digital Readout SDS3MS Dro Set Kit and 3PCS Linear Glass Scales Encoder 5U TTL Working Stroke Length YHSINO

Package includes

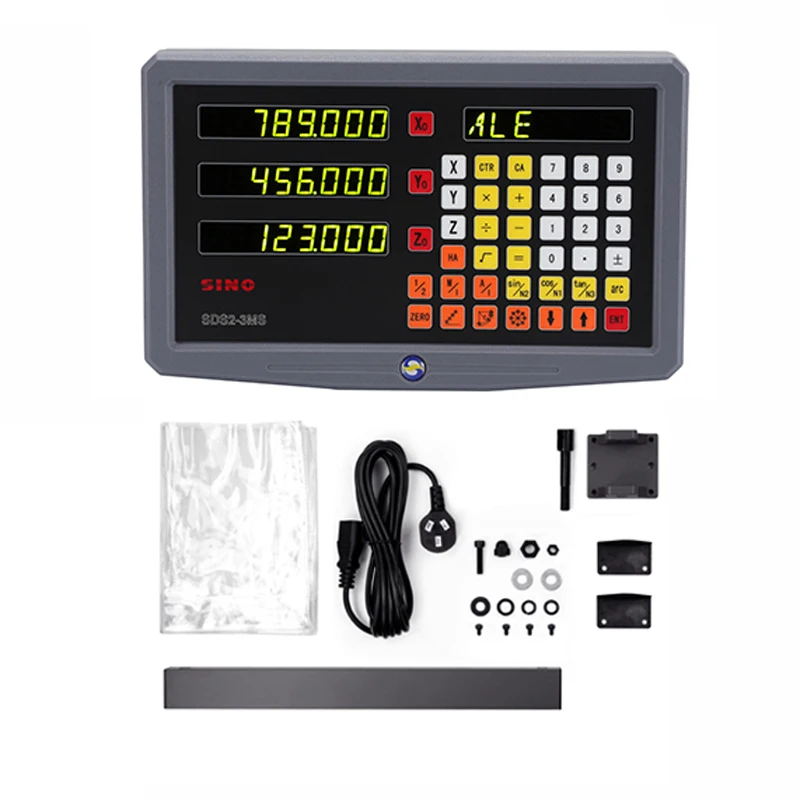

- Only One Piece DRO:

This order is included one new dro SINO SDS3MS. NO LINEAR SCALE

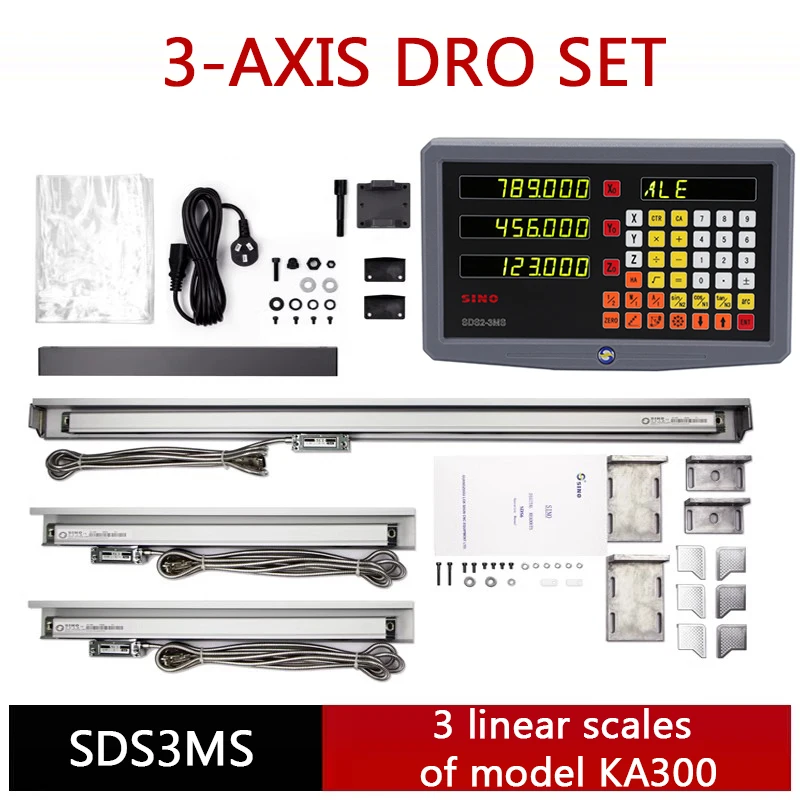

- SDS3MS Dro Set:

1 piece SINO SDS3MS DRO

3 pieces KA300 5u linear scales,

travel length between 70 to 1020mm. For example, 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm.

2. Like you choose 5u 320mm, the total length are 426mm, hoping you can know it. When you make order, leave the message for me wiht the length, thanks.

3. If you need other styles, contact with us first, thanks.

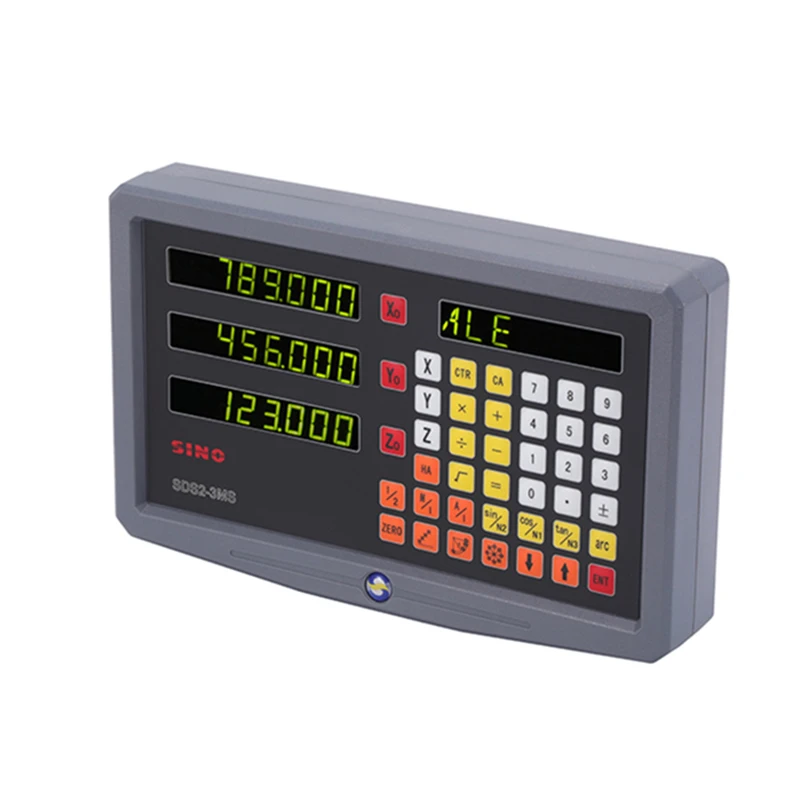

SDS3MS Digital Readout Functions

1: Zero clearing

2: Reset

3: mm/inch mode

4: ABS/INC coordinate conversion

5: 200sets sub datum

6: Power off Memory;

7: Center of 1/2

8: Liner error compensation

9: Sleepping mode

10: Clear 200 sets Sdm datum;

11: ABS/INC mode

12: Calculator

13: Drilling of circumference

14: Drilling of oblique line

15: Machining of inclined plane

16: Machining of circular arc

17: Lathe function(match)

18: Rectangular lumen gradual processing

19: Digital filtering

20: Vibration filtering

21: Radius /Diameter fucntion

22: Lathe function

SDS3MS Digital Readout Display Parameter

1. Voltage Range: AC 80V~250V/50HZ~60HZ

2. Acceptable Signal: TTL

3. Plug: DB9

4. Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um.

5. If yo order only one piece dro, please confirm your old linear scales can work with our dro.

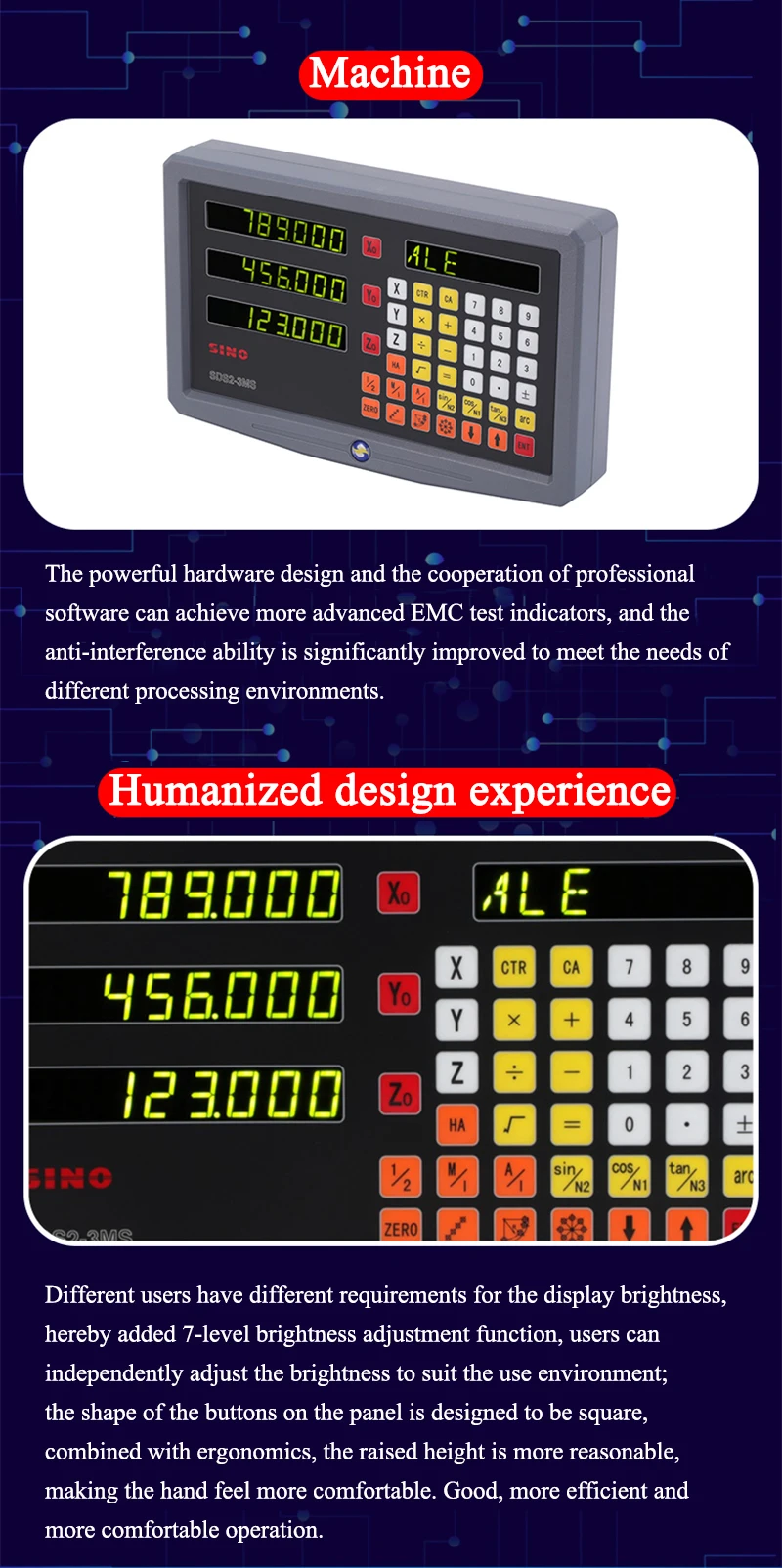

SDS3MS Advantage

1. It is new 3 axis dro SDS3MS, smaller, better performance. Take less space on your machines.

2. We are factory, price and quality are good, can quick solve your problem, saving much tims.

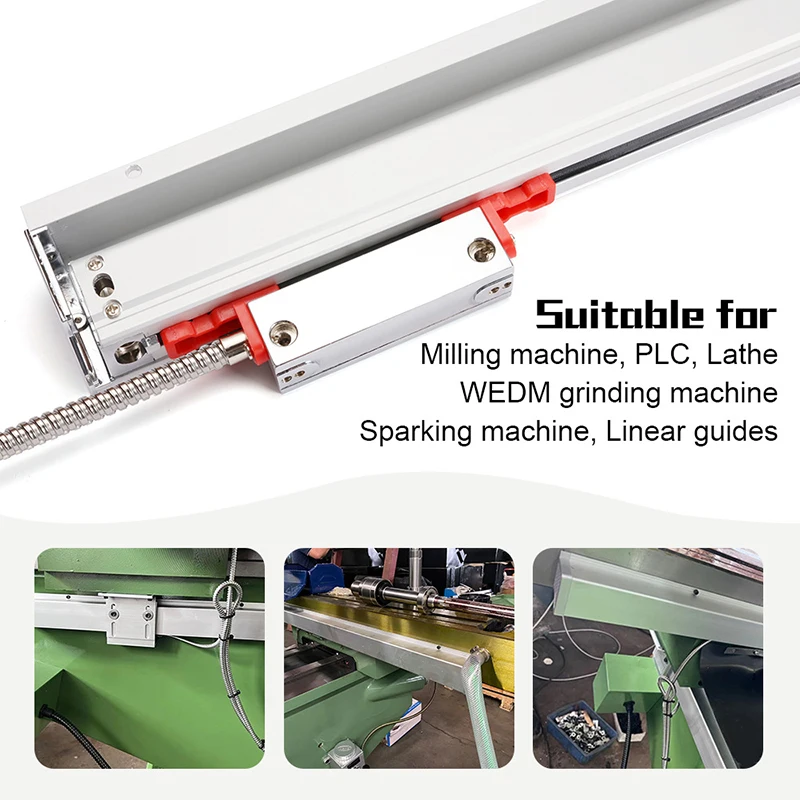

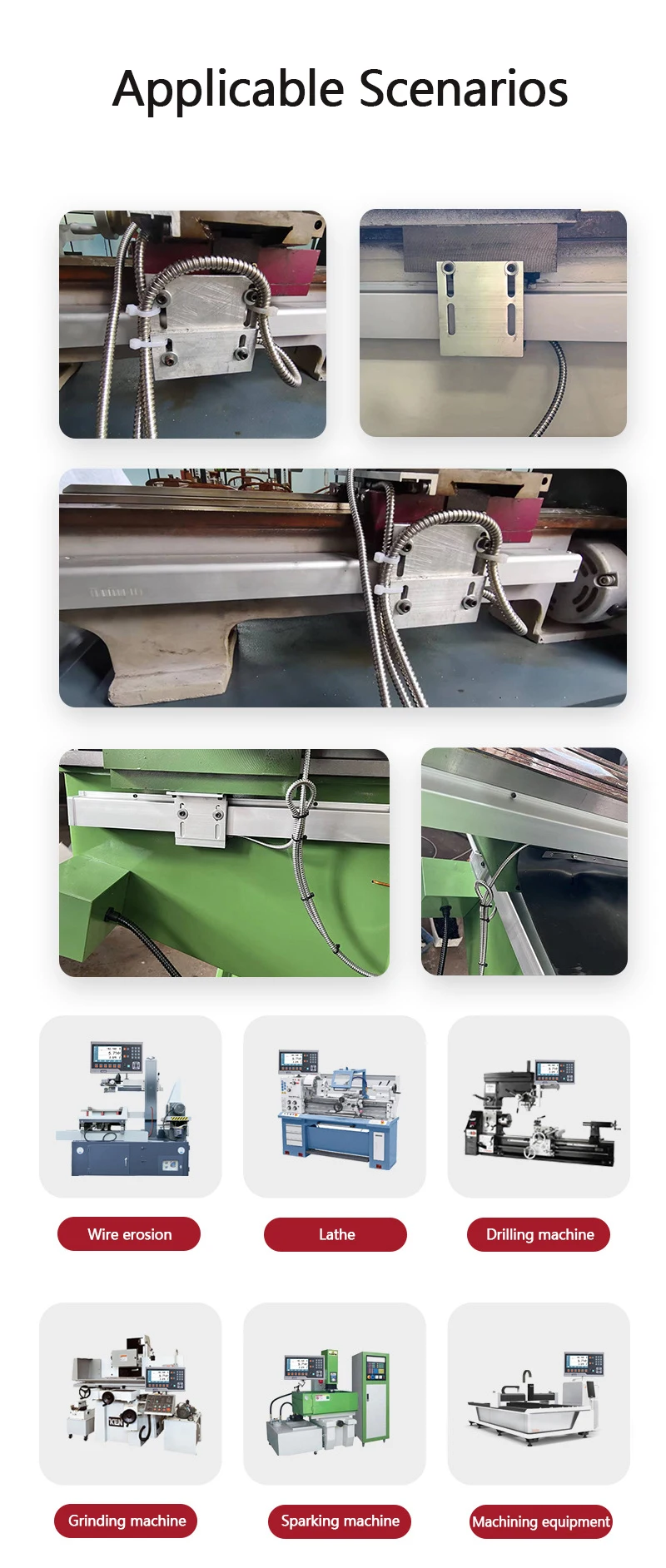

3. can widely used for mill, lathe, drilling, boring machine.

4. We offer different type plug suite for different countries if need.

Notice

1. when the parcel arrived to your customs, please pay the tax and pick up the parcel, we are not responsible for any customs duty or import tax if your place is remote, then need to pay 38 usd

2. For customer from Korea please kindly offer us your tax number such as P.....

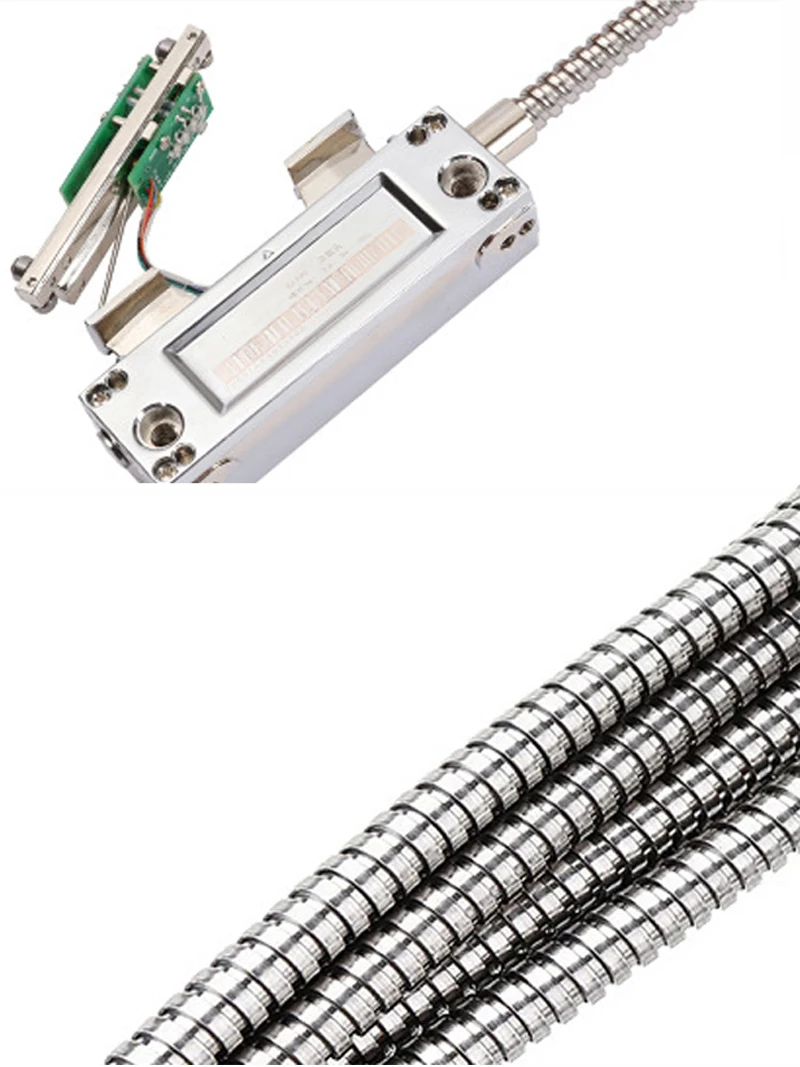

Linear Scals Parameters

1. Travel (measuring) length: 70-1020mm

2. Total (overall) length: Travel length + 1106mm

3. Plug: DB9

4. Resolution: 0.005mm(5u), {we can offer you 1u(0.001mm), 0.5u(0.0005mm), need extra fee.}

5. Input voltage: 5V

6. Grating pitch: 0.02mm (50LP/min)

7. Cable length: 3 Meter

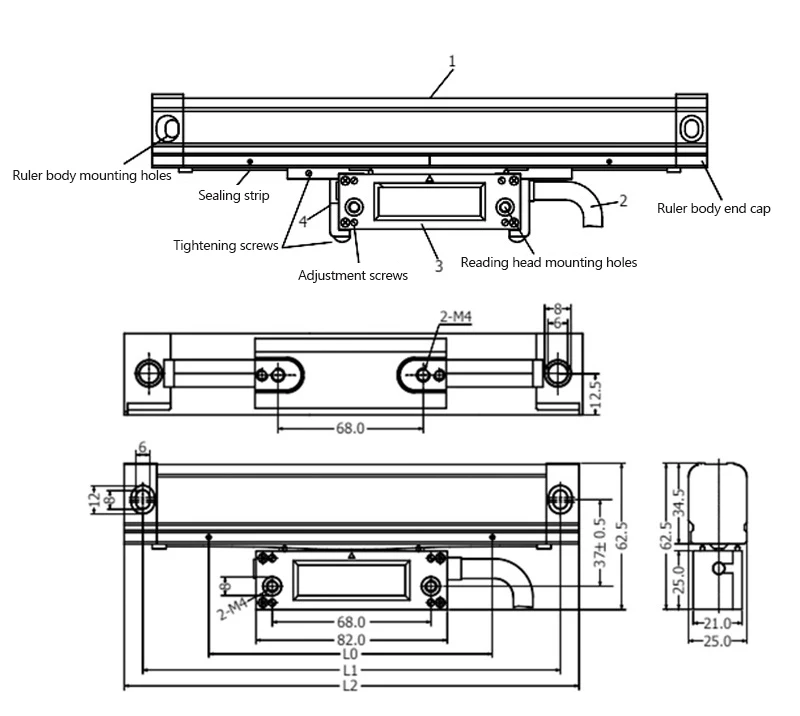

8. Normal size: About 25*34.5mm

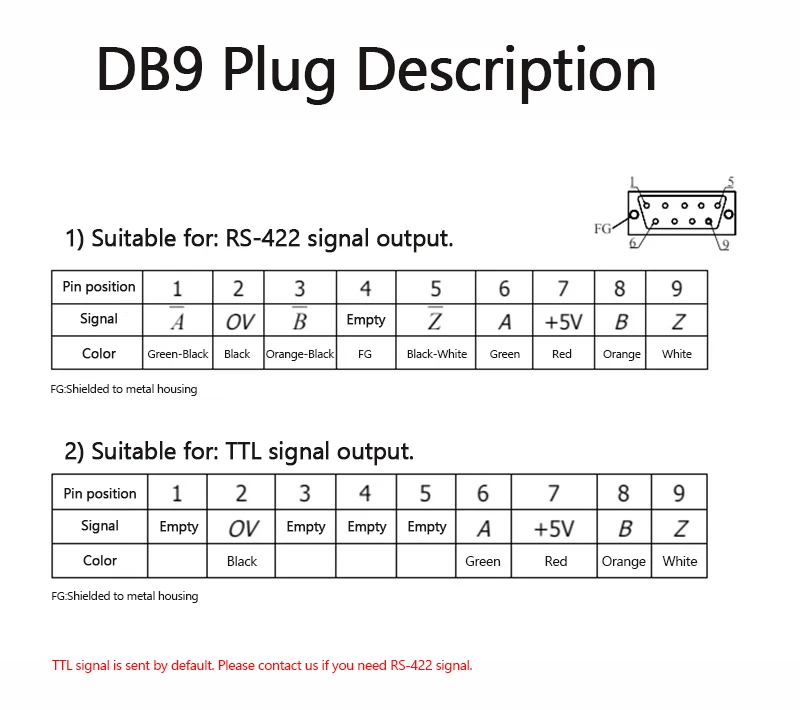

The Signal of Linear Scales

Pin 2 Black 0V

Pin 6 Green A

Pin 7 Red 5V

Pin 8 White B
