    3X3 Video Wall Controller DVI HDMI 1X2 2X2 2X3 2X4 1X3 1X4 1X5 1X6 TV Wall Contr

    3X3 Video Wall Controller DVI HDMI 1X2 2X2 2X3 2X4 1X3 1X4 1X5 1X6 TV Wall Contr

    £94.99 GBP
    £94.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Color


    Note Pls: This product does not support vertical screens splicing. If you have any demand,
    please contact us to recommend the correct model to you.
    Introduction:
    Brand new and high quality,buy with confidence!

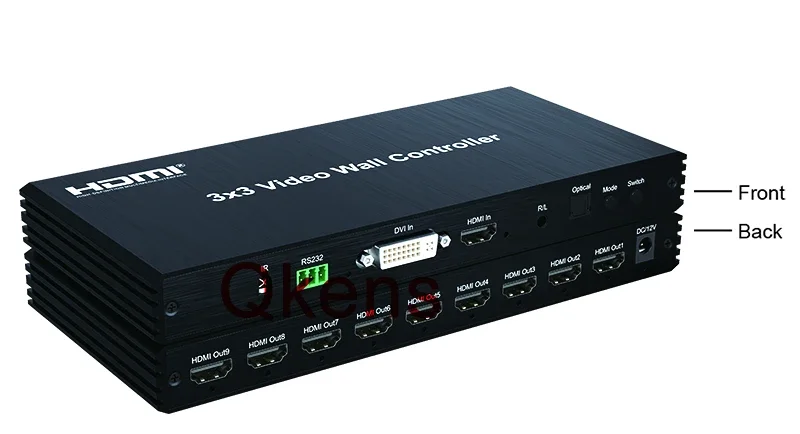

    This 3x3 video wall controller, supports 1 HDMI/DVI input and 9 HDMI outputs, the main function is to divide
    a single complete HDMI HD image signal into 9 display units (Rear projection screens, LCD TV.etc.), to
    make them form a large dynamic image screen.

    Features:
    Support HDMI/DVI video source input;
    * Support 9-ways HDMI output;
    * With power off memory function;
    * Support multiple splicing modes, easy to handle, plug and play;
    * Support RS232/IR control.
    Specifications:
    HDMI input resolution ...................................................... 1080P/720P/576p/576i/480P
    HDMI output resolution ......................................................... support 1920x1080/60Hz
    Support video formats ............................................ RGB,YCbCr444,YCbCr442,YCbCr440
    Support audio formats ............................................................................................... Stereo
    Max bandwidth ..................................................................................... 4.95Gbit/s(1080P)
    Maximum Transfer Rate ....................................................................... 3.96Gbit/s(1080P)
    Input/output cable length ........................................ 15M,AWG26 HDMI standard cable
    Specifications:
    Max working current .......................................................................................... 0.4A
    Power adapter specifications ......... input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
    Operating temperature range ............................................................ (-10 +45)
    Dimension (L x W x H) ........................................................approx.226x110x25(mm)
    Package include:
    1:3x3 Video Wall Controller 1PCS
    2:Remote control without battery 1PCS
    3:12V DC power adaptor 1PCS
    4:User manual 1PCS
    Without retail box ,battery and other acessories,if any need,pls contact us before purchase.
