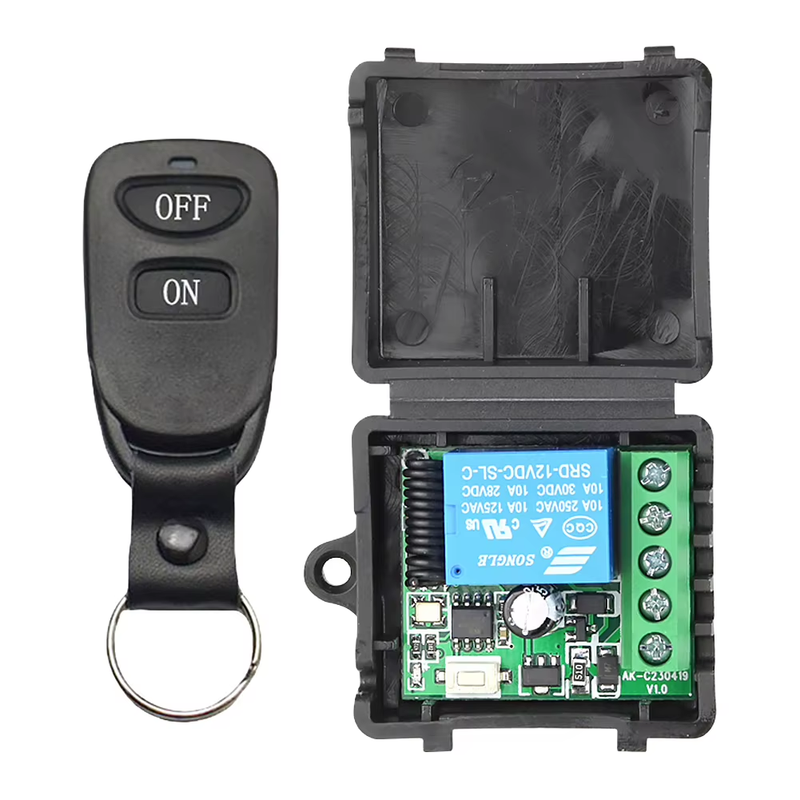

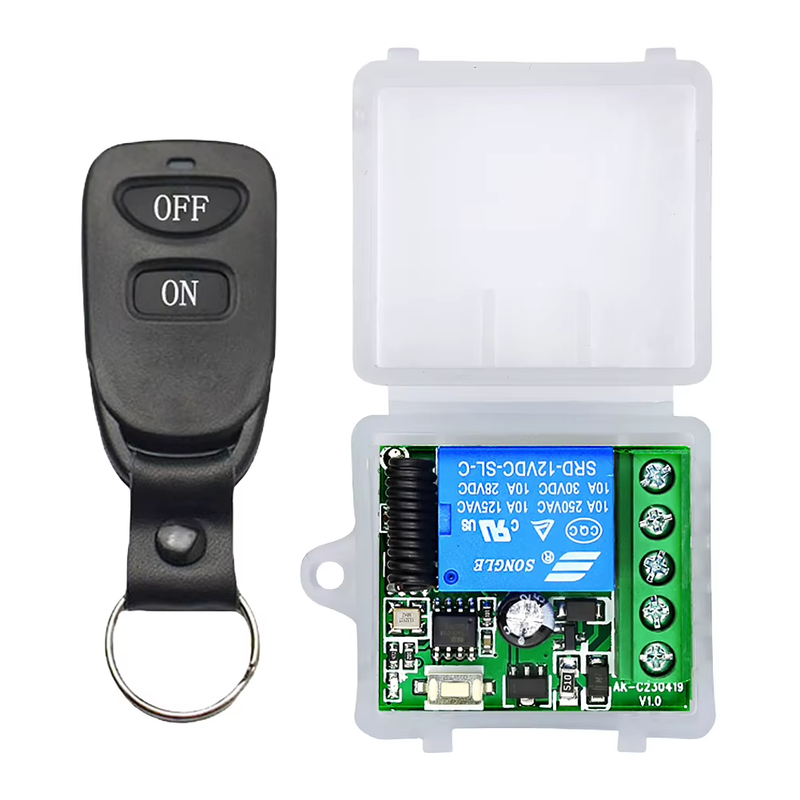

433Mhz Wireless Remote Control Switch 1CH Relay Receiver Module DC 12V RF Transm

£13.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color Black (175) White (200002130)

Quantity

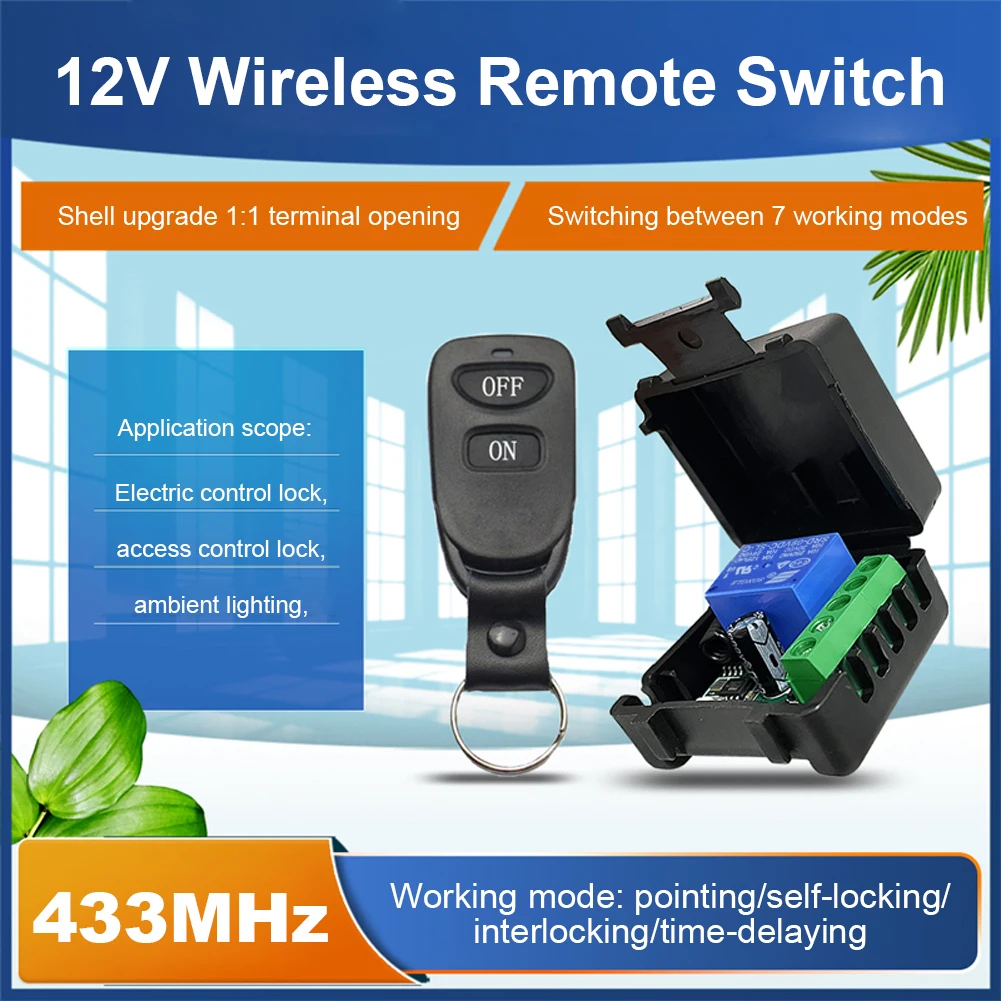

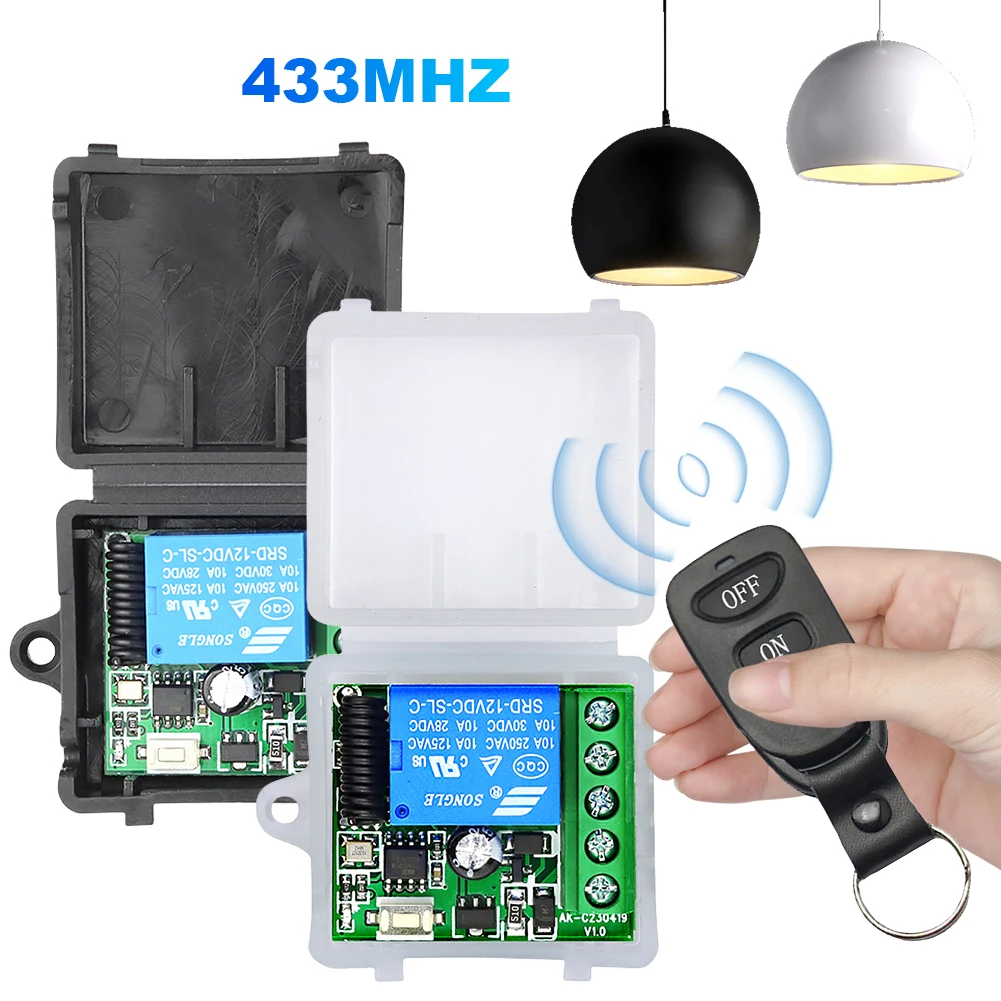

433Mhz Learning Button Remote Control 1CH RF 10A Relay Receiver DC 12V 1 Channel Remote Control Switch

Feature:
1. Convenient Appliance Control: The wireless remote control switch brings unparalleled convenience to your home by allowing you to easily control your devices remotely. Ideal for both home security and everyday use, it transforms your living space into a smart, user-friendly environment.
2. and User-Friendly: Made from high-quality materials, this remote control features a reinforced load circuit capable of withstanding high temperatures, ensuring safe and reliable operation. Its user-friendly design simplifies installation, making it accessible for those looking to customize their home settings.
3. Flexible Device Compatibility: Designed for individuals seeking to tailor their home environment, the learning button remote control offers versatility and convenience. It is compatible with a wide range of devices, allowing you to effortlessly manage your living space with the push of a button.
4. Effortless Operation Anywhere in Home: With the RF transmitter, you can easily operate lights, fans, and other appliances from anywhere in your home. This multi-functional RF transmitter on-off button creates a comfortable atmosphere and enhances convenience, ensuring your home adapts to your lifestyle.
5. Sleek Design and Easy Integration: Say goodbye to bulky switches and embrace a tidy environment with this stylishly designed wireless remote control switch. Its sleek appearance and easy installation allow it to seamlessly blend into any room decor, offering a modern solution to upgrade your home today.

Specification:
Origin: Mainland China
Material: ABS

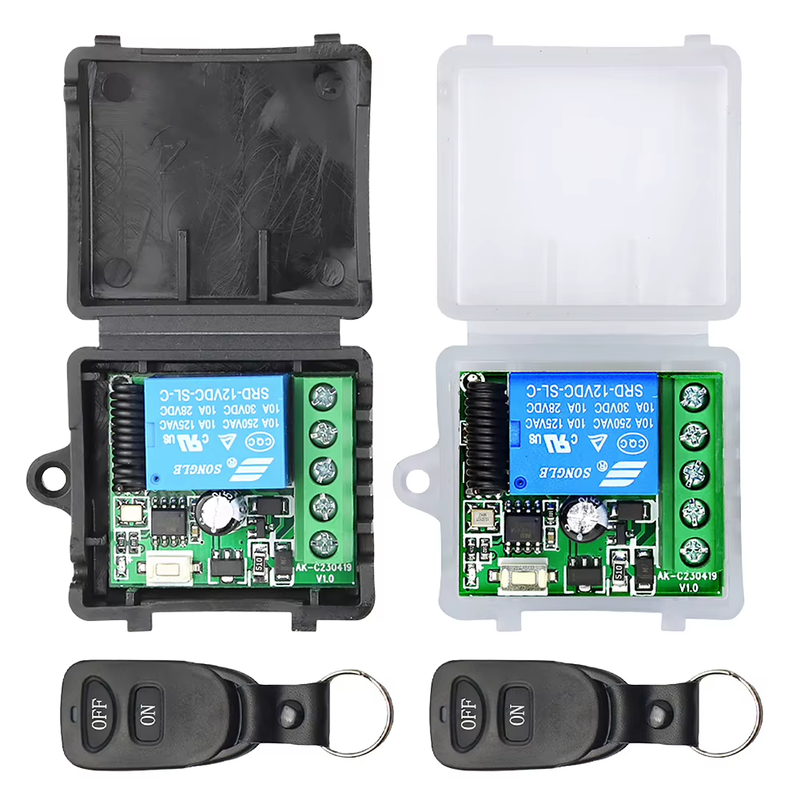

Receiver color (Optional): black/white
Working voltage: DC 12V
Quiescent current: <10MA
Maximum current: 10A

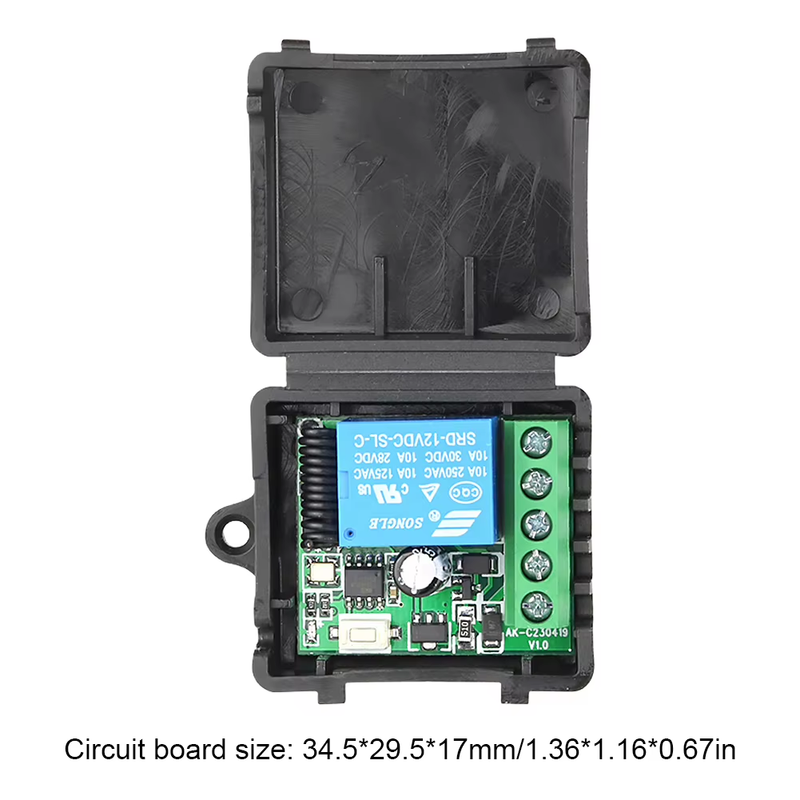

Circuit board size: 34.5x29.5x17mm/1.36x1.16x0.67inch
Receiving range: greater than 50ms (open place)
Working frequency: 433MHz
Working temperature: -30~+80 degrees
Demodulation method: ASK
Working mode: jog/self-locking/interlock/delay
Receiving sensitivity: -105dbm
Application: Widely used in home lighting, electronic control locks, car modification and smart home fields
Remote programming
Working mode:
1.Jog mode: Press the remote control relay to turn on, release the remote control relay to disconnect;
2.Self-locking mode: press the remote control relay to turn on, and then press the remote control to disconnect the relay;
3.Interlocking mode: Press the remote control button A to turn on the relay, and press the remote control button B to disconnect the relay.
4.Delay mode: Press the remote control relay connection, release the remote control to start timing.After 5S, 10S, and 15S (3 gears), the relay is automatically closed.
Learning method:
1.Jog learning method:
Press the code matching button on the control panel once, and the LED indicator flashes once.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
2.Self-locking learning method:
Press the code matching button on the control panel twice, and the LED indicator flashes twice.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
3. Interlocking learning method:
Press the code matching button on the control panel three times, and the LED indicator flashes three times.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
4.5S delay learning method:
Press the code matching button on the control panel four times, and the LED indicator flashes four times.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
5. 10S delay learning method:
Press the code matching button on the control panel five times, and the LED indicator flashes five times.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
6. 15S delay learning method:
Press the code matching button on the control panel six times, and the LED indicator flashes six times.After the LED indicator lights up, press the button on the remote control that needs to be paired, and the LED indicator on the control panel will flash 3 times, indicating that the pairing is successful.
Liquidation method:
Press the code matching button on the control panel eight times, and all learned remote controls will be automatically cleared.After clearing, the remote control that has been learned before will no longer be used.

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
