6 in 1 Smart Stud Finder Wall Scanner High Accuracy Studs Detector Stud Finder f

6 in 1 Smart Stud Finder Wall Scanner High Accuracy Stud Finder Wall Detector Electric Wall Scanner Sensor for AC Wire Metal Studs Wood Joist Pipe
Feature:
1.1/2'' Stud Scanning Mode: Detects wood or metal studs with a depth of up to 13mm using this smart stud finder wall scanner. Achieve precision in your DIY projects with ease.
2.1'' Stud Scanning Mode: Capable of detecting wood or metal studs up to 25mm deep. This stud finder wall detector ensures accuracy and reliability for home renovations.
3.1-1/2'' Stud Scanning Mode: Effectively detects wood or metal studs at depths up to 38mm. Our advanced stud finder tool is an essential for builders and DIY enthusiasts.
4.Metal Mode: With the ability to detect magnetic metals up to 80mm and non-magnetic metals up to 60mm, this electric wall scanner sensor is unparalleled in functionality.
5.AC Mode: Effortlessly detects live unshielded AC wires up to 51mm deep using this versatile studs detector, ensuring safety during electric installations.


Specification:
Origin: Mainland China
1. Detection Mode Selection
Stud Mode
In Stud Mode, there are 3 scanning modes to choose from to suit the thickness of the surface being scanned:
1/2" Scan Mode detects 1/2 inch (13mm) deep.
1" Scan Mode detects 1 inch (25mm) deep.
1 1/2" Scan Mode detects 1 1/2 inches (38mm) deep.
If you do not know the detection depth, it is recommended to use the
1/2" Scan Mode first. When the 1/2" scan mode cannot detect, please switch to the 1" or 1
1/2" scan mode.
Metal Mode:
The detection depth of magnetic metal can reach 3.2 inches (80mm) (15mm diameter galvanized steel pipe)
It can detect non-magnetic metal (13mm diameter copper pipe) at a depth of 2.4 inches (60mm).
AC Mode:
The detection depth of unshielded AC live wire can reach 2 inches (51mm)
Parameters:
Battery Type: 9V Battery (6F22) (Not included, need to be prepared by yourself)
Working Current: <50ma
Shutdown Current: <10UA
Automatic Shutdown Time: 3 minutes
Casing Material: ABS

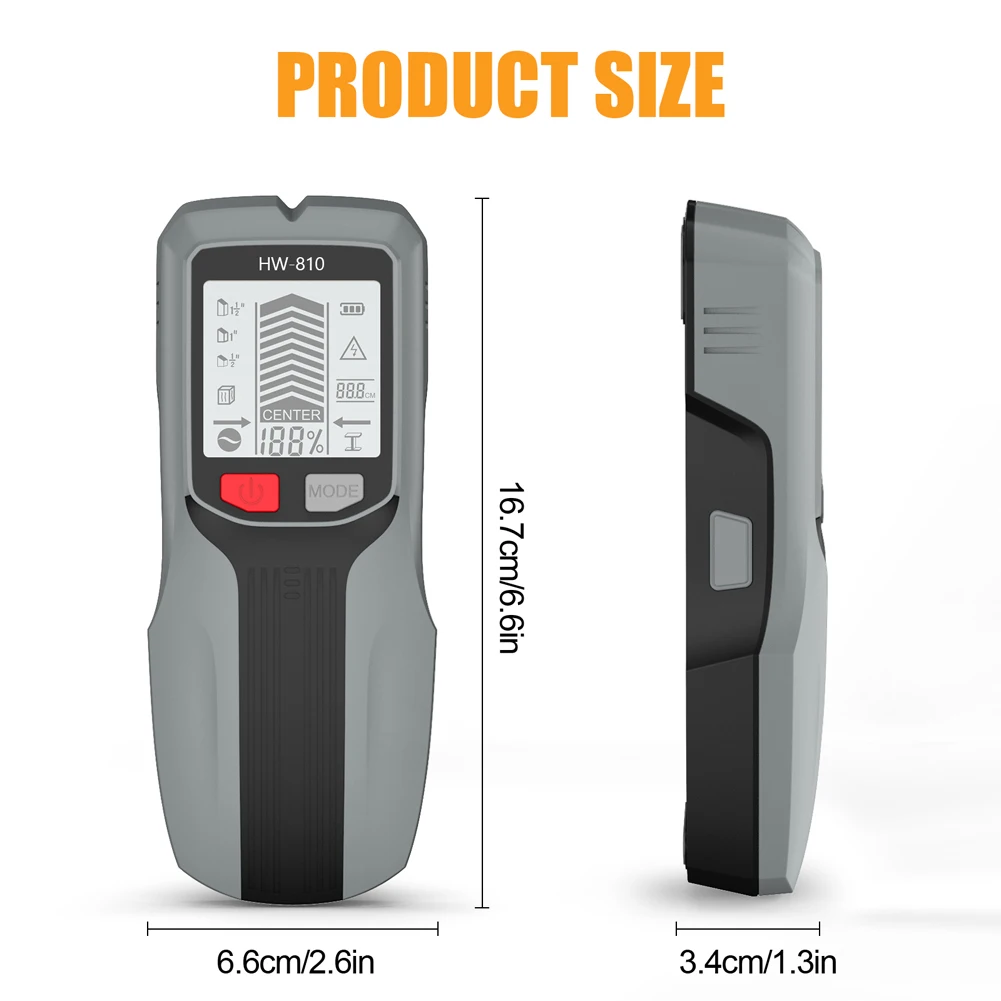

Product Size: Approximately 167.00x66.00x34.00mm
Product Size: 6.57x2.6x1.34inch

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

1 x Metal Detector
1 x Instruction Manual
