6022BE 6022BL Oscilloscope 2-Channel Laptop USB Digital Storage Virtual Oscillos

6022BE 6022BL Oscilloscope 2-Channel Laptop USB Digital Storage Virtual Oscillos

Regular price £94.99 GBP
Regular price Sale price £94.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color

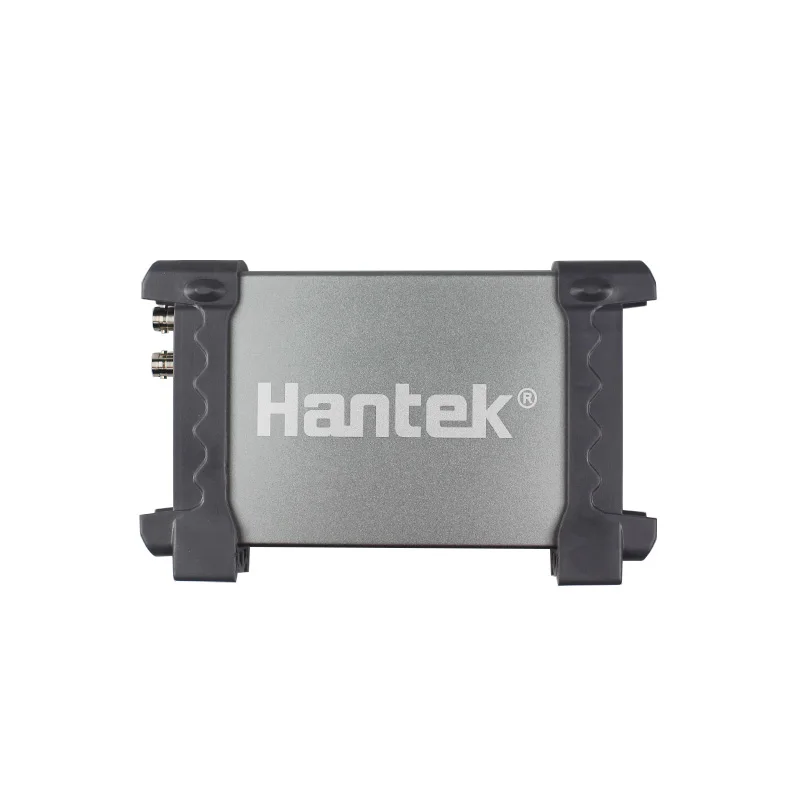

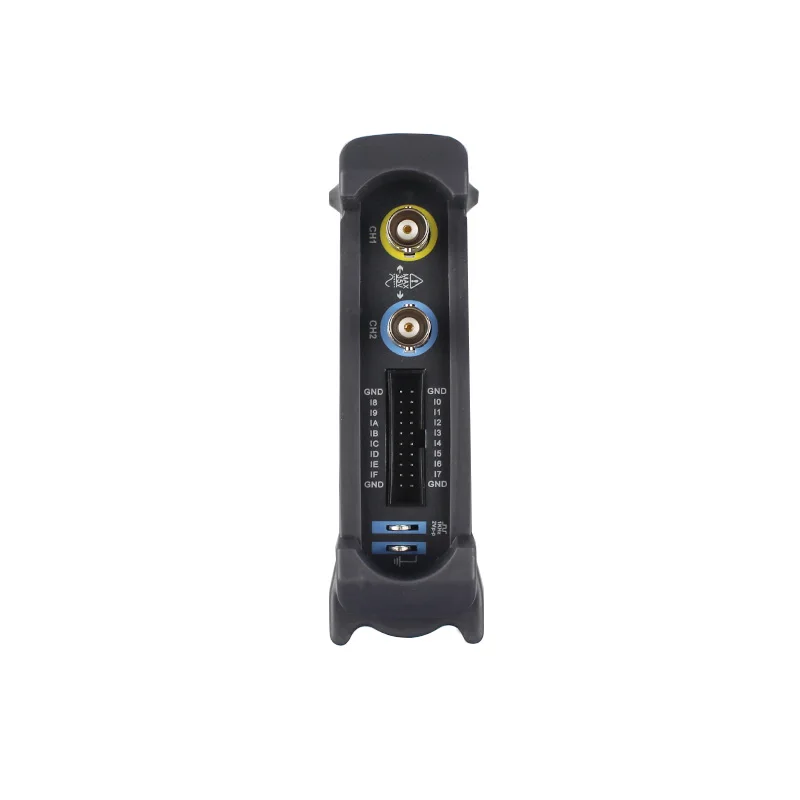

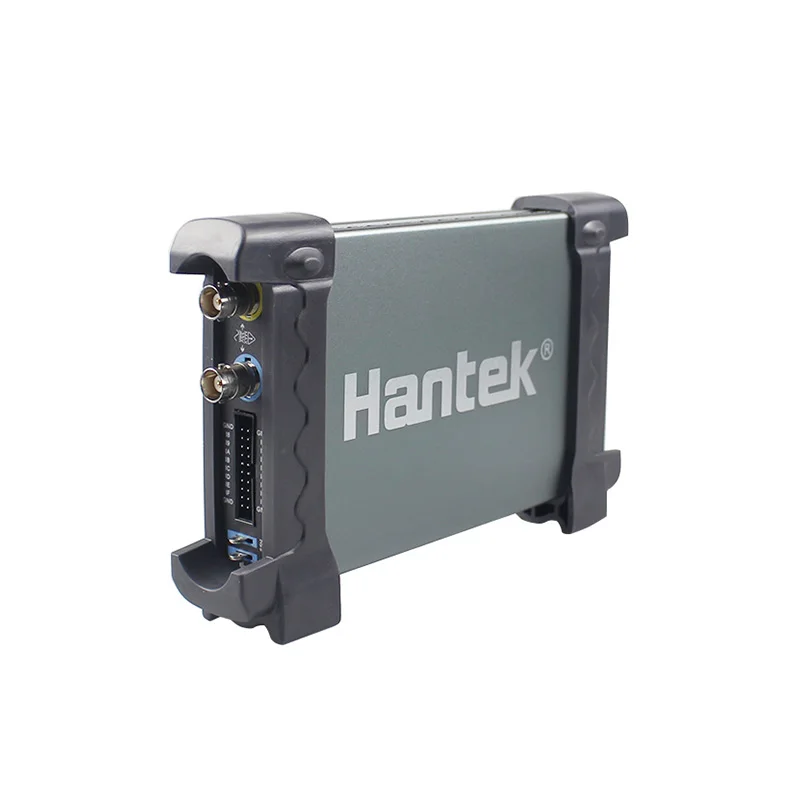

Hantek 6022BE Digital Oscilloscope Portable PC Based 2 Channel 20MHz USB Oscilloscope Handheld Oscilloscopes Portable Oscilloscopes Diagnostic Tools

Cost-effective, 20MHz bandwidth 2-channel oscilloscope with 48MSa/s sampling rate with 2 probes; standard USBXITM interface, easily plugs into USBXITM housing to form a combination instrument.

1. Features

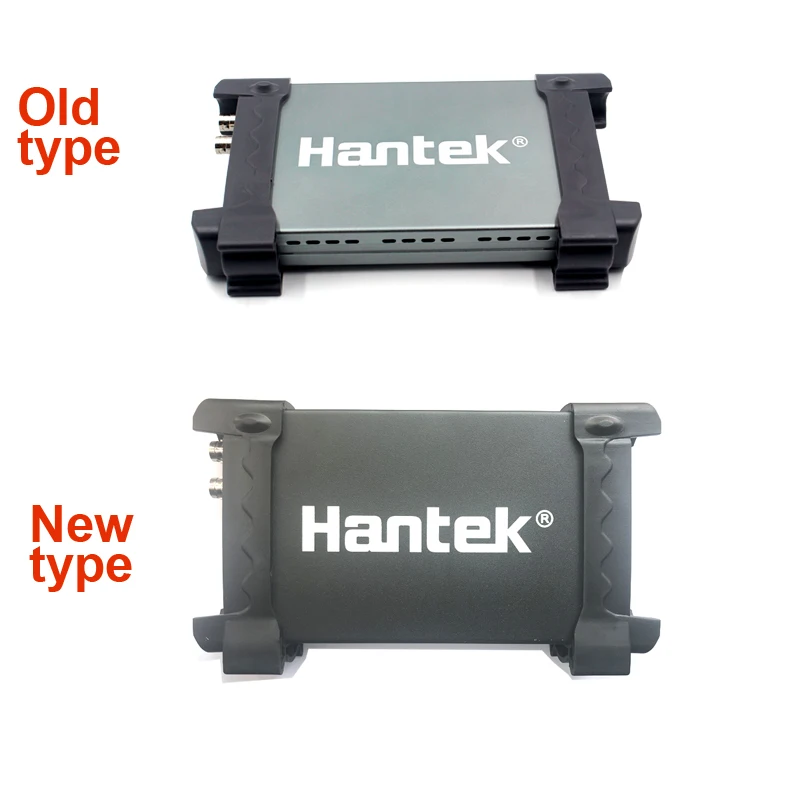

Cost-effective; excellent industrial design - the same anodised aluminium housing as the iPad, which is not only aesthetically pleasing and tasteful, but also greatly enhances the hardness of the aluminium surface, which is heat and wear resistant.

Standard USBXITM interface for easy insertion into the USBXITM housing to form a combined instrument.

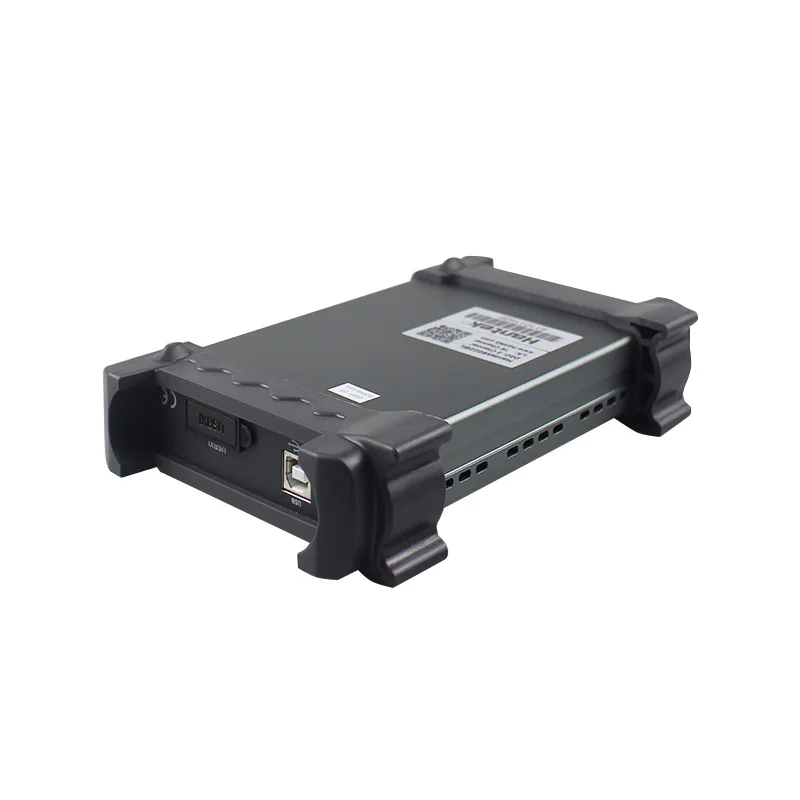

USB2.0 interface, no external power supply required, easy to use

Suitable for laptops, product line maintenance and easy business use.

Dimensions (mm): 205 (L) x 120 (W) x 35 (H), easy to carry.

High performance, 48MS/s real time sampling, 20MHz bandwidth.

Operating systems: Windows 7, Windows 8, Windows 10

Windows NT, Windows 2000, Windows XP, VISTA.

23 measurement functions, pass/fail check, suitable for technical applications>

Waveform averaging, persistence, intensity, inversion, addition, subtraction, multiplication, division, X-Y plot.

Save waveforms as: text files, jpg / bmp graphic files, MS excel / word files.

FFT

Multiple DSOs can be connected to one computer for easy channel expansion.

Labview\VB\VC\Delphi\C++Builder Second Design instance.

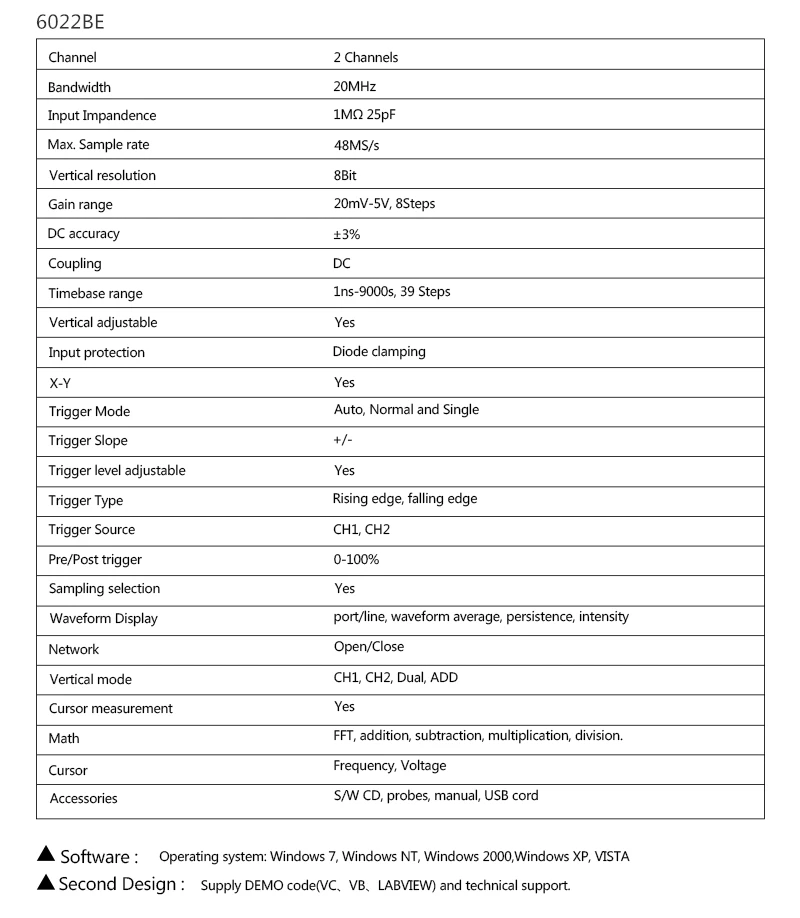

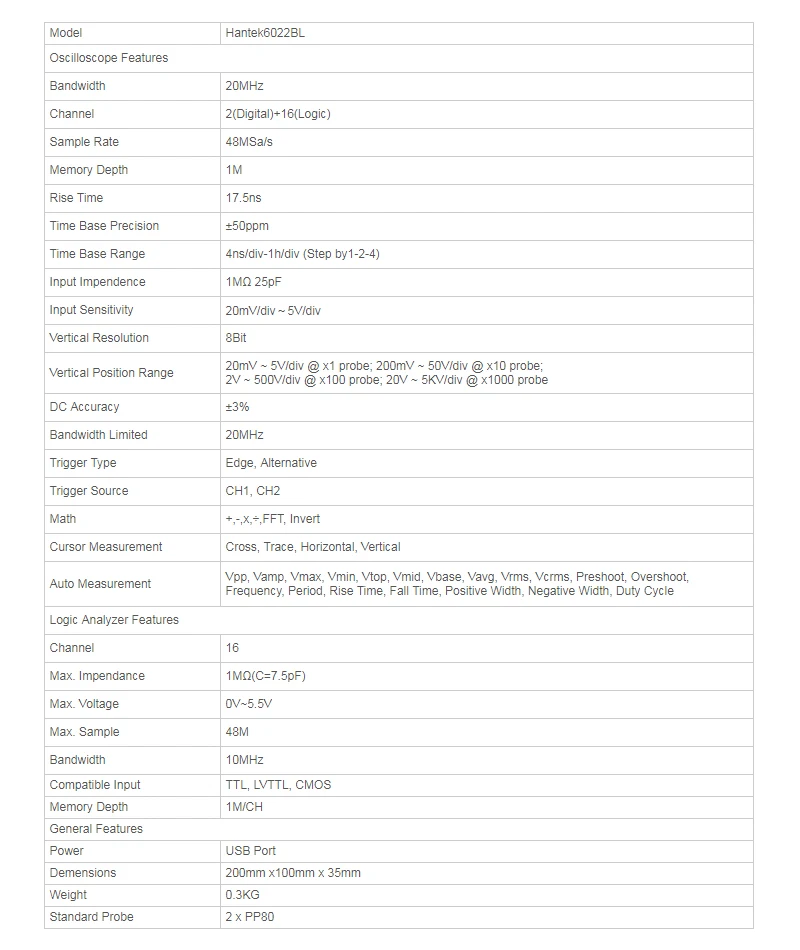

2. Hardware specifications

Channels

2 Channels

Bandwidth

20 MHz

Input impedance

1 minute 25pF

Maximum sampling rate

48 ms/sec

Vertical resolution

8 bits

Gain range

20mV-5V, 8 steps

DC Accuracy

3%

Time base range

1ns-9000s, 39 steps

Vertically adjustable

Yes

Input protection

Diode clamping

X-Y

yes

Trigger modes

Automatic, normal and single

Trigger slope

+/-

Trigger level adjustable

Yes

Trigger type

Rising edge, falling edge

Trigger source

CH1, CH2

Pre/post trigger

0-100%

Sampling selection

Yes

Waveform display

Port/line, waveform average, persistence, intensity

Network

Turn on/off

Vertical mode

Channel 1, Channel 2, Dual Channel, Add

Cursor measurement

Yes

Maths

FFT, addition, subtraction, multiplication, division.

Cursor

Frequency, voltage

Accessories

Software CD, Probe, Manual, USB cable

3. Software

Operating systems: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA

4. Secondary design

Demo code (VC, CVI, VB, LABVIEW) and technical support are available.

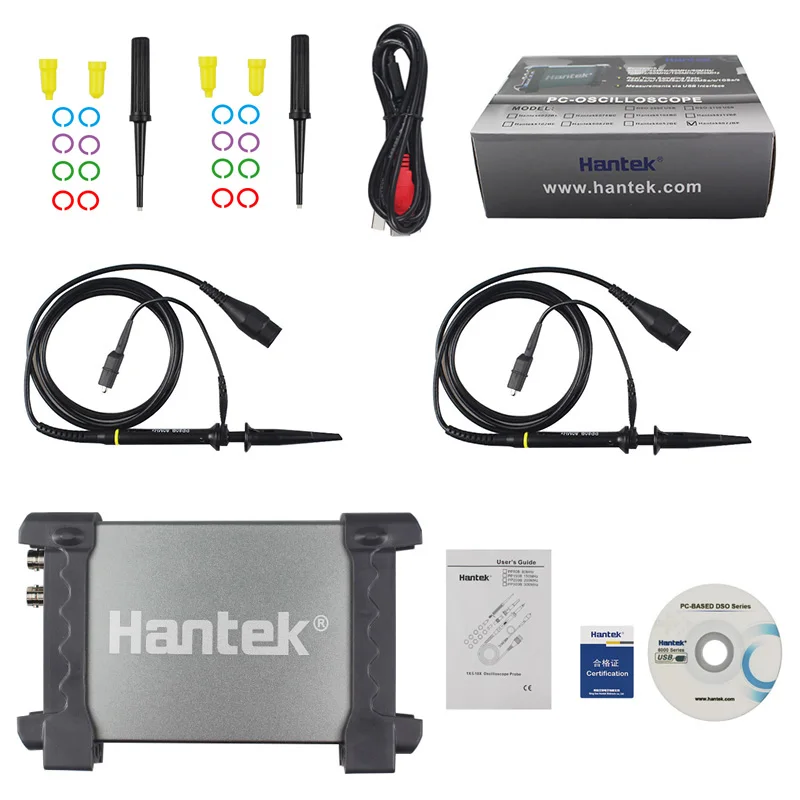

1 * Oscilloscope

1 * USB cable
1 * CD
2 * Probes
1 * User manual (CD-ROM)
