8MP USB Type-C 2.0 4K IMX377 Measurement Microscope Ocular Electronic Digital Ey

Measurement Software

Feature:
High Quality, High Resolution, Clear Images
Certificate: CE, FCC, RoHS
Industry Cmos Camera. It can Show the live image directly on any VGA monitor or Projector.
Supply USB output ports.


Specification:

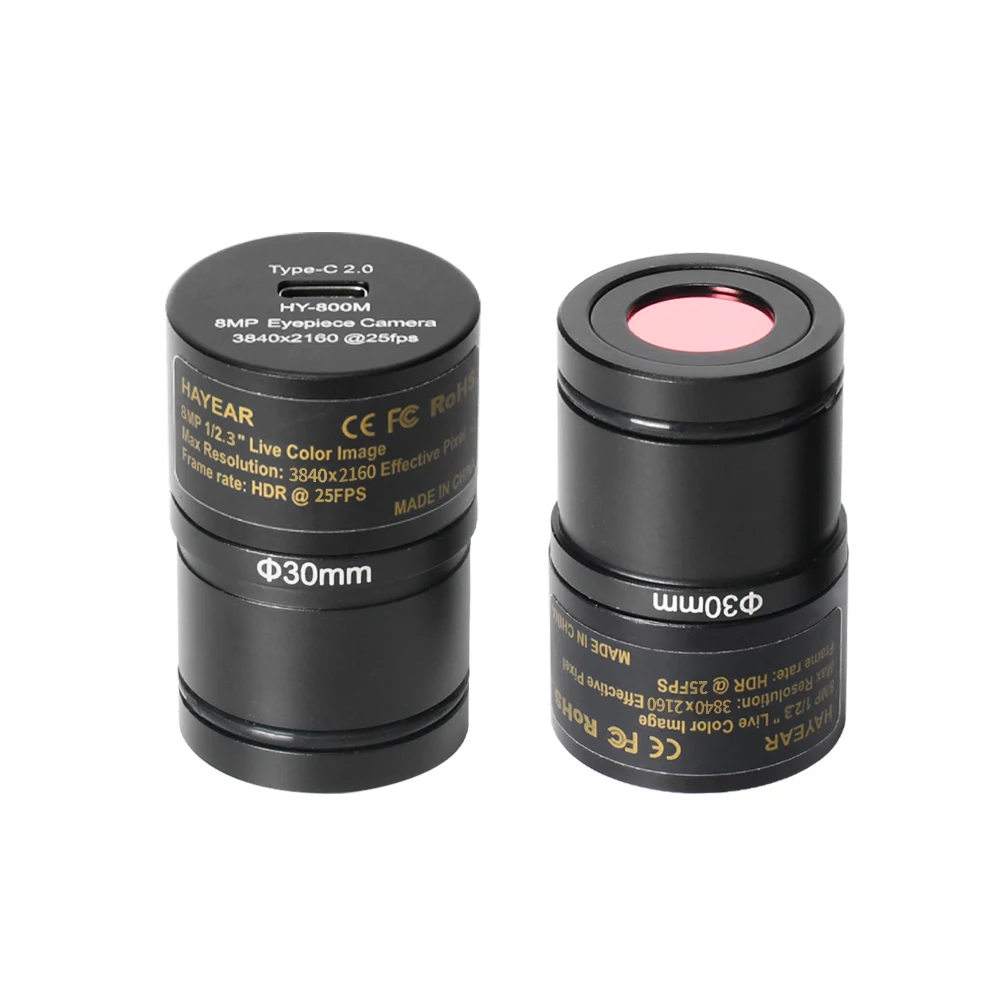

Model: HY-800M

Image Sensor: SONY 1/2.3" Color IMX377 CMOS Image sensor
Resolution: 3840X2160 Effective Pixel

Frame rate:

Mjpeg:

3840x2160 @ 25fps; 2592x1944 @ 25fps;

2084x1536 @ 25fps; 1920x1080 @ 25fps;

1280x720 @ 25fps; 800x600 @ 25fps

640x480 HDR @ 25fps

Yuv422:

3840x2160 @ 1fps; 2592x1944 @ 1fps;

2084x1536 @ 1fps; 1920x1080 @ 5fps;

1280x720 @ 10fps; 800x600 @ 15fps

640x480 HDR @ 15fps;

Scanning method: line by line scanningReal 8 megapixel image sensor, no compression, no interpolation

SNR: 39dB

White Balance: Auto/Manual

One-click white balance: Support

Exposure Control: Auto/Manual

supports output formats: 12-/10-bit RAW RGB

Working Temperature: 0C~70C

Interface: USB Type-C 2.0 (480 Mbit/s)

Spectral response: 2400 mV/Lux-sec

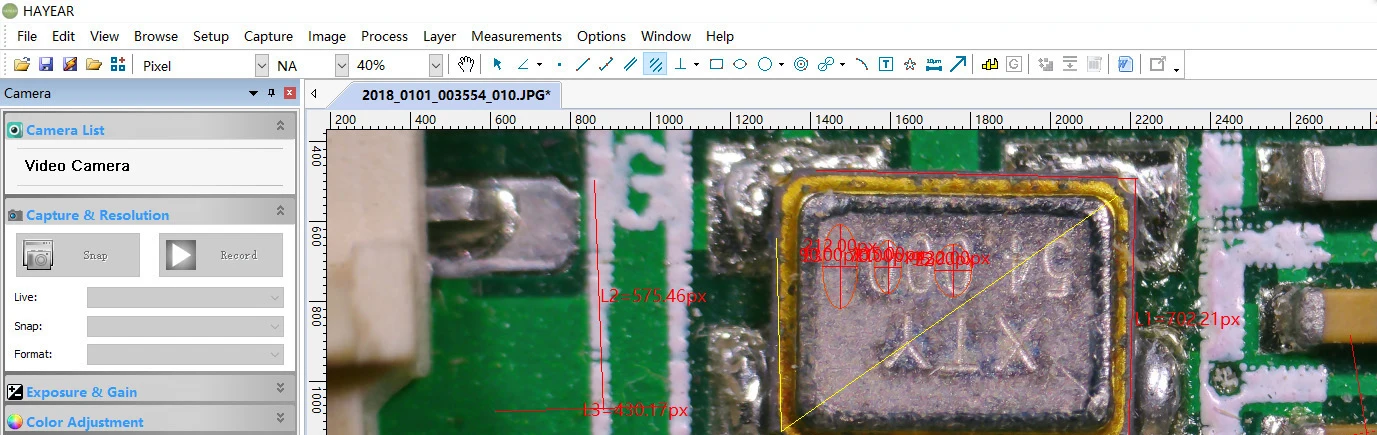

Software function: Image display, Image shooting, video recording, measurement, etc.

Application: Microscope imaging, General image acquisition, macro imaging, etc.

Support OTG to Android Phone (OTG cable is not included)

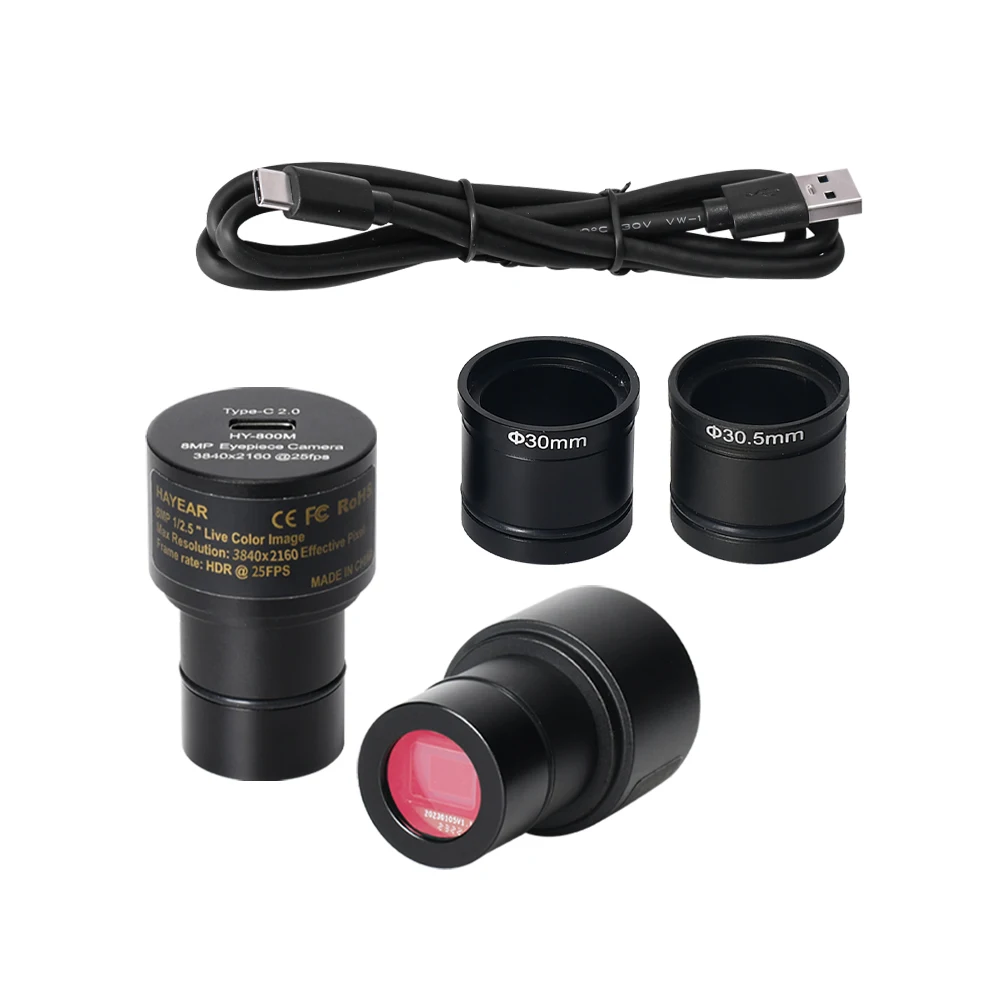

Package including:

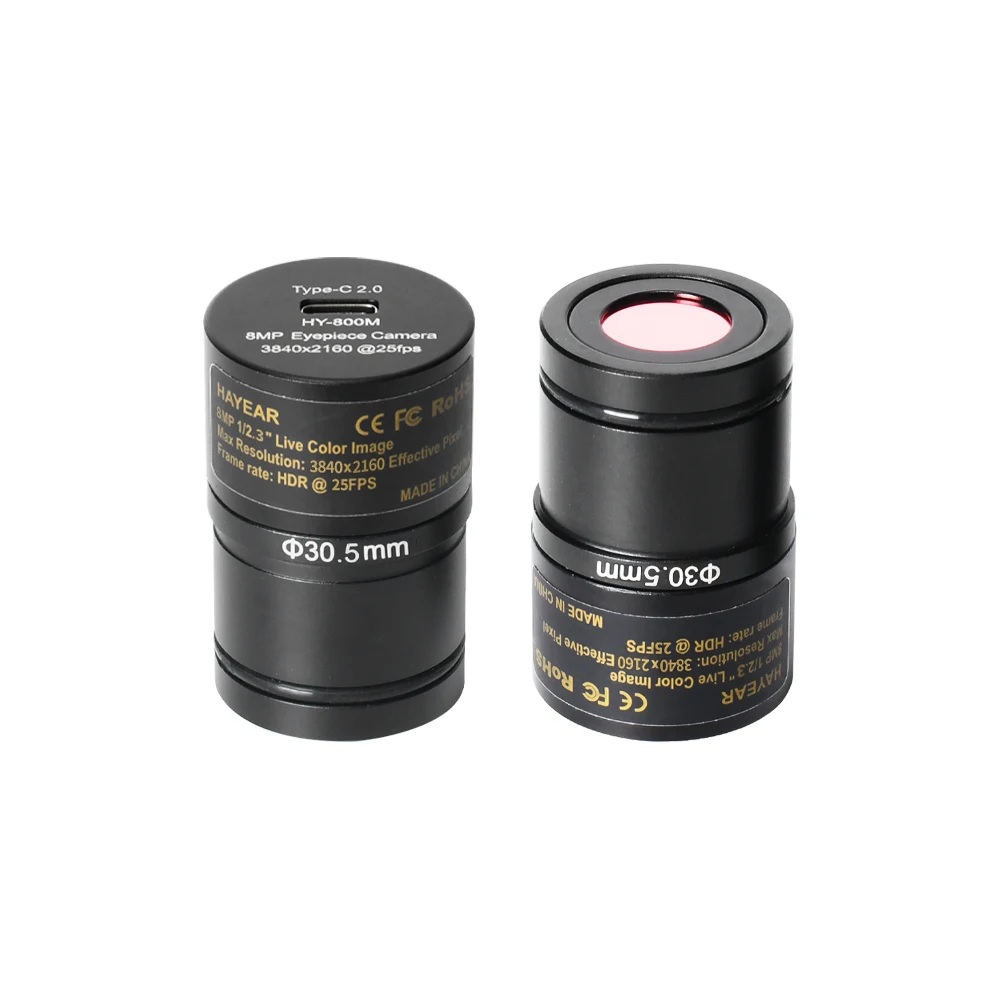

1 x 8MP Digital Eyepiece

1 x TYPE-C Cable

1 x Measurement Software DISC

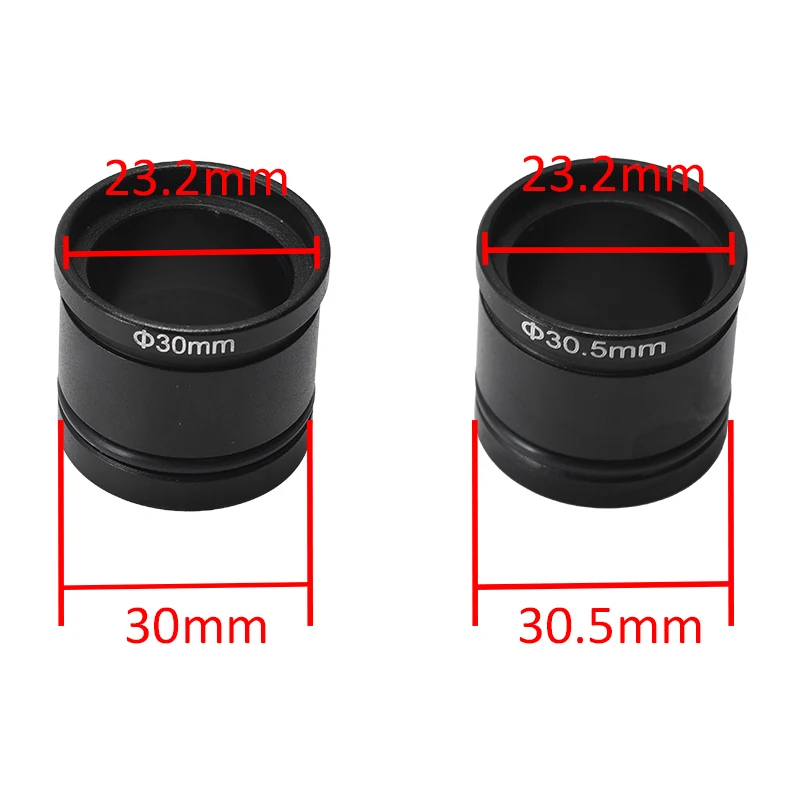

1 x 30/30.5mm Adapter

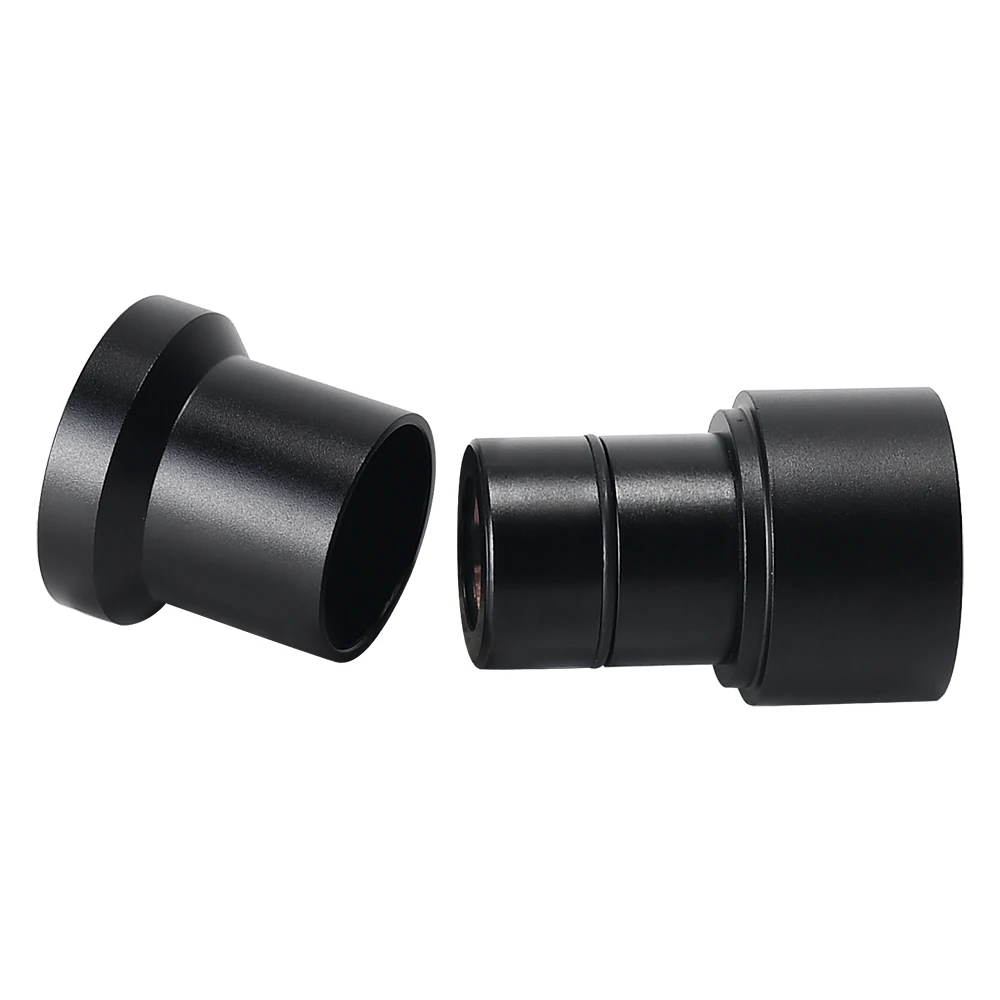

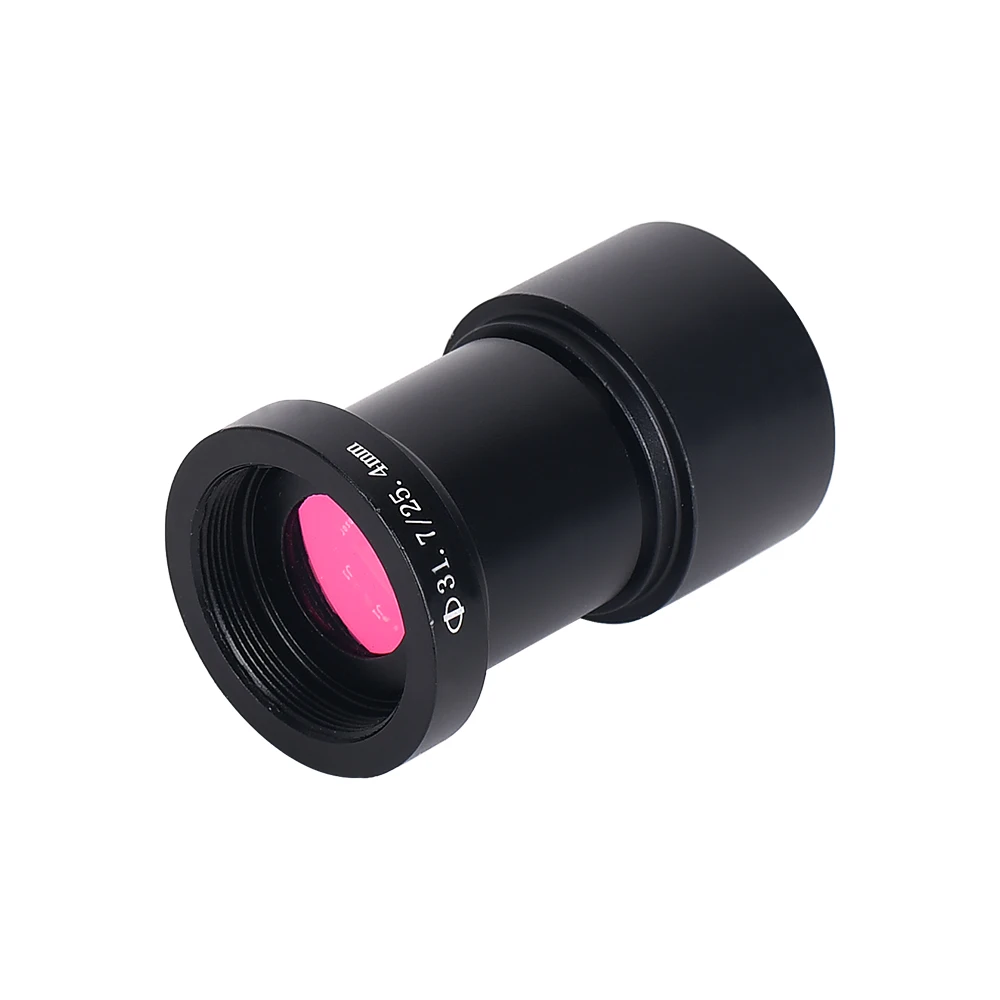

1 x 31.7mm C-mount/telescope adapter (optionl)

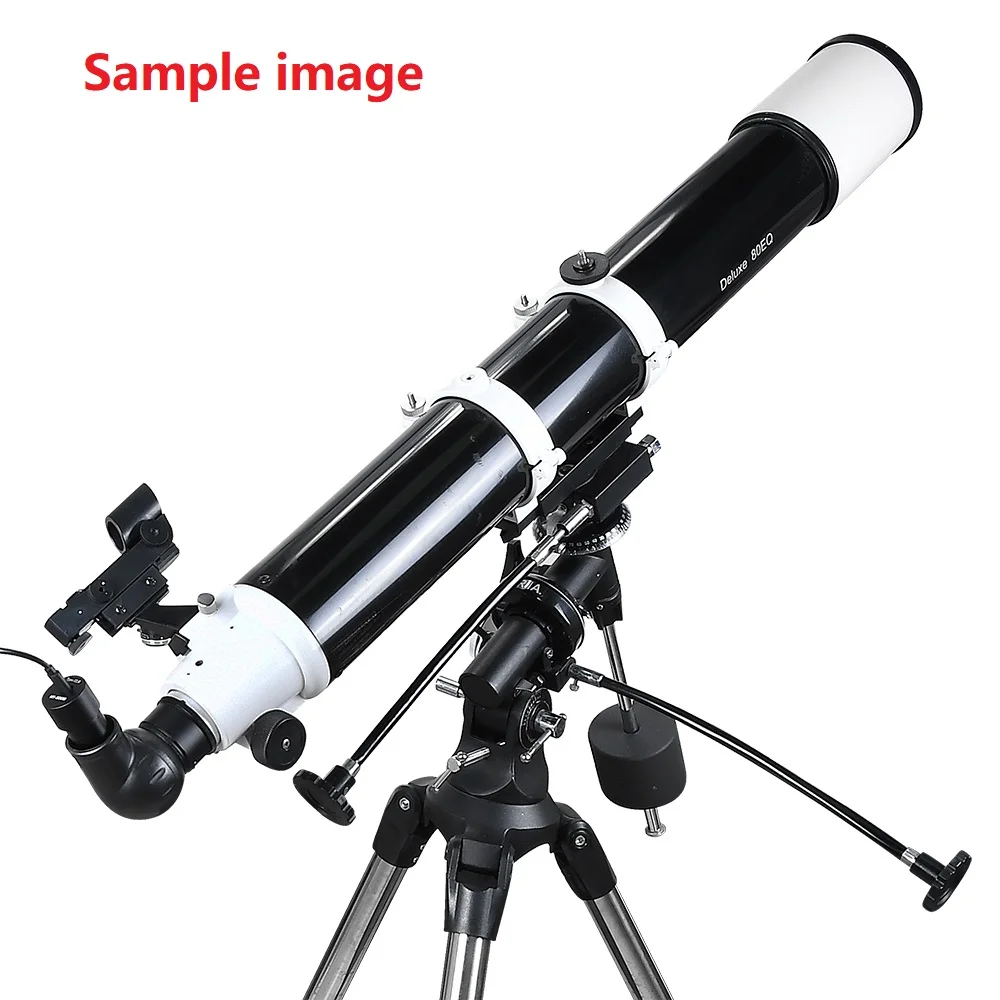

Note: C-mount Kit can be used with C-mount lens and telescope.

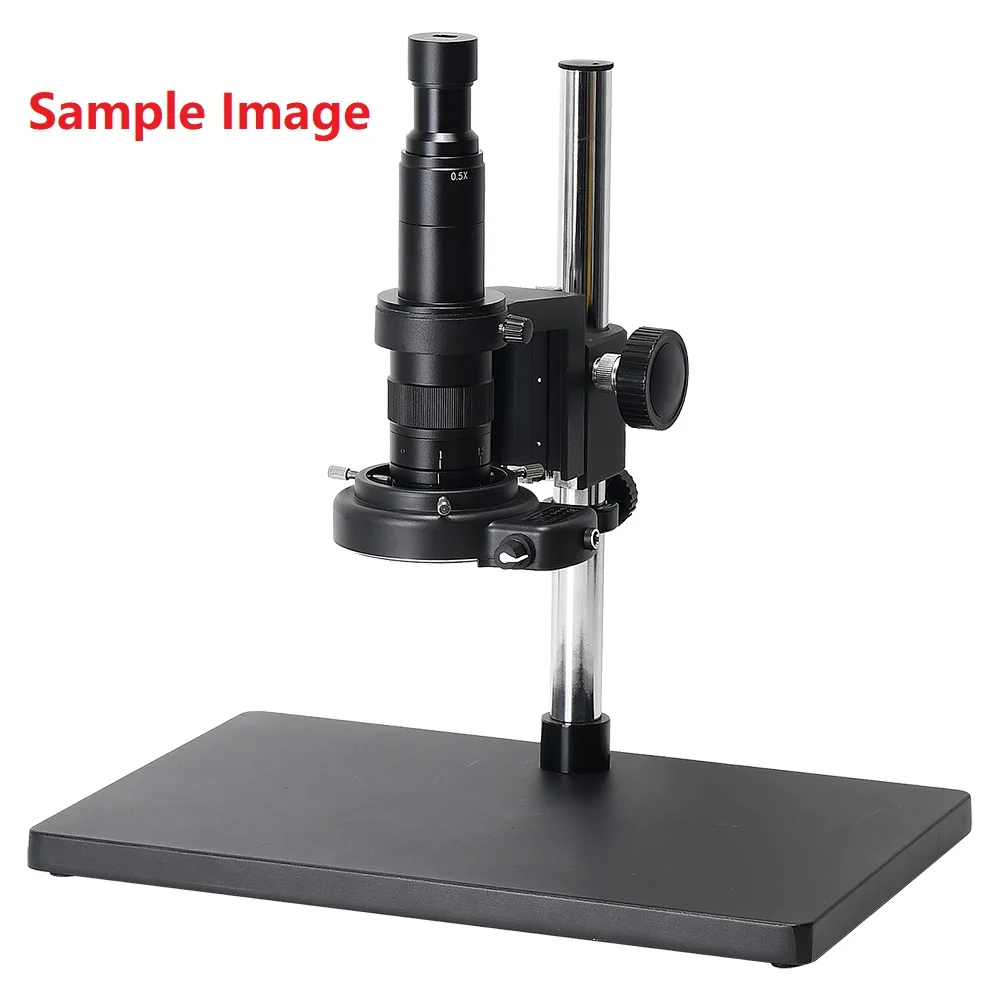

Eyepiece Kit can be installed the HY-800M to the trinocular/bionocular/biological microscope eyepiece.
