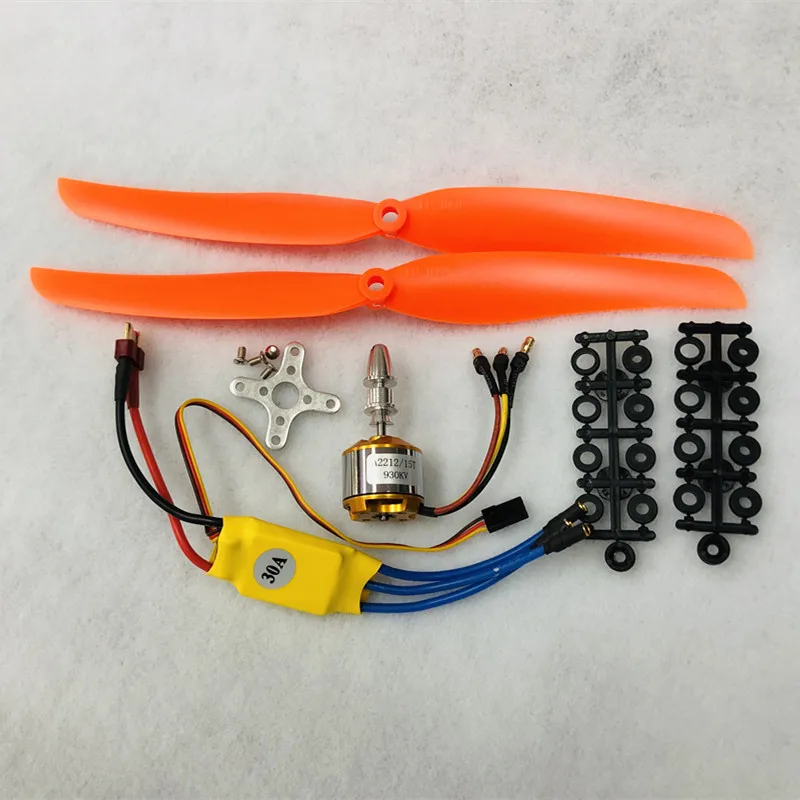

    A2212 2212 930KV Brushless Motor 30A ESC Motor Mount 1060 Propeller SG90 9G Micr

    A2212 2212 930KV Brushless Motor 30A ESC Motor Mount 1060 Propeller SG90 9G Micr

    £25.99 GBP
    £25.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Color
    Products Description:
    A2212 2200kv Motor Specification:
    - KV: 930
    - Max Efficiency: 80%
    - Max Efficiency Current: 4-10A (>75%)
    - Current Capacity: 12A/60s
    - No Load Current @ 10V: 0.5A
    - No. Of Cells: 2-3 Li-Poly
    - Motor Dimensions: 27.5 x 30mm
    - Shaft Diameter: 3.17mm
    - Weight: 47g
    SG90 9G Micro Servo
    This is the most popular mini servo. Only weighs 9 gram and gives you a 1.5 kg/cm torque. Pretty strong regarding its size. Suitable for beam type robots.
    Key features:
    Translucent body
    Lightweight
    Less noise
    SG90 9G servo parameters:
    Size: 21.5mmX11.8mmX22.7mm
    Weight: 9 grams
    No load speed: 0.12 sec / 60 deg (4.8 V)
    Locked-rotor torque: 1.5-1.7kg/cm (4.8V-6V)
    Operating temperature: -30~~+60 degrees Celsius
    Dead zone setting: 5 microseconds
    Working voltage: 4.8V-6V
    30A Brushless speed controller ESC MultiCopter Quad-rotor X-copter
    Specification:
    Compatible with: 400-450 helicopters / Aircraft or Quad-Rotor Multi RC Helicopter
    -Output: Continuous 30A, Burst 40A up to 10 Secs.
    -Input Voltage: 2-3cells lithium battery or 5-9 cells NiCd/NIMh battery.
    -BEC: 2A / 5V (Linear mode).
    -Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
    (BLM: BrushLess Motor)
    With T plug and 3.5mm banana connectors
