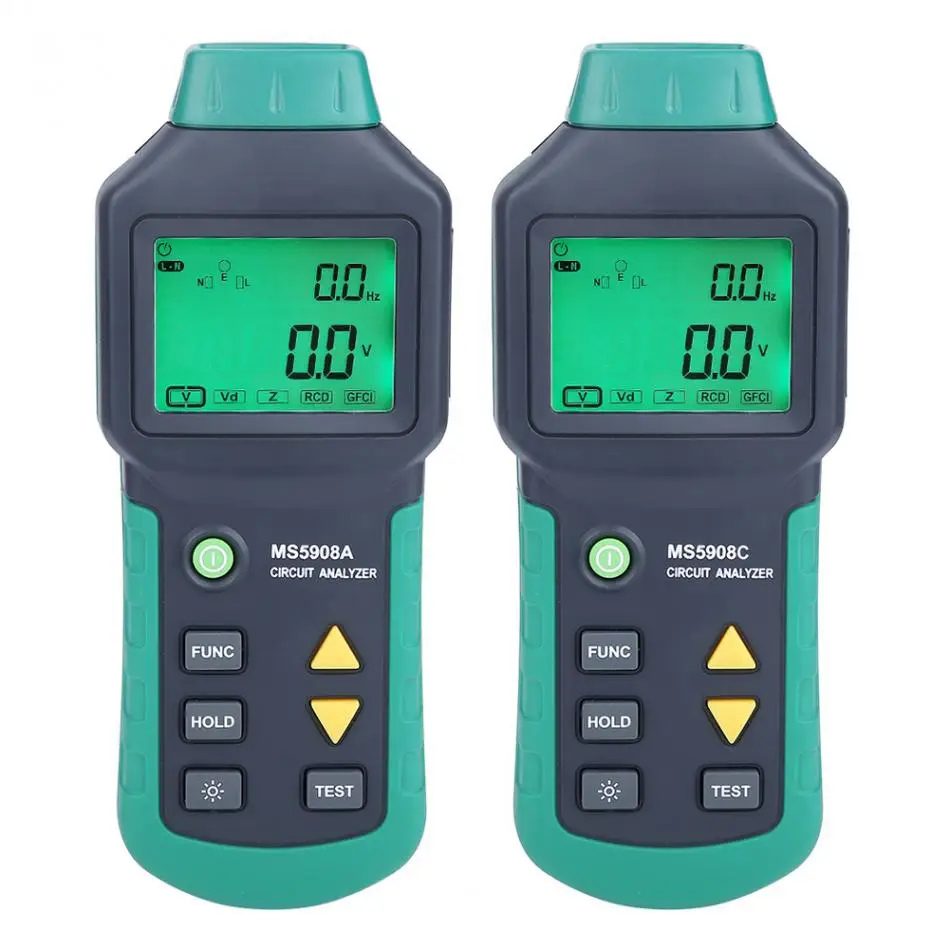

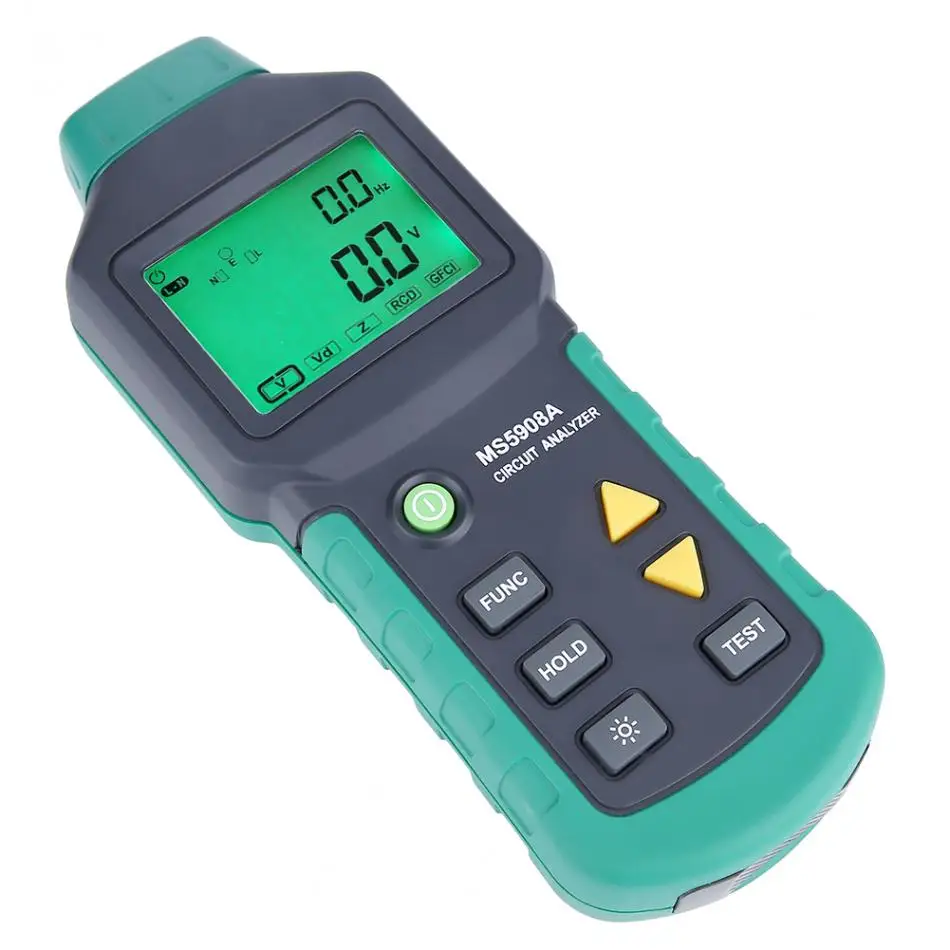

AC100-240V MS5908A/MS5908C LCD Circuit Analyzer RCD Tester with Voltage GFCI Me

AC100-240V MS5908A/MS5908C LCD Circuit Analyzer With Voltage GFCI RCD Tester

Features:

• TRMS measuring AC Voltage

• Artificial load 12A,15A, 20A measuring wire drop(MS5908A)/Artificial load 5A,8A,10A measuring wire drop(MS5908C)

• Measuring phase voltage, neutral wire, voltage to earth, voltage, frequency

• Measuring phase(live wire),neutral wire,earth wire conductor impedance

• Identifying 3-wire socket connection mode(neutralfor left and live for right,having earth wire or not)

• Test the reliability of residual current device(RCD) and response action time

• Test the reliability of GFCI action and response action time

• Backlight function and data hold function

Specification:

Type(Optional):MS5908A(110V, US plug), MS5908C(220V, EU plug)

Wire Voltage: 85.0~265.0V: 0.1V (1.0%+0.2V)

voltage: 121.0~374.0: 0.1V (1.0%+0.2V)
Frequency: 45.0~65.0Hz: 0.1Hz (1.0%+0.2Hz)
Voltage Drop: 0.1%~99.9%: 0.1% (2.5%+0.2%)
Voltage Loaded: 10.0~265.0V: 0.1V (2.5%+0.2V)
Voltage to earth ofneutral wire:0.0!10.0V: 0.1V (2.5%+0.2%)
Impedance for live wire,neutral wireand earth wire: 0.00~3.00&;: 0.01&; (2.5%+0.02&;)
RCD Triggering Time: 1ms~6.500s: 1ms (1.0%+2ms)
RCD Triggering Current: 30mA~37mA: 0.1mA (1.0%+0.2mA)
GFCI Triggering timer: 1ms~6.500s: 1ms (1.0%+2ms)
GFCI Triggering Current: 6mA~9mA: 0.1mA (1.0%+0.2mA)
Power Supply: 1.5AAA * 6(not included)
Color: green

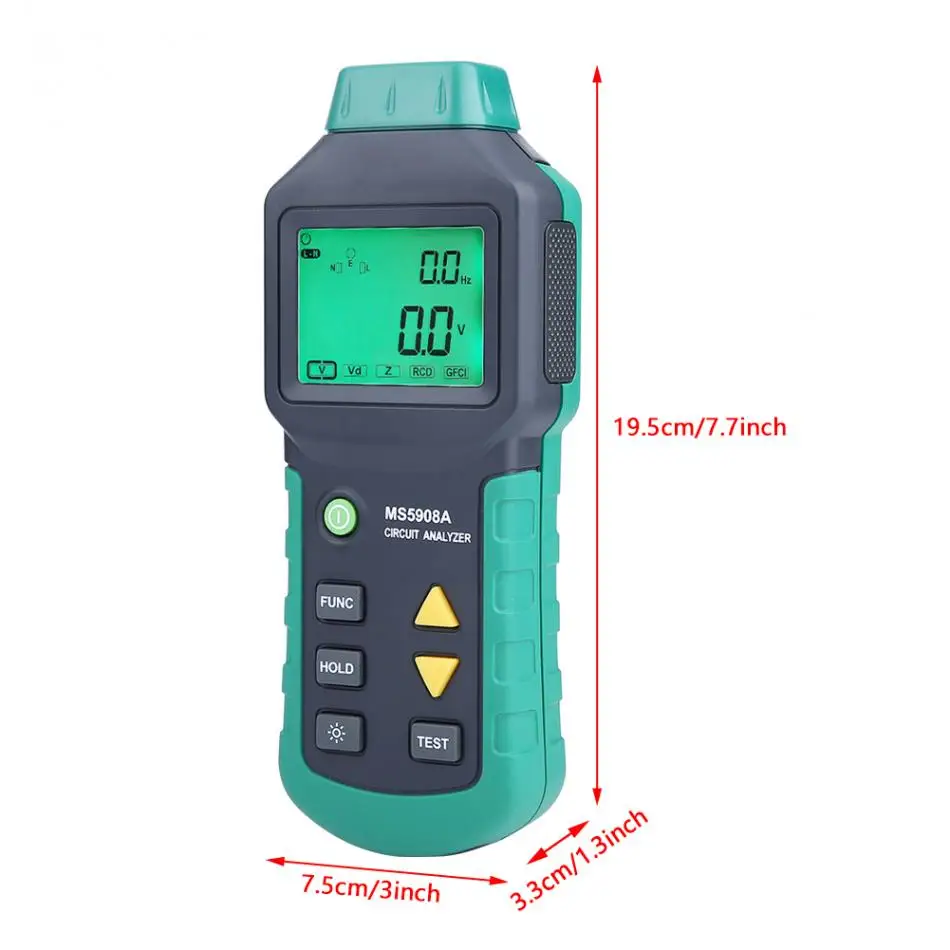

Size: 19.5*7.5*3.3cm/7.7*3*1.3in
Weight: Approx.642g~655g/22.6oz~23.1oz

Package List:
1 * MS5908A/ MS5908C TRMS AC Voltag Circuit Analyzer

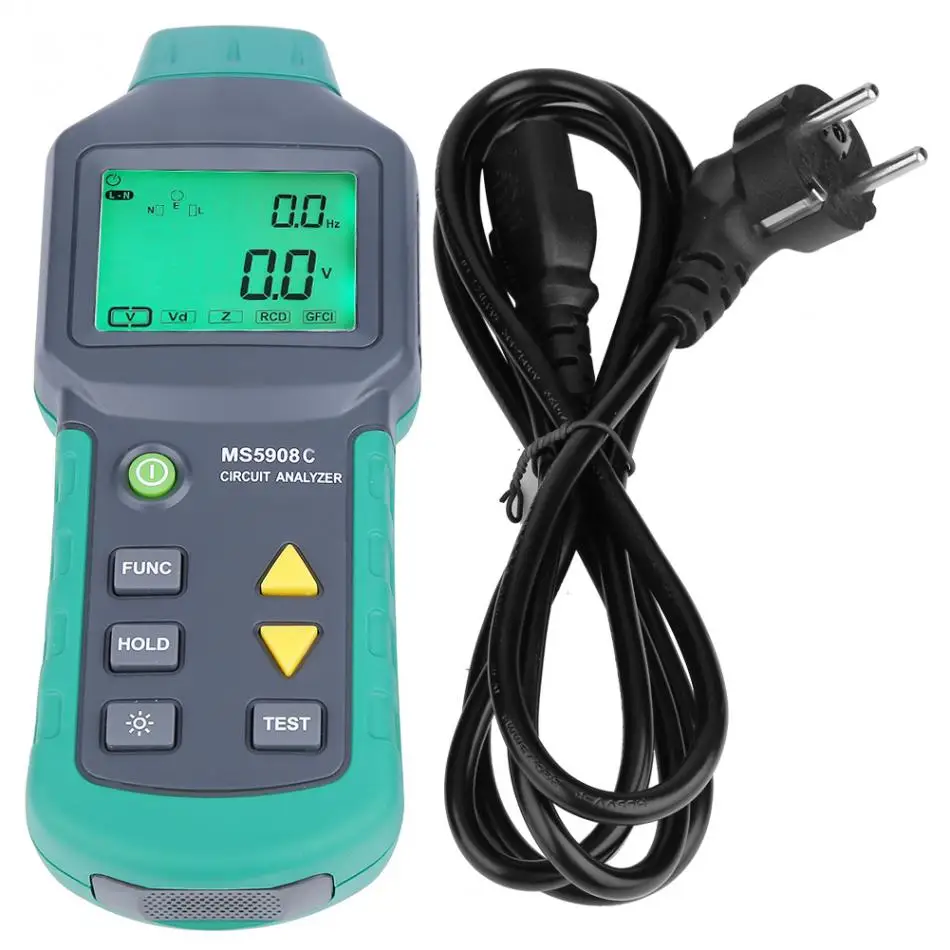

1 * Power Cable
1 * English Manual

1 * Carrying Box
