ADW300 LCD IOT Wireless Smart 4G Energy Meter 3 Phase MQTT RS485 Modbus-Rtu with

Regular price £244.99 GBP

Regular price Sale price £244.99 GBP

Unit price / per

Sale Sold out

Taxes included. Shipping calculated at checkout.

Size 4G Meter 3 CtsVariant sold out or unavailable

Color 4G Max 300A AcVariant sold out or unavailable 4G Max 700A AcVariant sold out or unavailable 4G Max 600A AcVariant sold out or unavailable 4G Max 150A AcVariant sold out or unavailable 4G Max 500A AcVariant sold out or unavailable 4G Max 250A AcVariant sold out or unavailable 4G Max 400A AcVariant sold out or unavailable 4G Max 200A AcVariant sold out or unavailable 4G Max 1000A AcVariant sold out or unavailable 4G Max 800A AcVariant sold out or unavailable

Quantity

(0 in cart)

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

4G Wireless IoT 3-phase Smart Energy Meter+3 pcs 300A cts

ADW300 wireless energy meters have multiple built-in communication modules designed for different situations when paired with IoT energy management systems or other demands for remote connection. Meanwhile, ADW300 can provide various extraction function modules and various electrical parameter measurements to meet different requests from customers. Also, as proof of quality, ADW300 is strictly compliant with the standard of IEC 62052-11; IEC62053-22; LVD.

Noted: If you have any special requirements, for example, another bandwidth and communication solution or special power supply and size, please feel free to Contact Us.


Specification

Optional

Communication Methods: 4G-LTE, RS485

Communication Protocol: MQTT, MODBUS-RTU

Measurement: 3-phase Active Power, Reactive Power, Current, Voltage, Harmonic and etc.

Application Scenario: Building, Factory, Smart Grids, DB Room and etc

Rated Voltage: Up to 3x660~792Vac L-L

Rated Current: 3x300A AC (via CTs)

HMI Programming: Setting of CT/PT Ratio, Phase Wiring, Communication and etc

Standard&Certificate: CE; IEC; LVD

K: 4DI/2DO

T: 4 channels temperature

L: 1 channel residual current

LR: Lora

WIFI

NB: NB-IOT wireless communication

LoRaWAN

Function

Three-phase voltage, current, frequency power, total power (active, reactive, apparent) Voltage and current phase angle, voltage, and current imbalance.

Voltage, current total harmonic, and 2-31st harmonic.

Record of extreme values of voltage, current, and power in the current month and last month

Maximum current, power demand, and real-time current, power demand.

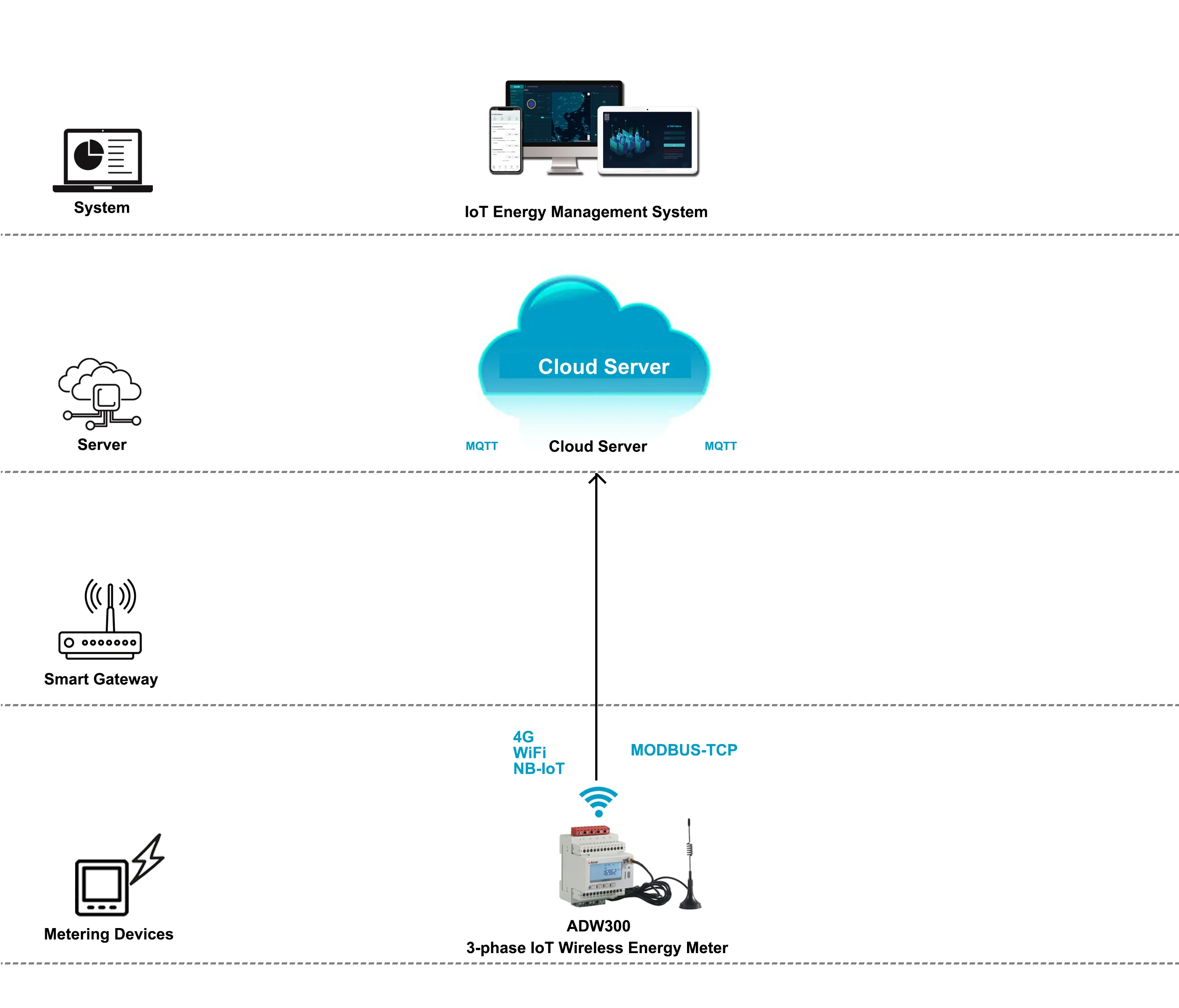

	Multiple Communication Methods Optional 4G LTE NB-IoT WiFi (2.4GHz&5GHz) LoRa RS485 (MODBUS-RTU) Paired with IoT Energy Monitoring System
	Power Quality Analysis Total Harmonic 2nd~31st Harmonic Voltage Unbalance Current Unbalance
	Expanded Function Optional 2-channel DO (Digital Output) 4-channel DI (Digital Input) 4-channel Cable Temperature Monitoring 1-channel Residual Current Measurement
	Alarm Function Over/Under Current Over/Under Voltage Over/Under Power Phase Loss

1. Function description

Function	Description
Measurement (Standard)	Three-phase AC kWh, kVarh, Active Power, Reactive Power, Quadrant Reactive Power Energy, Current, Voltage, Voltage&Current Unbalance, Power Factor, Apparent Power, Frequency, Harmonic (2~31st&THD)
Measurement (Optional)	Temperature Measurement:4-channel (A, B, C, N) Cable Temperature Monitoring; Thermistor: NTC; Range: -40~+99; Accuracy:2
Residual Current Measurement: 1-channel Residual Current Monitoring (Need to be paired with Residual Current Transformers)
Communication (Optional)	RS485 Port with Modbus-RTU protocol - 1 start bit,8 data bits,1 stop bit, no parity; Baud Rate 1200~38400 bps, etc. Infrared Communication - Constant Baud Rate 1200 bps
Communication (Optional)	4G LTE - Normal Communicaiton Module Support: LTE-FDD: B1/B3/B5/B8; LTE-TDD:B34/B38/B39/B40/B41 4G LTE - Global Communication Module Support: LTE-FDD: B1/B3/B5/B7/B8/B20/B28; LTE-TDD: B38/B40/B41
WiFi - Support 2.4GHz or 5GHz
LoRaWAN
LoRa
NB-IoT
Display (Standard)	LCD Display and LED Indicator
HMI (Standard)	Keypads Programming: Setting of CT/PT Ratio, Communication, Phase Wiring and etc
Software (Standard)	Adjustment Software: Setting of Data Upload Interval, WiFi configuration (Account&Password), Server Address, Port and etc
Alarm Function (Standard)	Undervoltage, Overvoltage, Undercurrent, Overcurrent, Underload, Overload, Communication Disconnection and etc
I/O Function (Optional)	4-channel or 2-channel DI (Digital Input) 2-channel DO (Digital Output)

2. Technical parameter

Parameter	Description&Value
Voltage Input	Rated Voltage	3x380~456Vac L-L or 3x660~792Vac L-L (via direct connection) 3x100~120Vac L-L (via PTs)
Reference Frequency	45~65Hz
Power Consumption
Current Input	Rated Current	3x300A AC (via CTs)
Starting Current	1% Ib (Class 0.5); 4% Ib(Class 1)
Power Consumption
Phase Wiring	3P4W	3-phase 4-wire
3P3W	3-phase 3-wire
Auxiliary Power Supply	Voltage Range	85~265Vac
Power Consumption	<2W
Measurement Performance	Standard	IEC 62053-22:2003; IEC 62053-21:2003
kWh Accuracy	Class 0.5S
Pulse	Width of Pulse	8020ms
Pulse Constant	6400imp/kWh; 400imp/kWh

3. Environment

Condition	Description&Value
Temperature	Operating Temperature: -20~+55; Storage Temperature: -40C ~+70C
Humidity	95%RH, no condensation, without corrosive gas
Altitude	2000m
