Battery Tester Internal Resistance Tester High Precision 18650 Battery Tester 4-

Battery Tester Internal Resistance Tester High Precision Voltage Internal Resistance Battery Tester 4-Wire Battery Internal Resistance Meter 18650 Lithium Battery Car Battery Test Tool
Feature:
1.High Precision and Speed: Utilize the 1KHZ AC method and four-wire Kelvin clamp to measure resistance (0-100) and voltage (-110V to +110V) with 0.5% accuracy using the Battery Tester Internal Resistance Tester.
2.Smart Classification Mode: Set voltage/resistance thresholds to instantly categorize lithium batteries (pouch/cylindrical) and filter out defective cells with the Voltage Internal Resistance Battery Tester.

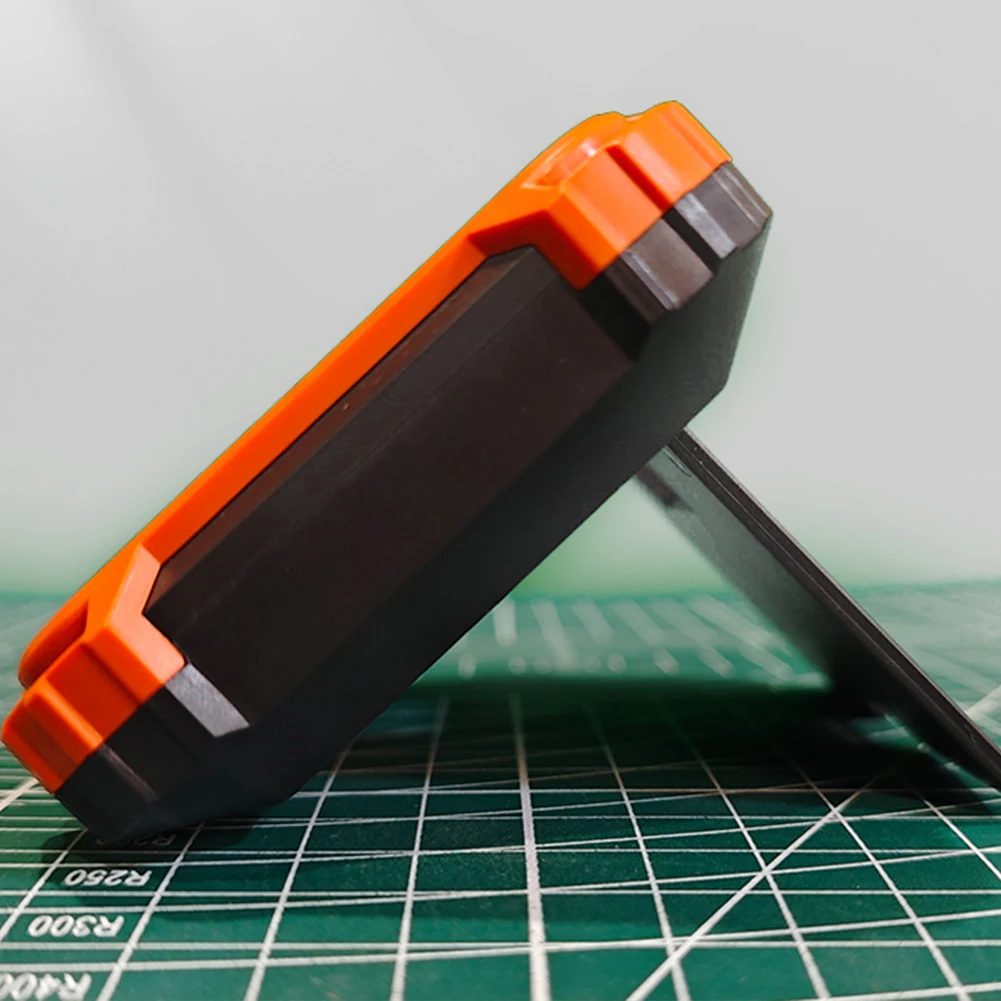

3.Portable and User-Friendly: Compact, lightweight design featuring a 2.8-inch TFT screen, adjustable stand, and rechargeable Type-C 1200mAh battery for convenience with the Battery Voltage Meter.
4.Customizable Features: Personalize display colors, shutdown timer, and save calibration values for consistent performance using the Battery Analyzer.
5.Versatile Compatibility: Suitable for various device sizes and types, ensuring testing for different batteries with the Car Battery Tester.


Specification:
Origin: Mainland China
Description:
Combining precision engineering with intuitive design, this battery resistance tester is perfect for engineers, technicians, and DIY enthusiasts. Quickly test lithium batteries, measure small resistances, and ensure quality control with its advanced 1KHZ AC technology and four-wire calibration. The 2.8-inch TFT screen provides clear readings, while the portable build and long-lasting battery make it ideal for use in the workshop or on the go.
Specifications:
Voltage measurement range: 0 - 110V (DC)
Voltage range: automatic, 1V, 10V, 100V
Resistance measurement range: 0 - 100
Resistance range: automatic, 10m, 100m, 1, 10
Accuracy: 0.5%
Instrument test signal frequency: AC 1Khz
Rechargeable: Type-C interface (5V/1A)
User calibration: supported
Classification mode: supported
Test line length: 0.8m
Battery capacity: 1200mah
Screen: 2.8-inch TF high-definition display
Casing material: ABS

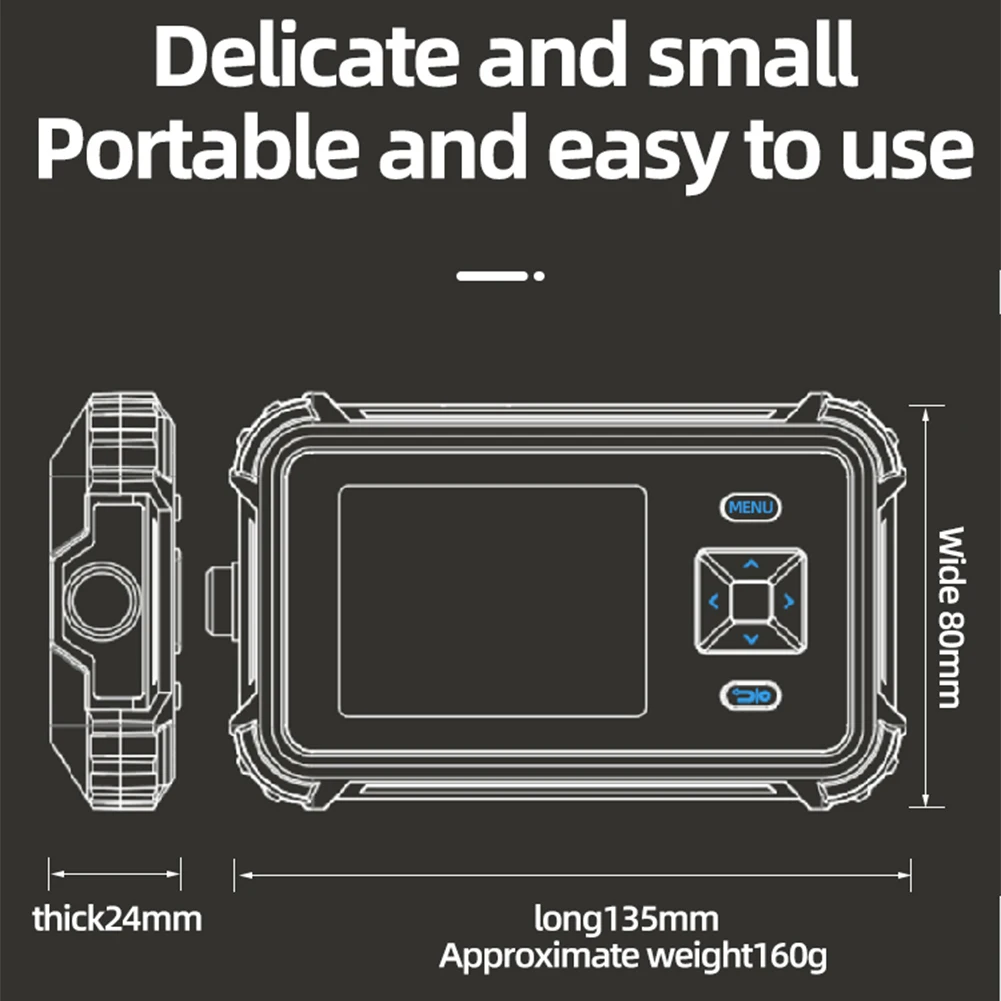

Product size: about 135.00x80.00x24.00mm
Product size: 5.31x3.15x0.94inch

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

1x Battery Internal Resistance Tester
1 X Clip
1 X Type-C Charging Cable
1x User Manual
