Bed Assist Rail with Adjustable Height, Safety Hand Rail Bedside Handle with Flo

Description

This black bed rail with foot pads is made of high-quality iron material and has a stable structure. It can be adjusted in height within 31.5-43.3in and has a storage pocket on the back for small items. It is an excellent choice for people with disabilities, pregnant women, the elderly, and patients who have just undergone surgery and have difficulty with their arms and legs.

Specification

Material: Iron, EVA, Rubber, Nylon
Color: Black
Style: Adjustable, Safe
Adjustable Height: Yes
Finish Type: Spray Paint
Assembly Required: Yes
Maximum Weight Recommendation:100kg/220.5lbs
Net Weight: 2.5kg/5.5lbs
Gross Weight: 3.0kg/6.6lbs
Package Size: 37*9*51cm/14.6*3.5*20.1in

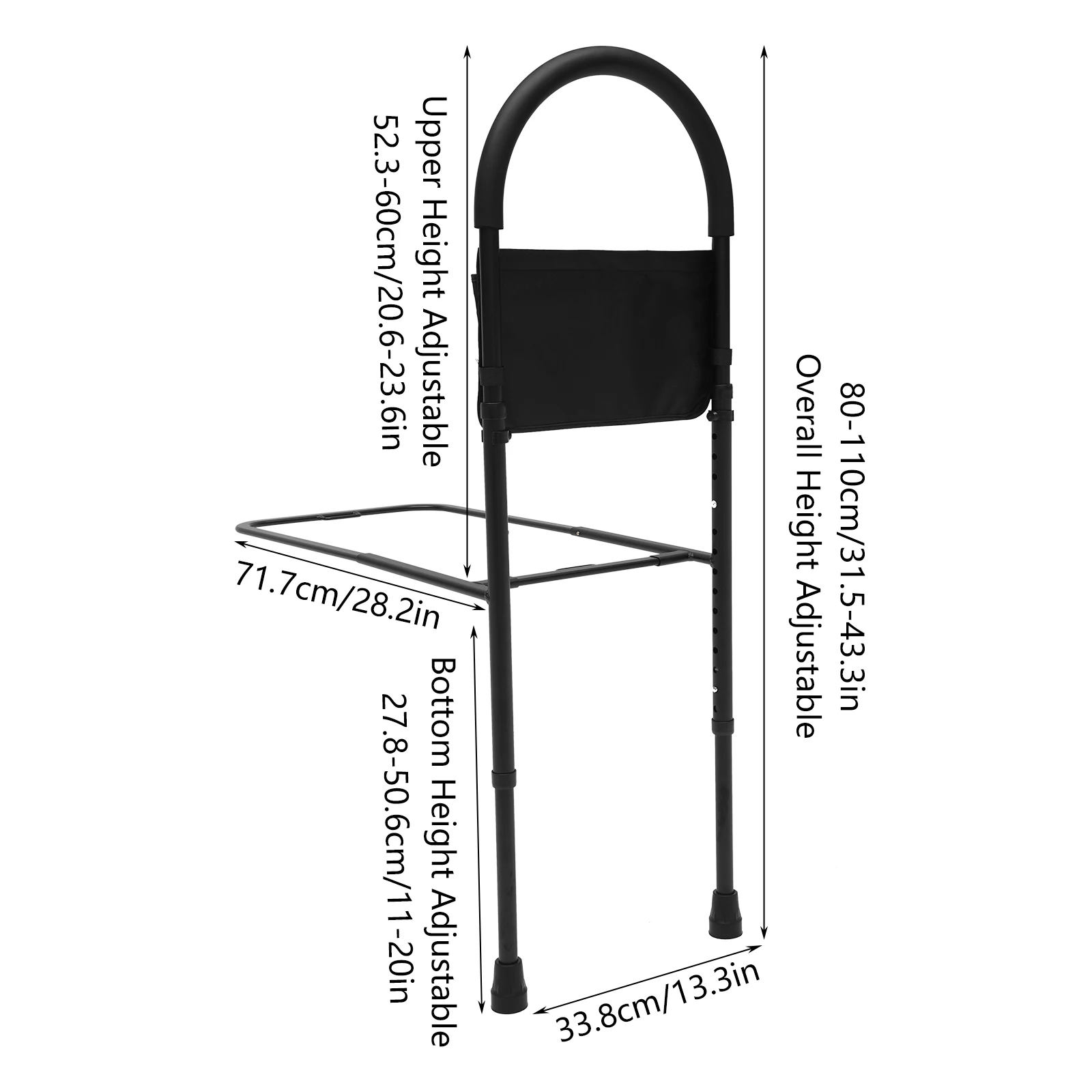

Upper Height: 52.3-60cm/20.6-23 6in
Overall Height: 80-110cm/31.5-43.3in
Inserted Length into the Mattress Section: 71.7cm/28. 2in
Bottom Height: 27.8-50.6cm/11-20in
Product Width: 33.8cm/13.3in
Thickness of Flat Tube: 1.2mm/0.05in

Application

It is suitable for installation on skeleton beds, flat frame beds and etc. to provide safe and stable support for the elderly, pregnant women, toddlers who tend to fall out of bed and people with leg problems, as well as people who have just recovered from surgery.

Installation

1.Use the link tube to link the two adjustment tubes
2.Install the base frame
3.Insert the two legs into the adjustment tubes.
4.Insert the auxiliary handle into the adjustment tubes.
5.Press the ball in the foot part to adjust to the right height and then pop the ball, with the help of the auxiliary handle part to adjust to the right height, insert the C-shaped pin to fix the auxiliary handle.
6.Install the storage bag, and the installation of the handrail is completed.
7.Put the seat belt around the bed a circle and then buckle it.

Package Included

1*Bed Rail
1*Storage Bag
1*Safety Belt
1*English Instruction

Notes

1.The height of the mattress to the ground requires between 11-20in, and the bed and the edges of the bed require flat to use.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
