Big Bore Cylinder Piston Gasket Kit Fit for Suzuki 435Cc Kawasaki KFX400

Fit For:

For Suzuki LTZ 400 models 2003-2014

For Kawasaki KFX400 2003-2006

For Suzuki DR-Z400 2000-2015

Interchange Part Number:

11191-13E00, 11241-29F00, 12140-29F00, 11210-29F20-0F0, 12111-29F00-0F0, 09160-10082,

11141-29F01, 12151-24F10, 09381-20004

Please double check the fit

Sepcifics:

Cylinder: Aluminium

Piston: Aluminium

Piston Pin/Wrist pin/Circlips: Steel

Head Gasket: Iron

Cylinder Bore and Stroke: 94mm x 62.6mm

Cylinder Displacement: 435cc

Piston Compression: 12.3:1

Piston Rings: 85.5mm/84.5mm/86.8mm

Condition: Brand new

Warranty: 2 Years

Package Contents:

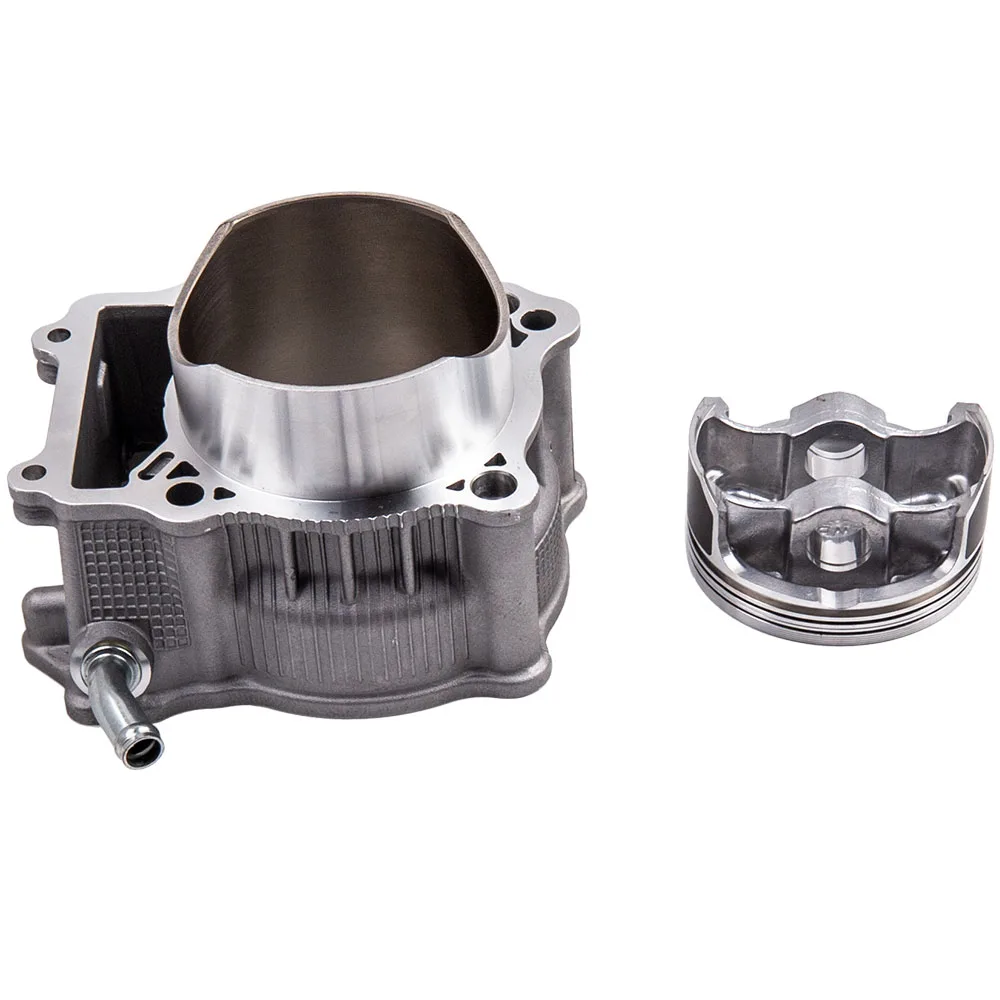

Cylinder Block

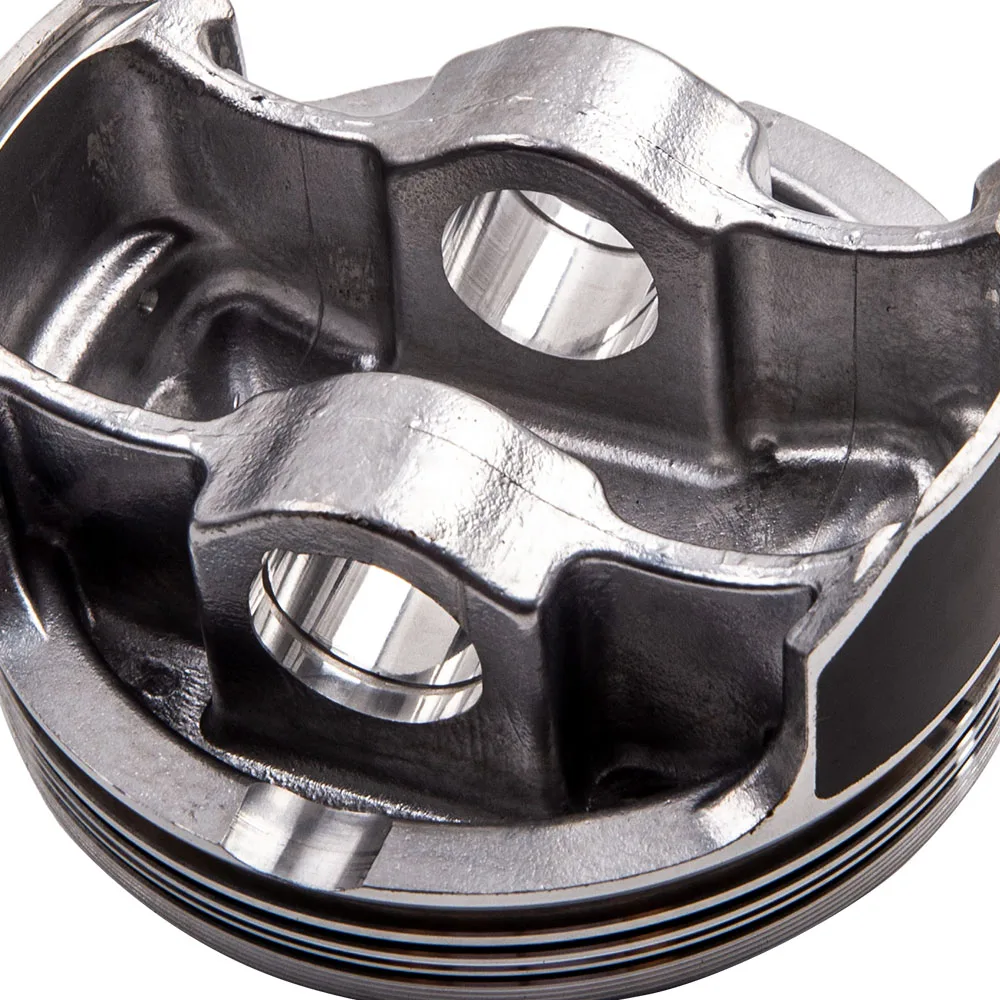

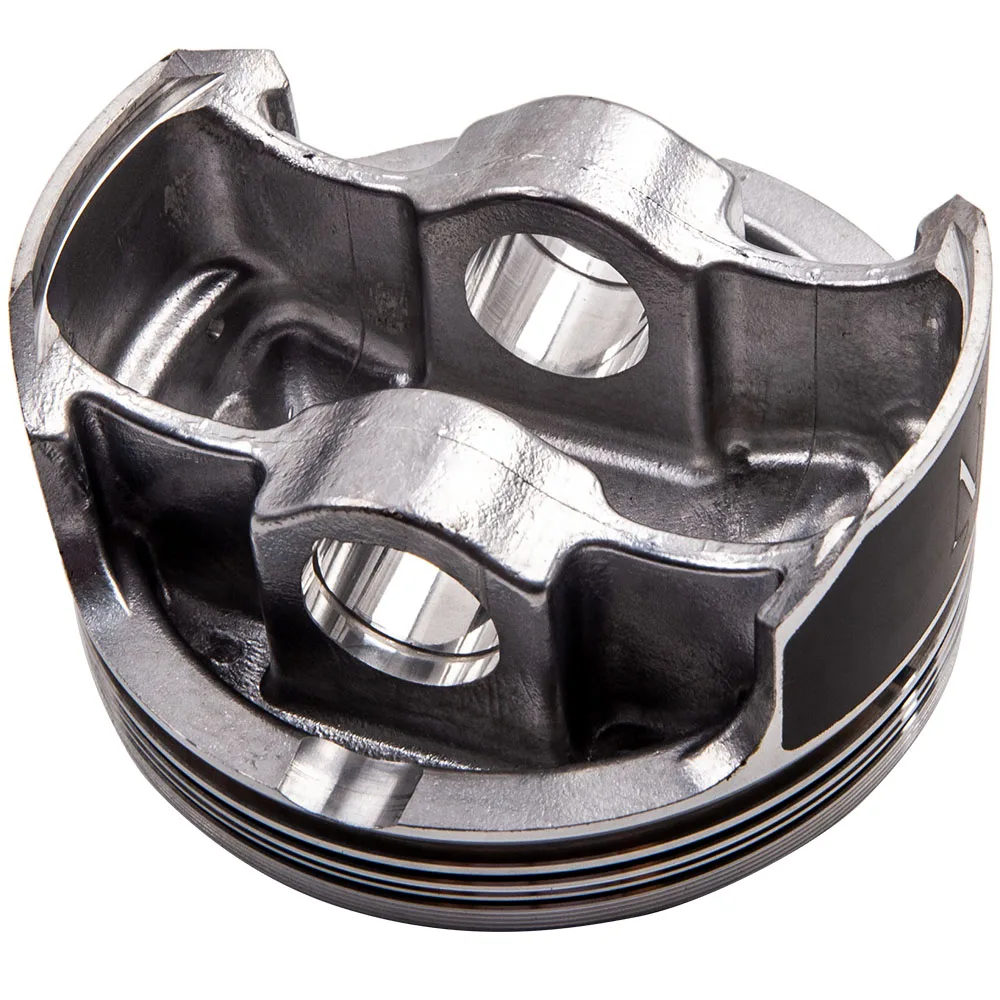

Piston

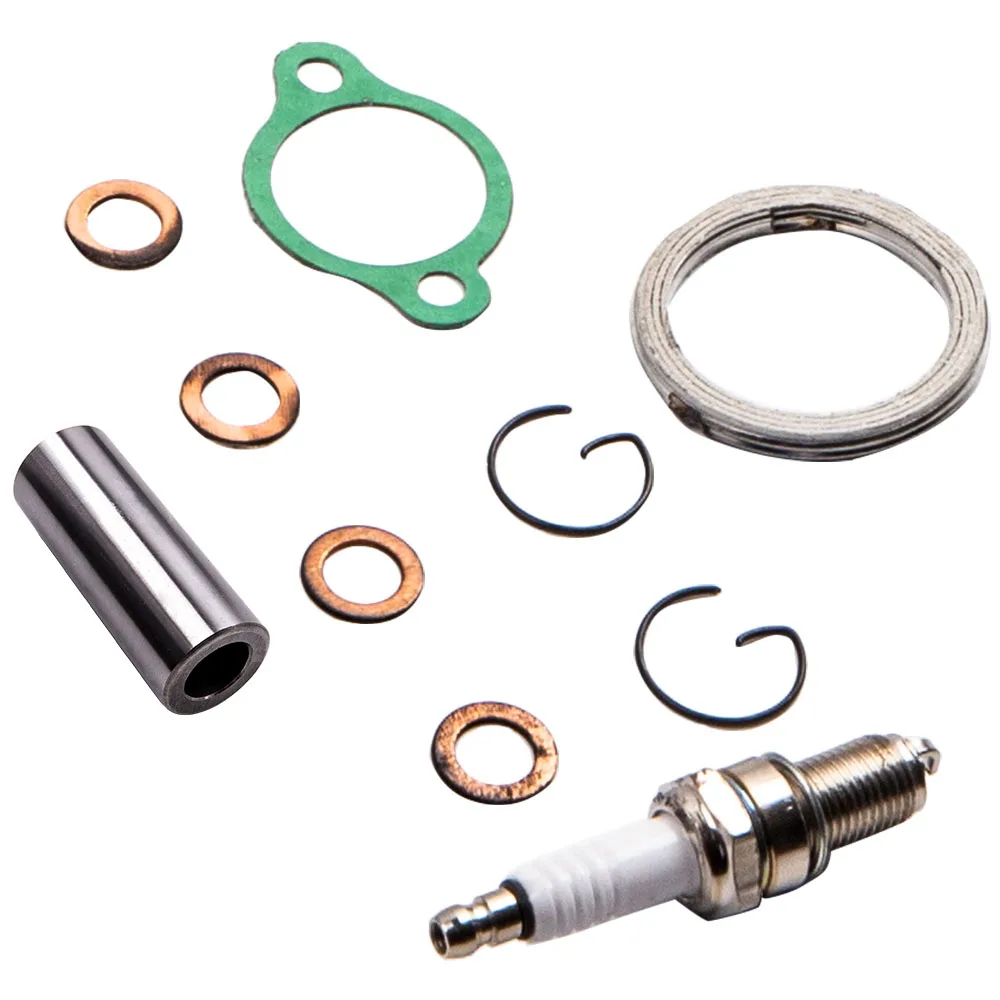

Piston Pin

Piston Rings

O-ring

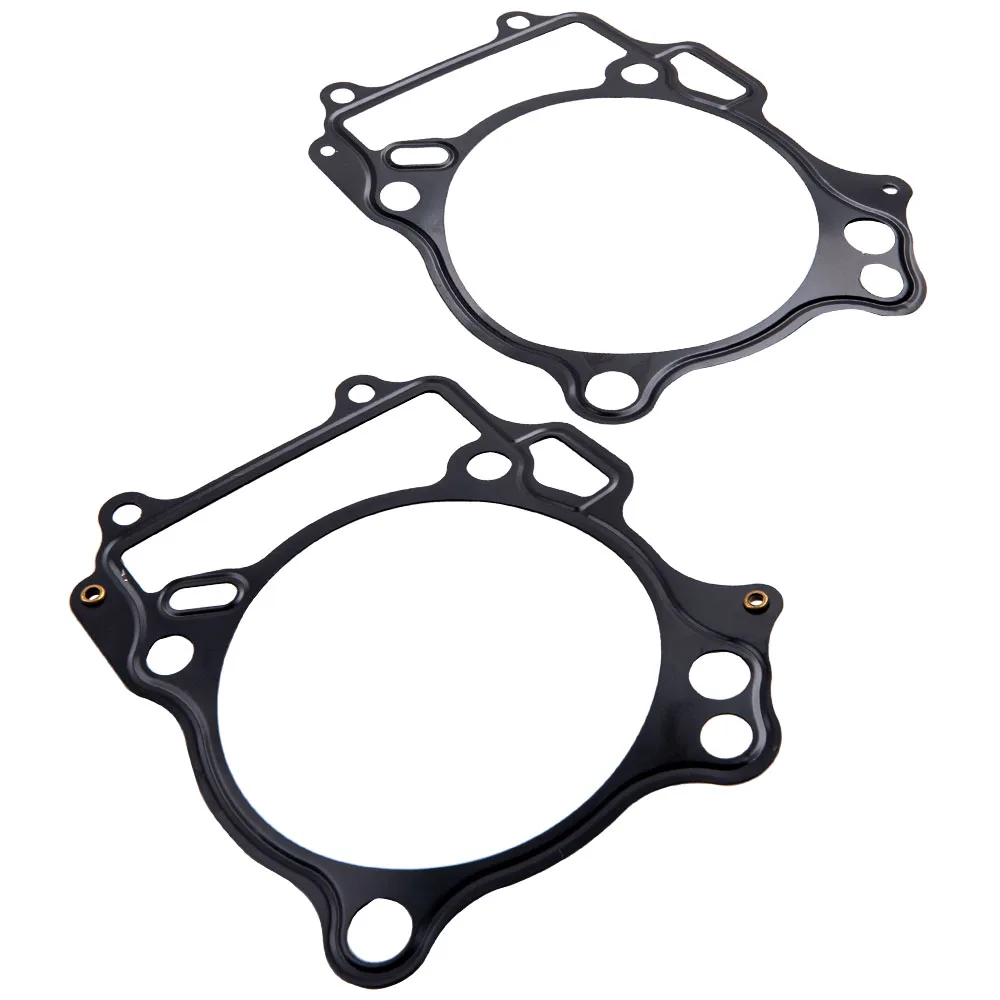

Head Gasket

Base Gasket

Circlips

Washers

1x FREE Spark Plug

Install Steps
1. Make sure that the piston ring is installed correctly, and then align the piston belt ring with the cylinder block.
2. Gently hold the piston and ring by hand, and gently shake the cylinder block to make the piston and piston ring into the cylinder block.
3. Less oil can be applied outside the piston and piston ring or the lower part of the inner wall of the cylinder block to make the installation easier.

NOTE:

* Please compare your parts against pictures to ensure this part fits your vehicle
* Please confirm your old part number matches up with one of the part numbers listed above
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us.
