CC65 CC-650 Current Clamp Oscilloscope 20Khz/400Hz Bandwidth BNC Plug AC/DC Curr

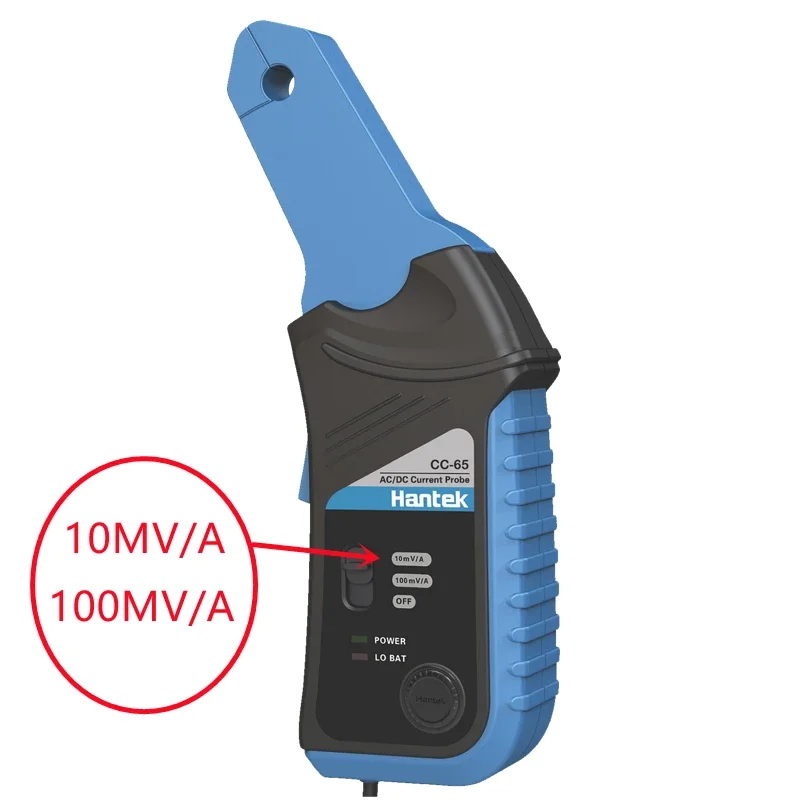

Hantek oscilloscope AC/DC Current Clamp probe CC-65 CC-650 20KHz/400Hz Bandwidth 1mV/10mA 65A/650A with BNC plug

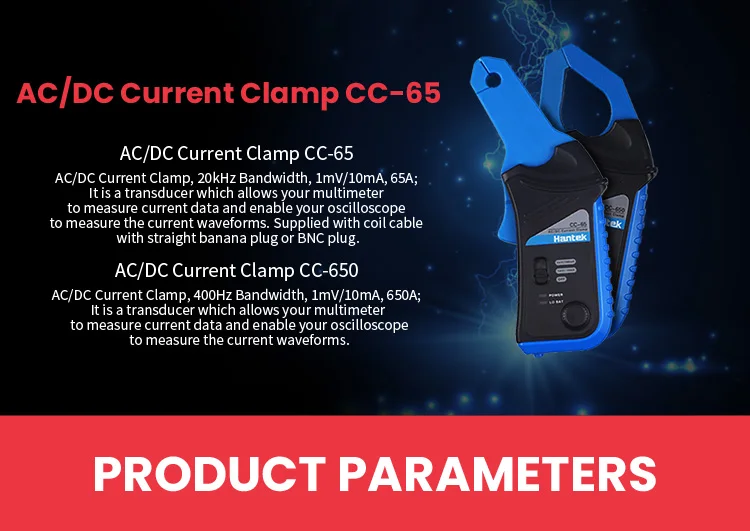

AC/DC Current Clamp, 20kHz Bandwidth, 1mV/10mA, 65A; It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms. Supplied with coil cable with straight banana plug or BNC plug.

Feature

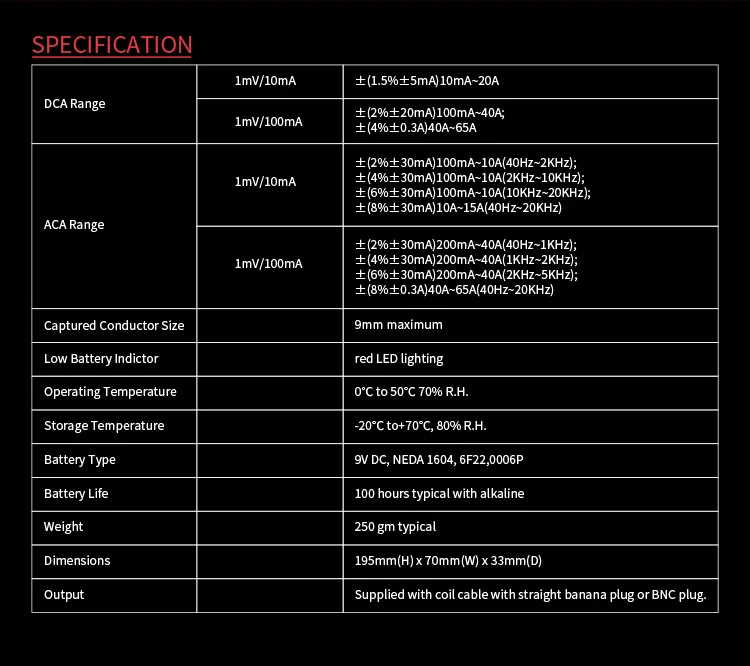

AC/DC frequency range: Up to 20 kHz

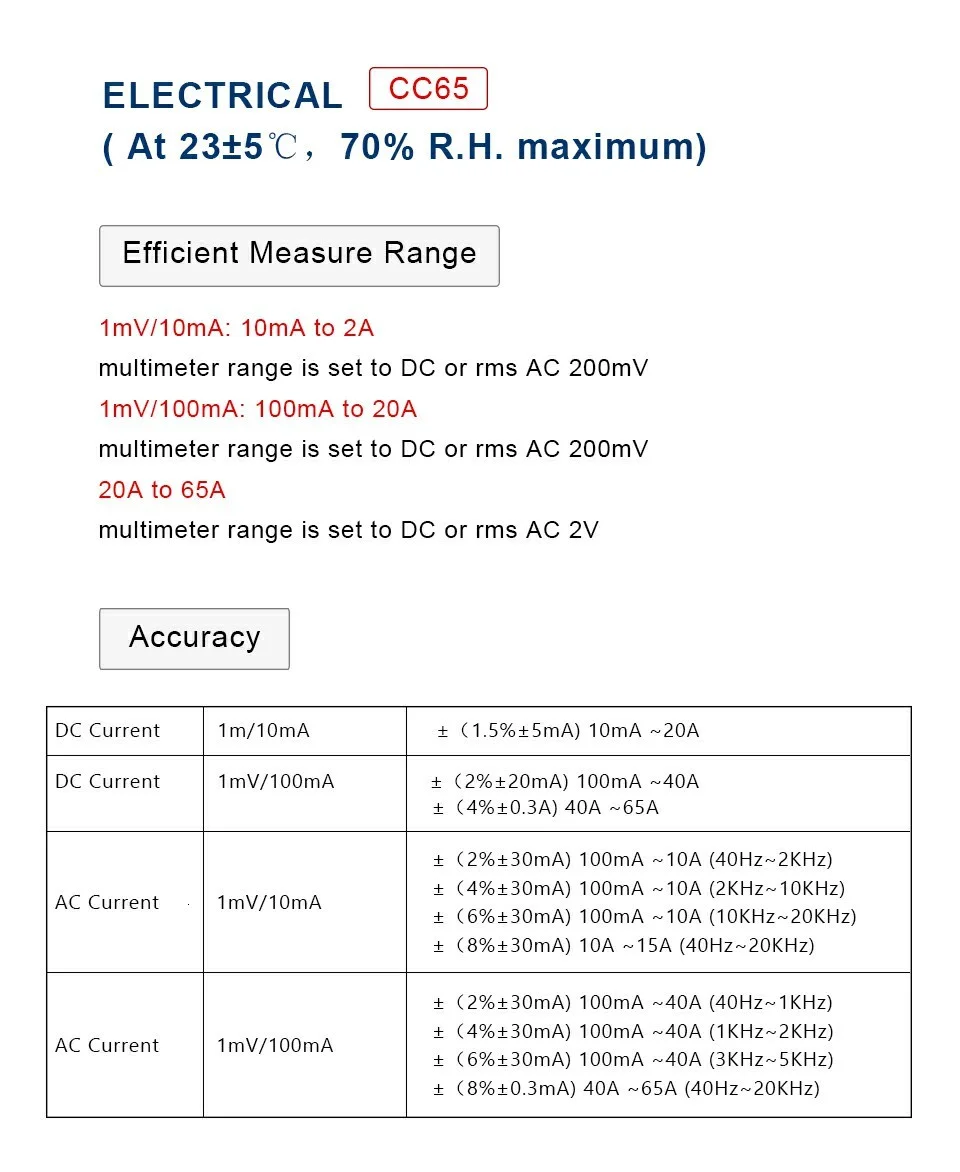

Effective Measurement Range: 20mA to 65A DC
It is a transducer which allows your multimeter to measure current data and enable your oscilloscope to measure the current waveforms.

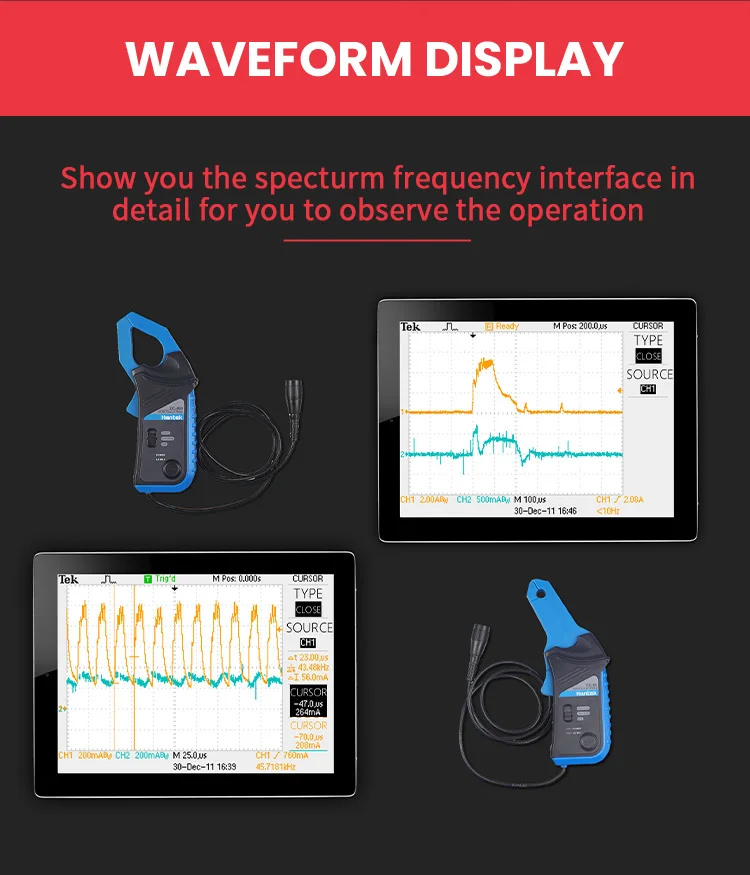

Its current transducer is composed by permalloy and hall element, which linearly transform the AC or DC current to AC or DC current voltage. And if connect to an oscilloscope by BNC type connector, you're able to observe the current waveforms; If connect to a multimeter by banana type connector, you can obtain the current data.

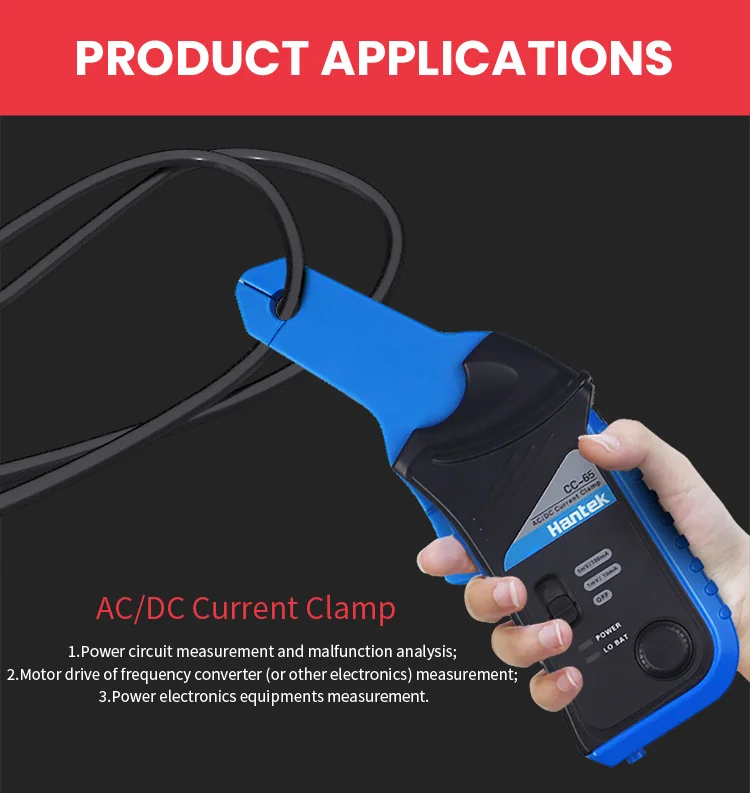

Application
Power circuit measurement and malfunction analysis;
Motor drive of frequency converter (or other electronics) measurement;
Power electronics equipments measurement.
