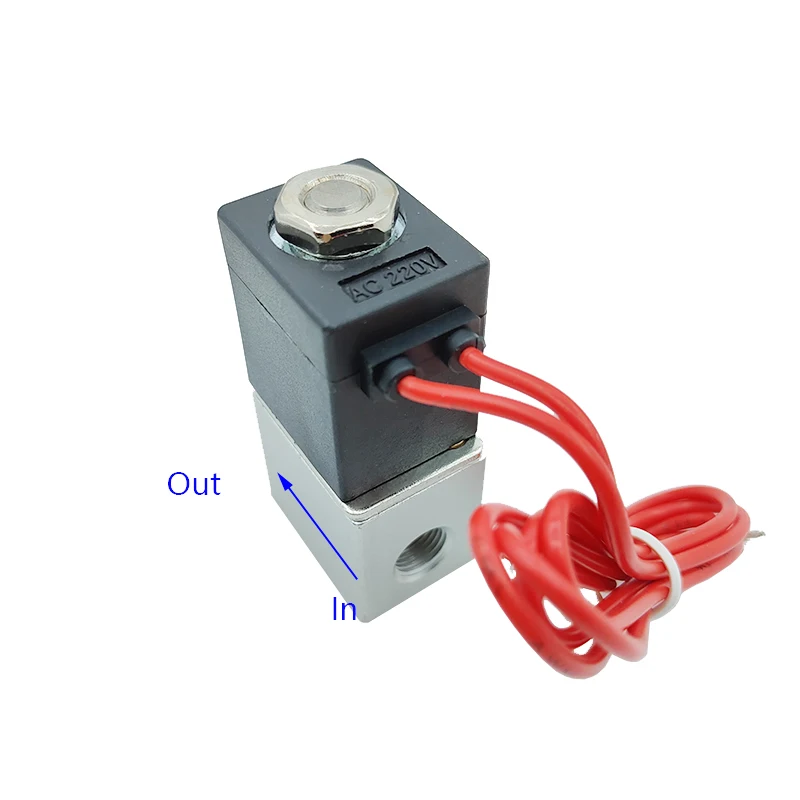

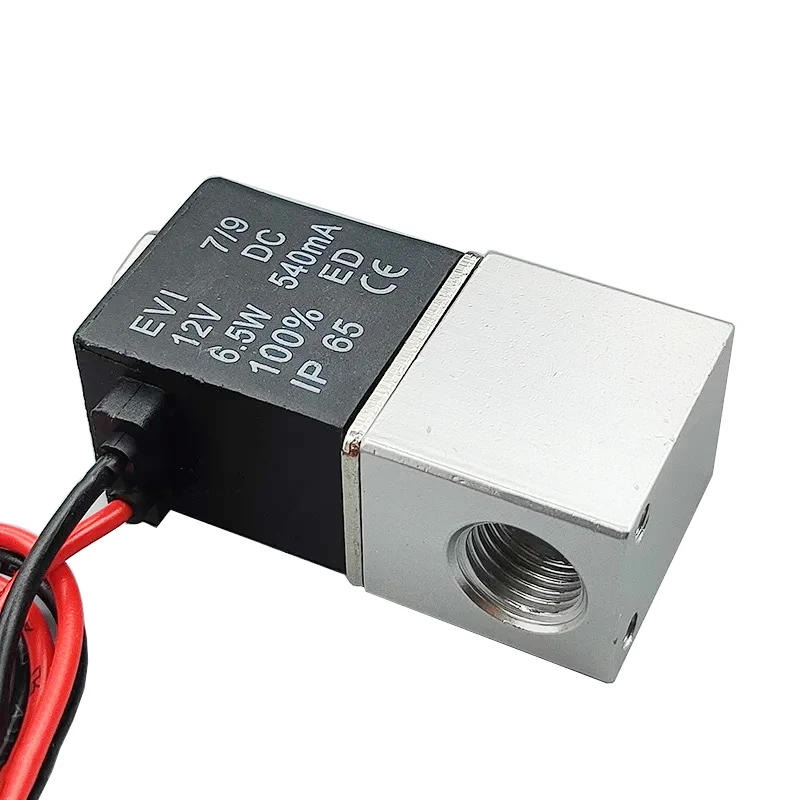

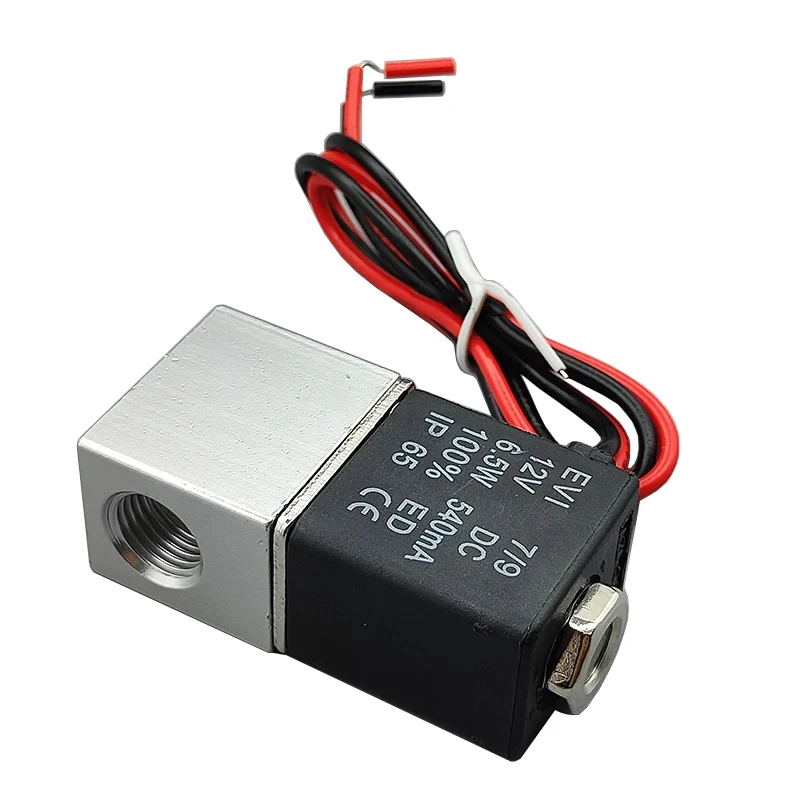

Compressor Valve 12V 24V AC 110V 220V Solenoid Valve 1/4'' 1/8'' 2-Way Normally

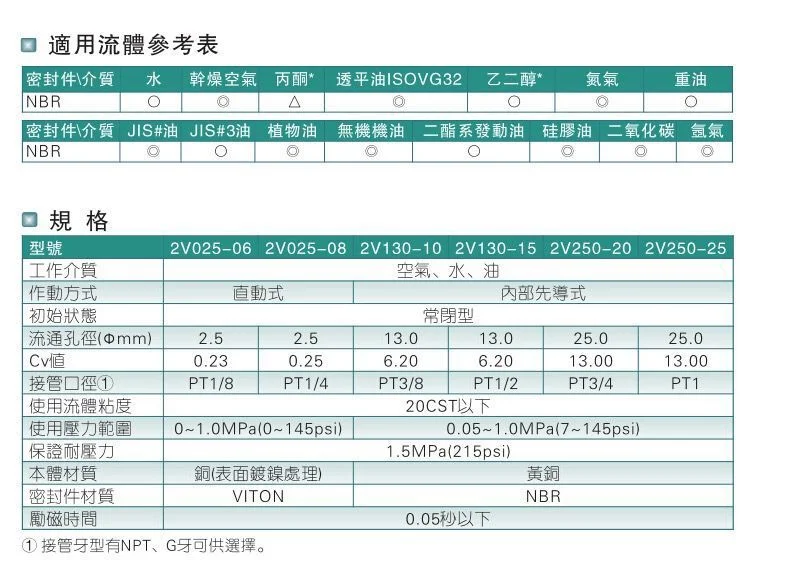

Specification:

Model Number:

1. Valve Type: 2 Way Normally Closed (Valve opens with energized)

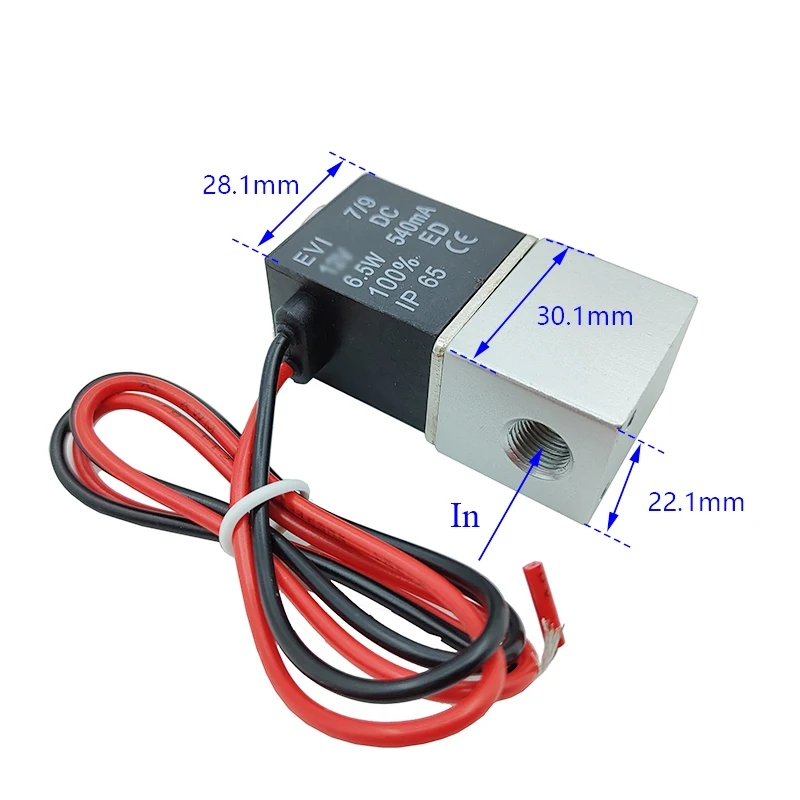

2. Port Size: 1/4" NPT Female Port; 1/8" NPT Female Port

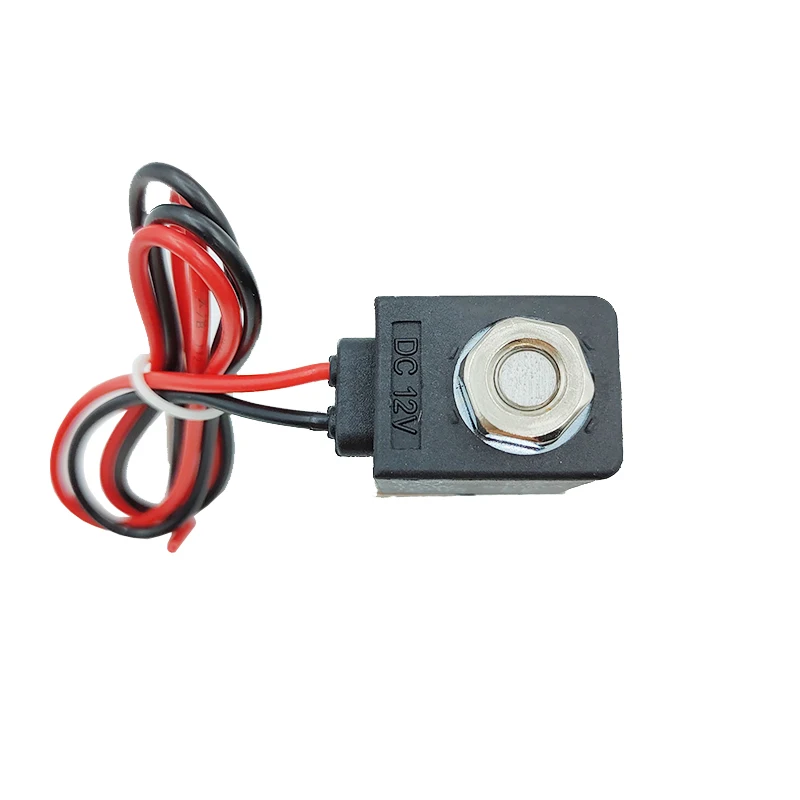

3. Coil Voltage: DC12V/DC24V/AC110V/AC220V

4. Service Media: Air, Gas, Liquid, Water

5. Operation Model: Direct Acting

6. Flow Model: Uni-Directional

7. Flow Rate: 0.23Cv (Fluid Flow)

8. Response Time: Less than 50 ms

9. Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))

10. Operating Temperature: -10 to 80 C

11. Coil Power: 6.5W

Material:

1.Body Material: Aluminum

2.Seal Material: NBR (Buna N)

3.Armature Tube Material: Brass

4.Plunger & Spring Material: Stainless Steel

Package List:

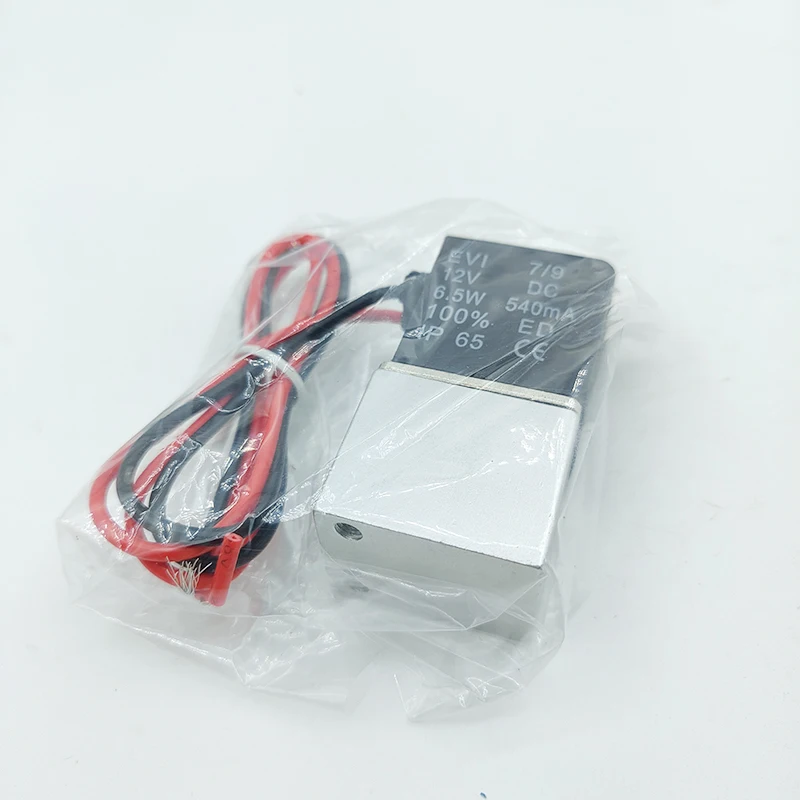

Mini Solenoid Valve x 1pcs (depend on buyer's selection)
