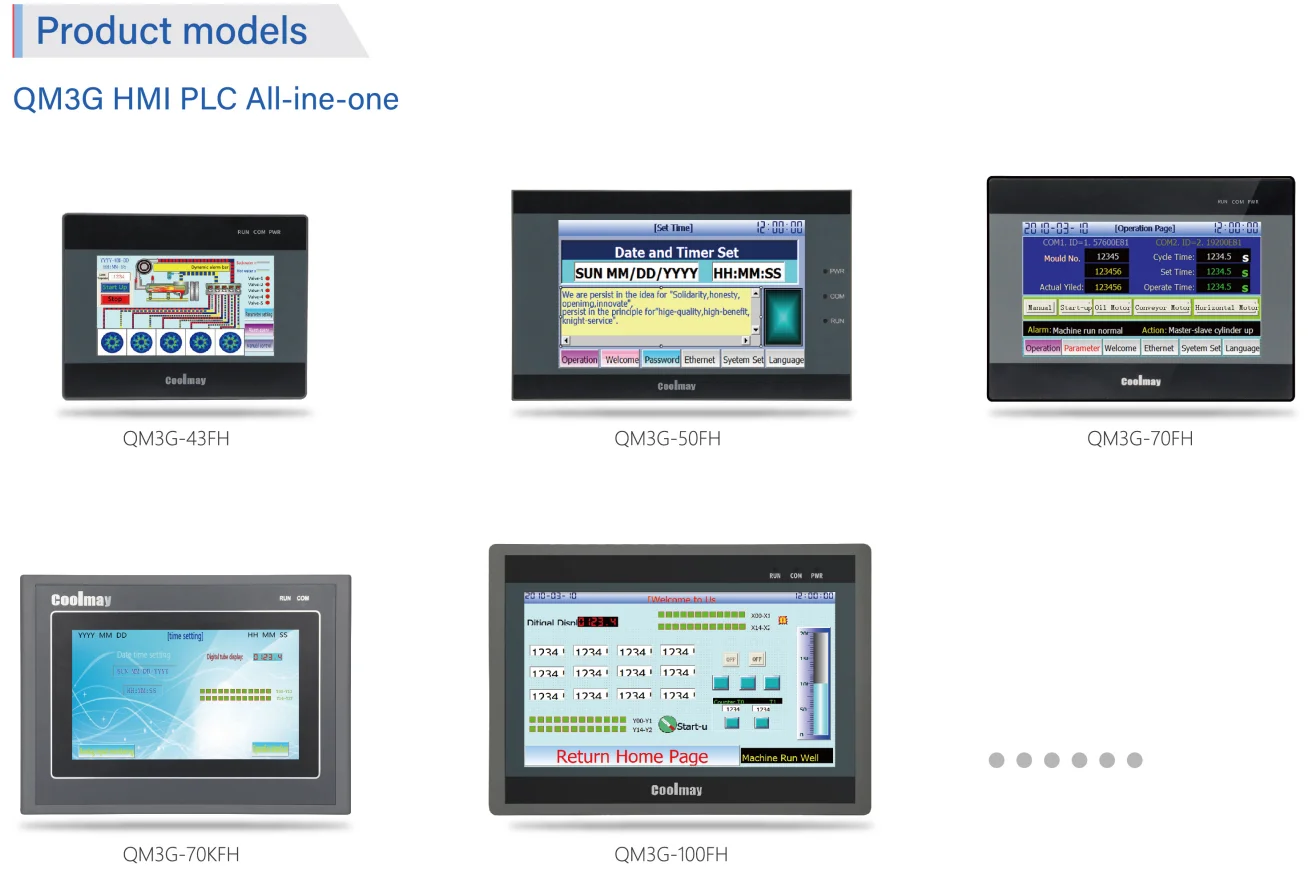

    Coolmay 4.3''/5''/7''/10'' Integrated HMI PLC All in One QM3G-43FH/50FH/70FH/70KFH/1

    Coolmay 4.3''/5''/7''/10'' Integrated HMI PLC All in One QM3G-43FH/50FH/70FH/70KFH/1

    £193.99 GBP
    £193.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Color

    Optional functions

    If you need additional functions below, please add them to your shopping cart and order together with the device.


    Packing List

    1x HMI PLC all in one


    Official website:


    PLC HMI all-in-one computer user manual download website:


    HMI programming softwareTPworksdownload website:


    PLC programming softwareWORKS 2download website:


    Features

    • Compatible with Mitsubishi software GX8.52/8.86,GX Developer and GX Works2

    • Support PID auto tuning function

    • Support PWM modulation


    QM3G-43FH-24MT4.3 inch HMI PLC all in one, 12DI 12DO, transistor outputs,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-43FH-24MR4.3 inch HMI PLC all in one,12DI 12DO, Relay output,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).


    QM3G-50FH-24MT5inch HMI PLC all in one, 12DI 12DO, transistor outputs,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-50FH-24MR5inch HMI PLC all in one,12DI 12DO, Relay output,Optional maximum 4 Analog inputs and 2 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).


    QM3G-70FH-24MR7inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 12 Analog inputs and 8 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC).


    QM3G-70FH-44MT7inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 8 Analog inputs and 6 Analog outputs,1 RS232(HMI),1 RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-70FH-44MRT(16R4T)7inch HMI PLC all in one, 24DI 20DO(Maximum 16 relay outputs, Y20-Y23 are fixed as transistor outputs),Optional maximum 8 Analog inputs and 6 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-70KFH-24MR7inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-70KFH-44MT7inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-70KFH-60MT7inch HMI PLC all in one, 30DI 30DO, transistor outputs,Optional maximum 5 Analog inputs and 2 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-70KFH-44MRT(18R2T)7inch HMI PLC all in one,24DI 20DO(Maximum 18 relay outputs, and Y22 and Y23 are fixed as transistor outputs), Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-70KFH-60MRT(28R2T)7inch HMI PLC all in one, 30DI 30DO(Maximum 28 relay outputs, and Y22 and Y23 are fixed as transistor outputs),Optional maximum 5 Analog inputs and 2 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-100FH-24MR10inch HMI PLC all in one, 12DI 12DO, Relay output,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-100FH-44MT10inch HMI PLC all in one, 24DI 20DO, transistor outputs,Optional maximum 16 Analog inputs and 8 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).


    QM3G-100FH-60MT10inch HMI PLC all in one, 30DI 30DO, transistor outputs,Optional maximum 5 Analog inputs and 2 Analog outputs,1RS232(HMI), 1RS232(PLC),1RS485(PLC),4 High speed pulse output(100KHz,Y0-Y3),4 High speed pulse output(10KHz,Y4-Y7).

    QM3G-100FH-44MRT(18R2T)10inch HMI PLC all in one,24DI 20DO(Maximum 18 relay outputs, and Y22 and Y23 are fixed as transistor outputs),Optional maximum 16 Analog inputs and 8 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).


    QM3G-100FH-60MRT(28R2T)7inch HMI PLC all in one,30DI 30DO(Maximum 28 relay outputs, and Y22 and Y23 are fixed as transistor outputs),Optional maximum 5 Analog inputs and 2 Analog outputs, 1RS232(HMI), 1RS232(PLC),1RS485(PLC).
