DC 12V Time Delay Relay Module Car Power On/Off Delay Relay Switch for Car Modif

Features:

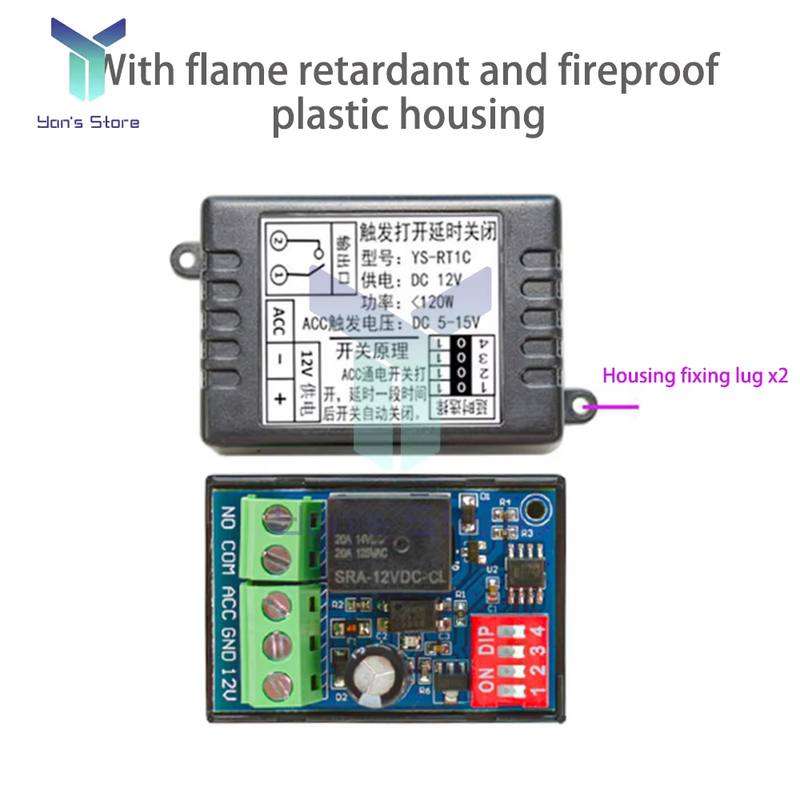

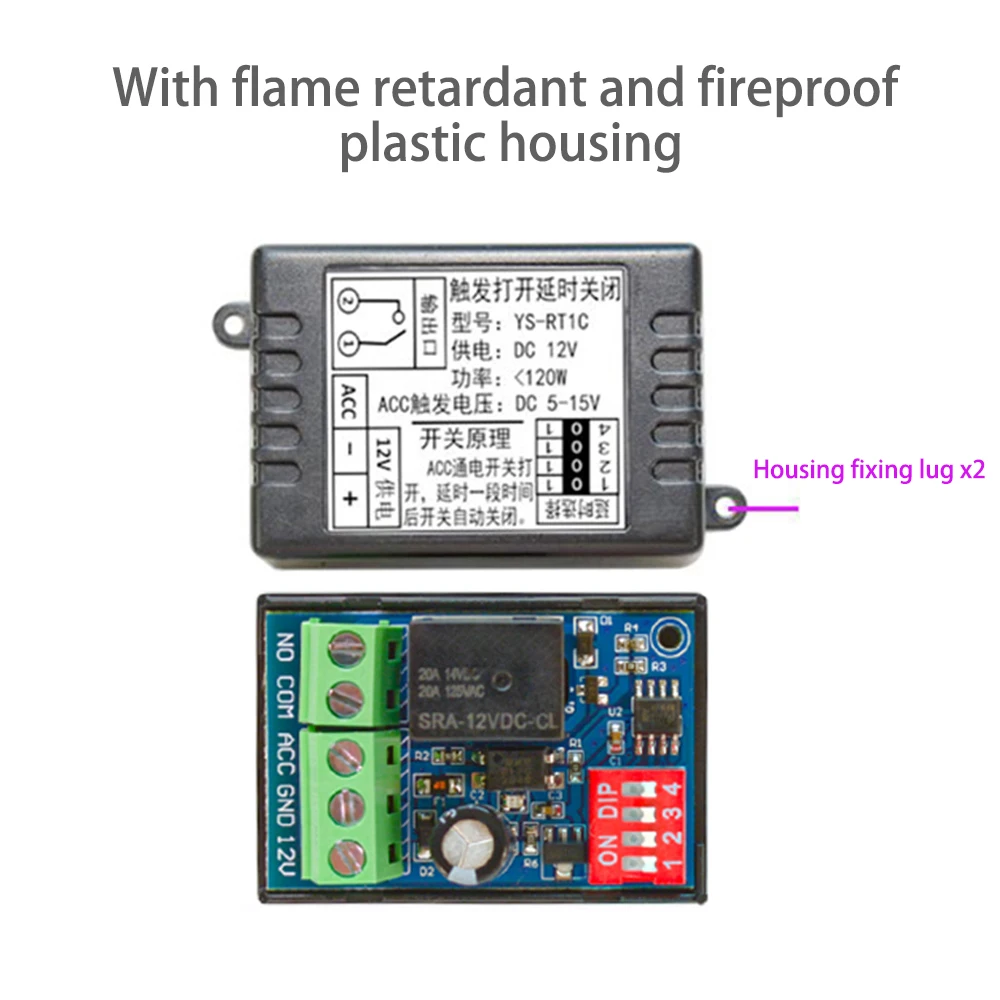

1.High quality shell, dustproof and flame retardant.
2.Automotive modification parts

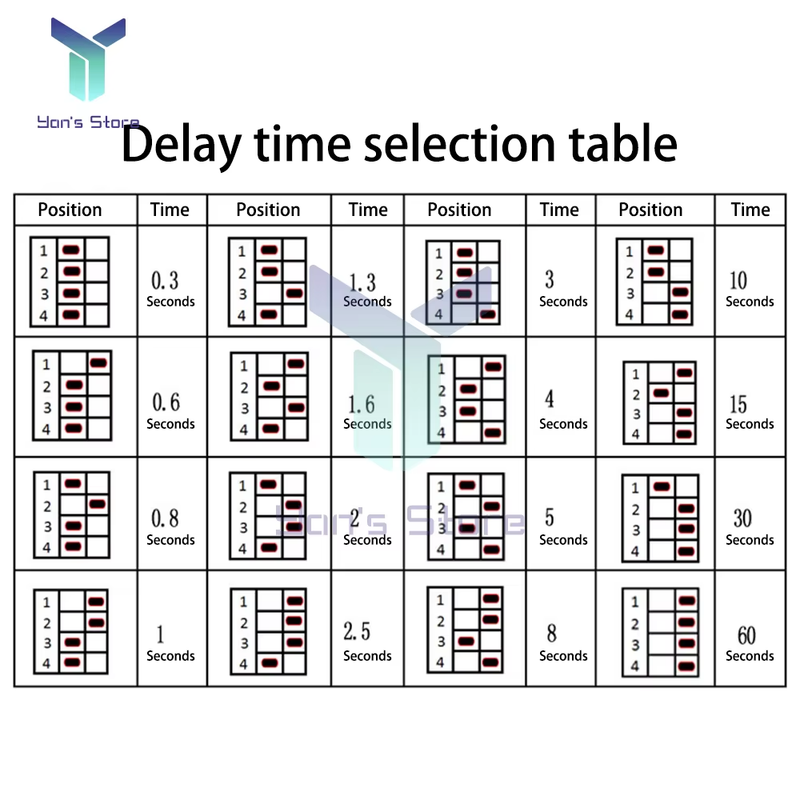

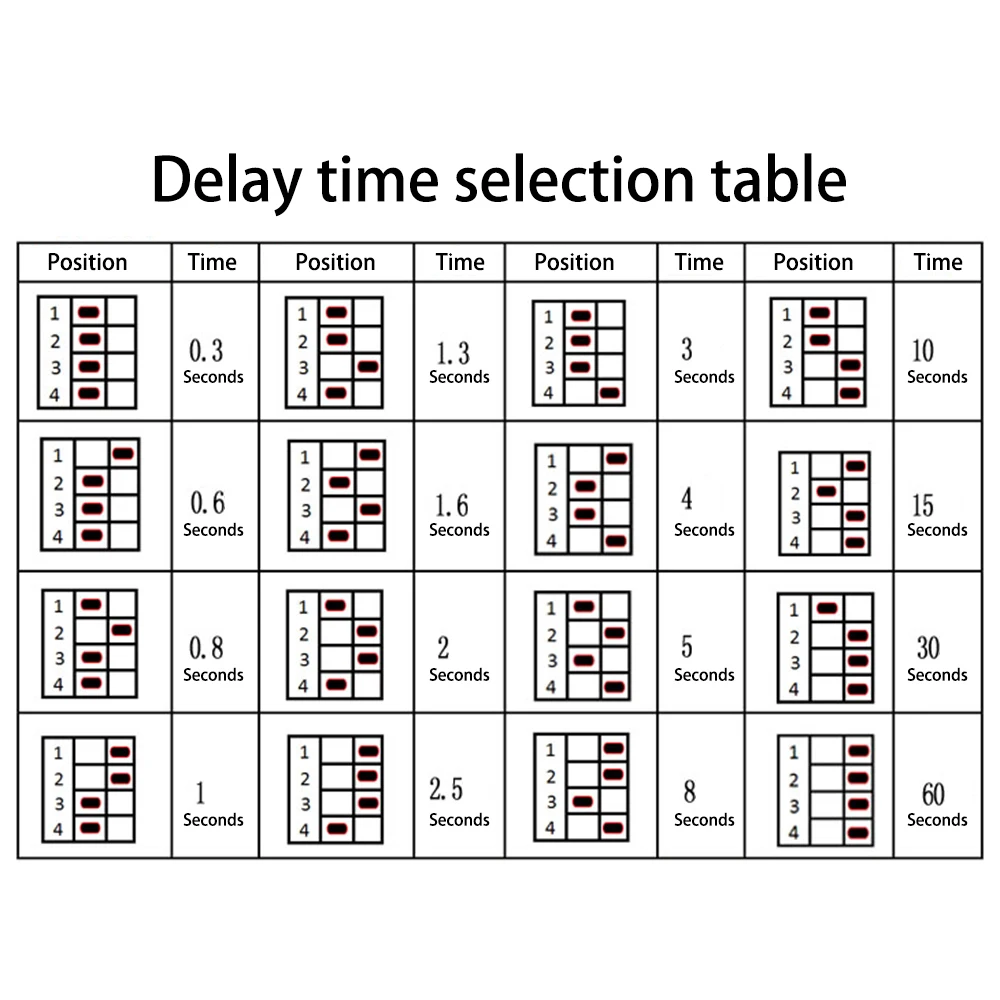

3.Time is optional, you can choose according to your own needs.
4.Easy to operate and can automatically close at a fixed time
5.Widely used, such as exhaust fans, engines, cooling fans, lighting, navigation, media sound effects, delayed lifting of doors and windows, and other automotive circuit power-off delay control

Parameters:
Name: Automotive power on/off delay switch

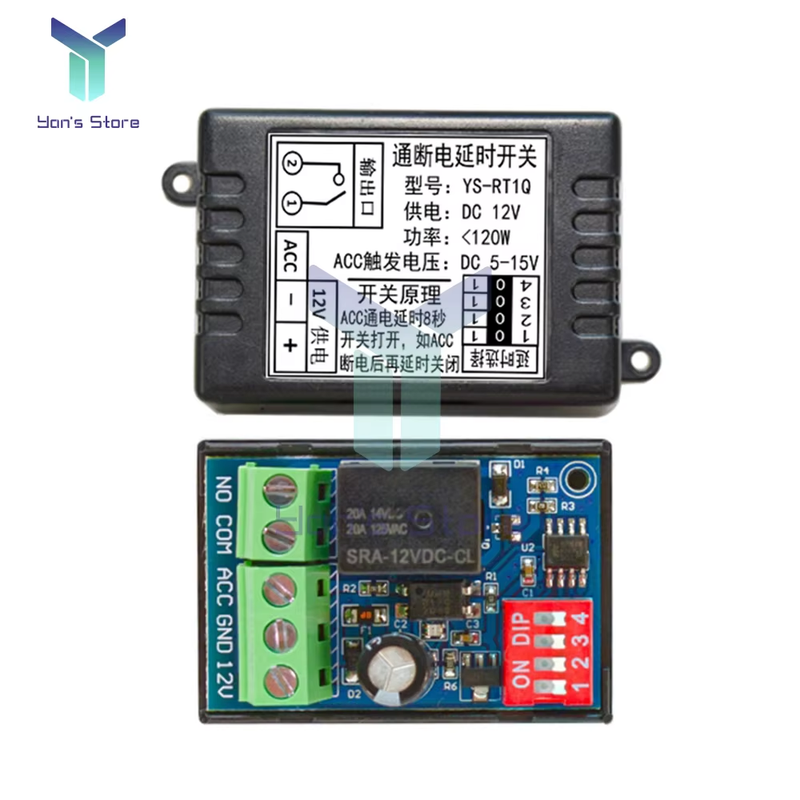

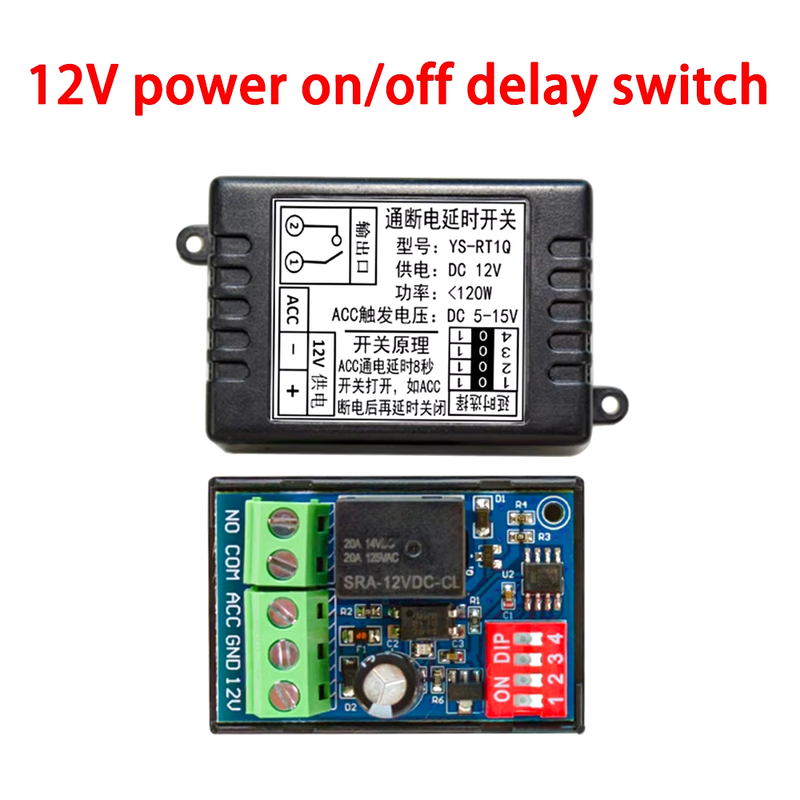

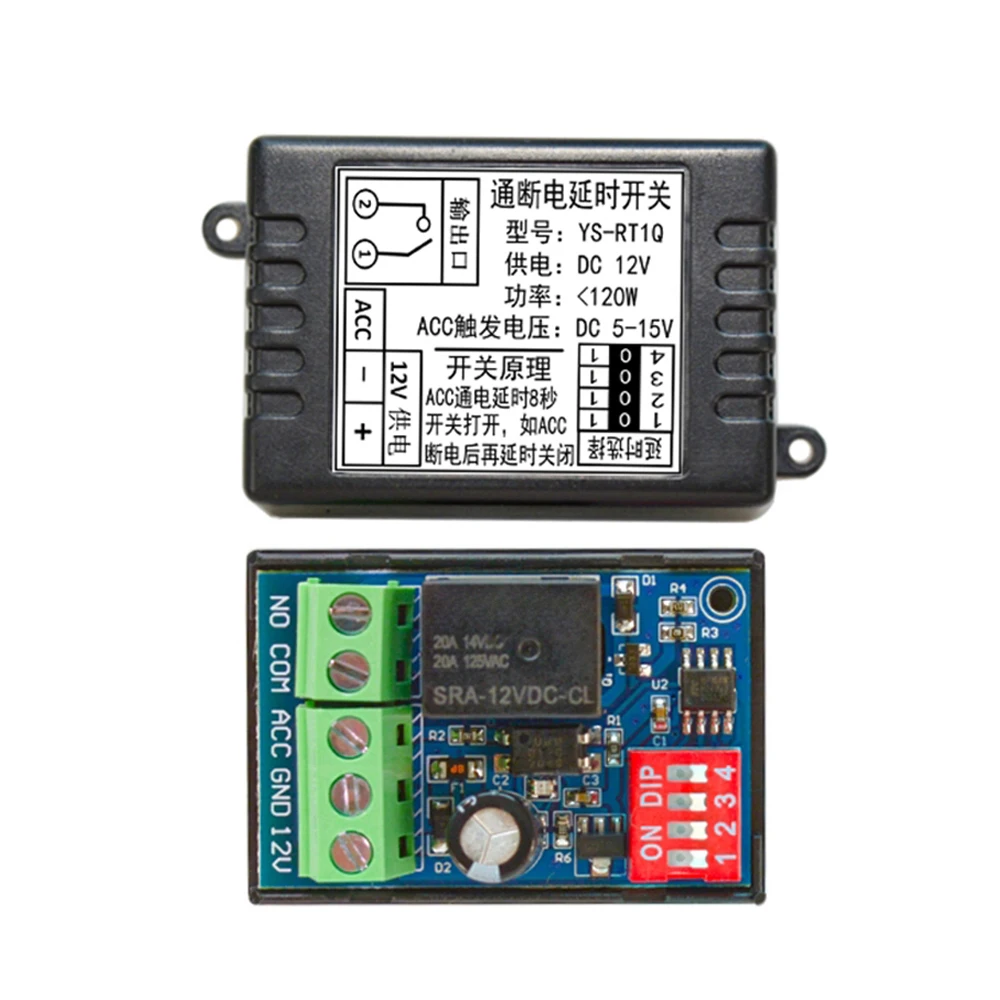

Model: YS-RT1Q
Shell with hole specification: 63 * 35 * 22mm
Bare board specification: 45 * 29 * 18mm
Power supply voltage: DC 12V
Standby current: 10ma
Working current: 68ma (current after the trigger switch is turned on)
Output control voltage: DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature and humidity: -20 to 70 , RH 80%
Switch workflow: After powering on the switch, when ACC detects power and delays for 8 seconds, the switch remains closed. In this case, ACC detects no power and delays for X, and when the time is up, the switch opens. (Among them, 8 seconds is a fixed time that cannot be modified by users and can be customized)

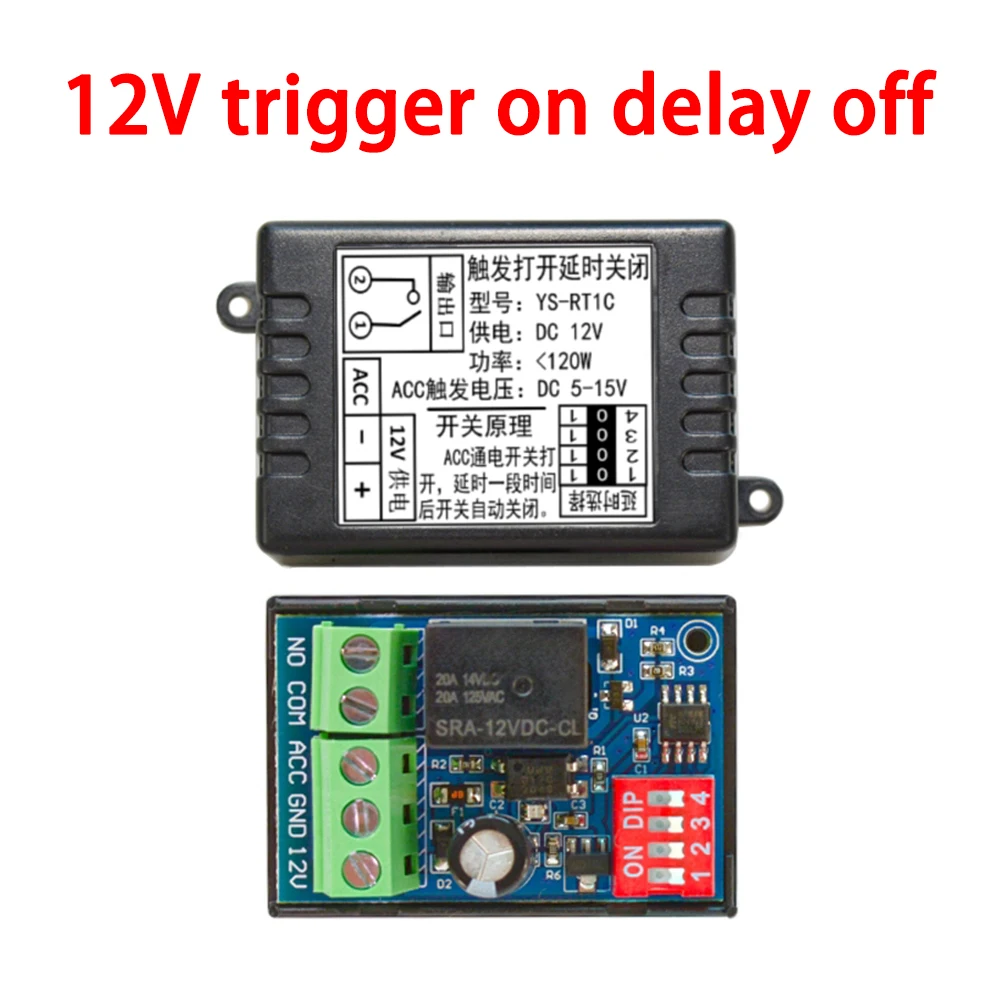

Model: YS-RT1C
Specification: 50x35x22mm
Power supply voltage: DC 12V
Working current: 68ma (current after the trigger switch is turned on)
Standby current: 10ma
Output control voltage: DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature: -20 to 70
Working principle: After connecting the power to this device, the trigger port provides voltage triggering, and the switch automatically closes after a delay of a certain period of time when opened

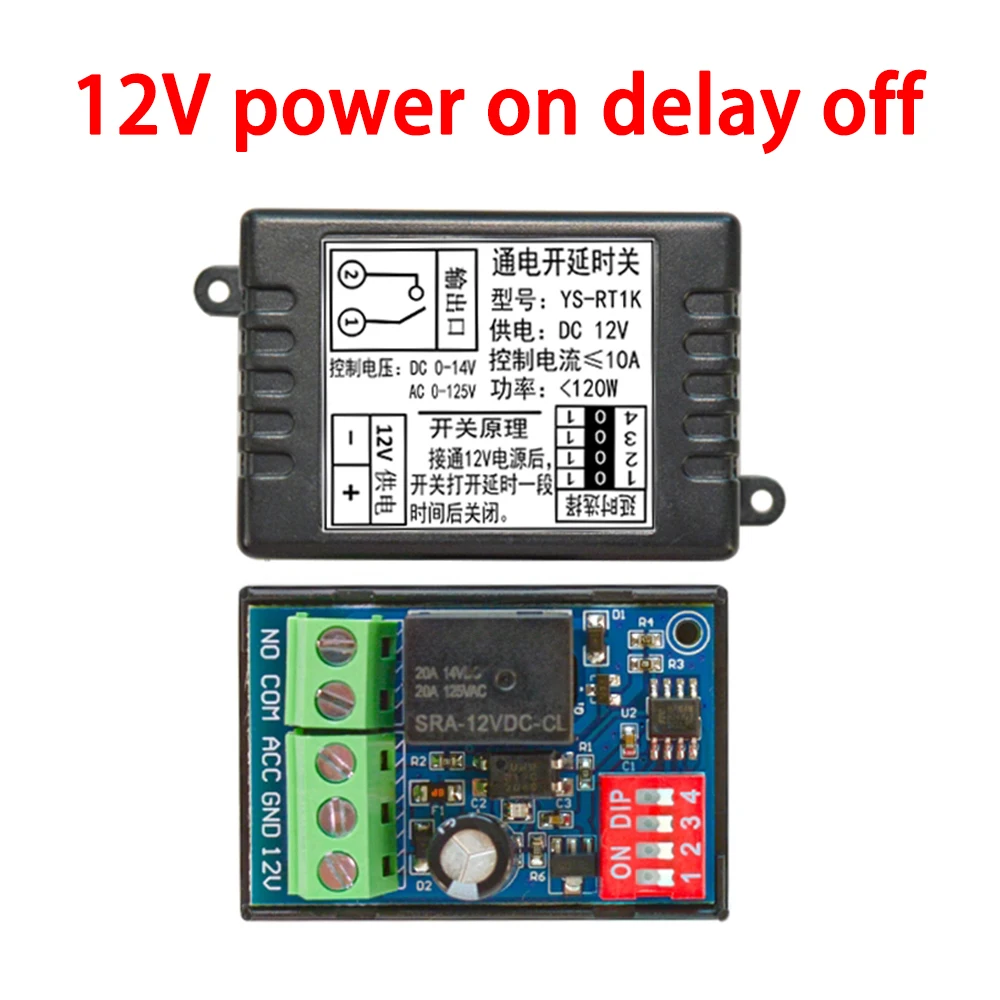

Model: YS-RT1K
Shell with hole specification: 63 * 35 * 22mm
Bare board specification: 45 * 29 * 18mm
Power supply voltage: DC 12V
Standby current:<3MA
Working current: 68ma (current after the trigger switch is turned on)
Output control voltage: DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature: -20 to 70
Working principle: After connecting the power to this device, the switch will open and delay for a period of time before closing.
Common function: Check whether the external power supply has power, as a trigger signal to control lower level equipment.

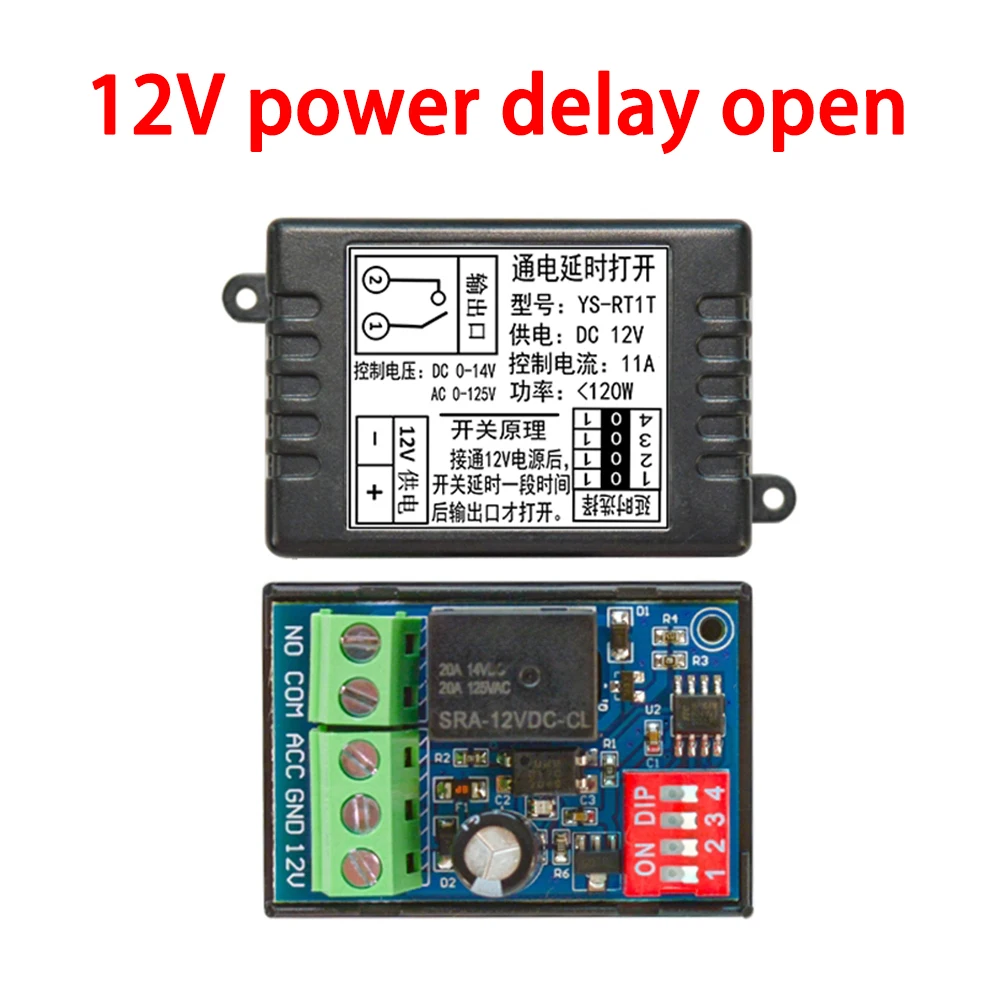

Model: YS-RT1T
Specification: 50x35x22mm
Power supply voltage: DC 12V
Working current: 68ma (current after the trigger switch is turned on)
Output control voltage: DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature: -20 to 70
Working principle: After connecting the power to this device, the device will delay for a period of time before turning on the output

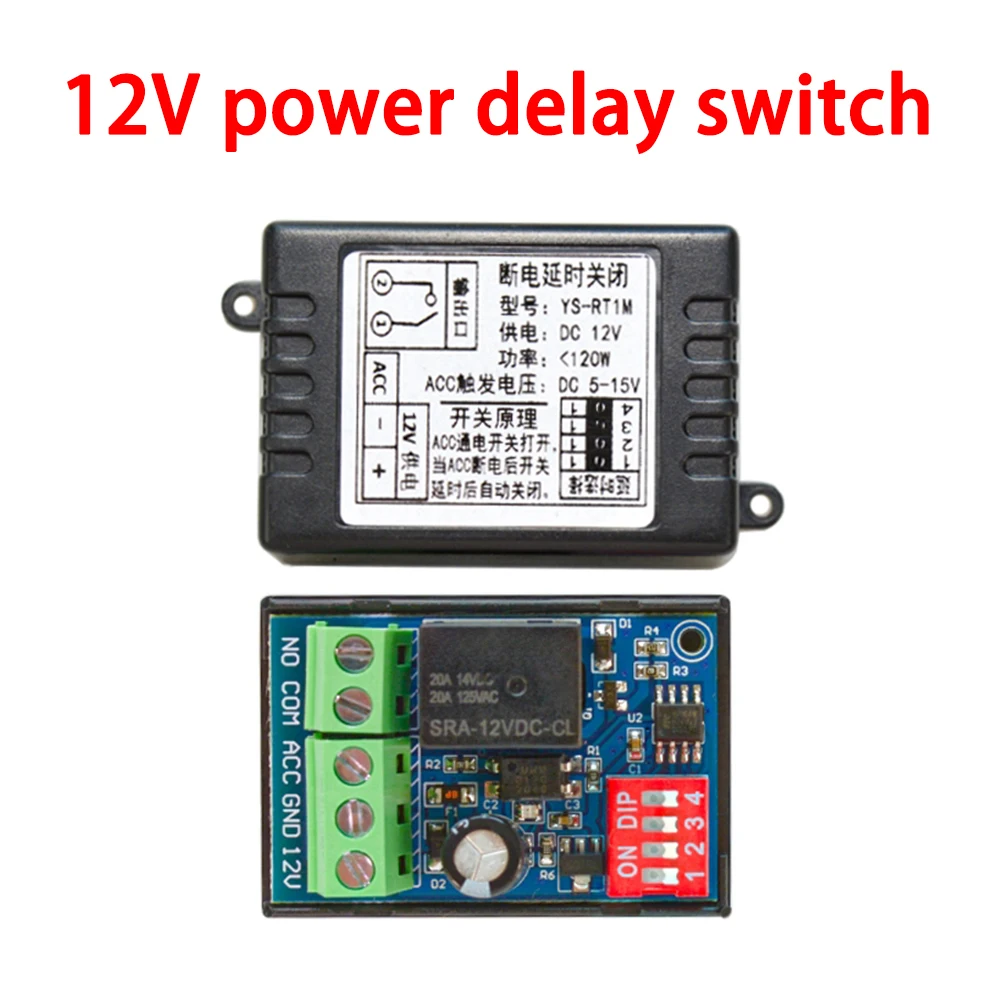

Model: YS-RT1M
Shell with hole specification: 63 * 35 * 22mm
Bare board specification: 45 * 29 * 18mm
Power supply voltage: DC 12V
Standby current: 10ma
Working current: 68ma (current after the trigger switch is turned on)
Output control voltage: DC 0-14V, AC 0-125V
Output control current:<11A
Working temperature: -20 to 70

Package include:
Car power outage delay switch * 1
