DC 50-3700V IGBT Voltage Capability Transistor Tester Diode MOS Triodeled Voltag
DC 50-3700V IGBT Voltage Capability Transistor Tester Diode MOS Triodeled Voltag
Regular price
£20.99 GBP
Regular price
Sale price
£20.99 GBP
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability

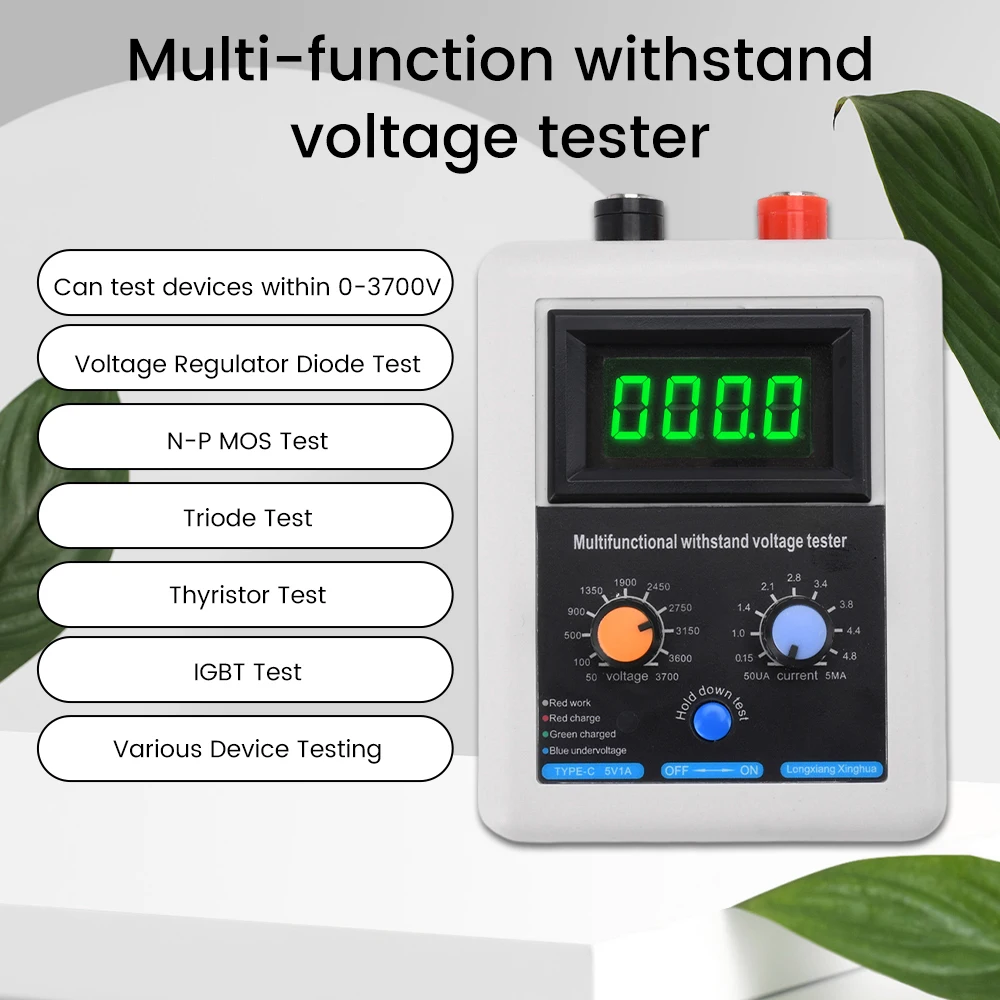

DC 50-3700V IGBT Voltage Capability Transistor Tester Diode MOS TriodeLED Voltage Capability Transistor Withstand Voltage Tester
Feature:
1. At the same time, it can test the insulation voltage of objects. For example, the insulation voltage test between the two pins of switches, buttons, and connectors.
2. The product is compact
3. Easy to carry and store

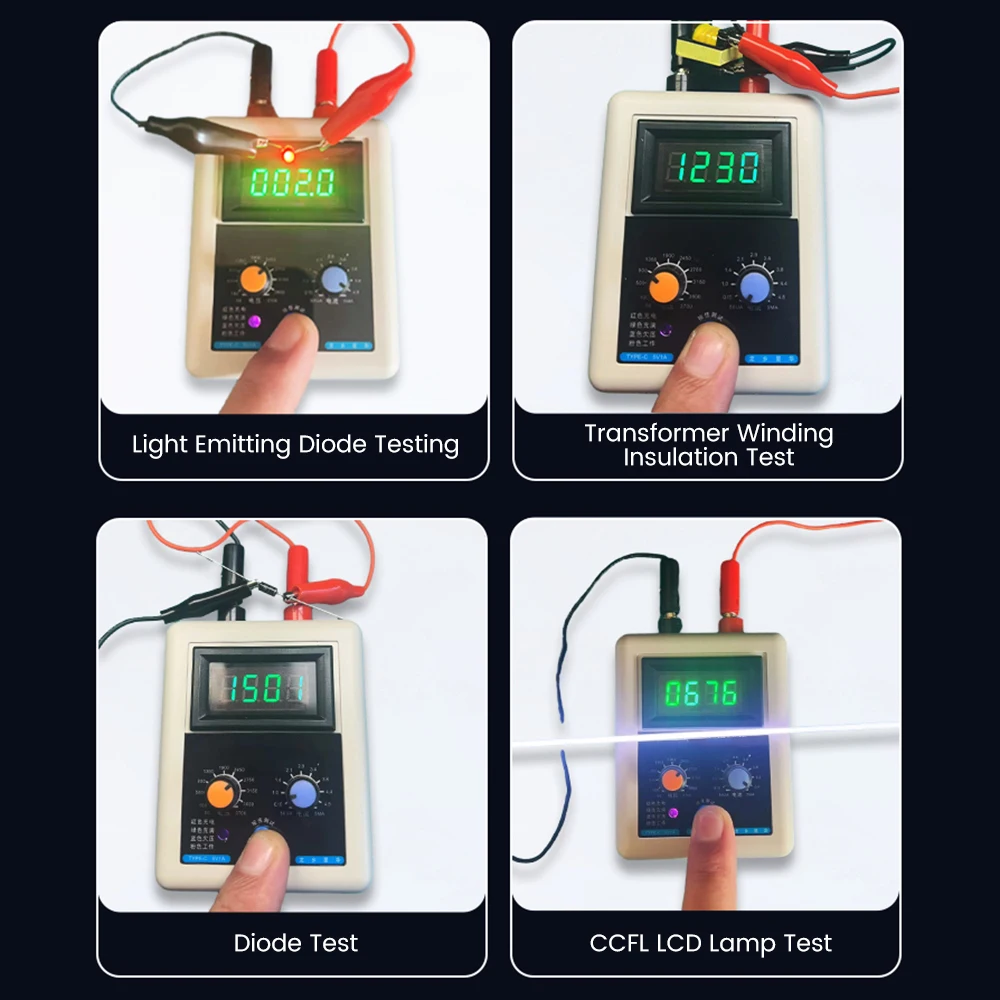

4. It is also very convenient to test the insulation between windings, such as motors, power frequency transformers, high-frequency transformers, phase-to-phase insulation, and insulation testing of the outer casing and core.

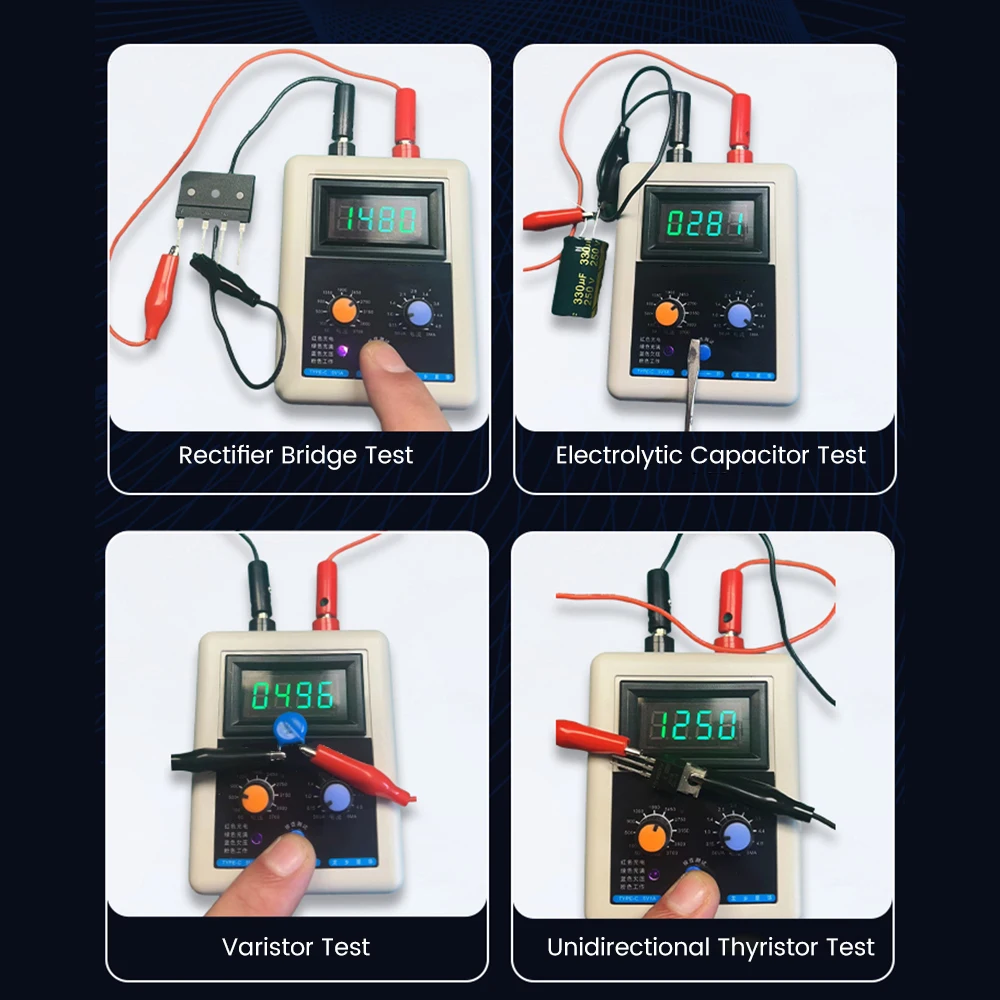

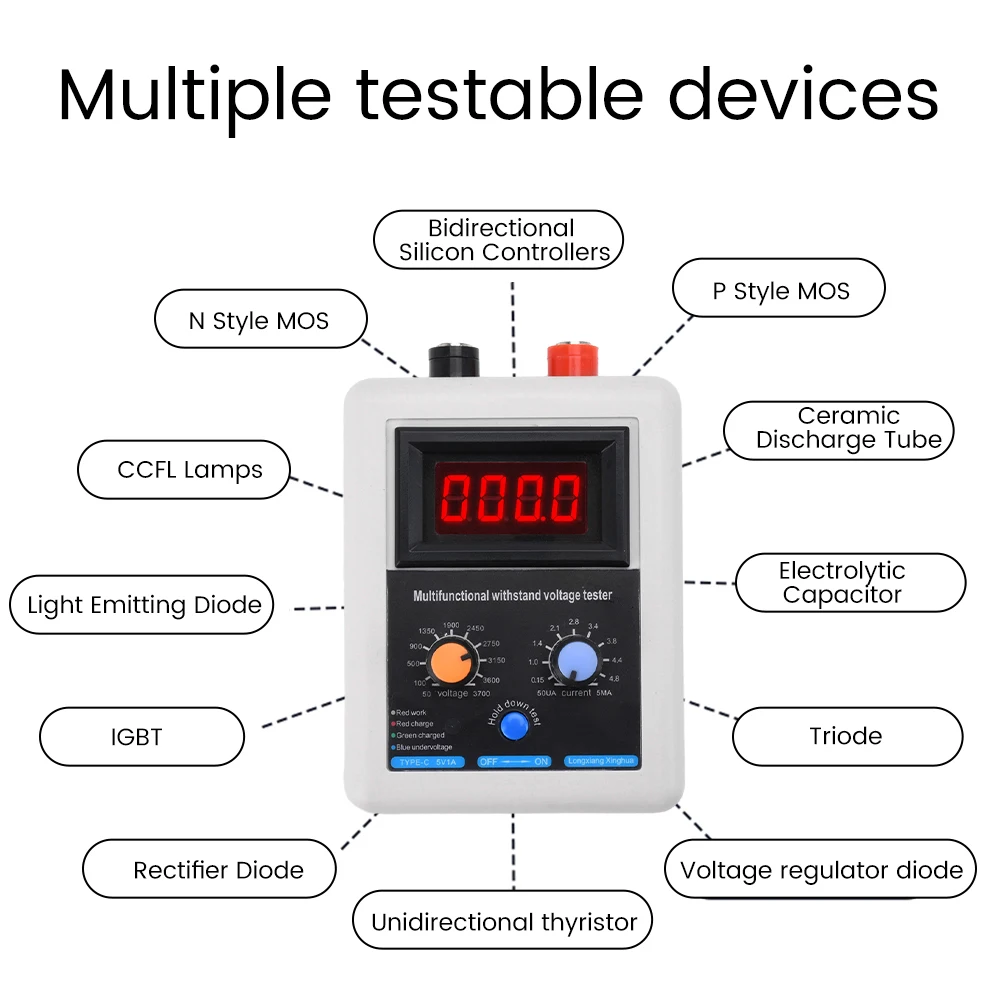

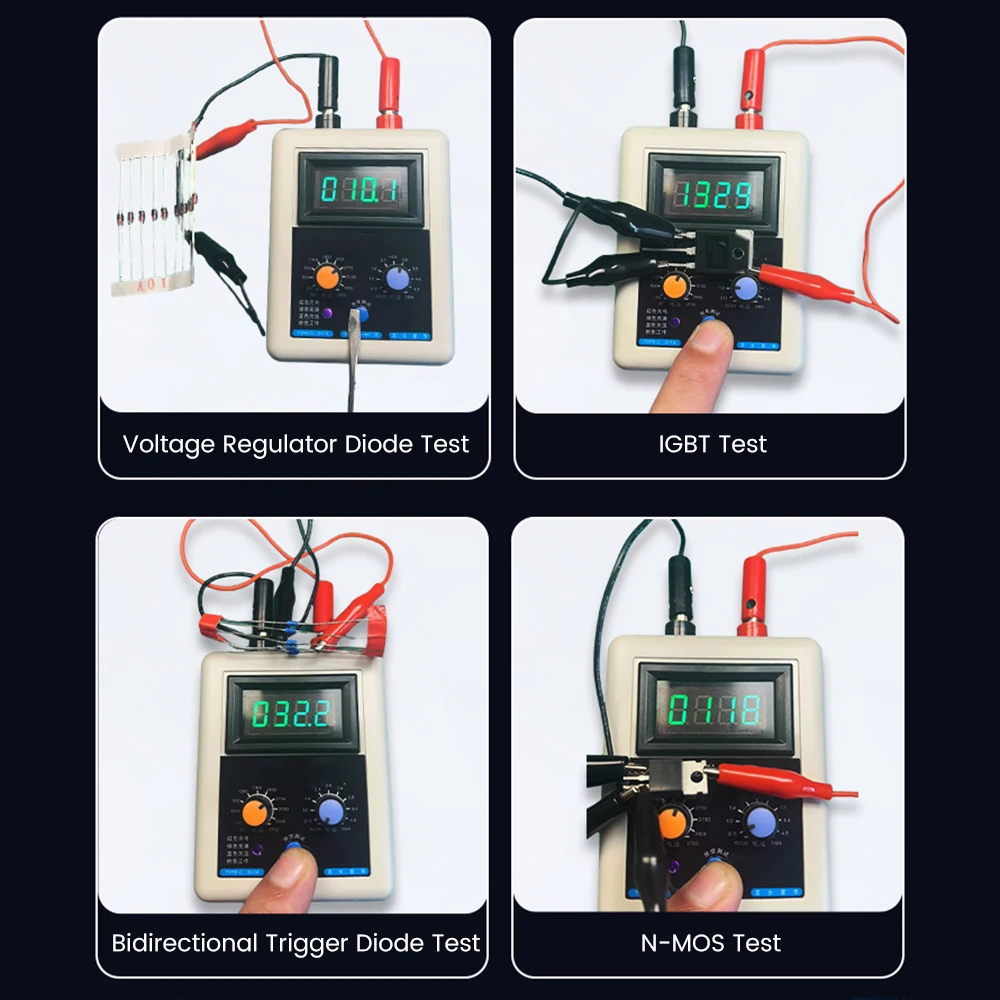

5. Widely used and measurable: withstand voltage value of NIMOS/PMOS/IGBT/transistor/unidirectional thyristor/zener diode/light emitting diode/rectifier bridge/varistor/ceramic gas discharge tube/electrolytic capacitor/

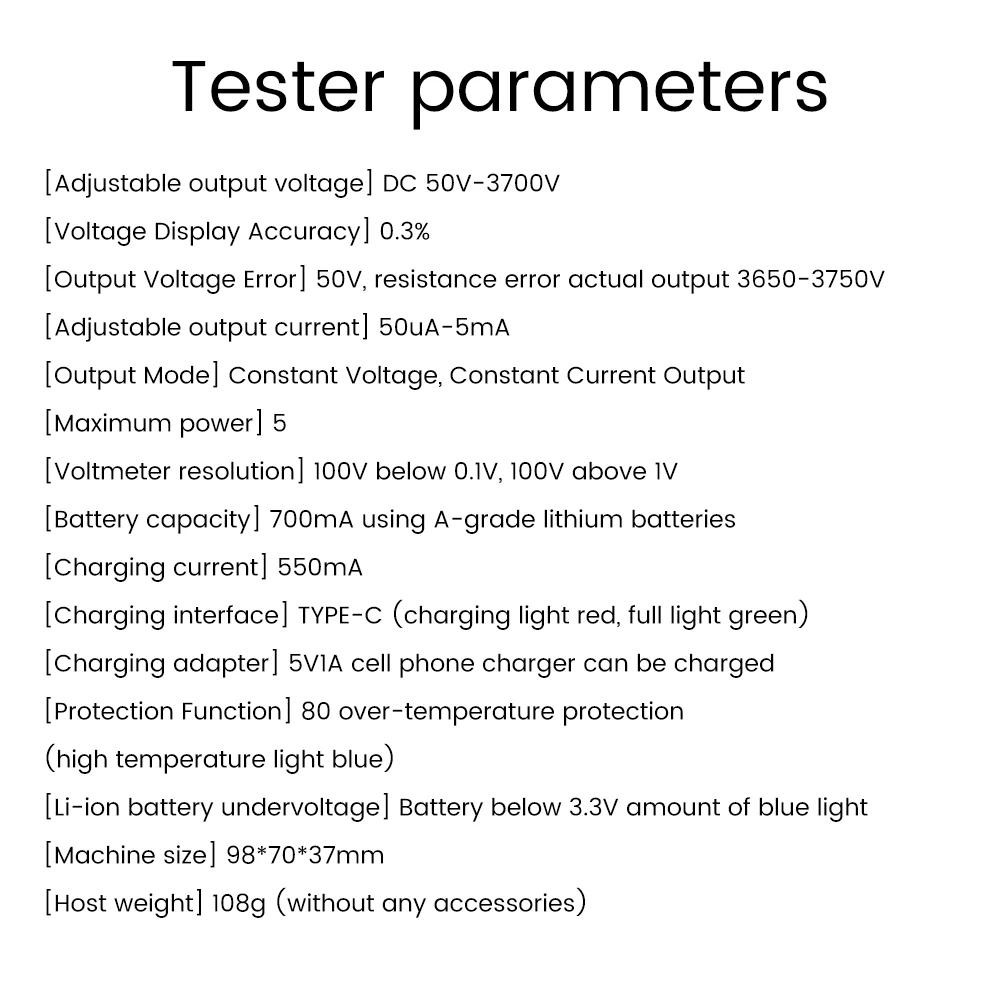

Parameter :
Adjustable output voltage: DC 50V-3700V
Voltage display accuracy: 0.3%
Output voltage error: 50V, the resistor has an error, the actual output is 3650-3750V
Adjustable output current: 50uA-5mA
Output mode: constant voltage, constant current output
Maximum power of the whole machine: 5
Voltmeter resolution: 0.1V below 100V, 1V above 100V
Battery capacity: 700mA lithium battery
Charging current: 550mA

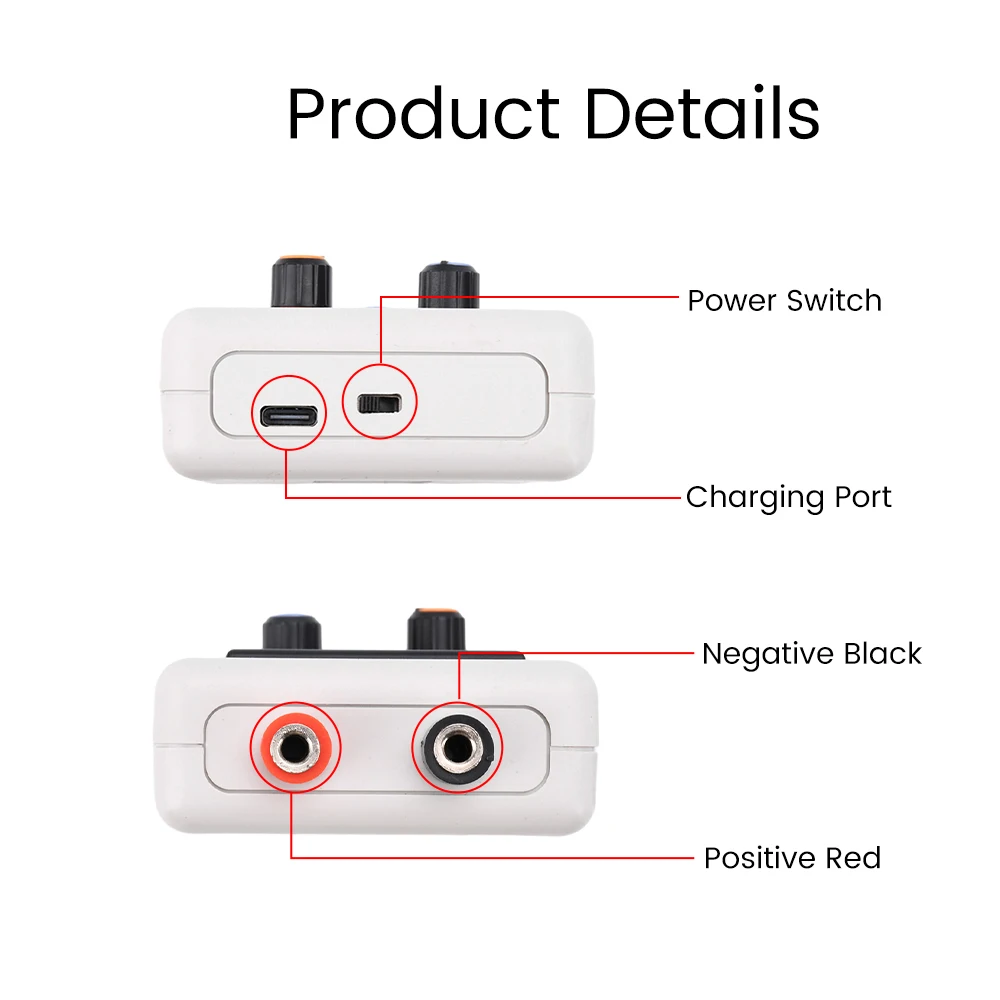

Charging interface: TYPE-C (red light when charging, green light when fully charged)
Charging adapter: 5V1A mobile phone charger can be charged
Protection function: 80 degree temperature protection (high temperature bright blue light)
Lithium battery undervoltage: blue light when the battery is lower than 3.3V

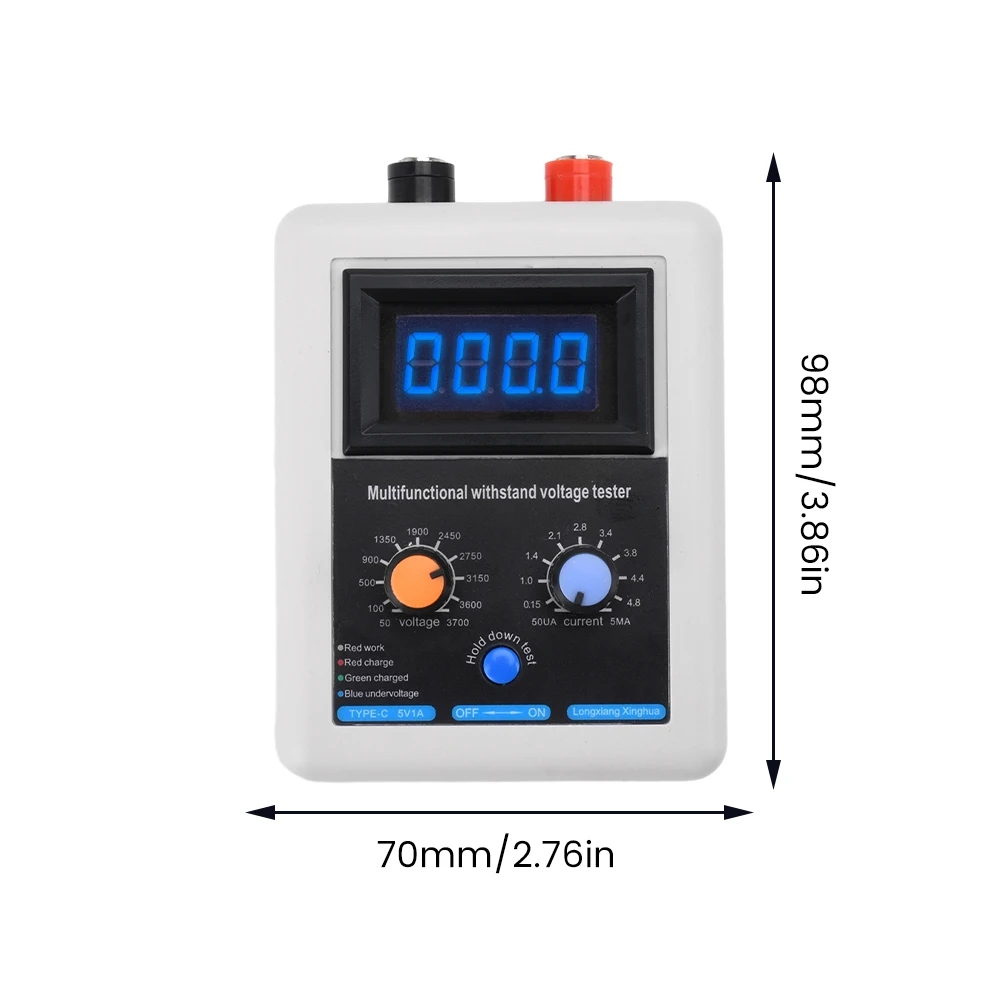

Overall machine size: 98*70*37
Host weight: 108g (excluding any accessories)

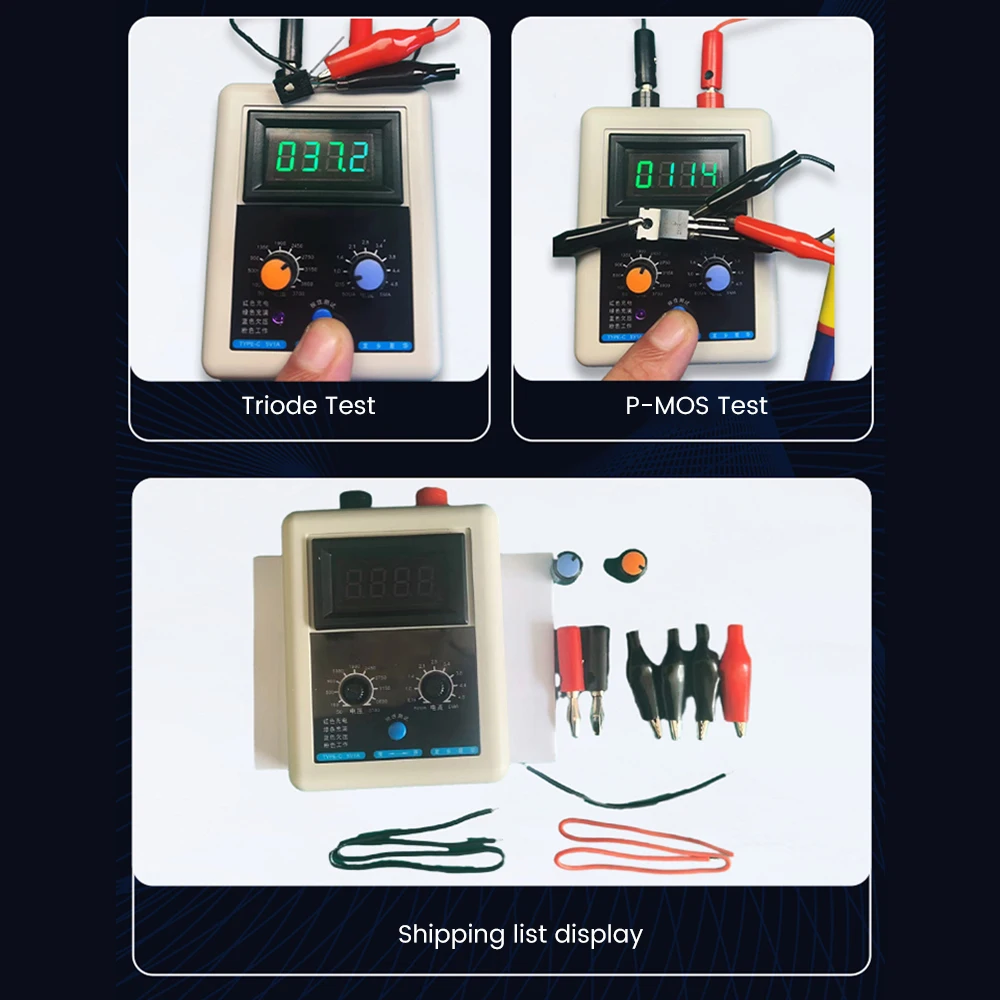

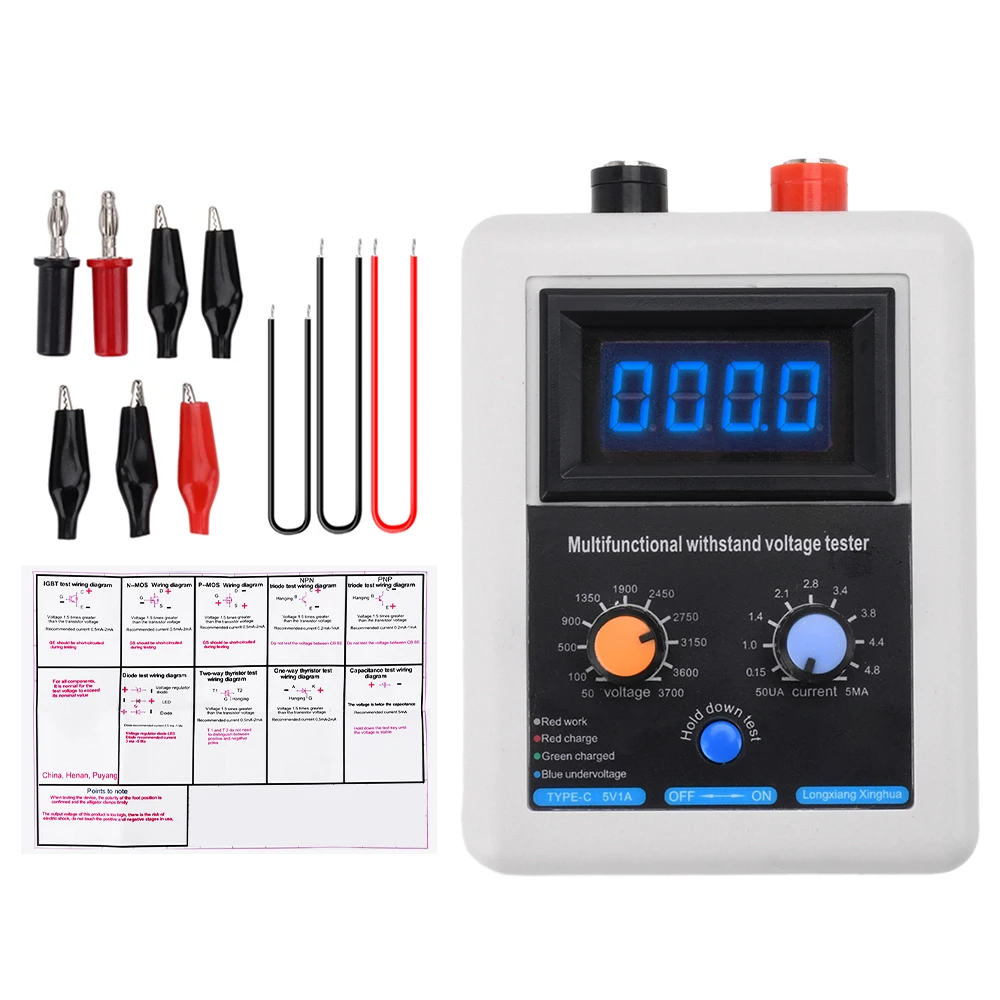

Package Included:
Tester*1
Instruction manual*1
Alligator clip test line accessories*10
