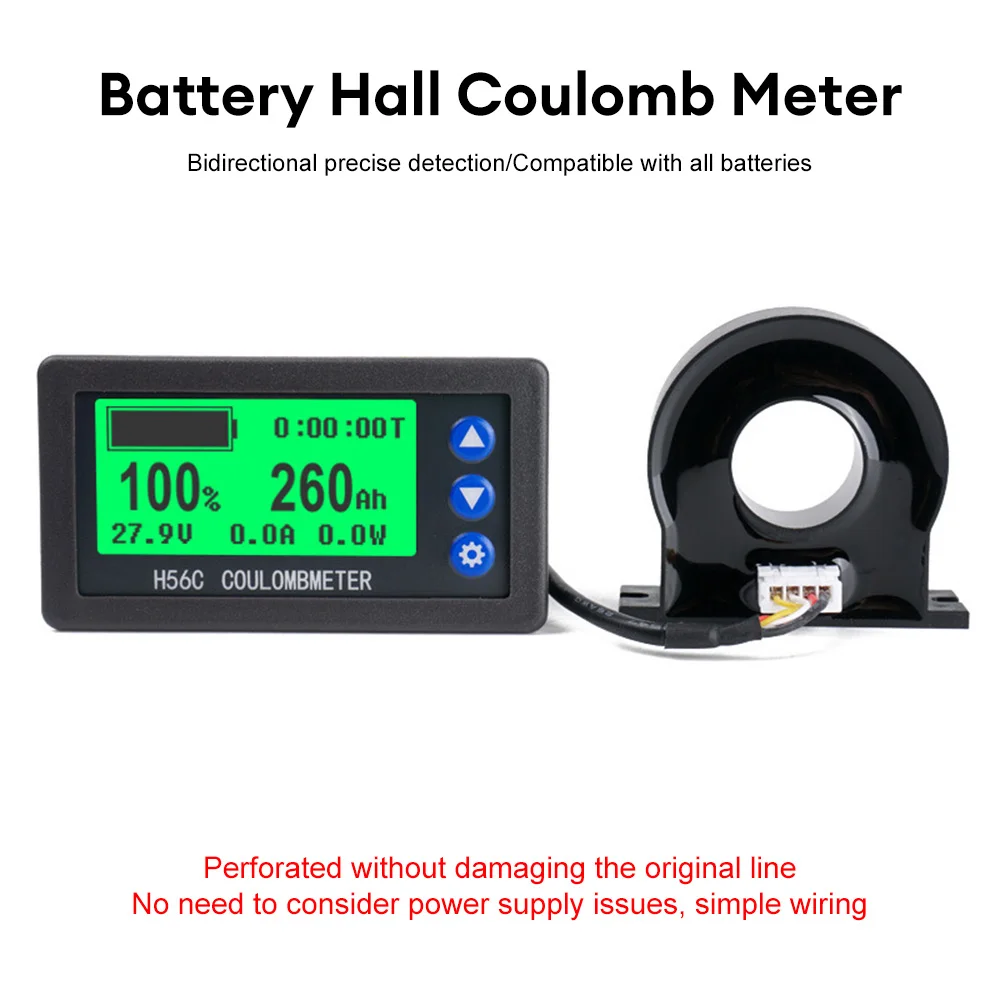

DC 9V-100V Battery Capacity Coulomb Meter Monitor Capacity Display Hall Sensor C

£26.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Color 50A 400A 200A 100A 300A

Quantity

Features:
1.Bidirectional precise detection, compatible with all batteries, isolated measurement, and will not damage the original circuit.

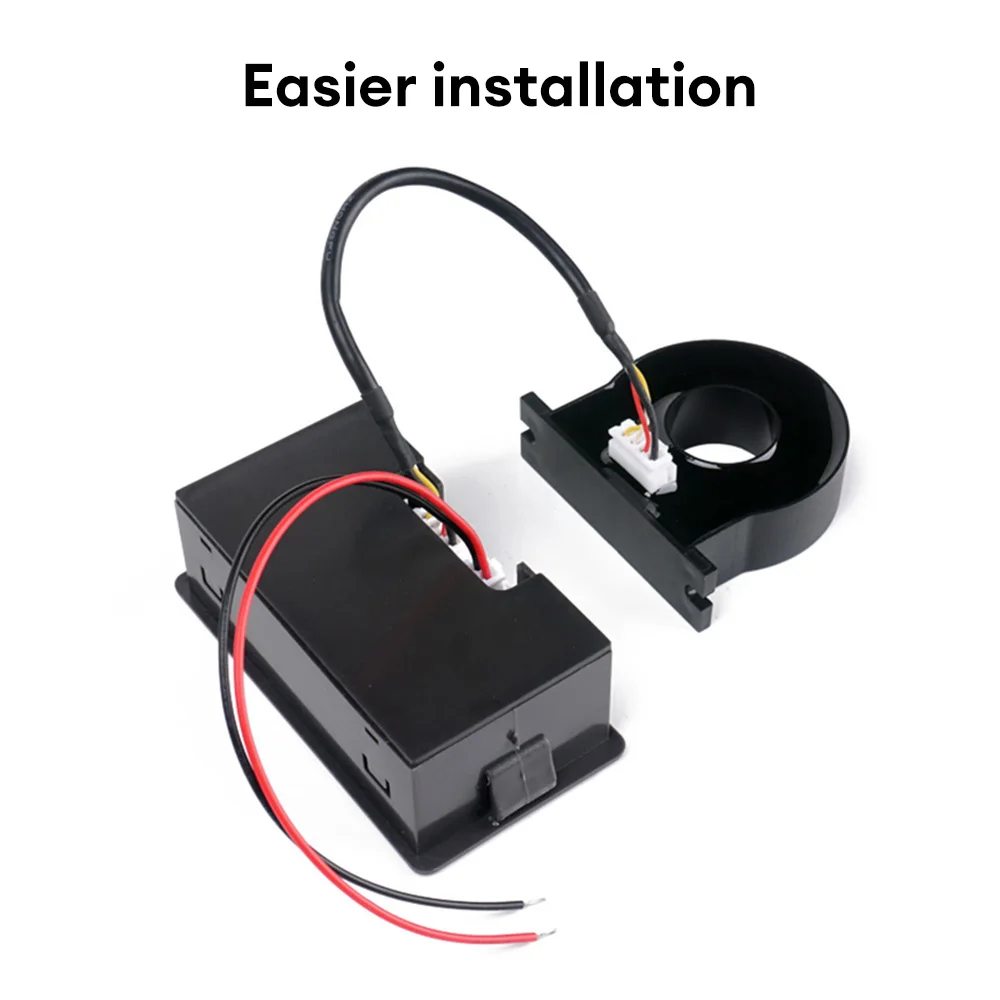

2.Simple installation, convenient wiring, efficient and stable performance, and long working life.
3.Equipped with high-end polymer chips, high-precision circuit boards, and intelligent processors.

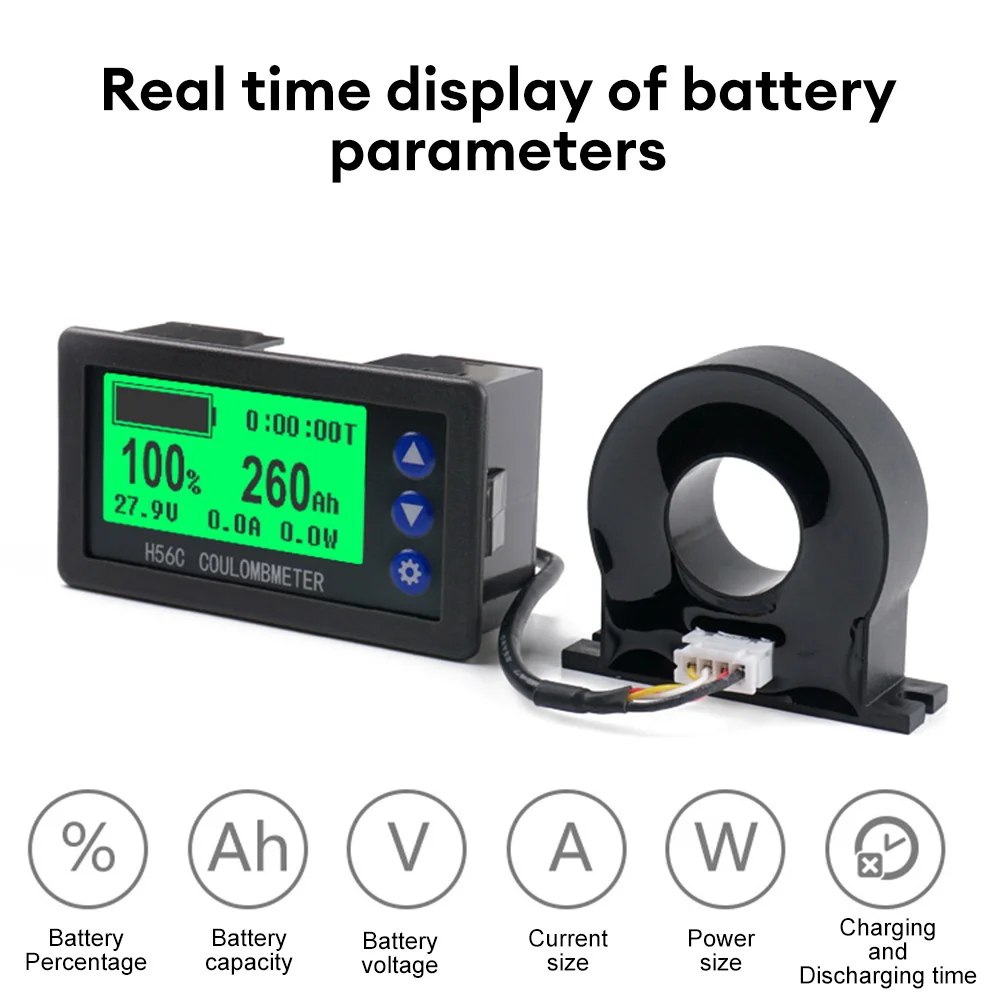

4.Real time display of battery parameters: battery percentage, battery capacity, voltage, current, power size, charging and discharging time.
5.Wide application range: ternary lithium batteries, iron phosphate batteries, and other types of batteries.

Parameters:
Working voltage: 9-100V
Current range: 50A, 100A, 200A, 300A, 400A
Capacity range: 0-999Ah (over a thousand will display 1KAH, automatically converted)
Working current: 7.5mA
Backlight off: 3.5mA
Voltage accuracy: 1% ( 1 word)
Current accuracy: 1% ( 1 word)

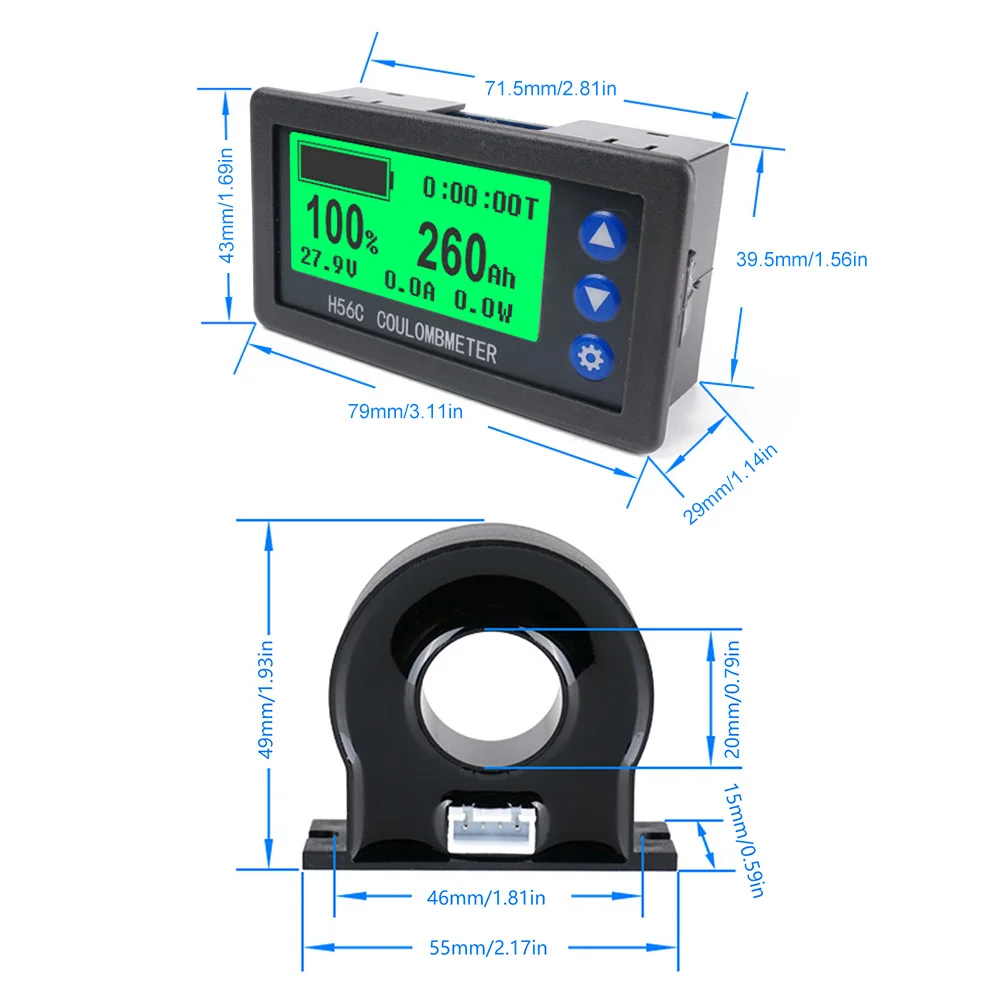

External dimensions: 79 * 43 * 27mm

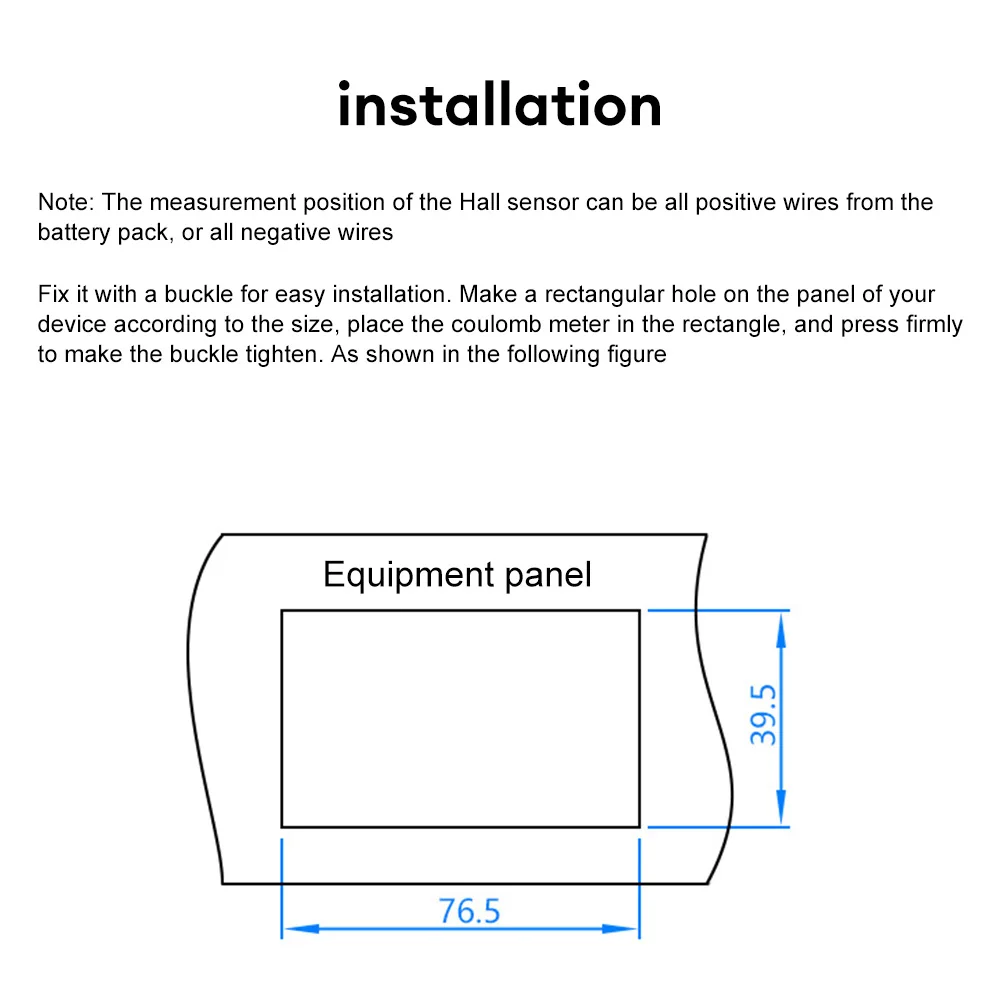

Opening size: 76.5 * 39.5mm
Display size: 49 * 24mm
Sensor size: 55 * 49 * 15mm
Lead length: standard 15cm
Working temperature: -10~65

Package include:

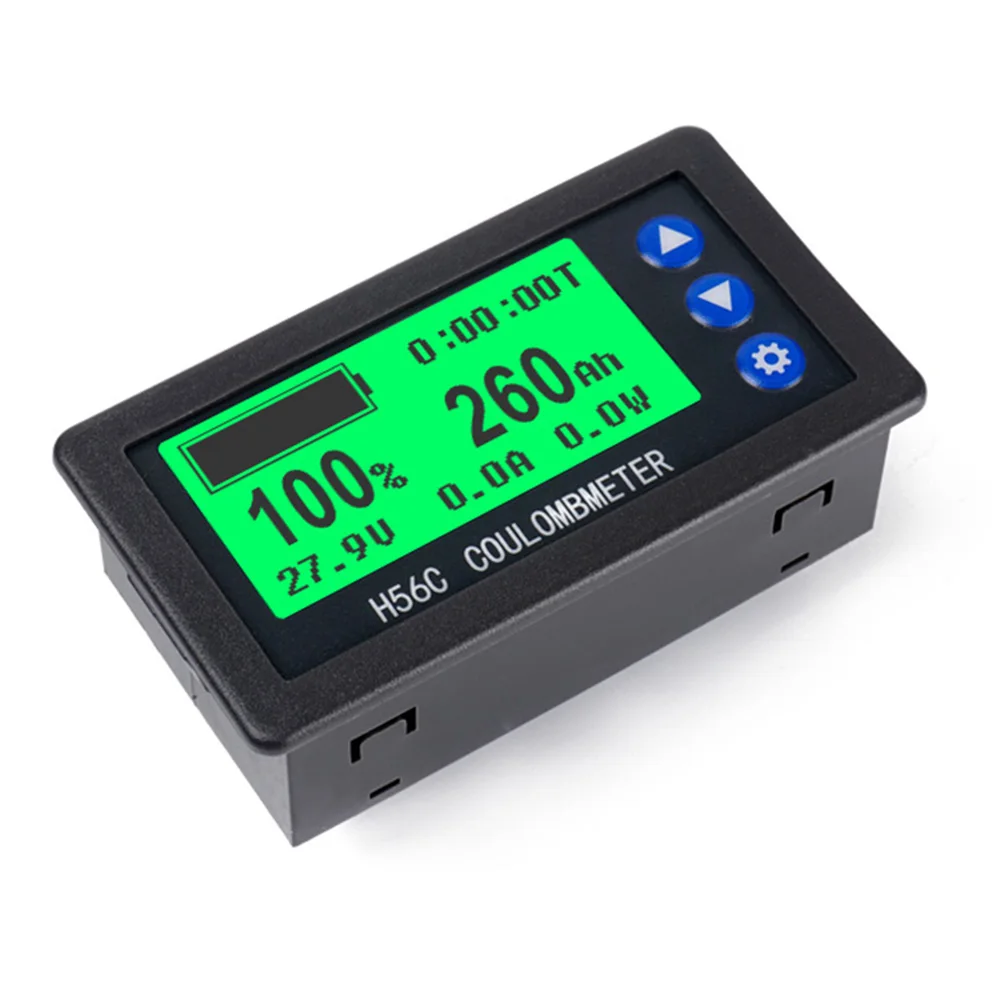

Battery level display * 1
Sensor * 1
Red and black line * 1
