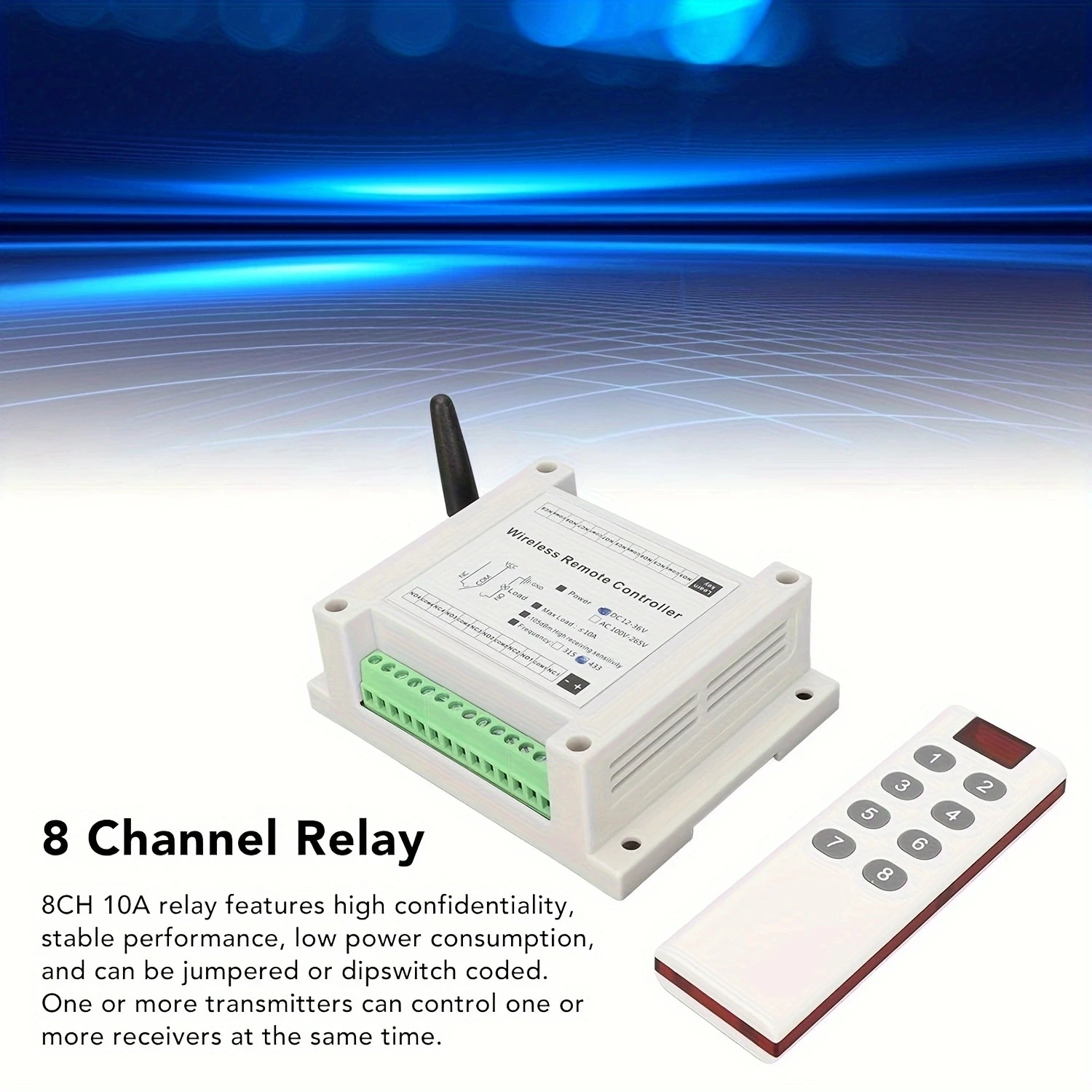

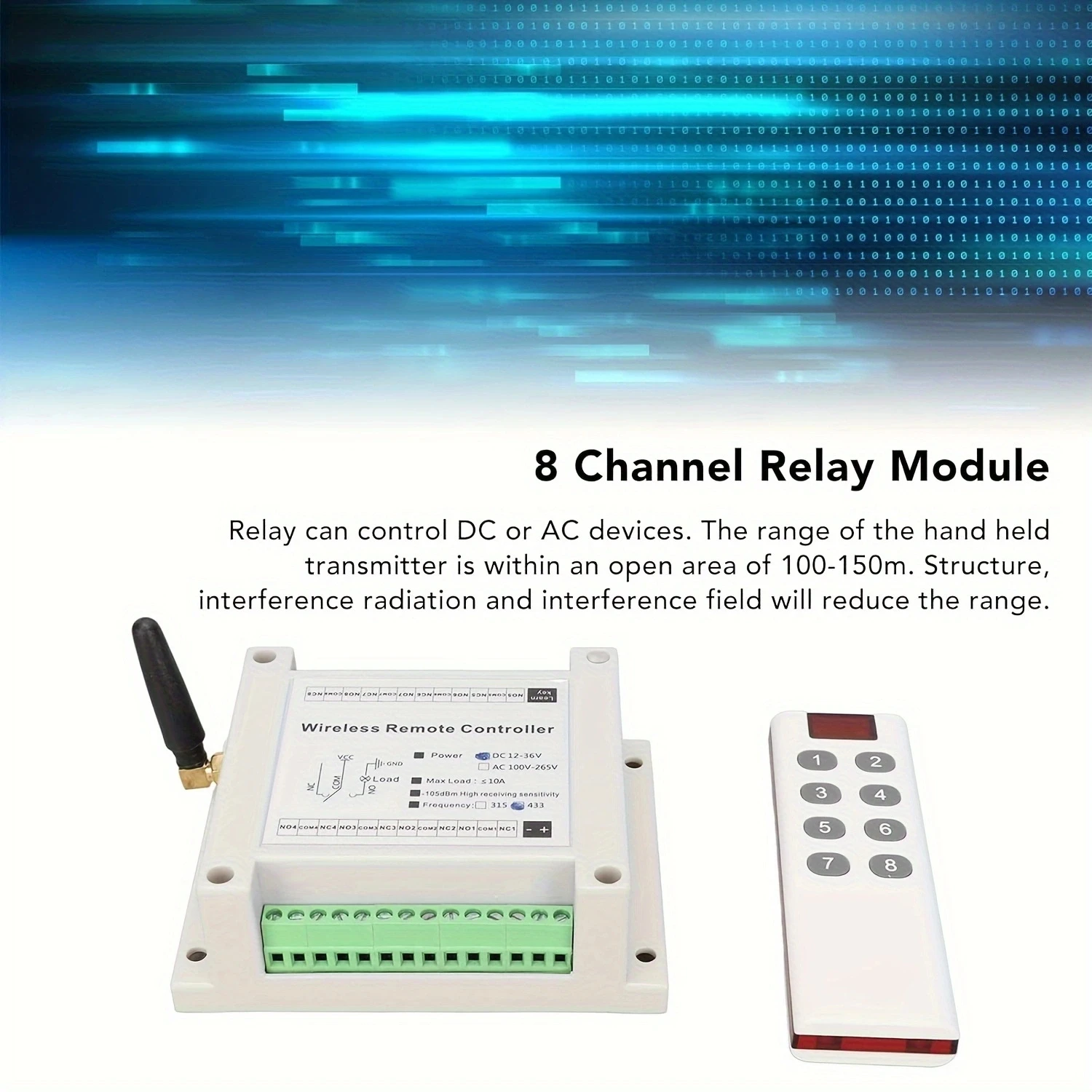

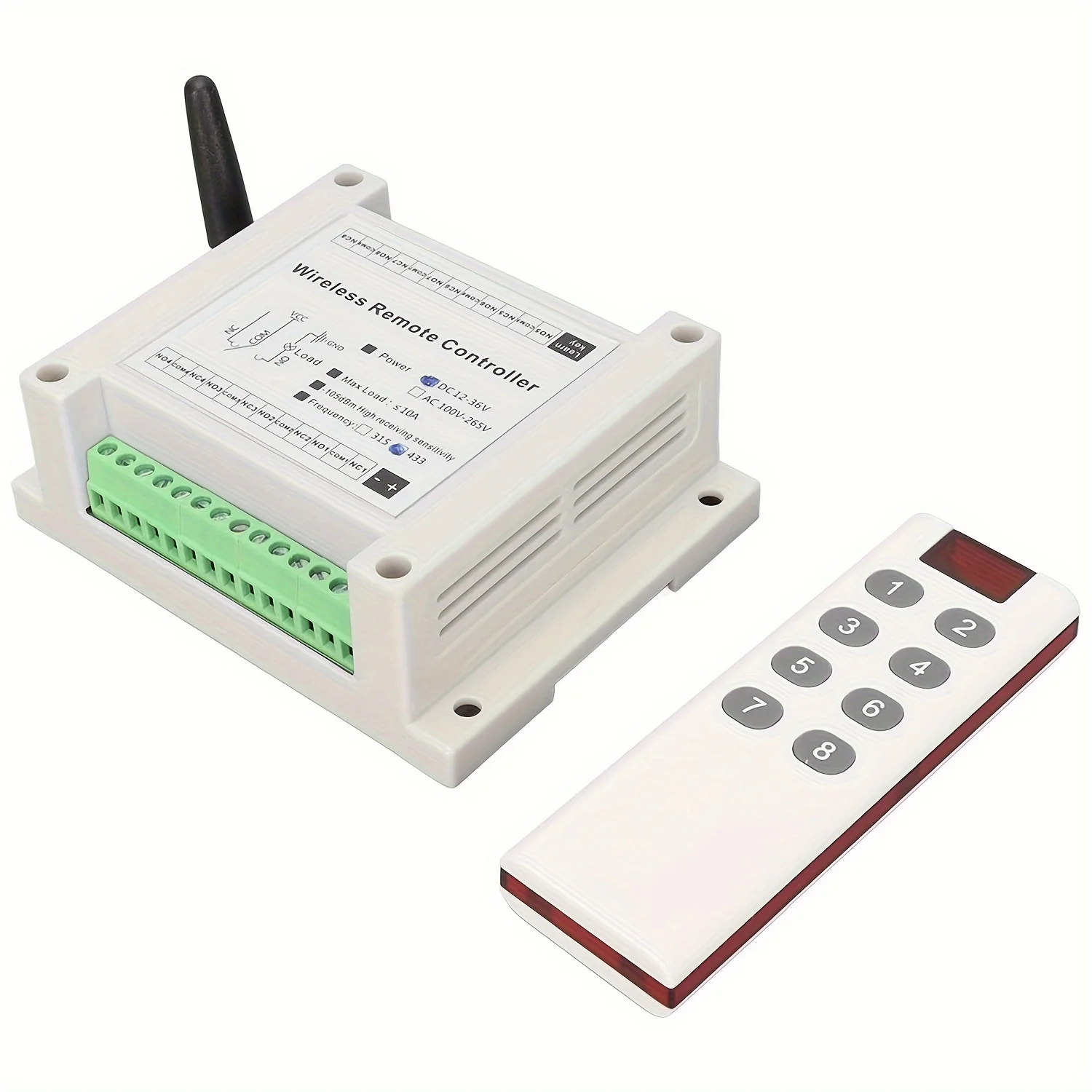

DC12V 24V 36V 8CH Wireless Remote Control LED Light Switch Relay Output Radio RF

DC 12V 24V 36V 8CH RF Wireless Remote Control Switch Radio Receiver With Long Distance Remote controller Suckers antenna

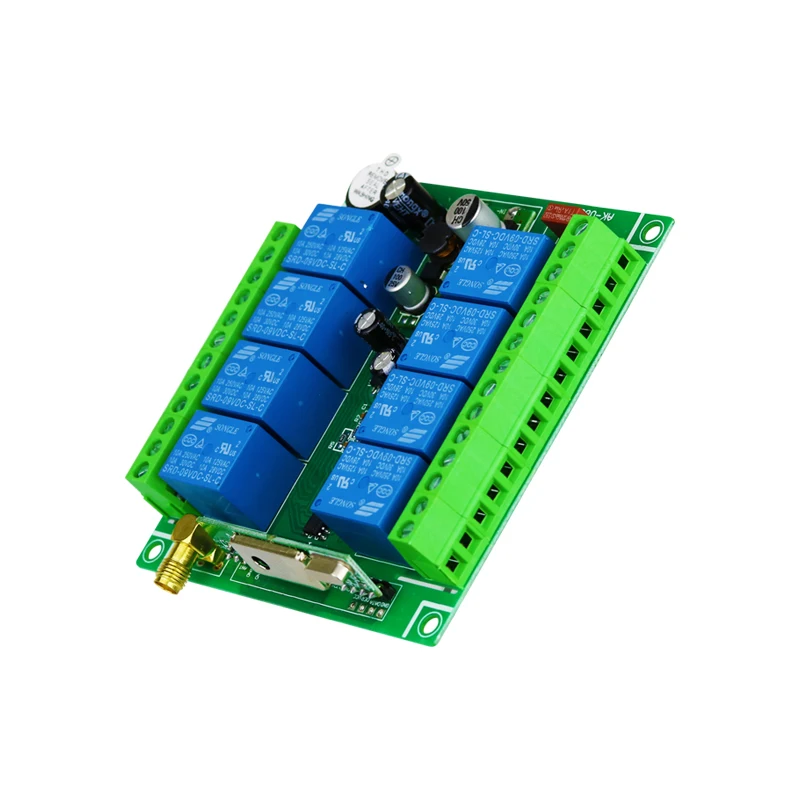

About Receiver:

Model No.: AK-RK08S-12B

1. Working voltage: DC12-36V

2. Quiescent condition: Less than 10mA

3. Working temperature: -40 Degree +80 Degree

4. Receiver sensitivity: more than -110dBm

5. Working frequency: 433mhz

6. Output voltage: DC and Signal is optional

7. Output current: Less than 5A

8. Max load current: 10A

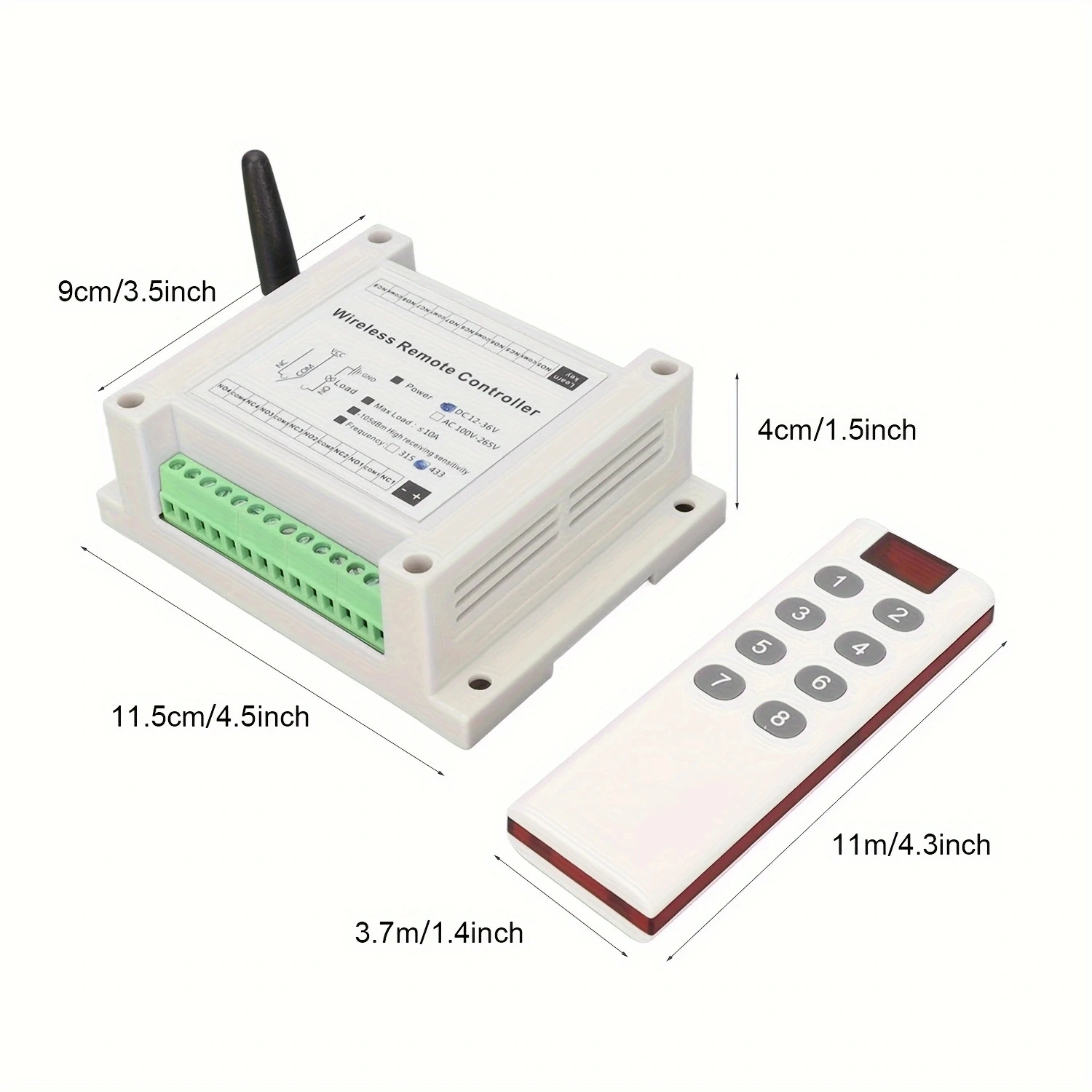

9. Size: 0.38*0.3*0.13 INCH

About Working way:
A. 1-8CH Momentary-----Press Transmitter Button 1to learn
B. 1-8CH Latched----- Press Transmitter Button 2 to learn
C. 1-8CH Toggle-- -- Press Transmitter Button 3 to learn

D. 1-4CH Momentary, 5-8CH Toggle------Press Transmitter Button 4 to learn

E. 1-4CH Momentary, 5-8CH Latched------ Press Transmitter Button 5 to learn

F. 1-4CH Latched, 50-8CH Toggle------- Press Transmitter Button 6 to learn

Momentary------------Press the transmitter button 1, the receiver relay 1th is ON, release button 1; the receiver relay 1th is OFF, the same as 2/3/4/5/6/7/8 are independent.

Toggle---------------Press transmitter button 1 for 1 time, the receiver relay 1th is ON, press button 1 again, the receiver relay 1th is OFF, the same 2/3/4/5/6/7/8 are independent.
Latched------------------
Press transmitter button 1, the receiver relay 1th is ON, the relay 2/3/4/5/6/7/8 is OFF.
Press transmitter button 2, the receiver relay 2th is ON, the relay 1/3/4/5/6/7/8 is OFF.
Press transmitter button 3, the receiver relay 3th is ON, the relay 1/2/4/5/6/7/8 is OFF
Press transmitter button 4, the receiver relay 4th is ON, the relay 1/2/3/5/6/7/8 is OFF.
.
It also mean .Latched only can keep 1CH ON .and it will often have 1CH is ON.
About Learning and clearing Method:
Learning: Press learning Button until the buzzer keep tweeting, loosen finger ,Press the Relative button of the transmitter to learn Relative output way, indicate learning success as the buzzer tweet Be Be Be 3 sounds ,and then you press the transmitter button you can hear the relay act sound.

Clearning: Keep pressing the learning Button of the receiver, the buzzer buzzer tweet and Be Be Be Be (please do not wait for it Be for 6 times) then release the button , indicate success to delete the memory message.
