Hispeedido Digital HDMI MOD Kit Digital to Digital HDMI Mod Kit 480P 1080P For Playstaion 1 PS1 Console

NOT INCLUDE THE CONSOLE AND MAINBOARD.!

Please note :

**** The kit only compatible with PU-18 (SCPH-550X) and PU-20 (SCPH-700X) motherboards.! *******

Digital to Digital HDMI Mod Kit For Playstaion PS1 Console

This HDMI kit is a digital to digital HDMI output upgrade for PS1.

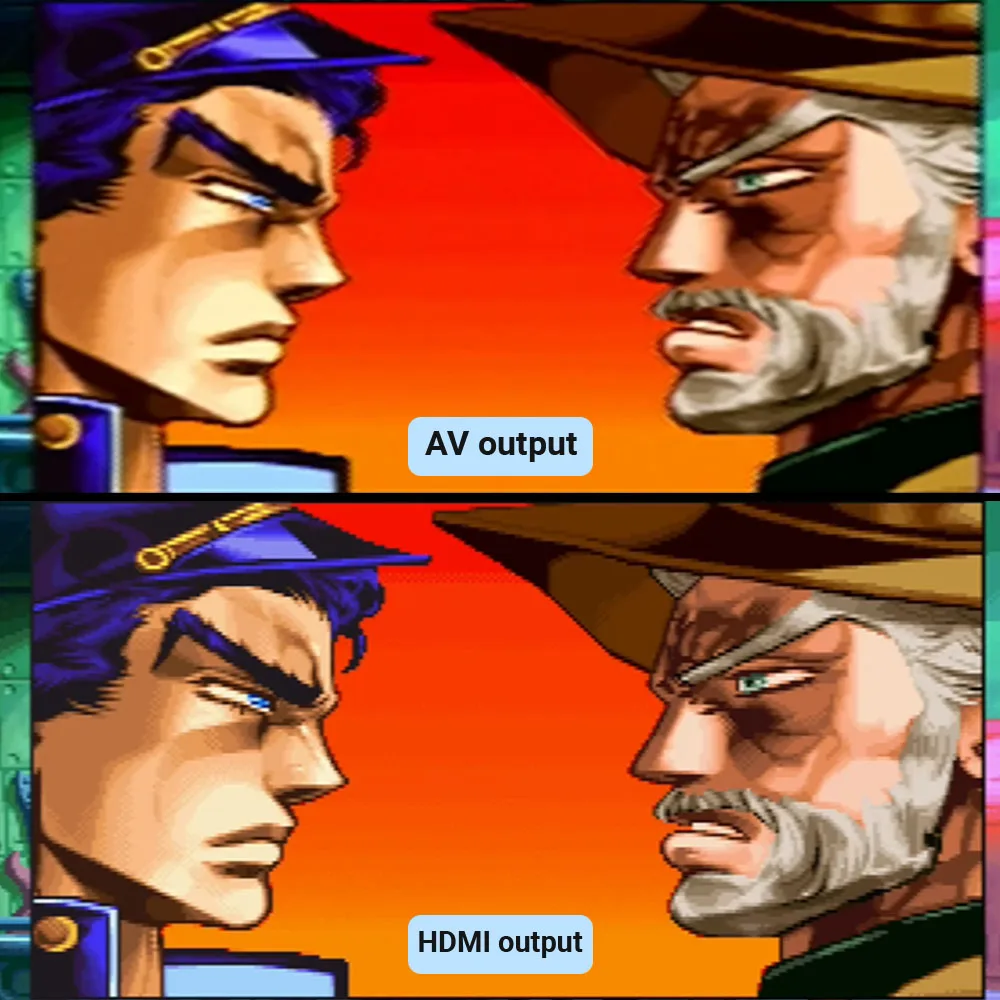

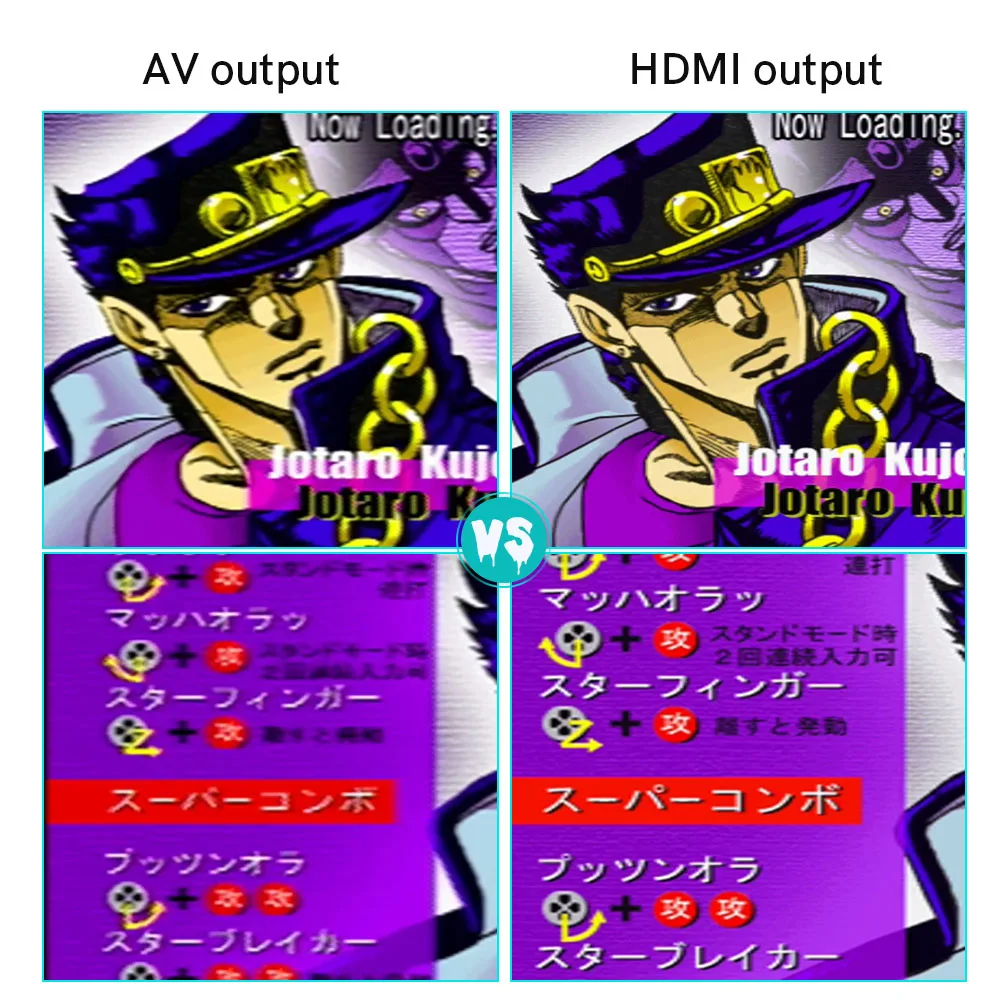

This digital to digital HDMI image are much better than other external HDMI converter.

Make your PS1 console output HDMI image.

The kit includes a PCB and Flex that must be soldered into the PS1 console.

****Note: Good Welding skills required!*****

Due to environmental protection, we do not send paper installation manual.

Please contact us to request the installation manual when you receive the product.

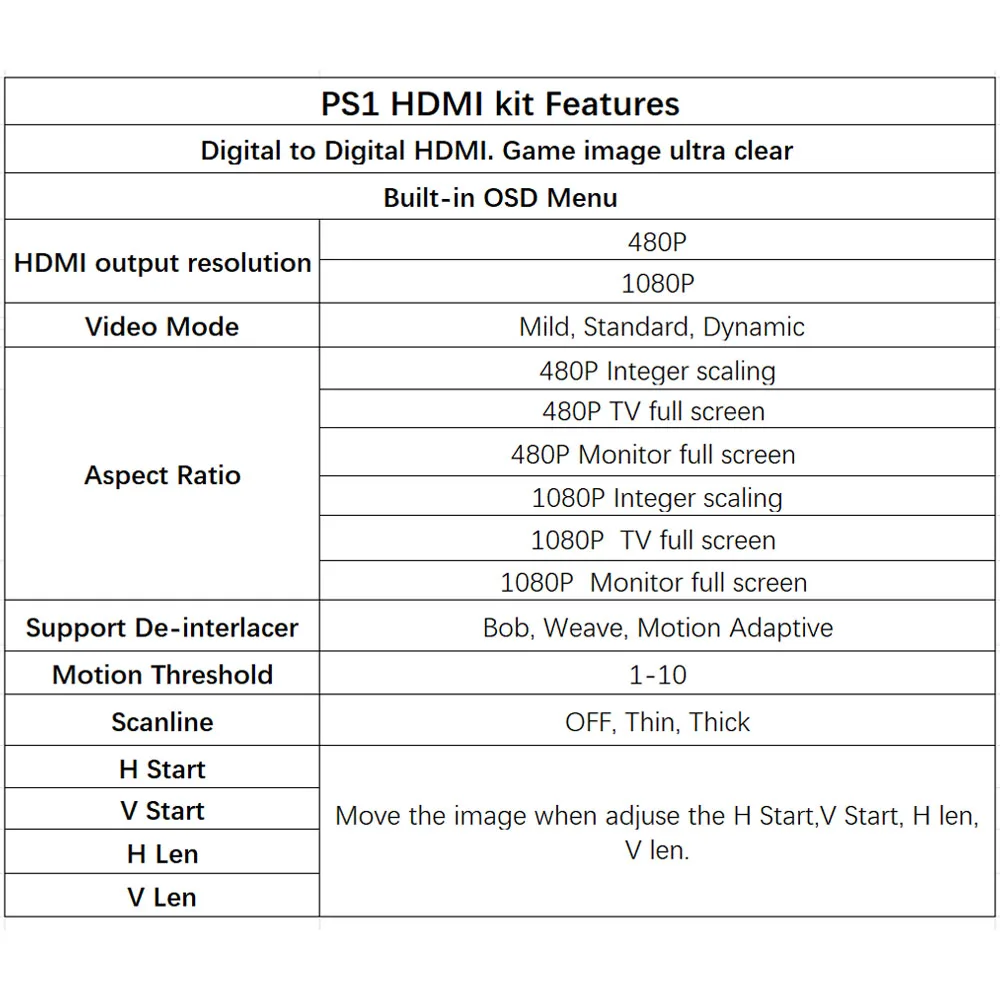

Description:

1. Support 480P, 1080P HDMI Output.

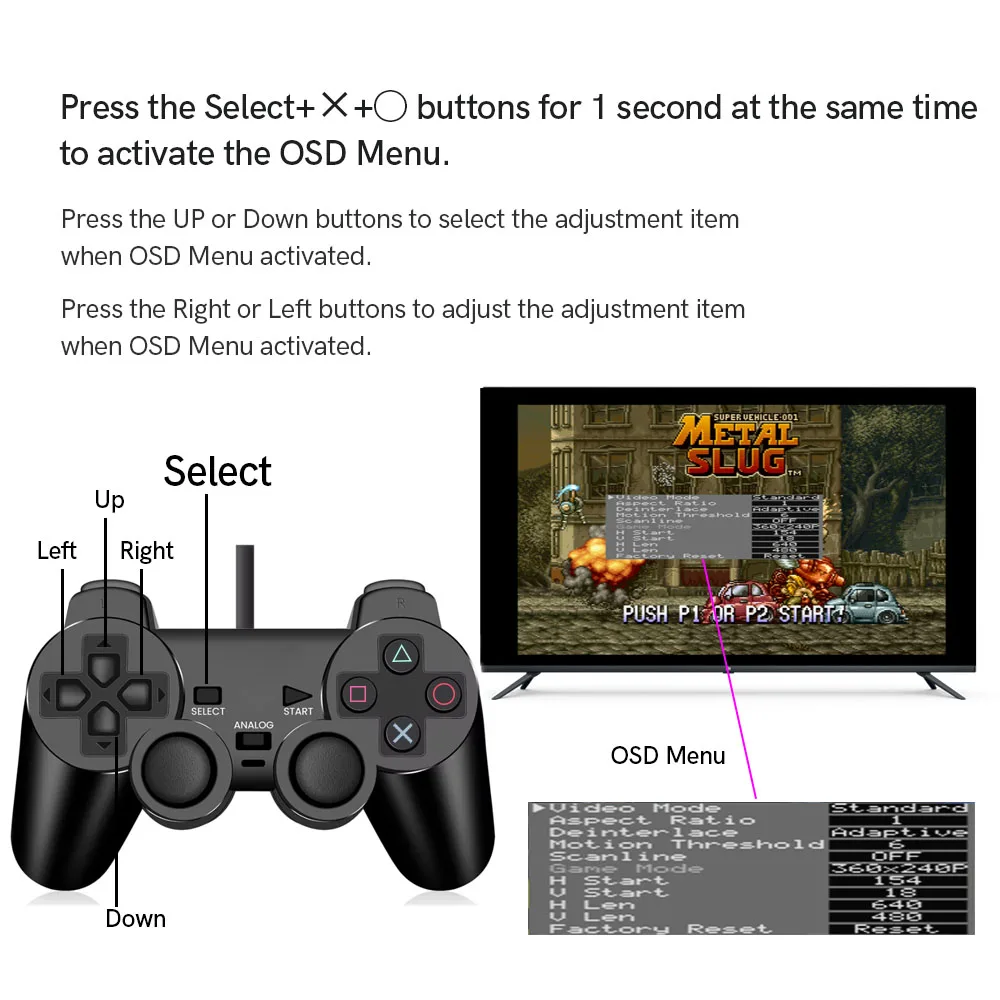

2. Built-in OSD Menu!

3. Built in 3 Video Mode. Mild, Standard, Dynamic,

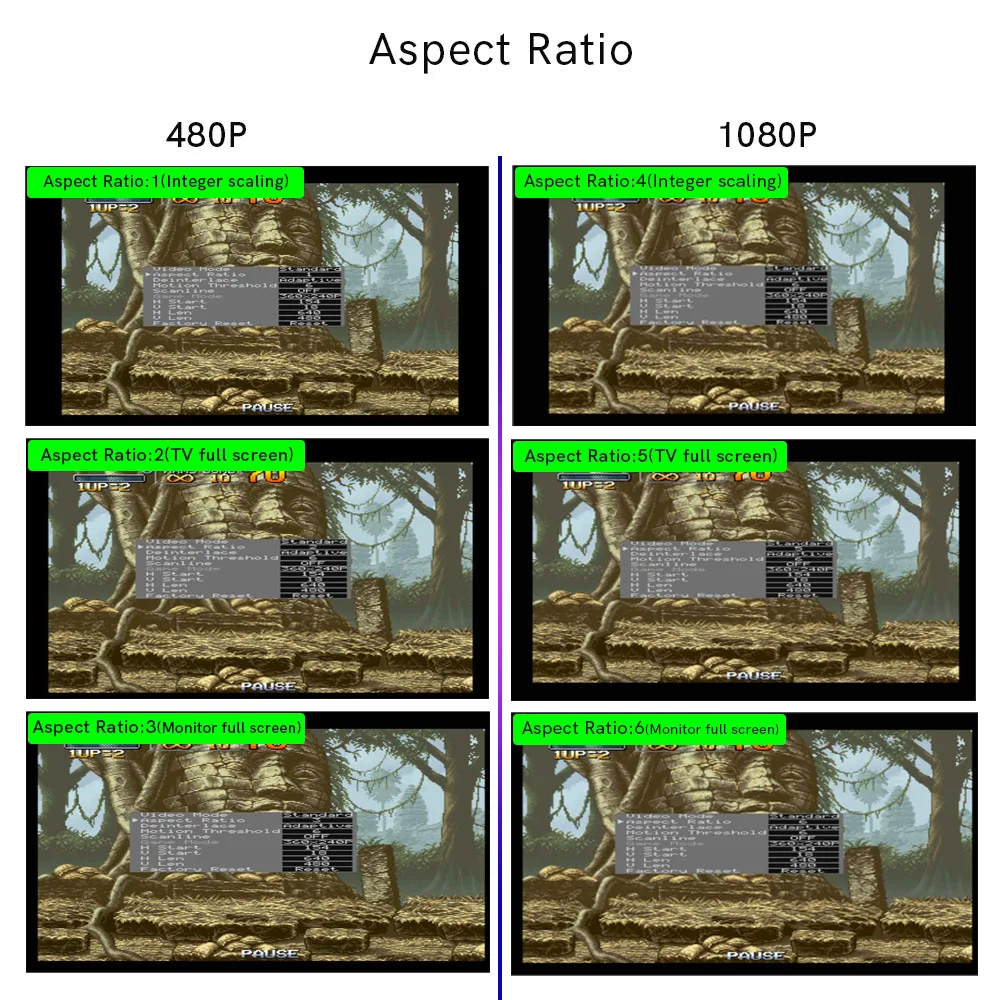

4. Built in 6 Aspect Ratio. Aspect Ratio 1 to Aspect Ratio 3 are 480P. Aspect Ratio 4 to Aspect Ratio 6 are 1080P.

5. Deinterlace adjustable. Bob, Weave,Adaptive.

6. Motion Thereshold adjustable.

7. Image position adjustable. Move the image when adjuse the H Start,V Start, H len, V len.

Compatibility:

The kit only compatible with PU-18 (SCPH-550X) and PU-20 (SCPH-700X) motherboards.! *******

X means the number 1 to 9.

For example:

SCPH-550X means SCPH-5501,SCPH-5502 ... SCPH-5509.

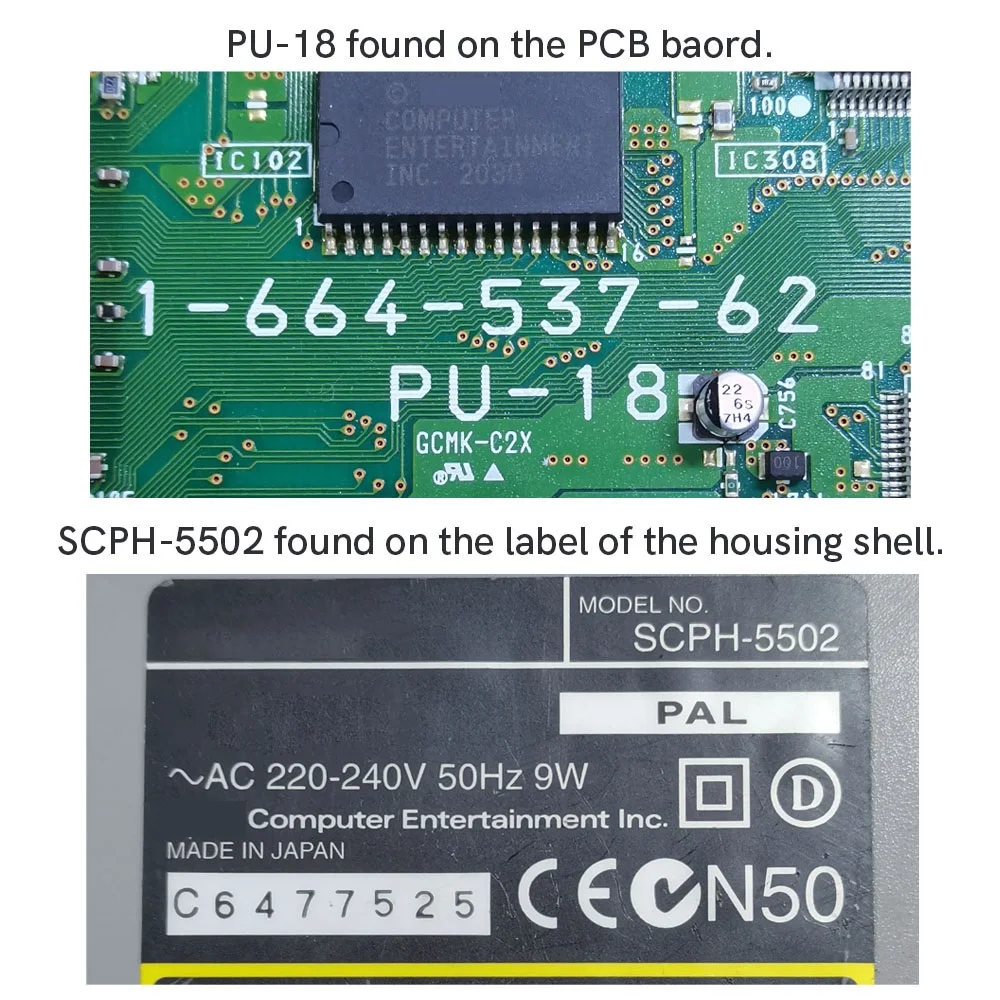

PU-18 found on the PCB baord.

SCPH-550X found on the label of the housing shell.

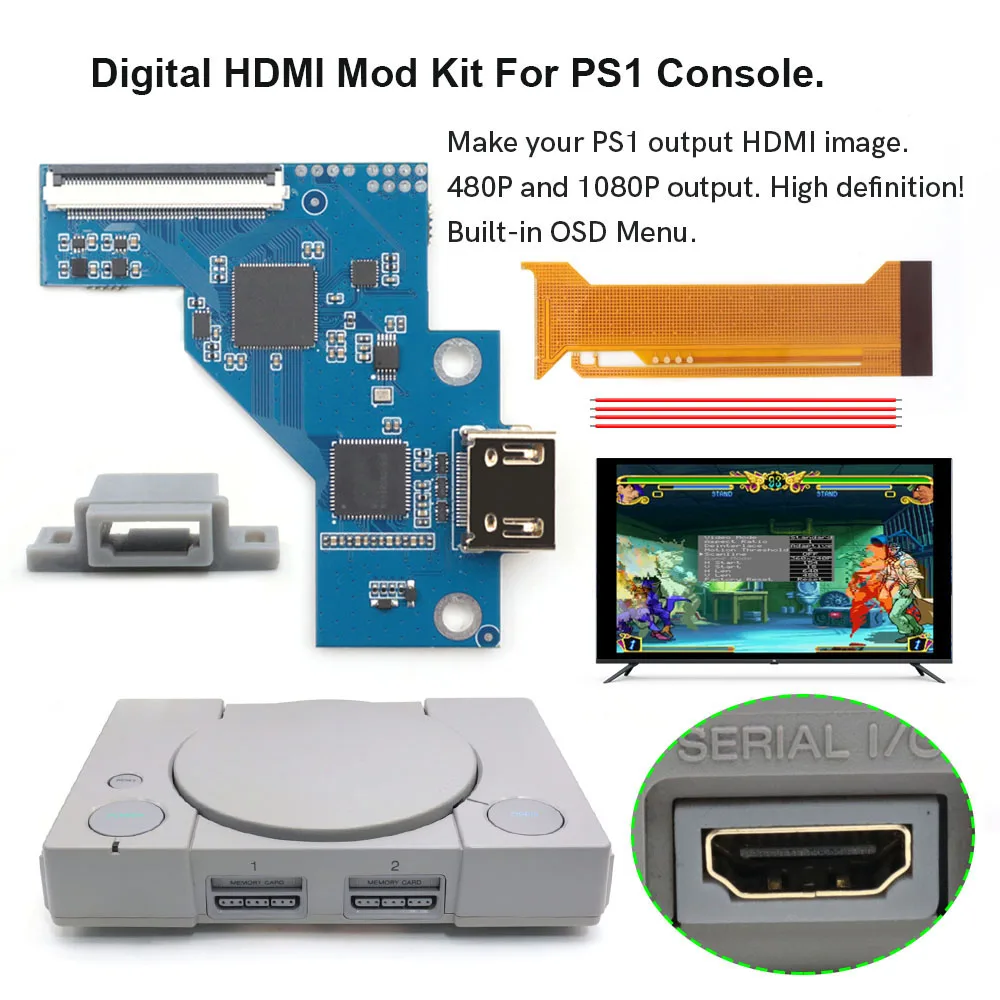

Include

1x PCB board

1x Plastic holder

1x Flex cable

Or,

1x PCB board

1x Plastic holder

2x Flex cable(one for backup)

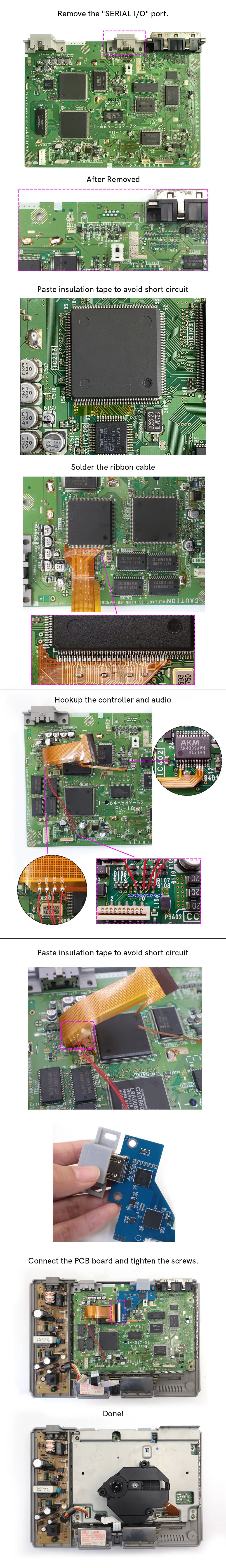

=====================Installation Guide====================

For PU-18 (SCPH-550X) motherboards:

For PU-20 (SCPH-700X) motherboards:
