1. It is more practical to use 1000:1 with digital multimeter.

2. Input resistance 1000M!

3. The maximum measurement voltage is DC 40KV, AC28KV

4. A number of safety inspections are qualified TUL GS UL Gall CE

5. Oscilloscope probe manufacturer, technical standard leader

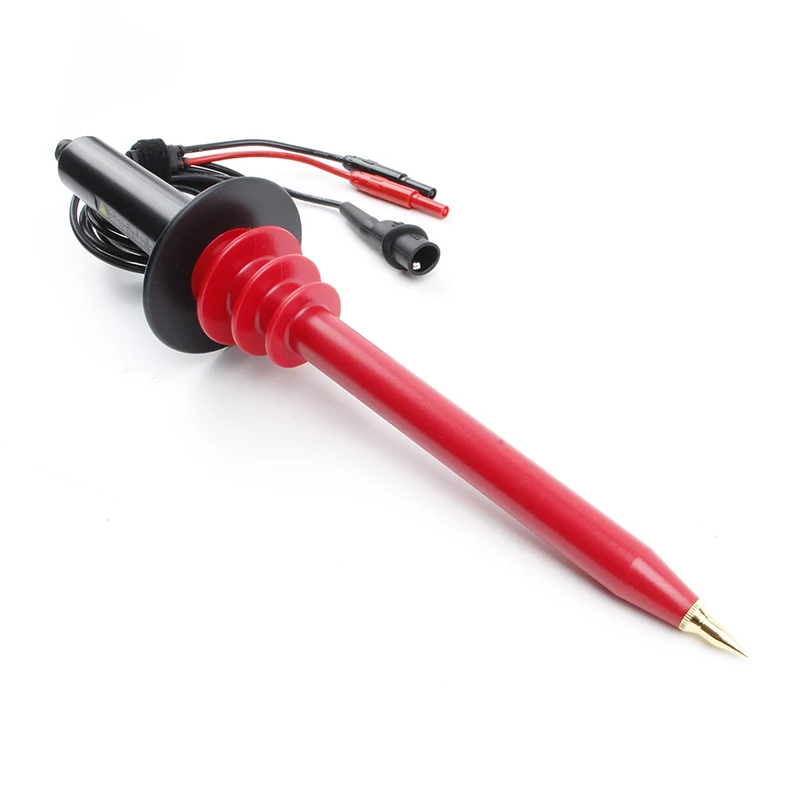

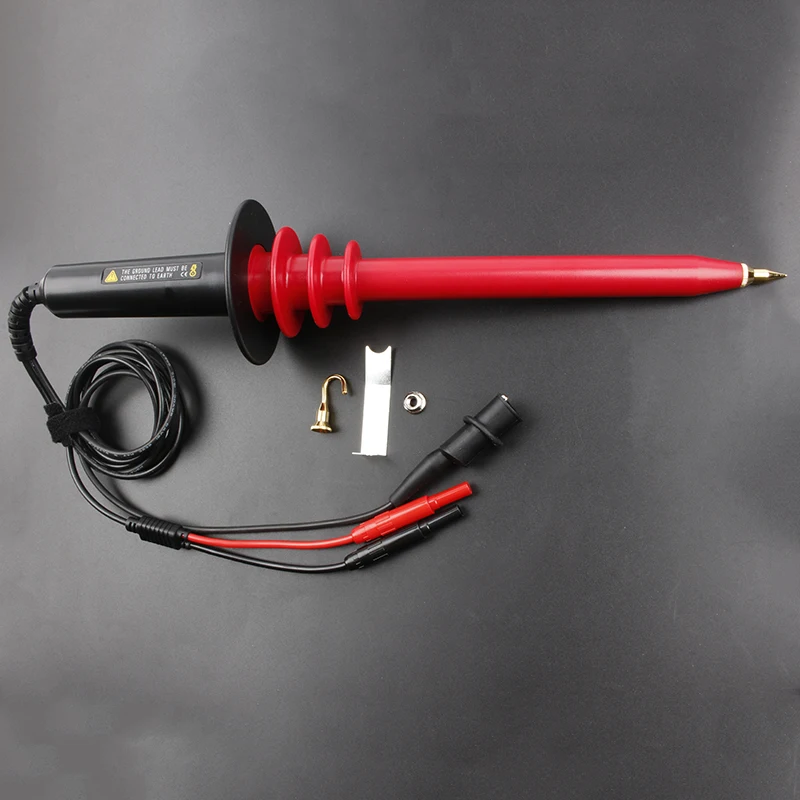

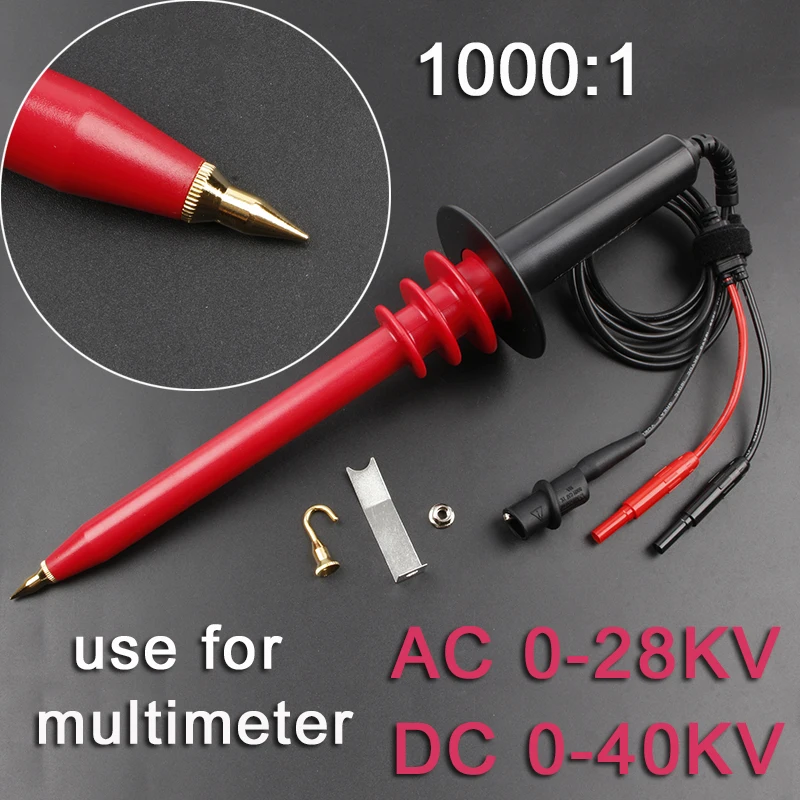

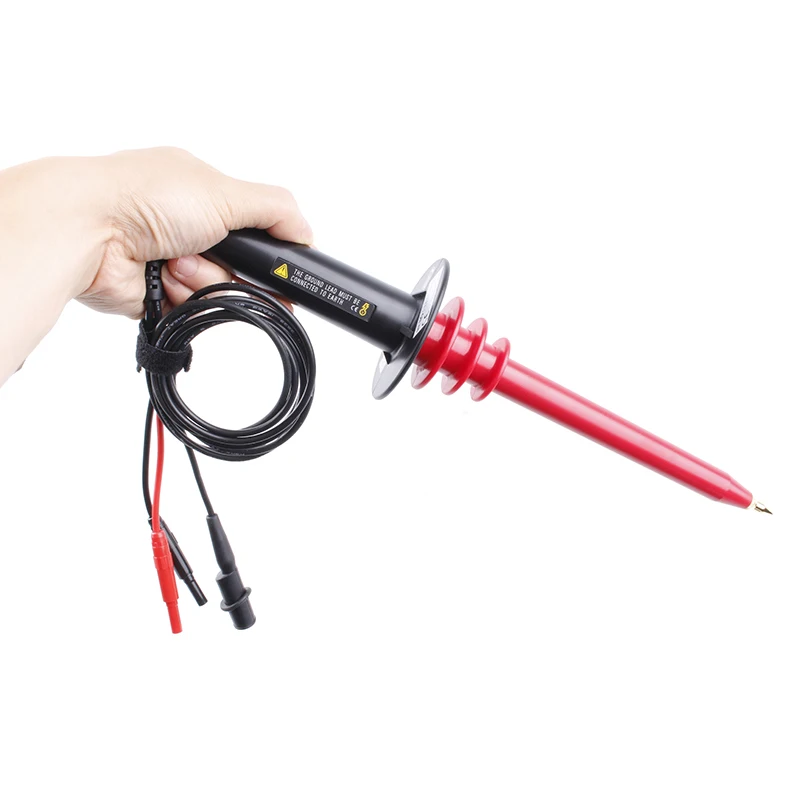

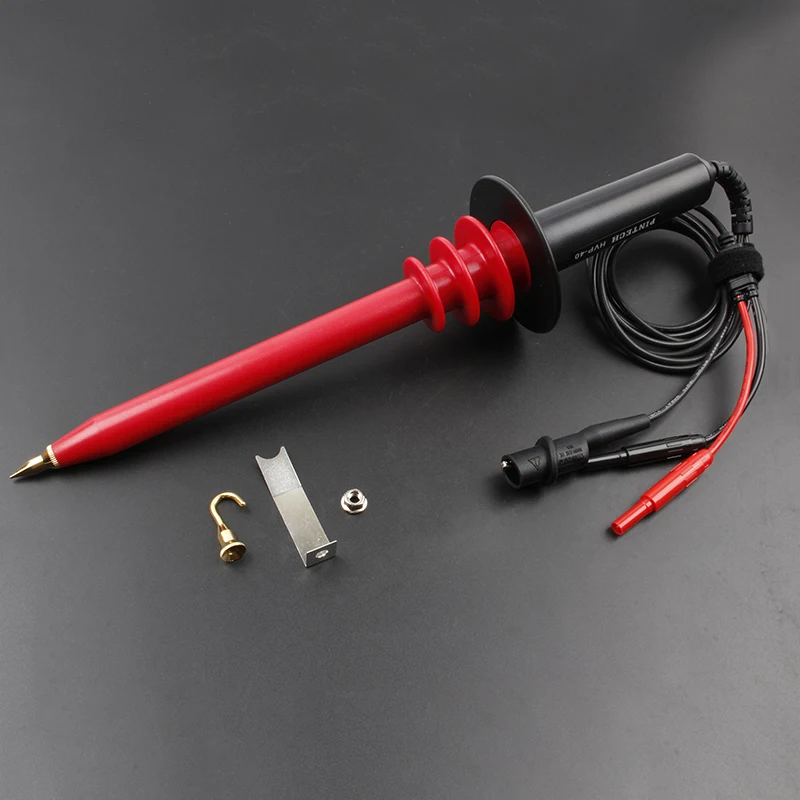

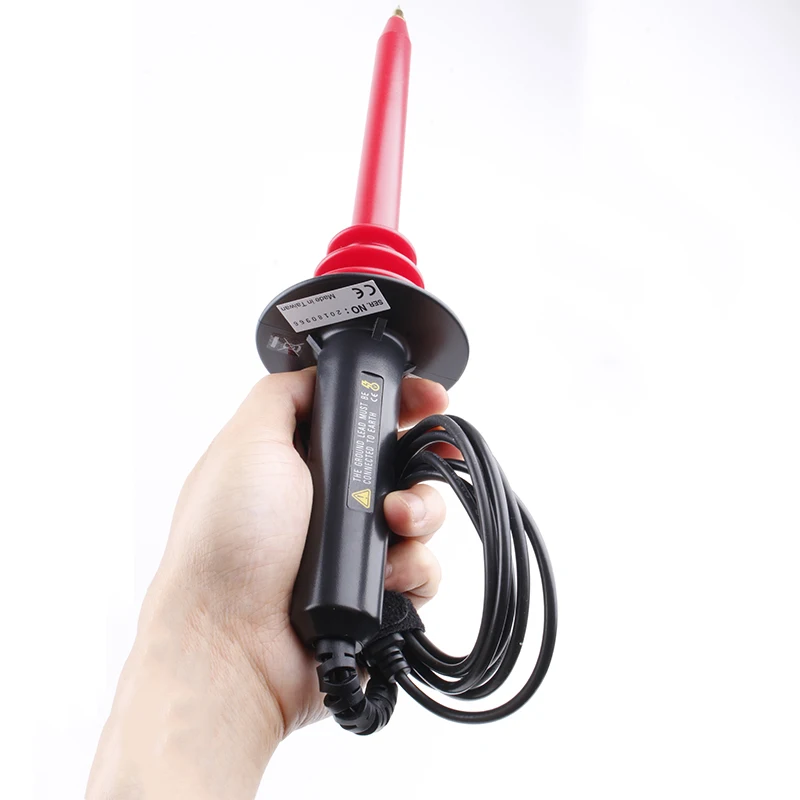

HVP-40

Before taking any measurements, first connect the alligator clip of this probe to earth ground and make sure connection is electrically good.
Input impedance: 1000Mohm
Division Ratio: 1000: 1
MAX. Test Voltage
DC : 0 ~ 40KV
AC : 1 ~ 28KV ( 50 / 60 Hz )
Safety APPL.
EN61010 UL3111-1 TUV / GS
IEC 1010 CAT II Pollution 2
Polarity: Positive / Negative
Accuracy
DC :+/- 1% to 20KV
+/- 2 % to 40KV
AC : - 5 % to - 10 % ( 1 ~ 28KV ; 50 / 60Hz )
Temperature Coefficient:<= 200ppm /C
Maximum loading Current:<= 40A ( at 40KV DC )
Maximum loading power:<= 1.6 watt
Operating temperature:0 ~ + 50 C
Storage temperature:- 20 ~ + 70C

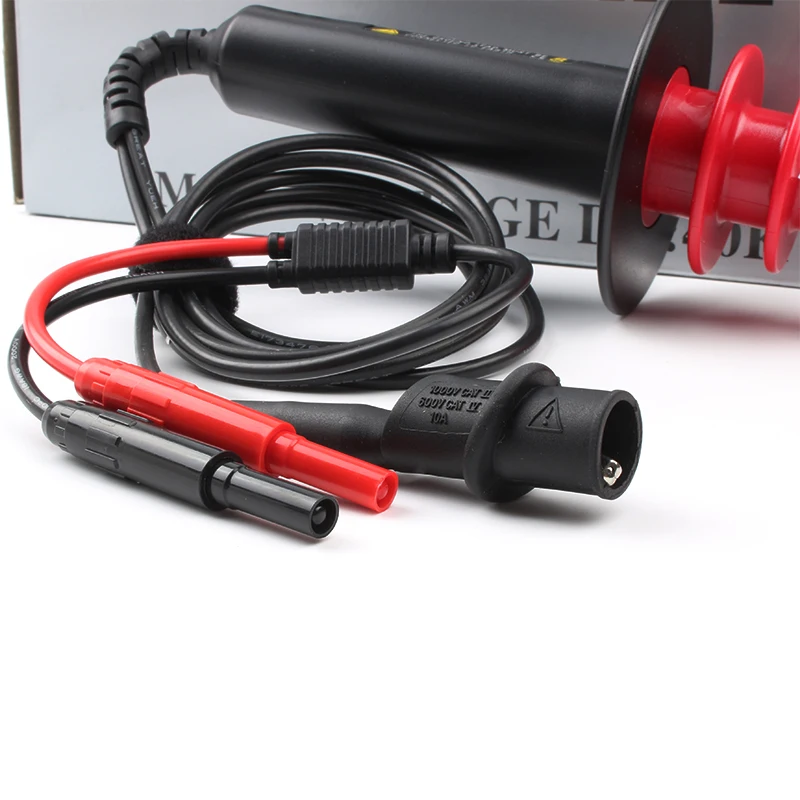

Ground Lead length:90cm ( 3ft )
Output cable length:100cm ( 3.3ft )
For:DMM
Output Division:1V / 1KV
Dimensions:340mm x 80
Weight: about 300g
Remark: For 10Mohm input impedance
DMM ( Accuracy < 0.5 % ) only.

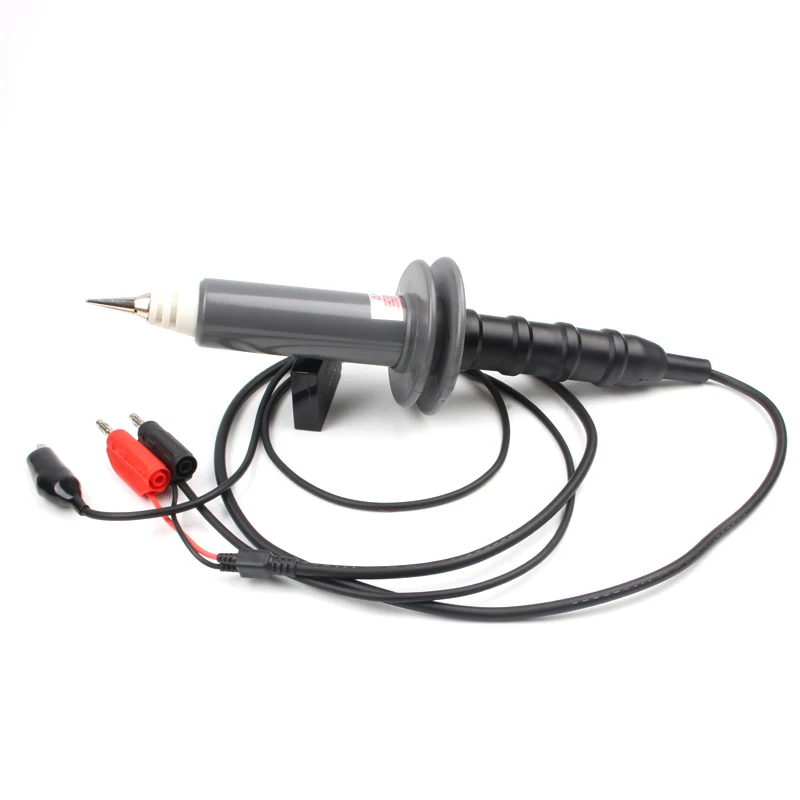

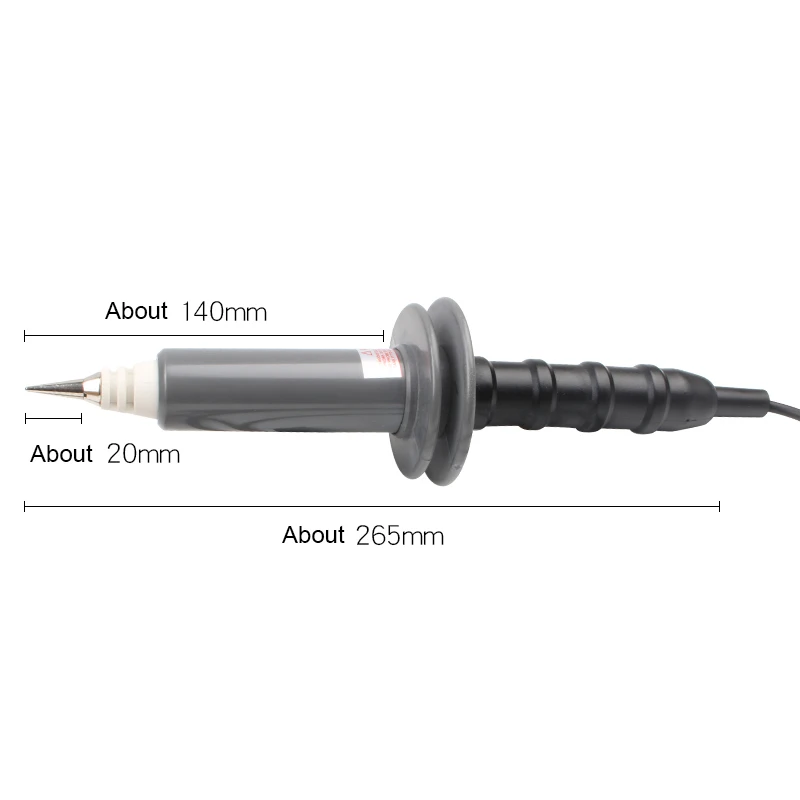

HVP3220

Input Impedance : 1000MoHM

Division Ratio: 1000:1

Max.Test Voltage : DC:0-20KV A:0-14KV

Accuracy:DC:+5% AC:+5%

Temp.Coefficient:<200PPM/degree

Operating temp: 0-50degree

Storage Temp:-20-70degree

Application: DMM

Out Division:1V/1KV

Dimensions:295mm*70

Weight:250g

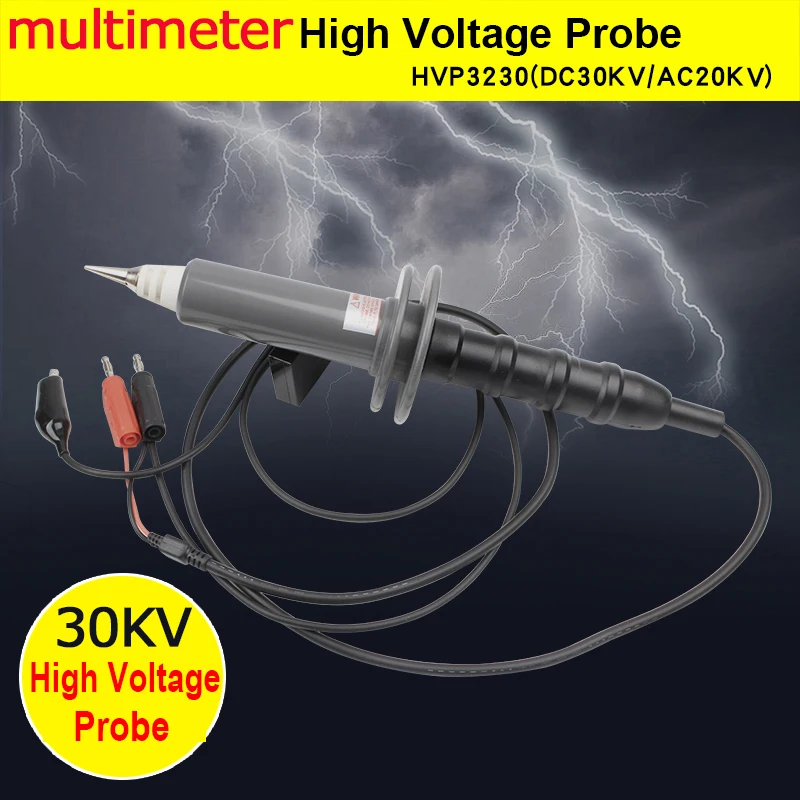

HVP3230

Input Impedance : 1000MoHM

Division Ratio: 1000:1

Max.Test Voltage : DC:0-30KV A:0-20KV

Accuracy:DC:+5% AC:+5%

Temp.Coefficient:<200PPM/degree

Operating temp: 0-50degree

Storage Temp:-20-70degree

Application: DMM

Out Division:1V/1KV

Dimensions:295mm*70

Weight:250g

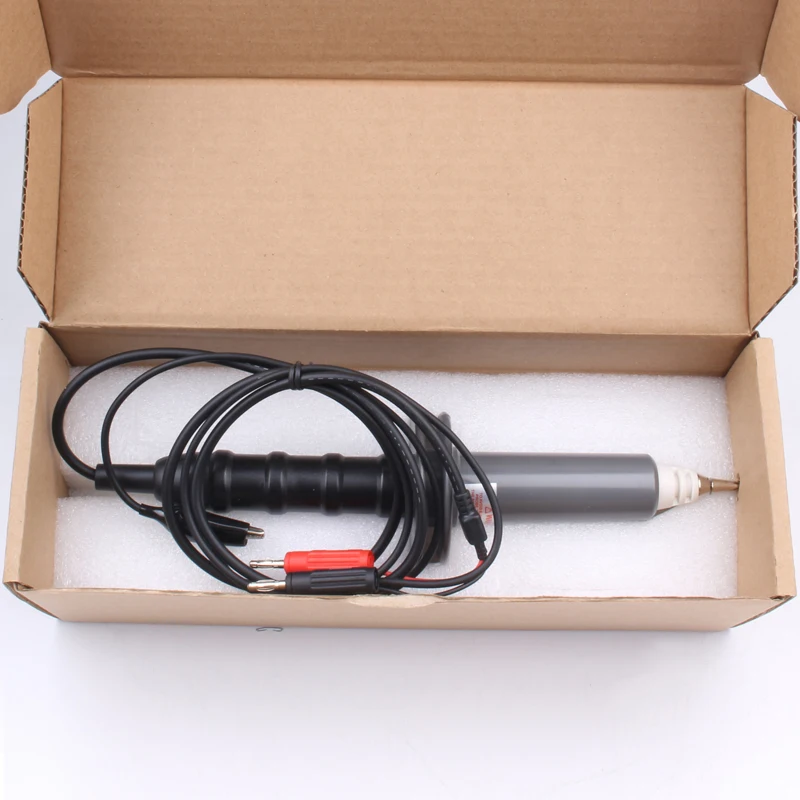

1X High Voltage Multimeter Probe

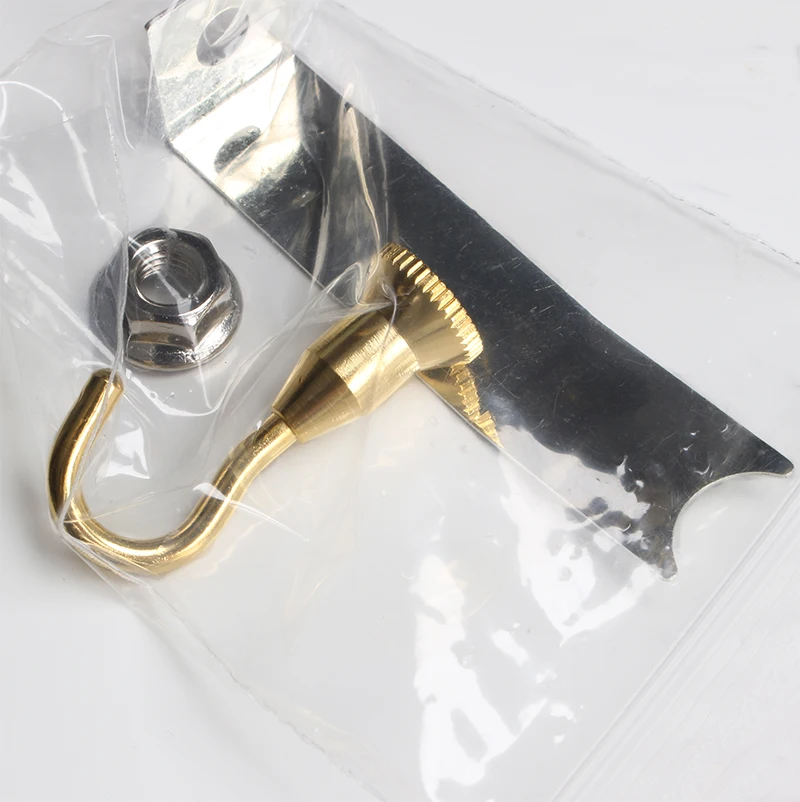

1X Accessories
