Digital Soil Humidity Controller Soil Moisture Meter Hygrometer Thermoregulator

Digital Soil Humidity Controller Soil Moisture Meter Hygrometer Thermoregulator STC-3029/STC-3030/STC-3031 AC110V-220V 1500W

Please note: There are three models to choose from:

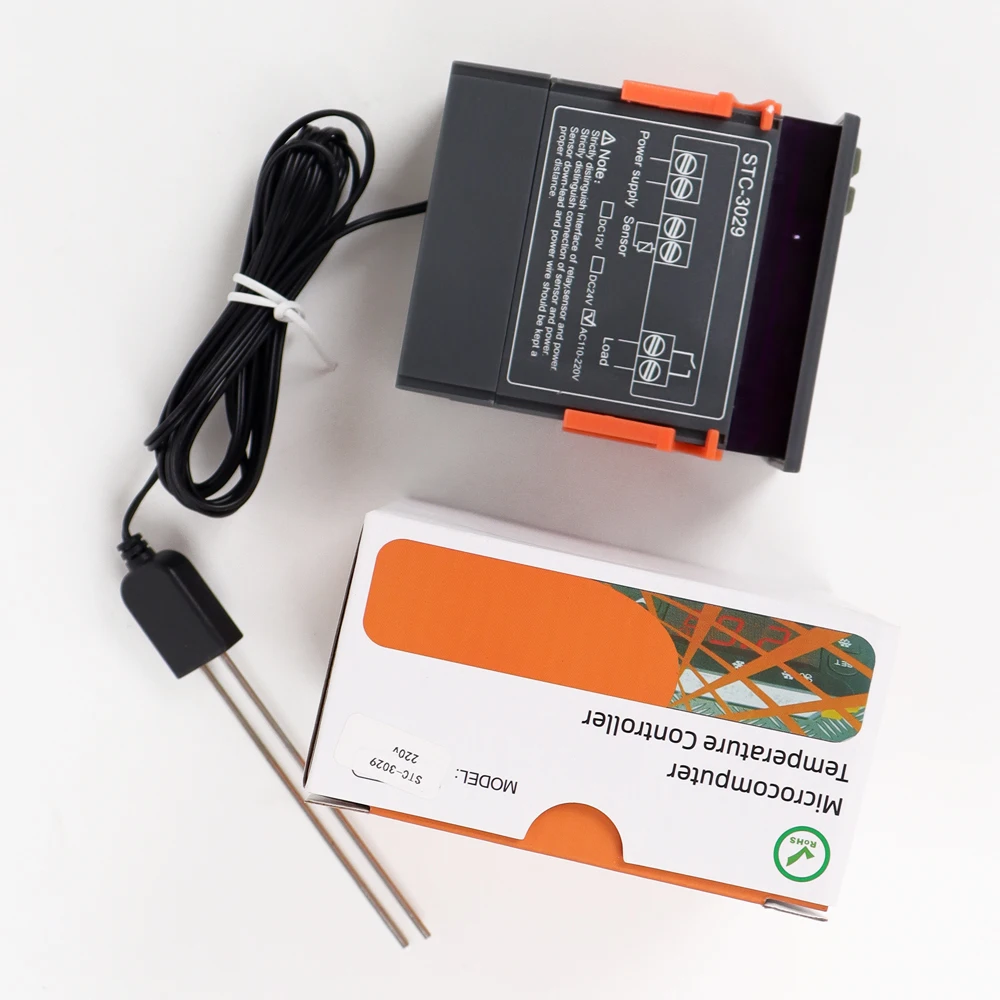

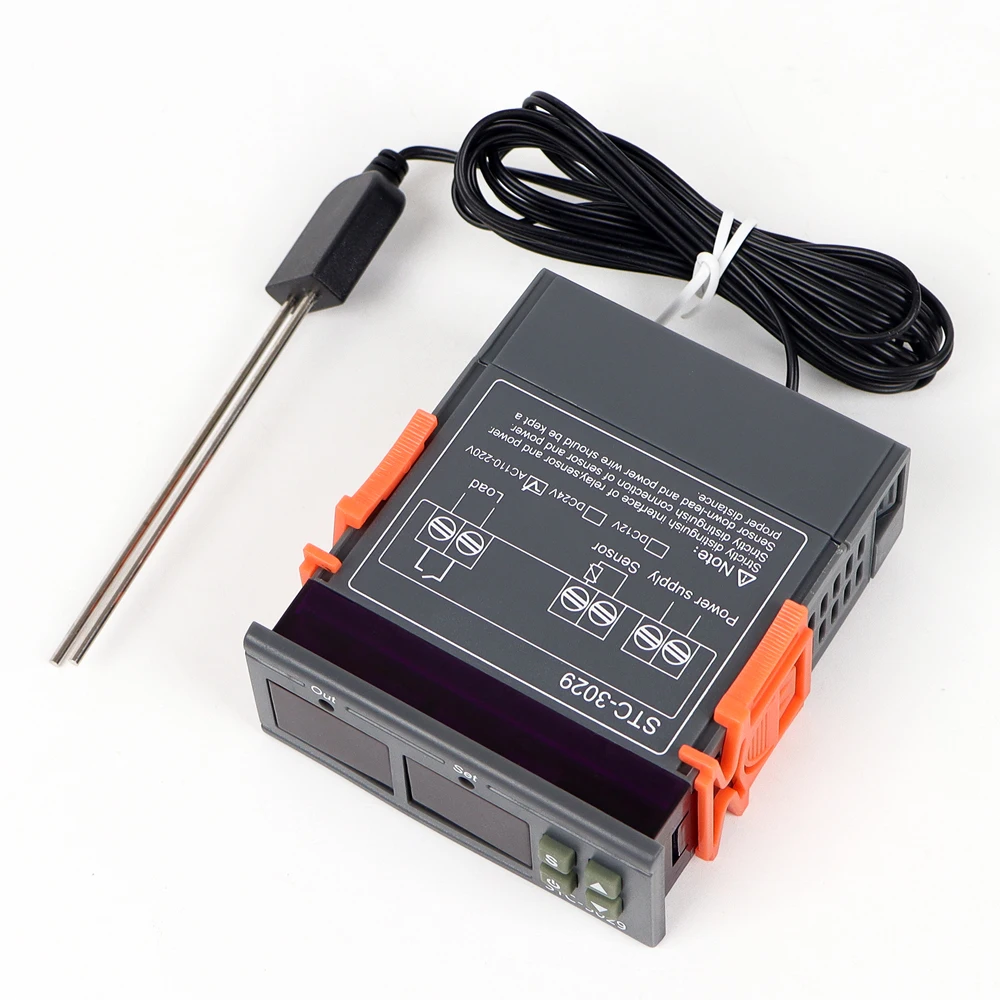

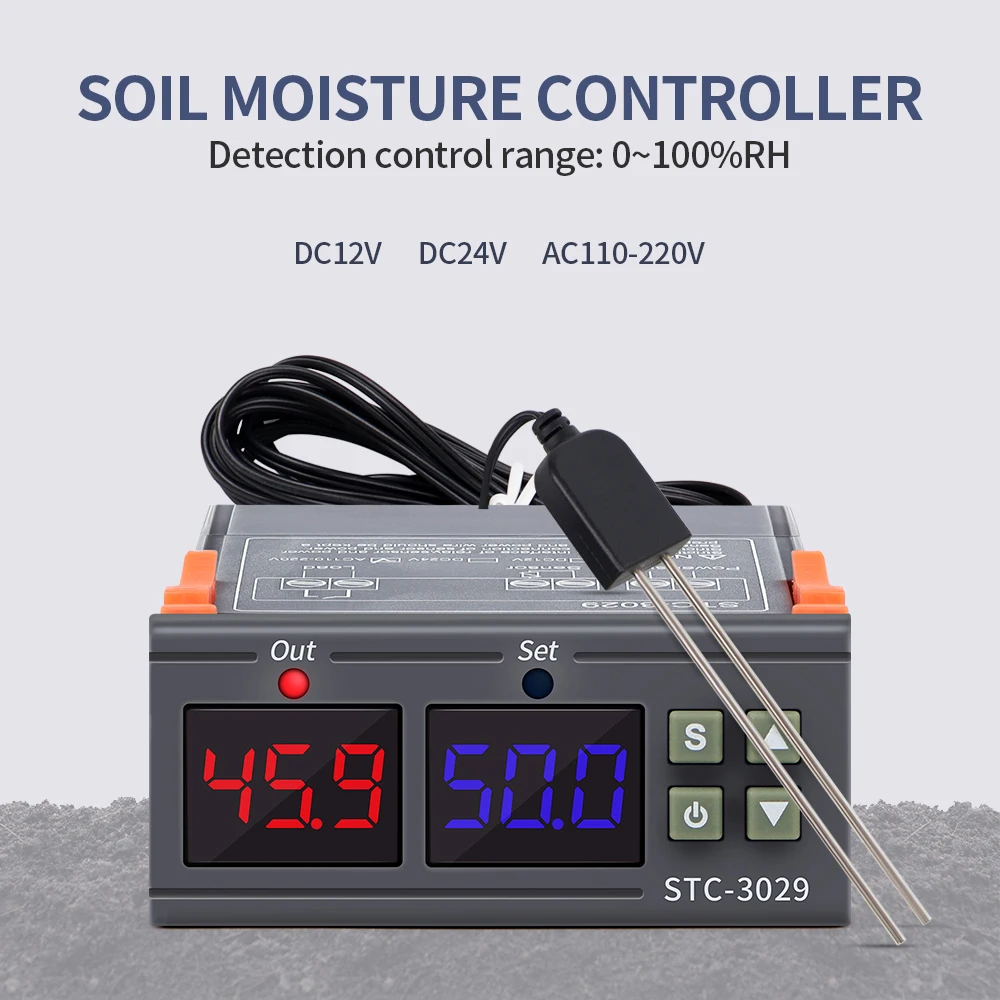

STC-3029 Soil Humidity Controller 220V, 1 soil sensor cable, single-channel control;

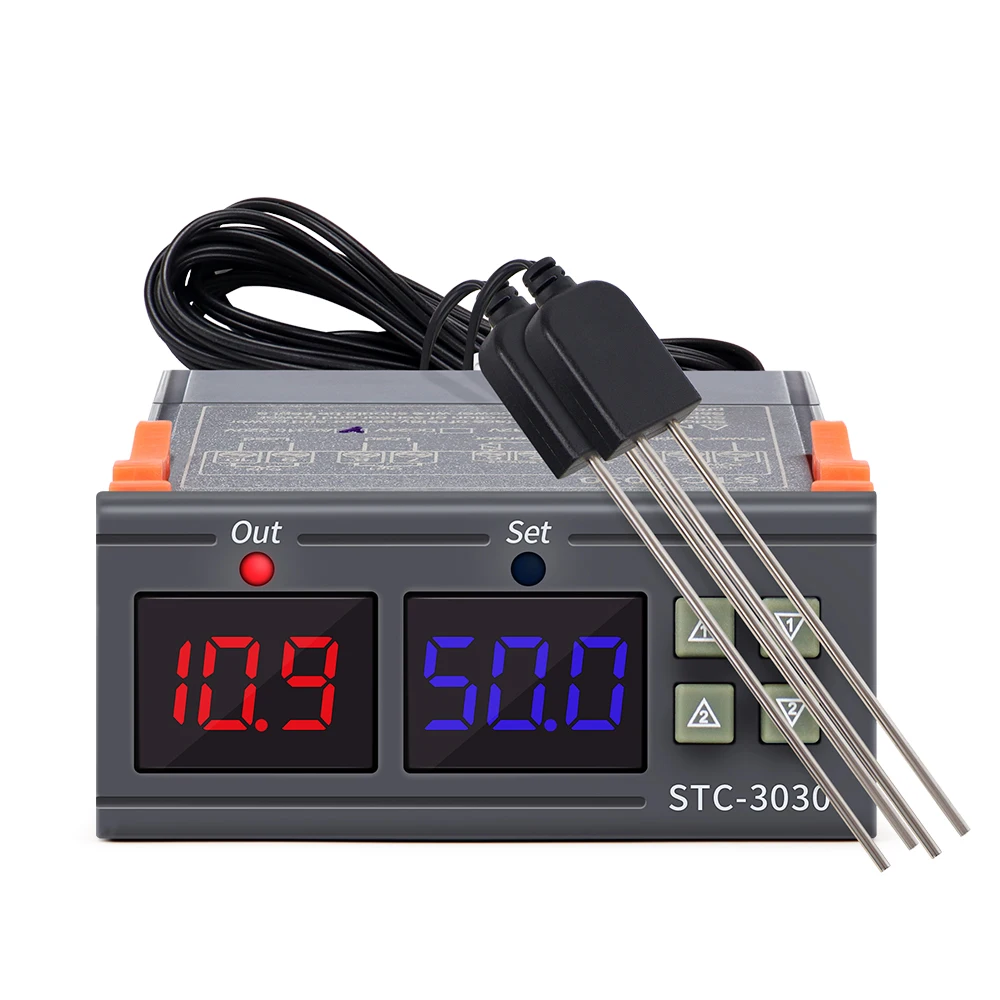

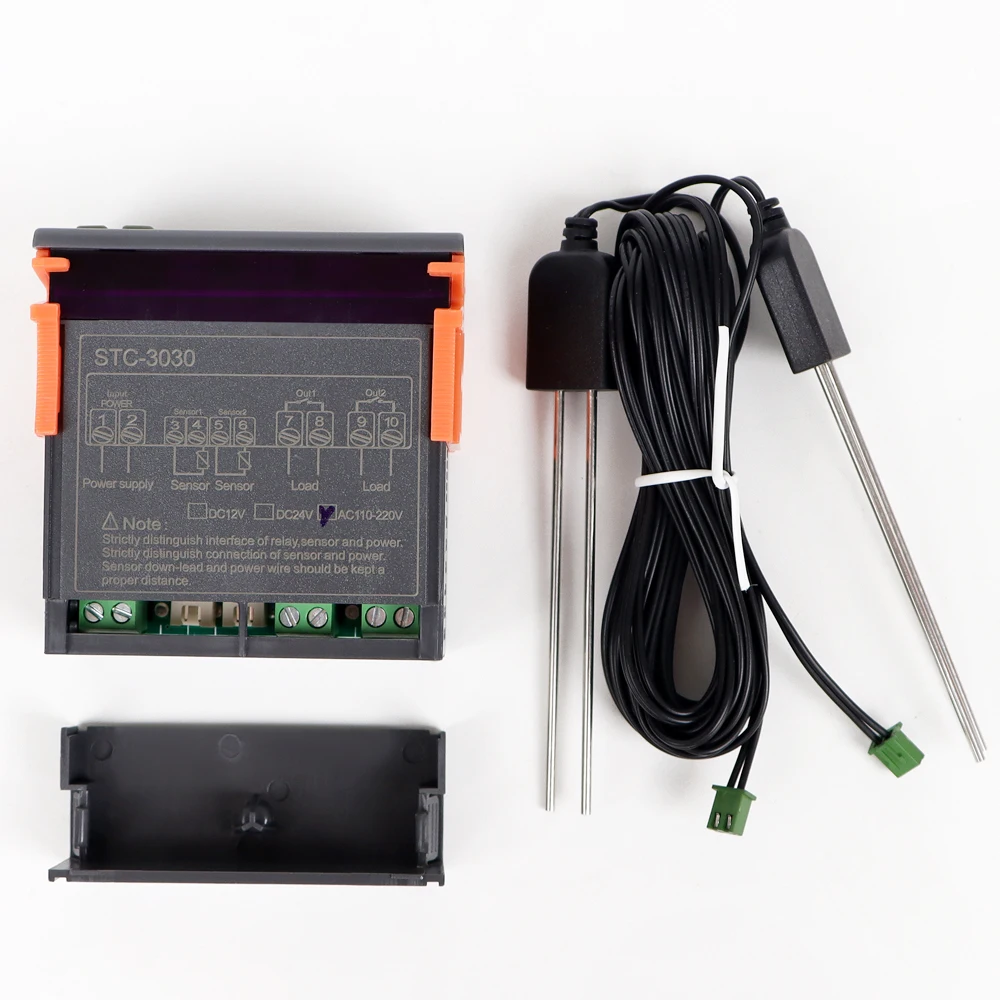

STC-3030 Soil Humidity Controller 220V, 2 soil sensor cable, dual-channel control;

STC-3031 Soil Humidity Controller 220V, 2 soil sensor cable, single-channel control;

Feature:

1. Can measure multiple types of soil, fast and easy to operate

2. Widely used in the following scenarios: water-saving glue filling, greenhouse, grassland pasture, plant culture, scientific culture, etc

3. Precise moisture control, automatic start and stop easily help you solve soil moisture problems

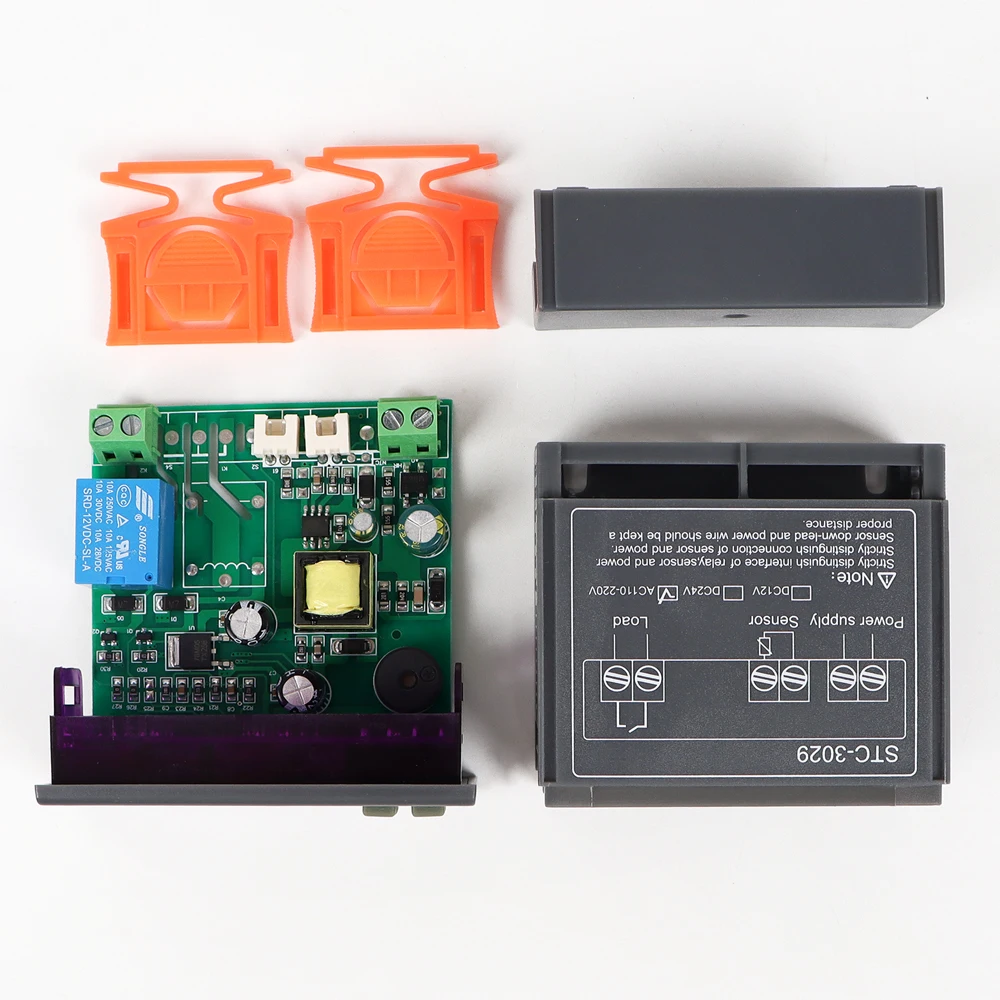

4. High quality chip is used inside the sensor to ensure low power consumption, high sensitivity and stable signal transmission

5. Accurate grasp of soil moisture: plants have different requirements for water and control how much water is easy to adjust

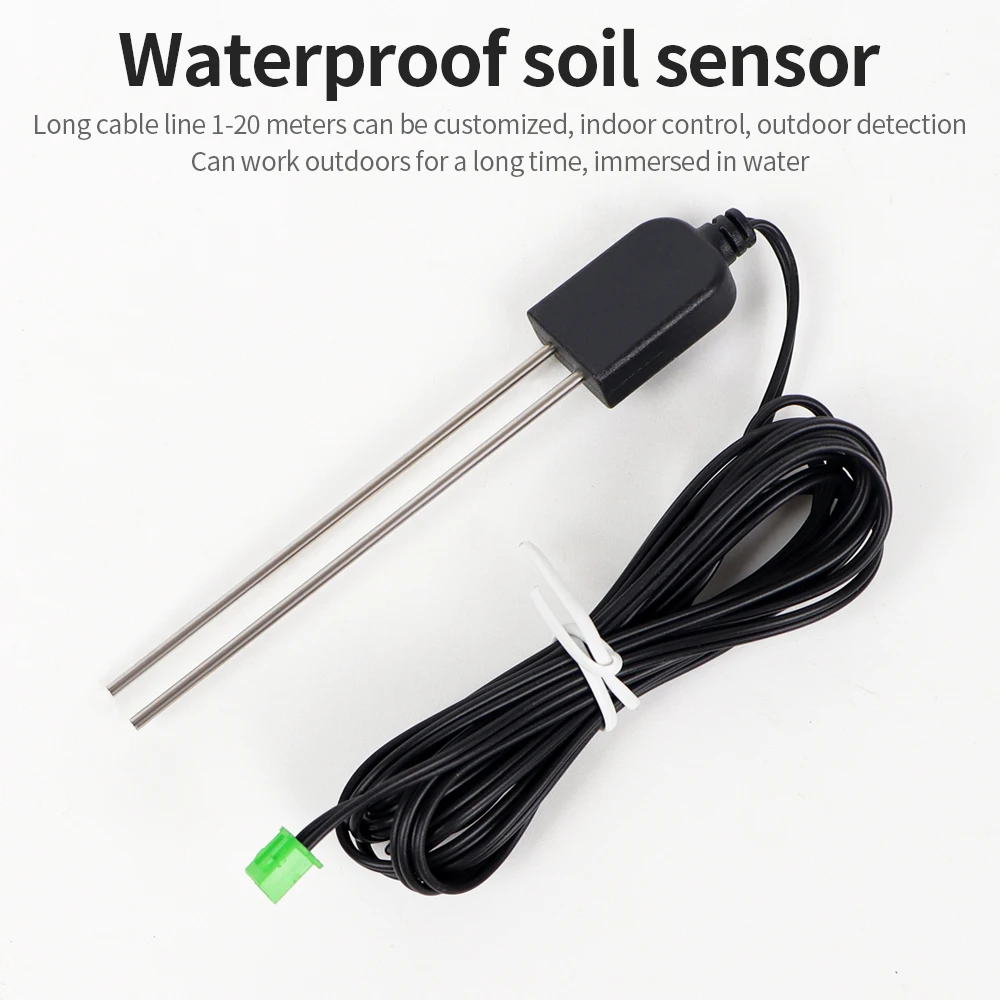

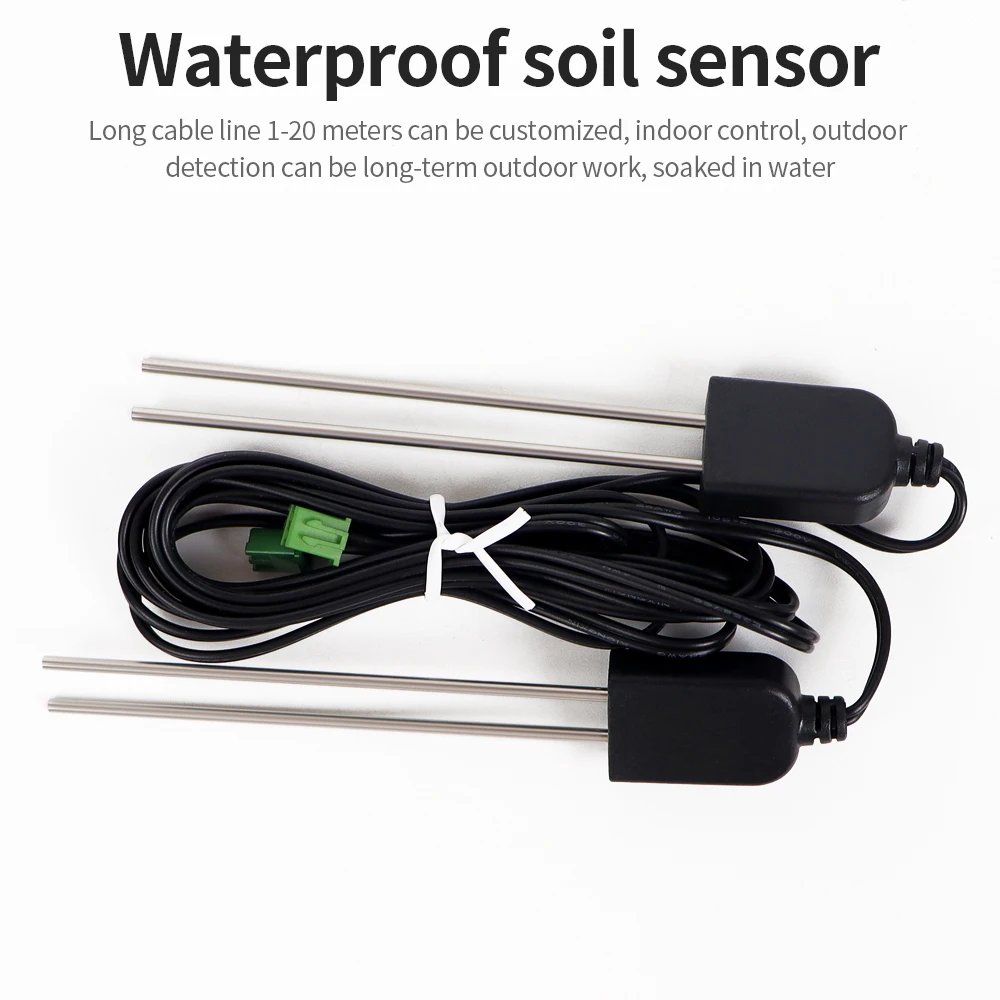

6. Ultra-long sensing line: 1-20 meters can be customized line length, outdoor control, outdoor detection, long-term outdoor work can be immersed in water

7. Two ways of soil moisture detection, two ways of output, you can set different values of output according to different soil moisture, independent control of output.

Product parameters:

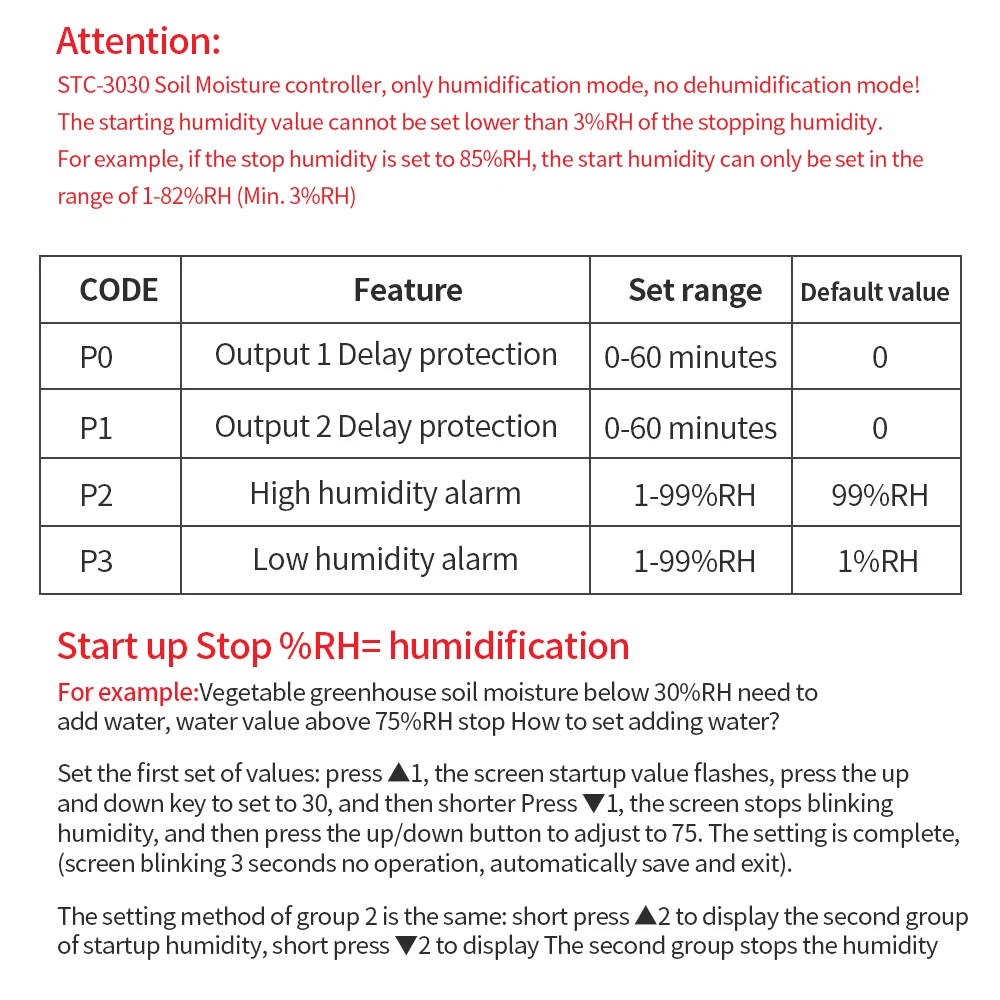

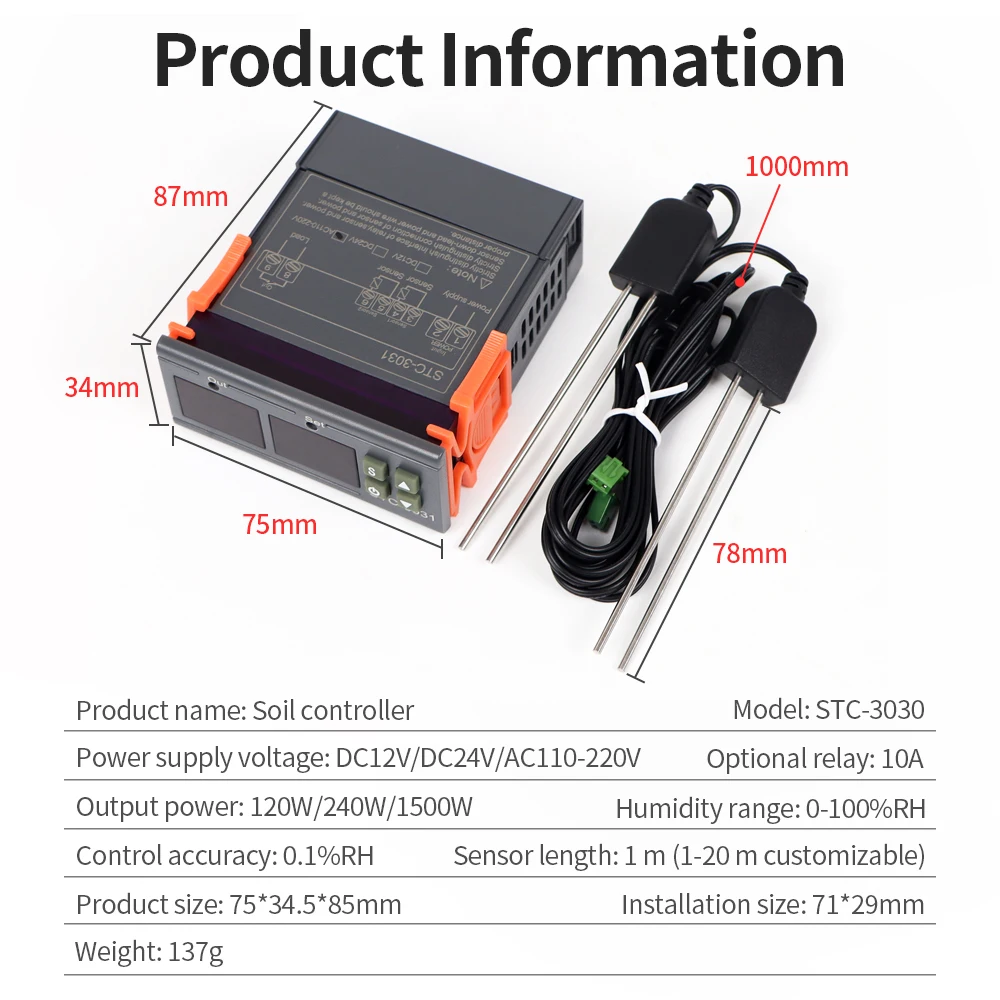

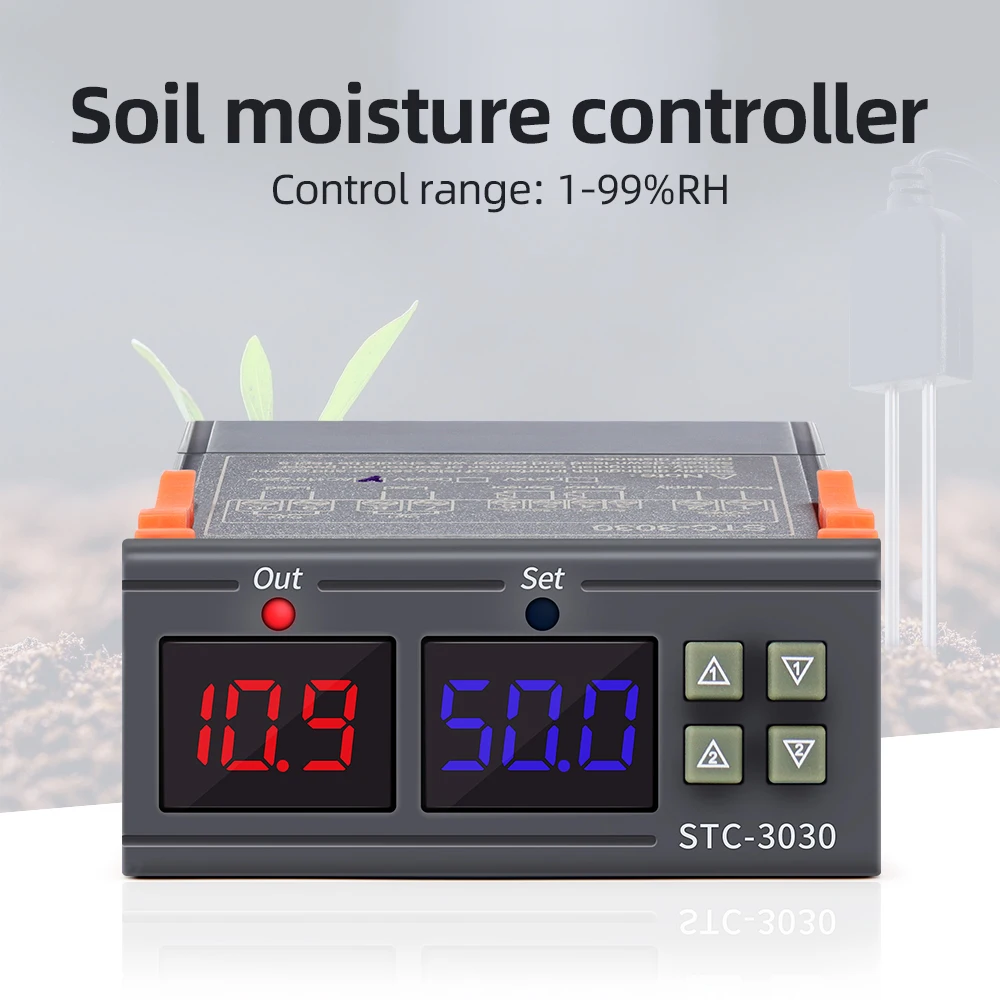

Product model :STC-3030

Measurement and control range :0%~100%

Resolution :1

Accuracy :1%

Relay output two contact capacity :10A/240VAC

Sensor: Two soil sensors with a line length of 1 meter

Output power :1500W

Power supply voltage :AC110-220V

Shell material: gray ABS flame retardant plastic shell

Power supply :110-220V AC10%, 50/60Hz

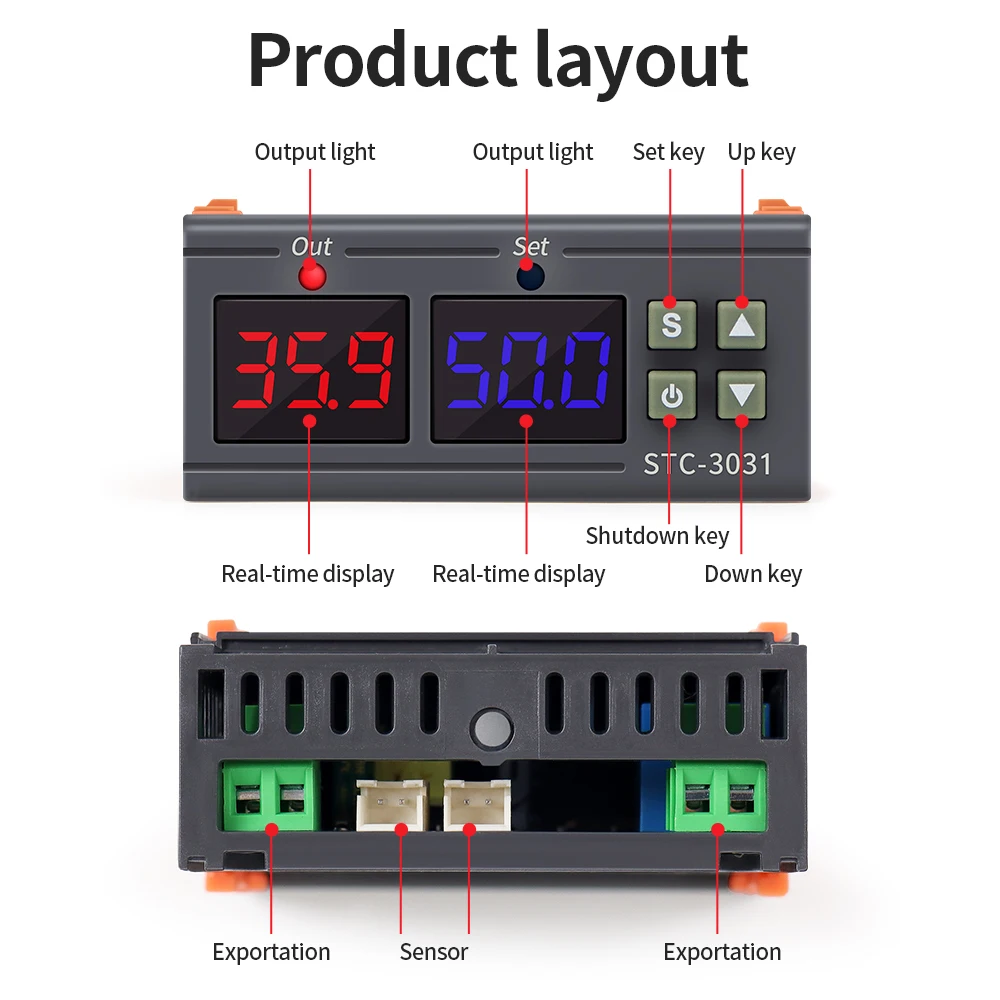

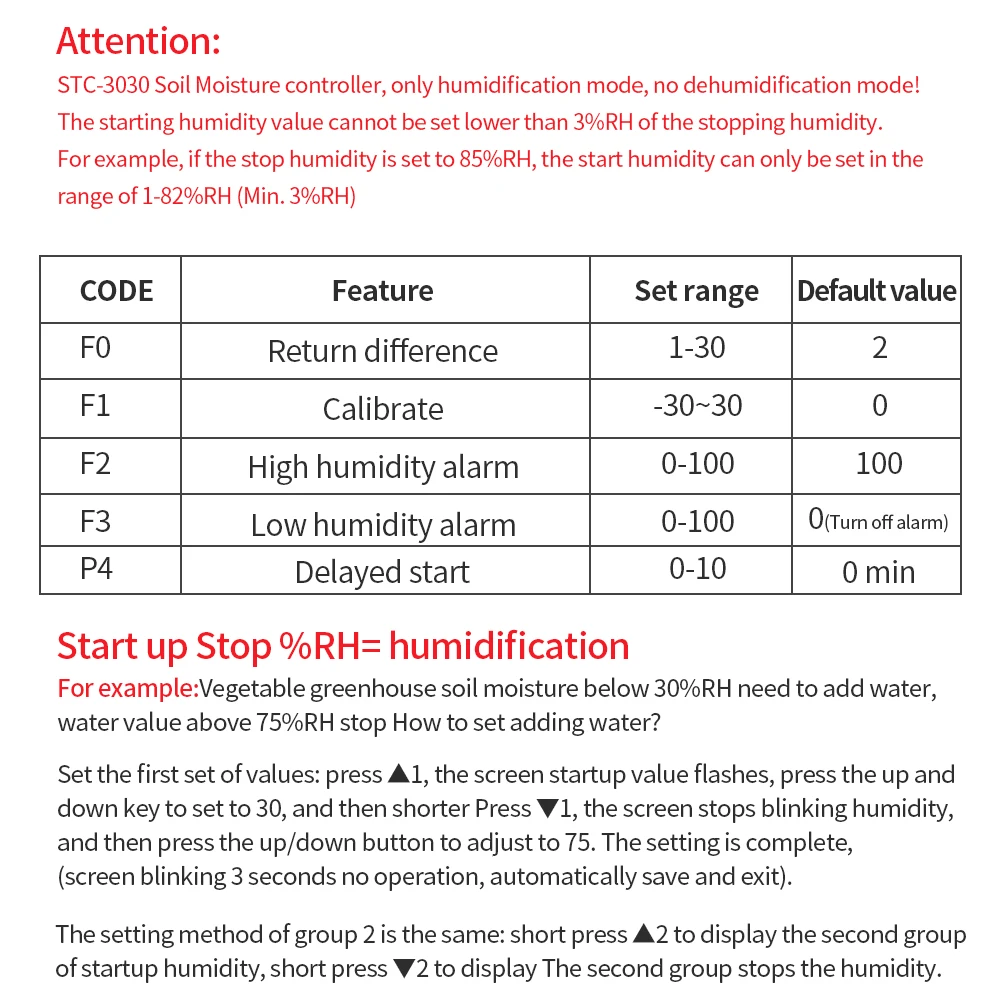

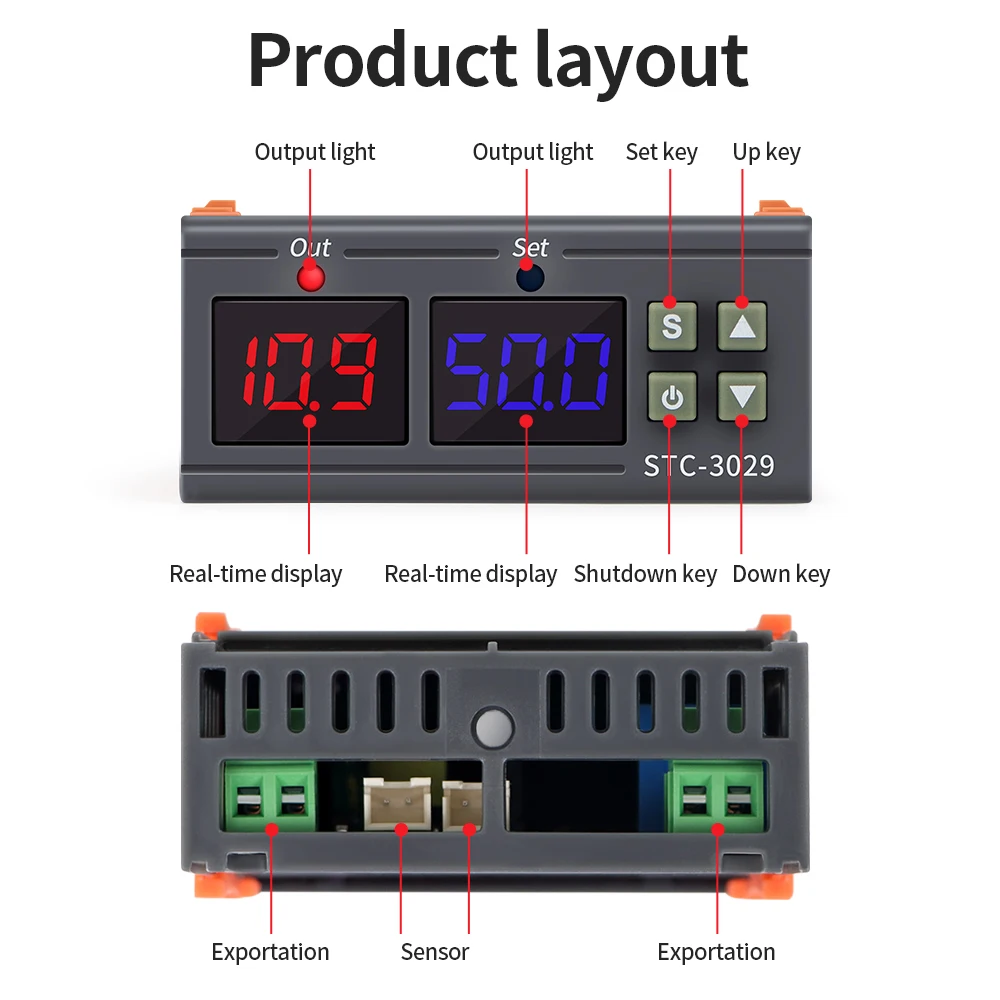

Long press "S" to enter the setting mode Function adjustment:

Code: F0 Function: Back error Setting range: 1-30 Default value: 2

Code: F1 Function: Calibration Setting range: -30~30 Default value: 0

Code: F2 Function: High humidity alarm Setting range: 0-100 Default value: 100

Code: F3 Function: Low humidity alarm Setting range: 0-100 Default value: 0 (Turn off alarm)

Code: F4 Function: Delayed start Setting range: 0-10 Default value: 0 minutes

Package included:

1 x Soil Moisture Controller

Features:
1.It can measure multiple types of soil, with fast speed and simple operation
2.It is widely applicable to the following scenarios: water-saving irrigation, greenhouse, grassland and pasture, plant culture, scientific culture, etc
3.Accurate humidity control and automatic start/stop can easily help you solve the problem of soil moisture
4.High-quality chips are used inside the sensor to ensure low power consumption, high sensitivity and stable signal transmission of the sensor
5.Accurate control of soil moisture: plants have different requirements for water. It is easy to adjust the amount of water

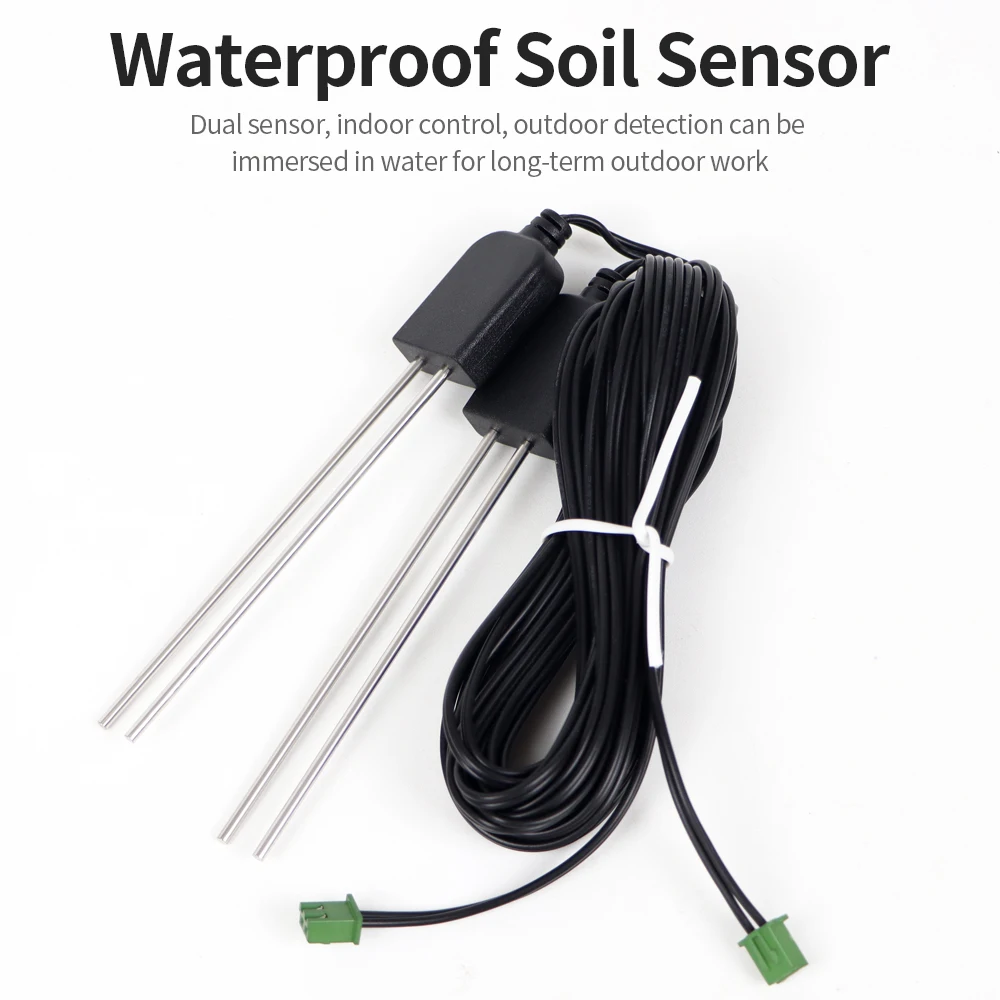

6.Ultra-long sensing line: 1-20 meters can be customized to achieve outdoor control, outdoor detection, and long-term outdoor work immersion
7.Two sensors control one output at the same time

Parameters:

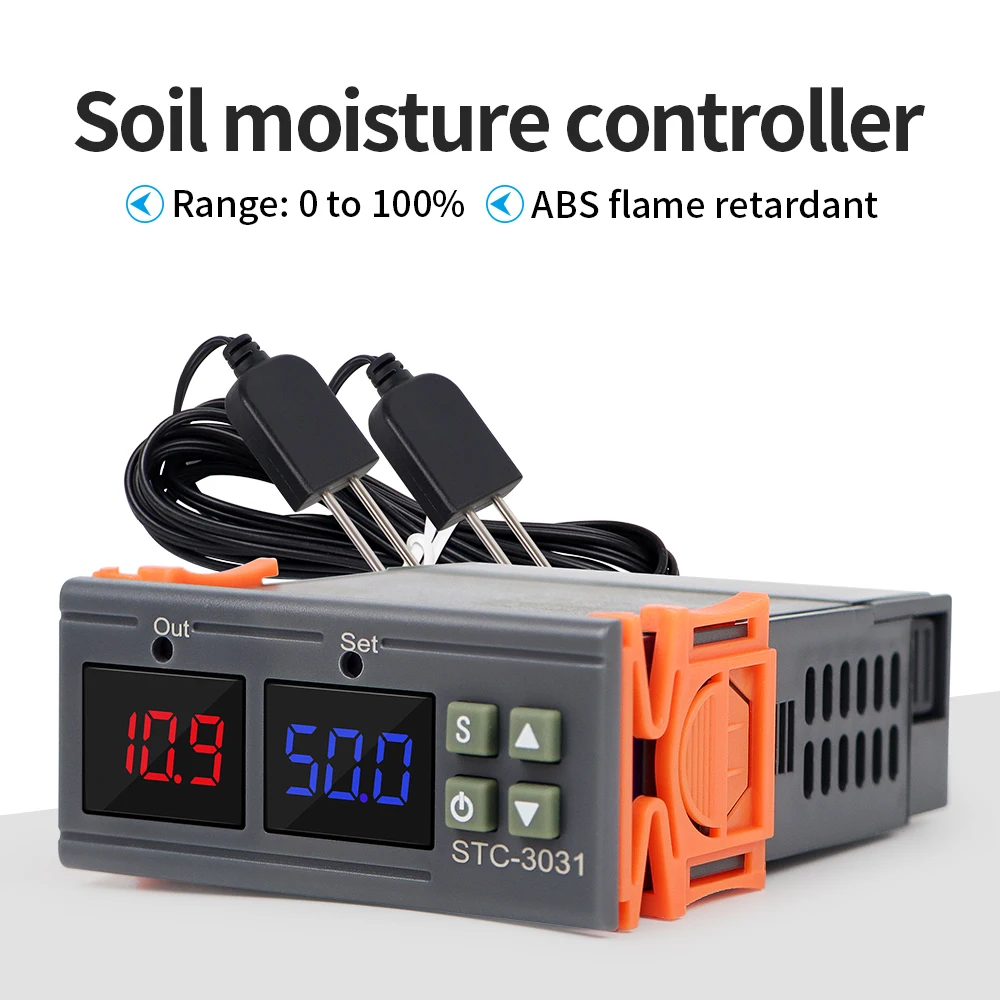

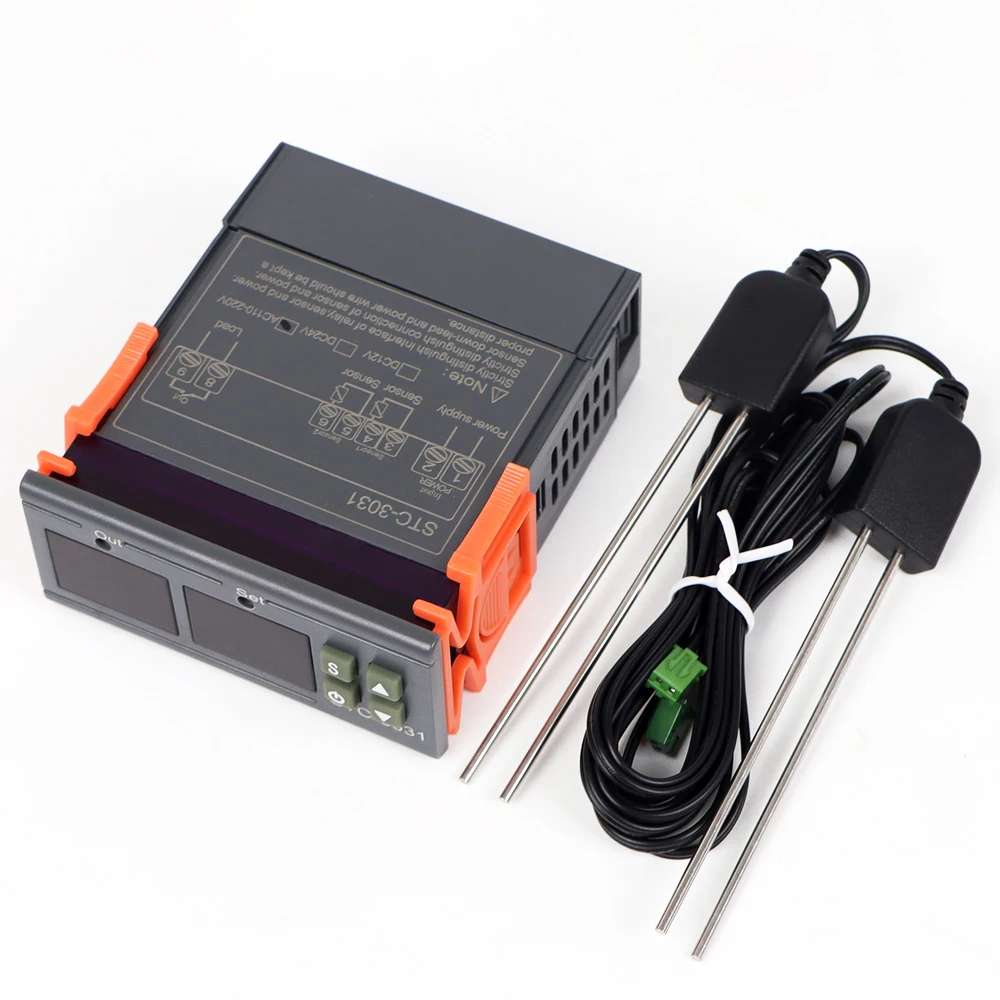

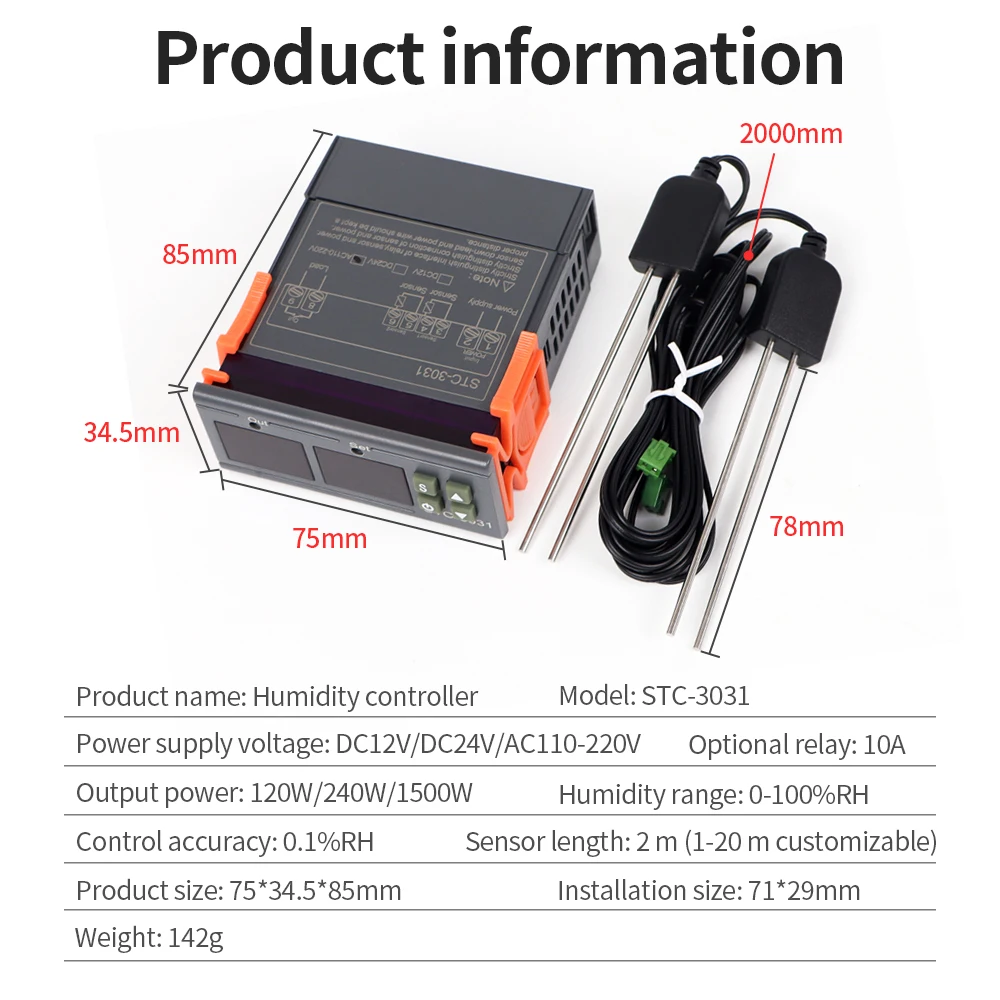

Product model: STC-3031
Measurement and control range: 0%~100%
Resolution: 1
Accuracy: 1%
Relay output two-way contact capacity: 10A/240VAC
Sensor: two soil sensors with a length of 1m
Output power: 1500W
Power supply voltage: AC110-220V
Shell material: grey ABS flame-retardant plastic shell
Power supply: 110-220V AC 10%, 50/60Hz

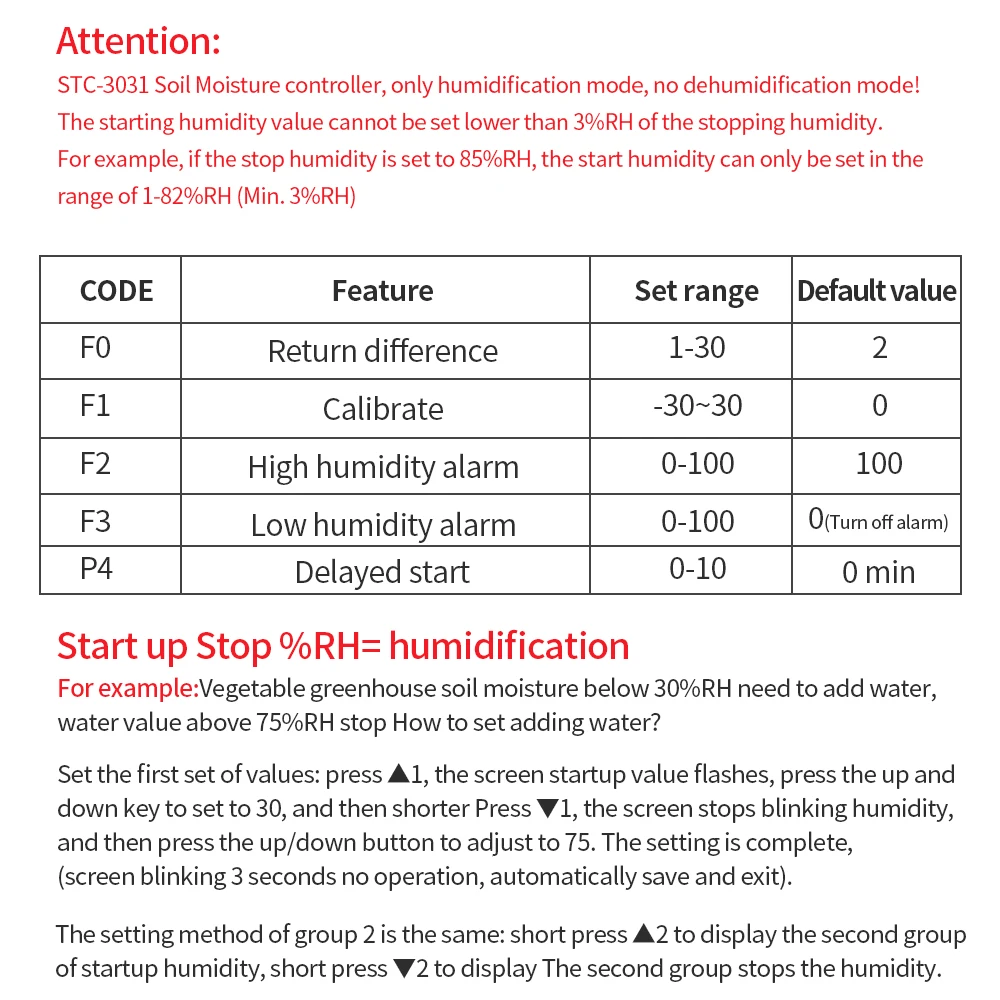

Press and hold "S" to enter the setting mode function adjustment:
Code: F0 Function: Variance setting range: 1-30 Default value: 2
Code: F1 Function: Calibration setting range: - 30~30 Default value: 0
Code: F2 Function: high humidity alarm setting range: 0-100 Default value: 100
Code: F3 Function: low humidity alarm setting range: 0-100 Default value: 0 (close alarm)
Code: F4 Function: Delay start Setting range: 0-10 Default value: 0 minutes
