Digital Virtual Oscilloscope 4-Channel Automotive Diagnostic Storage Tool 70Mhz

Hantek PC USB Oscilloscope 4 Channels 70-250MHz 1GSa/s Portable Osciloscopio Portable Diagnostic-Tool 6074BC 6104BC 6204BC 6254BC

Hantek6004BC Series

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth. It is powered by USB2.0 Interface, plug and play device with small size which is easy for carrying. High cost performance, pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

Features:

The performance of this model could even better than the performance of benchtop oscilloscope. It has 4 independent analog channels, 1GSa/s real-time sampling rate, 2mV-10V/DIV input sensitivity, and 250MHz bandwidth.

Pass/fail test, resourceful trigger function, dynamic cursor tracking, waveform record and replay function. The operation interface is similar to banchtop oscilloscope, easy to operate with high cost performance.

USB2.0 Interface, plug and play device.

Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with iPad -

Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.

Fit for the portable computers, table PC, and repairing/fixing of production line. Suitable for business trip use.

Software support: Windows10, Windows 8, Windows 7Tablet PC, laptop

The waveform data could be output to EXCEL,BMP,JPG as time and voltage category.

More than 20 kinds of automatic measurement function, PASS/FAIL Check function, fit for engineering application.Automatic measurement of maximum value, minimum value, peak-to-peak value, top value, low end value, intermediate value, effective value, amplitude, average value, cycle average value, preshoot, overshoot, cycle, frequency, rise time, fall time Positive duty cycle, negative duty cycle, positive pulse width, negative pulse width.

Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

FFT spectrum analyzer

One computer could connect with multiple oscilloscopes, expand the channel number easily.

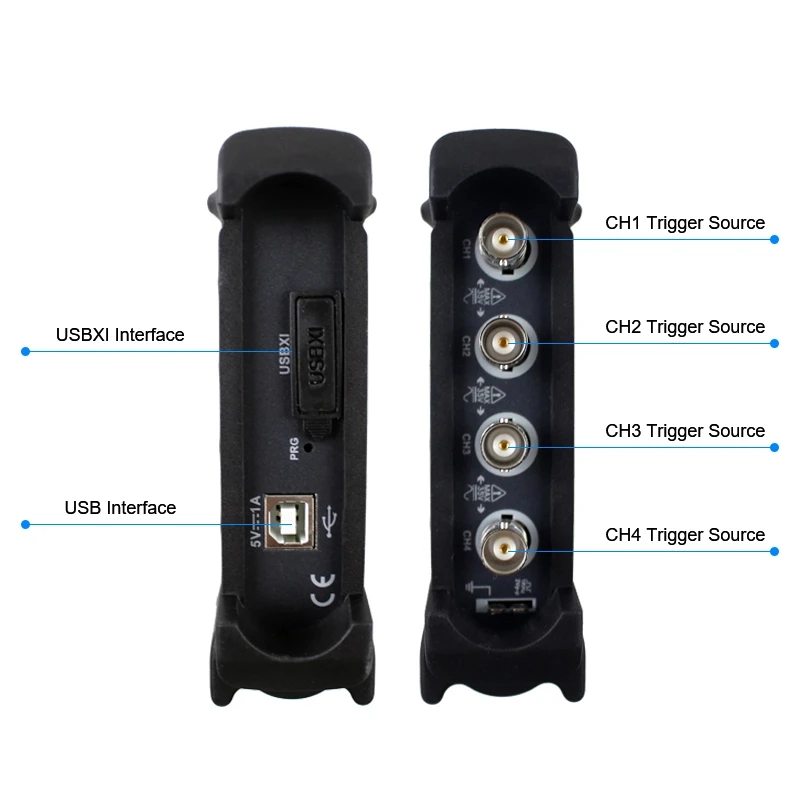

USBXI standard interface, easy to insert into USBXI case to constitute assembling instrument.

Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples

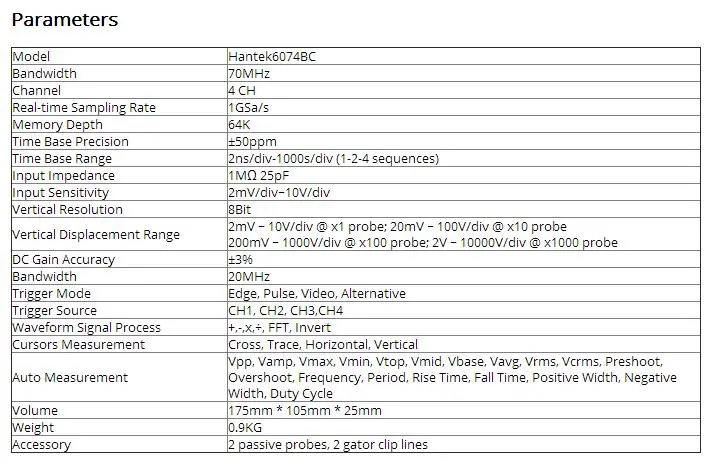

Specifications:
