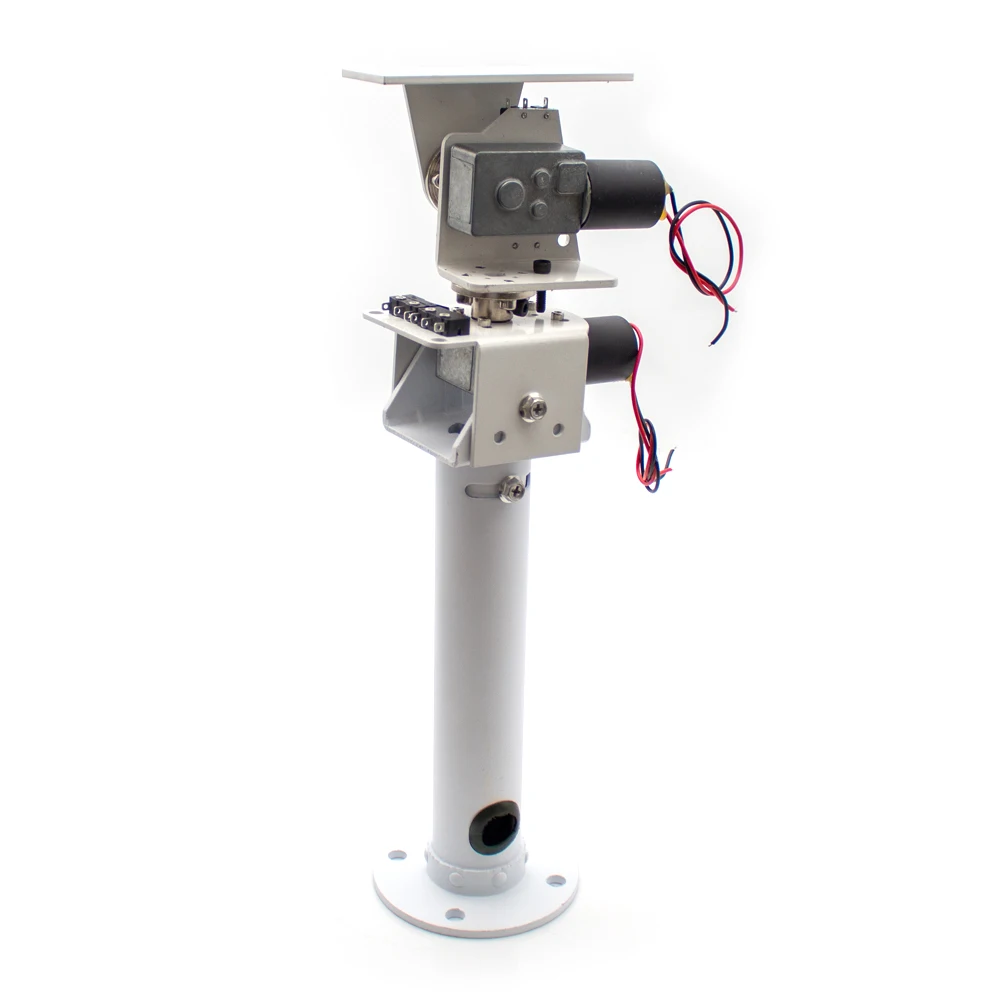

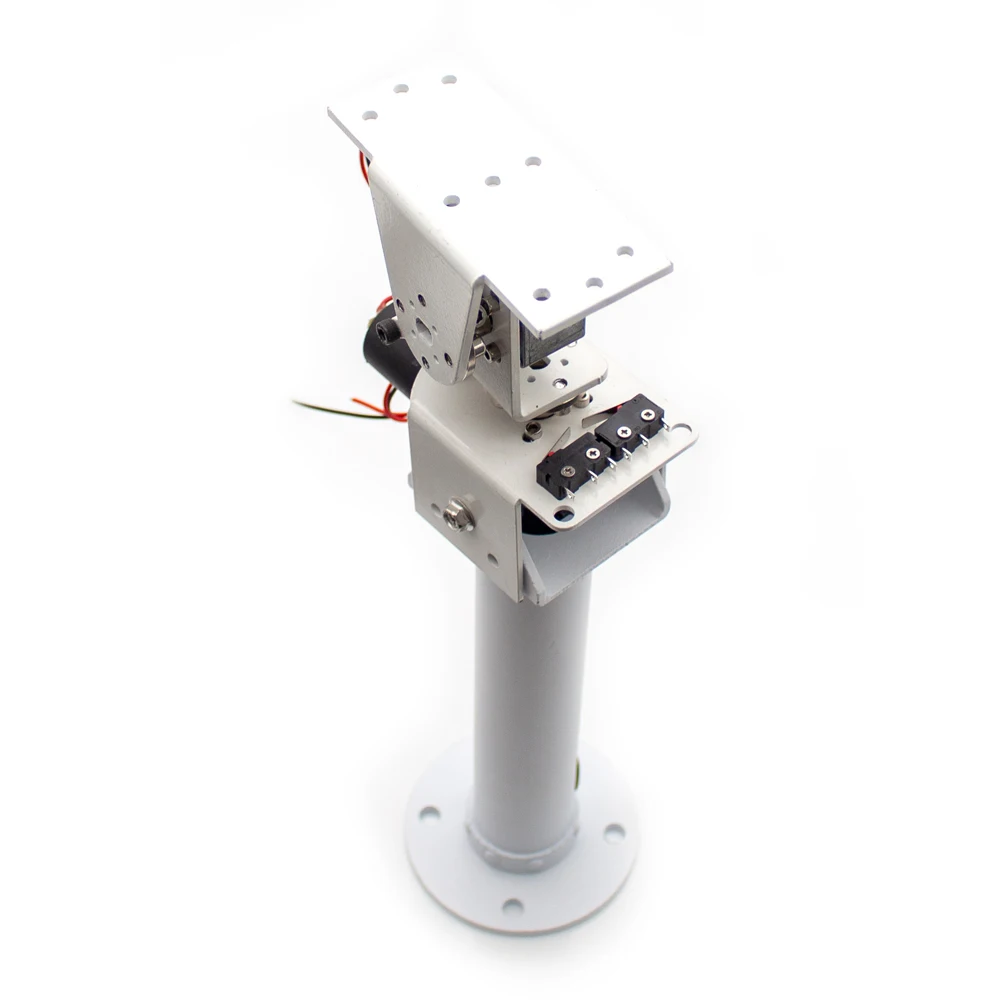

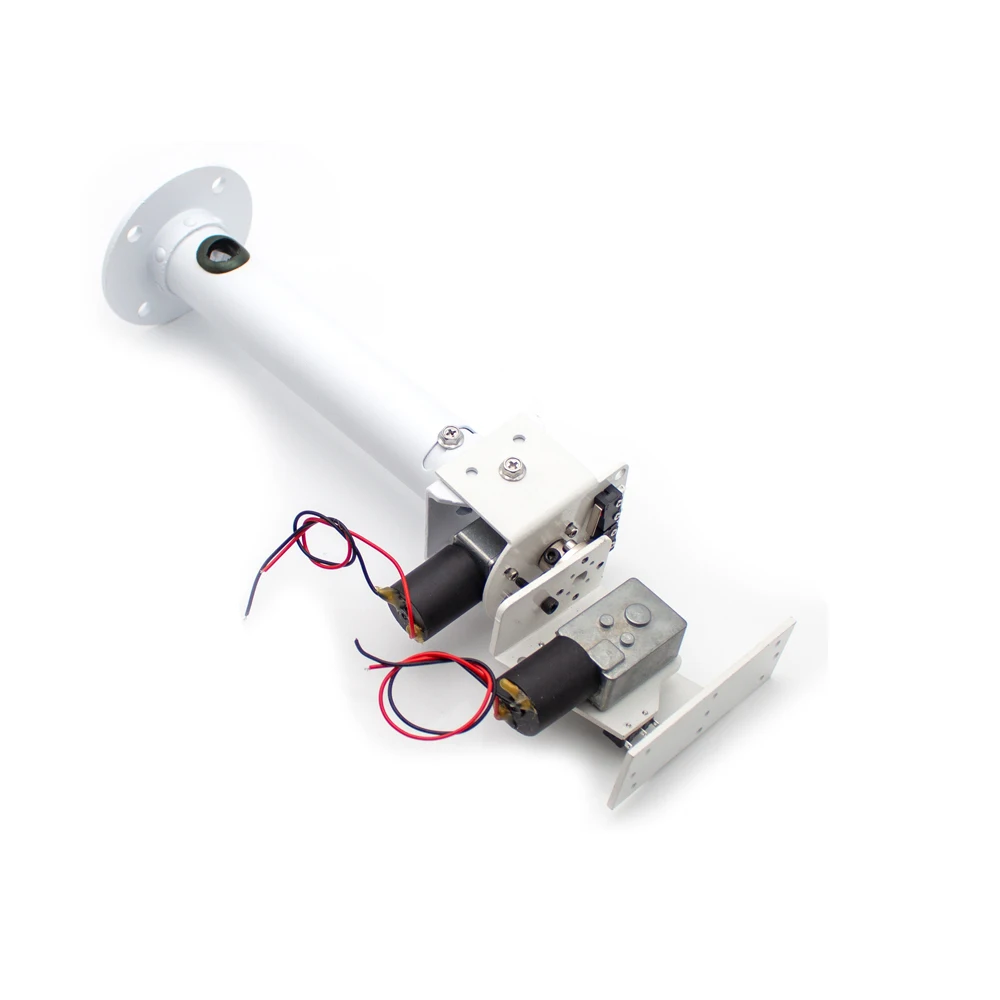

DIY DC Dual Axis Pan Tilt Solar Tracking and Monitoring Robot Heavy Load High To

Description:

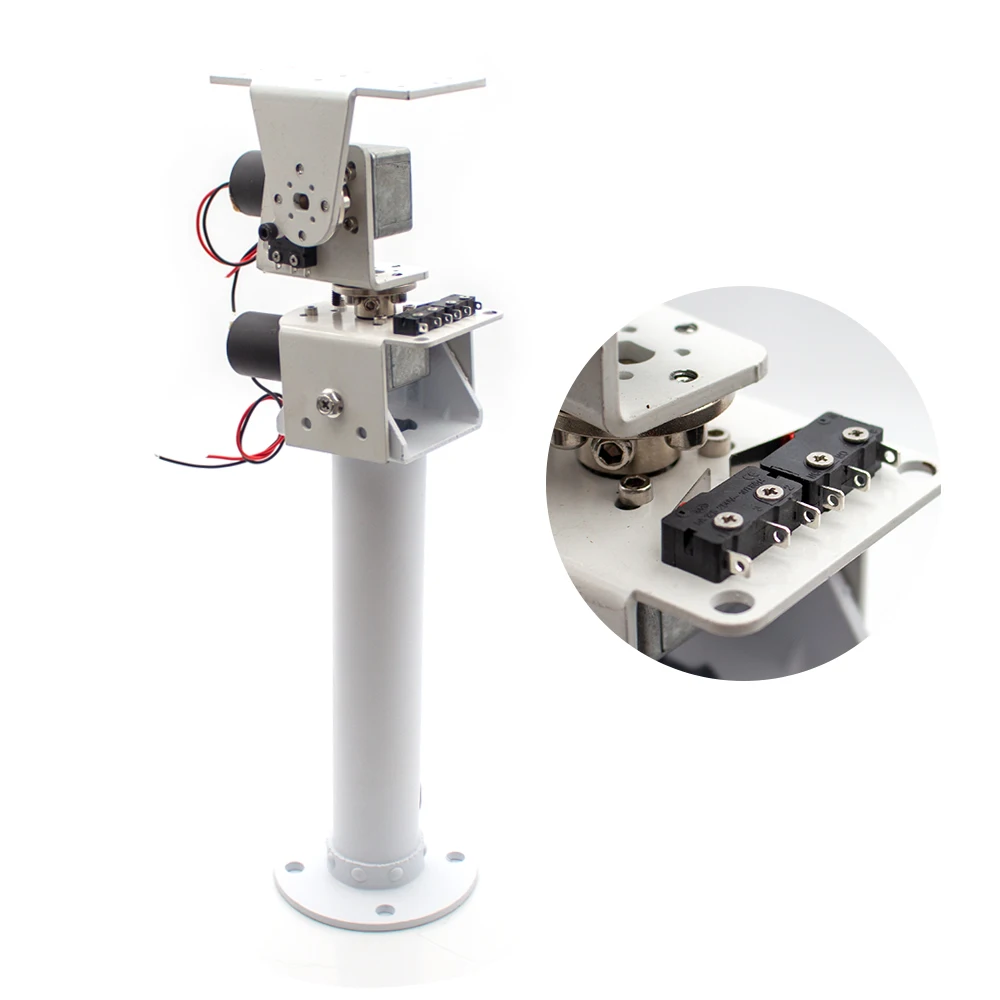

The fuselage is made of all-metal, and the bracket is made of ultra-thick aluminum alloy, with excellent stability! Ultra-low-speed worm gear motor, all-metal gear, torque 35KG, with self-locking, to achieve all-round dual-axis tracking, two horizontal limit switches, and two vertical limit switches to prevent winding wires.

Specification:

Motor name: worm gear motor
Motor voltage: 5V-12V-24V
Motor power: 30W
Horizontal rotation angle: 340

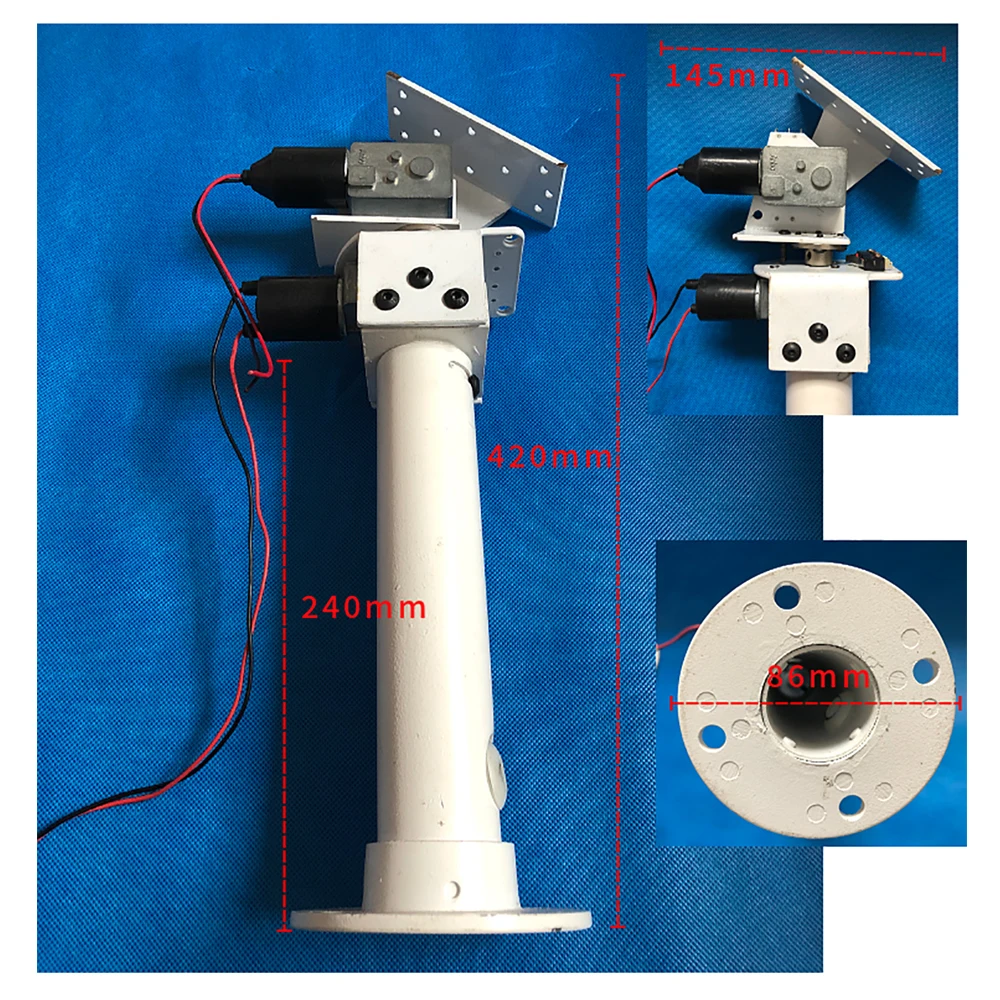

Pan Tilt base size: 86MM
Pan Tilt Height: 420MM
Pan Tilt Mounting Panel: 40x100MM
Worm: 240MM
Horizontal load bearing: 60KG
Vertical rotation angle: 120
Vertical load: 25KG
Bracket material: aluminum alloy + 3MM steel plate
Gearbox material: all metal gears

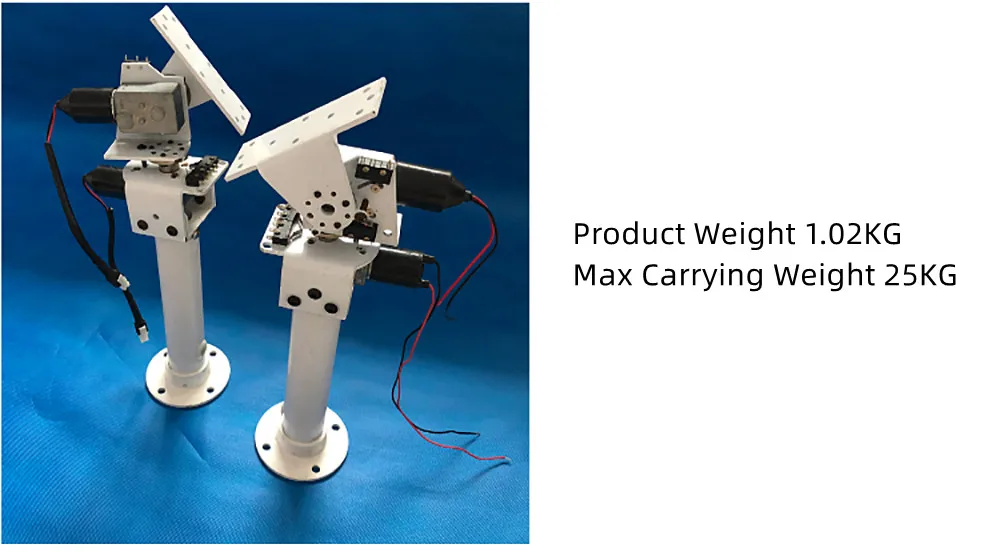

Product weight: 1.02KG
