DN15/DN20/DN25 Gas Flow Meter High-Precision Electronic Digital Display Roots Fl

DN15/DN20/DN25 Gas Flow Meter High-precision Electronic Digital Display Roots Flow Meter for Natural Gas Oxygen Compressed Air

Features:

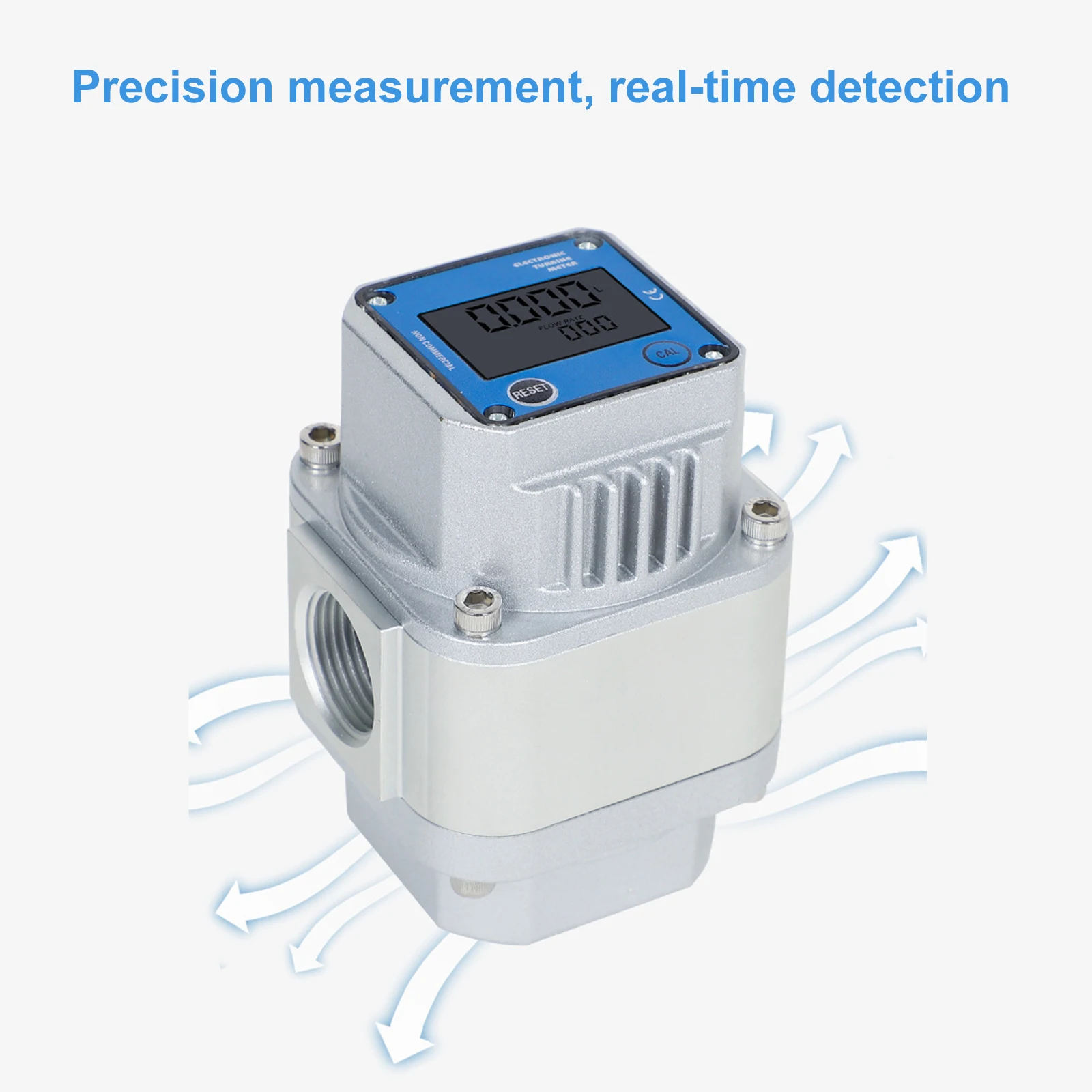

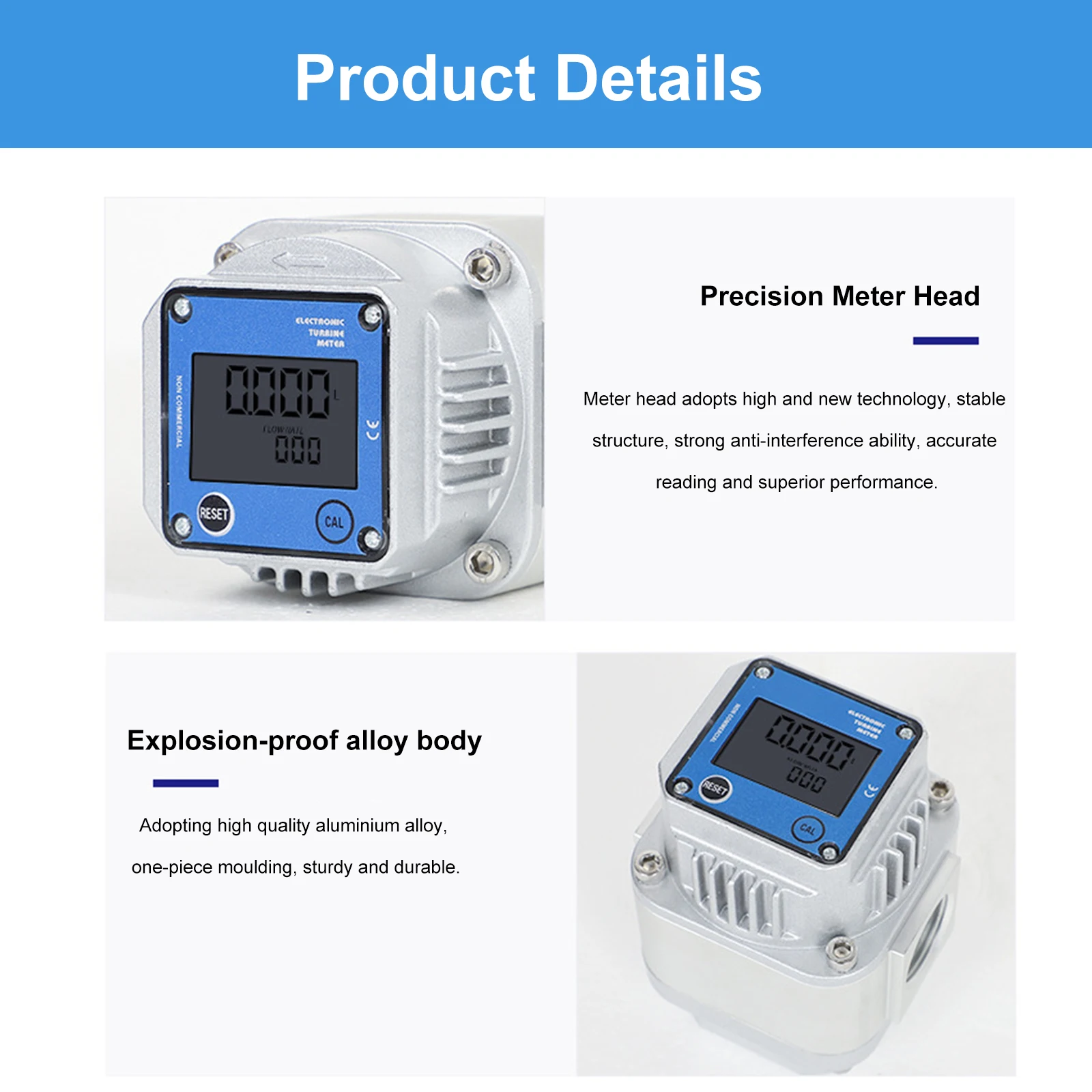

Accurate measurement: Individual totalization/total totalization/zero setting/record keeping for 10 times can be displayed. Measuring unit can be switched between L/min or m/h.
Professional gas metering, DN15/DN20/DN25 three calibers to meet different needs.
Widely used in municipal gas, petrochemical, industrial metallurgy, etc. Liquefied natural gas, nitrogen, steam, pipeline gas, etc.

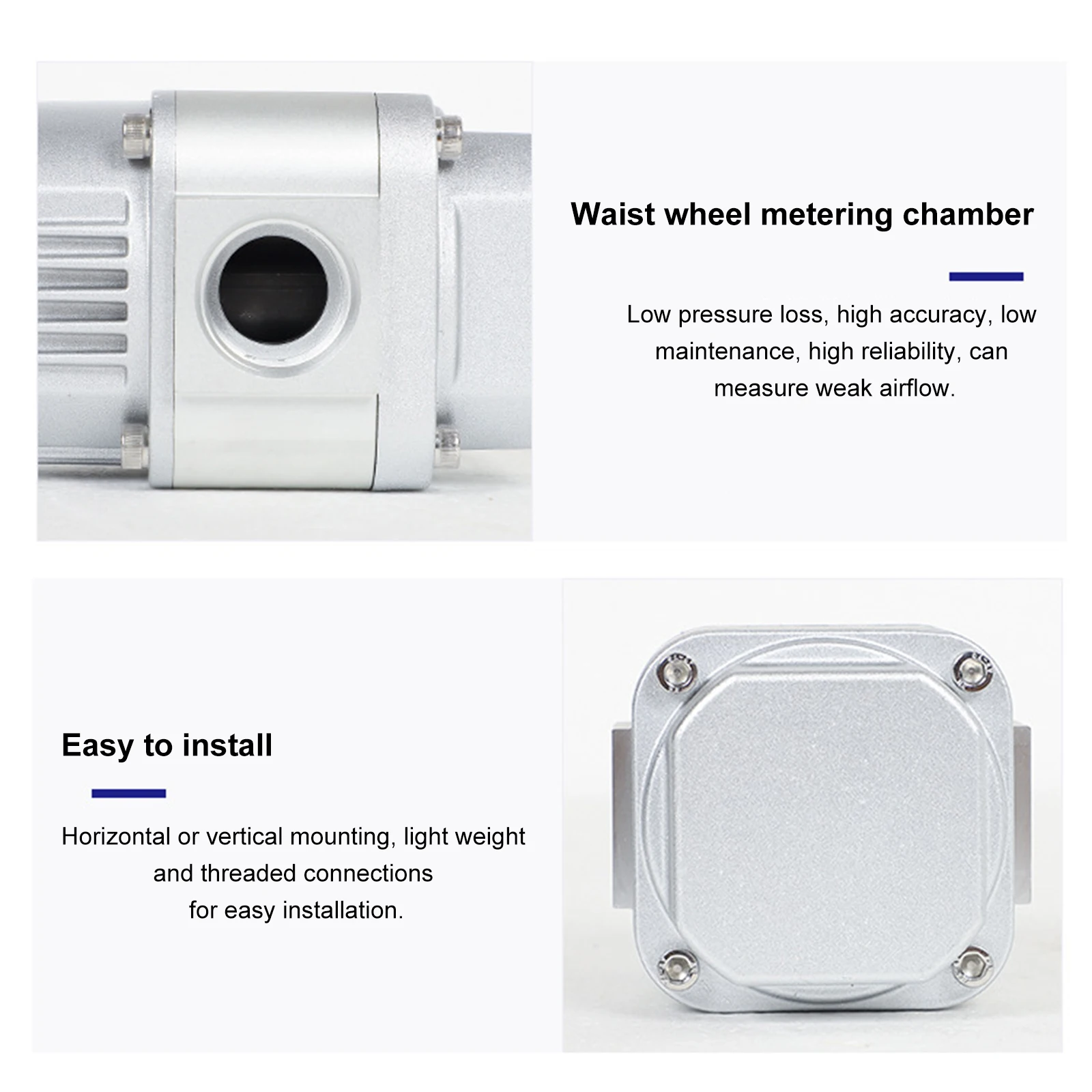

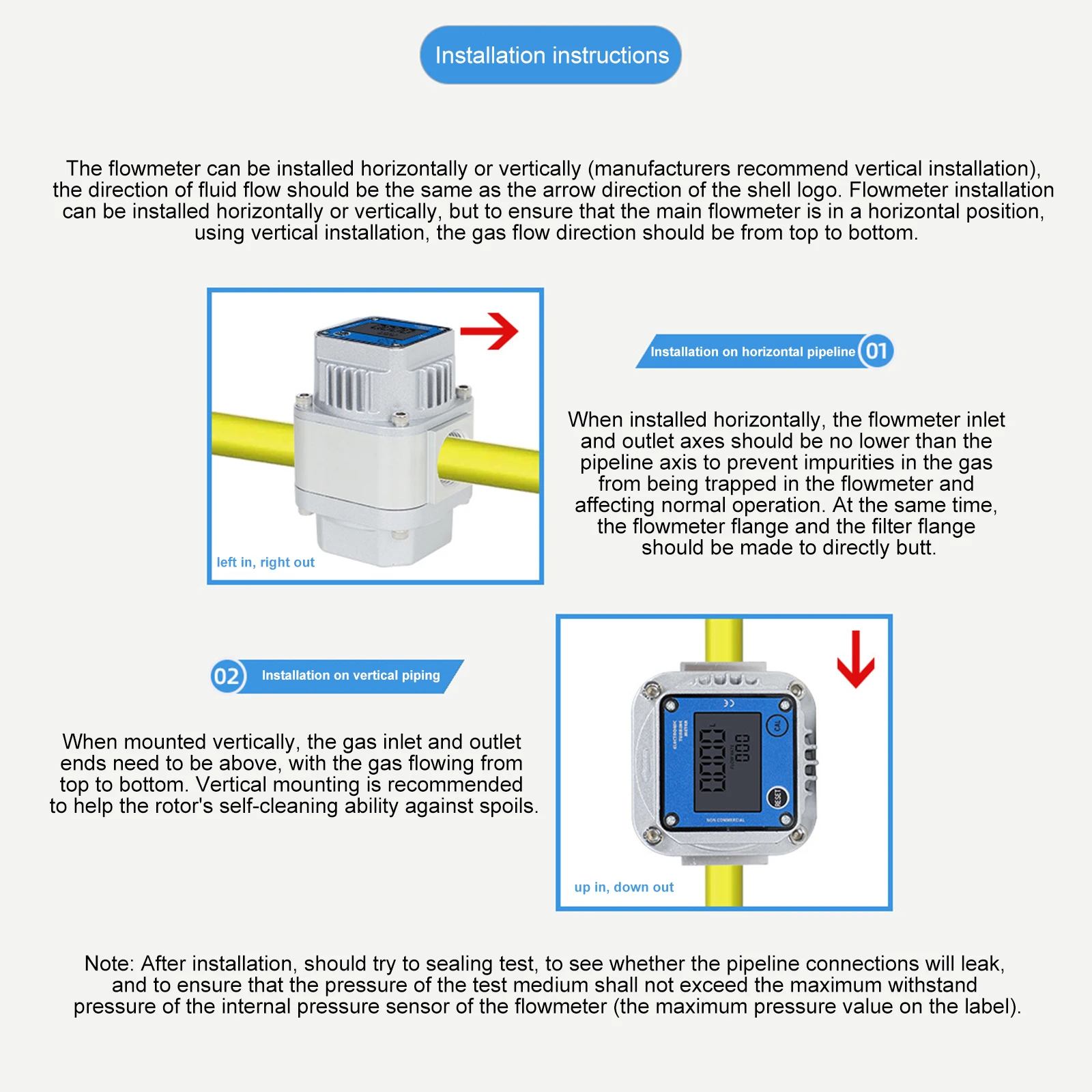

Easy to install, horizontal or vertical mounting, light weight and threaded connections for easy installation.
Matching: Filter screws (can effectively filter pipe impurities).

Specifications:
Item name: Flowmeter
Measurable media: natural gas, liquefied gas, compressed air, oxygen, nitrogen and other gases.

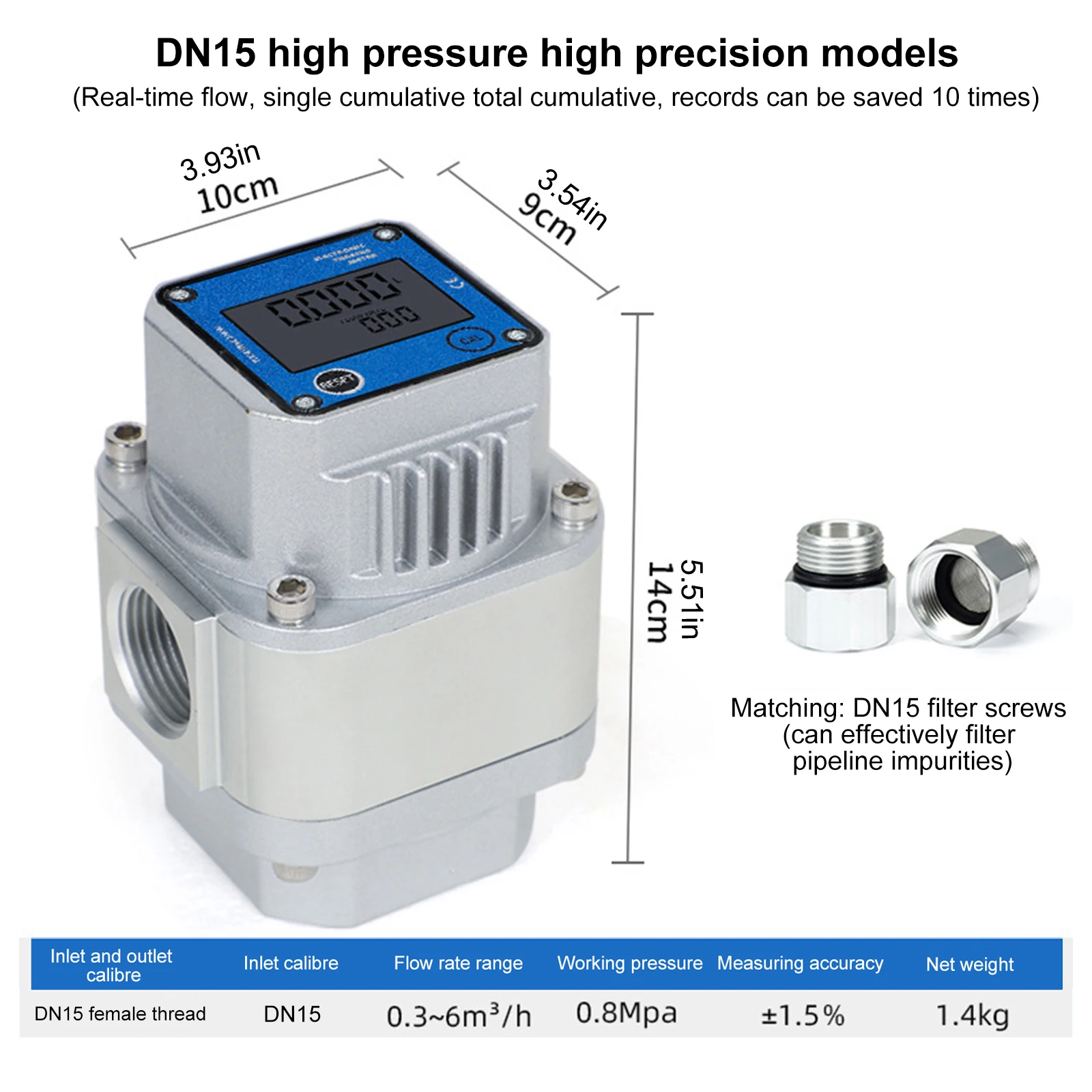

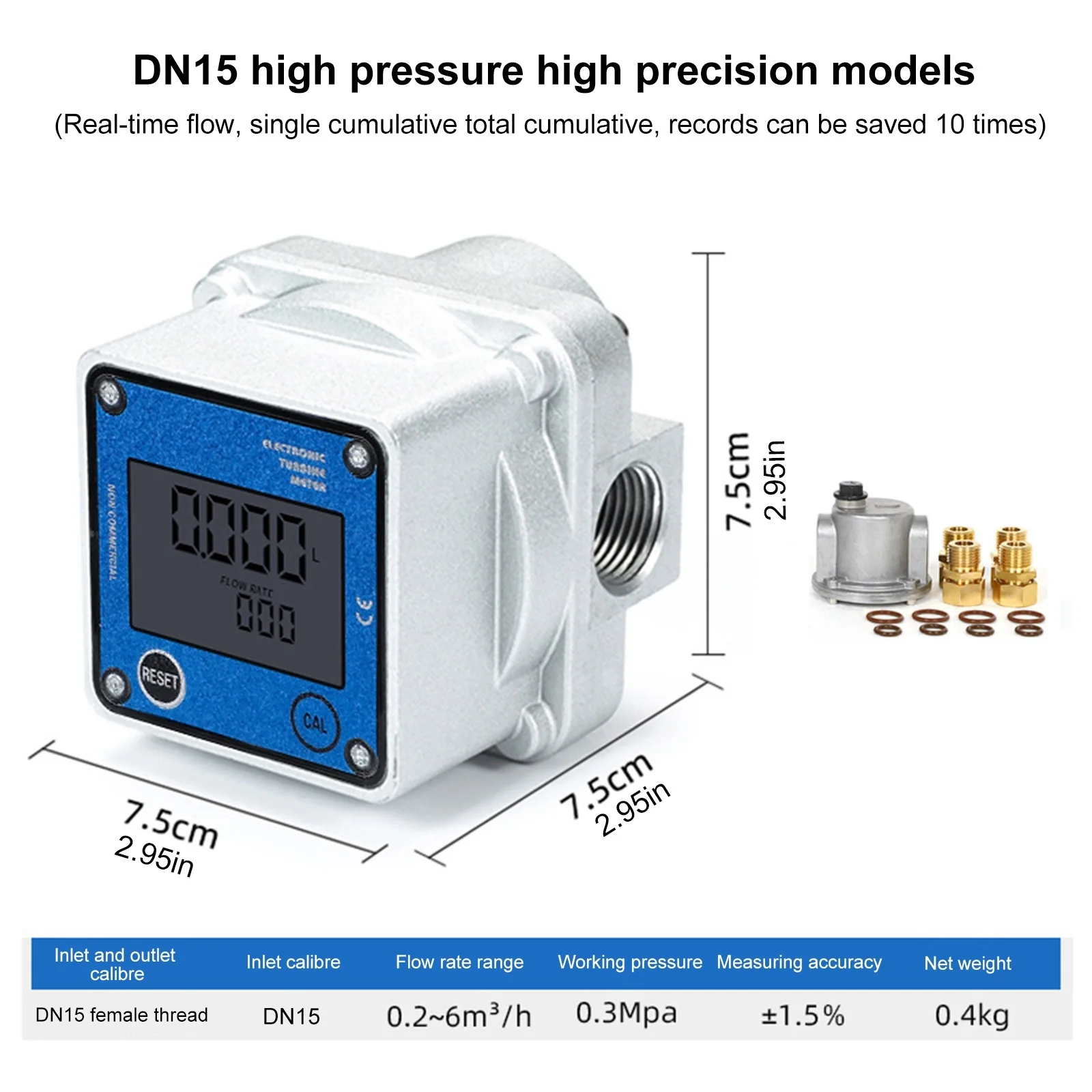

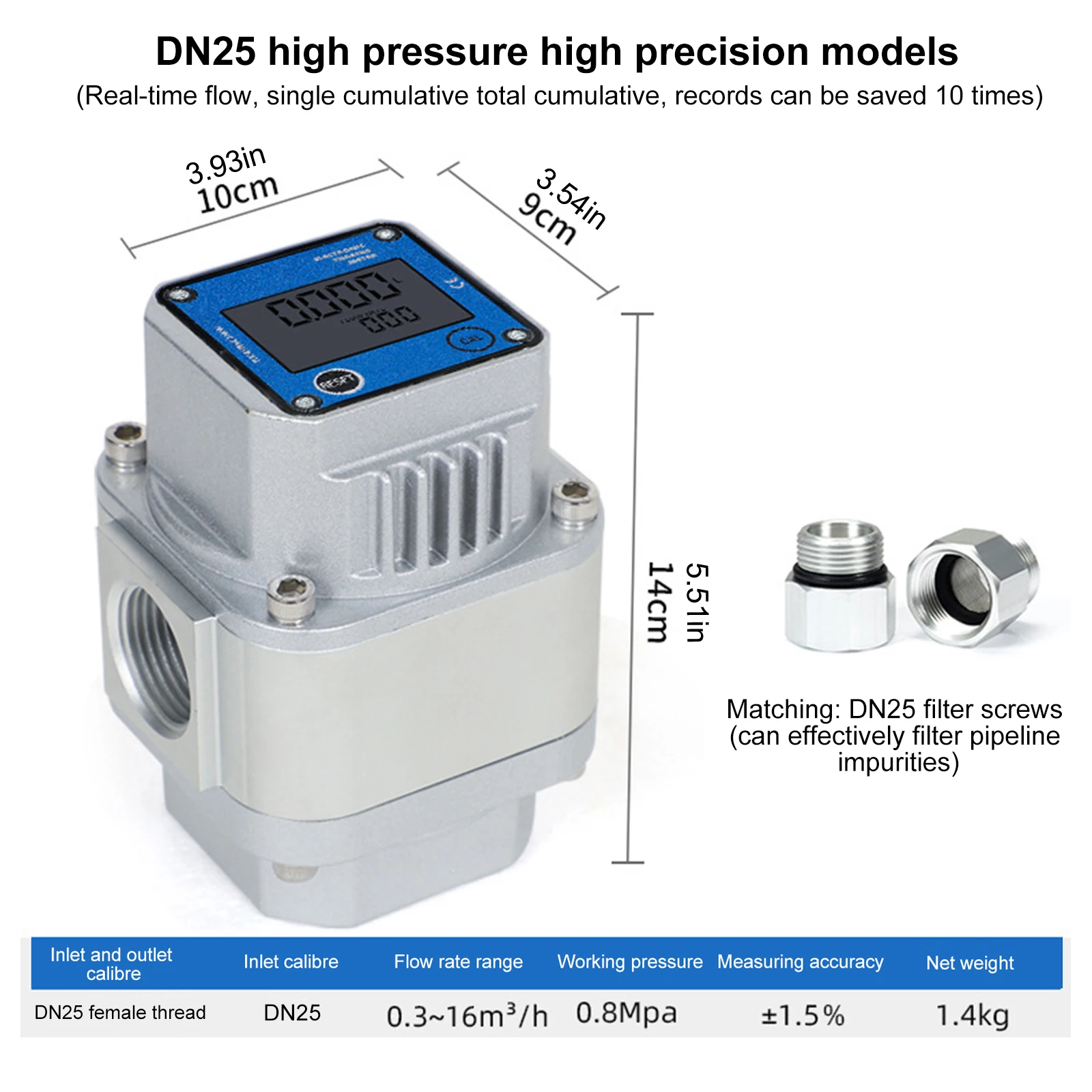

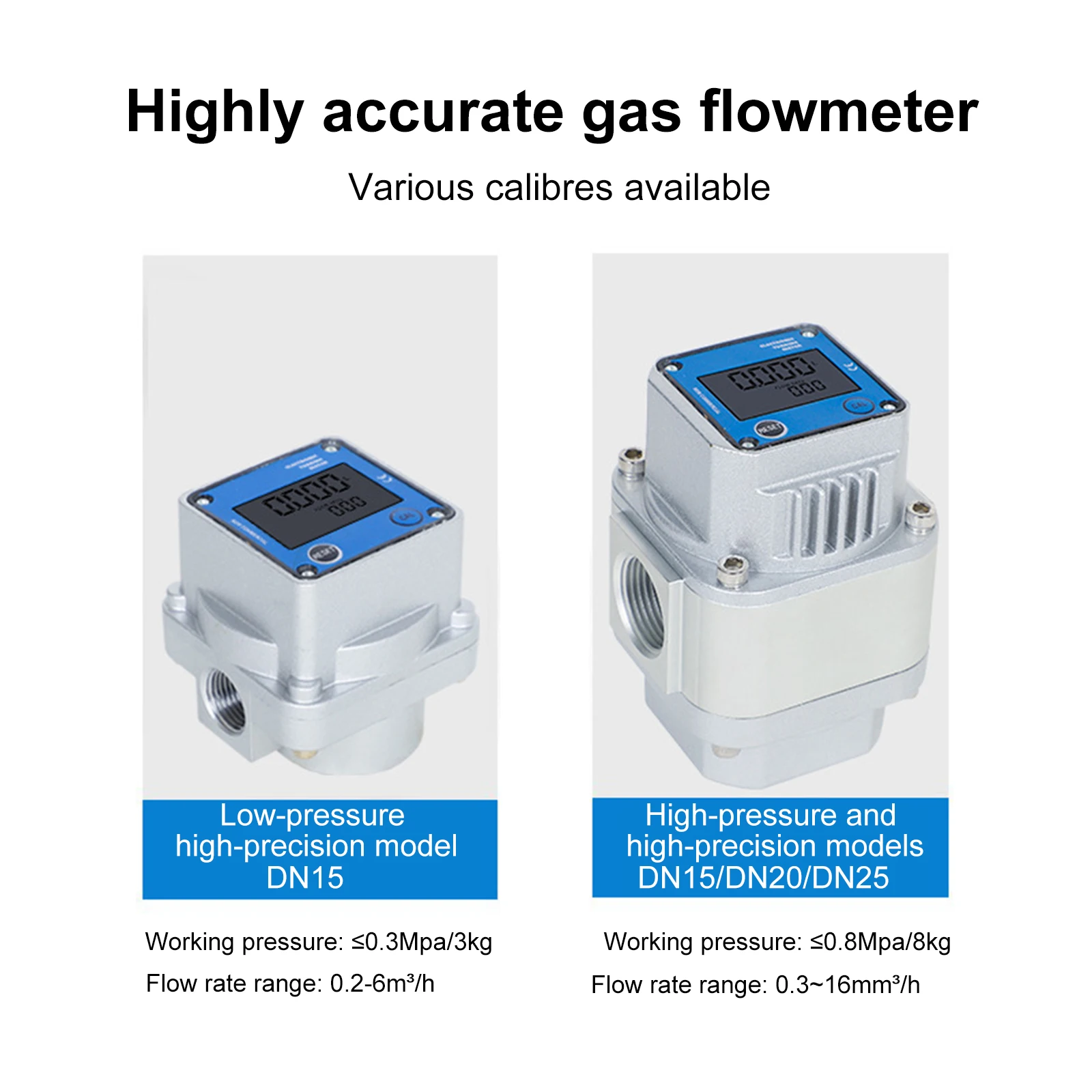

Optional Type: DN15 low pressure(Bearing capacity: 3 kg), DN15 high pressure(Bearing capacity: 8 kg), DN20 high pressure(Bearing capacity: 8 kg), DN25 high pressure(Bearing capacity: 8 kg).
Flow range: 0.2~6mm/h (DN15 low pressure), 0.3~16m/h (DN15,DN20,DN25 high pressure).
Working pressure: 0.3Mpa(DN15 low pressure), 0.8Mpa(DN15,DN20,DN25 high pressure).
Product configuration: Filter fittings

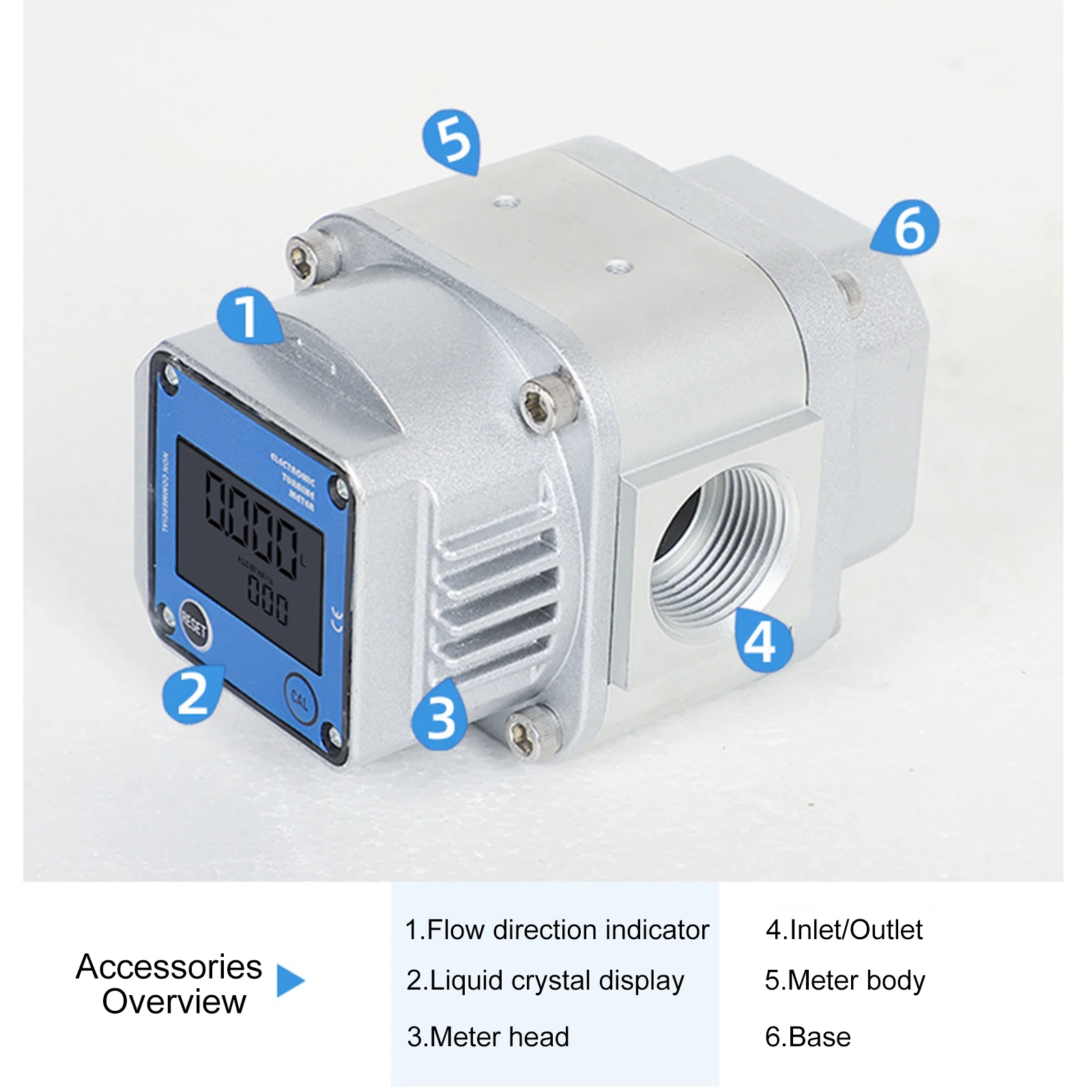

Item size: As shown
Matching filter screws: 2

Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing.
