Follow Focus is a focus control mechanism used in film and video cameras. It is ergonomic rather than strictly necessary,in other words it does not contribute to the basic functionality of a camera but instead allows the operator to be more efficient and precise. It is usually operated by a focus puller but some camera operators prefer to pull their own focus.

The mechanism works through a set of gears on the follow focus that are attached to teeth on the focus ring of the lens. These gears feed to a wheel which, when turned by a focus puller, will spin the teeth and thus the ring on the lens.

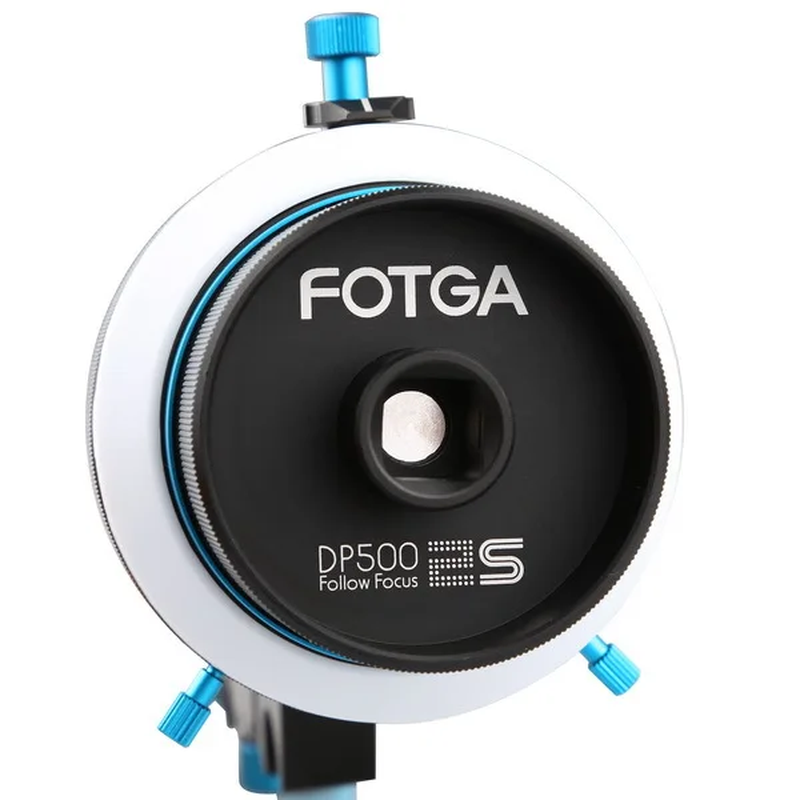

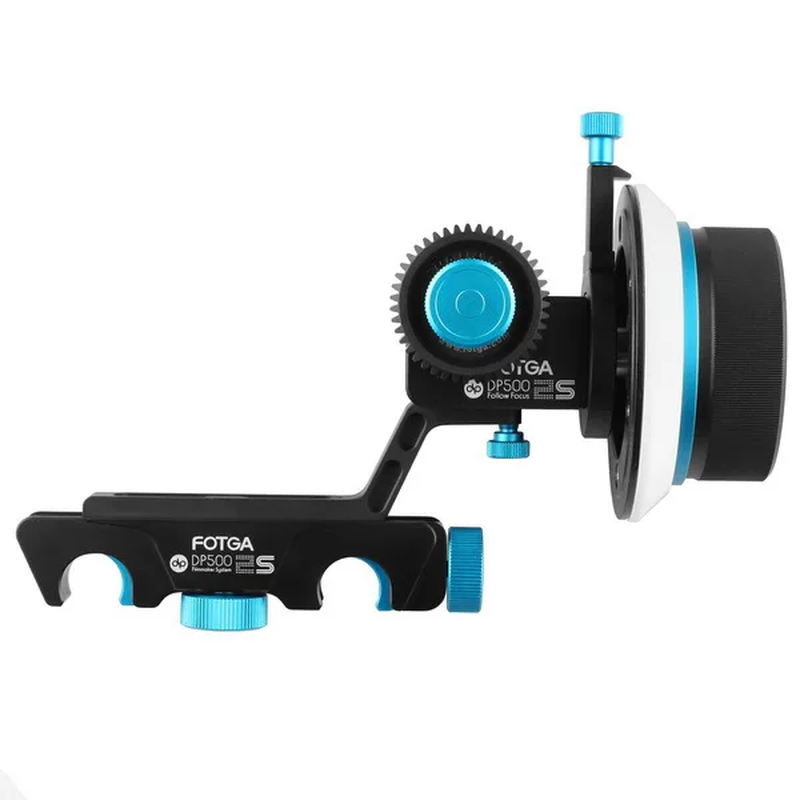

This FOTGA DP500IIS follow focus is upgraded based on the previous DP500II version follow focus. It is consisting of a dampened gearbox. There is a button downside can adjust the tension of the gearbox to reach 2 dampen level. Besides, the inner structure of DP500IIS follow focus is improved, which ensure much more accurate operation for your work.

This improved Follow Focus Integrated with A/B Hard Stops which have easy begin/end setups for fast repeatable racking between two points, and make focusing lenses that have no hard stops (such as Canon EF lenses) much easier.

Quick-release version, easily attach and detach.

Further more, the gear wheel on it can be detached and installed in other side, which makes it suitable for both left-hand and right-hand photographer.

The white mark ring is made of magnet material. It can be detached or attached very easily on matel. You can also buy additional mark ring.

Scale mark part of this follow focus can be rotated, which means when you put all follow focus rig on your shoulder or somewhere much high and you can not see the scale mark, you can adjust the scale mark to the point where your sight can reach. This would be very helpful during working.

The special part of this follow focus is it can use different size gears. It can work with 3 different size gear to meet your different need with various lens:

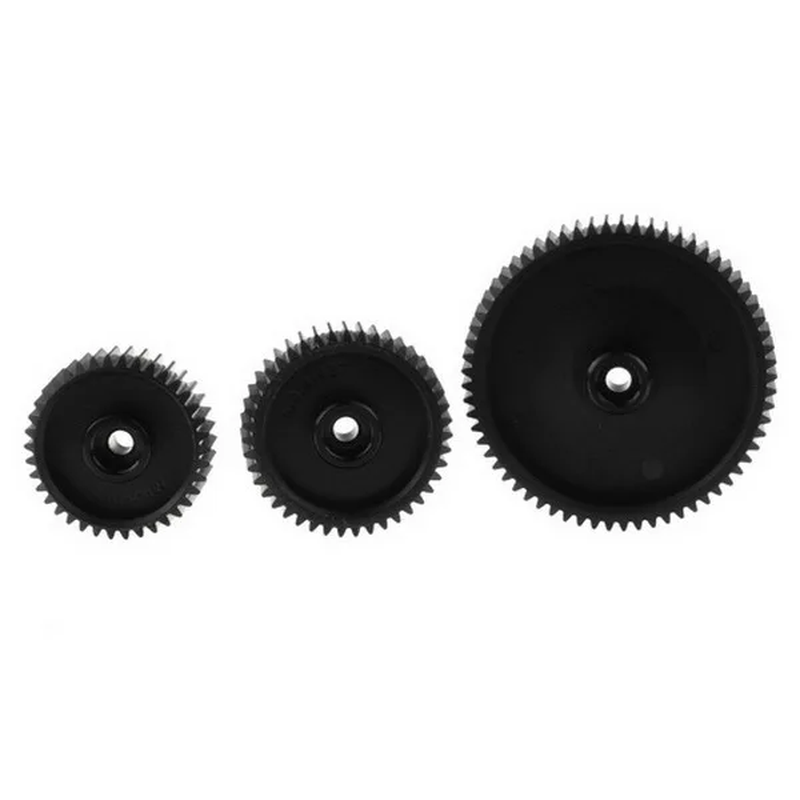

M0.8-38T gear: 38T (38 teeth) 0.8mm pitch, diameter is approx.28mm

M0.8-43T gear: 43T (43 teeth) 0.8mm pitch, diameter is approx.31mm

M0.8-65T gear: 65T (65 teeth) 0.8mm pitch, diameter is approx.49mm

Specifications:

Material: Sturdy Metal

Gear drive can be mounted from both side.(Works for both right-handed and left handed)

This set includes flexible gear belt can be used with any zoom or prime lenses with a wide range of lens diameters(any size from 46 to 110mm)

Adjustable locking systems

Mounts onto 15 mm Rod Support (60mm center to center difference).

MOD Drive Gear: Industry standard 0.8

Compatible with industry stand 15mm rods

Rail distance:60cm

Rail diameter: 15mm

Suitable for:

All DSLR cameras,Vedio cameras

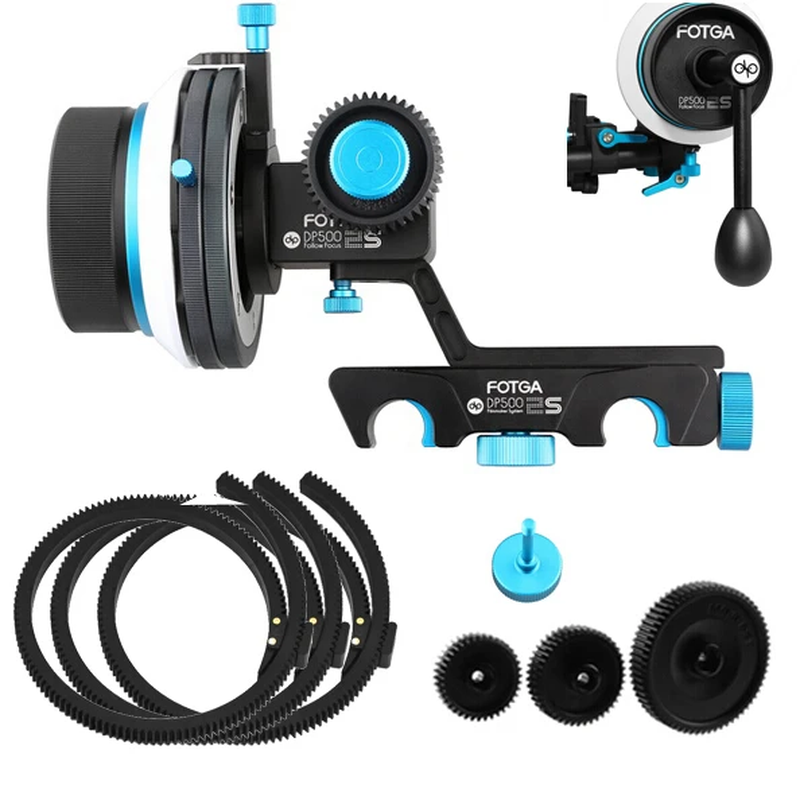

FOTGA DP500-IIS QR A/B Hard Stops Follow Focus x1

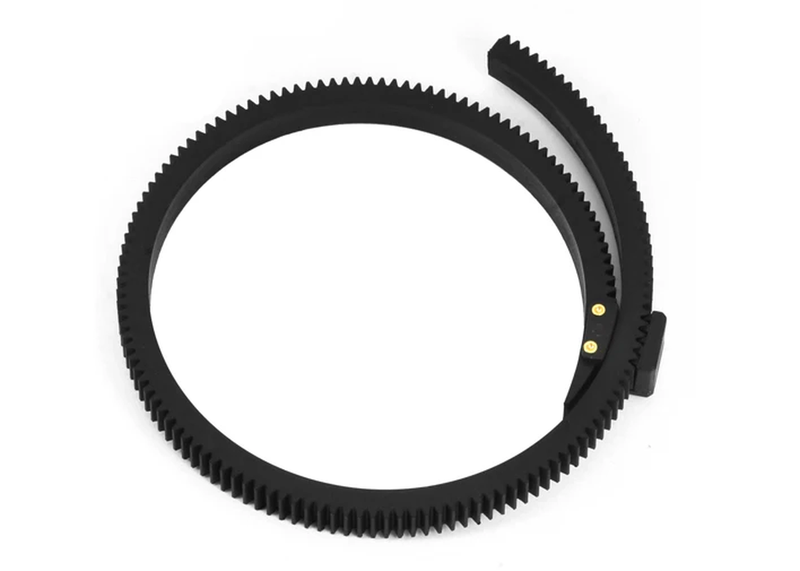

Matching gear belt x 3 (adjustable for 46mm-110mm)

M0.8-38T Gear x 1

M0.8-43T Gear x 1 (already installed on the Follow Focus)

M0.8-65T Gear x 1

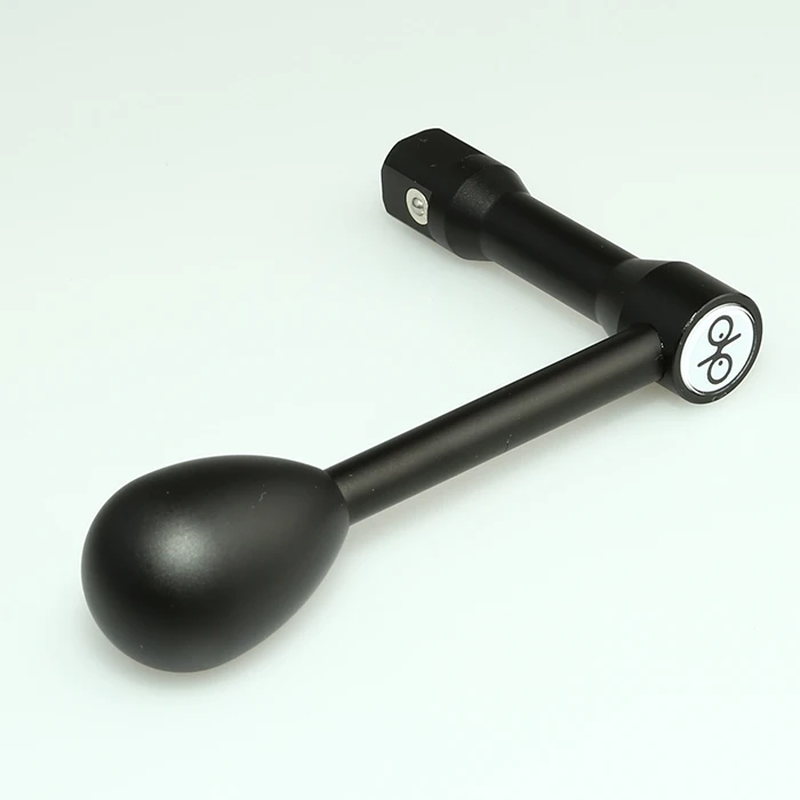

Speed Crank Handle x 1
