ET33C 2 Channels Function Arbitrary Waveform Generator,200Msa/S Sample Rate,20Mh

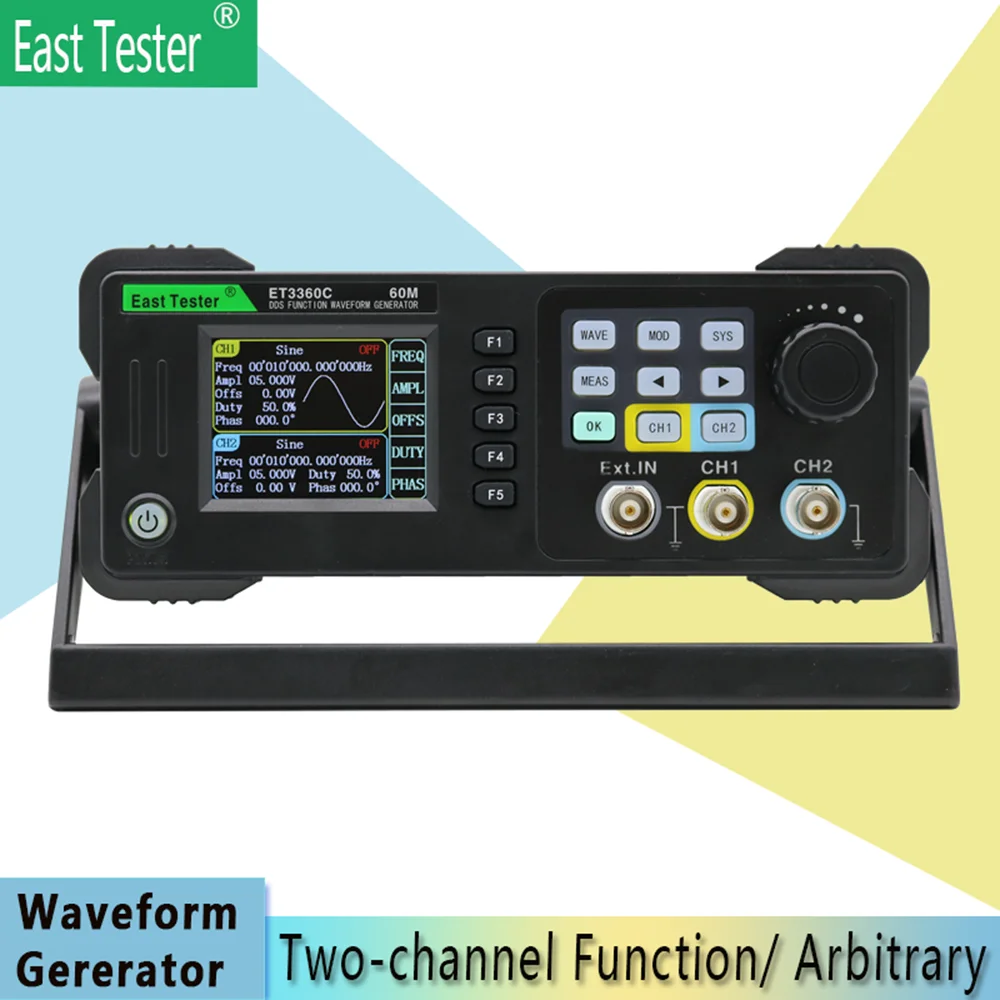

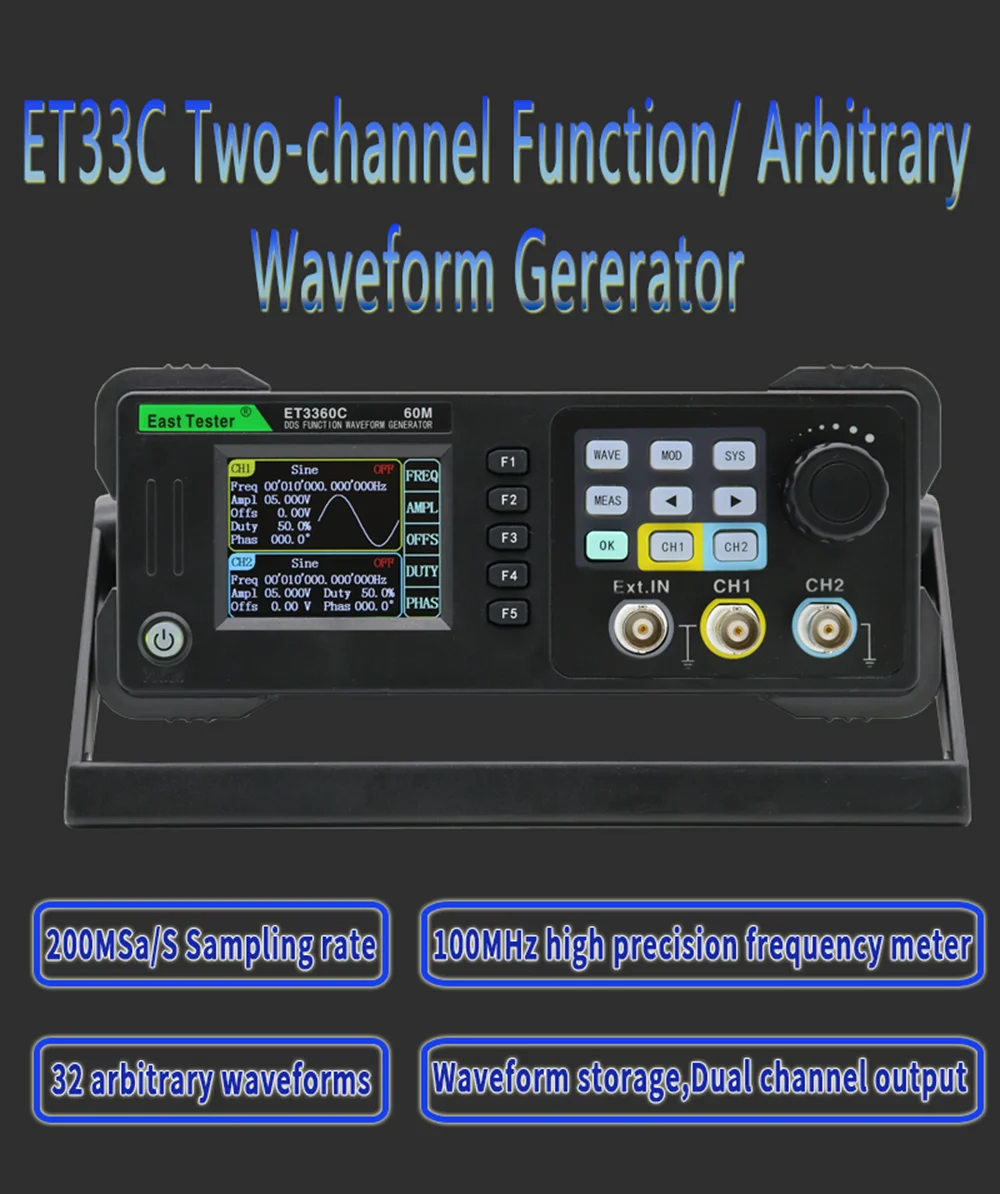

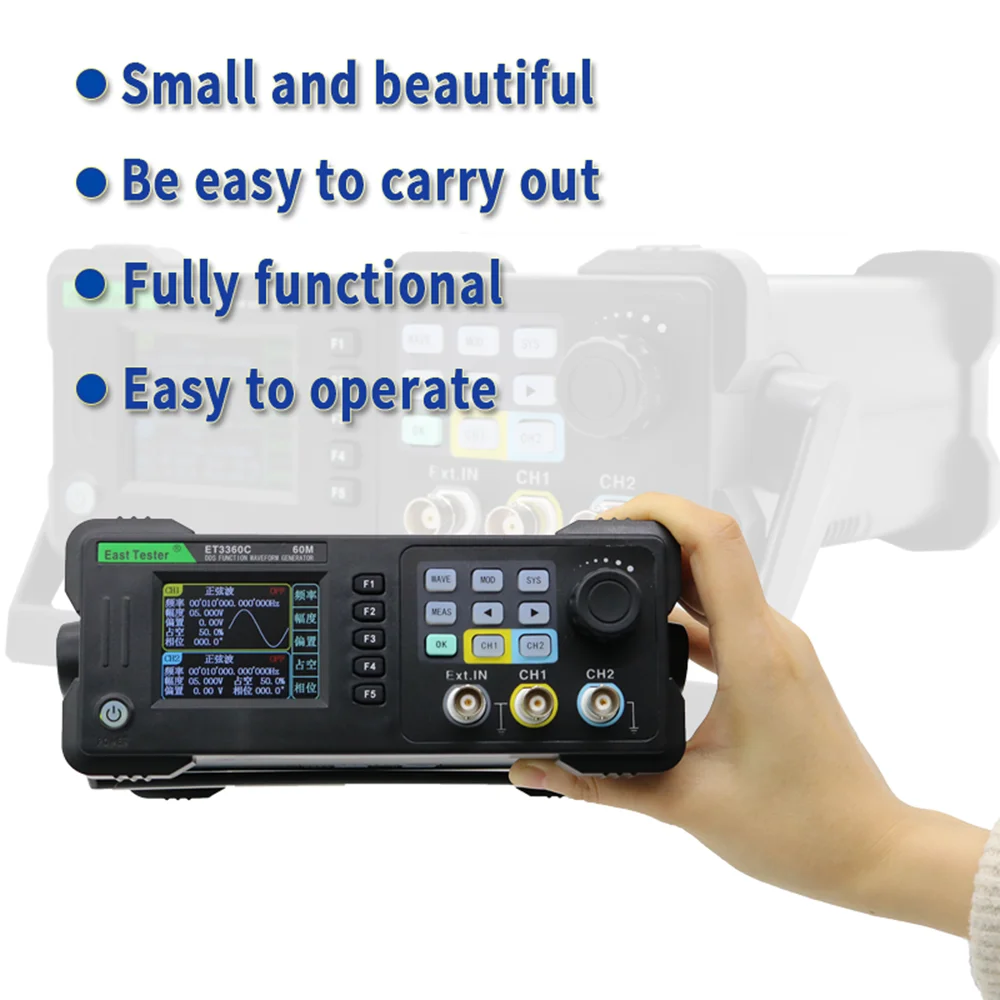

East Tester ET33C 2 Channels Function Arbitrary Waveform Generator,200MSa/s Sample Rate,20MHz/40MHz/60MHz,2CH Signal Generator

ET33C series dual channel function/arbitrary waveform generator using direct digital synthesis (DDS) technology to establish stability and accuracy the output signal of.
The instrument output channel is equipped with CH1 channel output and CH2 channel output. Both channels can output basic waveforms and any wave.One channel can be selected for various modulation waveform outputs, and the other channel for basic waveform output.

Features:

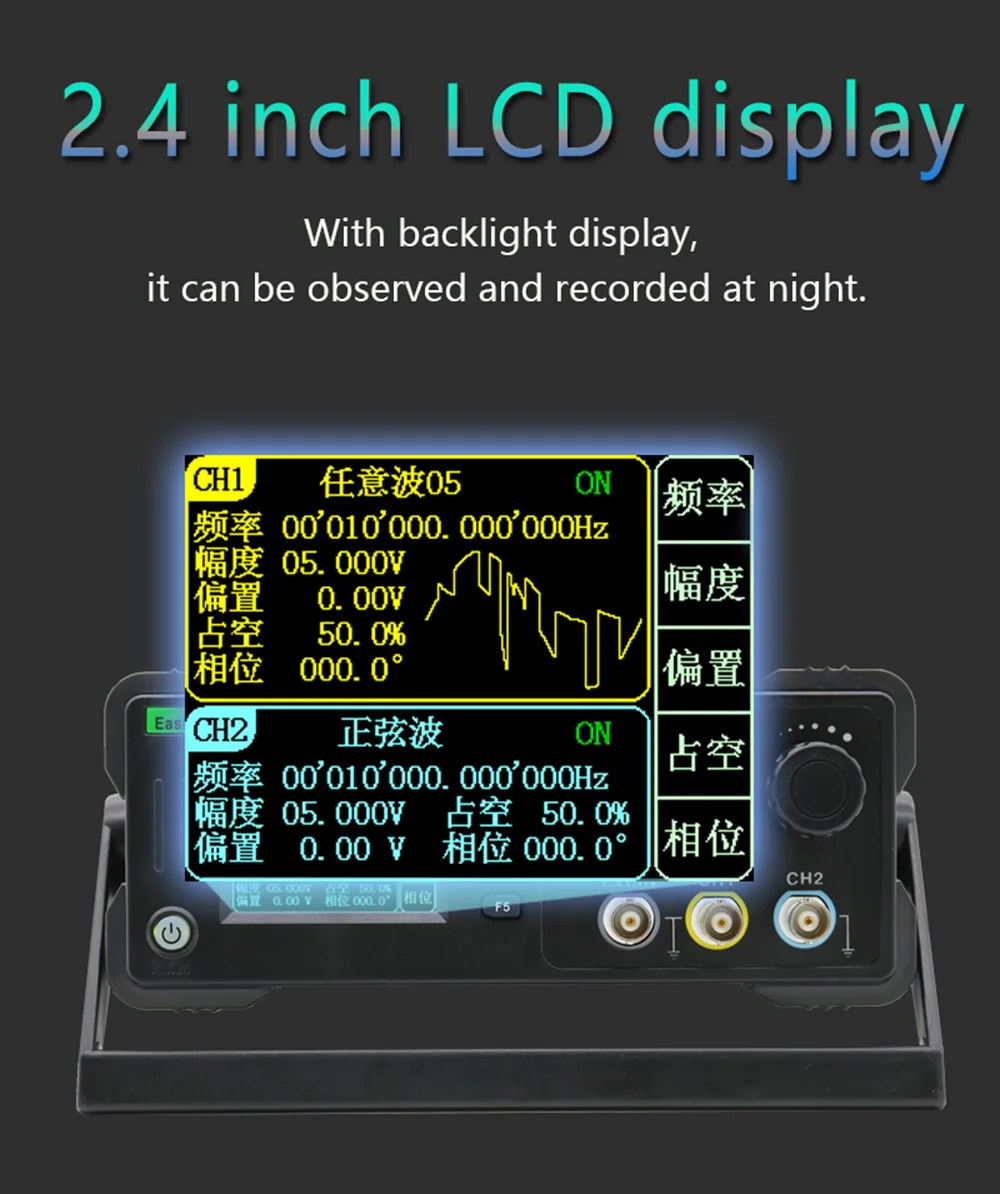

Adopting a 2.4-inch 320x240TFT LCD screen with a clear graphical interface;
Support Chinese and English menus;
The dual channels are independent of each other and have phase synchronization function;
200MSa/S sampling rate, 13 bit vertical resolution, 8k storage depth;
Built in 5 basic waveforms and 32 arbitrary waveforms;
Waveform storage; Support internal storage of 50 sets of user-defined edited waveforms;
Pulse wave output with adjustable edge time;
Internal AM, FM, and PM modulation functions (optional for external AM, FM, and PM modulation);
Internal/external ASK, FSK, PSK modulation functions;
Dual channel output, with a maximum output frequency of 60M;
Output of linear/logarithmic sweep and burst (pulse train) waveforms;
Equipped with a 100MHz high-precision frequency meter and a 32-bit counter;

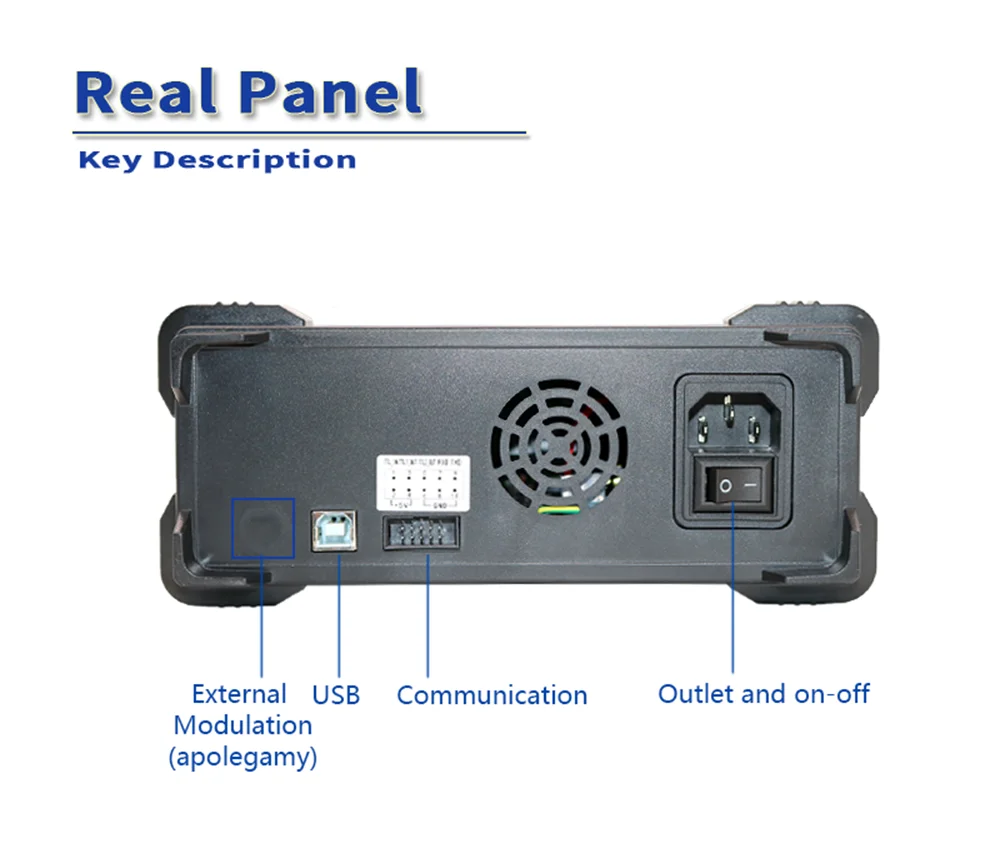

Standard USB Device interface; Optional external analog modulation interface;
Equipped with multifunctional waveform editing software.

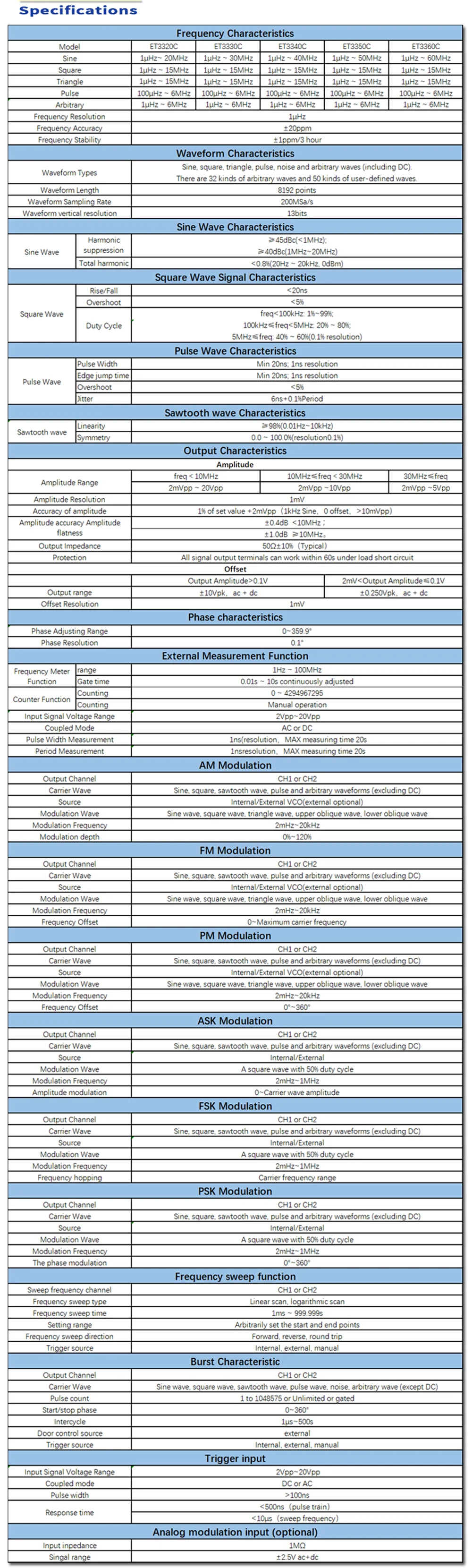

Parameter

Package include

1*ET33C Host(Model as your choice)
1*Power Cord
1*BNC coaxial cable
2*BNC to crocodile clip
1*USB Cable

Product Details
