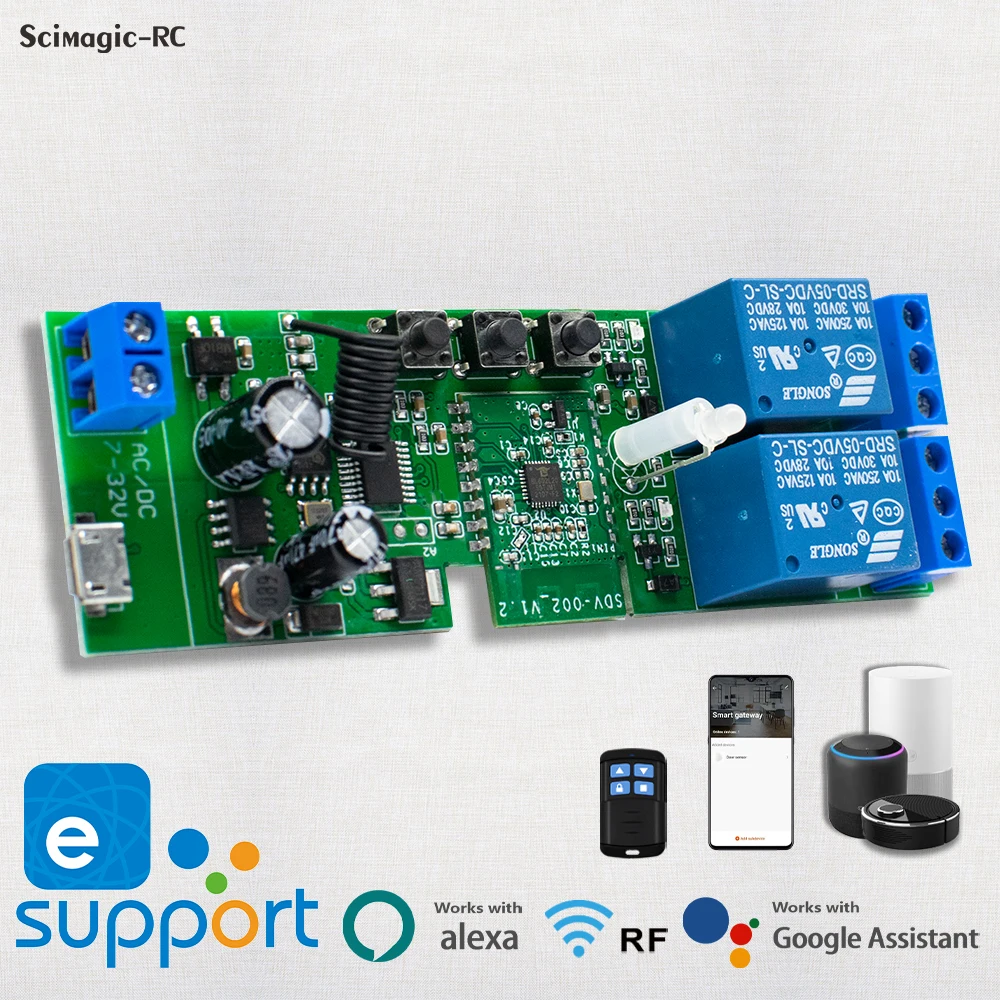

Ewelink 2CH AC/DC 7V-32V 85-250V USB 5V Wifi Smart Switch RF 433 Remote Control

EWELINK 2 Channel Smart Remote Control Switch WIFI

Overview:

[ APP Control ]

Just tap on tuya smart life App to turn on a light anytime and anywhere. A lighted house anticipates your arrival

[ Timer & Schedule ]

Set up timing schedules to save the trouble of overcooking the dish

[ Hands-free Voice Control ]

Compatible with Alexa & Google Home, the smart switch allows you to control lights on/off with your voice

[ Share Control ]

Share control of your home appliances to your family or friends so that they can also control the devices remotely

[ Working Modes ]

1CH inching /self-locking

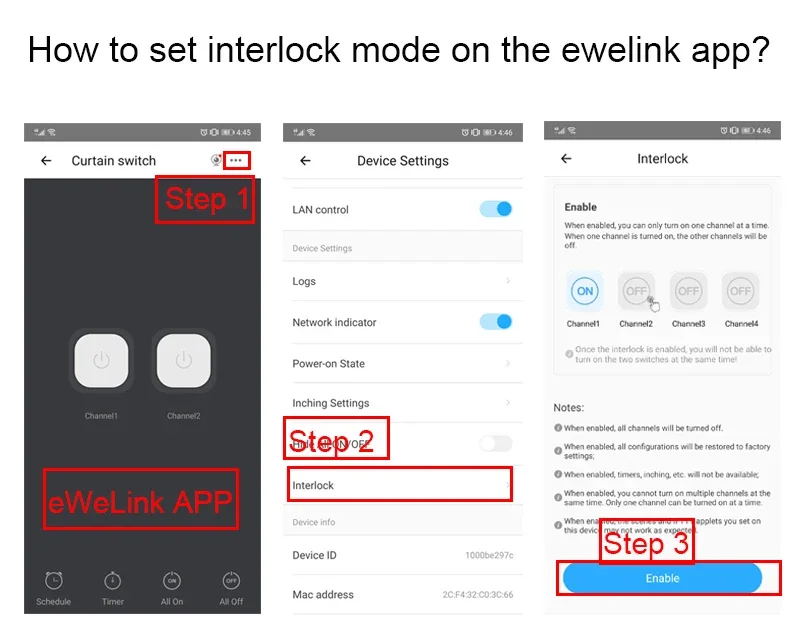

2CH inching /self-locking / Interlocks


[ Universal DIY ]

Compatible with any household appliances (AC DC7-32V 85-250V 10A 2200W )The small module has DIY capability for users with basic electrician knowledge

[ Simple Operation ]

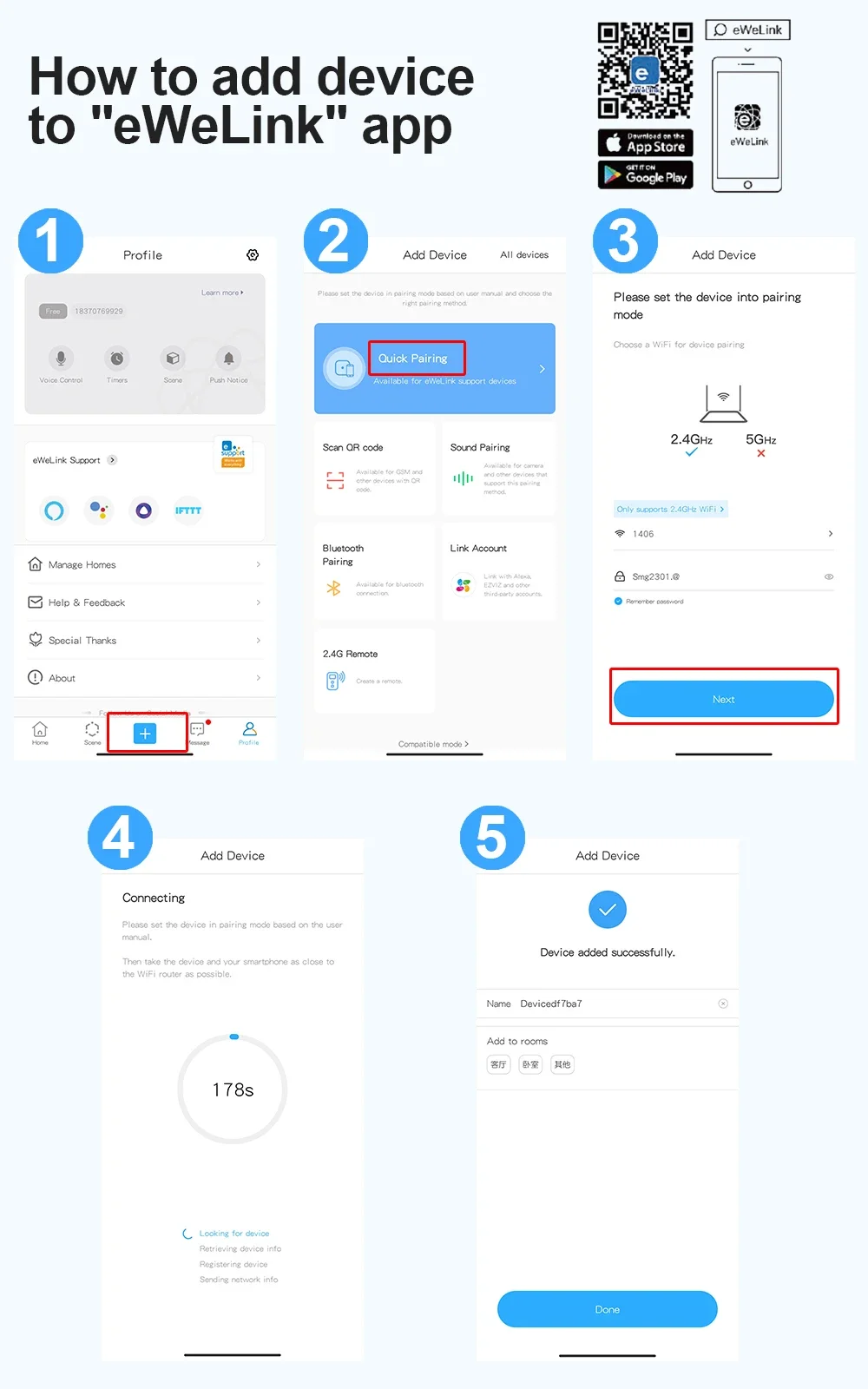

Directly connect to the app after installation, use the same WIFI, and control by EWELINK APP

What can I use it for?

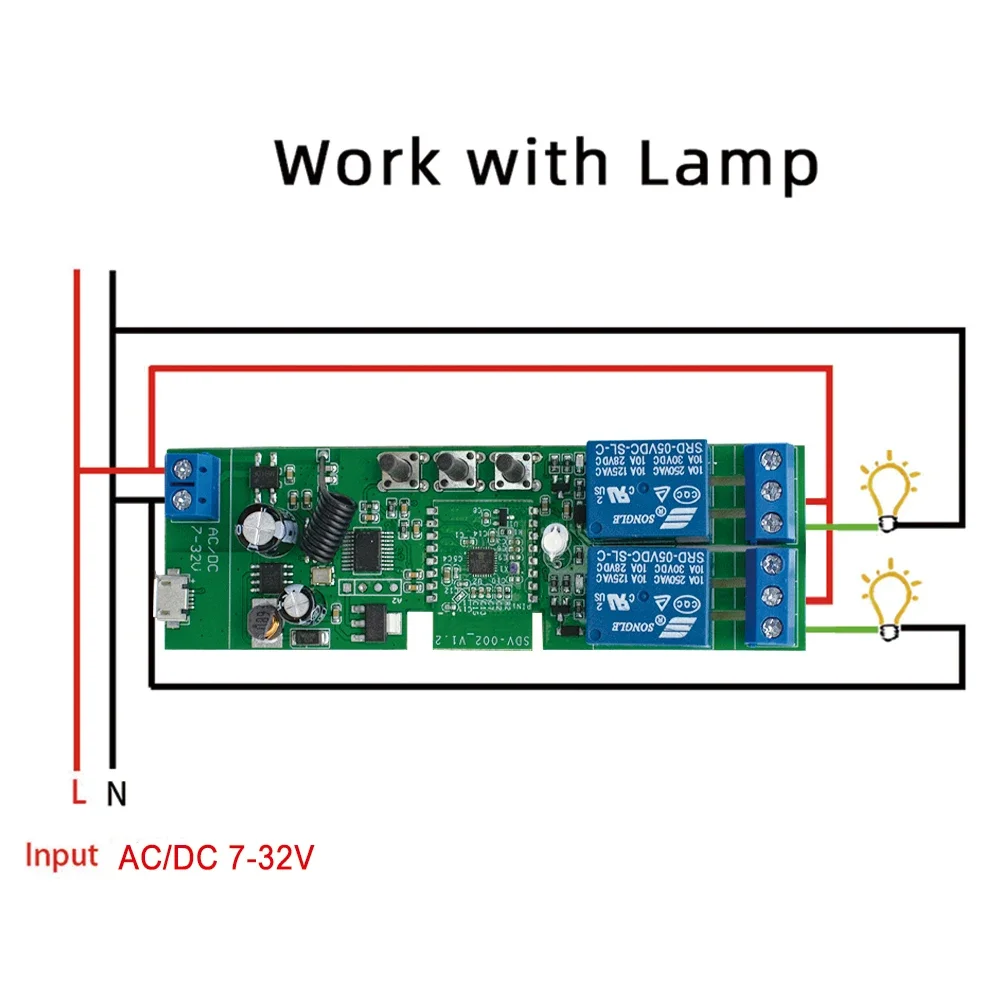

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off

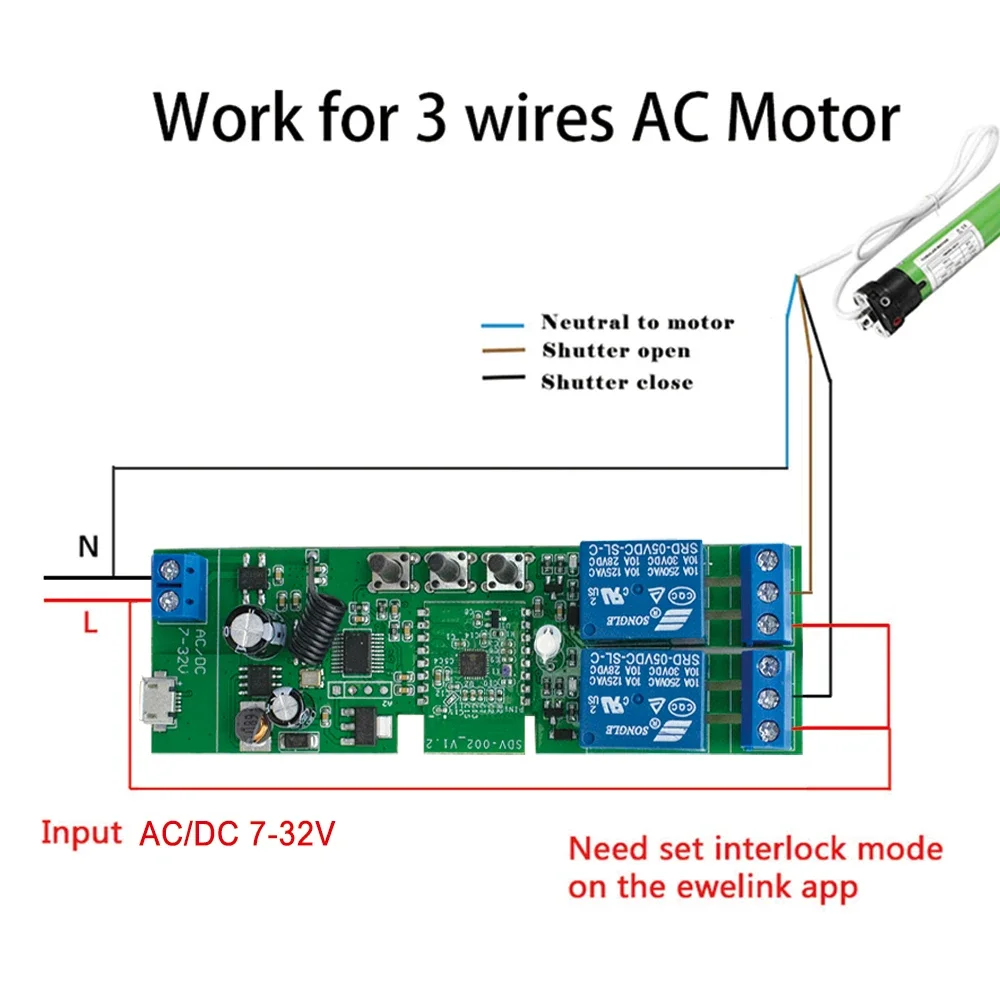

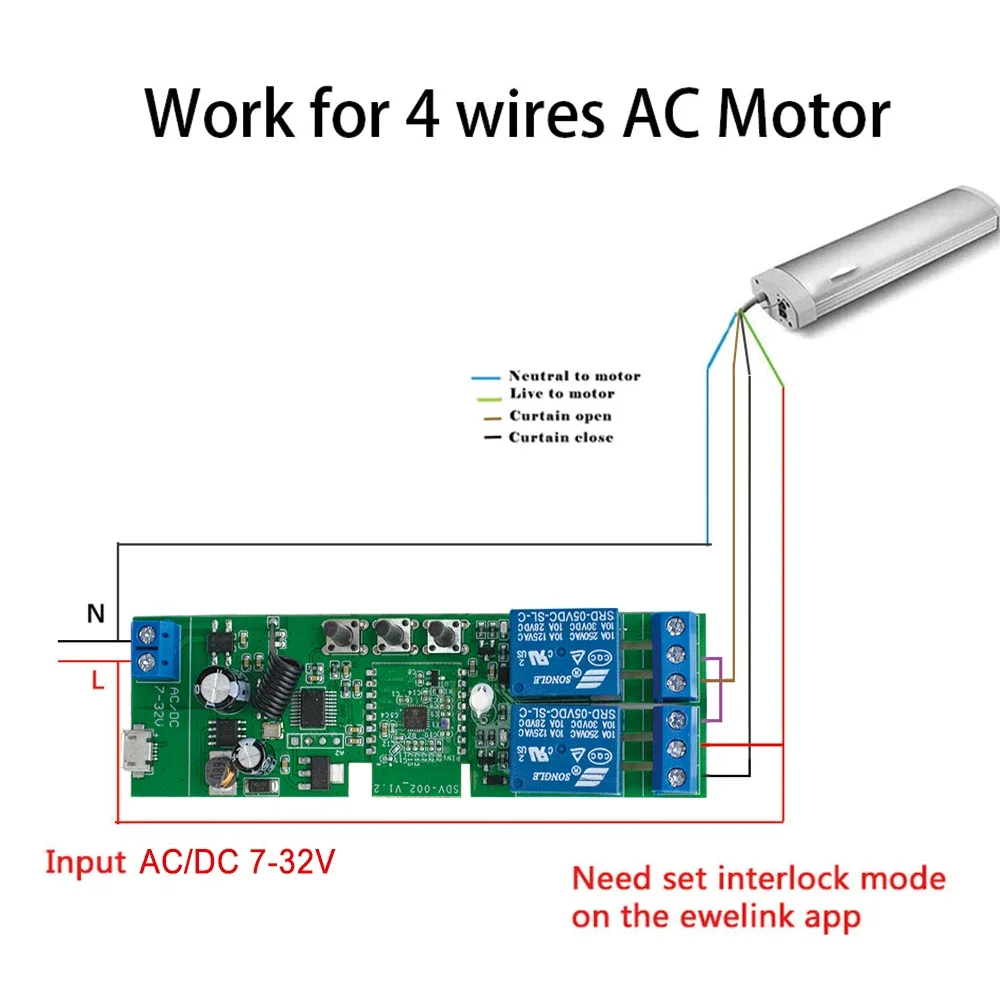

*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

*App Support: Free iOS and for Android mobile App eWeLink.

*Sync Status: Real-time device status provided to App.

*Remote ON/OFF: Turn electrical devices on/off remotely from anywhere.

*Independent control: Control each gang separately in APP eWeLink.

*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.

Specifications:

LEDs: 3 LEDs(indicate working mode, wifi status, relay on/off status respectively)
Supports to control different voltage ranges
USB port power supply more convenient
Board consumption: <1W
Standby current: 80mA
Max input current: 10A
Max Wattage: 2200W
Relay lifespan: one million times
100M electrical insulation resistance
Electric shock voltage: 1000V
Relay maximum pull time: 15ms
Relay maximum release time: 5ms

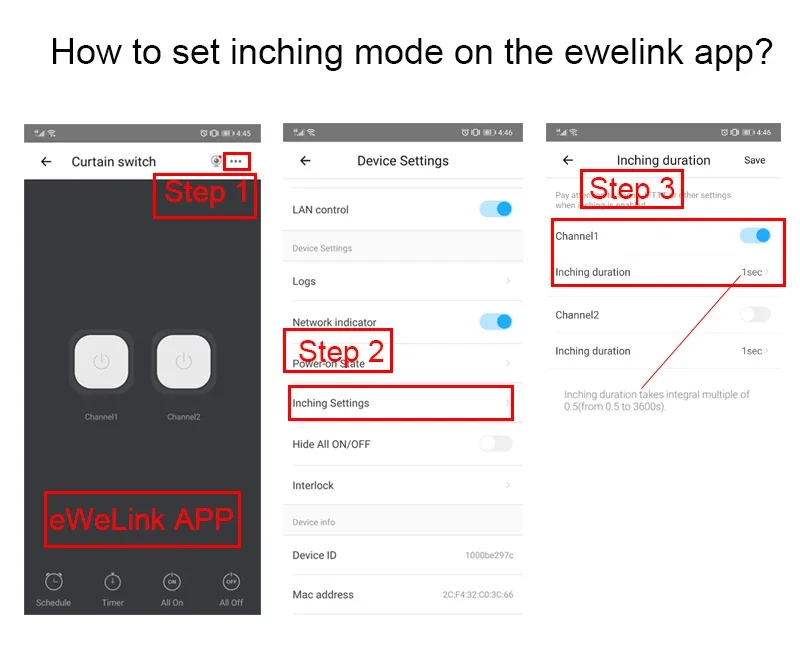

Working mode: inching /self-locking
Wireless Standard: 2.4GHz, 802.11 b/g/n
Mobile App: EWeLink on Android/IOS
Application: access control, turn on PC, garage door, etc.
Computer application: Remote control computer boot
Operating temperature: -40 degrees to +70 degrees
Operating Humidity 40% ~ 80% RH
