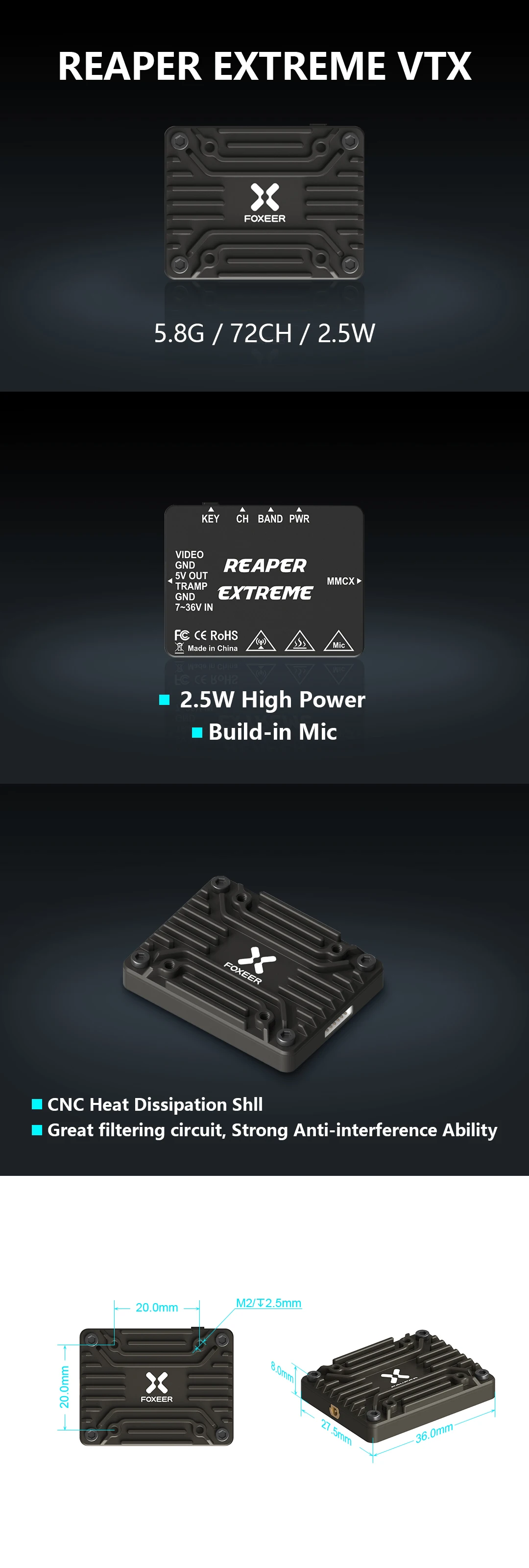

    Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25Mw 200Mw 500Mw 1.5W 2.5W Adjus

    Foxeer 5.8G Reaper Extreme V2 2.5W 72CH Pitmode 25Mw 200Mw 500Mw 1.5W 2.5W Adjus

    £66.99 GBP
    £66.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.

    Name

    Reaper Extreme V2

    Input Voltage

    9~36V

    Output Voltage

    5V

    Channels

    72CH

    Power

    25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly

    Pit

    Double click to enter

    Weight

    13g

    Mounting Hole

    20*20mm M2 2.8mm depth

    Size

    36*27.5*8mm

    Consumption

    1.2A/9V

    Package Includes

    1 x VTx; 1 x silicon cable;


    Band

    CH1

    CH2

    CH3

    CH4

    CH5

    CH6

    CH7

    CH8

    Band A

    5865

    5845

    5825

    5805

    5785

    5765

    5745

    5725

    Band B

    5733

    5752

    5771

    5790

    5809

    5828

    5847

    5866

    Band E

    5705

    5685

    5665

    5645

    5885

    5905

    5925

    5945

    Band F

    5740

    5760

    5780

    5800

    5820

    5840

    5860

    5880

    Band R

    5658

    5695

    5732

    5769

    5806

    5843

    5880

    5917

    Band H

    5653

    5693

    5733

    5773

    5813

    5853

    5893

    5933

    Band L

    5333

    5373

    5413

    5453

    5493

    5533

    5573

    5613

    Band U

    5325

    5348

    5366

    5384

    5402

    5420

    5438

    5456

    Band O

    5474

    5492

    5510

    5528

    5546

    5564

    5582

    5600


    Unlock the frequencies and power levels

    Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.


    PIT Mode On/Off

    Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode offIn PIT mode, VTx outpout extreme low power.


    Note:

    If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

    BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
