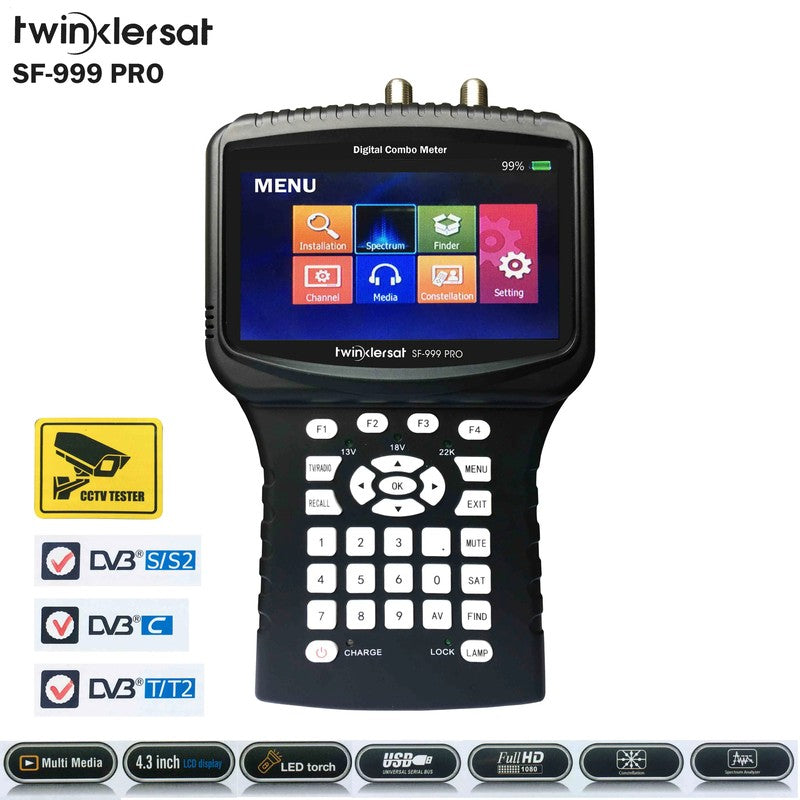

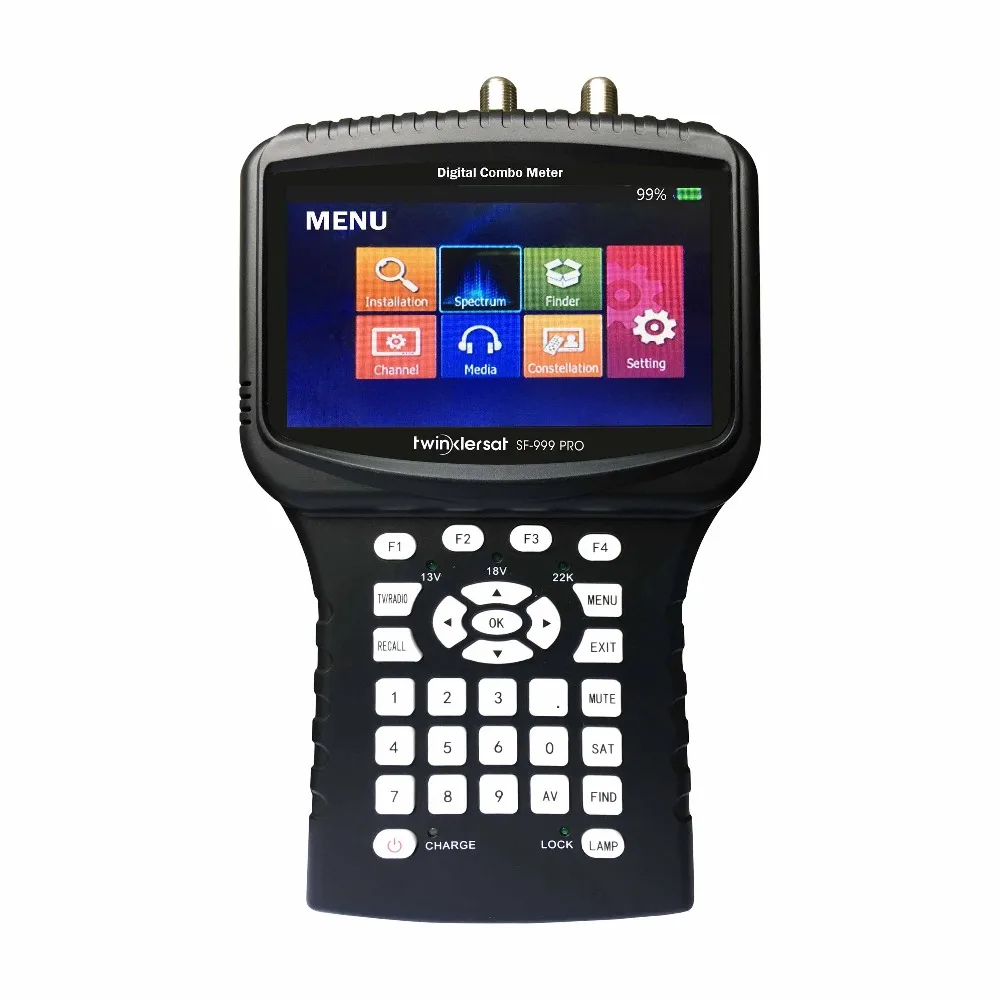

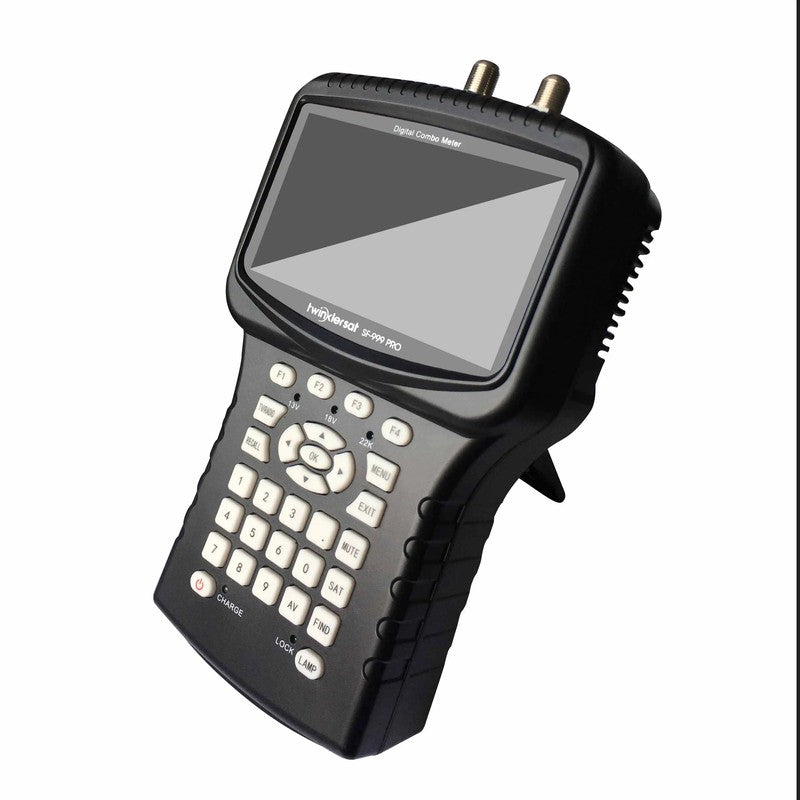

HD Combo Signal Meter Twinkler SF-999 Pro 4.3'' Screen CCTV Camera DVB S2 DVB T2

HD Combo Signal Meter Twinkler SF-999 Pro 4.3'' Screen CCTV Camera DVB S2 DVB T2

£124.99 GBP
£124.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Plug Type
Color


HD Combo Signal Meter Twinkler SF-999 Pro 4.3 inch Screen CCTV Camera Monitor DVB S2 DVB T2 DVB C Spectrum USB WiFi Satfinder

* DVB-S/S2/T/T2/C compliant HD Meter (MPEG-4)

* 4.3 inch TFT LCD Display handheld multifunctional monitor & Signal finder

* Video decoding with DSP Technology: MPEG-2, MPEG-4 and H.264 for 1080p,1080i, 720p and 576i, and supports PAL/NTSC/SECAM color system, supports SD&HD video format.

* Spectrum Analyzer

* Watch live FTA TV program in full color with the LCD

* 13V/18V/22K/Lock/Power status display

* LNB short-circuit alarm and protection function

* Messurement by pre-/post-BER, MER, C/N and signal level in dBmuV/dBm

* Constellation analysis for S2

* Multi-lingual OSD for world use

* Software update via USB

* LED torch and double-speaker inside

* DiSEqC / USALS 1.0 / 1.1 / 1.2 / USALS

* SD & HD Multi-meida Play Supported

* MP3 Play List Supported

* Sould alarm when lock signal

* CCTV Camera monitor in CVBS(optional)

* CCTV Camera monitor in AHD/TVI/CVI(optional)

* Twinklersat SF-999 PRO With CCTV tester in AHD/TVI/CVI/CVBS

(optional)

* Support weather forecast,patch



Basic Information

Function

HD Signal Meter for DVB-S, DVB-S2, DVB-T, DVB-T2,DVB-C

Frequency Range

950MHz2150MHz (DVB-S/S2)
VHF:174230MHz UHF:470858MHz (DVB-T/T2)
44MHz~864MHz(DVB-C)

Built-in Monitor

4.3 inch TFT LCD Display


DVB-S/S2 Measurement

Connector

Mate type, with one double negative connector

Modulation Type

QPSK 8PSK 16APSK 32APSK

Symbol Rate

1Mbps45Mbps

Frequency Range

950MHz2150MHz

Input Signal Level

25 dBmuV ~ 110dBmuV

Input Impedance

75Omega

Code Rate

1/4,1/3,2/5,1/2,3/5,2/3,3/4,4/5,5/6,8/9,9/10

LNB Switch Control

22KHz diseqc 1.0/1.1/1.2

DiSEqC

1.0/1.1/1.2/1.3(USALS)/2.0

Active Ant Power

13/18V,max400mA

SCPC and MCPC Capable

Y

BER

Y

SNR

Y

Constellation

Y

Spectral inversion

Y

DVB-T/T2 Measurement

Modulation Type

QPSK,16QAM,64QAM,256QAM

Symbol Rate

6/7/8MHz

Frequency Range

VHF:174230MHz UHF:470858MHz

Input Signal Level

-20dBm~-85dBm

Input Impedance

75Omega

Active Ant Power

5V

Code Rate

1/2,2/3,3/4,4/5,5/6,8/9,9/10

Guard Intervals

1/4, 1/8, 1/16, 1/32



DVB-C Measurement

Modulation Type

16/32/64/128/256 QAM

Symbol Rate

1.8Mbps7.2Mbps

Frequency Range

44MHz864MHz

Input Signal Level

40 dBmuV ~ 110dBmuV

Input Impedance

75Omega

Noise Figure

9dB



Video/Audio Decoder

Video

MPEG 2&4

Data Rate

Up To 15M bits/s

Resolution

720*576 , 720*480

Video Format

PAL / NTSC / SECAM

Audio

MPEG 1 layer 1&2&4

Type

Stereo

Sampling Rates

32KHz 44.1KHz and 48KHz

Interface

RF Input

Y

AV in

Y

AV output

Y

Micro USB interface-12V output

Y

HDMI 1.4

Y

USB2.0

Y

DC interface

Y

General

Operating Temperature

0~+50

AC/DC Adapter

AC 110V/60Hz/220V/50Hzplusmn10% DC 12V/1.5A

Li-ion Battery

5000mAh/7.4V

Charge Time

less than 4 hours

Working Time

Around 3-4 Hours (Fully charge)

Weight

0.6KG

Dimension (WtimesHtimesL)

200mm*120*60mm

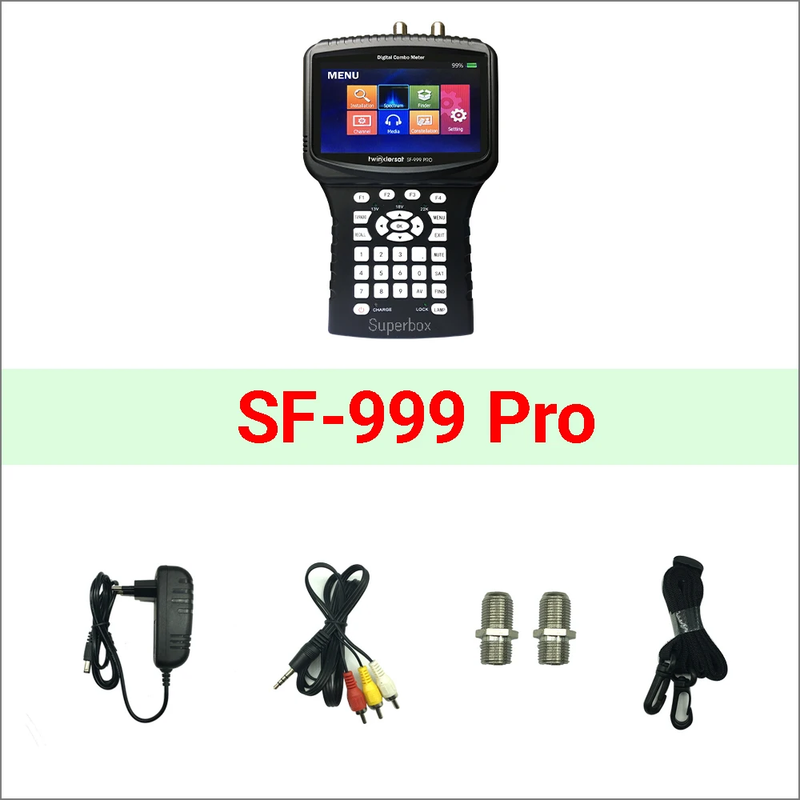

- 1 x Twinkler SF-999 pro HD Combo Finder Meter

- 1 x Power Charger

- 1 x HD Cable

- 1 x AV Cable

- 1 x Car Charger

- 1 x User Manual

- 2 x F type Connector

- 1 x Nylon bag with strap
