HDS272S 272 250Ms/S 8Bits 70Mhz Bandwidth Handheld Digital Oscilloscope 2CH+1CH

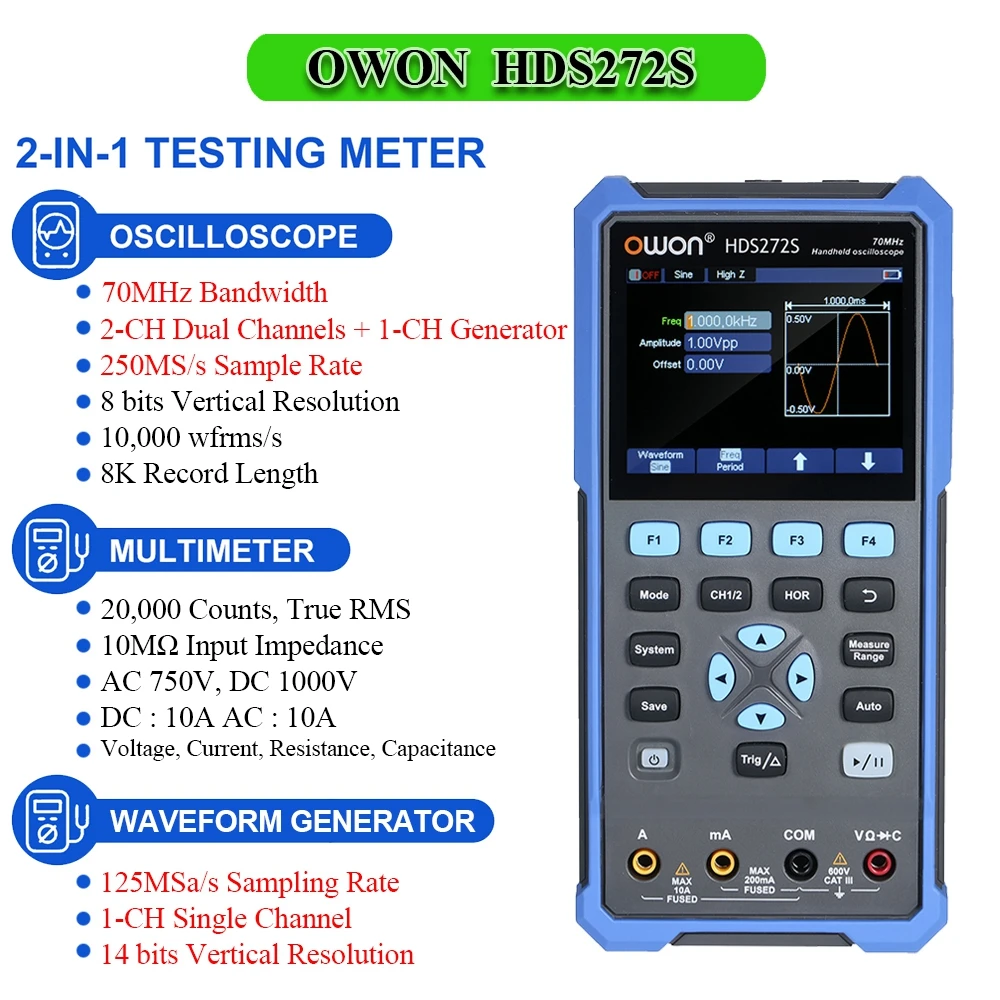

HDS272S Description
Features:

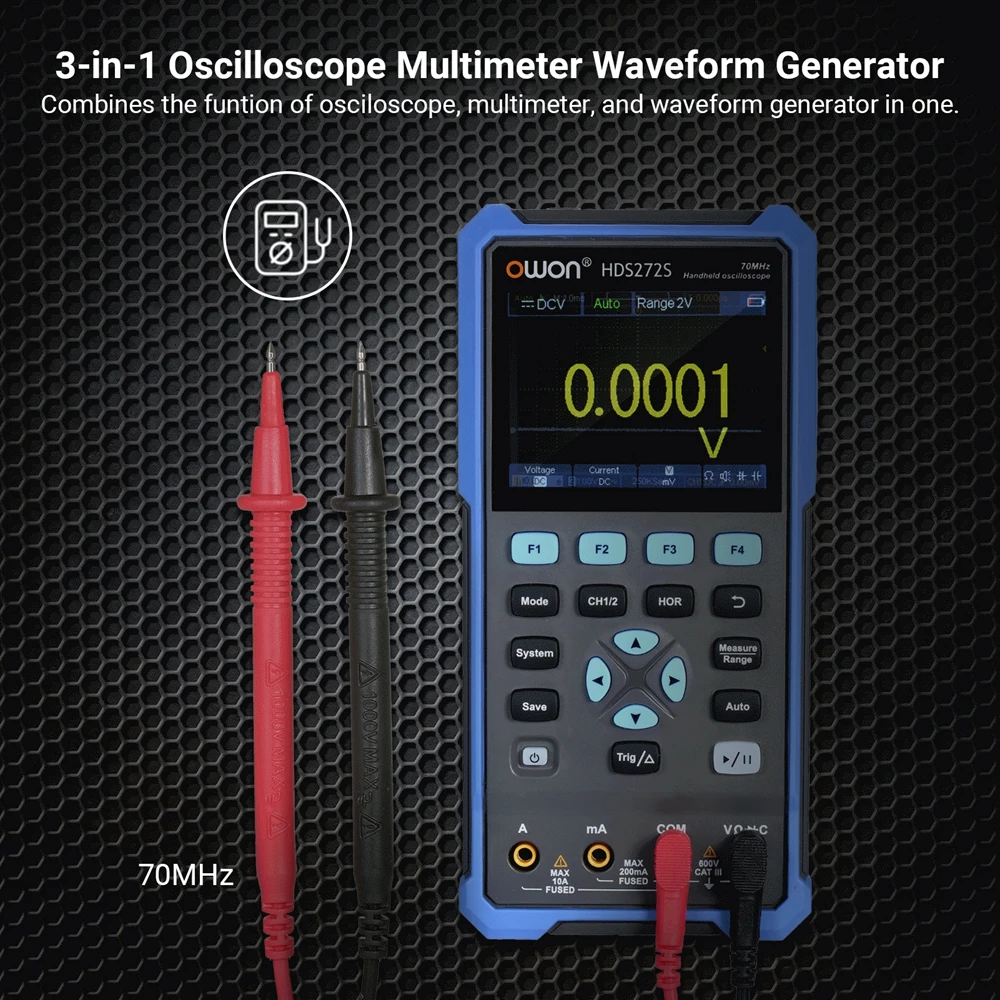

Versatile Handheld Test Instrument -- Handheld Oscilloscope Function + Digital Multimeter Function + Waveform Generator, 3-in-1 integrated multifunctional handheld test instrument. One key switch easy to operation, compact size with stand bracket suit for outdoor maintenance, rapod on-site measurement, automobile maintenance, power detection, etc.
Ergonomic Design -- 3.5-inch high-resolution, high-contrast color LCD display; High reliability with self-calibration function; SCPI supported through USB Type-C interface you can analyze and print data from the oscilloscope. 2pcs 2200mAh 18650 lithium battery, less then 3W power consumption can work continuously for about 6 hours; Included USB Type-C cable for convenient charging.

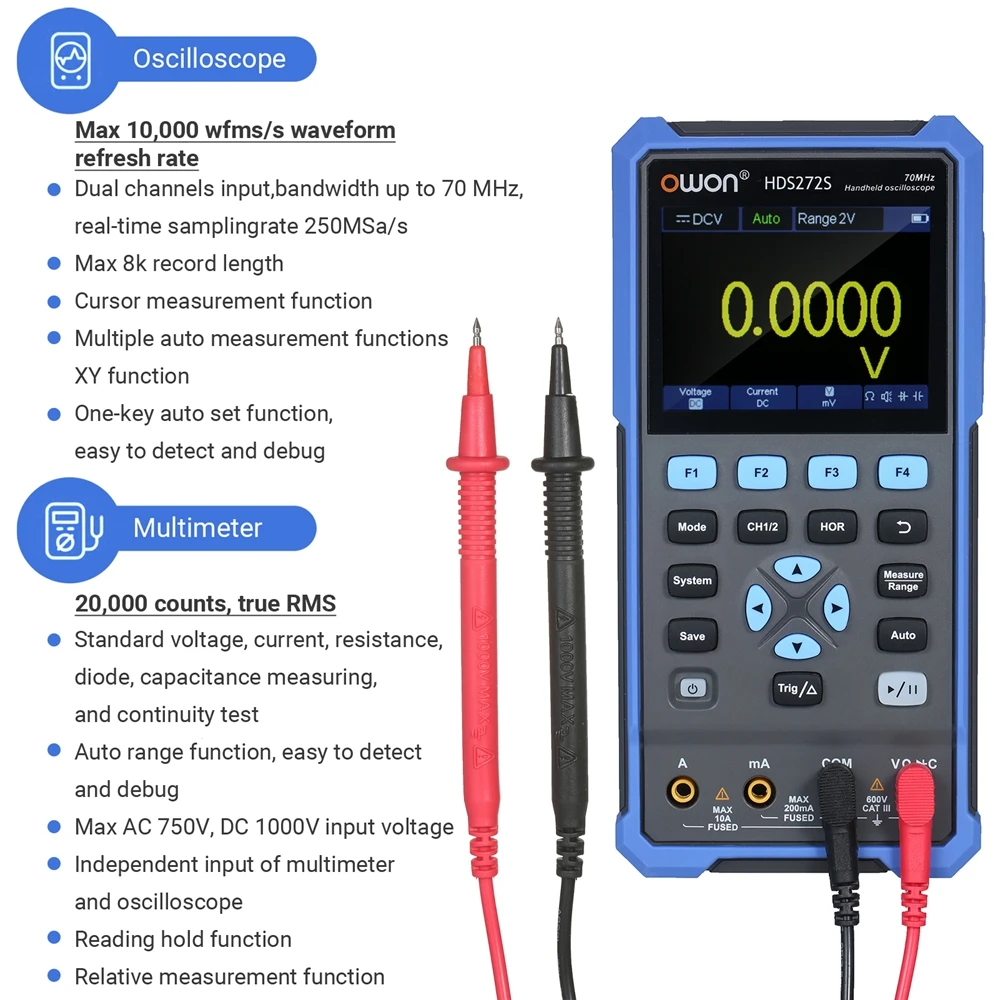

Digital Oscilloscope Main Function -- 2-channel input, 70MHz bandwidth, 250MSa/s real-time sampling rate, Max 8k record length. Cursor measurement function; Multiple auto measurement functions; XY function; One key auto set function, easy to detect and debug.
Digital Handheld Multimeter -- Auto ranging 20000 counts true RMS multimeter with hold function can be used to measure standard voltage, current, resistance, diode, capacitance and continuity test, easy to detect and debug. Max AC 750V, DC 1000V input voltage; Independent input of multimeter and oscilloscope support relative measurement function.
Waveform Generator -- Max 25MHz frequency output, 0.1Hz resolution; 14-bit vertical resolution, 125MSa/s high sampling rate; 8K waveform length, Max 5Vpp output amplitude. Output sine, square, ramp, pulse and built-in special waveforms.

Specification:
Brand: OWON
Model: HDS272S
Function: Oscilloscope+ Multimeter + Waveform Generator

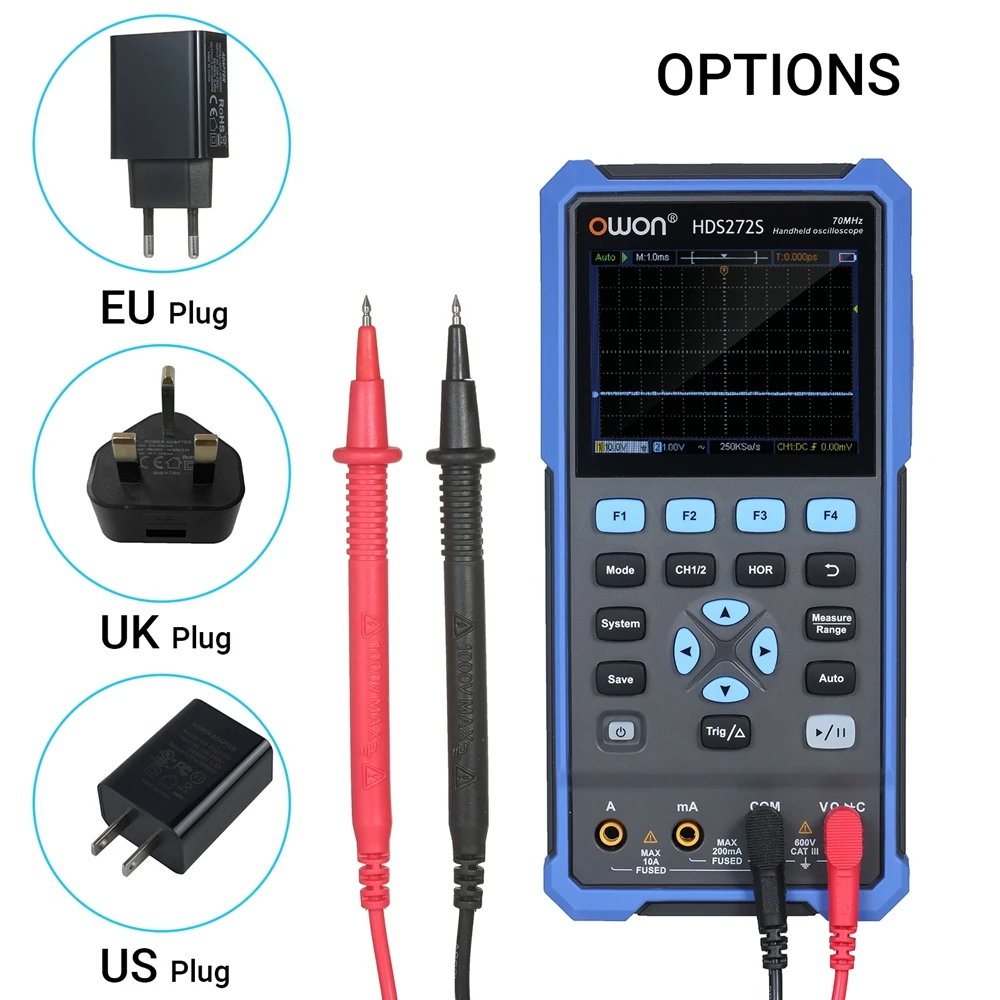

Plug: US/EU/UK (optional)
Battery: 2 * 2200mAh 18650 Lithium Battery
Charging Method: USB Type-C
Product Size: 198*96*38mm
Product Weight: Approx. 0.6kg (main device, without battery)

Oscilloscope Specifications:
Bandwidth: 70MHz
Bandwidth Limit (typical): 20MHz

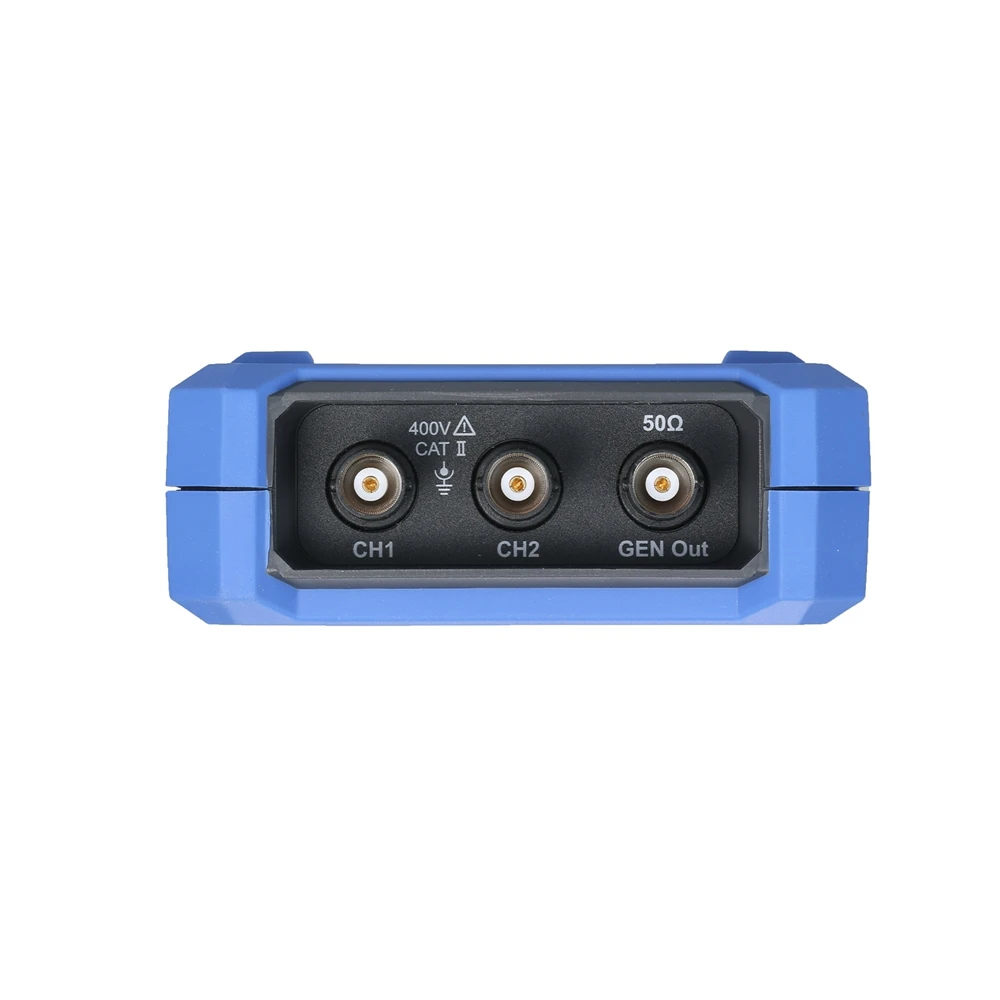

Channels: 2-CH Oscilloscope + 1-CH Generator

Sample Rate: 250MSa/s
Record Length: 8K
Vertical Resolution: 8 bits

Acquisition Model: Normal, Peak detect
Display: 3.5-inch LCD
Waveform Refresh Rate: 10,000 wfrms/s
Input Coupling: DC, AC, and Ground
Input Impedance: 1 M2%, in parallel with 16pF10pF
Probe Attenuation Factors: 1X,10X,100X,1000X
Max. input Voltage: 400V (DC+AC, PK-PK, 1M input impedance) (10:1 probe attenuation)
Horizontal Scale: 5ns/div - 500s/div, step by 1 - 2 - 5
Vertical Sensitivity: 10mV/div - 10V/div
Trigger Type: Edge
Trigger Modes: Auto, Normal, single
Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK
Communication Interface: USB Type-C

Multimeter (Standard):
Max. Resolution: 20,000 counts
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
Input Impedance: 10M
Max Input Voltage: AC 750V, DC 1000V
Max Input Current: DC: 10A AC: 10A
Diode: 0 - 2V

Waveform Generator:
Channel: 1-CH
Vertical Resolution: 14bits
Waveform Length: 8K
Sampling Rate: 125MSa/s
Frequency Output:
Sine: 0.1Hz - 25MHz
Square: 0.1Hz - 10MHz
Ramp: 0.1Hz - 1MHz
Pulse: 0.1Hz - 5MHz
Arbitrary: 0.1Hz - 5MHz
Amplitude Range: 20mVpp-5Vpp
Output Impedance: 50

Packing List:
1 * Handheld Digital Oscilloscope Multimeter
1 * Quick Guide
1 * USB Cable
1 * Probe Adjust
1 * Multimeter Lead
1 * Soft Bag
1 * Bolt Driver
1 * Probe
1 * BNC to Alligator Clip


HDS272 Description
Features:
The 2-in-1 versatile unit combines the function of oscilloscope and multimeter in one.
3.5 inches color LCD display, bright and clear to read for waveform details even out of doors.
2CH dual channels input, bandwidth up to 70 MHz, real-time sampling rate is 250MSa/s.
Maximum 8K record length, and 10000 wfms/s refresh rate, easy to capture exceptional and low probability events.
Easy to use, provided with 7 kinds of auto measurement - frequency, period, amplitude, max, min, mean, and PK-PK, perfect for professionals and novices.
More functions of the oscilloscope - cursor measurement, XY mode, and data save.
20,000 counts true-RMS multimeter able to measure AC/DC voltage, AC/DC current, resistance, diode, capacitance, and continuity.
Support maximum AC 750V, DC 1000V input voltage. Auto-ranging function, easy to detect and debug.
More functions of the multimeter - data hold, and relative measurement.

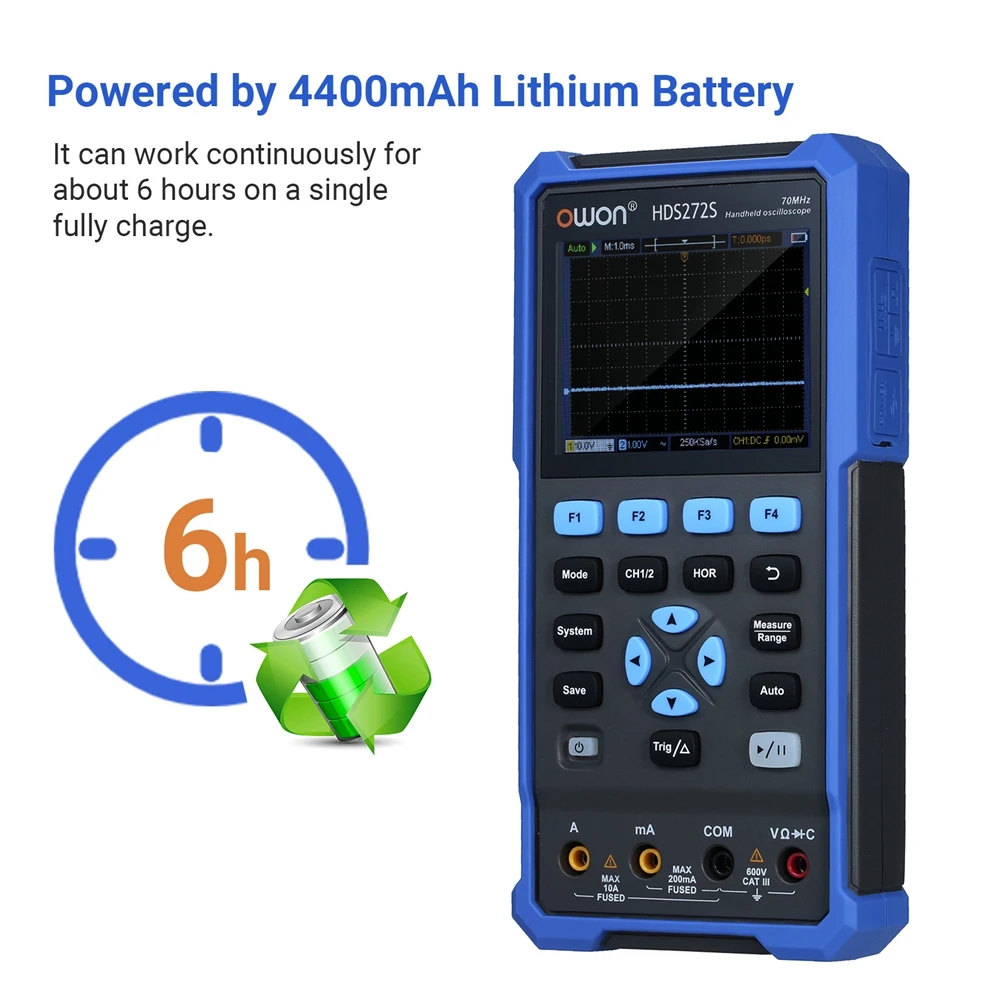

Powered by 4400mAh lithium battery, it can work continuously for about 6 hours on a single fully charge.
USB type-C interface can be charged by an adapter or a power bank, and supports PC software connection.
Compact and portable for travel, with solid kickstand on the back for easy reading on workbench.
Applied for the maintenance of sound systems, electronics, automobile, transceiver, etc.

Parameters:
[Oscilloscope]
Brand: OWON
Model: HDS272
Bandwidth: 70MHz
Channels: 2CH
Sample Rate: 250MSa/s
Acquisition Model: Normal, Peak detect
Record Length: 8K
Display: 3.5-inch LCD
Waveform Refresh Rate: 10000 wfrms/s
Input Coupling: DC, AC, and Ground
Input Impedance: 1 M2%, in parallel with 16pF10pF
Probe Attenuation Factors: 1, 10, 100, 1000
Max. Input Voltage: 400V(DC+AC, PK-PK, 1M input impedance)(10:1 probe attenuation)
Bandwidth Limit(typical): 20MHz
Horizontal Scale: 5ns/div - 500s/div, step by 1-2-5
Vertical Sensitivity: 10mV/div - 10V/div
Vertical Resolution: 8 bits
Trigger Type: Edge
Trigger Modes: Auto, Normal, Single
Automatic Measurement: Frequency, Period, Amplitude, Max, Min, Mean, PK-PK

[Multimeter]
Max. Resolution: 20,000 counts
Testing Mode: Voltage, Current, Resistance, Capacitance, Diode and Continuity
Input Impedance: 10M
Max. Input Voltage: AC 750V, DC 1000V
Max. Input Current: DC: 10A, AC: 10A
Diode: 0-2A

Specifications:
Brand: OWON
Material: ABS
Color: Blue
Plug Type: US / EU / UK (optional)
Battery Capacity: 4400 mAh
Chaging Time: approx. 4.5 hours
Battery Life: approx. 6 hours
Item Size: 19.8*9.6*3.8cm / 7.79*3.77*1.49in
Item Weight: 504g / 17.77oz
Tool Bag Size: 21*14*6cm / 8.26*5.51*2.36in
Package Size: 24*16*9.5cm / 9.44*6.29*3.74in
Package Weight: 1049g / 37oz

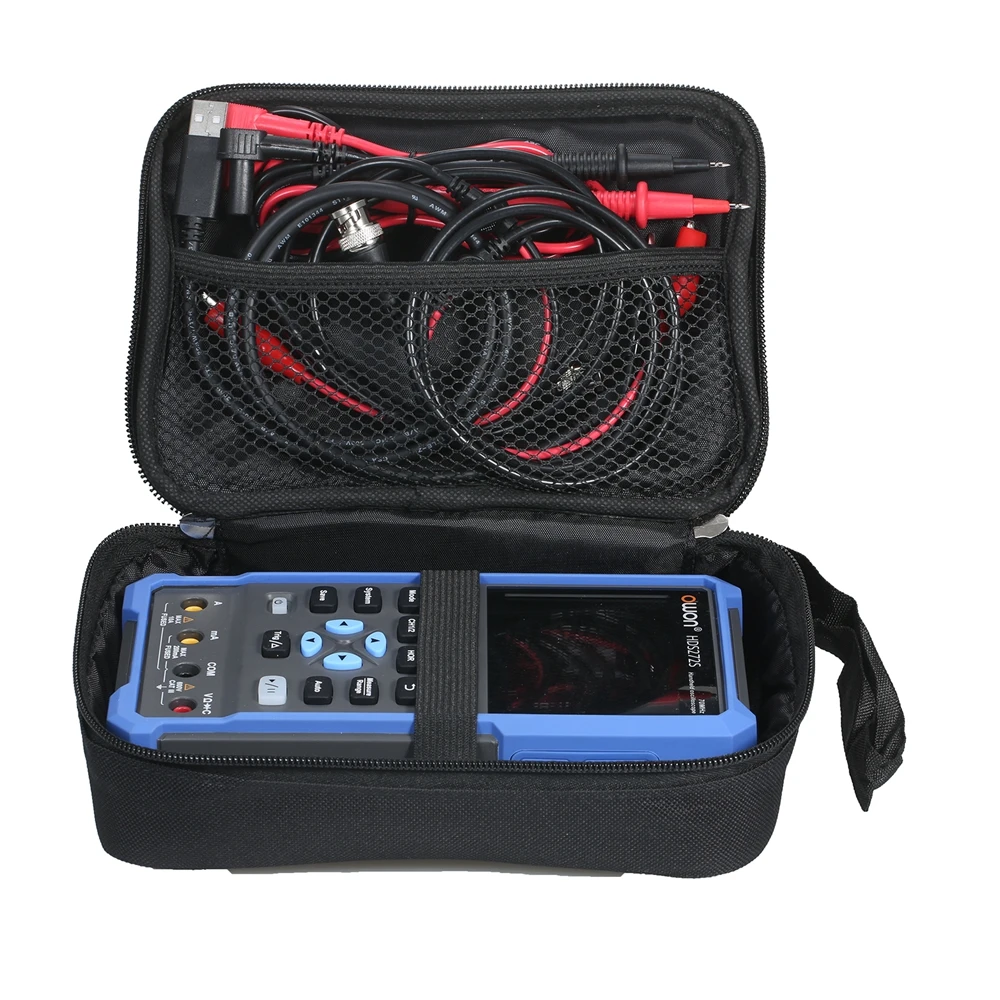

Packing List:
1 * Oscilloscope
1 * Probe
1 * Probe Adjust
1 * USB Cable
2 * Test Lead
1 * BNC to Alligator Clip
1 * Carrying Bag
1 * User Manual(English)
