IEM1200 UHF Professional Wireless in Ear Monitoring System with Mono Audio Outpu

Description

1. UHF WIRELESS IN EAR MONITOR SYSTEM: UHF band phase lock PLL, improved comprehensive performance, anti-frequency drop, anti-series frequency. This system comply with new FCC frequency rules.

2. FREQUENCY RANGE: 550Mhz-580Mhz. In the 32MHz frequency band, the preset 40 frequencies can be switched at will. The dynamic expansion circuit greatly improves the signal-to-noise ratio.

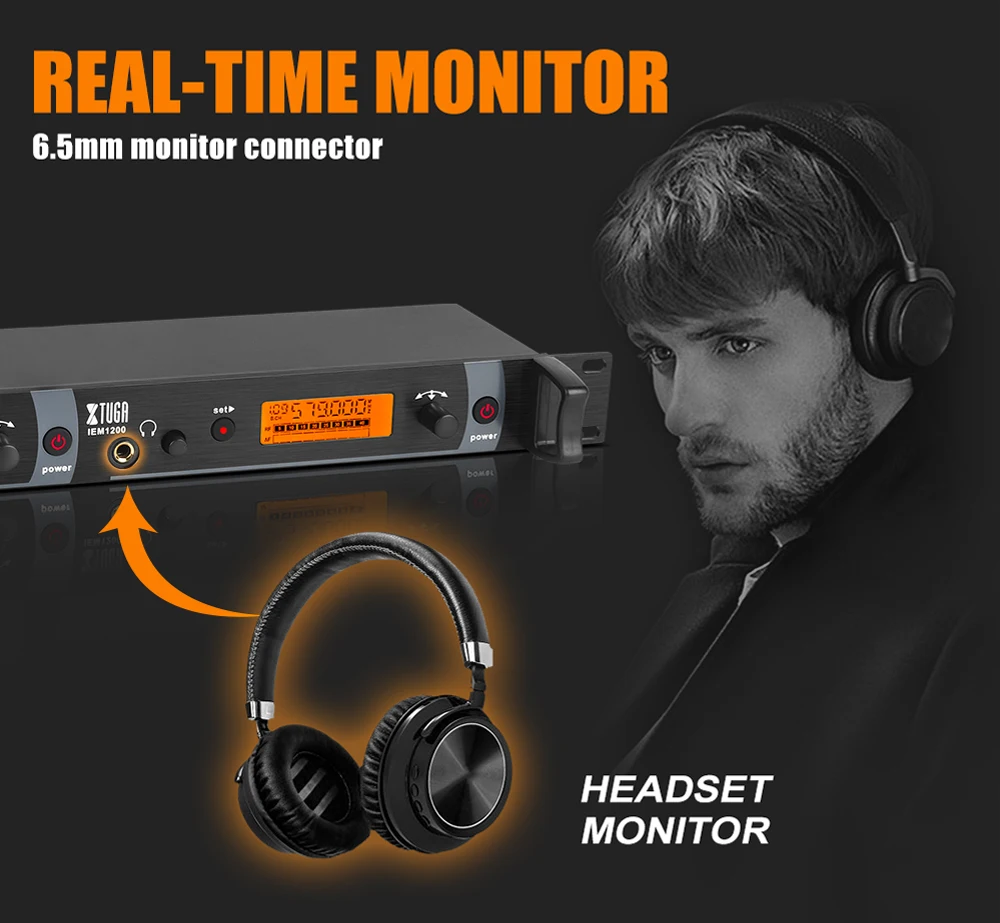

3. USED IN STAGE PERFORMANCE AND SOUND BROADCASE: Built-in limiter circuitry eliminating distortion under excessive input levels. Front panel 1/4-inch stereo monitoring has the headphone jack.Used in stage, it can replace traditional composite sound monitoring equipment,achieve admirable listening effect.

4. DESIGN FEATURES(APPERANCE AND DISPLAY): Elegant liquid crystal display panel and LCD display low-battery indicator on the receiver.With power and RF receiving indicatorlamp. It using two AA batteries and efficient power circuit,longservice time.The metalhousing makes it sturdy and durable.

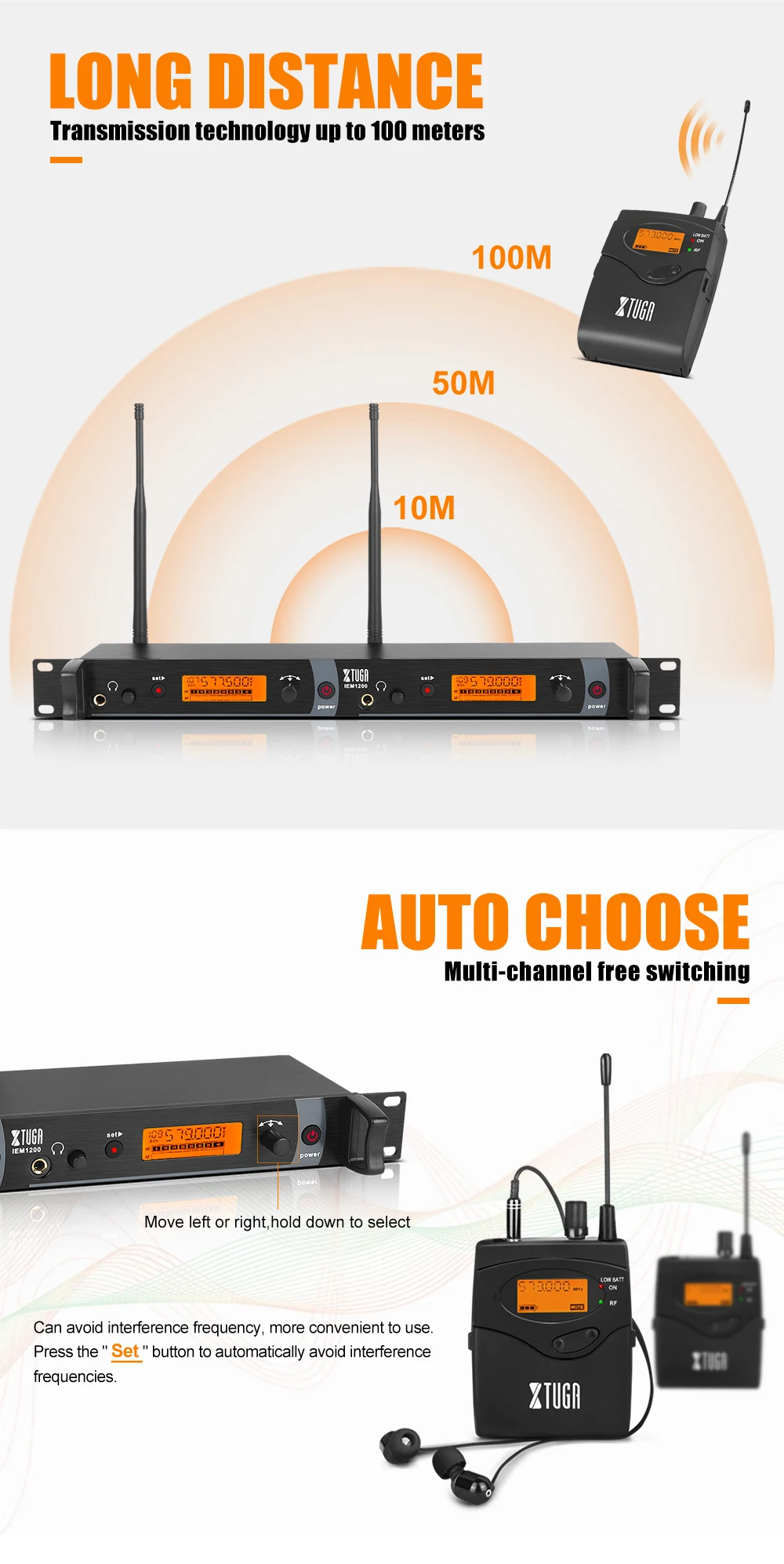

5. WIRELESS RANG AND FREQUENCY RANG: IEM1200 in ear monitor and receiver system offers tabletop stage monitoring with a wireless range of up to 300 feet. The normal can be 250-300 feet. Also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.

6. QUALITY AND TECHNOLOGY GUARANTEED: Using advanced circuit design,clear the receiving blind angle to make the system's receiving signal steady.The system is strong, because of the housing is made by tough metal material.It is the best choice of stage performance monitor product.

Techinal parameters

Transmitter:

1. Case specification:standard 1U

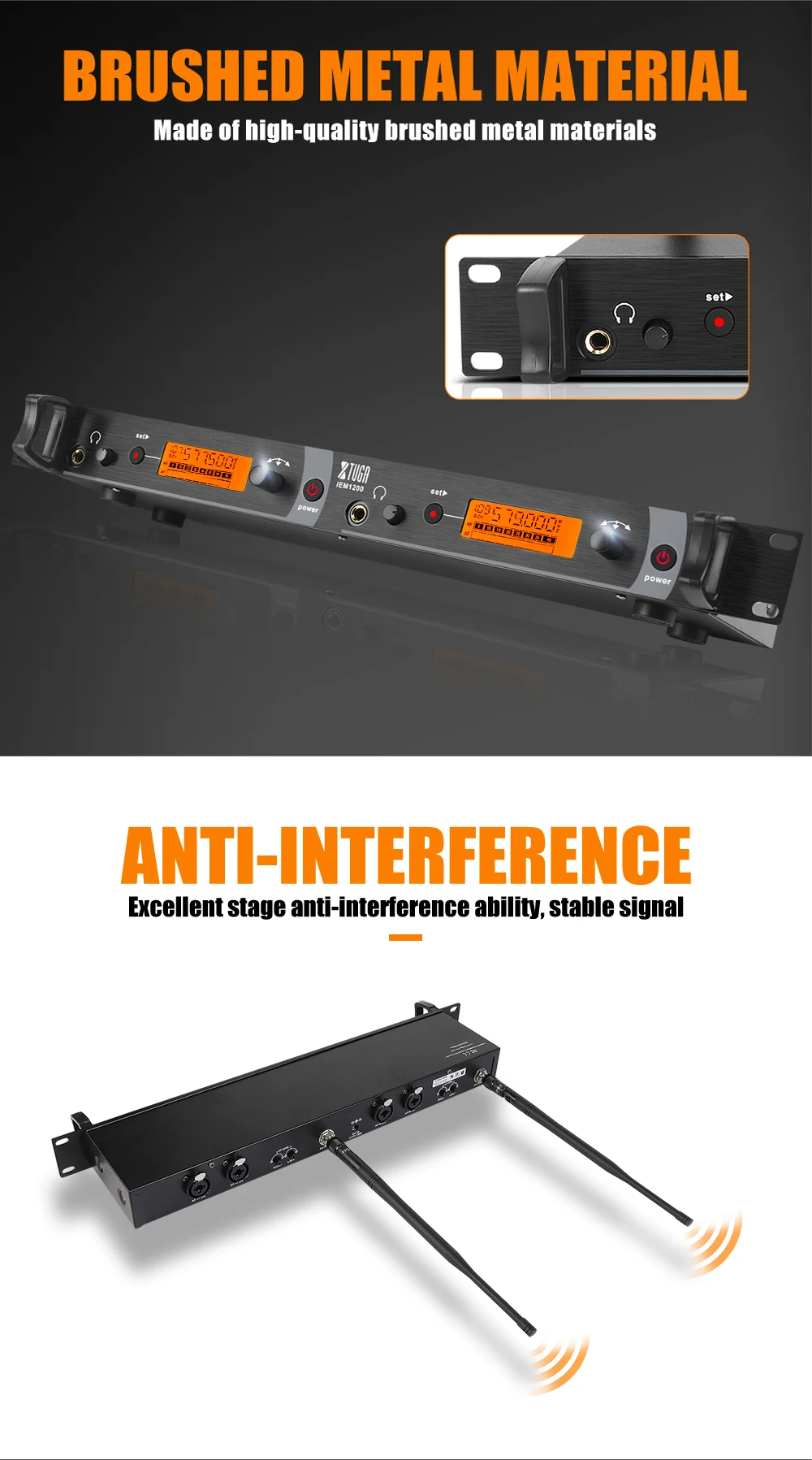

2. Case material:metal panel

3. Oscillation mode:PLL synthesized

4. Frequency stability:0.005%

5. Frequency range:550Mhz-580Mhz

6. Frequency interval:32MHz

7. Preset Channel:40 channels separately set 4 groups

8. Operate mode:manual adjust

9. Max deviation:48KHz

10. Frequency response:50Hz~15KHz3dB

11. Transmit output power:100mW(50)

12. Harmonic radiation:4NW

13. AF input:XLR,6.35mm jack

14. Earphone load impedance:16

15. Current consumption:DC 12V/250mA

16. Antenna socket:TNC socket(50)

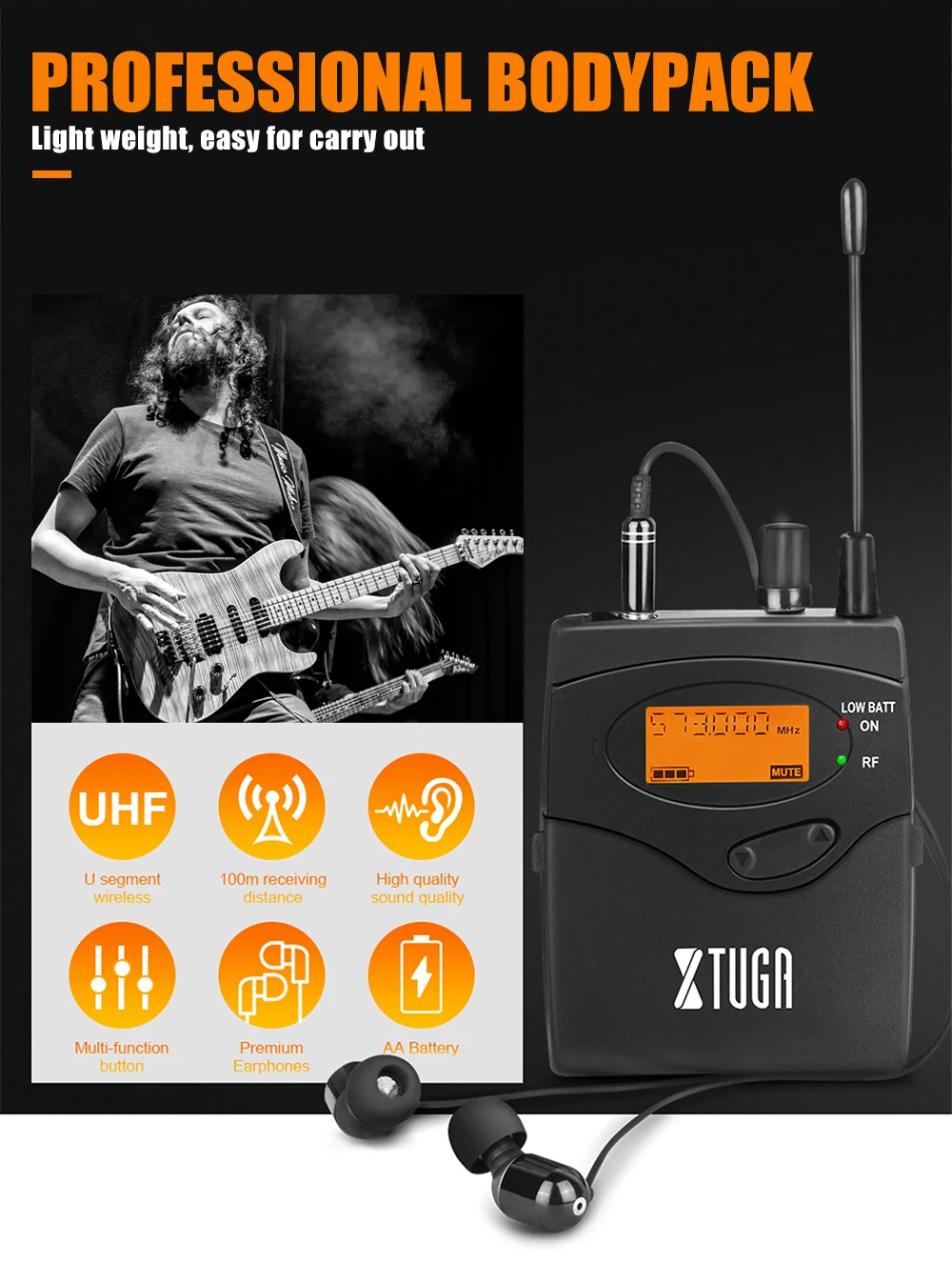

Bodypack receiver:

1. Oscillation mode:PLL Synthesized

2.Case material:plastic

3. Frequencyrange:550Mhz-580Mhz

4. Preset channel:40 channels separately set 4 groups

5. Operate mode:manual adjust

6. Receiving mode:single tuning

7. Sensitivity:deviation 25 kHz,with connecting7dBuV,S/N78dB

8. Max deviation:48KHz

9. Comprehensive T.H.D:94db(1KHZ-A)

10. Comprehensive response:15KHz3dB

11. Output power:(32)2x35mw@1KHz

12. Earphone load impedance:16

13. Out socket:3.5mm stereo earphone socket

14. Volume output adjusts:adjust when using

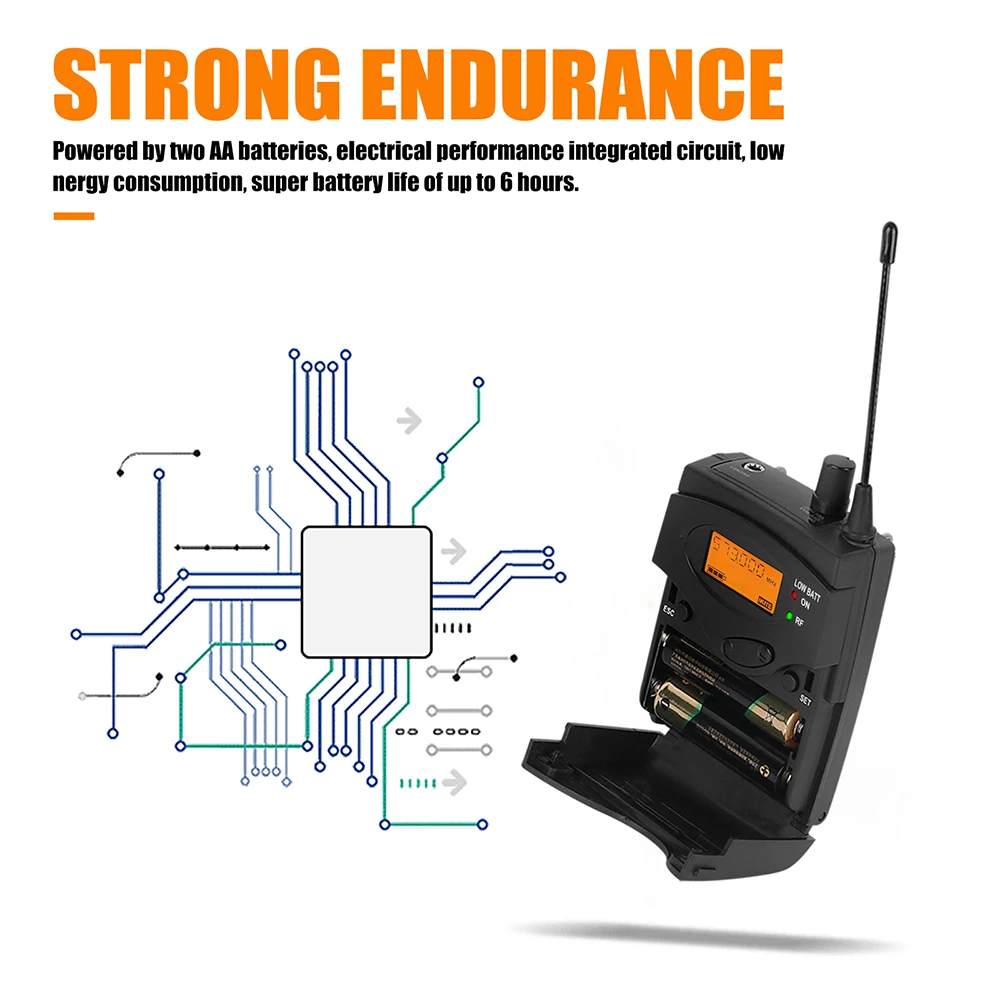

15. Power box: two AA batteries

16. Current drain:3V/120mA(Under the mediant degrees of the volume control)
