JBD Smart BMS Li-Ion Lifepo4 24V 36V 48V 60V 8S-20S 8S 10S 13S 14S 16S 18S 20S 2

Product Information

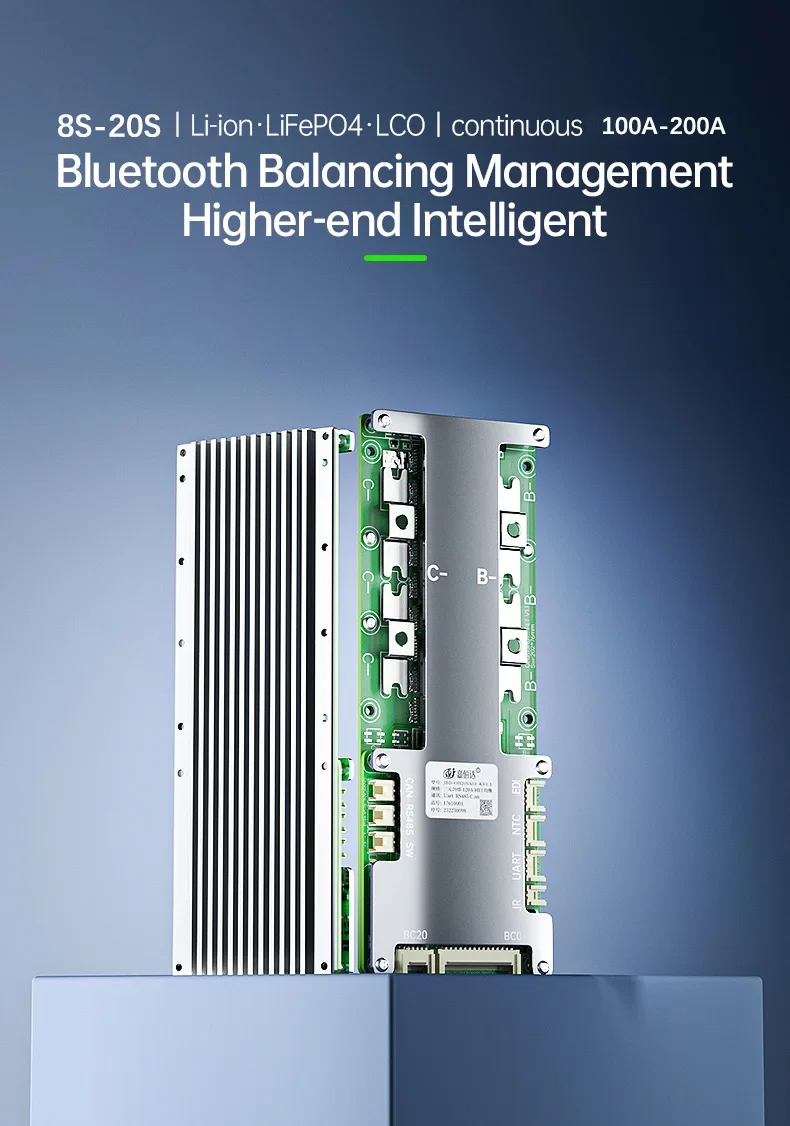

JBD Bluetooth Smart BMS(Battery Management System) 8S-20S

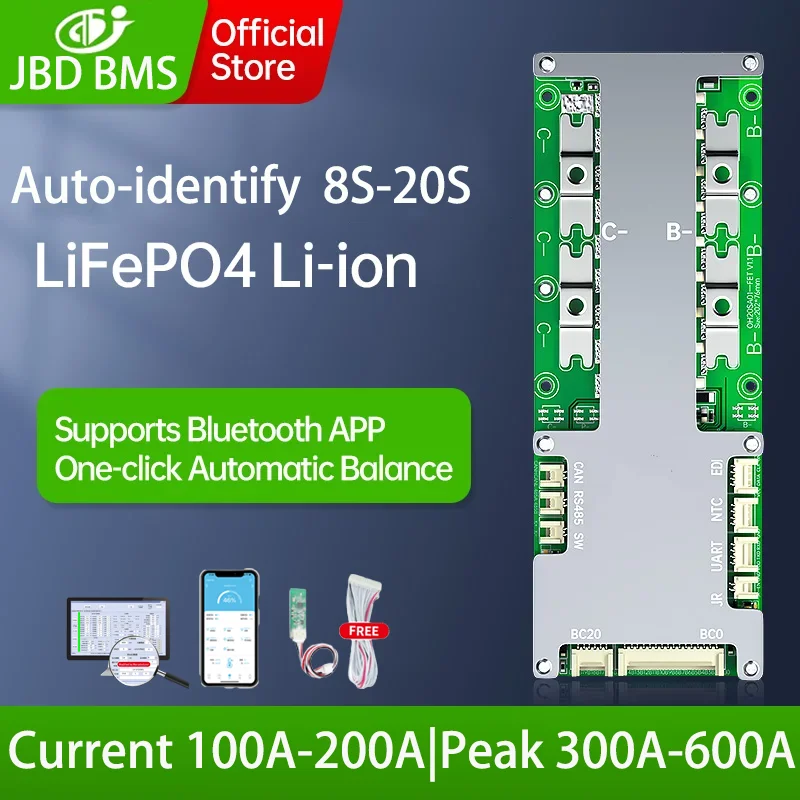

Can Automatically Identify Lithium Battery Strings Of 8S 9S 10S 11S 12S 13S 14S 15S 16S 17S 18S 19S 20S

Support Lithium Battery Pack Of LiFePo4 and Li-ion 24V 36V 48V 60V

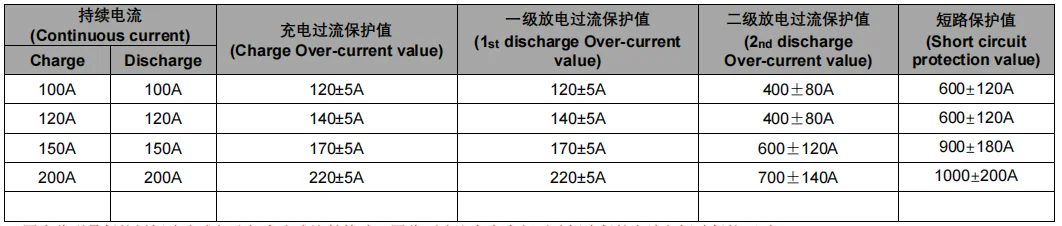

Continuous Current 100A 120A 150A 200A,Peak 300A 360A 450A 600A,continue one second

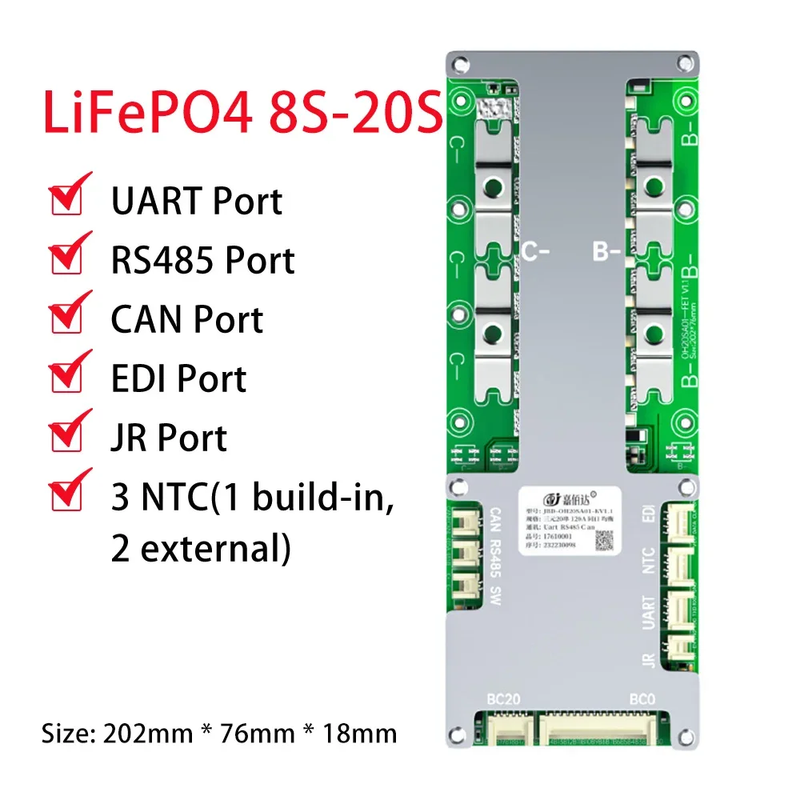

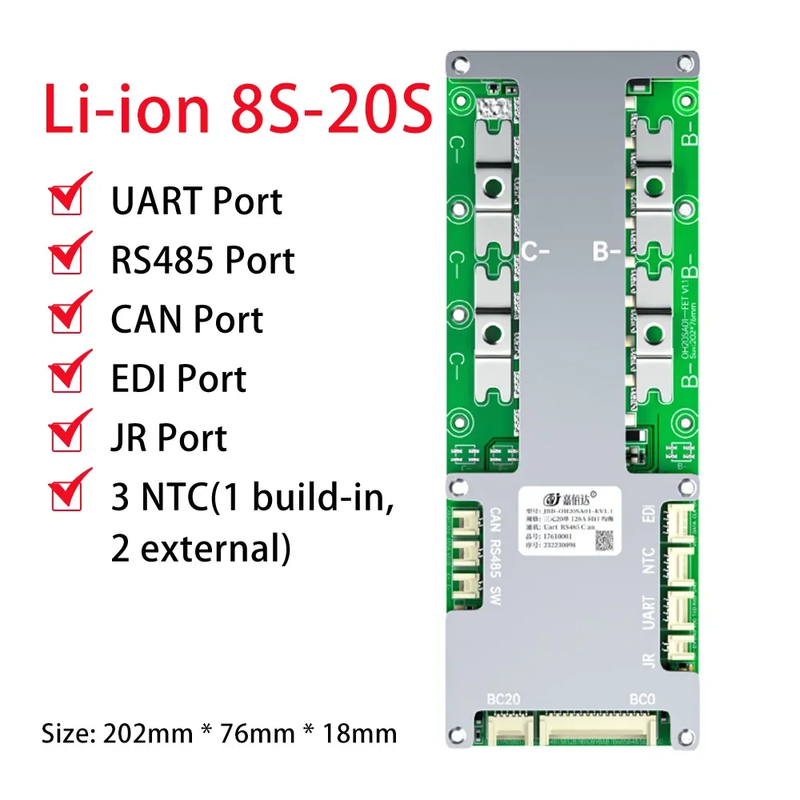

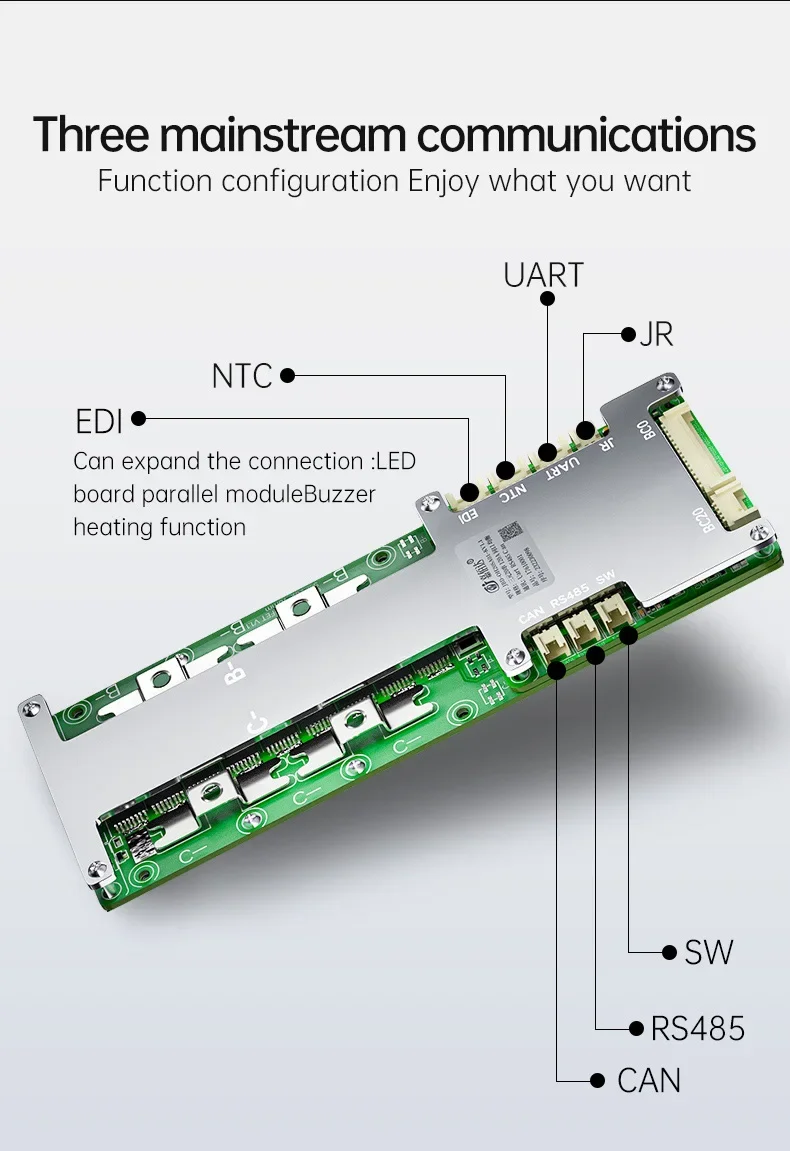

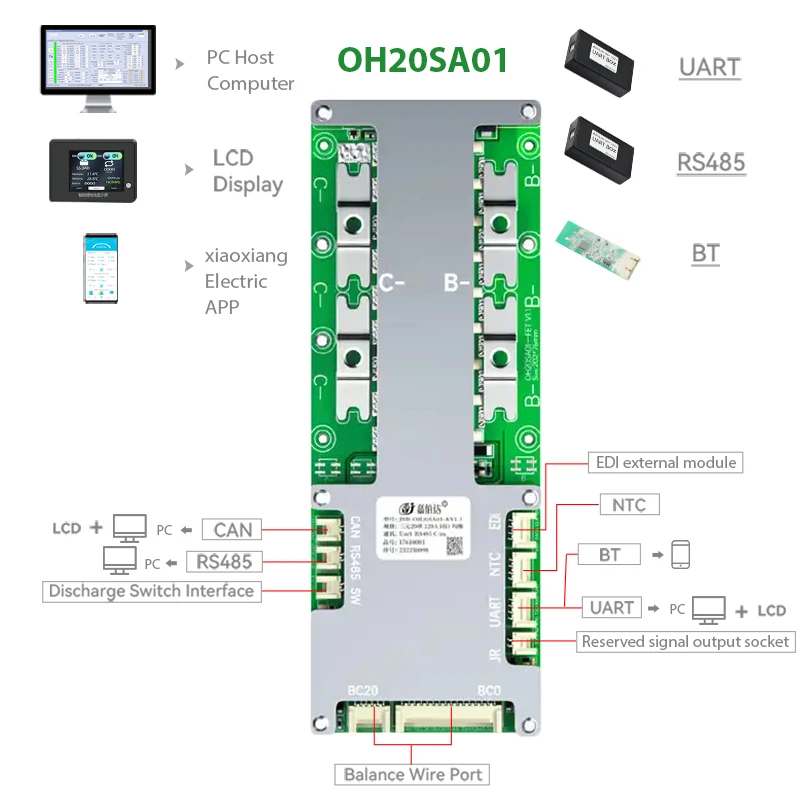

BMS with External Bluetooth Module UART RS485 CANBUS Communication Function

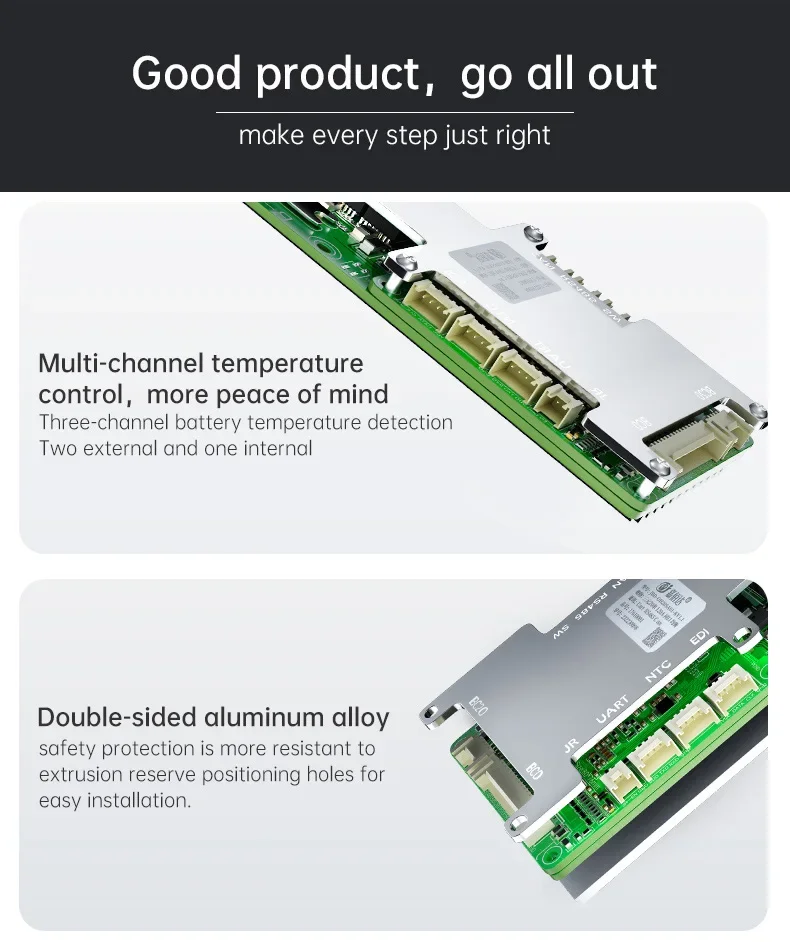

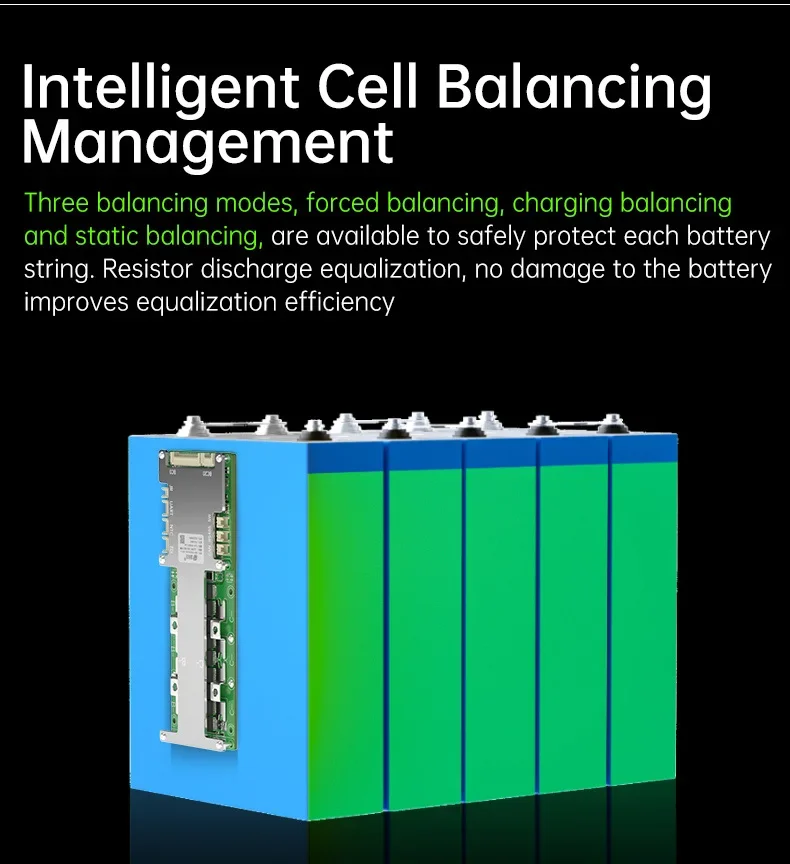

BMS with Balance Function and Temp Sensor

The BMS support APP and PC Setting and Monitor Battery Packs Parameters Datas

Package Included:BMS*Balance Wires*Free BT Module.

Function introduction

(1)BT-APP in Phone(xiaoxiangElectric App: )

Support Both IOS and Android version,can monitor and change the parameters(need to be within the specified range).

(2)UART/RS485-JBD PC Tool Box: Monitor and Set parameters,ask for service for PC Tool Software and PC tool Manual.PC Tool Software:

(3)UART/RS485 LCD Displayer: Can monitor parameters on LCD displayer.

Attention

(1)UART and BT is the same port,can't be used at the same time.

(2)All smart bms has BT and UART function.

(3)UART/RS485 accessory needs buy separately:

(4)APP manual/Wiring Diagram/Bms Specification/PC Tool Software-Please contact customer service.
