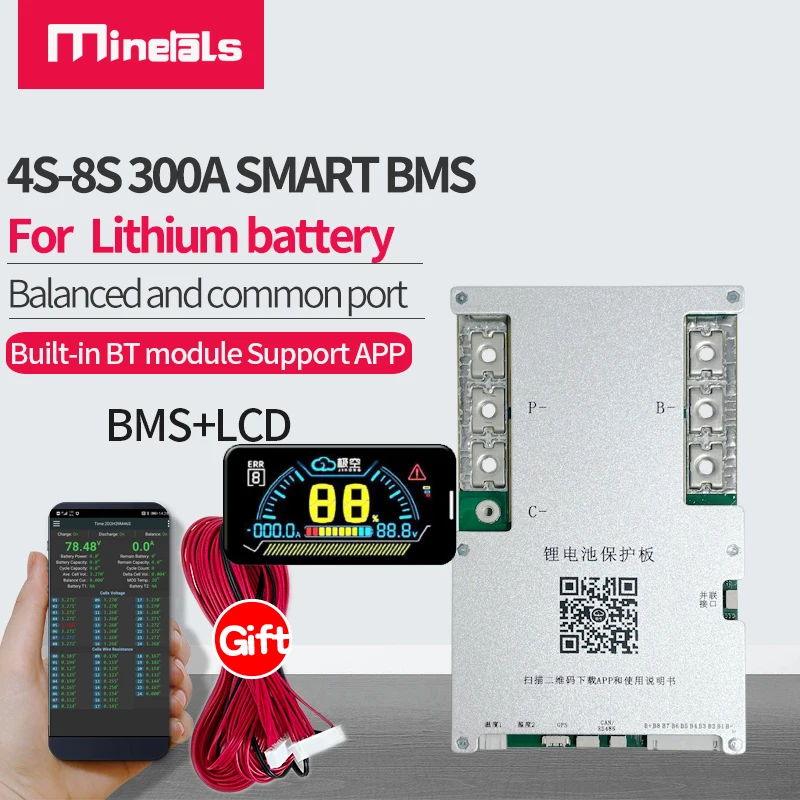

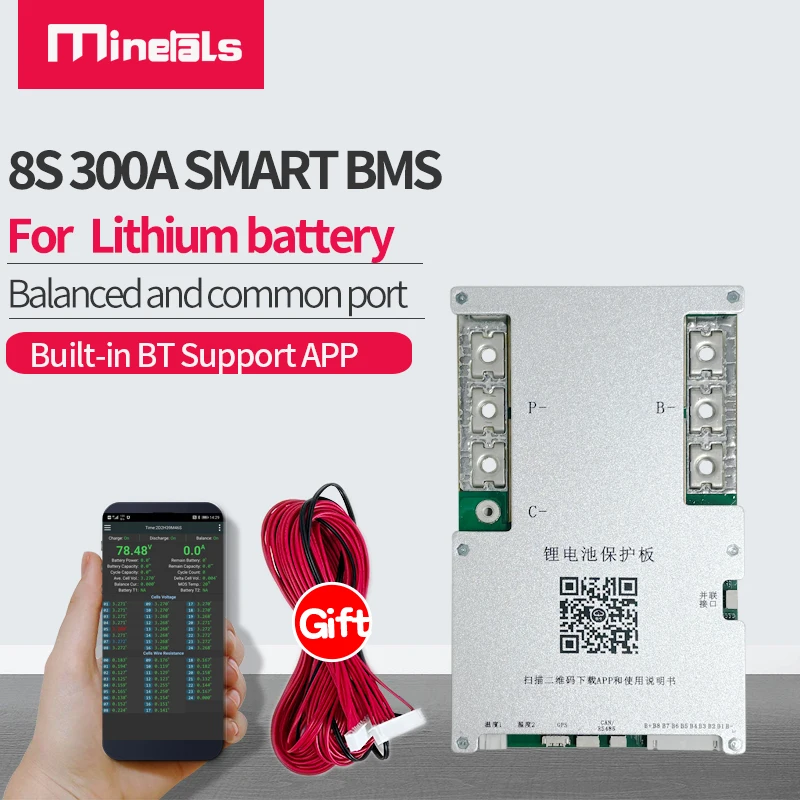

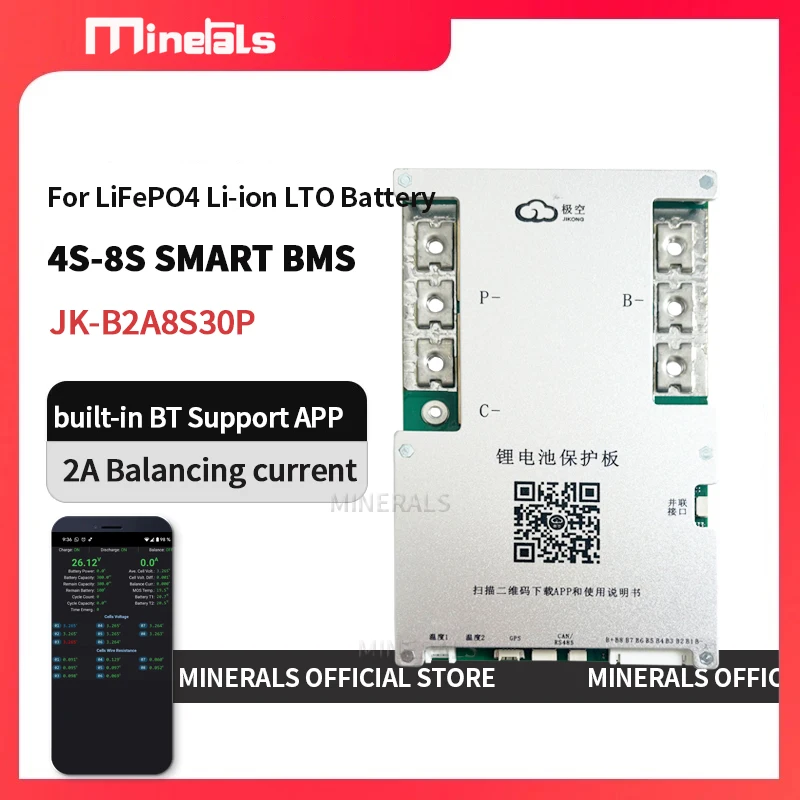

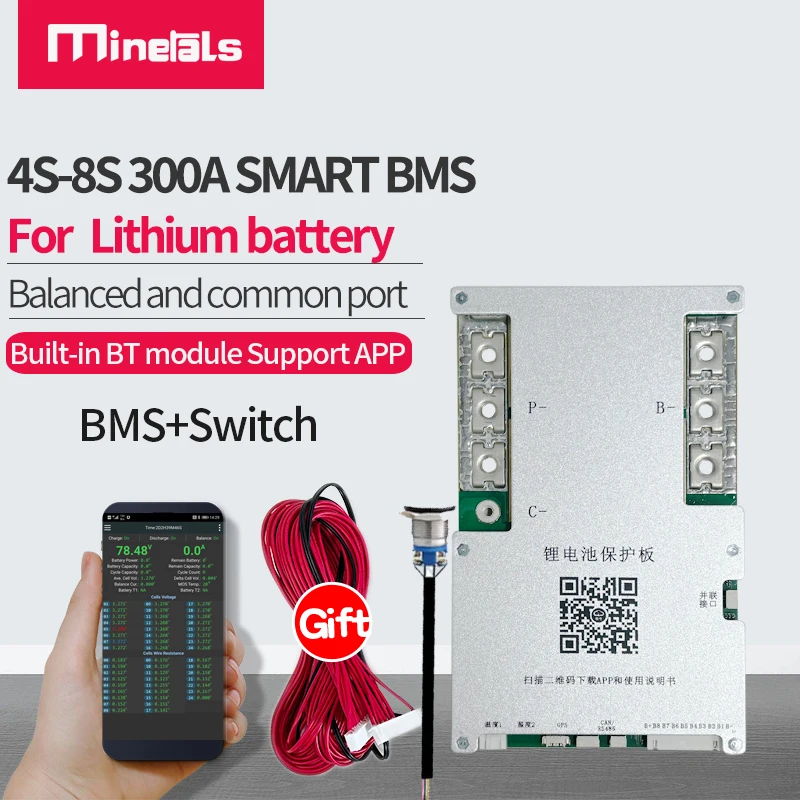

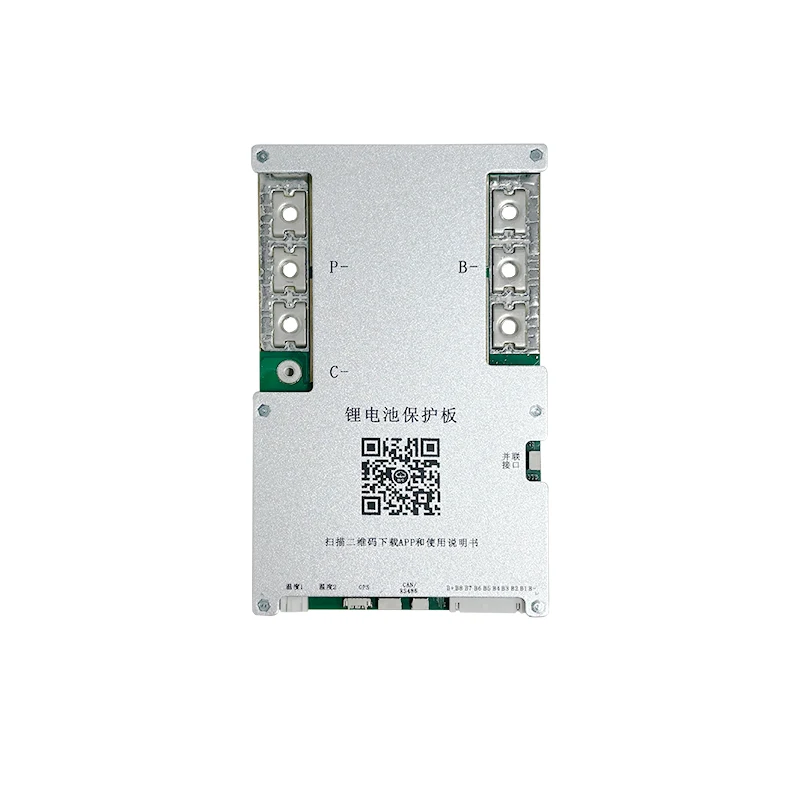

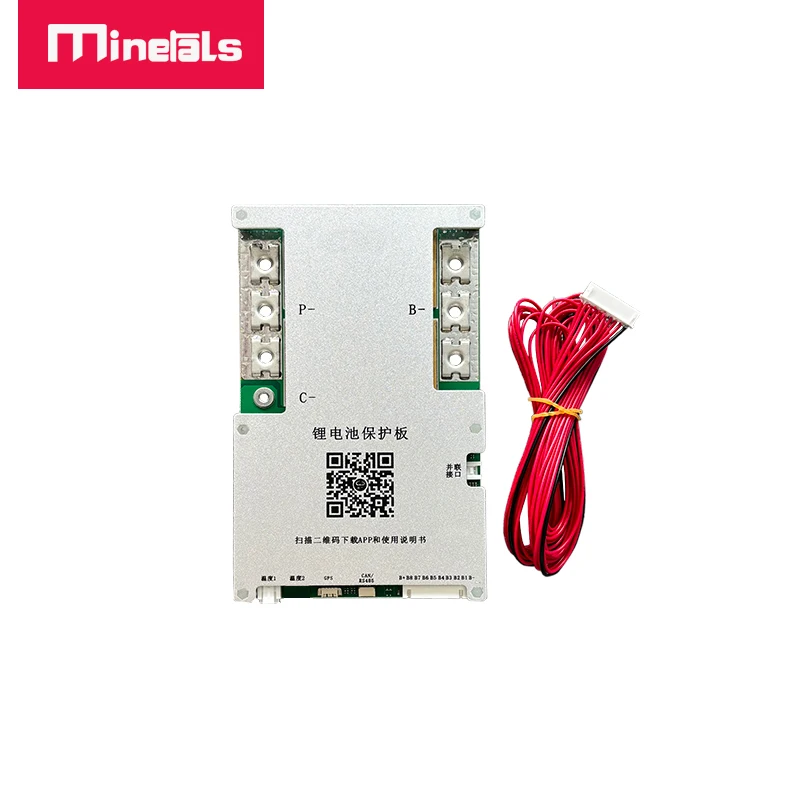

JK 4S-8S 300A Smart BMS 2A Active Balance Built-In BT APP JK-B2A8S30P 12V 24V LF

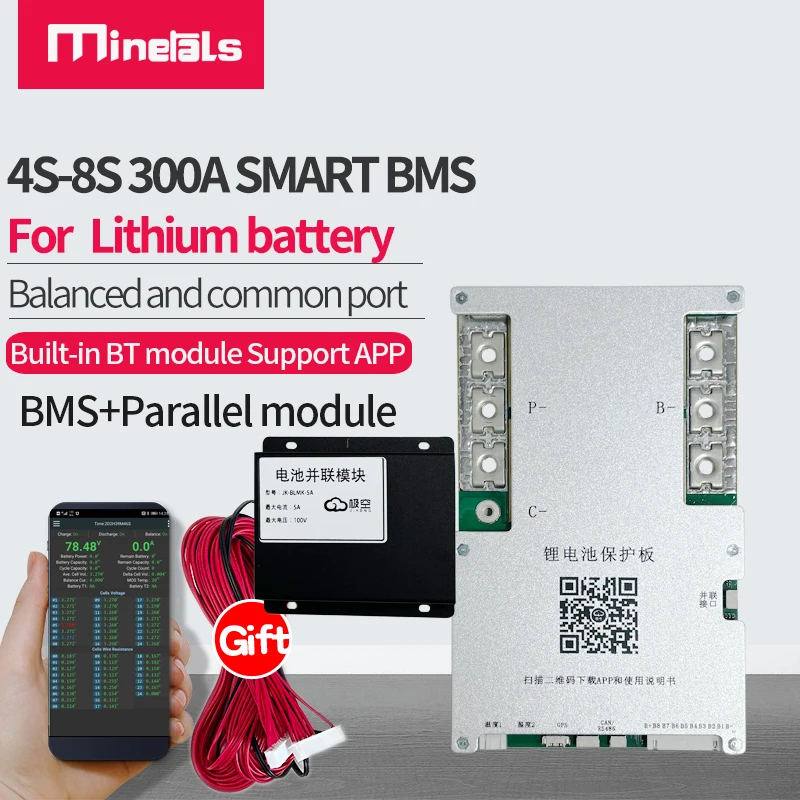

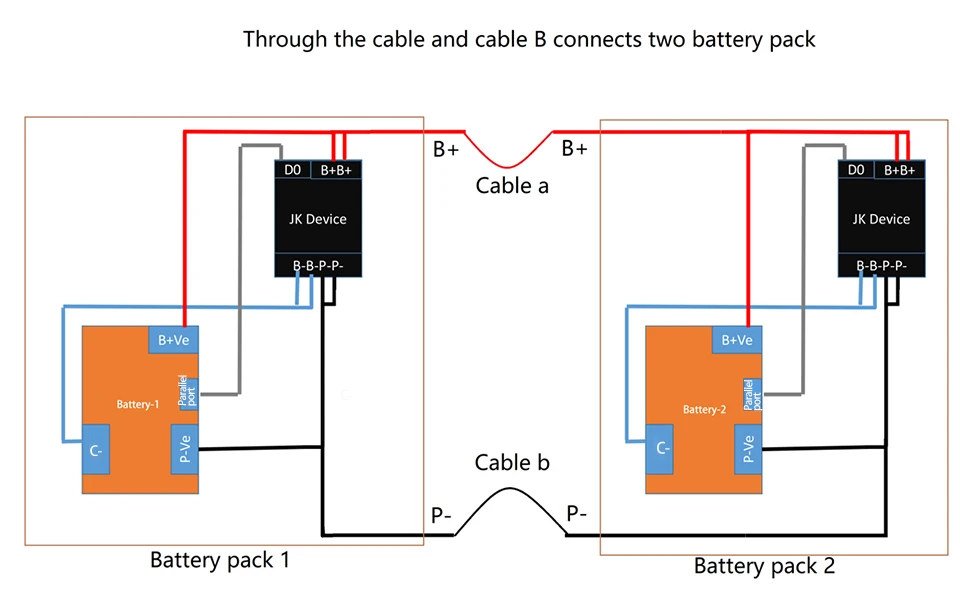

Parallel Connection Diagram

Note

Due to this BMS is not properly compatible with Relay and Inverter, occasionally it warns "Current sensor abnormal" or the current is not accurate when the BMS connected to Relay or Inverter, please ignore it
if you really care about it, please do not purchase, otherwise we will not accept any refund, Thanks!

Description

This 300A BMS supports parallel connection

This is an Active BMS, it supports 3S-8S of Li ion and 4S-8S of LiFePo4
300A continuous current,
It also has 2A active equalization current

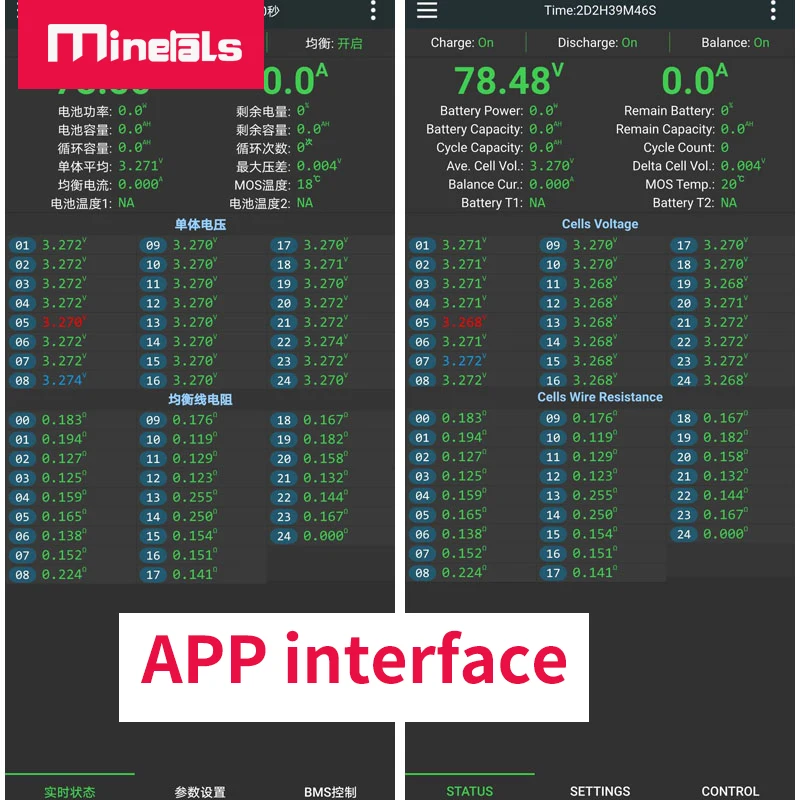

It can set up the equalization voltage and the charge & discharge protection parameter through APP,
It can display the single series of battery voltage
After connected the BMS, please use the power supply which is 5v greater than battery voltage to activate it

Product character

1.Active balance functionality, no need to lose the battery capacity to balance the voltage difference of sells, raise the battery usage efficiency for 95%
2.It can be used on 4~8s li-ion/Cobalt acid lithium/Manganese acid lithium/Lithium iron battery packs
3.Constant working current is 300A
4.It has the protections of Over-charge/Over-discharge/Over-current and Short circuit etc.

Working condition

Workable temperature: -20~70

Notice: The 485 converter just for transfering the communication to be RS485, it can not be connected to PC directly, it needs to connect to another 485 module to connect to PC, The yellow wire is 485A , the white wire is 485B, the black wire is for GND and you don't have to connect the black wire, We will provide you the 485 protocol after bought the 485 converter, and we don't provide the software, if you are not the familiar with Serial Port Debugging Tool, please be careful when you want you purchase this product

Balanced way: Active equalization
Active equalization current:2A
internal resistance1.3m
Rated discharge current300A
Maximum discharge current350A
Overcurrent protectionAdjustable:10-300A
Wiring method:common port
Monomer voltage range: 1V-5V
Voltage acquisition accuracy: 5mV
Battery cell Over-charge protection voltage :1.2V-4.35VAdjustable
Battery cell Over-charge protection recovery voltage: 1.2V-4.35VAdjustable
:2-120S Adjustable
Battery cell Over-discharge protection voltage: 1.2V-4.35VAdjustable
Battery cell Over-discharge protection recovery voltage : 1.2V-4.35VAdjustable

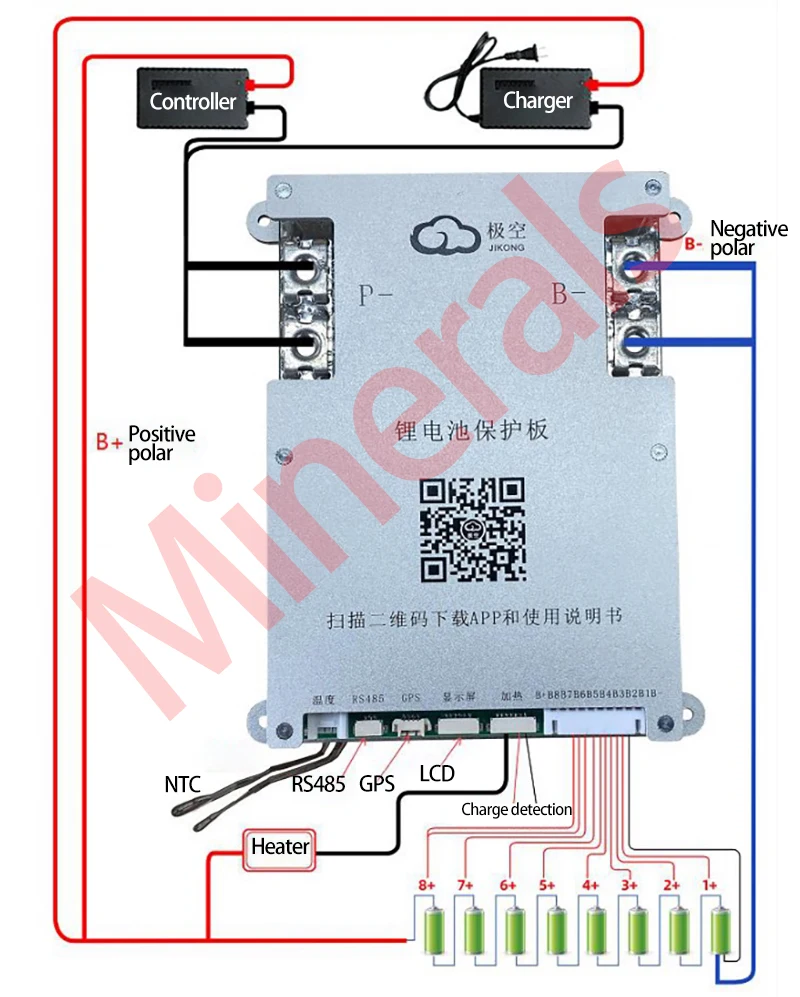

Connection
