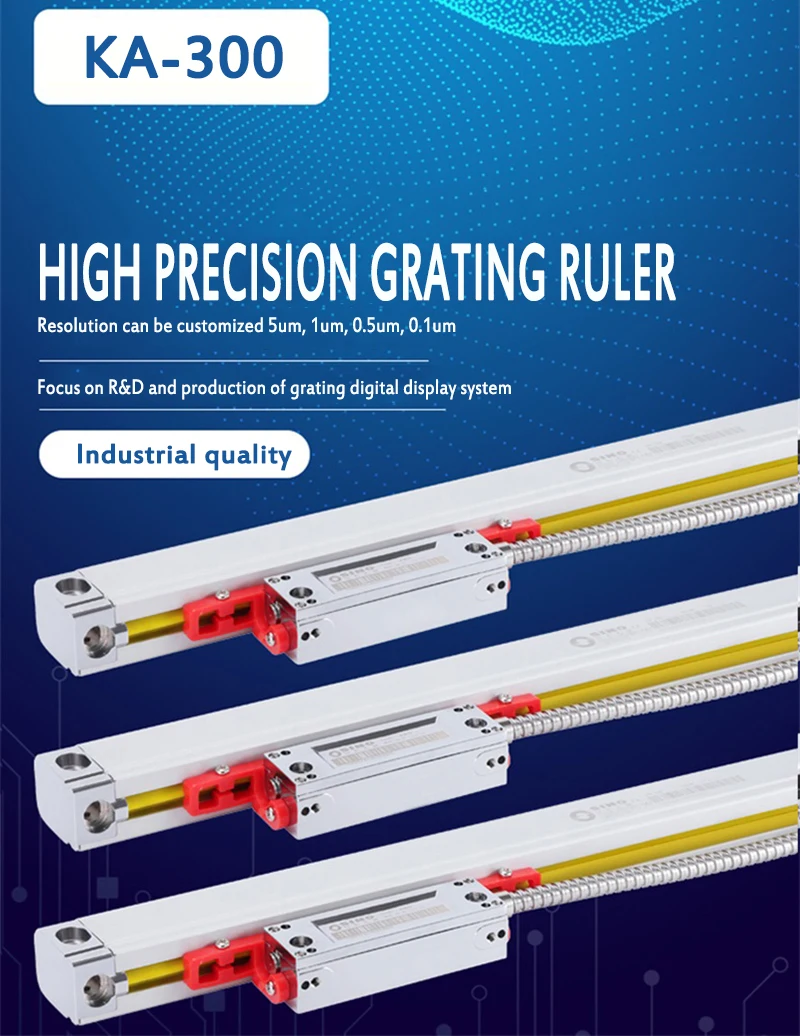

KA-300 Linear Scale Glass Sensor TTL KA300 0.005Mm 520Mm-1020Mm Linear Displacem

KA-300 is a type of encoder with wide applications. It features in optimal structure, good appearance and high rigidity, able to meet the needs of the majority of general machine users. The length is 70~1020mm.

Parameter

Product name: KA-300 Linear scale
Available Measrus Length: 520MM, 570MM, 620MM, 670MM, 720MM, 770MM, 820MM, 870MM, 820MM, 920MM, 970MM, 1020mm

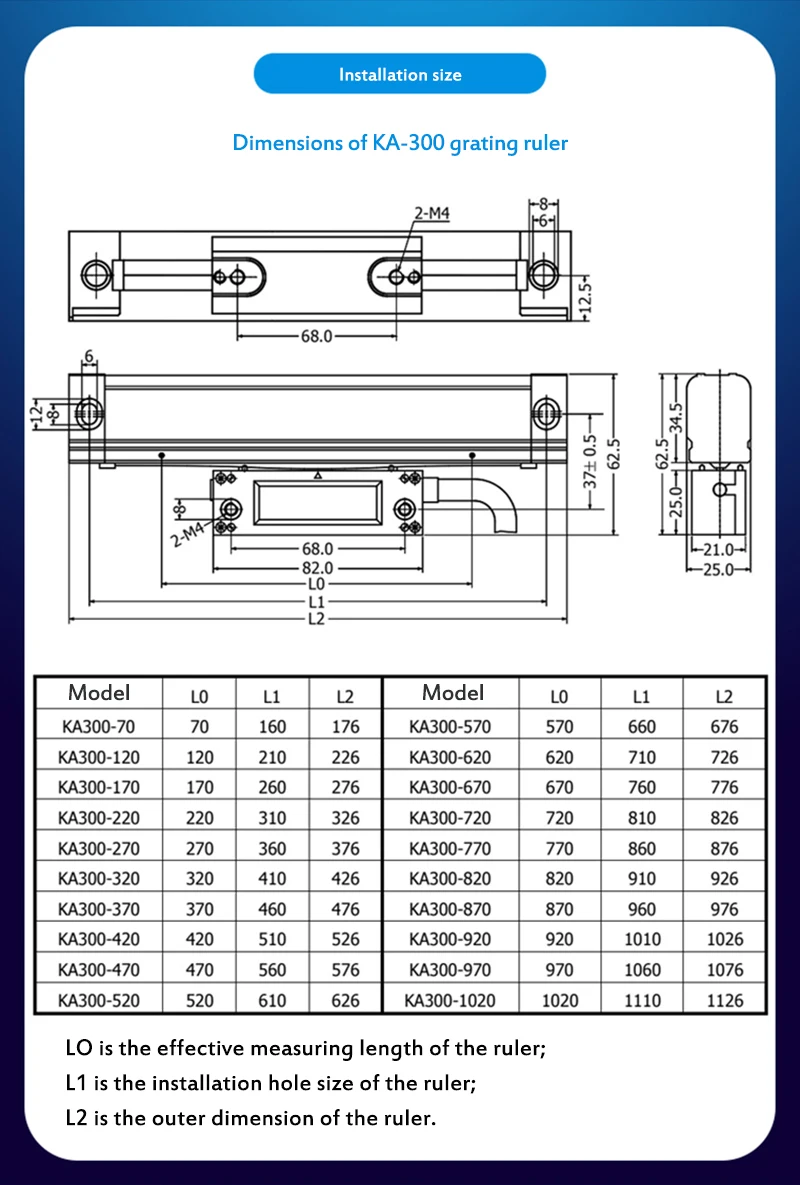

Cross Section: 25mm X 34mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um
Output signal: TTL

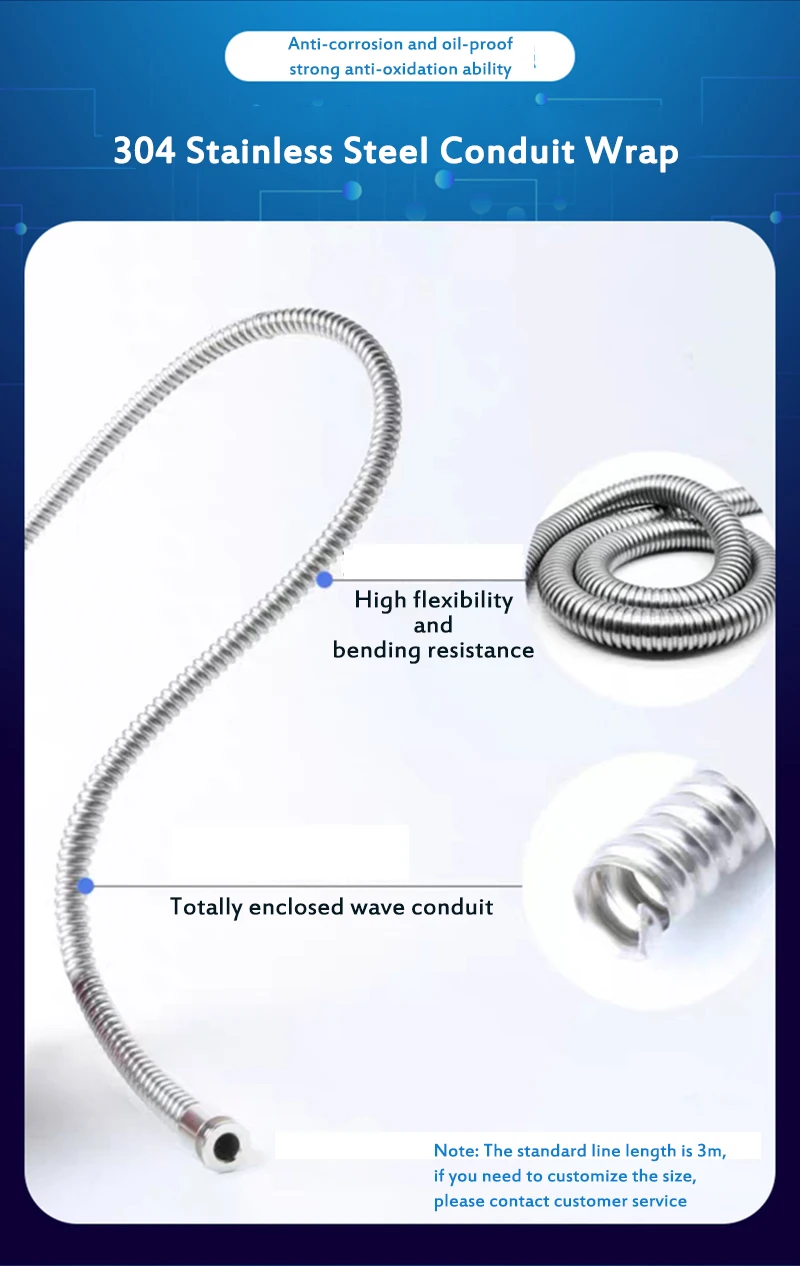

Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V5%, 80mA
Operating temperature:0-45 degree centigrade

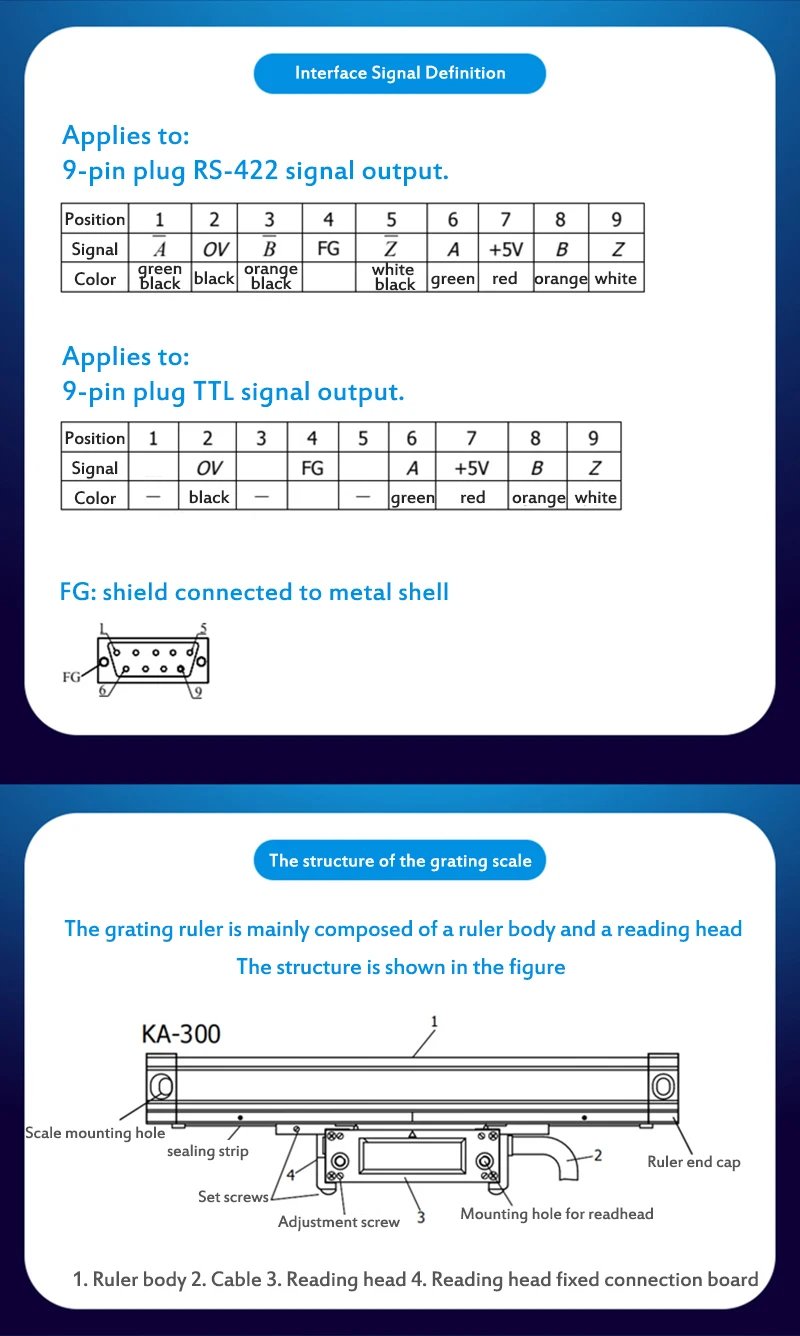

Connetor: 9 Pins

Order includes

-1pcs KA-300 scale
-1pcs scale cover
-1pcs mounting bracket
-1pcs screw bag
