KA300 KA-300 SINO YHSINO Linear Optical Ruler Linear Scale 120 170 220 270 320 3

Dear buyer, please note:

1. The order is one piece 5u(0.005mm) KA300 linear glass scales/linear encoder/linear sensor, travel length are KA300-70mm, KA300-120mm, KA300-170mm, KA300-220mm, KA300-270mm, KA300-320mm, KA300-370mm, KA300-420mm, KA300-470mm, you can choose one piece among them.

2. We are factory, the price is good. If you choose travel length KA300-220mm, total length is 326mm

3. The price is not included tax fee/tariff

5U 5V TTL KA300 KA-300 Parameter

Linear scale parameter

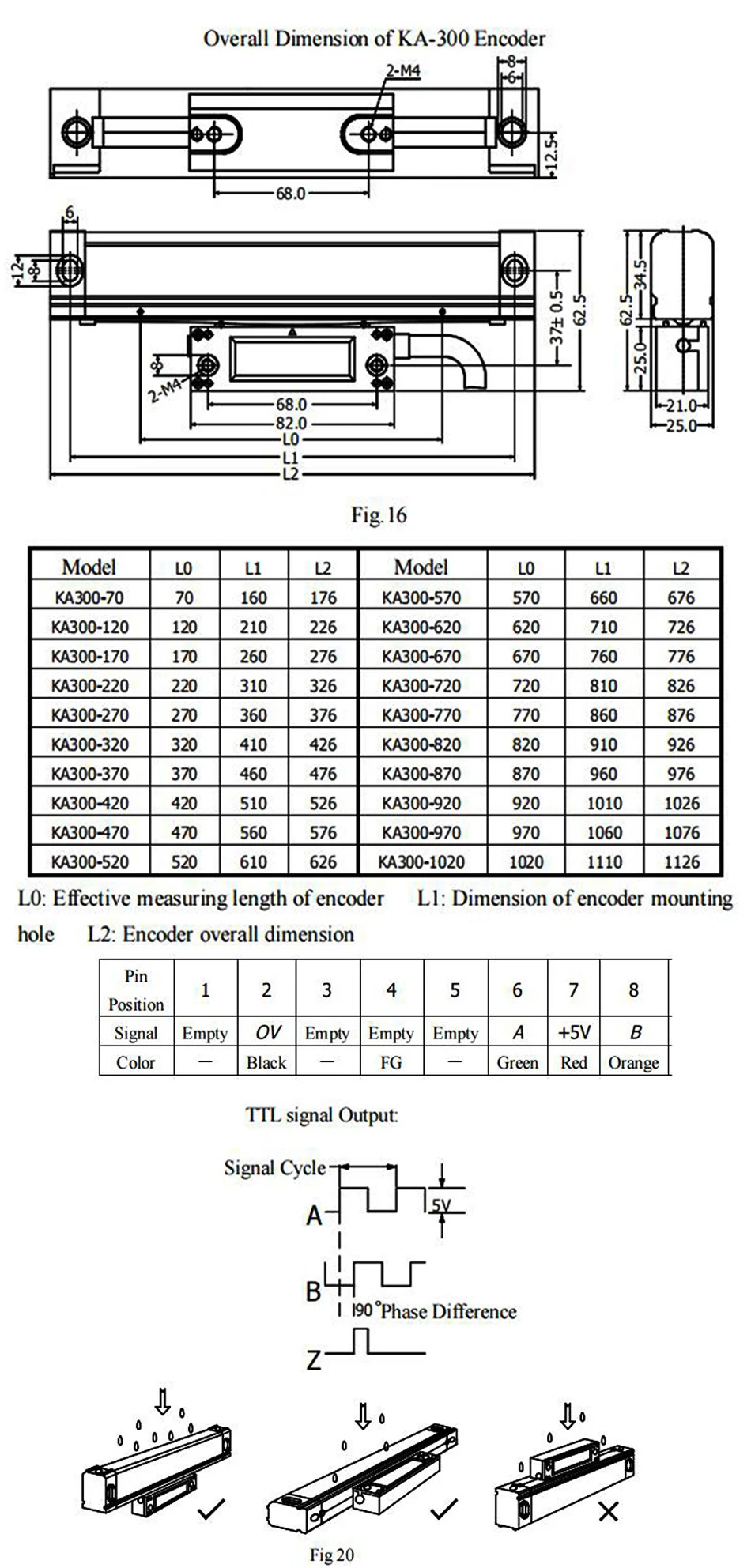

1. Travel (measuring) length: 70-470mm

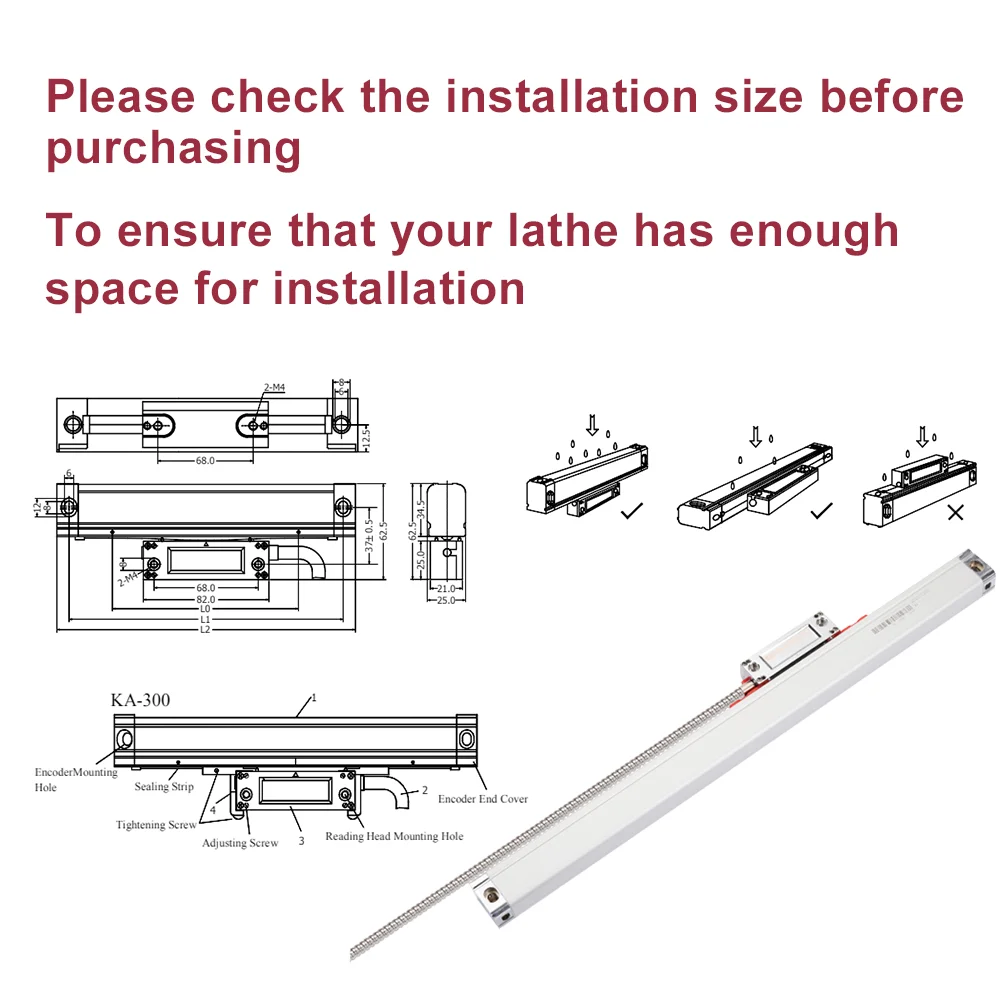

2. Total (overall) length: Travel length + 106mm

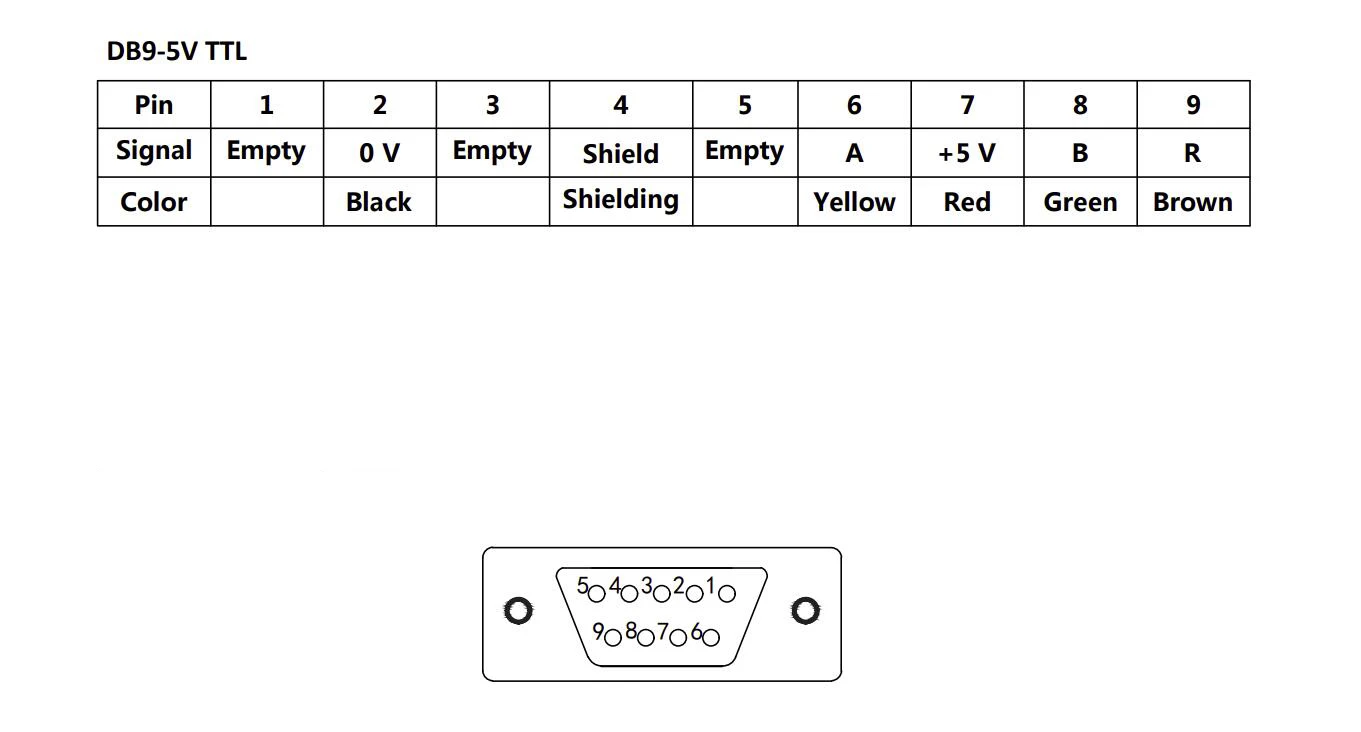

3. Plug: DB9

4. Resolution: 0.005mm

5. Input voltage: 5V

6. Grating pitch: 0.02mm (50LP/min)

7. Cable length: 3 Meter (about 9 feet)

8. Normal size: About 34.5*25

9. KA-300 grating ruler is a kind of grating ruler which is widely used. It has reasonable structure, t he shape design is beautiful, good rigidity, can meet the majority of general machine tool users use, use long Degree in 70~1020mm.

10. Moving speed: high speed ruler 120 m/min, Ordinary ruler 60m/min.

11. Power supply: +5V + 5%, 80mA.

12. Working temperature: 0~45

If you order them, please confirm your dro can work with our linear scales or tell me your dro brand, so that I can change the signal for you, thanks.

5U 5V TTL KA300 KA-300 Package includes

1 pcs linear scale

1 pcs scale cover

1 pcs L connecting bracket

1 pcs screw bag
