LD-200 Heating Diode Handheld Leak Detector Air Conditioning Refrigeration Syste

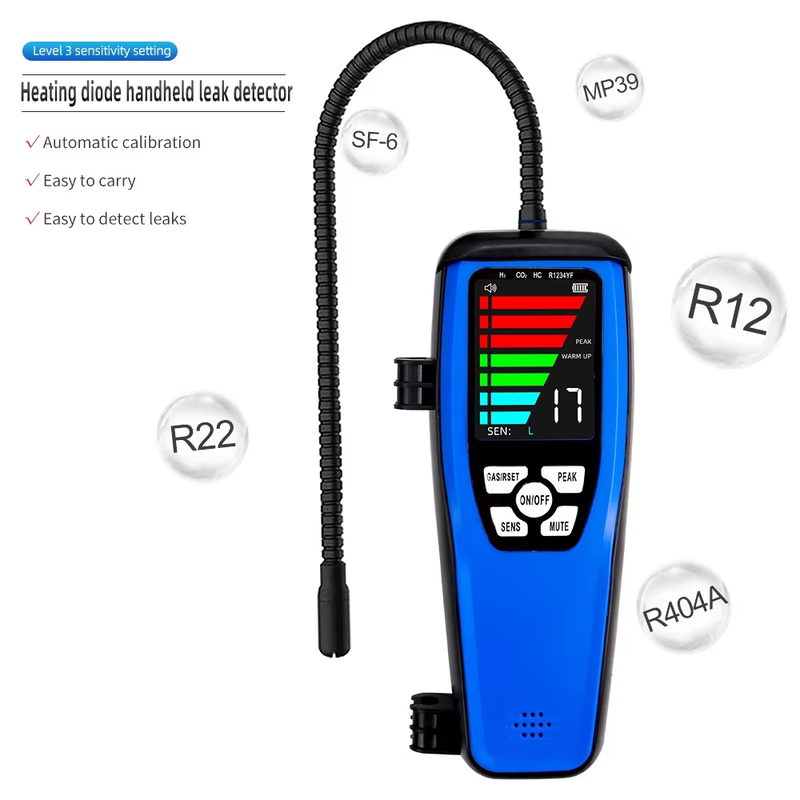

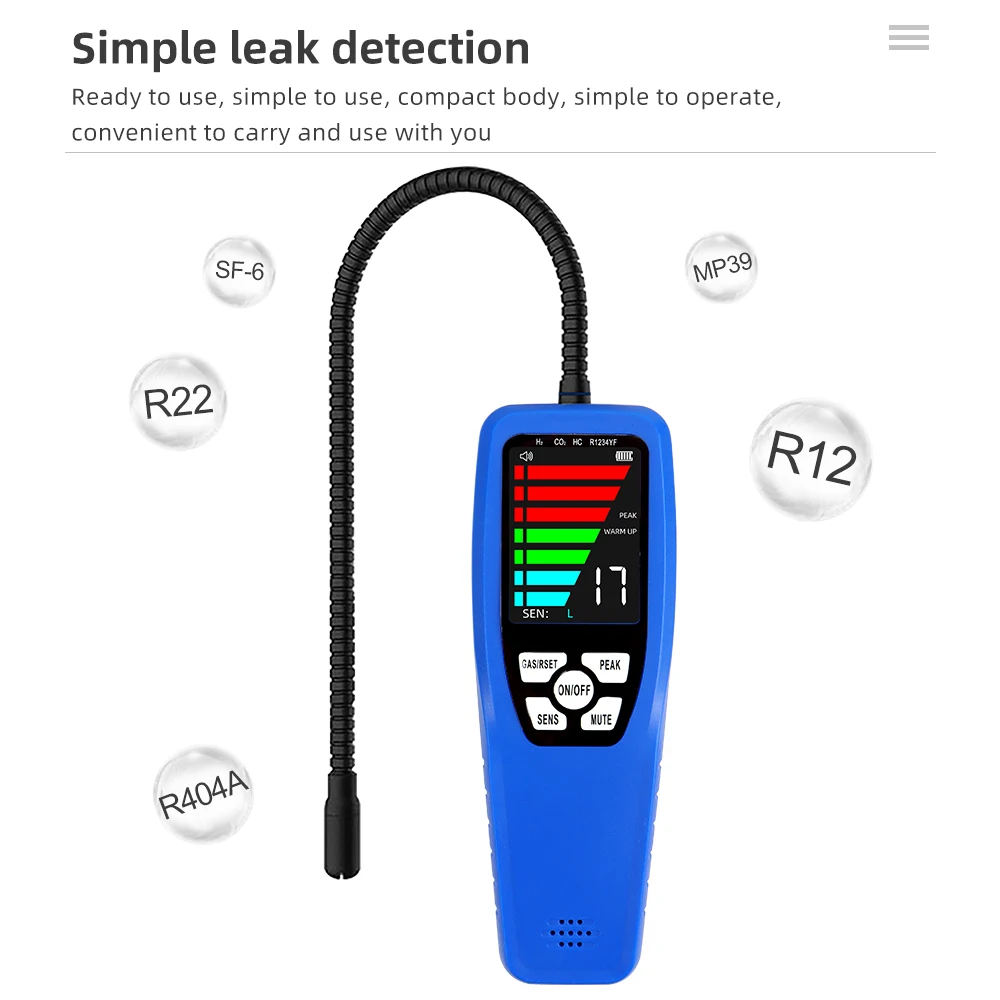

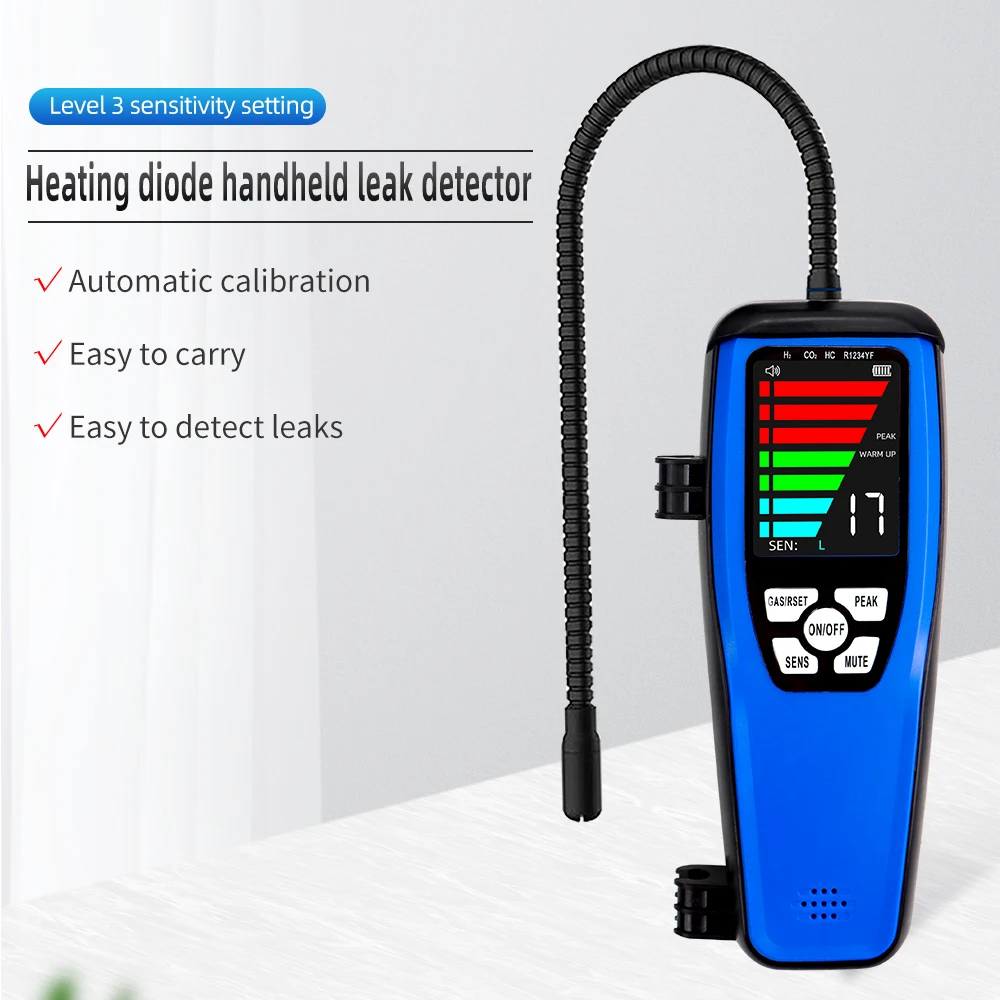

The LD-200 is a hand-held leak detector that uses the heated diode detection
principle. Compared with the traditional leak detector, its sensor has longer life, higher detection accuracy, easy to operate and can detect a wider range of refrigerant. LD-200 is equipped with large LCD screen, so that the test results are more intuitive. The exclusive design of appearance is in accordance with human body mechanics to make it the best experience for users.


Charging current:5VDC 1A

Sensor principle: heated diode

Sensor life: 10 years

Sensitivity: max 4g/ yr

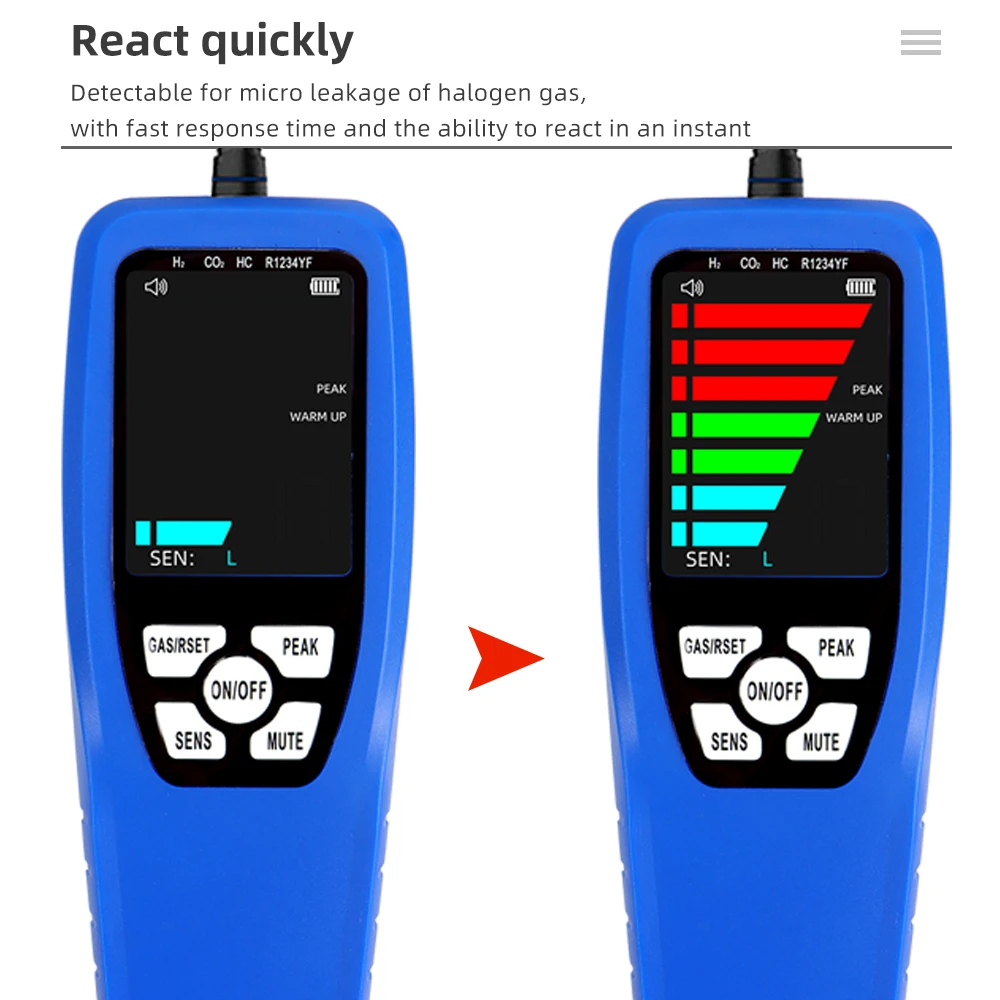

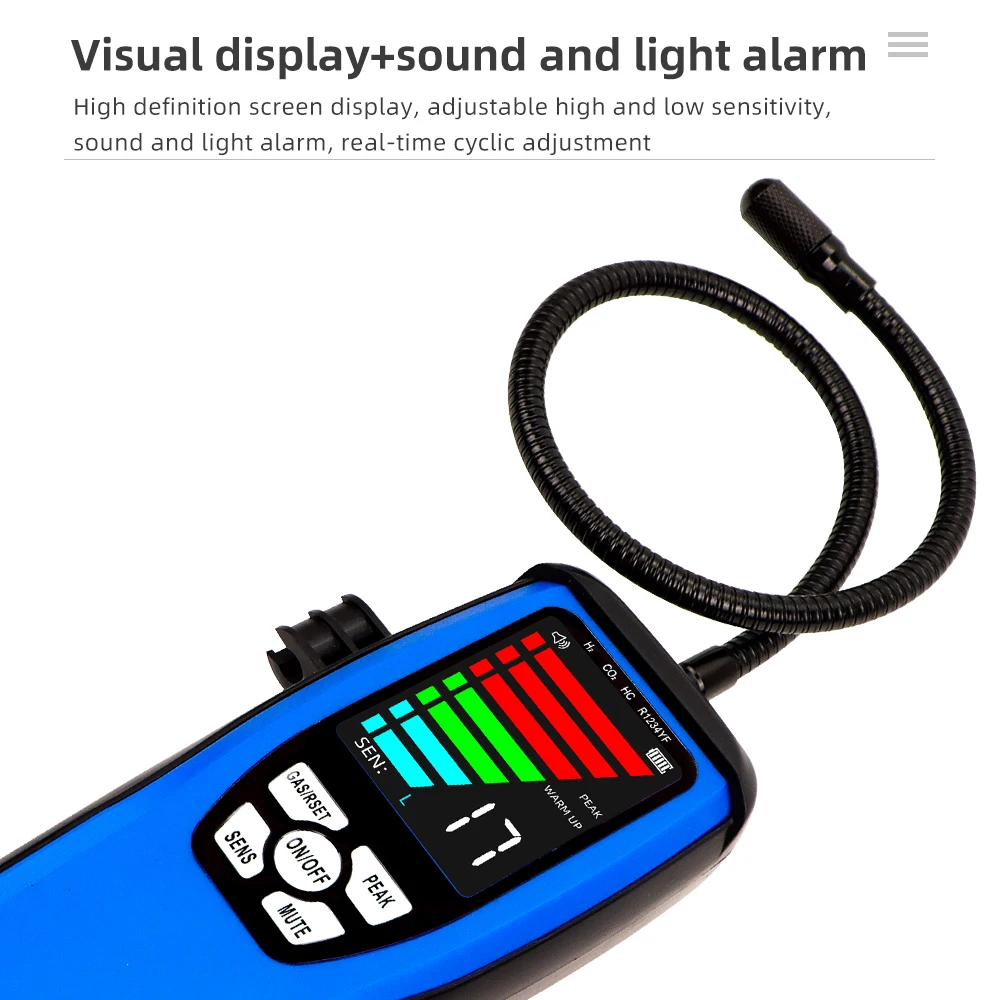

Alarm mode: sound and light alarm, LCD display

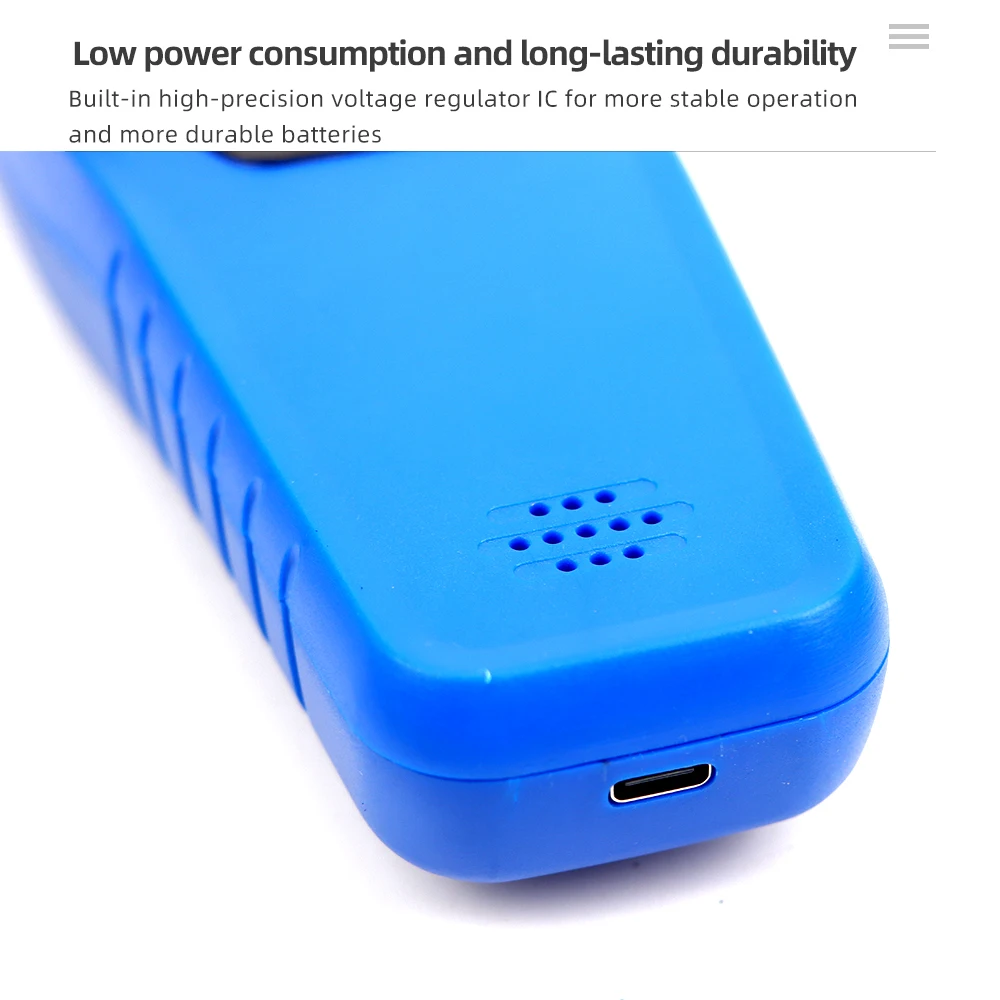

Battery: built-in rechargeable lithium battery 3.7V 3000mAhWorking time:continuous 6H

Charging: 4 hours

Operating environment:-10 C -52 C relative humidity (50%~85% RH)Storage temperature:-20 Cto 60 C(-4 Fto 140 F)

Weight: 415g(14.6oz)

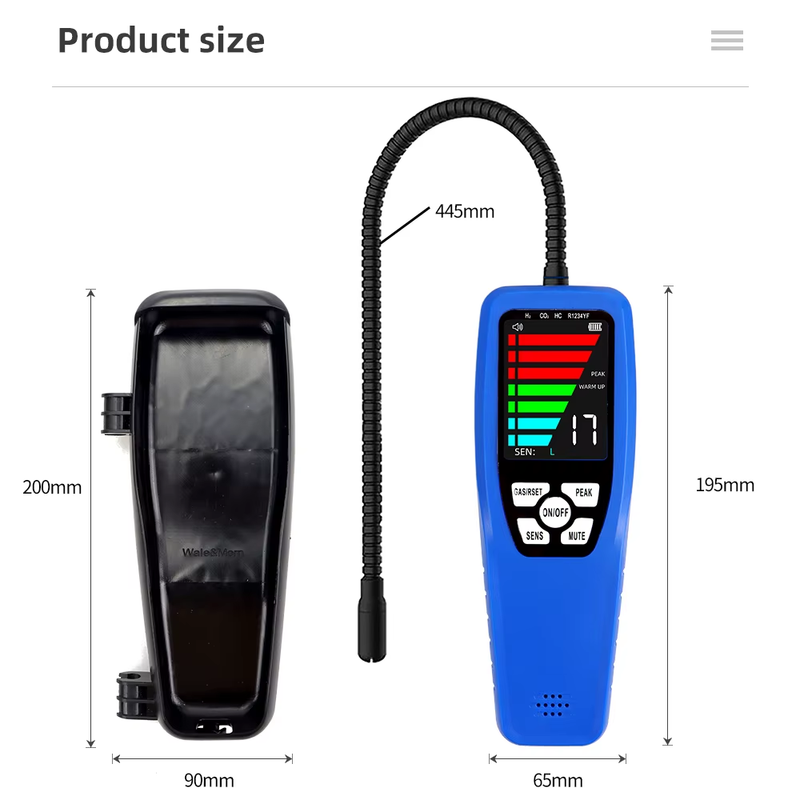

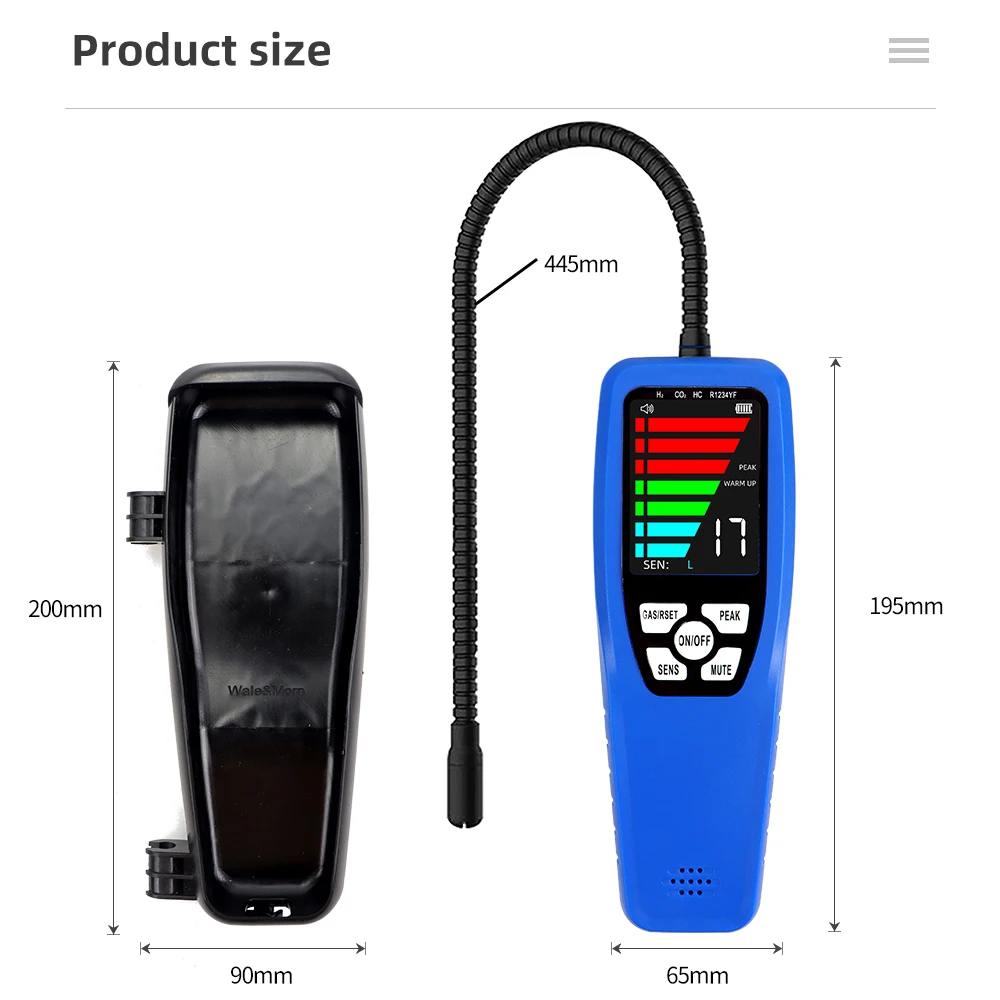

Size: 201mm * 86mm * 38mm (7.9"* 3.3"* 1.5 ")

Refrigerating systems
Air conditioning units
It responds to ALL halogenated (containing chlorine or fluorine) refrigerants, including:
CFCs e.g. R11, R12, R500, R503 etc
HCFCs e.g. R22, R123, R124, R502
HFCs e.g. R125, R134a, R404a
Blends including AZ-50, HP62, MP39 etc
Detect ethylene oxide gas leaks in hospital sterilizing equipment
Detect SF-6 in high voltage circuit breakers
Detect most gasses that contain chlorine, fluorine and bromine (halogen gasses)
Detects cleaning agents used when dry cleaning such as perchloroethy
Detects halogen gasses in fire extinguishing systems


Maximum sensitivity is less than 4g / yr

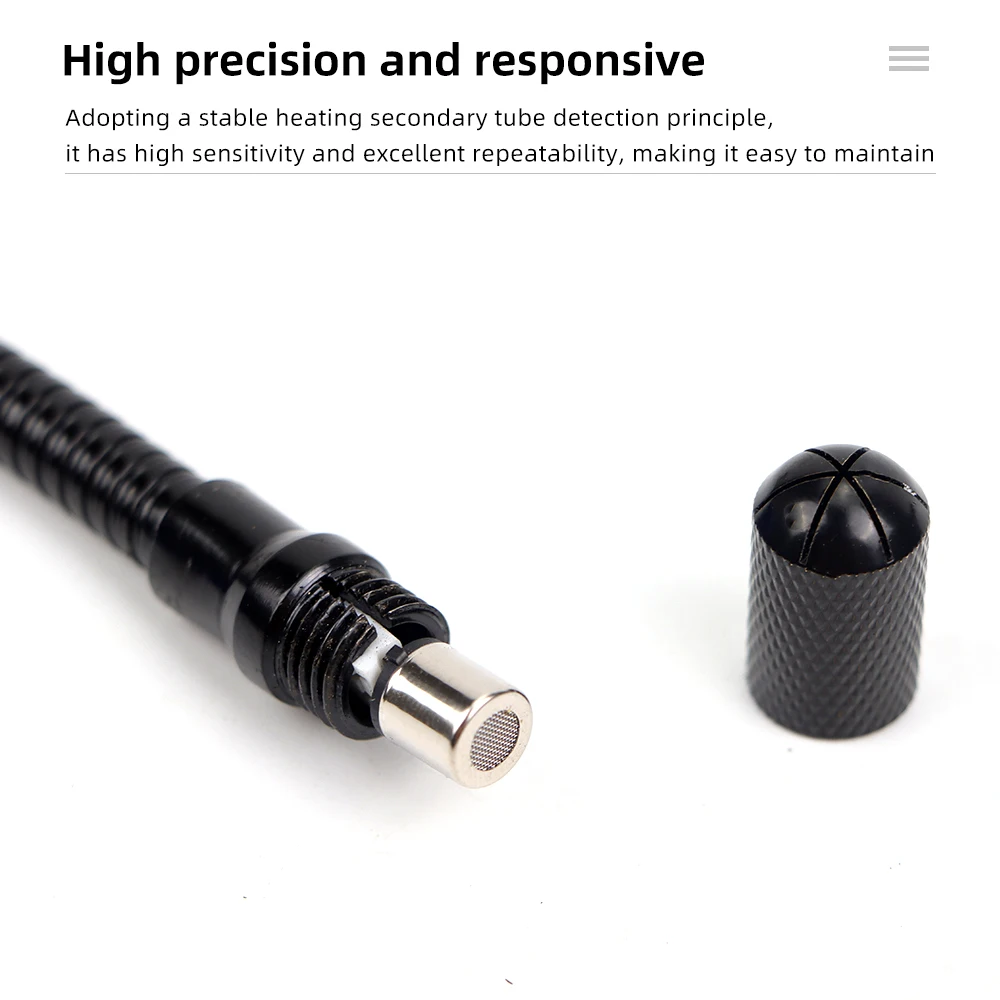

Flexible probe, can used to detect in a narrow space

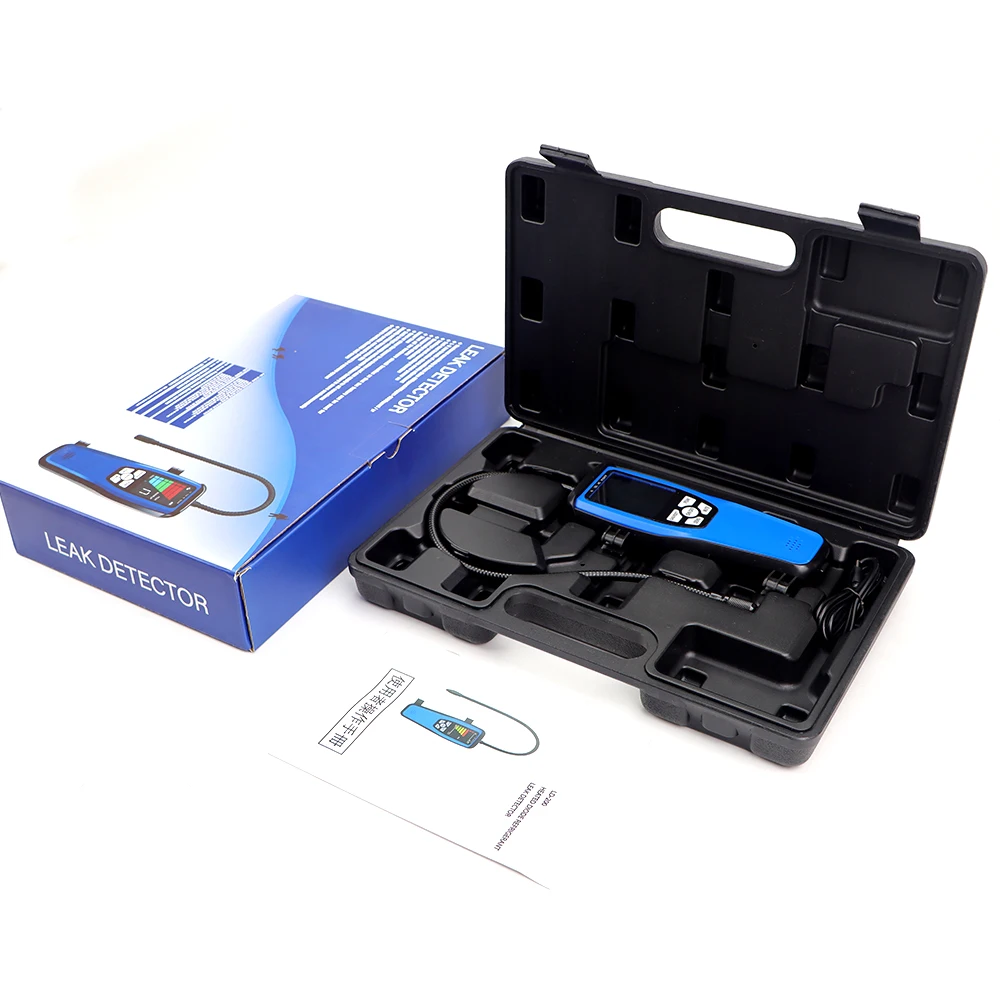

1 x Halogen leak detector with probe
1 x Instruction sheet
1 x Black carrying box
