Product description:

25VA version of the fever linear power supply, voltage 5v, (this link defaults to 5v, other voltages are required to contact customer service). This time, we used the ultra-low noise DC voltage regulator circuit of precision voltage reference + high-speed op amp + MOS output power tube; at the same time, the circuit added a multi-stage high-current fever filter inductor, which further improved the quality of the DC power supply white! On the other hand, we added a 3-digit blue LED high-precision voltage display and a multi-turn fine-tuning potentiometer to it, allowing customers to monitor and fine-tune the output DC voltage in real time. We are confident that, regardless of sound, performance, reliability, this power supply is definitely one of the best linear power supplies of the same power on the market, and the cost performance is super high!

Fever ingredients:

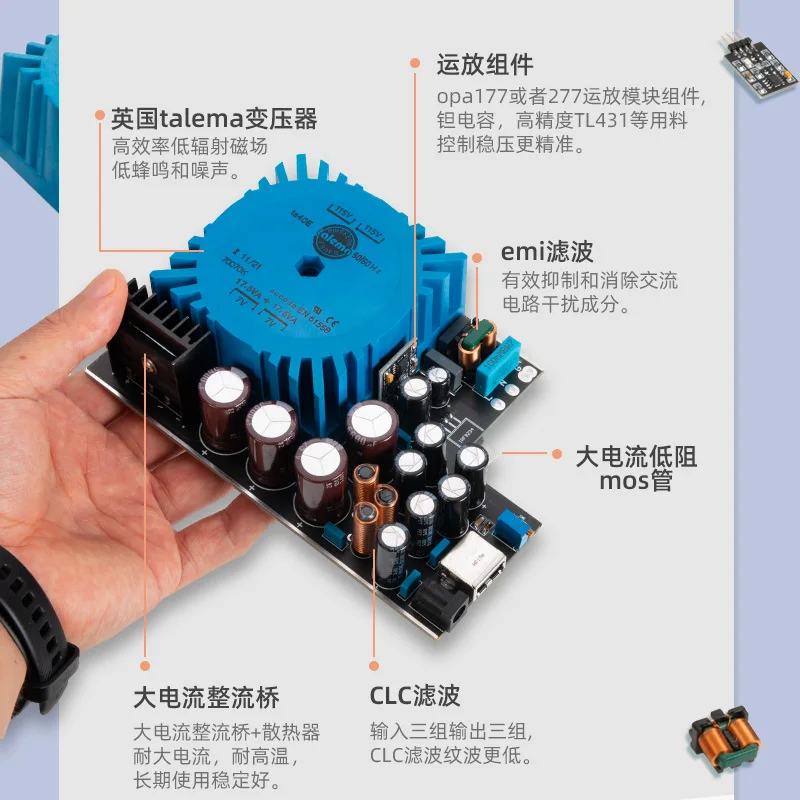

* TALEMA 25 VA sealing ring commonly used in imported audiophiles

* Ultra-low noise voltage regulator circuit composed of precision reference + high-speed op amp + MOS output tube

* Thick and textured aluminum alloy shell with heat dissipation to ensure heat dissipation performance

* Schute IEC AC power input socket + imported power switch

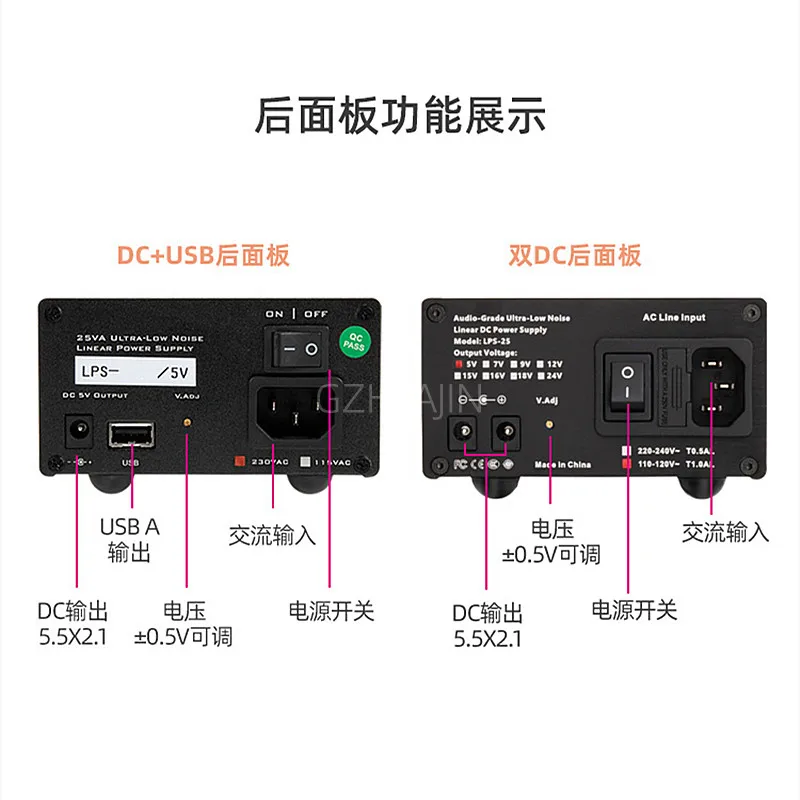

* The output voltage can be fine-tuned by the multi-turn potentiometer on the rear panel

* Vishay fast recovery high current finishing diode

* Adopt Taiwan-made all-copper high-current DC output socket

* Ruby + chemical fever electrolysis

* Multiple groups of precision high-current filter inductors

* Panel with 3-digit blue LED digital voltage indication

Product parameters:

Input voltage: AC 230Vac (115Vac optional)

Output voltage: DC5V

Output terminal: DC 5.5mm / 2.1mm two groups of simultaneous output (inside positive and outside negative)

Voltage indication: 3-digit blue LED digital display

Voltage range: 5%

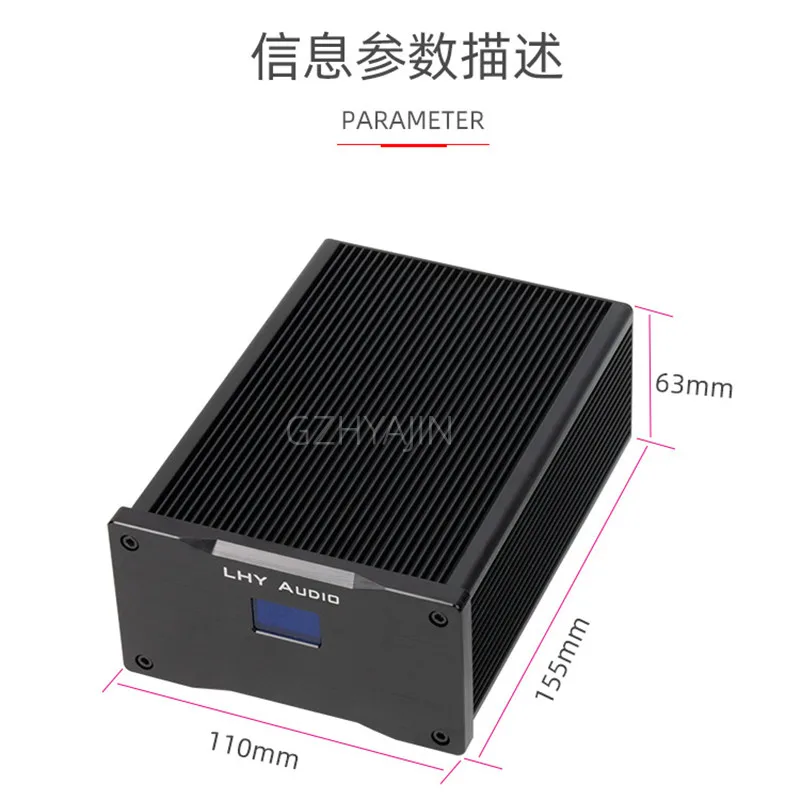

Size: L155*W110*H63MM

Overall weight: 1.3 kg

Included accessories: 1 PCS DC5.5 - 2.1 mm double-ended DC power output cable, length 0.8 meters
