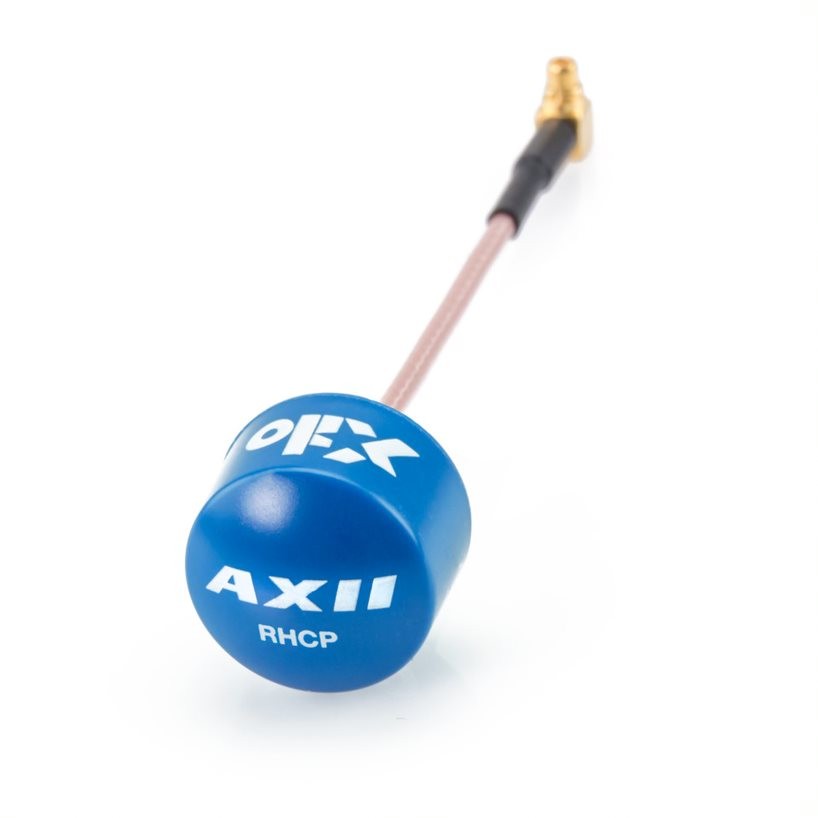

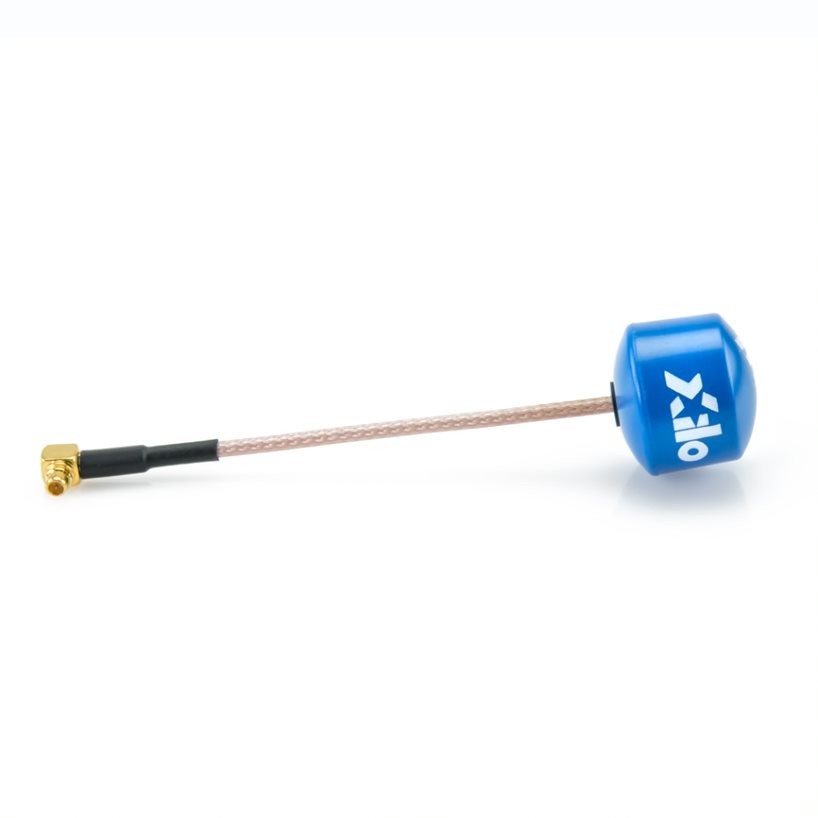

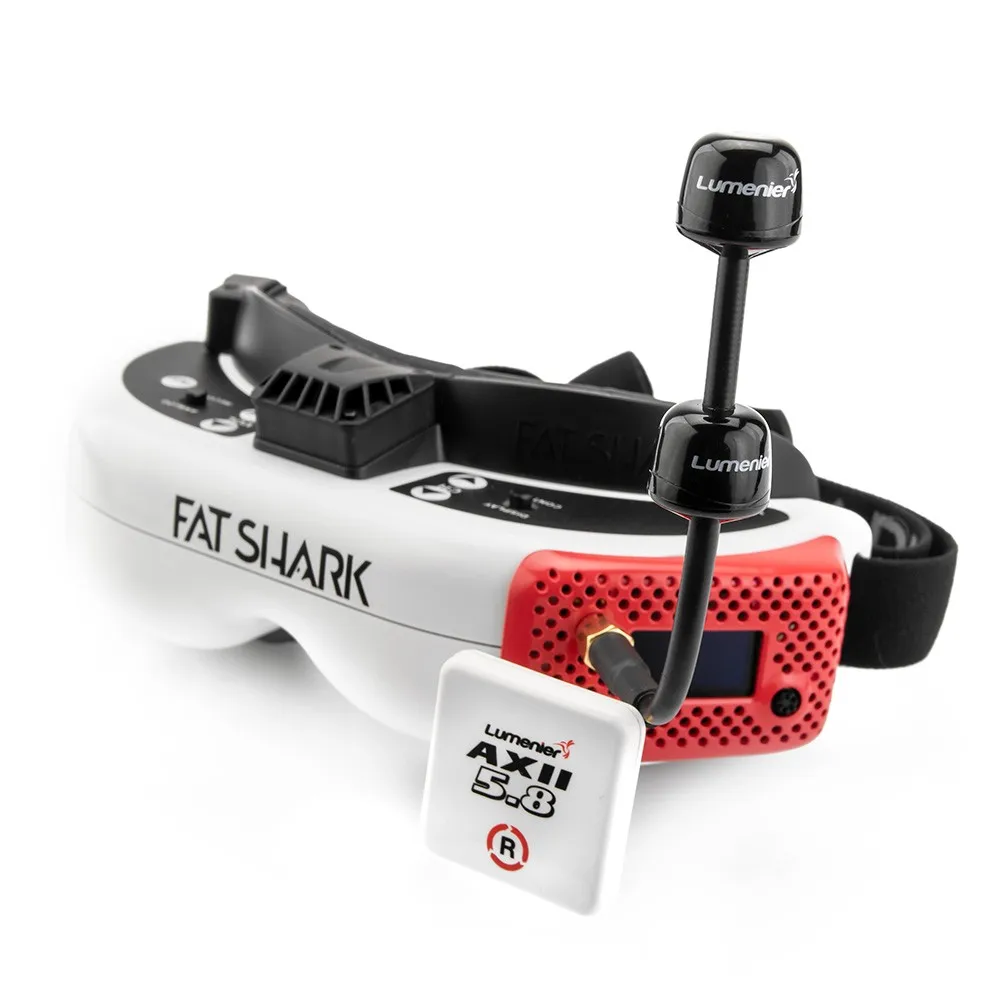

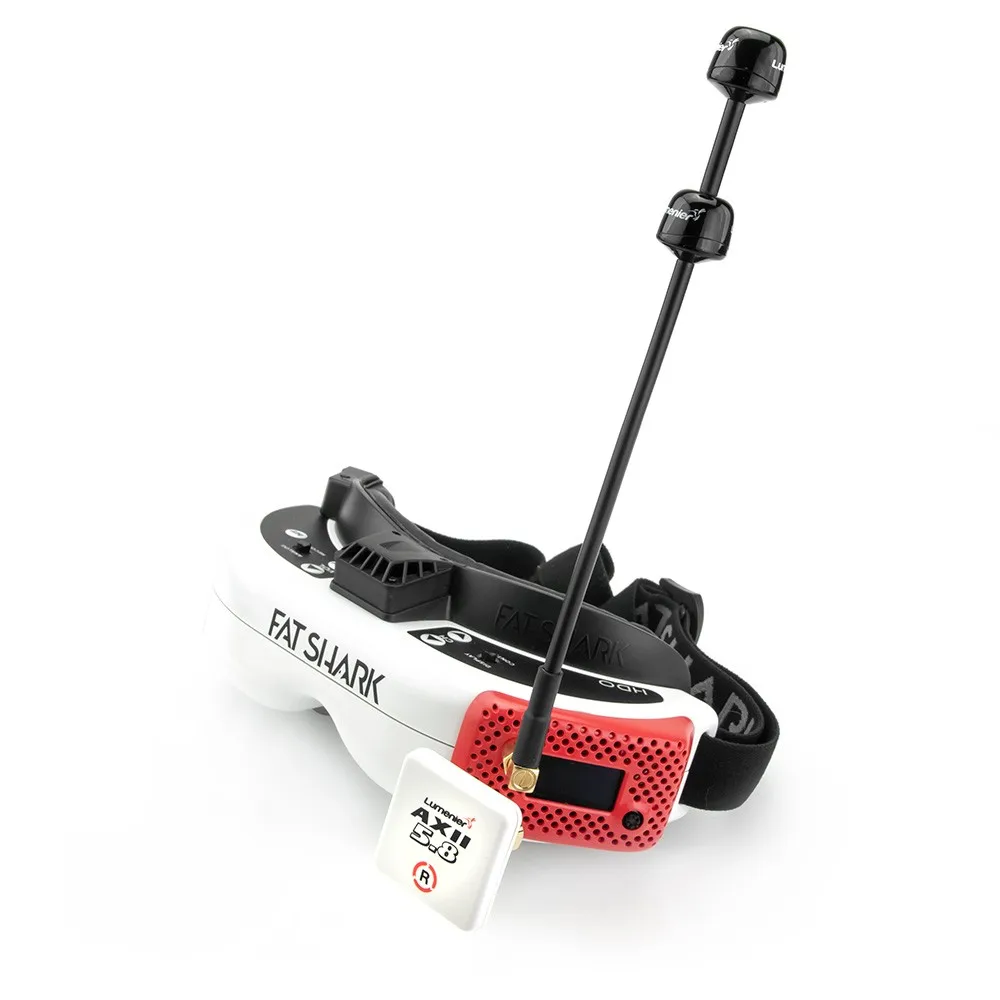

    Lumenier AXII 2 Double Long Range 5.8Ghz 2.2Dbi Gain FPV Antenna RHCP for Fatsha

    Lumenier AXII 2 Double Long Range 5.8Ghz 2.2Dbi Gain FPV Antenna RHCP for Fatsha

    £33.99 GBP
    £33.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    Color

    Overview:

    The Lumenier AXII is known to be the most versatile and highest performing antenna line for FPV today. Lumenier has been able to improve on the best and make it even better!
    Improved Features:
    - Significantly Improved Range with a Higher Gain (2.2dBic Gain)
    - Wider Bandwidth (5.3-6.2GHz)
    - Cleaner Signal And Better Rejection to Interference
    - More Durable - Improved Injection Molded Housing
    - Virtually Perfect Axial Ratio
    While almost every aspect of the AXII 2 was improved upon, the size and weight managed to stay the same. The AXII 2 is still one of the smallest and lightest circular polarized antennas on the market, perfect for both lightweight racing builds or freestyle quads.
    The AXII 2 comes in many connector types such as SMA, MMCX, U.FL, Stubby SMA, and Long SMA. Precision engineering has given this antenna a virtually perfect 1.0 Axial ratio resulting in a true circularity. On top of that, the AXII 2 has an amazing max gain of 2.2dBic, a true upgrade over the original AXII.
    Super Tough
    Antennas take a lot of abuse, especially when put onto a quad. The AXII 2's robust antenna housing is made out of a new injected molded polycarbonate, and ultra-sonically welded shut. This has significantly improved the durability of the AXII housing. The 125mm long semi-rigid RG402 cable allows for 90 degrees or more of freedom. The SMA connection is reinforced with a metal collar crimped to the base for extra support.
    Note: When installing, secure the antenna via the SMA connector, do not twist the cap.

    Specifications

    SMA plug

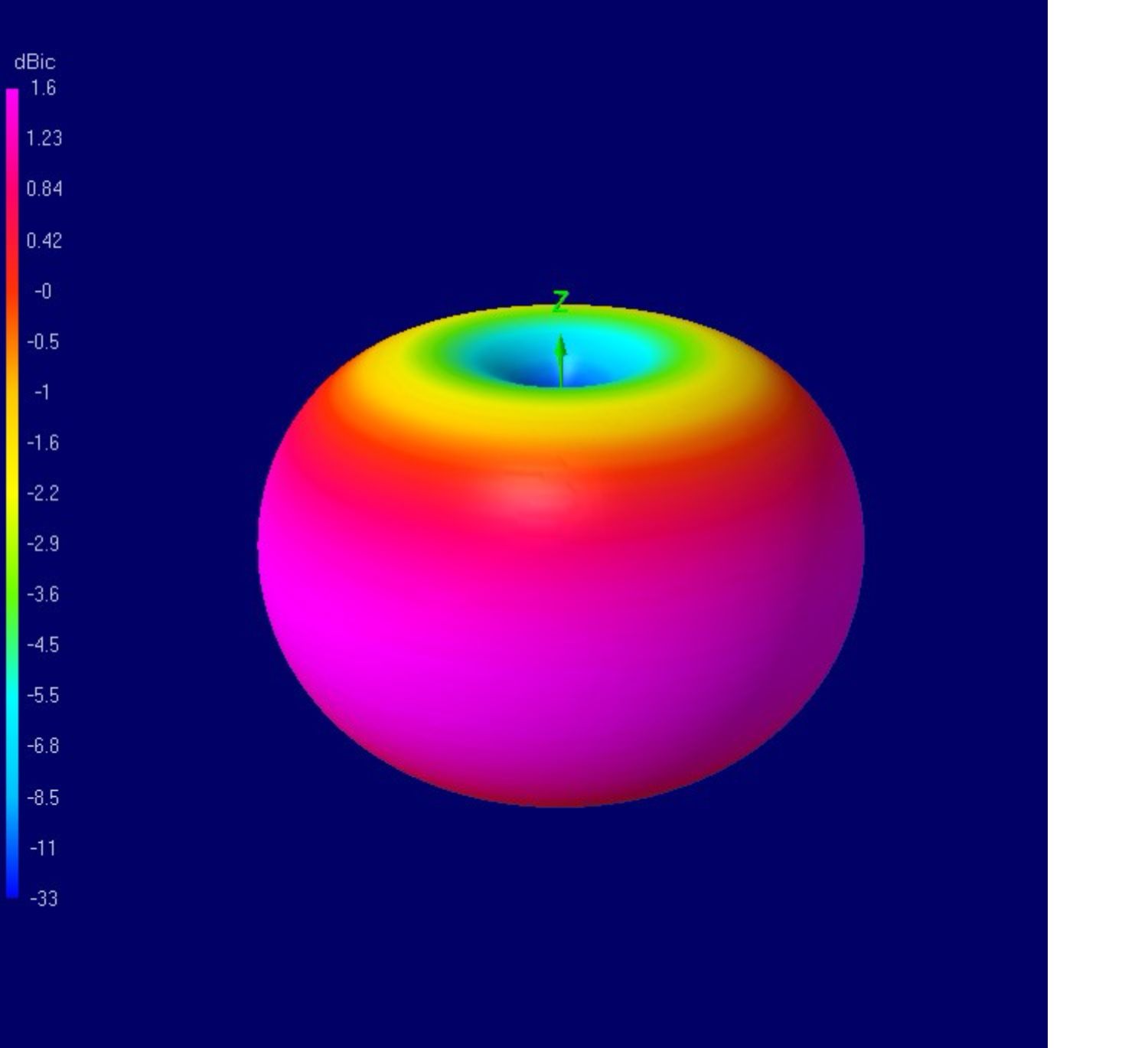

    Gain: 2.2dbic

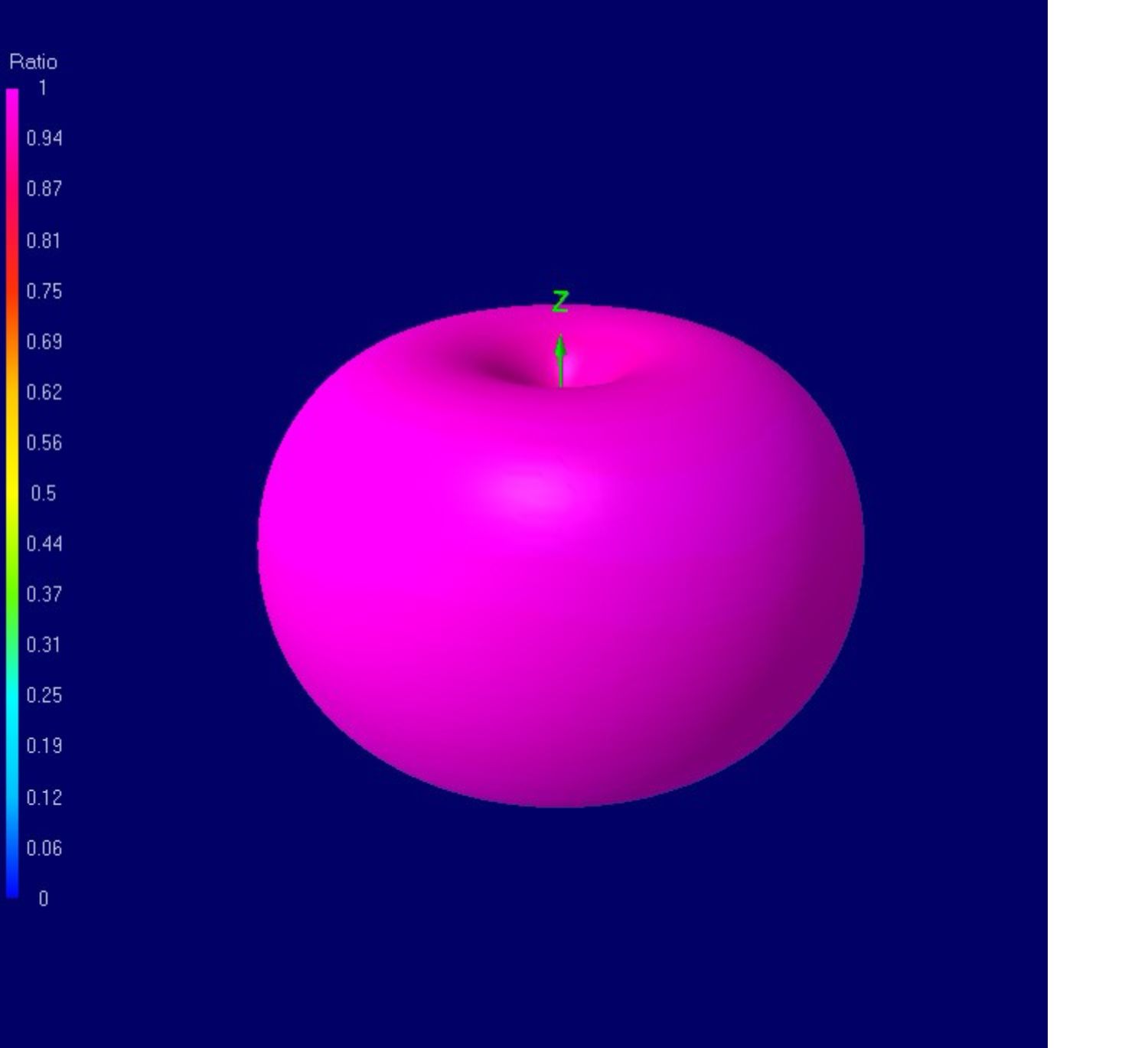

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 7.8g

    Size: 73mm x 17.5mm

    Cable: Semi-rigid RG402

    Connector: SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas


    Specifications

    UFL plug

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 2.4g

    Size: 77mm x 17mm

    Cable: Flexible RG178

    Connector: U.FL

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas


    Specifications

    Straight MMCX plug

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 3g

    Size: 78mm x 17.5mm

    Cable: Flexible RG178

    Connector: Straight MMCX

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas


    Specifications

    MMCX plug

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 3g

    Size: 78mm x 17.5mm

    Cable: Flexible RG178

    Connector: MMCX

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas


    Specifications

    SMA LONG plug

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 10.8g

    Size: 125mm x 17.5mm

    Cable: Semi-rigid RG402

    Connector: SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas

    Specifications

    Right-Angle SMA LONG plug

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 15.8g

    Size: 188mm x 17.5mm

    Cable: Semi-rigid RG402

    Connector: Right-Angle SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas


    Specifications

    Double Right-Angle SMA plug

    Gain: 4.7dBiC

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 17g

    Size: 190mm x 17.5mm

    Cable: Semi-rigid RG402

    Connector: Right-Angle SMA


    Specifications

    Double Straight SMA plug

    Gain: 4.7dBiC

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 12g

    Size: 130mm x 17.5mm

    Cable: Semi-rigid RG402

    Connector: Straight SMA


    Specifications

    Stubby SMA

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 4.8g

    Size: 22.1mm x 17.5mm

    Cable: None

    Connector: SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas

    Specifications

    Stubby Right-Angle SMA

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 6.7g

    Size: 23.6mm x 17.5mm

    Cable: None

    Connector: Right-Angle SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas

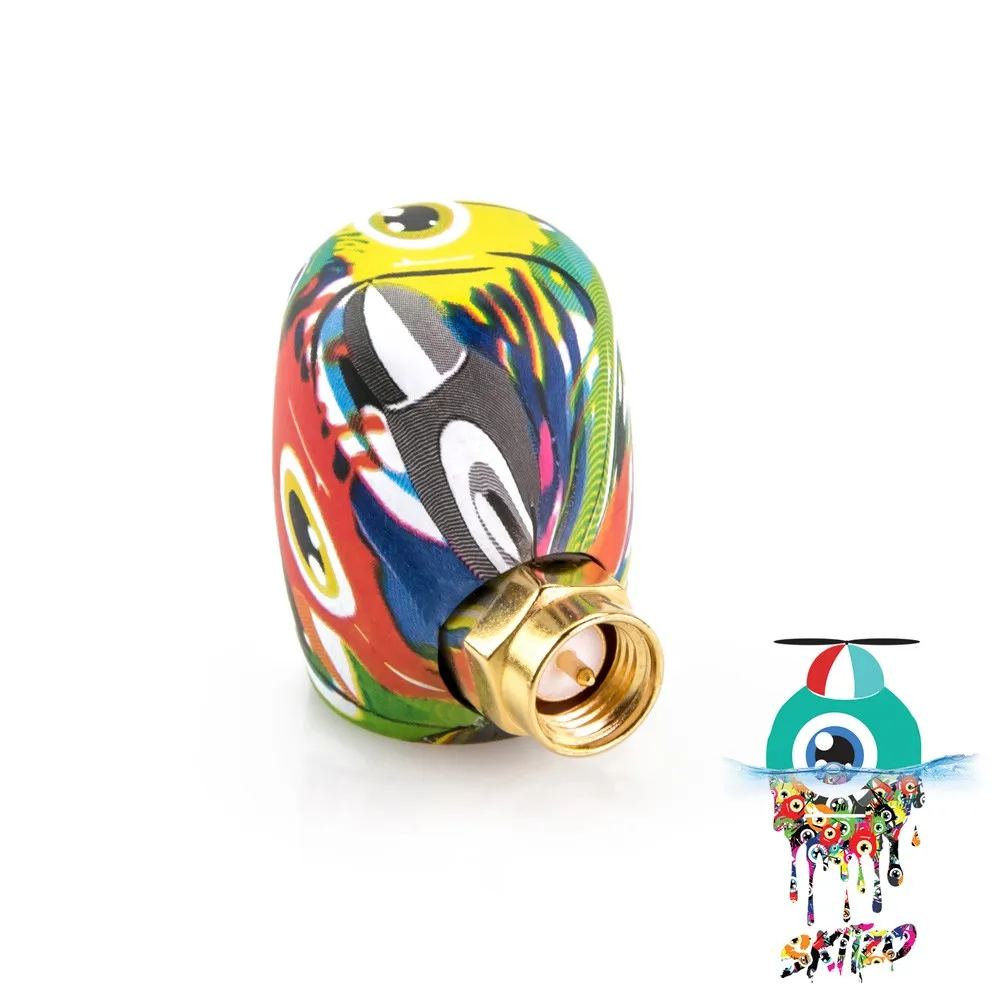

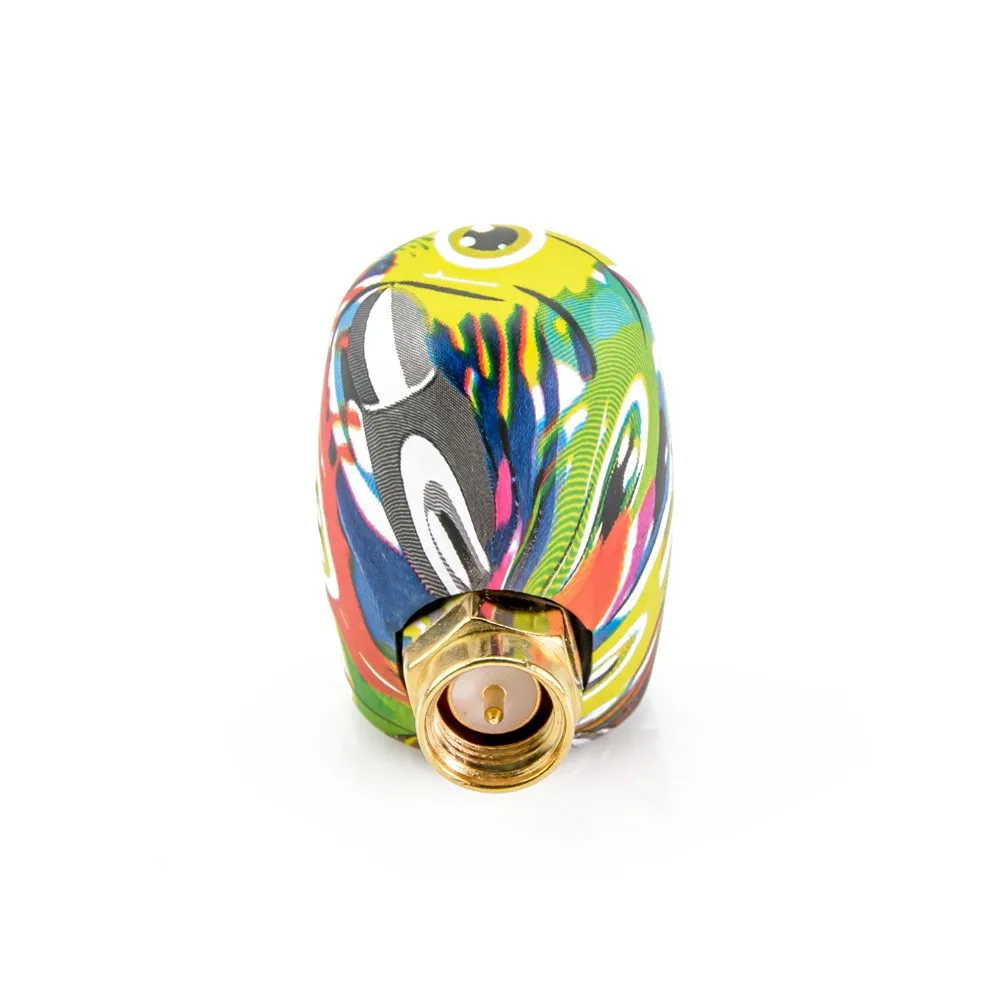

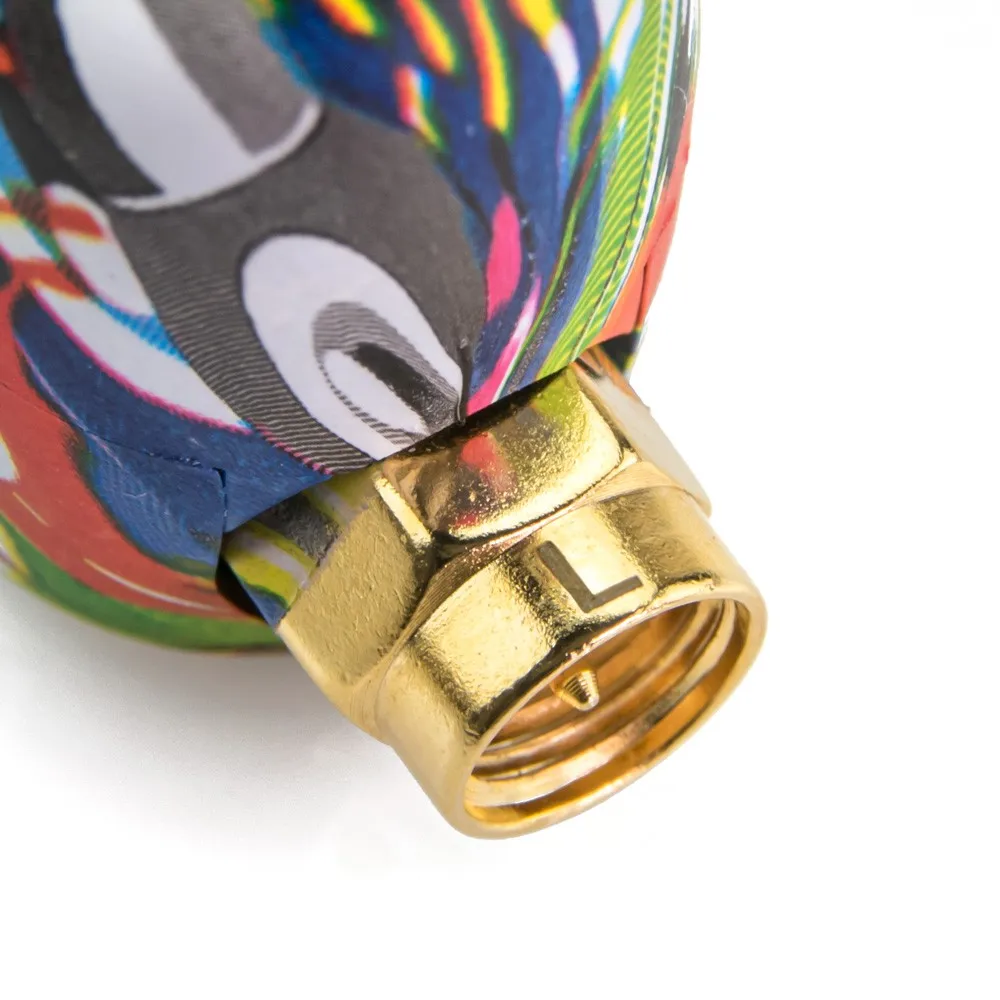

    Stubby Right-Angle SMA SKITZO Hydro Dip SE (LHCP)

    Gain: 2.2dbic

    Axial ratio: 1.0 (near perfect)

    Bandwidth: 5.3GHz-6.2GHz

    Radiation Efficiency: 98%

    SWR: <=1.5:1

    Weight: 6.7g

    Size: 23.6mm x 17.5mm

    Cable: None

    Connector: Right-Angle SMA

    Works great as both a transmitting or receiving antenna

    Compatible with other styles of 5.8GHz RHCP antennas

    Polarization

    Left Hand Circular (LHCP)

    Includes

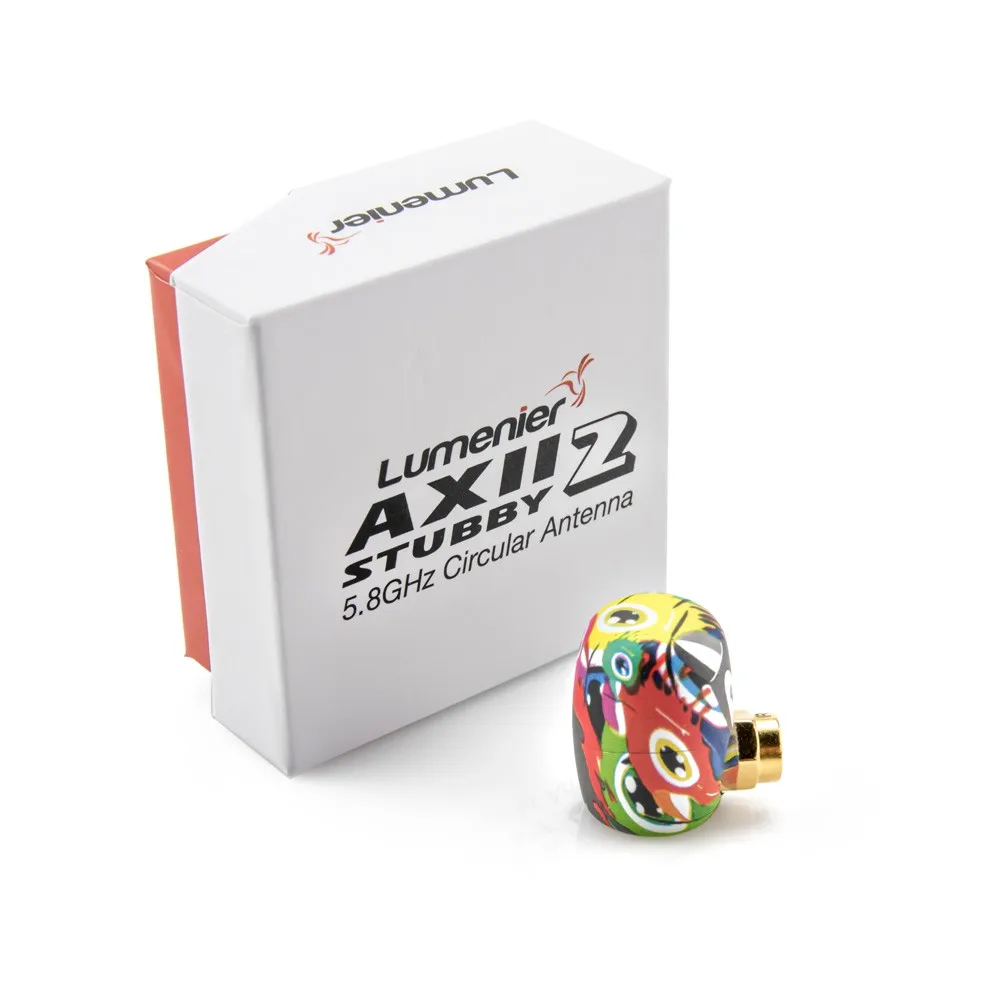

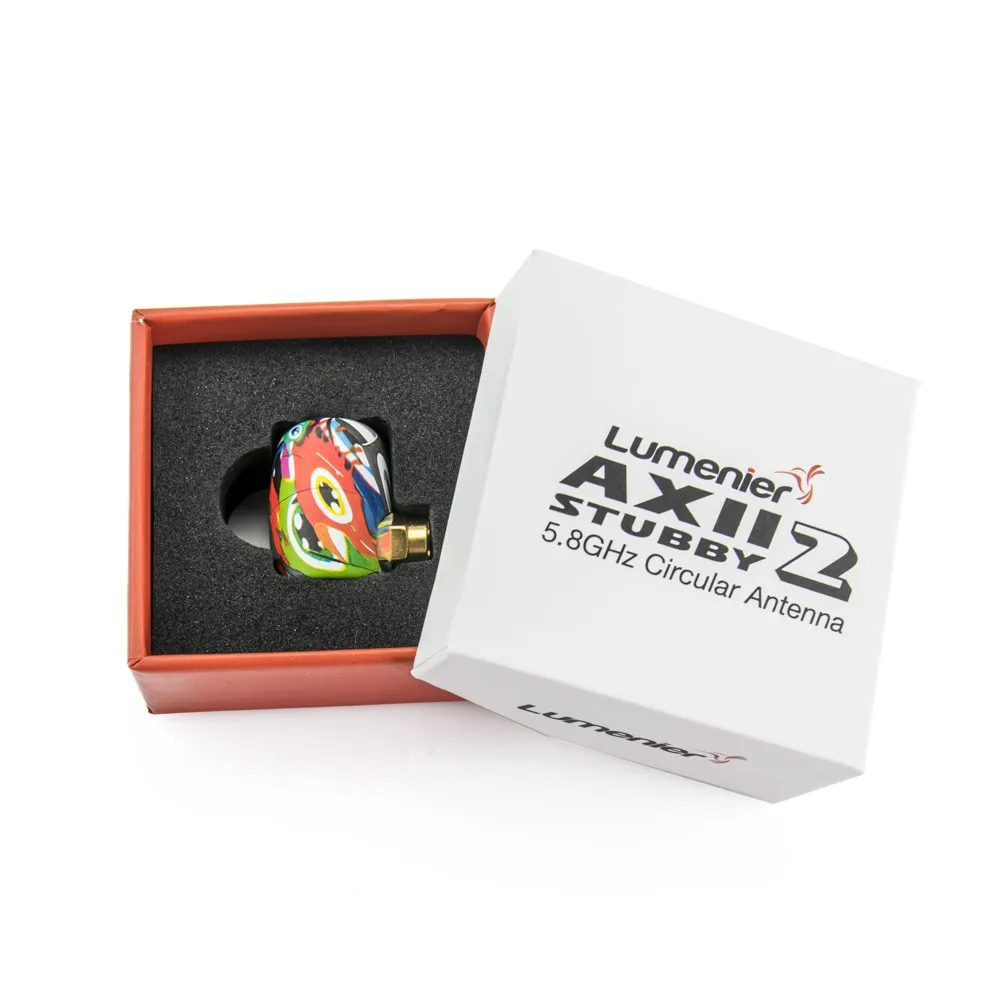

    1x Lumenier AXII 2 Right-Angle Stubby 5.8GHz Antenna - SKITZO Hydro Dip SE (LHCP)
