Male D-Tap to 4 Female D-Tap 2 DC USB Output Power Cable Distributor Splitter Hu

Features:

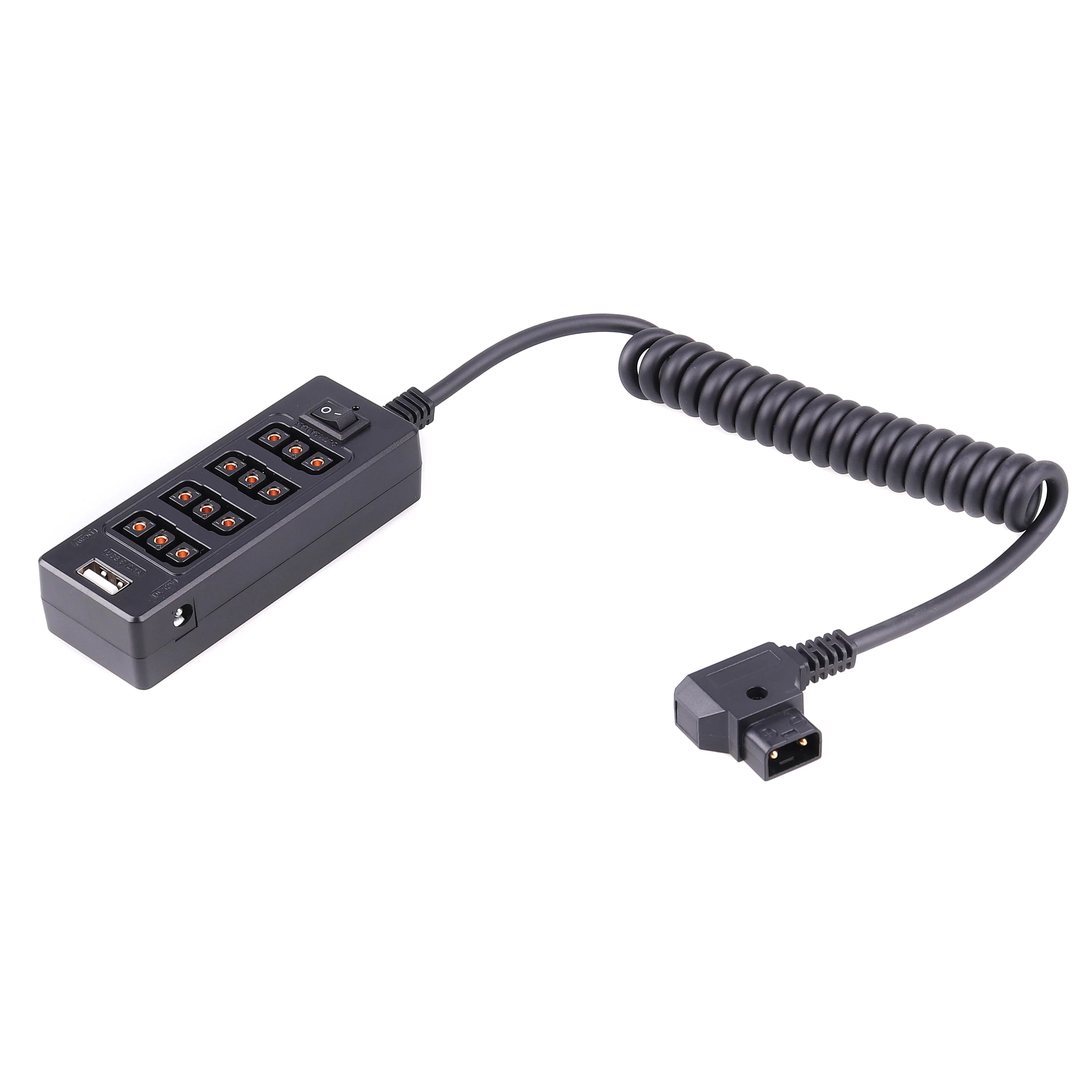

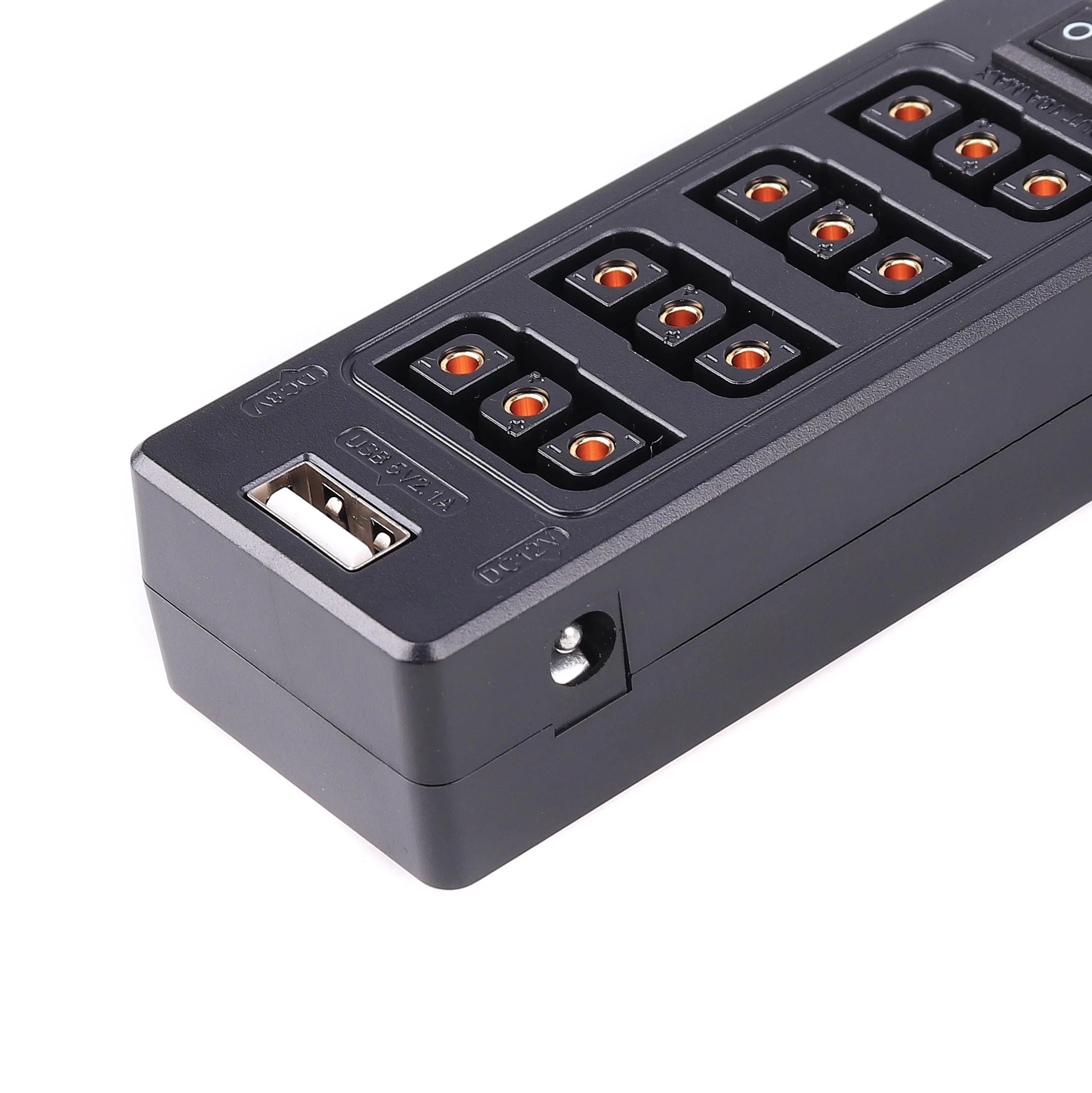

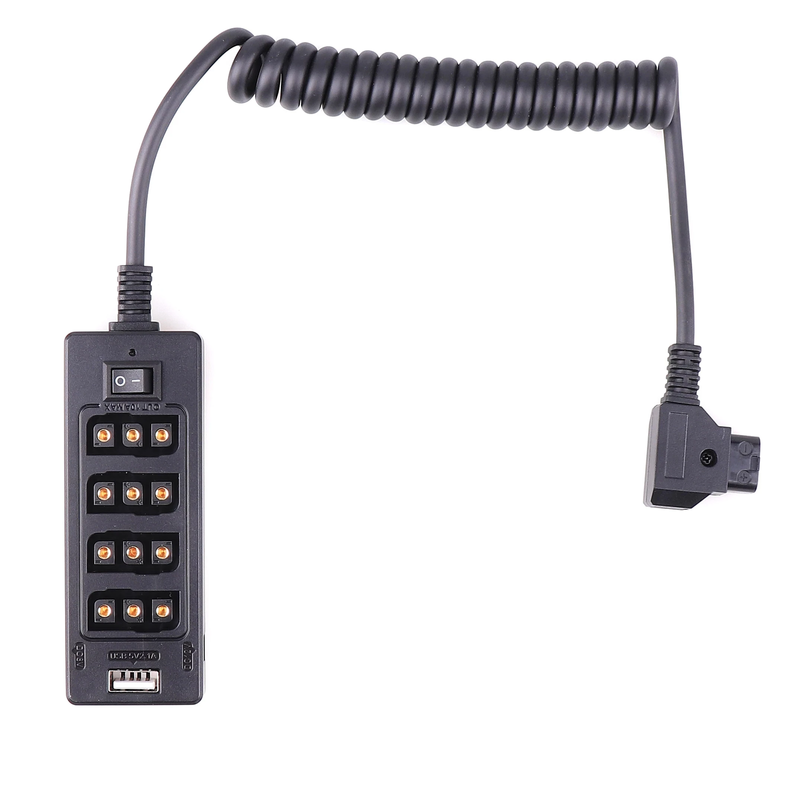

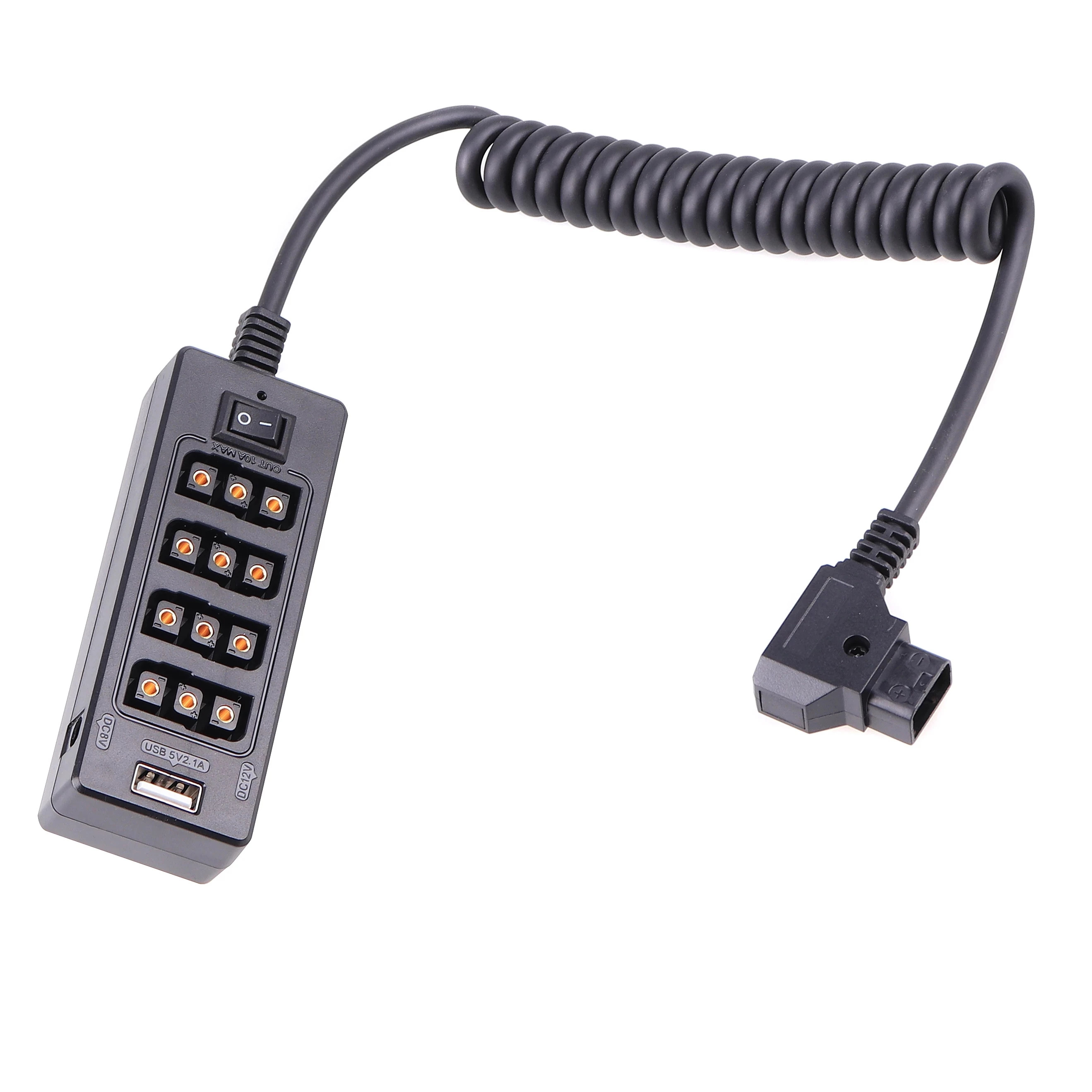

The D-Tap B Type Male to Female Cable Splitter Hub allows you to power up to four D-Tap plug accessories. It is perfect to supply power to multiple receivers, cameras, camcorders, Led lights, EVF, monitors or on-board monitors, from a v-mount / Anton / Bauer battery source.

With extra 2 DC (8V and 12V) output,and a USB 5V-2.1A output, can also supply power for cell phones or other devices.

D-TAP B-type sockets hub adopts the updated design, with anti-reversal insertion function, which can be used on the left and right side at the same time without affecting the limitation of the power line, convenient in operation, and safe and reliable in use.

Independent power on/off control; LED indicator; with 2pcs of 1/4" screw mounting holes at the bottom for easy installation.

Specification:

Model: WY-4D-TAP

Plug A: D-tap Male Connector

Plug B: 4-Port D-tap Female Connector and 1-Port USB Connector

Cable Length: 30cm, max. stretched up to 100cm

Material: ABS+PVC

Max work current: 10 amp max total

Input voltage: 10-17V

D-TAP output voltage: 10-17V

DC output voltage:8V/3A,`1V/2A

Output voltage;: USB 5V/2.1A max

Output power: 80W (max.)

Color: Black

Package Includes:

1 x D-Tap B Type to 4-Port Female Cable Splitter Hub
